Commercial

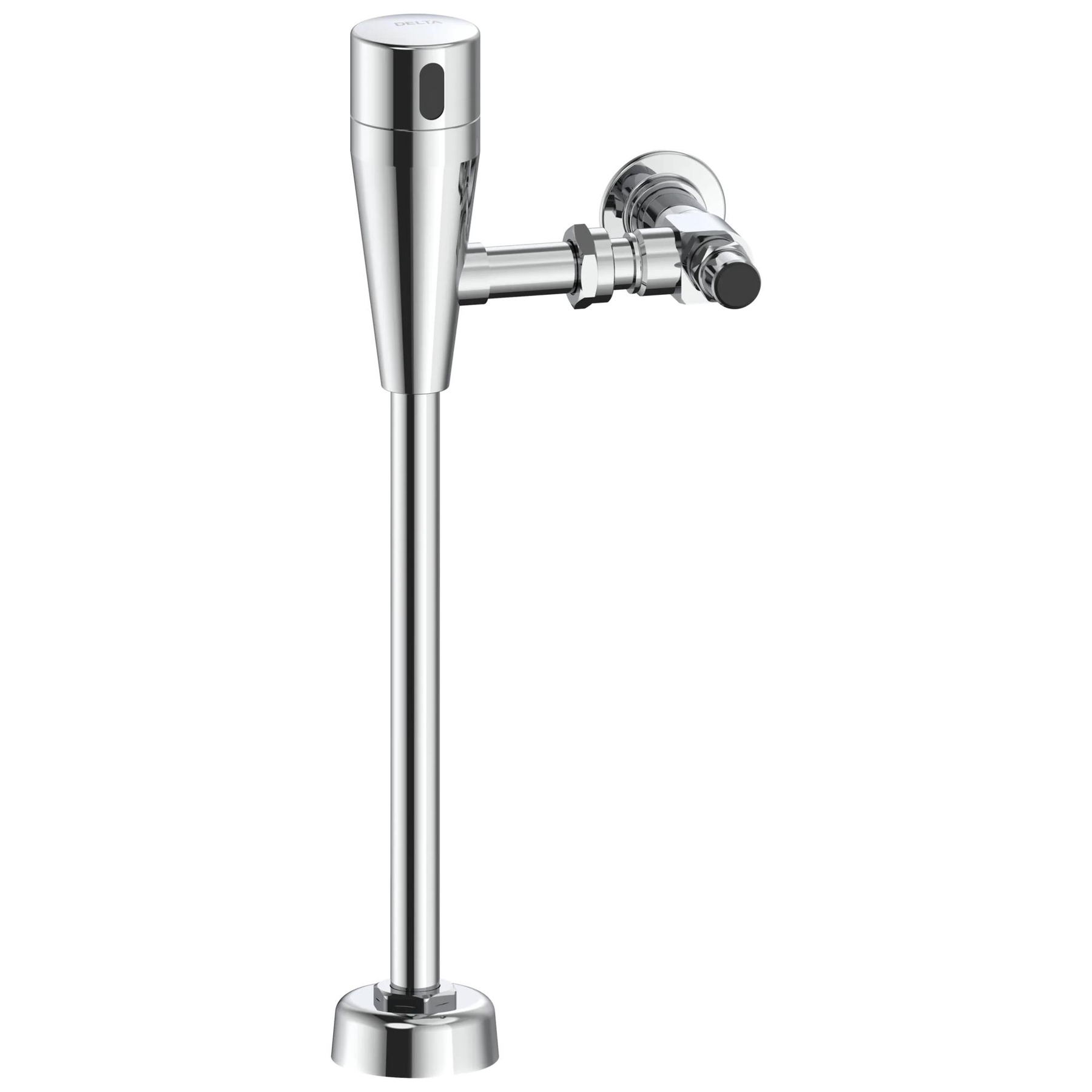

Electronic Washdown Urinal Valve without Vacuum Breaker in Chrome
Model#:
DEMD-86505
Image Thumbnail, click to view zoomed product image
PRODUCT FEATURES
- Electronic flush valve for 3/4" IP spud washdown urinals
- Polished chrome-plated finish
- Solid brass construction
- Less vacuum breaker
- Range field adjustable from 12" to 23"
- Low battery level indicator
- Factory set flow rate, field adjustable ONLY with remote control
- Optional remote control sold separately (060967A)
- Installation Warning: Model shown must be installed on a fixture providing sufficient air gap protection against backflow
Special Information
California Prop 65 WARNING
CALIFORNIA PROP 65 WARNING
<b>WARNING: </b>Risk of cancer and reproductive harm from exposure to Lead. See www.P65Warnings.ca.gov.
For more information go to http://www.P65Warnings.ca.gov
Technology and Special Features
ADA Compliant
ADA Compliant
Some people, and some local codes, require fixtures that are compliant with the Americans with Disabilities Act. If someone may visit who has special needs, or if you believe future buyers might appreciate this feature, Delta offers a range of compliant fixtures.
Special Information
California Prop 65 WARNING
CALIFORNIA PROP 65 WARNING
<b>WARNING: </b>Risk of cancer and reproductive harm from exposure to Lead. See www.P65Warnings.ca.gov.
For more information go to http://www.P65Warnings.ca.gov
Documents & Specs
Product Support, Repair Parts & Technical Specifications
Installation Information
Flow Rate :
0.5 gpm @ 60 psi, 1.9 L/min @ 414 kPa
Fixture Type:
3/4" top spud
Flush Volume:
0.5 gpf (1.9 Lpf)
Installation:
Exposed
Valve Type:
Electronic
