Delta®

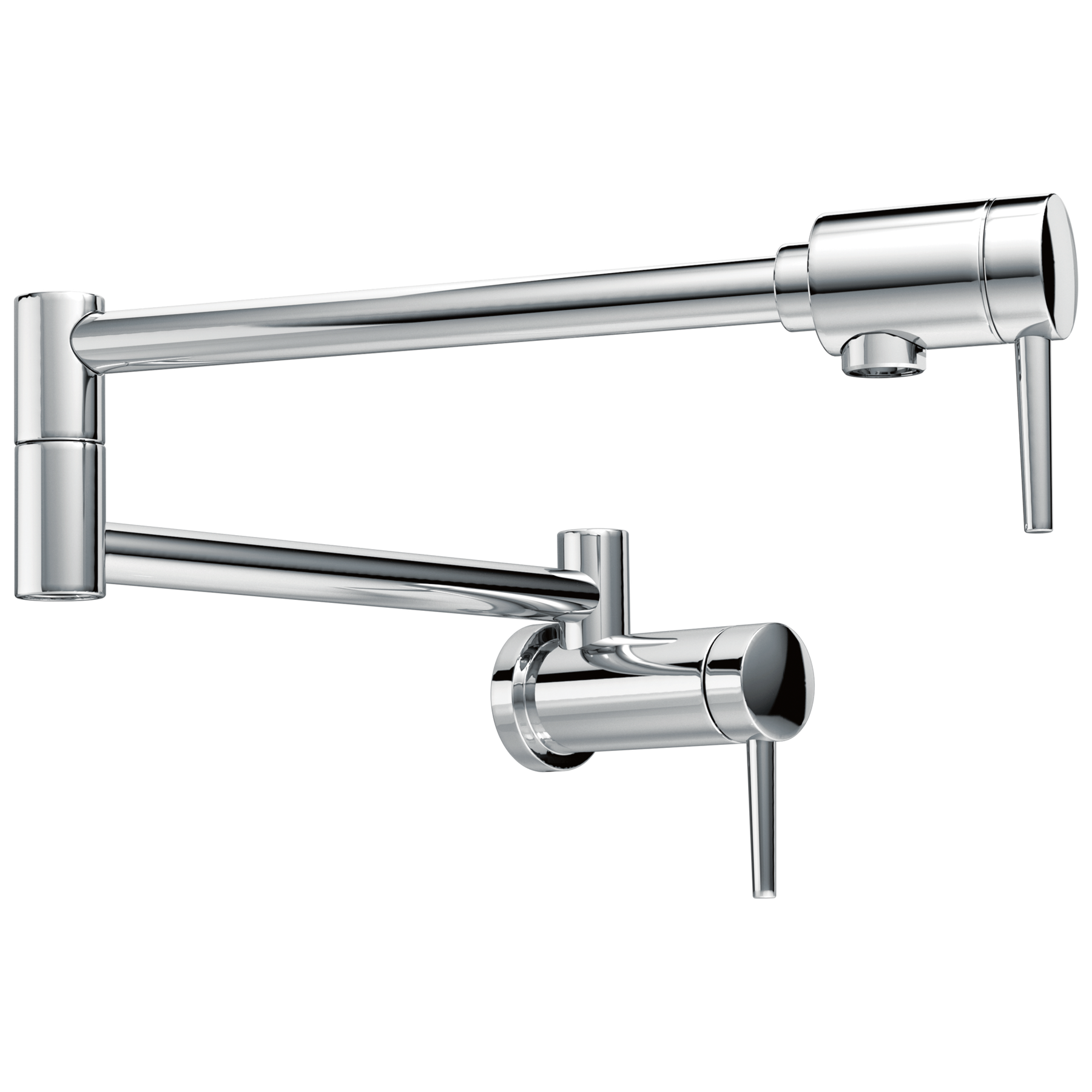

Contemporary Wall Mount Pot Filler
Model#: 1165LF
Finish: Chrome
List Price*: $505.30
PRODUCT FEATURES
Filling pots on the stove has never been easier or more affordable, thanks to the new Delta Pot Filler faucet. Very competitively priced, the ADA compliant Pot Filler features a wall-mount, dual swing joint design with dual shut off valves and a 4 gpm flow rate to fill large pots in no time. A pot filler makes it easy to fill large cooking vessels quickly and without the walk from sink to stove.

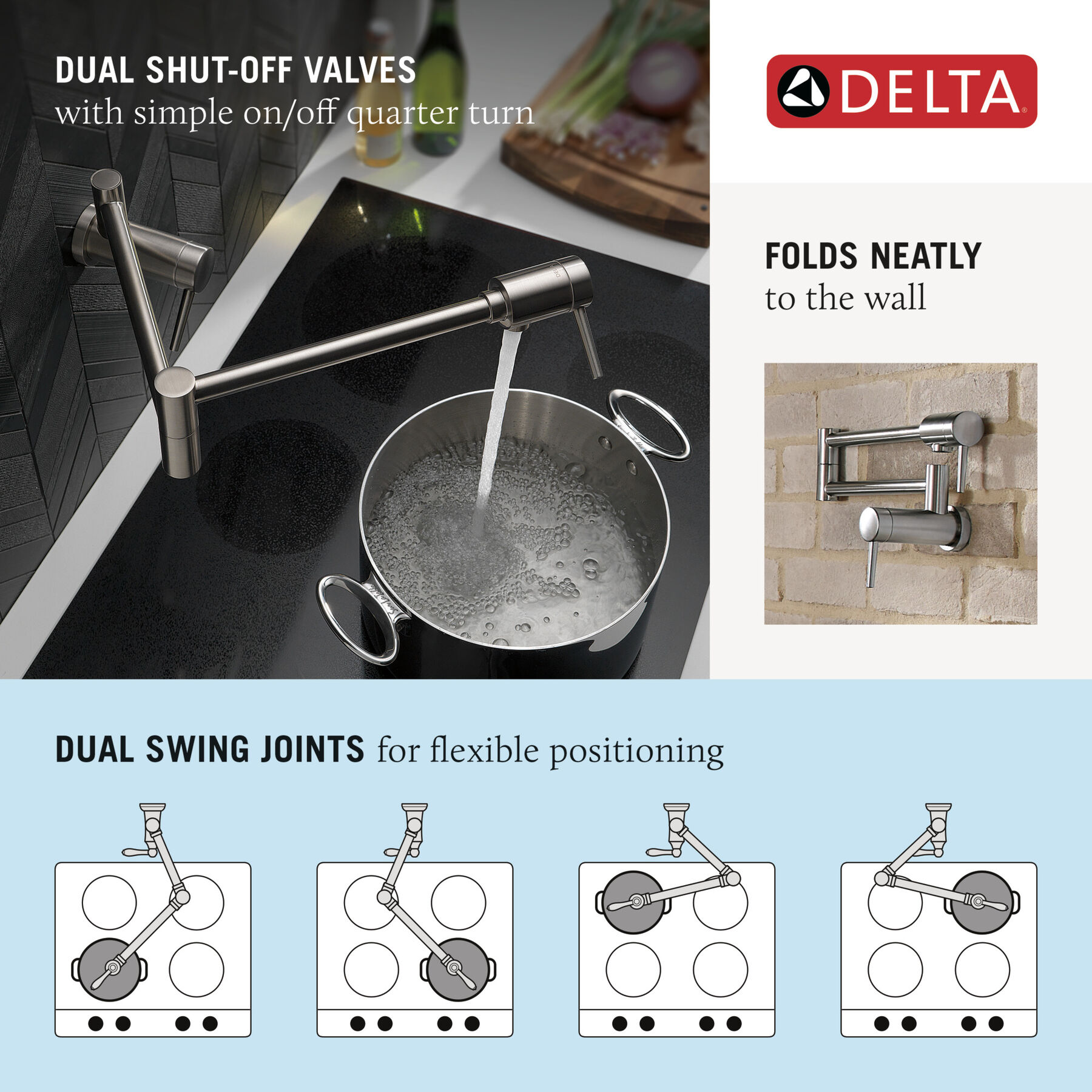

  • Dual shut off on the Delta Pot Filler faucet allows the user to turn the water off at either the wall or the spout, controlling the water flow at the point of use
  • 24 in. dual swing joints allow the pot filler to easily fold away when not in use
  • Simple on and off with a quarter turn of the handle
  • Simple on and off with a quarter turn of the handle
  • Meets standards set by Americans with Disabilities Act (ADA)
  • Single hole installation
  • Assembled dimensions: 8-1/8 in. H x 21-9/16 in. D x 2-1/8 in. W
  • 4 gallons per minute for quick fills
  • Two swing joints
  • Backed by Delta Faucet’s Lifetime Limited Warranty
Special Features
ADA Compliant
ADA Compliant
No-Lead Compliant
No-Lead Compliant
SUPPORT

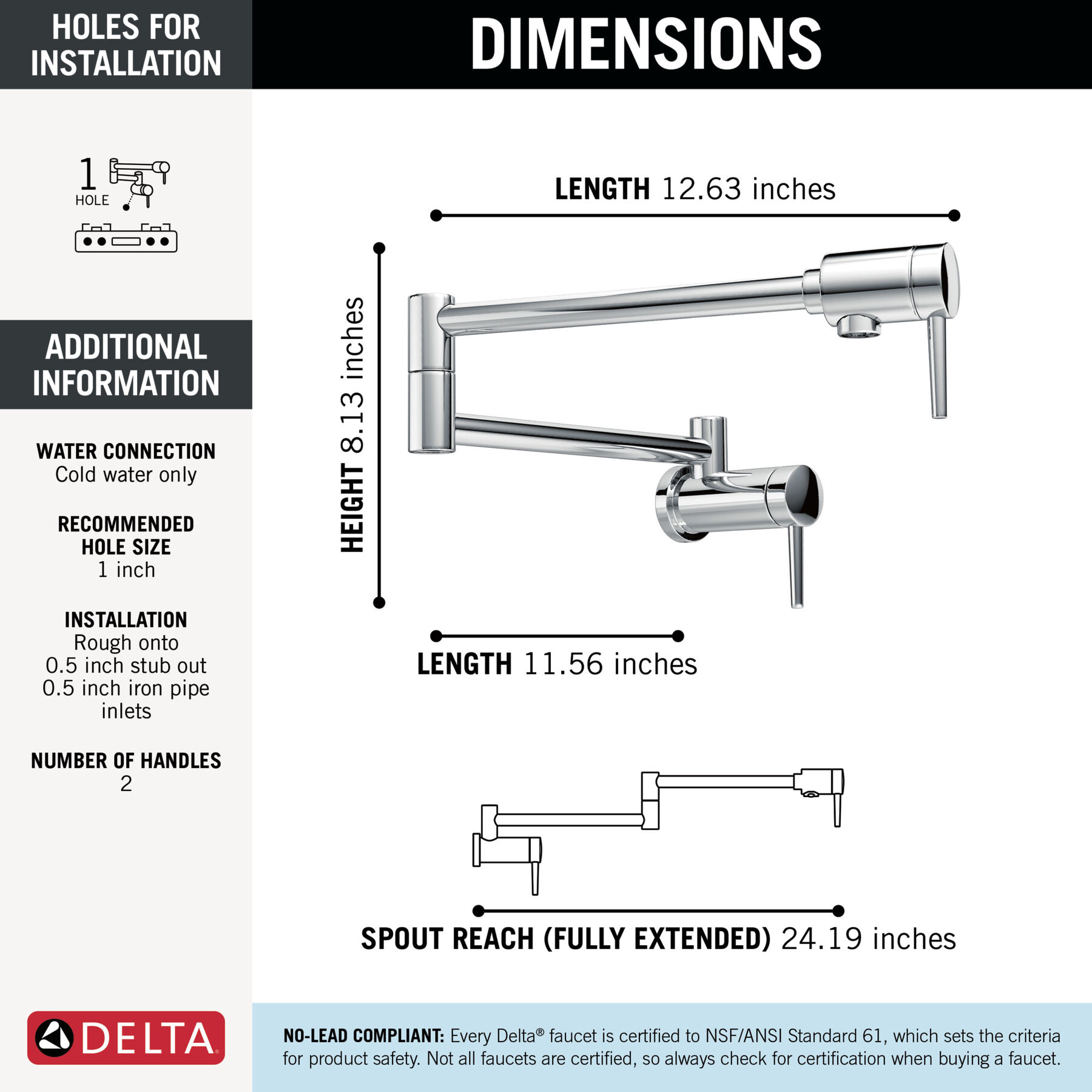

Installation Information
Single hole wall mount installation
Spout Height :
8-1/8
Over All Height :
8-1/8
Connection Type :
1/2" IPS connection
Over All Length :
21-9/16
Supply Lines :
Not Included
Spout Length :
21-9/16
PART LIST
REVIEWS
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 7ms
  • reviews, product
  • bvseo-msg: Unsuccessful GET. status = 'ERROR', msg = 'Not Found.'; Unsuccessful GET. status = 'ERROR', msg = 'Not Found.';
Q&A

Does this pot filler (1165LF-SS) require a valve body within the wall and, if so, what is the model number(s)?

Need to install pot filler in a new house still under construction. Does this pot filler need a valve body within the wall similar to tub/shower valve bodies? If there is one, does it come with it or does it need to be ordered separately? Also, what is the model# of the valve body?
Asked by: Rob
Hi Rob, Thank you for your question! This unit will included everything needed for the installation. It connects directly to a 1/2" IPS supply pipe. Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2016-11-30

Can I have a manual or instructions on how to leave the preparation in the wall?

Asked by: Juan Camou
Dear Juan Camou, Thank you for your question. Below, I have attached the Maintenance/Installation Owner's Manual and Technical Specification documents for the Delta Wall Mount Pot Filler 1165LF. https://media.deltafaucet.com/MandI/86362%20Rev%20A.pdf https://media.deltafaucet.com/SpecSheet/DSP-K-1165LF%20Rev%20C.pdf Best regards, Tanya
Answered by: Tanya
Date published: 2017-10-04

How do I change out the handle and valve cartridge on the 1st valve? “Closest one to the water inlet.” Is there how to videos somewhere on this? There is nothing on YouTube.

Asked by: Darren
Hi, Darren! Thank you for your question. To change the valve cartridge assembly for the Delta 1165LF Pot Filler, first remove the handle assembly. Once the handle is removed, remove the screw and base with a Philip's screwdriver. The valve cartridge assembly can then be pulled straight out and a new one can be reinstalled. Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2018-12-01

Can you explain how the Pot Filler handles rotate? Clockwise? Counter-clockwise?

Asked by: Christine
Hi, Christine! Thank you for your question. The Delta 1165LF Pot filler is double jointed and both joints will turn right and left. Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2018-12-15

Cold or Hot Water Supply

the instructions say it must be cold water supply, but I have hot water running above the stove. Why is hot water not recommended?
Asked by: Joe
Dear Joe, Thank your for your question! We do not recommend using hot water for the Delta Wall Mount Pot Filler 1165LF, for safety protection reasons. Best regards, Tanya
Answered by: Tanya
Date published: 2017-06-26

Do you have a deck mounted pot filler available?? kitchen

Asked by: Duts
Hello Duts, Thank you for your question. Delta only manufactures the Wall Mounted Pot Fillers 1165LF and 1177LF models. These units can not be deck mounted. Best regards, Tanya
Answered by: Delta Faucet
Date published: 2018-08-05

When this is folded in what is the measurement from the wall to the front of the filler? We want to put it in a cabinet.

Asked by: Teresa
Dear Teresa, Thank you for your question. The Delta Wall Mount Pot Filler Faucet 1165LF, when folded up, it has a 1 1/2" measurement from the wall to the front of the widest part of the end where the water comes out. The measurement from the handle to the wall is 4 3/4". Best regards, Tanya
Answered by: Tanya
Date published: 2016-10-05

Can this faucet be deck mounted?

Asked by: KJ-NewOrleans
Hi, kJ-NewOlreans! Thank you for your question. The faucet cannot be deck mounted. This faucet, 1165LF, can only be mounted to the wall. Best Regards, Rosanna
Answered by: Rosanna
Date published: 2017-05-18
