Delta®
Contemporary Wall Mount Pot Filler in Chrome
Model#:
1165LF
Image Thumbnail, click to view zoomed product image
null
null
null
null
null
null
null
null
null
null
null
PRODUCT FEATURES

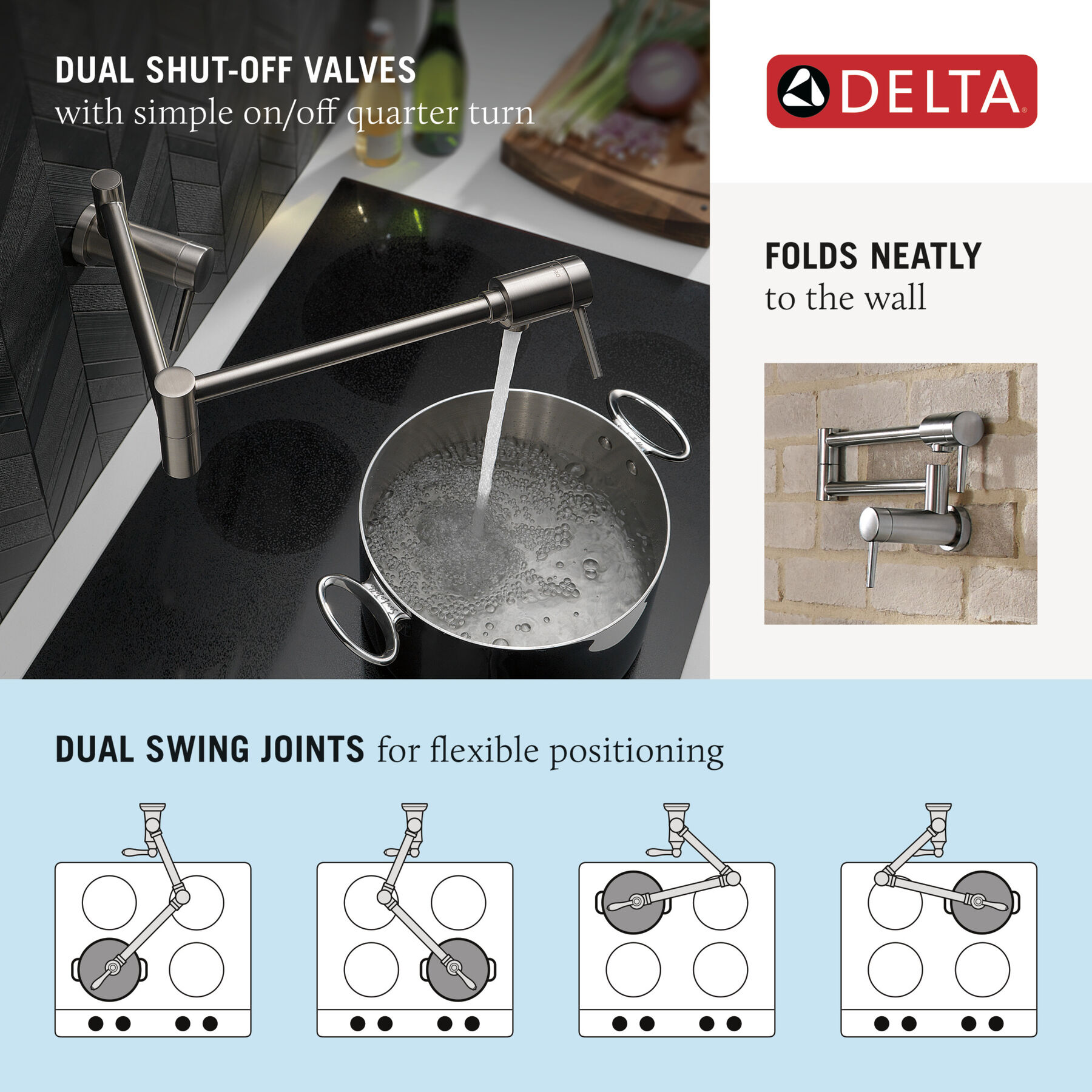

Filling pots on the stove has never been easier or more affordable, thanks to the new Delta Pot Filler faucet. Very competitively priced, the ADA compliant Pot Filler features a wall-mount, dual swing joint design with dual shut off valves and a 4 gpm flow rate to fill large pots in no time. A pot filler makes it easy to fill large cooking vessels quickly and without the walk from sink to stove.
- LEAD-FREE COMPLIANT: Not all faucets are certified to necessary safety standards. Delta goes above and beyond with product testing and quality to ensure each faucet meets plumbing safety standards, including NSF/ANSI 61 and 372.
- Dual shut off on the Delta Pot Filler faucet allows the user to turn the water off at either the wall or the spout, controlling the water flow at the point of use
- 24 in. dual swing joints allow the pot filler to easily fold away when not in use
- Simple on and off with a quarter turn of the handle
- Simple on and off with a quarter turn of the handle
- Meets standards set by Americans with Disabilities Act (ADA)
- Single hole installation
- Assembled dimensions: 8-1/8 in. H x 21-9/16 in. D x 2-1/8 in. W
Special Information
California Prop 65 WARNING
CALIFORNIA PROP 65 WARNING
<b>WARNING: </b>Risk of cancer and reproductive harm from exposure to Lead. See www.P65Warnings.ca.gov.
For more information go to http://www.P65Warnings.ca.gov
Technology and Special Features
ADA Compliant
ADA Compliant
Some people, and some local codes, require fixtures that are compliant with the Americans with Disabilities Act. If someone may visit who has special needs, or if you believe future buyers might appreciate this feature, Delta offers a range of compliant fixtures.
No-Lead Compliant
No-Lead Compliant
Tested and certified to NSF/ANSI Standard 61, which sets the criteria for product safety. The lined waterways in Delta® faucets help prevent leaching of metals.
Special Information
California Prop 65 WARNING
CALIFORNIA PROP 65 WARNING
<b>WARNING: </b>Risk of cancer and reproductive harm from exposure to Lead. See www.P65Warnings.ca.gov.
For more information go to http://www.P65Warnings.ca.gov
Documents & Specs
Product Support, Repair Parts & Technical Specifications
Installation Information
Single hole wall mount installation
Connection Type :
1/2" IPS connection
Overall Length :
21-9/16
Flow Rate :
4.0 gpm @ 60 psi, 15.1 L/min @ 414 kPa
Overall Height (in.) :
8-1/8
Valve Type:
Ceramic valve
INSTALLATION SUPPORT
Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.
Need help with installation? Mike & Hannah are here to help! Get advice from the pros on everything from installation to product care.
REVIEWS
Rated 2 out of
5
by
WaKrisH from
Beautiful but, alignment is not good
I was very excited to install this in my dream kitchen that I spent years designing. We spared no expense in this kitchen and we really liked the delta contemporary line of fixtures. My issue is that when the pot filler is retracted the spout does not line up with the body. I know this is a "first world, rich person problem"... I get it... but for what this pot filler cost, I expected a better designed product with more symmetry.
Date published: 2025-12-27
Rated 5 out of
5
by
ElyseW from
Beautiful chrome!
I got this beautiful 24” chrome pot filler for my new construction build! It will be the perfect addition to my kitchen and help me fill pots quickly and without having to move large basins of water! Unfortunately, my build is behind and I was unable to get a photo. I will update as soon as we install it!
Date published: 2025-11-28
Rated 5 out of
5
by
laurad661_8142 from
I LOVE IT! it’s exactly what I wanted.
This is what I’ve been dreaming of. I cook A LOT. It’s so functional, beautifully designed and really high quality. It’s also very easy to clean. I’m over the moon with it! I’ve always wanted a pot filler and now I have one and it’s beautiful!
Date published: 2025-11-26
Rated 5 out of
5
by
nolic1_7922 from
Pot filler
Easy installation and beautiful design. Small maintenance of cleaning. Very durable and functions well for easy use. I use it daily for pot filling
Date published: 2025-10-15
Rated 5 out of
5
by
Alissa I from
Stylish Upgrade That’s Actually Practical
I finally splurged on the Delta 1165LF pot filler and I’m so glad I did. The design is sleek and modern, and it instantly gave my kitchen that “high-end” look I was hoping for. It feels really solid and well-built — not flimsy at all.
Functionally, it’s a game changer. The dual arms reach across my stove easily and fold back neatly against the wall when not in use. The water flow is strong, so filling a big stockpot takes no time at all. No more lugging heavy pots from the sink to the cooktop, which I really appreciate.
Installation was a bit of a project since the plumbing had to be set in the wall, but once it was in, everything has worked perfectly. The only thing I noticed was a little discoloration in the water the very first time I used it (which flushed right out), and it hasn’t happened since.
Overall, it’s beautiful, practical, and makes cooking so much easier. Yes, it’s a bit of an investment, but if you cook often with large pots, it’s absolutely worth
Date published: 2025-09-15
Rated 5 out of
5
by
aprilt007_4316 from
Love my wall pot filler.
I received my Delta Contemporary Wall Mount Pot Filler and it came with all the required attachments for easy installation. Instead of having to take your pot to the sink to fill you can do it right on the stove with its dual swing arm and its dual shut off valve. Simple on/off with a quarter turn and allows for easy folding against the wall so it’s not in the way when you cook. I love the chrome look. Add a bit of extra to put new kitchen. I didn’t get pictures after installing but it’s an easy one hole installation process and is highly recommended. I’m in love. The design looks a perfect for our home and convenience is a plus. No maintenance other than cleaning the pot filler and the spout.
Date published: 2025-08-21
Rated 5 out of
5
by
cynfluenster_2419 from
Love it
This has a beautiful design, was super easy to install, and it is incredibly durable, as delta usually is! It has great water flow and is so easy to use and keep clean!
Date published: 2025-08-20
Rated 5 out of
5
by
CyndiG from
Quality item
Great product, easy to install per our contractor, sturdy, good water pressure and nice looking
Date published: 2025-07-19
Q&A
Does this pot filler (1165LF-SS) require a valve body within the wall and, if so, what is the model number(s)?
Need to install pot filler in a new house still under construction. Does this pot filler need a valve body within the wall similar to tub/shower valve bodies? If there is one, does it come with it or does it need to be ordered separately? Also, what is the model# of the valve body?
Hi Rob,
Thank you for your question! This unit will included everything needed for the installation. It connects directly to a 1/2" IPS supply pipe.
Best regards,
Jon
Date published: 2016-11-30
Can I have a manual or instructions on how to leave the preparation in the wall?
Dear Juan Camou,
Thank you for your question. Below, I have attached the Maintenance/Installation Owner's Manual and Technical Specification documents for the Delta Wall Mount Pot Filler 1165LF.
https://media.deltafaucet.com/MandI/86362%20Rev%20A.pdf
https://media.deltafaucet.com/SpecSheet/DSP-K-1165LF%20Rev%20C.pdf
Best regards,
Tanya
Date published: 2017-10-04
How do I change out the handle and valve cartridge on the 1st valve? “Closest one to the water inlet.” Is there how to videos somewhere on this? There is nothing on YouTube.
I received a replacement cartridge and handle for my leaking pot filler 1165LF. Unfortunately no instructions are included. While searching for how to replace the cartridge I found conflicting and confusing instructions. It would be great if clear instructions and even a video link came with the parts. Step 1 is to unscrew the round cylinder handle piece from the circular handle piece attached to the the pot filler faucet (there are two handles, so this is for whichever cartridge behind the handle needs to be replaced). Then use a hex screw bit to unscrew and remove the circular handle piece. Now you can continue be removed the cartridge screw and the cartridge. Key thing to note from other posts I found regarding this is you cannot just pull handle off. It is screwed into the faucet arm which the above steps handle (no pun intended)
Date published: 2025-01-25
Can you explain how the Pot Filler handles rotate? Clockwise? Counter-clockwise?
Hi, Christine!
Thank you for your question. The Delta 1165LF Pot filler is double jointed and both joints will turn right and left.
Best Regards,
Rosanna
Date published: 2024-03-28
Cold or Hot Water Supply
the instructions say it must be cold water supply, but I have hot water running above the stove. Why is hot water not recommended?
Dear Joe,
Thank your for your question! We do not recommend using hot water for the Delta Wall Mount Pot Filler 1165LF, for safety protection reasons.
Best regards,
Tanya
Date published: 2017-06-26
Do you have a deck mounted pot filler available?? kitchen
Hello Duts,
Thank you for your question. Delta only manufactures the Wall Mounted Pot Fillers 1165LF and 1177LF models. These units can not be deck mounted.
Best regards,
Tanya
Date published: 2024-03-28
When this is folded in what is the measurement from the wall to the front of the filler? We want to put it in a cabinet.
Dear Teresa,
Thank you for your question. The Delta Wall Mount Pot Filler Faucet 1165LF, when folded up, it has a 1 1/2" measurement from the wall to the front of the widest part of the end where the water comes out. The measurement from the handle to the wall is 4 3/4".
Best regards,
Tanya
Date published: 2016-10-05
Can this faucet be deck mounted?
Hi, kJ-NewOlreans!
Thank you for your question. The faucet cannot be deck mounted. This faucet, 1165LF, can only be mounted to the wall.
Best Regards,
Rosanna
Date published: 2017-05-18
