Delta®

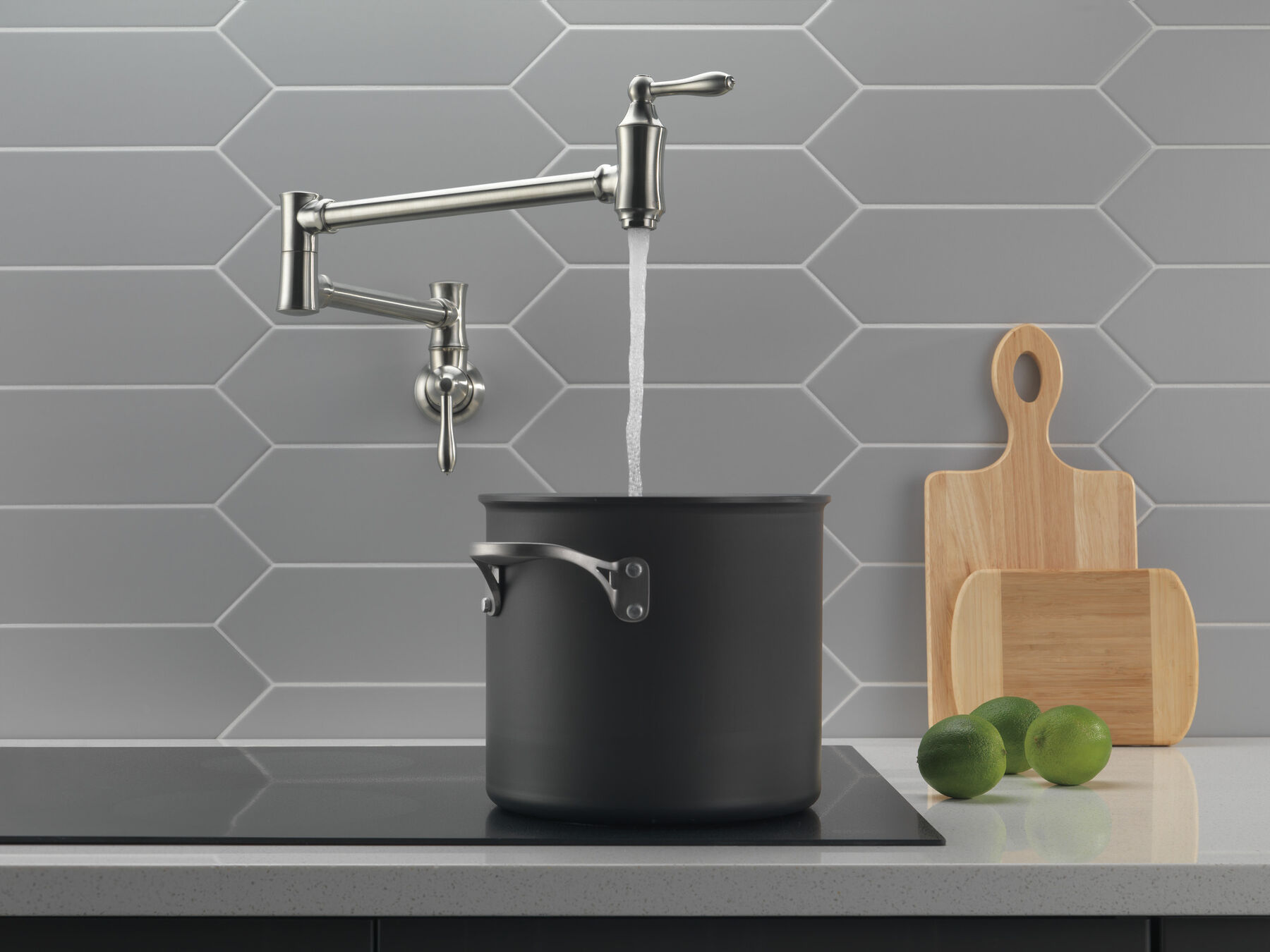

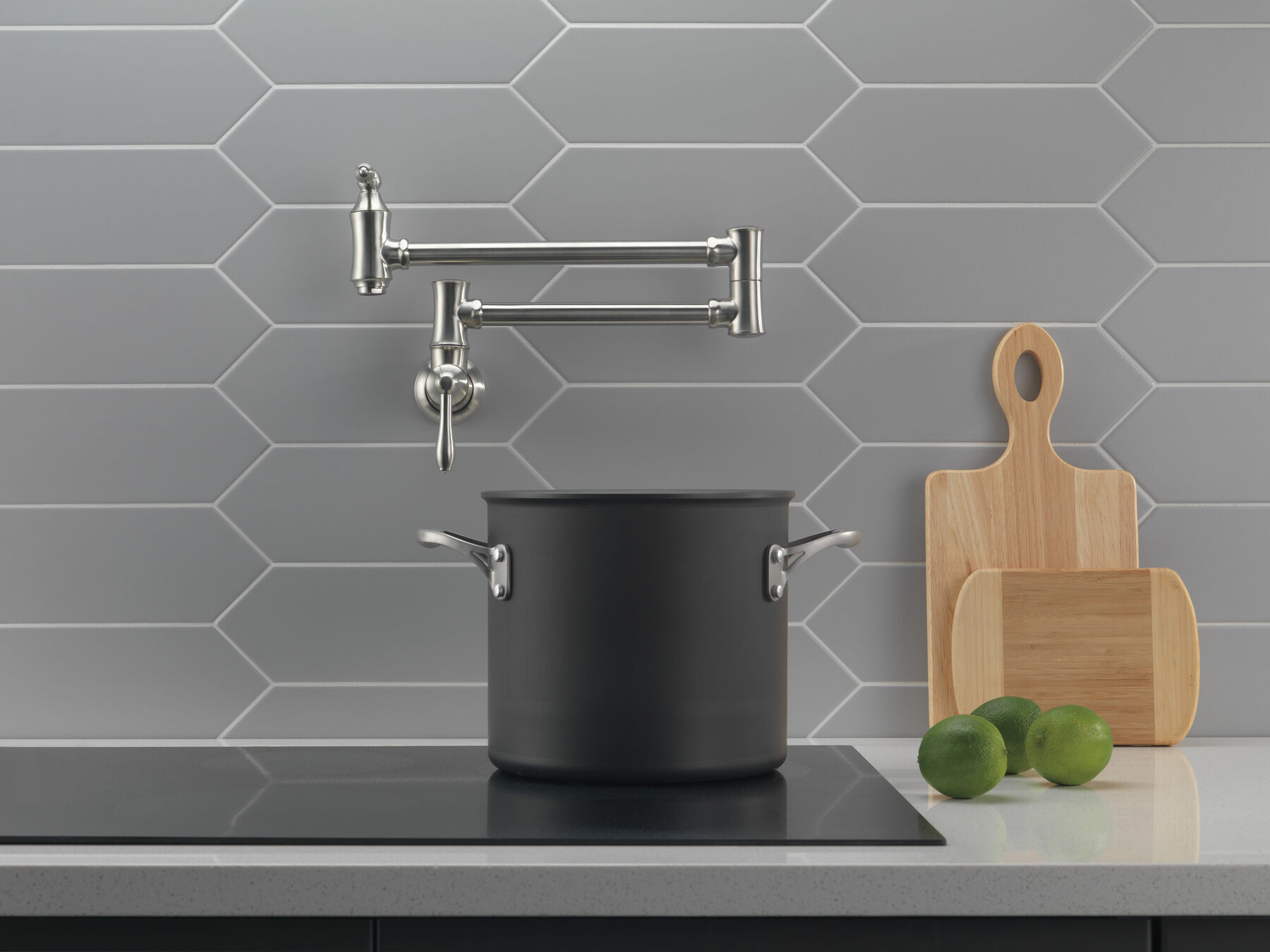

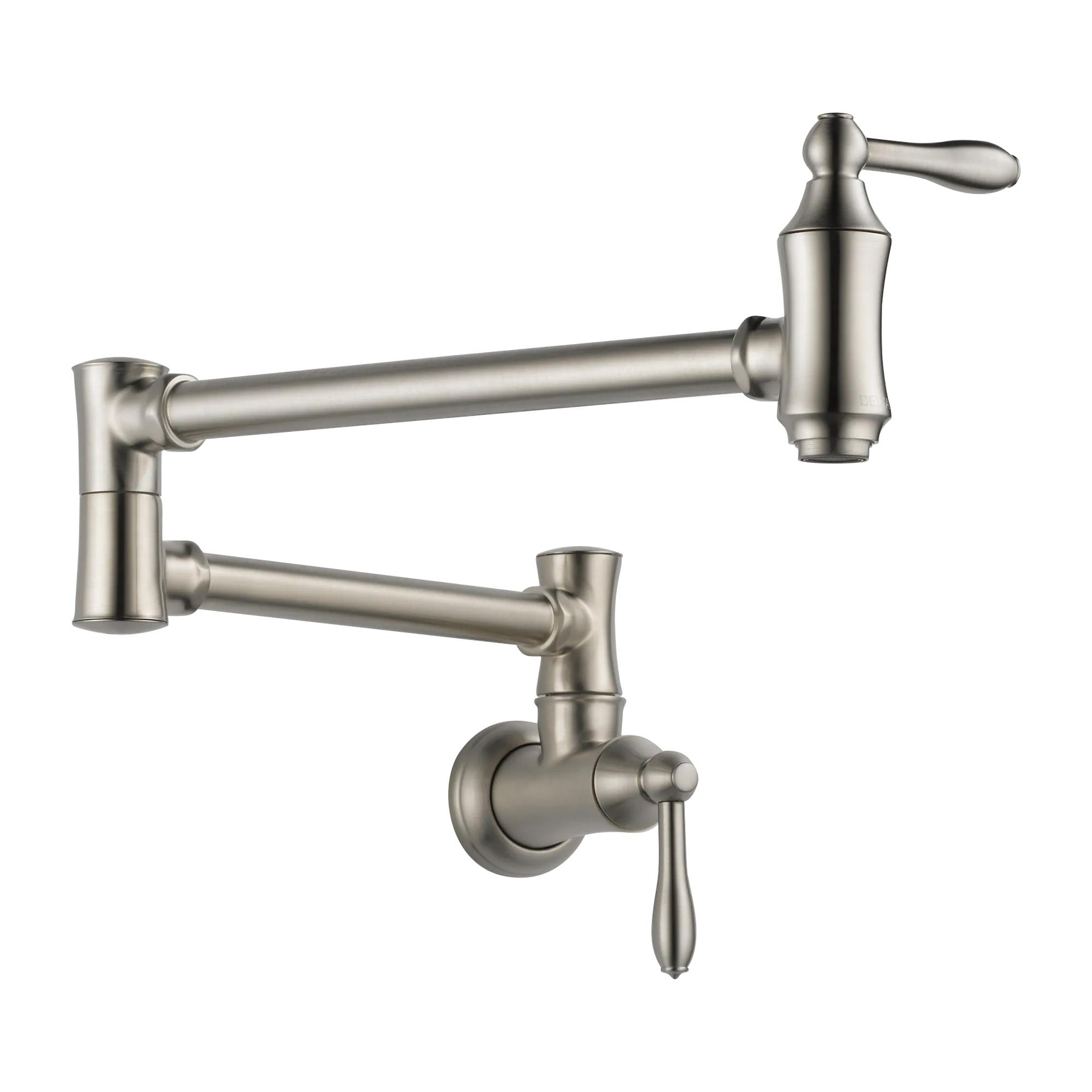

Traditional Wall Mount Pot Filler in Stainless
Model#:
1177LF-SS
PRODUCT FEATURES
Filling pots on the stove has never been easier or more affordable, thanks to the new Delta Pot Filler faucet. Very competitively priced, the ADA compliant Pot Filler features a wall-mount, dual swing joint design with dual shut off valves and a 4 gpm flow rate to fill large pots in no time. A pot filler makes it easy to fill large cooking vessels quickly and without the walk from sink to stove.
- Dual shut off on the Delta Pot Filler faucet allows the user to turn the water off at either the wall or the spout, controlling the water flow at the point of use
- 24 in. dual swing joints allow the pot filler to easily fold away when not in use
- Simple on and off with a quarter turn of the handle
- Simple on and off with a quarter turn of the handle
- Meets standards set by Americans with Disabilities Act (ADA)
- Single hole installation

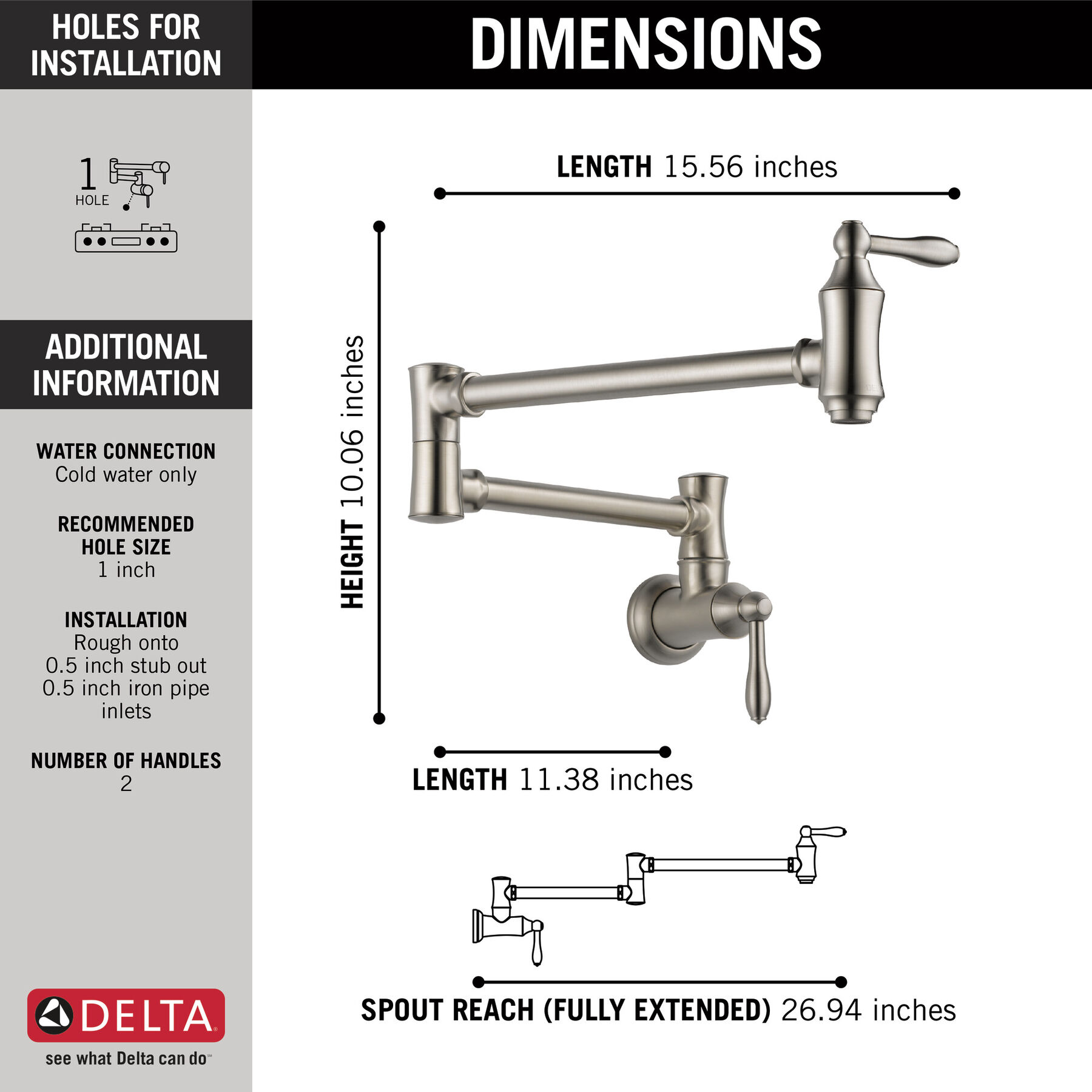

- Assembled dimensions: 8-17/32 in. H x 26-31/32 in. D x 2-3/8 in. W
Special Information
California Prop 65 WARNING
CALIFORNIA PROP 65 WARNING
<b>WARNING: </b>Risk of cancer and reproductive harm from exposure to Lead. See www.P65Warnings.ca.gov.
For more information go to http://www.P65Warnings.ca.gov
Technology and Special Features
ADA Compliant
ADA Compliant
Some people, and some local codes, require fixtures that are compliant with the Americans with Disabilities Act. If someone may visit who has special needs, or if you believe future buyers might appreciate this feature, Delta offers a range of compliant fixtures.
No-Lead Compliant
No-Lead Compliant
Tested and certified to NSF/ANSI Standard 61, which sets the criteria for product safety. The lined waterways in Delta® faucets help prevent leaching of metals.
Brilliance® Finish
Brilliance® Finish
Many Delta products are made with Brilliance® finishes, which resist abrasions and discolorations better than traditional brass or even chrome.
Special Information
California Prop 65 WARNING
CALIFORNIA PROP 65 WARNING
<b>WARNING: </b>Risk of cancer and reproductive harm from exposure to Lead. See www.P65Warnings.ca.gov.
For more information go to http://www.P65Warnings.ca.gov
Documents & Specs
Product Support, Repair Parts & Technical Specifications
Installation Information

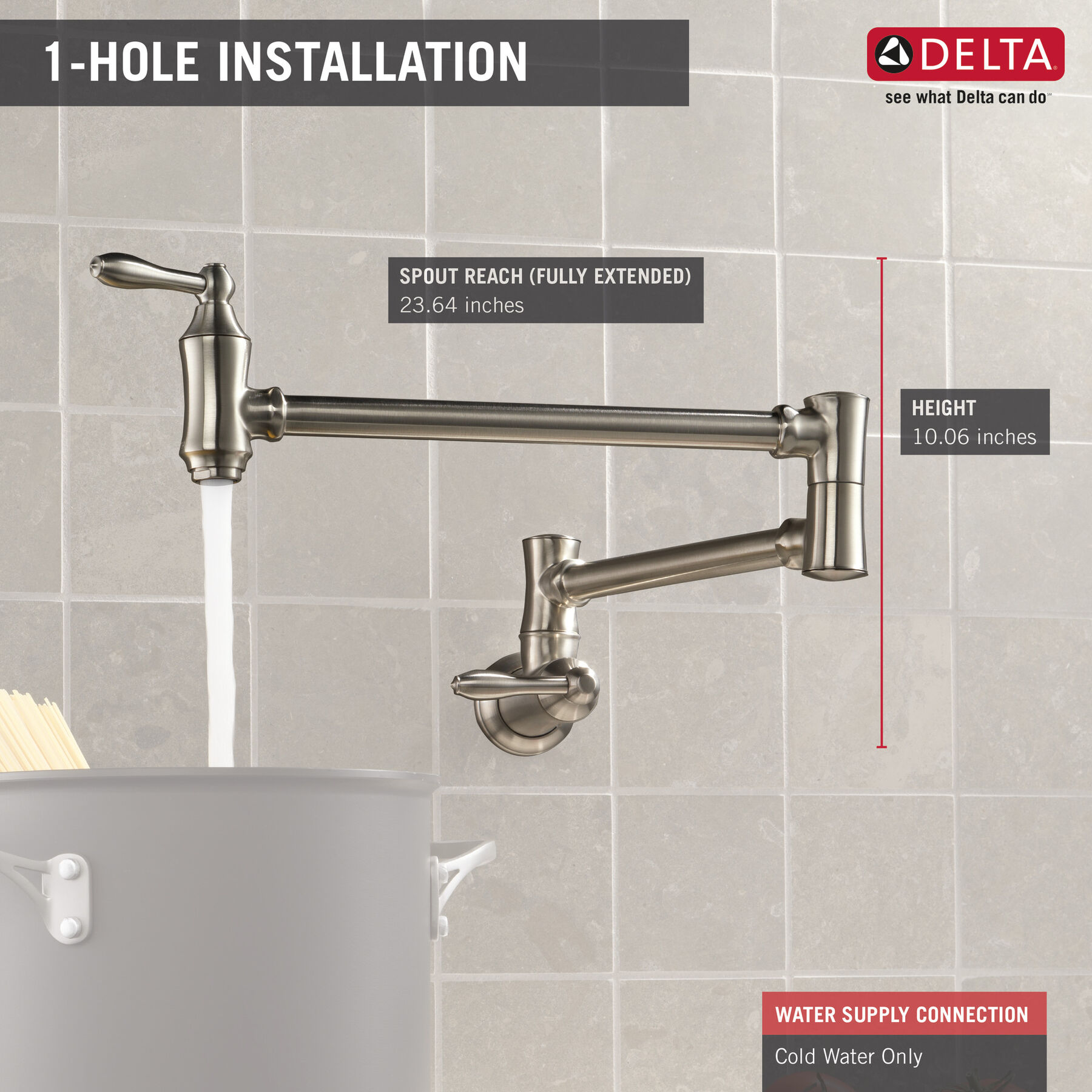

Single hole wall mount installation
Connection Type :
1/2" IPS connection
Flow Rate :
4.0 gpm @ 60 psi, 15.1 L/min @ 414 kPa
Overall Height (in.) :
8-17/32
Valve Type:
Ceramic valve
INSTALLATION SUPPORT
Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.
REVIEWS
Rated 5 out of
5
by
BigT59 from
Love the way it swings so freely and perfect for our needs
Date published: 2026-03-30
Rated 5 out of
5
by
Sylvia R from
Pot filler
I. I am enjoying the pot filler. Easy to use. Water pressure is steady.
Date published: 2025-12-01
Rated 5 out of
5
by
Deltapotfillerrepair from
Repair leaking swivel.
Pot filler repair. Leaking at the swivel. Three, #80 rubber O-rings. Use allen key to remove two screws on the wall plate. Turn potfiller counter clock wise to remove from wall. On the bottom of the swivel, there is a decorative plate that can be removed. Once removed, there is an allen bolt. I think it’s 1/4” allen wrench. It’s very tight. I had to use a vice to turn the bolt. Once loosened, you can pop out the stem and there are 3 rubber o-rings. Replace those with #80 size o-ring. Make sure to use pipe tape on the wall plate when installing back.
Date published: 2025-10-05
Rated 5 out of
5
by
Frustrated from
Replacement o-ring size for swing arm in review.
Love my pot filler 1177LF ! Delta however does not offer replacement o-rings when it started leaking but I found what I needed and repaired it. I disassembled my leaky pot filler and measured the o-rings in the arm joints where it was leaking with a micrometer. There are three o-rings per swivel joint. Based on my measurements I ordered Rubber O-Rings size 20mm OD - 14mm ID and 3mm Width from AMZ. You need six but order extra if you damage one during install. The replacement was easy. Turn off the water at the valve closest to the wall. Open the valve at the end to drain any water. Pop off the decretive caps and using a proper size allen (hex) wrench unscrew the connection at the wall valve first. Remove the pot filler. Unscrew the second joint. Remove the old o-ring that is closest to the threads on the brass insert first. Then remove / unscrew the insert completely. You may need to gently push it out with a wooden dowel and rubber mallet. Remove the last two o-rings from each insert. Clean any mineral buildup from ALL parts. I used white vinegar. Dry then lube ALL parts with a small amount food grade silicone grease before and after installing the o-rings to assist with assembly and o-ring wear. Replace just the first two o-rings farthest away from the threads first. Install the inserts back into the pot filler arms. It will be a tight fit. This is where the silicone lube and rubber mallet if needed come in handy. Use a wooden block or socket so you do not damage the brass threads when pushing the inserts through and out the other side. I also slowly twisted the insert with the hex wrench while pushing back in to prevent o-ring damage. Once they are all the way through add the last o-ring. If you try to put all three o-rings on first you will damage the o-ring closest to the threads while pushing the insert back in. Re attach the filler swivel arms pieces first and then the filler back to the wall valve. Tighten securely but do not over tighten. Check for leaks by shutting off the outer valve and turning on the wall valve. Retighten with hex wrench as needed. No leaks? Replace the beauty caps and run the water in a large pot to flush out any excess grease. After replacing the o-rings my pot filler was a bit stiff to move but no longer leaks! :)
Date published: 2025-07-08
Rated 5 out of
5
by
JP Fix It LLC from
My Customer Was Thrilled
My customer was thrilled with the look, feel and performance of this pot filler.
Date published: 2024-07-30
Rated 1 out of
5
by
Danny from
Leaks
We have only had this pot filler for a few years and it leaks from multiple spots.
Date published: 2024-04-14
Rated 5 out of
5
by
Redecor friend from
Gorgeous and functional
Very heavy and works well. Love the dual turn on off to protect from leaks
Date published: 2024-03-17
Rated 1 out of
5
by
TJ 67 from
Leaking
After 2 years, this product started leaking at the middle joint. Was charged $350 by plumber for repairing.
Date published: 2024-02-08
Q&A
I am installing a new kitchen and with a wolf cook top. I am in a Delta DL1177LF-CZ how high above the cook top do recommend installing the 1/2" supply.
Thank you for your inquiry, Jack! Yes, the Delta Traditional Pot Filler 1177LF-CZ is recommended to be connected to a 1/2" IPS supply line that extends 1/2" past the finished wall surface.
Best regards,
Tanya
Date published: 2024-03-28
My traditional pot filler leaking at the middle joint. Is there a fix?
Hello,
Please accept our sincere apology for the inconvenience you are experiencing. We have reached out to you via email to further assist at this time.
Best Regards,
Tim
Digital Communications Specialist
Date published: 2026-02-19
Our pot filler was installed too high. To avoid cutting the solid backsplash, if we install the filler to the wall upside down, then the spout will need to be rotated to face down. Is it possible to rotate the spout 180 degrees.
Hello,
Thank you for your question!
No, we do not recommend this as the spout portion will not swivel to accommodate.
Please reach out with further questions!
Best Regards,
Tim
Digital Communications Specialist
Date published: 2025-04-10
If I want the filler end to be centered on the range after install, what is the offset required for the installation of the nipple out of the wall?
Hi Dennis,
Thank you for your question. In the fully extended or folded (parallel with the wall) position, the spout end will be centered with the supply nipple.
Best regards,
Jon
Date published: 2024-03-28
Can the pot filler be hooked up to either hot or cold water lines. Does it matter
Hello JasonW,
Thank your for your question! We do not recommend using hot water for the Delta Wall Mount Pot Filler 1177LF, for safety protection reasons. This unit is designed for cold water only connection.
Best regards,
Tanya
Date published: 2024-03-28
What matching style kitchen faucet would you recommend for this pot filler ?
Thank you for your question, Larry! The Delta Pot Fillers are not designed to match a specific collection but are intended to compliment many different styles. Model 1177LF-CZ most closely resembles the Cassidy Collection.
https://www.deltafaucet.com/kitchen/faucets/with-sprayer?searchFilter=true
Best regards, Edward
Date published: 2024-03-28
Does the wall mount kit (RP64634) come with the pot fill or is it ordered separately?
Hi, Dotha!
Thank you for your question. The Delta RP64634 wall mounting kit is included with the Delta 1177LF-RB faucet.
Best Regards,
Rosanna
Date published: 2024-03-28
What is the measurement from the center of wall nipple to bottom of faucet?
I am setting the plumbing and want the bottom of the faucet to be 14" above the deck. Need to know exactly where to stub out the nipple. Thank you
Hi Rick, Thank you for your question. The distance from the bottom of the faucet to the center of the pipe nipple is 3.12".
Thanks,
Dave
Date published: 2024-03-28
We are getting ready to install a new back splash & cannot figure out how to get the flange cover to slide away from the wall. It spins but will not back up. Thank you.
Thank you for your question, Julie! Model 1177LF-AR will require you to remove a set screw underneath as well as un-thread the faucet. The part you are referring to is a decorative cover that simply snaps in place. Please refer to Page 3, Step E of the Maintenance and Installation manual below for reference.
Best regards, Edward
Date published: 2024-03-28
What is the distance from the stove top to pot filler wall connection
Hi, Mark!
Thank you for your question. There is not a required measurement from the stove top to the Delta 1177LF-PN pot filler. We do leave that decision up to the end user. Here is a link to the technical specifications for measurements for the faucet itself:
https://media.deltafaucet.com/SpecSheet/dsp-k-1177lf-a_F.pdf
Best Regards,
Rosanna
Date published: 2024-03-28
How high above the surface of the stove do you normally install he Pot Filler?
Thank you for your question. Delta Faucet model # 1177LF-RB does not have a recommended height for installation. It is customer preference to the size of the pots they will be filling.
Date published: 2024-03-28
Do you have an extension?
Hello,
Thank you for your question!
Unfortunately we do not offer an extension kit for this pot filler.
Please reach out with further questions!
Best Regards,
Tim
Digital Communications Specialist
Date published: 2025-06-30
I know the top arm will swivel all the way left or right but does the bottom are swivel both ways as well?
Thank you for your inquiry, Debby! Both arms of the Delta Traditional Pot Filler 1177LF-RB unit, can be rotated over 180 degrees.
Best regards,
Tanya
Date published: 2024-03-28
I have a leak in the arm joint /hinge and would like a replacement part to stop the leak. We have checked all joints and shut offs the only issue is the arm joint. It is a slow leak. It's as if there is water trapped after its shutoff at the wall.
Hello,
Please accept our sincere apology for the inconvenience you are experiencing. We have reached out to you via email to further assist at this time.
Best Regards,
Tim
Digital Communications Specialist
Date published: 2025-05-06
Is Venitian bronze a gray color?
Thank you for your question, fitz! Venetian Bronze is a deep chocolate brown color with copper brush strokes throughout.
Best regards, Edward
Date published: 2024-03-28
We installed the 1177LF-AR several years ago and is now leaking at the swivel joint. Does it come apart at the swivel in order to fix the leak? Can someone let me know what I can do to fix the leak?
Hello,
Please accept our sincere apology for the inconvenience you are experiencing. We have reached out to you via email to further assist at this time.
Best Regards,
Tim
Digital Communications Specialist
Date published: 2025-01-21
What is the difference between the Arctic Stainless and the Stainless finishes?
Which will go better with my stainless appliances?
Hi Kathie, Thank you for your question. The Arctic stainless (AR) has a blue tint to the finish which coordinates with many of todays appliances. The Brilliance stainless (SS) has a gold tint to the finish, it is similar to brushed nickel finishes.
Thanks,
Dave
Date published: 2024-03-28
AB1953 certified?
Is this pot filler ASTM AB1953 certified, and if so, can you please provide the Massachusetts approval code? Thank you.
Hi Erica, Thank you for your question. Attached is the spec sheet for the model 1177LF that covers the lead free legislation compliance and a link to the Massachusets product approval website for this product..
http://www.deltafaucet.com/customersupport/documentation/1177lf-ss.html?document=ts&documentIndex=0#flashWrapper
http://license.reg.state.ma.us/pubLic/pl_products/pb_search.asp?type=P&manufacturer=Delta+Faucet+Company&stype=spec&model=1177lf&product=&description=&psize=50
Thanks,
Dave
Date published: 2024-03-28
is it possible to unscrew the nipple the areator is on so it points down when the valve on the wall is installed opposite of what is shown.
the rough in is to tall for the configuration of the faucet. I want ti flip it
Hi barton,
Thank you for your question. The faucet must be installed right-side up.
Best regards,
Jon
Date published: 2024-03-28
Delta Wall Mounted Pot Filler Handle Options?
Does Delta have any different handle options for the Pot Filler? Is it possible to order different handles as an extra? If so, what options are available?
Thank you for your question. Delta Faucet model # 1177LF does not have any other handles available at this time.
Date published: 2024-03-28
We installed this filler in our kitchen several years ago. It is now leaking at the two pivot joints. I have been unable to find rebuild parts. Can anyone assist?
Hello,
Please accept our sincere apology for the inconvenience you are experiencing. We have reached out to you via email to further assist at this time.
Best Regards,
Tim
Digital Communications Specialist
Date published: 2024-05-21
My pot filler is leaking at the middle joint. The cap was pushed out and the o-ring does not allow it to seat in all the way. Looks like I need a replacement cap and o-ring. Thank you for any assistance you can provide.
Hello,
Please accept our sincere apology for the inconvenience you are experiencing. We have reached out to you via email to further assist at this time.
Best Regards,
Tim
Digital Communications Specialist
Date published: 2025-10-31
How high above the counter top should a pot filler be installed at ?
Hi, TomS!
Thank you for your question. There is not a required measurement from the stove top to the Delta 1177LF pot filler. We do leave that decision up to the end user. Here is a link to the technical specifications for measurements for the faucet:
https://media.deltafaucet.com/SpecSheet/dsp-k-1177lf-a_F.pdf
Best Regards,
Rosanna
Date published: 2024-03-28
From the wall mount of the pot filler, what is the distance to the bottom of the faucet?
Hi TAG65,
Thank you for your question about the Delta Faucet model 1177LF-SS.
From the mount center to where the water comes out is about 3-1/8"
Please reach out with any additional questions!
Best Regards,
Bryan
Date published: 2026-01-09
What is the difference in arctic stainless and brilliance stainless ?
Hello Cindy,
Thank you for contacting Delta Faucet Company! I am sorry this information was not readily available, and I am happy to help you!
Our Delta Faucet DELTA® Traditional Wall Mount Pot Filler MODEL#: 1177LF is our brilliance stainless finish which is described as a neutral, low-gloss nickel finish. The Arctic Stainless finish is described as a glossy finish with icy tones, which would match the stainless steel product in your home best.
Thank you for being a loyal Delta customer. Please contact us back for any further questions.
Best Regards,
Nicole
Date published: 2024-03-28
my 1177LF-SS potfiller has a slow drip from spout, but more troublesome is a pinhole leak in middle of arm. if i shut off both valves it will drip until internal pressure is relieved. Our water system has only 40 psi, so ovepressure not an issue.
Our pot filler is leaking water from the joint between the 2 arms. Do you have repair parts for that? It is about 8 years old.
Hi RonV, thank you for contacting Delta Faucet Company!
Our pot fillers have cartridges in each of the handles to prevent leaking and to turn the unit on/off. We have reached out to you directly to further assist you with this matter!
We appreciate your inquiry. Please reach out directly if you have further questions!
Best Regards,
Kyra
Digital Communications Specialist
Date published: 2024-03-28
Is there a part’s breakdown of this potfiller
1177lf-ss Purchased this 6/18 and now the handle closest to the wall will not shut the unit off. I have a whole house water purifier and have no other issues with other faucets In the reviews I see others have had the same problem. How can it be fixed?
Hello Jim B,
Thank you for your question! We are happy to help!
The Delta model 1177LF-SS will need the RP74972 replaced for the leak that you are experiencing.
Please contact us if you have any questions or need further assistance.
Best Regards,
Emma
Date published: 2024-03-28
I have brushed nickel now for all my other faucets.... what finish would be the best match for my existing finish
Hello Linda,
Thank you for contacting Delta Faucet Company! I am sorry this information was not readily available, and I am happy to help you!
Our Delta Faucet DELTA® Traditional Wall Mount Pot Filler MODEL#: 1177LF-SS finish matches our brushed nickel, the Brilliance Stainless (SS) finish is described as a neutral, low-gloss finish.
Thank you for being a loyal Delta Faucet customer. Please contact us back with any further questions.
Best Regards,
Nicole
Date published: 2024-03-28
