Delta®
Traditional Wall Mount Pot Filler in Chrome
Model#:
1177LF
Image Thumbnail, click to view zoomed product image
null
null
null
null
null
null
null
PRODUCT FEATURES

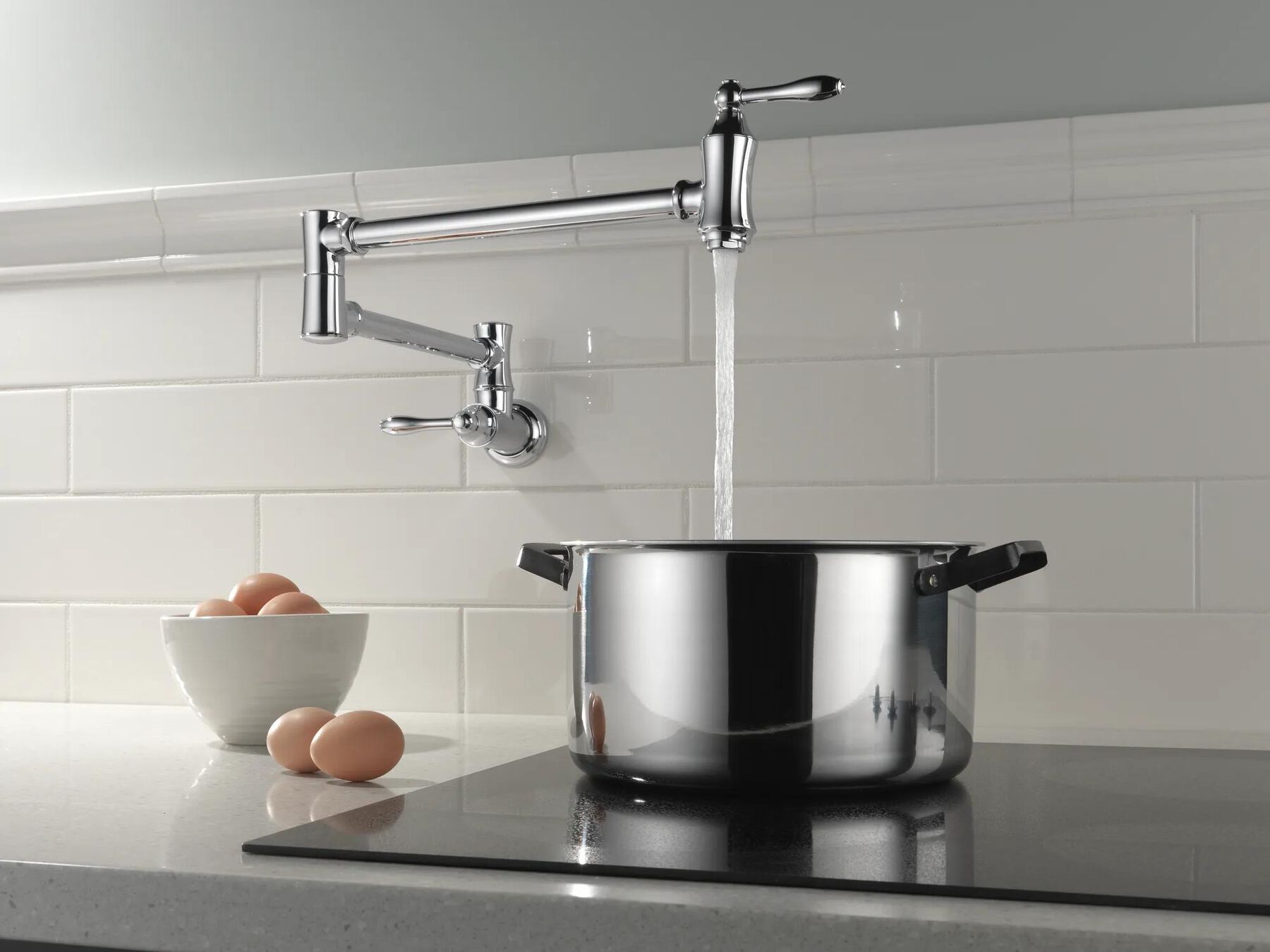

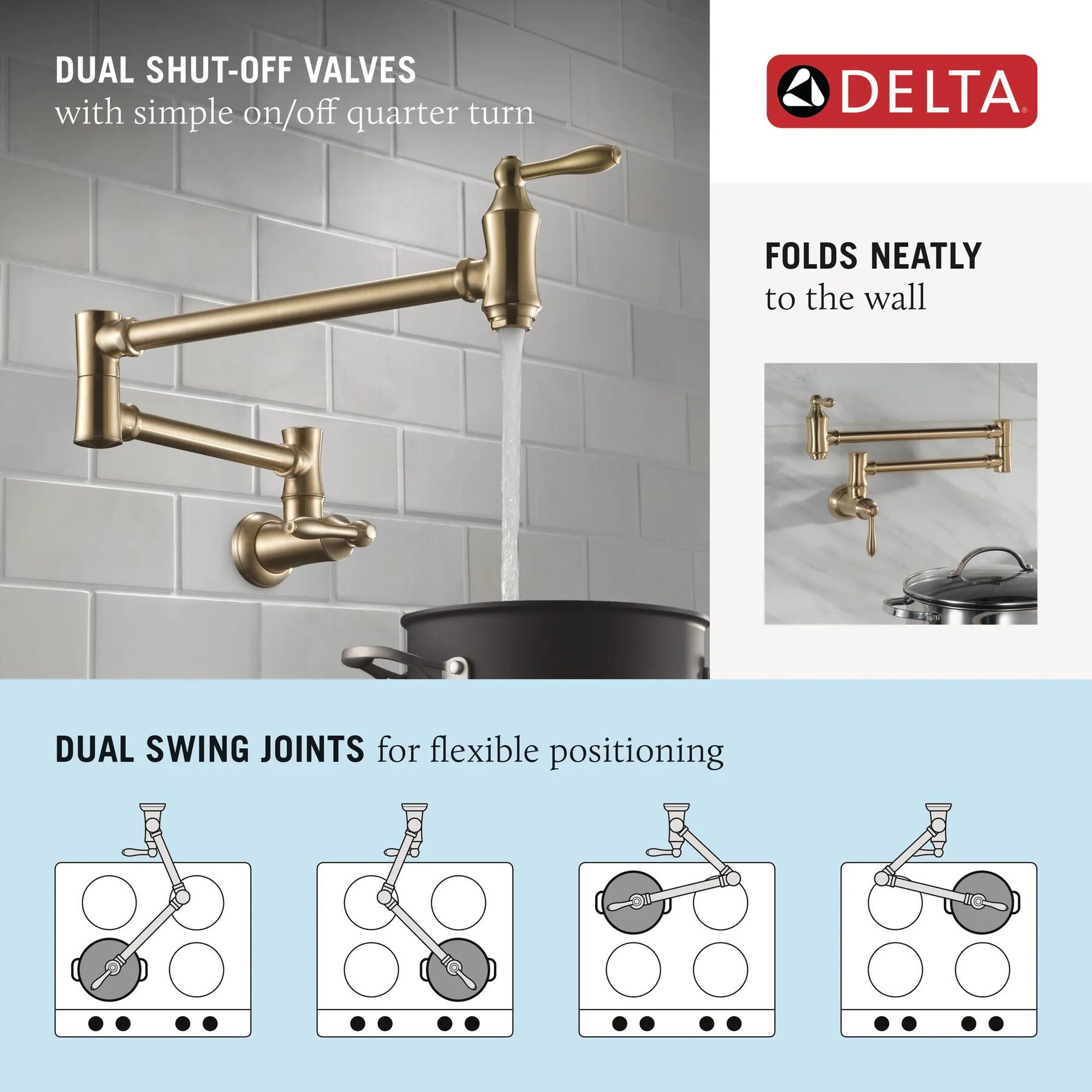

Filling pots on the stove has never been easier or more affordable, thanks to the new Delta Pot Filler faucet. Very competitively priced, the ADA compliant Pot Filler features a wall-mount, dual swing joint design with dual shut off valves and a 4 gpm flow rate to fill large pots in no time. A pot filler makes it easy to fill large cooking vessels quickly and without the walk from sink to stove.
- Single hole installation
- Escutcheon
- ADA Compliant
- Dual handle design for easy operation
Special Information
California Prop 65 WARNING
CALIFORNIA PROP 65 WARNING
<b>WARNING: </b>Risk of cancer and reproductive harm from exposure to Lead. See www.P65Warnings.ca.gov.
For more information go to http://www.P65Warnings.ca.gov
Technology and Special Features
ADA Compliant
ADA Compliant
Some people, and some local codes, require fixtures that are compliant with the Americans with Disabilities Act. If someone may visit who has special needs, or if you believe future buyers might appreciate this feature, Delta offers a range of compliant fixtures.
No-Lead Compliant
No-Lead Compliant
Tested and certified to NSF/ANSI Standard 61, which sets the criteria for product safety. The lined waterways in Delta® faucets help prevent leaching of metals.
Special Information
California Prop 65 WARNING
CALIFORNIA PROP 65 WARNING
<b>WARNING: </b>Risk of cancer and reproductive harm from exposure to Lead. See www.P65Warnings.ca.gov.
For more information go to http://www.P65Warnings.ca.gov
Documents & Specs
Product Support, Repair Parts & Technical Specifications
Installation Information
Single hole wall mount installation
Connection Type :
1/2" IPS connection
Flow Rate :
4.0 gpm @ 60 psi, 15.1 L/min @ 414 kPa
Overall Height (in.) :
8-17/32
Valve Type:
Ceramic valve
INSTALLATION SUPPORT
Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.
REVIEWS
Rated 5 out of
5
by
BigT59 from
Love the way it swings so freely and perfect for our needs
Date published: 2026-03-30
Rated 5 out of
5
by
Sylvia R from
Pot filler
I. I am enjoying the pot filler. Easy to use. Water pressure is steady.
Date published: 2025-12-01
Rated 5 out of
5
by
Deltapotfillerrepair from
Repair leaking swivel.
Pot filler repair. Leaking at the swivel. Three, #80 rubber O-rings. Use allen key to remove two screws on the wall plate. Turn potfiller counter clock wise to remove from wall. On the bottom of the swivel, there is a decorative plate that can be removed. Once removed, there is an allen bolt. I think it’s 1/4” allen wrench. It’s very tight. I had to use a vice to turn the bolt. Once loosened, you can pop out the stem and there are 3 rubber o-rings. Replace those with #80 size o-ring. Make sure to use pipe tape on the wall plate when installing back.
Date published: 2025-10-05
Rated 5 out of
5
by
Frustrated from
Replacement o-ring size for swing arm in review.
Love my pot filler 1177LF ! Delta however does not offer replacement o-rings when it started leaking but I found what I needed and repaired it. I disassembled my leaky pot filler and measured the o-rings in the arm joints where it was leaking with a micrometer. There are three o-rings per swivel joint. Based on my measurements I ordered Rubber O-Rings size 20mm OD - 14mm ID and 3mm Width from AMZ. You need six but order extra if you damage one during install. The replacement was easy. Turn off the water at the valve closest to the wall. Open the valve at the end to drain any water. Pop off the decretive caps and using a proper size allen (hex) wrench unscrew the connection at the wall valve first. Remove the pot filler. Unscrew the second joint. Remove the old o-ring that is closest to the threads on the brass insert first. Then remove / unscrew the insert completely. You may need to gently push it out with a wooden dowel and rubber mallet. Remove the last two o-rings from each insert. Clean any mineral buildup from ALL parts. I used white vinegar. Dry then lube ALL parts with a small amount food grade silicone grease before and after installing the o-rings to assist with assembly and o-ring wear. Replace just the first two o-rings farthest away from the threads first. Install the inserts back into the pot filler arms. It will be a tight fit. This is where the silicone lube and rubber mallet if needed come in handy. Use a wooden block or socket so you do not damage the brass threads when pushing the inserts through and out the other side. I also slowly twisted the insert with the hex wrench while pushing back in to prevent o-ring damage. Once they are all the way through add the last o-ring. If you try to put all three o-rings on first you will damage the o-ring closest to the threads while pushing the insert back in. Re attach the filler swivel arms pieces first and then the filler back to the wall valve. Tighten securely but do not over tighten. Check for leaks by shutting off the outer valve and turning on the wall valve. Retighten with hex wrench as needed. No leaks? Replace the beauty caps and run the water in a large pot to flush out any excess grease. After replacing the o-rings my pot filler was a bit stiff to move but no longer leaks! :)
Date published: 2025-07-08
Rated 5 out of
5
by
JP Fix It LLC from
My Customer Was Thrilled
My customer was thrilled with the look, feel and performance of this pot filler.
Date published: 2024-07-30
Rated 1 out of
5
by
Danny from
Leaks
We have only had this pot filler for a few years and it leaks from multiple spots.
Date published: 2024-04-14
Rated 5 out of
5
by
Redecor friend from
Gorgeous and functional
Very heavy and works well. Love the dual turn on off to protect from leaks
Date published: 2024-03-17
Rated 1 out of
5
by
TJ 67 from
Leaking
After 2 years, this product started leaking at the middle joint. Was charged $350 by plumber for repairing.
Date published: 2024-02-08
Q&A
Valve Orientation
I have installed this pot filler slightly right of the cook top so it is centered a little better when folded. When folded the top valve (closest to where the water is dispensed) points directly at the back wall when folded if it is in the "closed" position. This means that if I fold the pot filler back and leave it in the closed position the end would hit my wall. Can this be changed so the valve points forward instead of backward? Also, I though it was odd that a clockwise turn caused the water to turn on instead of off, like most faucets. Can this be changed/adjusted?
Thank you for your question, TY. While the direction of the handle rotation cannot be changed, you can change the position of the handle when it is off. To do this, turn off supplies, then remove the cap and screw. Pull off the handle, then reinstall it onto the spines where you would like it in the off position.
Best regards,
Jon
Date published: 2017-12-29
The arms on my pot filler are not parallel when in the closed position. The elbows are tight, with no play in them(as they should be). How can this be fixed? I haven’t installed it yet. Thanks
Hi, BobbyR!
Thank you for your question. The 1177LF pot filler should fold and arms should be parallel. The elbows should not be tight and fold smoothly. We do recommend to return back to the store if this one is not working correctly, as it should.
Best Regards,
Rosanna
Date published: 2024-03-28
Does this pot filler fit stylistically with any other faucets in the kitchen collection?
Hi, Jason!
Thank you for your question. The Delta 1177LF pot filler fits our Traditional style faucets. Here is a link to these types of faucet:
https://www.deltafaucet.com/kitchen/sink-faucets?StyleIsTraditional=T&facetFinish=chrome
Best Regards,
Rosanna
Date published: 2024-03-28
Hello, I have a (1177LF-CZ) Wall Mount Pot Filler in Champaign Bronze that has rust on the inside. It’s not installed yet so we can see into it and it’s very obviously coated in rust up past the threads. Is this normal? Should we install it?
Hello,
I apologize for the issue you are experiencing and I am happy to help you.
We do not recommend and installing it and it should be returned to where purchased for an exchange or refund.
Please reach out with further questions!
Best Regards,
Tim
Digital Communications Specialist
Date published: 2025-06-24
Is there a recommended min - max height for install of this unit
Thank you for your question, Jb! We do not have a recommended or ideal height for the Delta Traditional Wall Mount Pot Filler 1177LF model. We leave it up to you, our customer/installer, to pick what height is best for you!
Best regards,
Tanya
Date published: 2024-03-28
Hello. My Delta 1177LF pot filler has developed a leak in the arm joint. Can you provide me with replacement parts? I think the O-Rings need to be replaced.
Hello,
Please accept our sincere apology for the inconvenience you are experiencing. We have reached out to you via email to further assist at this time.
Best Regards,
Tim
Digital Communications Specialist
Date published: 2026-01-26
When mounting this pot filler over the stove do you mount it centre or off centre in order for it to look centered when it sits against the wall?
Hi, tara!
Thank you for your question. There is no required place that we advise. We do leave it up to the consumer to determine where they would like to install the pot filler on their wall.
Best Regards,
Rosanna
Date published: 2024-03-28
Hello I'm looking for a replacement ORing for the arm of my Model 1177LF. Where can I get this part. My Pot Filler is leaking.
Hello,
Please accept our sincere apology for the inconvenience you are experiencing. We have reached out to you via email to further assist at this time.
Best Regards,
Tim
Digital Communications Specialist
Date published: 2025-06-16
