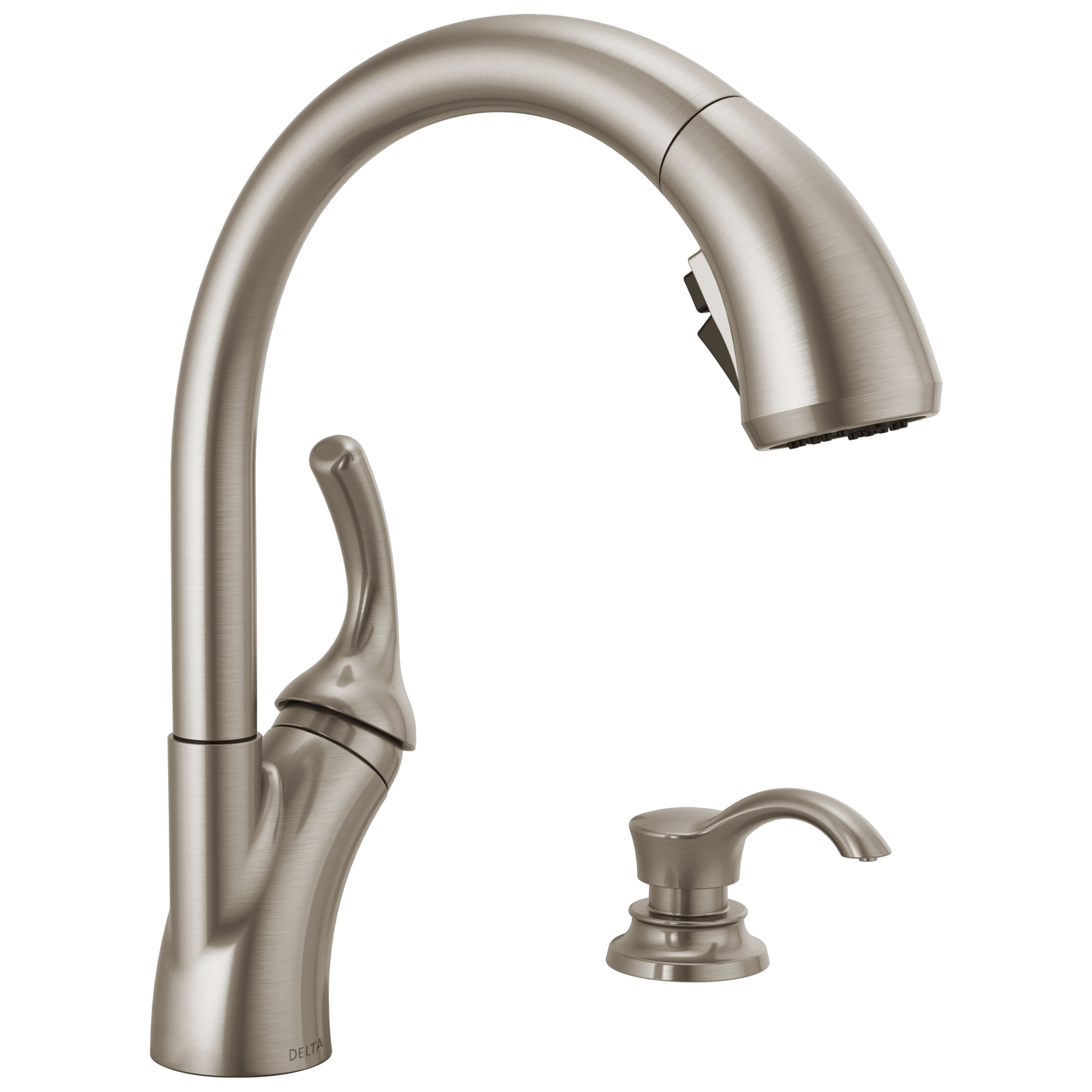

Single Handle Pull-Out Kitchen Faucet with Soap Dispenser and ShieldSpray® Technology in Spotshield Stainless
Model#:
19790Z-SPSD-DST
PRODUCT FEATURES
Delta® ShieldSpray® Technology cleans with laser-like precision while containing mess and splatter. A concentrated jet powers away stubborn messes while an innovative shield of water contains splatter and clears off the mess, so you can spend less time soaking, scrubbing and shirt swapping. Delta® MagnaTite® Docking uses a powerful integrated magnet to pull your faucet spray wand precisely into place and hold it there so it stays docked when not in use. Delta® SpotShield™ Technology helps to keep your faucet cleaner, longer by resisting water spots and fingerprints. Keep your space spotless with SpotShield Technology, available across a variety of finishes for the kitchen and bath. Delta® faucets with DIAMOND™ Seal Technology perform like new for life with a patented design which reduces leak points, is less hassle to install and lasts twice as long as the industry standard*. You can install with confidence, knowing that Delta faucets are backed by our Lifetime Limited Warranty. *Industry standard is based on ASME A112.18.1 of 500,000 cycles.
- ShieldSpray® technology powers off the mess without making a mess
- MagnaTite® Docking uses a powerful integrated magnet to snap your faucet spray wand precisely into place and hold it there so it stays docked when not in use and doesn’t droop over time
- SpotShield™ Technology helps your faucet or shower stay cleaner, longer by resisting water spots and fingerprints
- SpotShield™ Technology with antimicrobial protection of the finish resists odor-causing microbial growth on the finish
- DIAMOND™ Seal Technology is less hassle to install and helps your faucet perform like new for life, reducing leak points and lasting twice as long as the industry standard
- Everything you need is together in one convenient box, including integrated InnoFlex® PEX supply lines
- Includes coordinating soap dispenser
- Fits 1, 2, 3, or 4-hole installations with included optional escutcheon

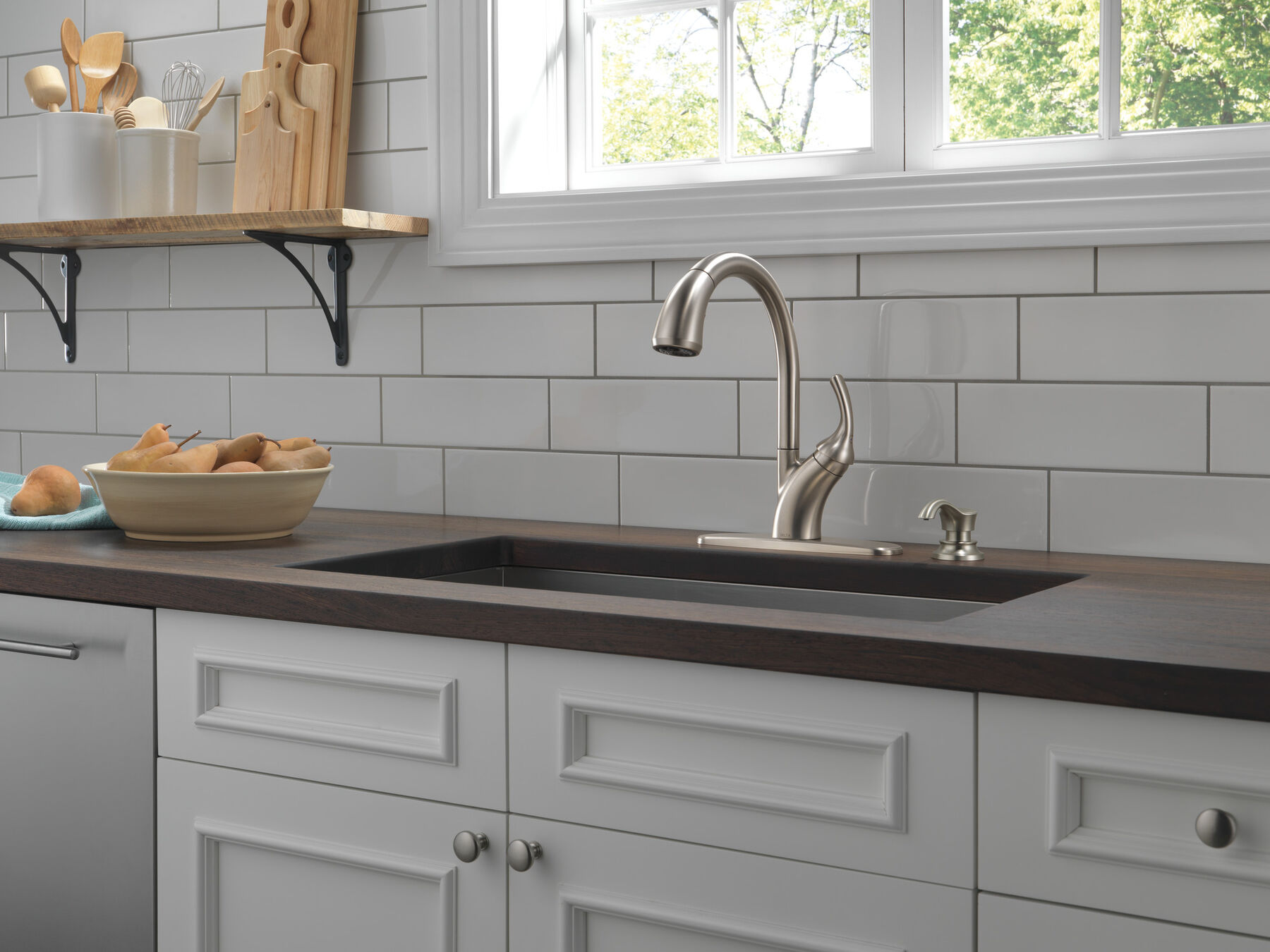

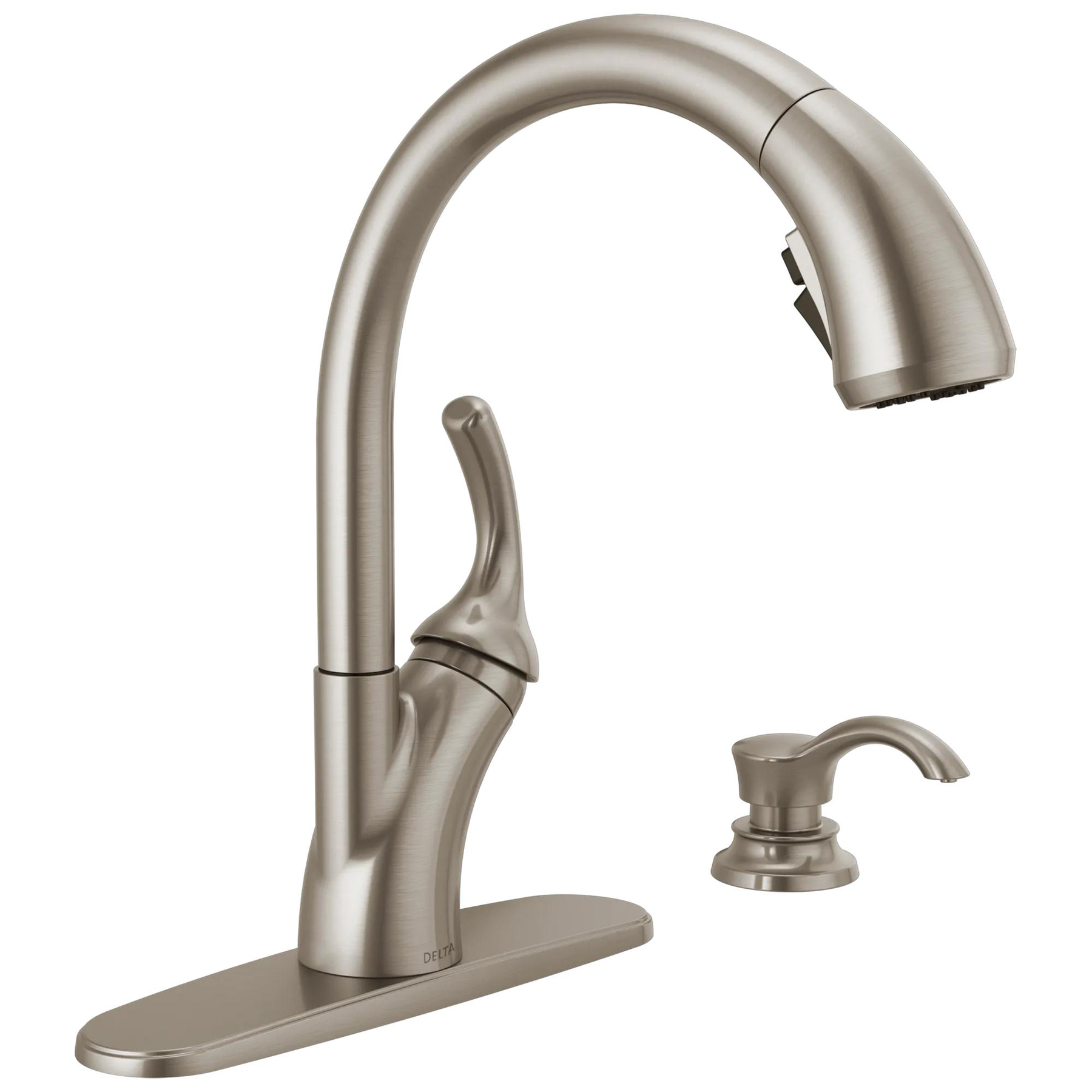

- Optional escutcheon included for use with additional mounting configurations and a cohesive look
- ADA Compliant
- High-arc pull-out swivels 360degrees
Special Information
California Prop 65 WARNING
CALIFORNIA PROP 65 WARNING
<b>WARNING: </b>Cancer risk from exposure to Nickel (Metallic). See www.P65Warnings.ca.gov.
For more information go to http://www.P65Warnings.ca.gov
Technology and Special Features
ADA Compliant
ADA Compliant
Some people, and some local codes, require fixtures that are compliant with the Americans with Disabilities Act. If someone may visit who has special needs, or if you believe future buyers might appreciate this feature, Delta offers a range of compliant fixtures.
No-Lead Compliant
No-Lead Compliant
Tested and certified to NSF/ANSI Standard 61, which sets the criteria for product safety. The lined waterways in Delta® faucets help prevent leaching of metals.
Soap Dispenser
Soap Dispenser
A soap/lotion dispenser coordinates with the look of your kitchen, and loads conveniently from the top. You won’t need to keep a bottle of liquid soap or lotion on your counter.
Diamond Seal® Technology
Diamond Seal® Technology
DIAMOND™ Seal Technology is Delta’s revolutionary new water delivery system. An internal contact surface made up of tiny diamonds makes the valve leak-free and extraordinarily durable. It also keeps water free of contact with potential metal contaminants.
ShieldSpray®
ShieldSpray®

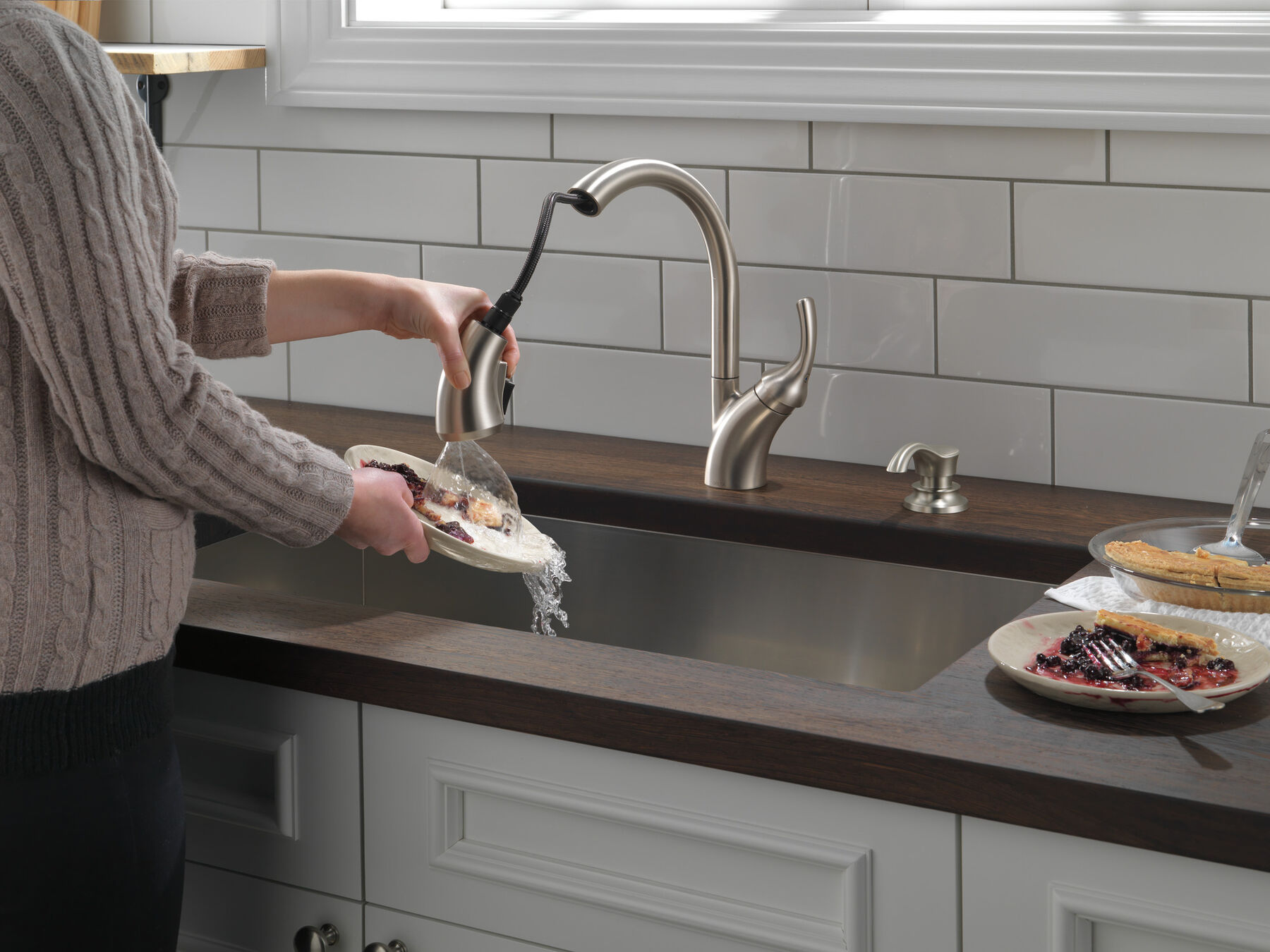

ShieldSpray® Technology cleans with laser-like precision while containing mess and splatter. A concentrated jet powers away stubborn remnants of food while an innovative shield of water surrounds the jet and mess to keep the splashing contained, so you can spend less time soaking, scrubbing and shirt swapping.
MagnaTite® Docking
MagnaTite® Docking
The pull-down spray head utilizes a powerful magnet which keeps the wand securely in place when not in use. No more dangling!
Special Information
California Prop 65 WARNING
CALIFORNIA PROP 65 WARNING
<b>WARNING: </b>Cancer risk from exposure to Nickel (Metallic). See www.P65Warnings.ca.gov.
For more information go to http://www.P65Warnings.ca.gov
Documents & Specs
Product Support, Repair Parts & Technical Specifications

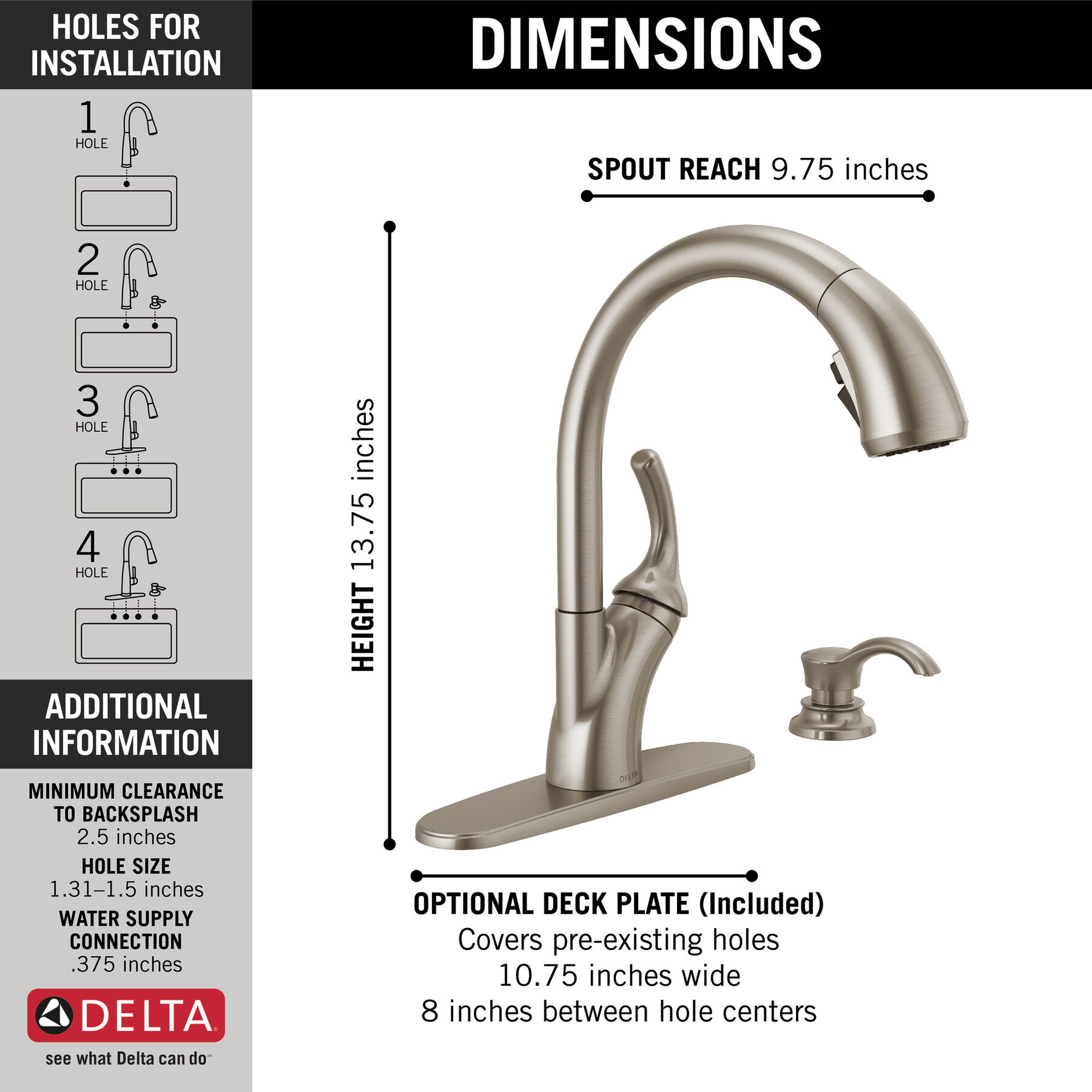

Installation Information
1, 2, 3, or 4-hole 8" installation
Connection Type :
3/8" compression fittings
Flow Rate :
1.8 gpm @ 60 psi, 6.8 L/min @ 414 kPa
Overall Height (in.) :
13-3/4
Valve Type:
DIAMOND(TM) Seal Valve
INSTALLATION SUPPORT
Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.
REVIEWS
Q&A
Question 1. Does the entire faucet rotate - or just the heat?.. 2. Do you have to installed the deck plate ? .3. I'm between this model & the charmaine model both shield spray / spot shield - which 1 is rated better , do you offer them in brush nickel
Hello Prazem2,
Thank you for your inquiry! The spout assembly of the Delta Shiloh Kitchen Pull-Down 19790Z-SPSD-DST faucet does swivel 360 degrees. The included escutcheon plate is an optional installation part. All Delta faucets feature the same quality parts, materials, and workmanship, no matter what kind of dealer sells them. The Shiloh Kitchen faucet only comes in the SpotShield Stainless finish, which would be one of the closest finish colors to a brushed nickel.
Best regards,
Tanya
Date published: 2024-03-28
I asked a question last week as to if I could install the faucet with the handle in front. The answer mentioned installing it on the left side but did not provide an answer to my original question. Can someone please respond to my original inquiry?
Hi, JimB.
Thank you for your question. I am sorry for the confusion. We recommend installing the Delta 19790Z-SPSD-DST Faucet with the handle on the right. You may install it with the handle facing the front of the faucet, however, the temperature adjustment will be opposite of the standard operation for single handle faucets. You could compensate for this by swapping the hot and cold supply lines under the sink.Also, the red/blue button on the handle will no longer indicate the correct temperature.
Best Regards,
Rosanna
Date published: 2024-11-16
Is this same faucet available without soap dispenser?
Hi Krazy_Kat79,
Thank you for your question. The Delta Shiloh Pull-Down Kitchen 19790Z-SPSD-DST faucet is a Home Depot exclusive unit that comes with a soap dispenser as a feature of the collection. The soap dispenser does not have to be installed.
Best regards,
Tanya
Date published: 2024-03-28
Where is the restrictor for water efficiency? we have low water pressure in our location and for good volume I want to remove it.
Hi, kpmccdog!
Thank you for your question. The water restrictor for the Delta 19790Z-SPSD-DST is non-removable. Removing or attempting to remove this part may result in voiding any warranty you may have for the faucet.
Best Regards,
Rosanna
Date published: 2024-03-28
How long is the hose on the sprayer?
Hello Fern,
Thank you for your question. The hose assembly that comes with the Delta Shiloh Kitchen ShieldSpray 19790Z-SPSD-DST faucet is 62" long.
Best regards,
Tanya
Date published: 2024-03-28
The mounting bracket assembly for this faucet includes a metal plate and two small machine screws. The instructions do not mention the metal plate or the machine screws. What is to be done with them?
Hi, Howard2031!
Thank you for your question. The metal plate and the two small screws are meant to stay on the mounting bracket during installation and use of the faucet.
Best Regards,
Rosanna
Date published: 2024-03-28
Does the spray reset to stream when the water is turned off? Or do you have to push a reset button?
Hi, Gakin!
Thank you for your question. The Delta 19790Z-SPSD-DST Faucet sprayer button does not reset once the faucet is turned off. This will stay at the spray mode selected before turning the faucet off.
Best Regards,
Rosanna
Date published: 2024-03-28
Can the soap dispenser be refilled from the top or does it have to be taken out from under the sink to refill?
Thank you for your question, Tonycip! All of our soap dispensers can be filled from above the counter, by removing the head assembly.
Best regards, Edward
Date published: 2024-03-28
