Pivotal®
Single Handle Bar Prep Faucet
Model#: 1993LF-AR
Single Handle Bar Prep Faucet
Single Handle Bar Prep Faucet
Single Handle Bar Prep Faucet
Single Handle Bar Prep Faucet
Single Handle Bar Prep Faucet
Single Handle Bar Prep Faucet
Pivotal®
Single Handle Bar Prep Faucet
Model#: 1993LF-AR
Finish: Arctic Stainless
List Price*: $524.70
PRODUCT FEATURES
You can install with confidence, knowing that Delta faucets are backed by our Lifetime Limited Warranty.
  • Fits 1-hole installations

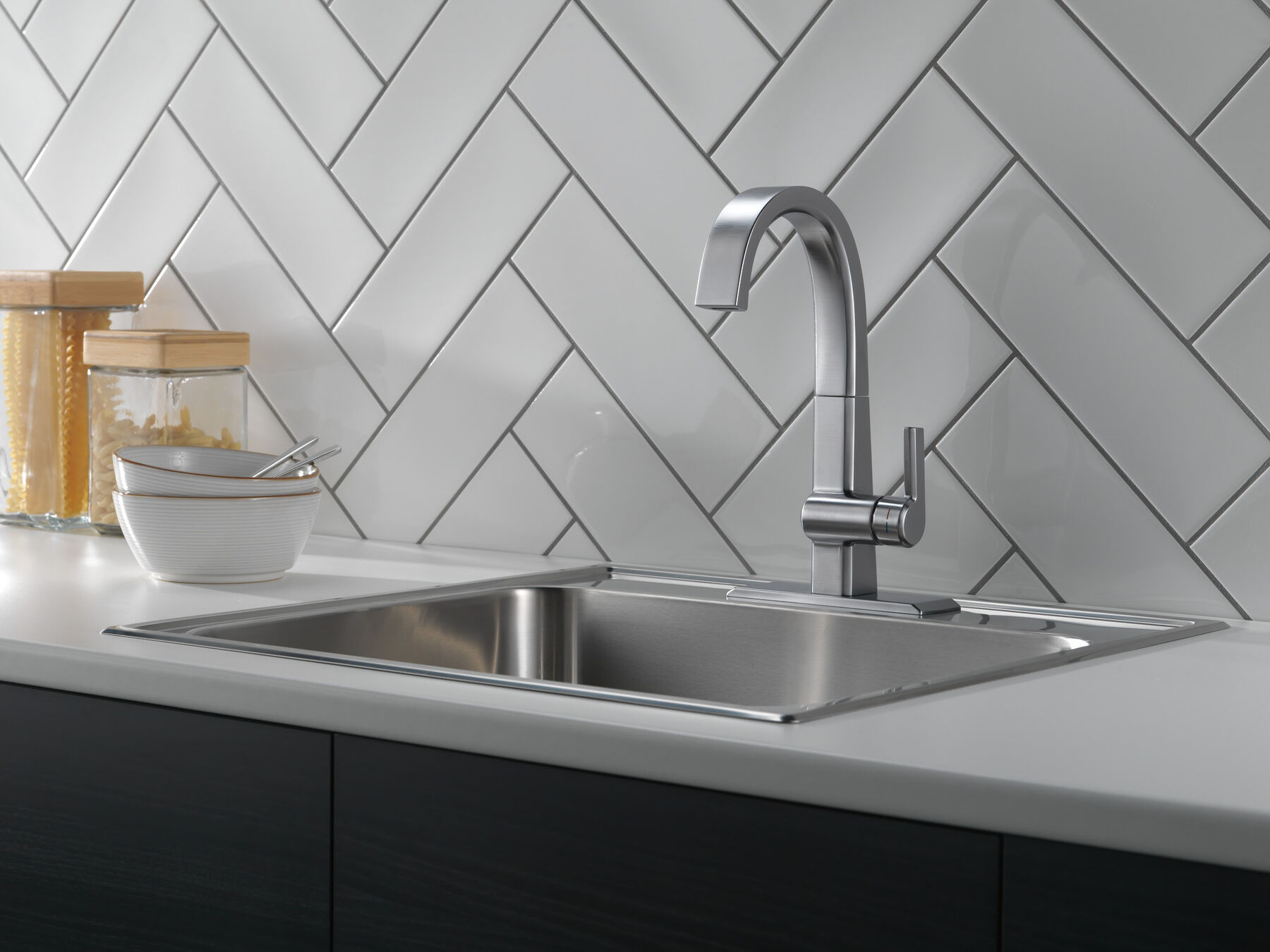

  • Optional escutcheon available for 3-hole installations (purchase separately)
  • ADA Compliant
  • Standard spout swivels 120degrees
  • 2.5 in. maximum deck installation thickness
Special Features
ADA Compliant
ADA Compliant
SUPPORT
Product Support, Repair Parts & Technical Specifications
Installation Information

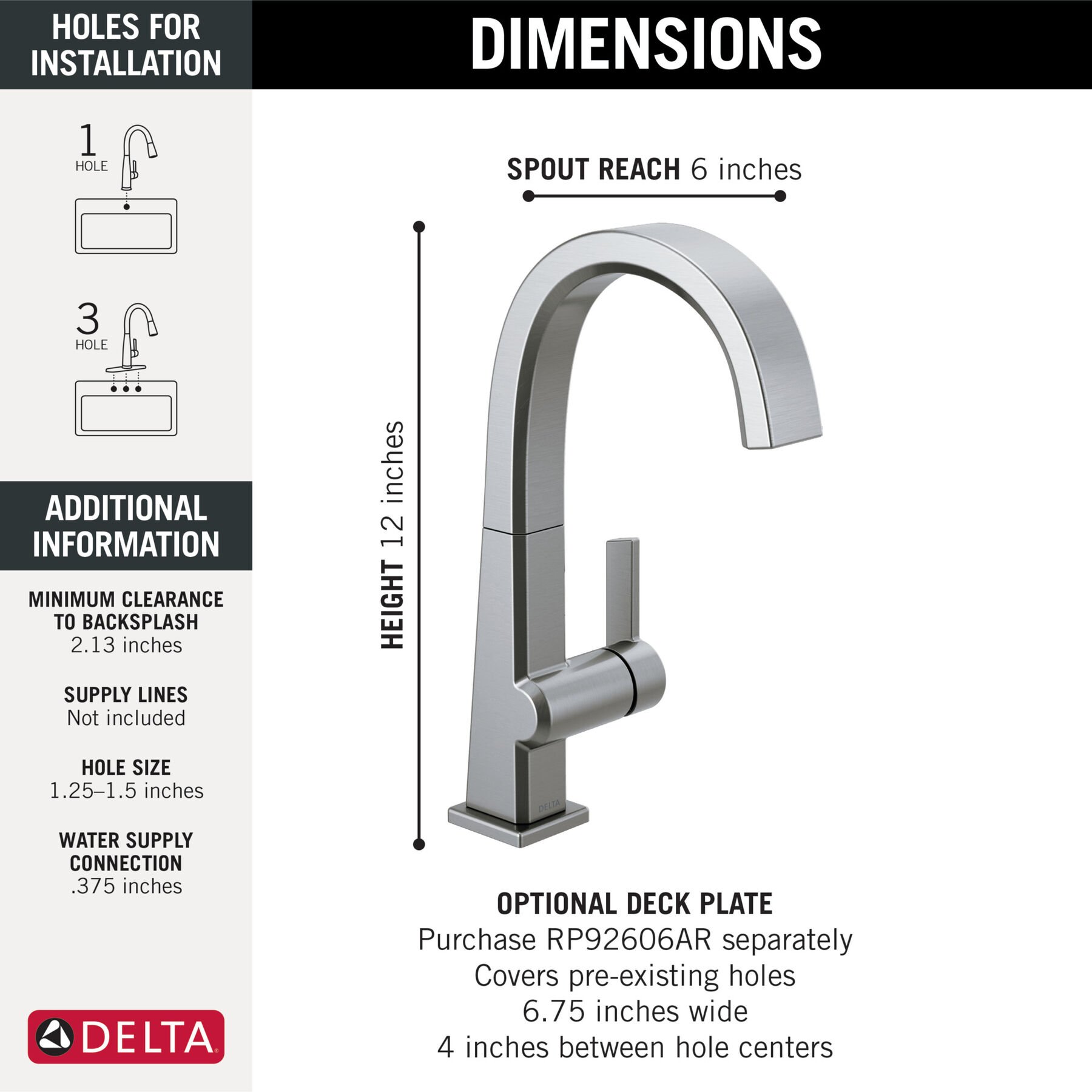

1 or 3-hole 4" installation
1 or 3-hole 4" installation
Spout Height :
12
Over All Height :
12
Spout Height Deck :
12
Connection Type :
1/2" IPS connection
Over All Length :
4
Supply Lines :
Not Included
Spout Length :
6
Max Deck Thickness :
2.5
REVIEWS
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 8ms
  • reviews, product
  • bvseo-msg: Unsuccessful GET. status = 'ERROR', msg = 'Not Found.'; Unsuccessful GET. status = 'ERROR', msg = 'Not Found.';
Q&A

I need a beverage faucet to match the arctic stainless Delta pivotal kitchen faucet. Can I use this bar faucet with a cold water line only? I want to use it with my under sink water filtration system.  My system does not need an air gap faucet (not RO)

Asked by: Executivechef
Thank you for your question, PDSMTS! Model 1993LF-AR is a Bar Prep faucet and intended for both hot and cold water. A Beverage faucet is; however, intended for a cold water line hook up only and can be used with a RO unit with or without an air gap. Unfortunately we do not offer a specific matching beverage faucet for the Pivotal Collection. https://www.deltafaucet.com/kitchen/specialty-faucets/beverage Best regards, Edward
Answered by: Delta Faucet
Date published: 2019-09-20

Specs suggest min 2.18” clearance to backsplash. Is that measurement taken from the middle or back of the hole?

Asked by: Brojack
Hi, Brojack! Thank you for your question. The minimum clearance to back splash measures 2 1/8" from the middle of the hole for the Delta 1993LF Faucet. Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2020-05-28

when will this be available

Asked by: RebelDev66
Hello RebelDev66, Thank you for your inquiry! The Delta Pivotal Bar 1993LF-PN faucet is currently available for ordering. However, the faucet is scheduled to start shipping out 7/24/2018. Best regards, Tanya
Answered by: Delta Faucet
Date published: 2018-09-05

What is the procedure for removing the areator on a 1993LF Pivotal bar faucet?

Asked by: Arnie
Thank you for your question, Arnie! The type of aerator used for this model is not meant to be removed as it does not filter water but is in place to help soften and evenly distribute the stream. If you believe there may be a blockage, we would recommend checking the flow restrictor. First make sure that the hot and cold water supplies are turned off under the sink. Remove the handle, then remove the cap, unscrew the bonnet nut, and pull the cartridge out. You can use a pair of needle nose pliers to remove the restrictor. Please contact us directly if you need further assistance at 1-800-345-DELTA (3358) Monday - Friday 8 a.m. - 8 p.m. EST, Saturday 9 a.m. - 6 p.m. EST Best regards, Edward
Answered by: Delta Faucet
Date published: 2018-10-20

What is the height from the counter to the handle?

Asked by: Lisa
Hello Lisa, Thank you for your question! I am happy to help you! The Delta faucet 1993LF has a measurement of 1.89” from the base to the bottom of the handle and 2.61” from the base to the center of the handle. Please contact us back for any further questions. Best Regards, Nicole
Answered by: Delta7
Date published: 2020-12-23
