Delta®

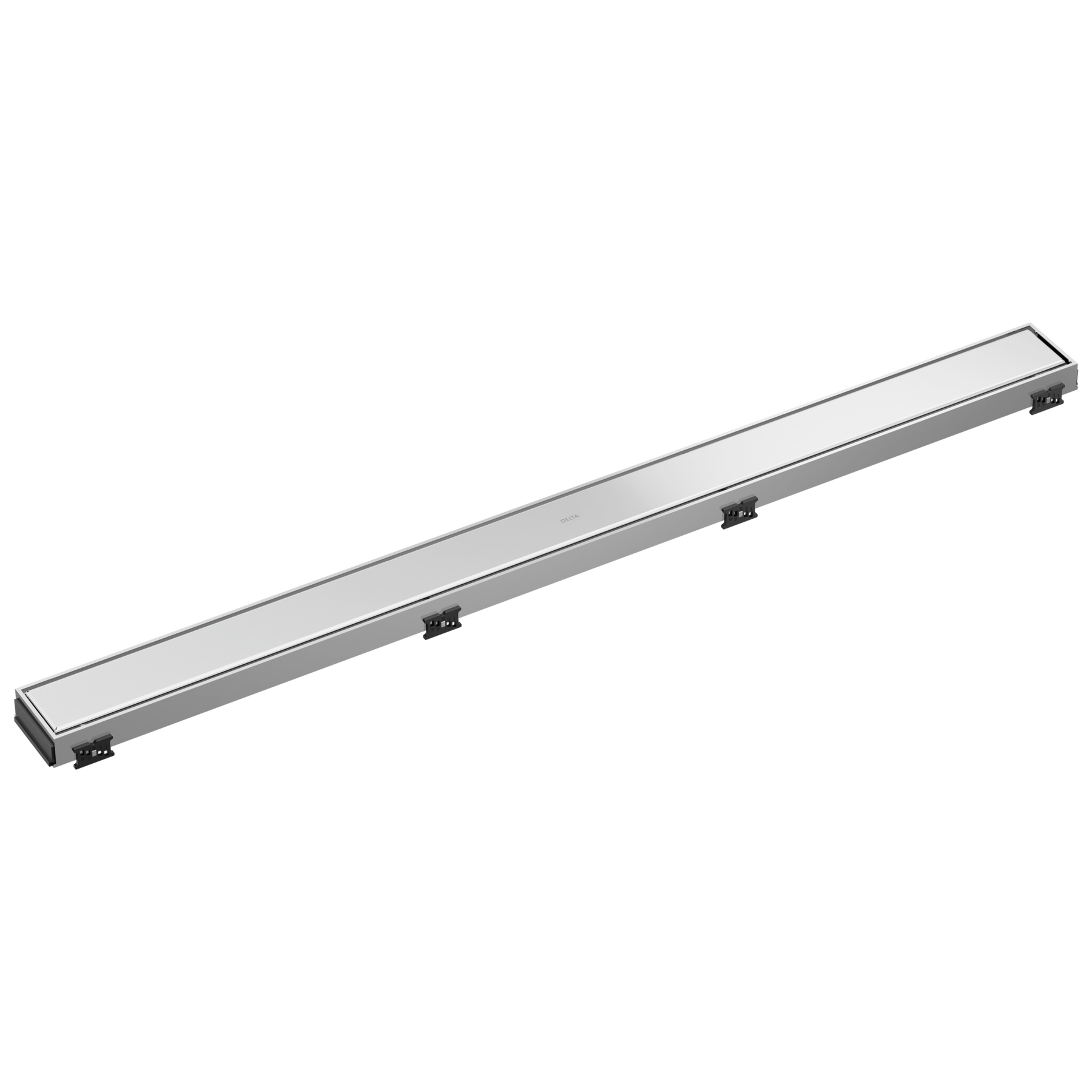

36" Reversible Linear Shower Drain Trim in Chrome
Model#:
DT0733613
Image Thumbnail, click to view zoomed product image
null
null
null
null
null
null
null
null
null
null
null
null
null
null
null
null
PRODUCT FEATURES
Delta® Linear Drains allow you to customize your bathroom appearance and functionality with a seamless aesthetic and quality performance. By incorporating convenience and design, these adjustable drains bring personalized height modifications to fit your needs and are designed to match color-body tile, marble, and natural stone.
- Rough and wall edge sold separately

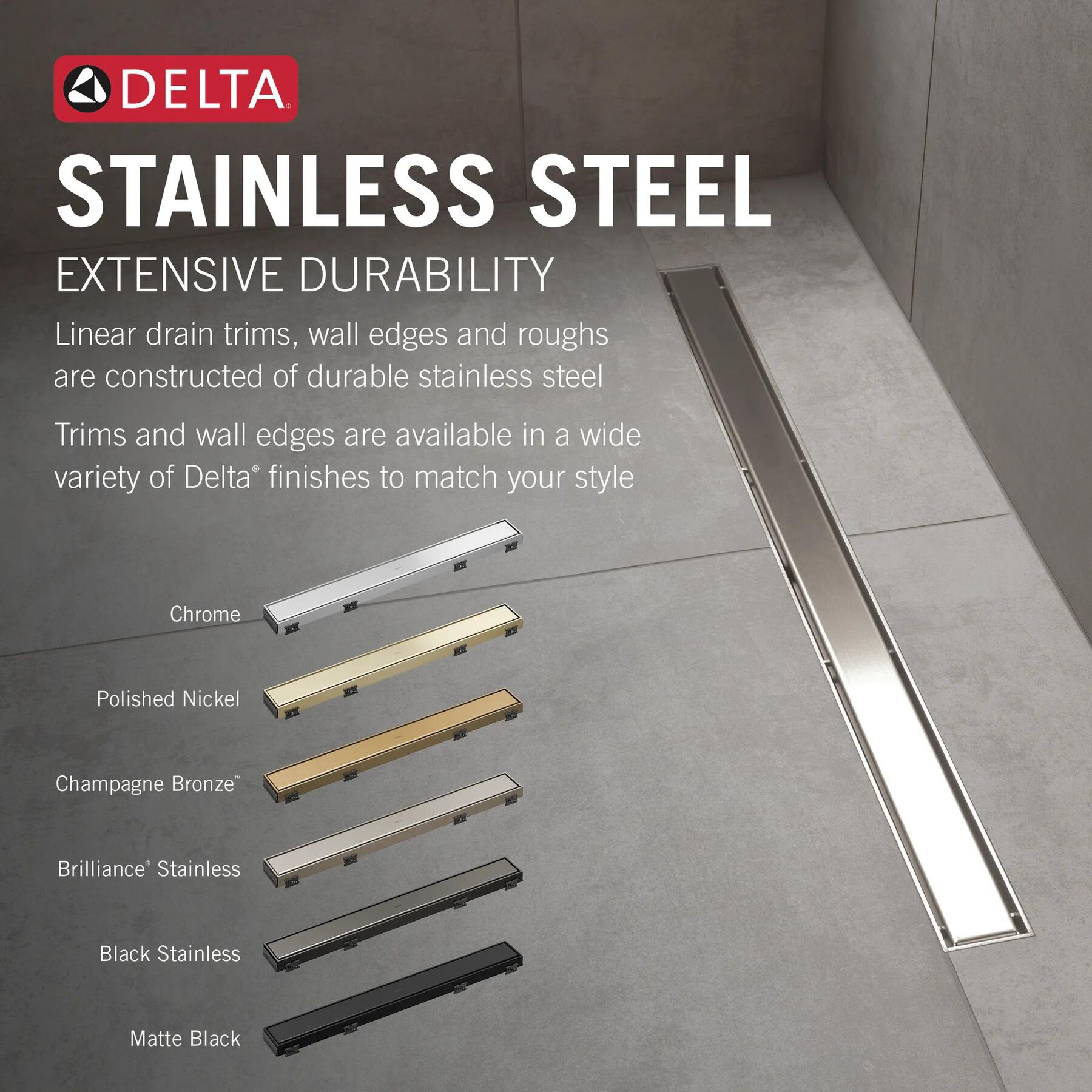

- Available in six Delta® finishes
- MUST ORDER ROUGH SEPARATELY

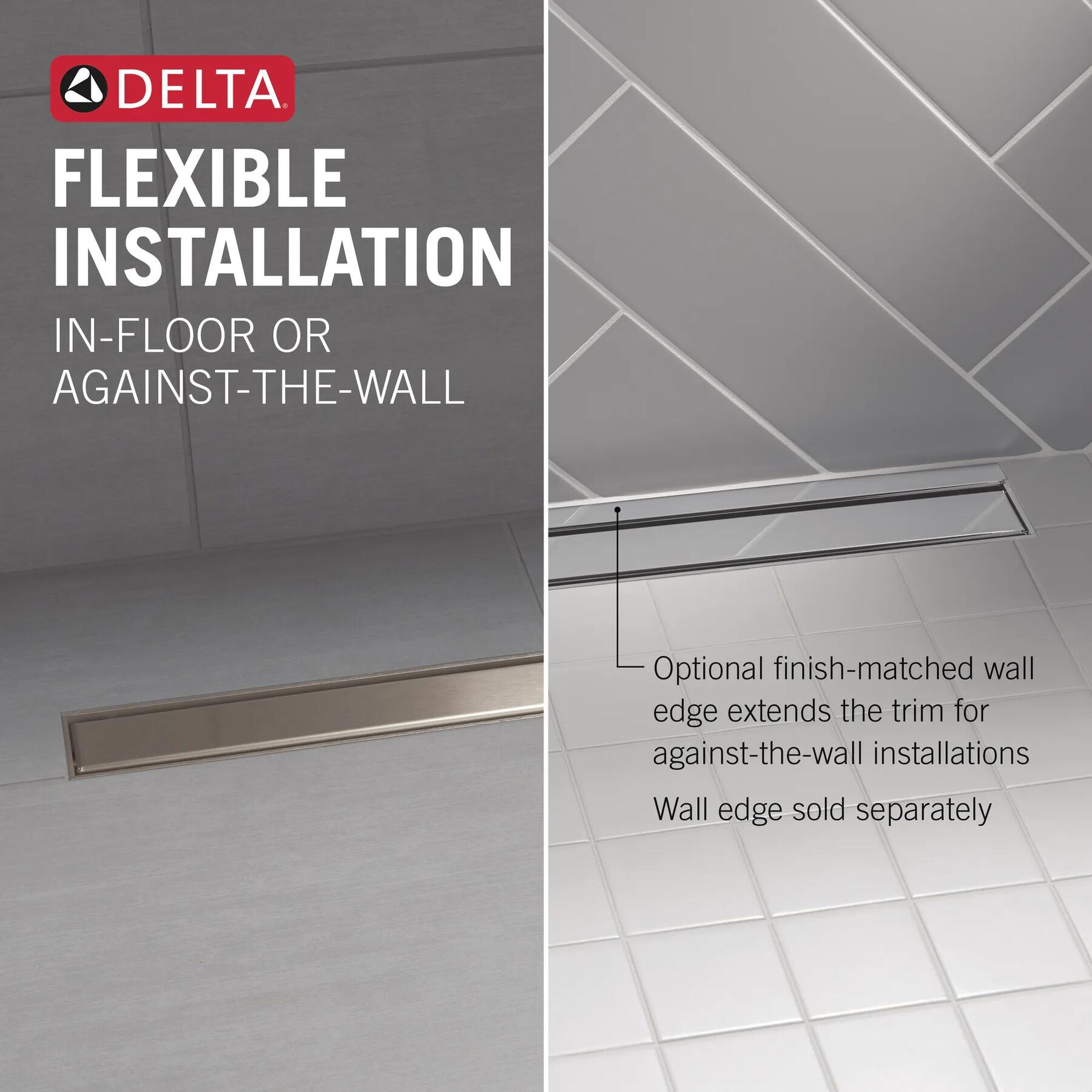

- Optional wall trim sold separately for installation against the wall

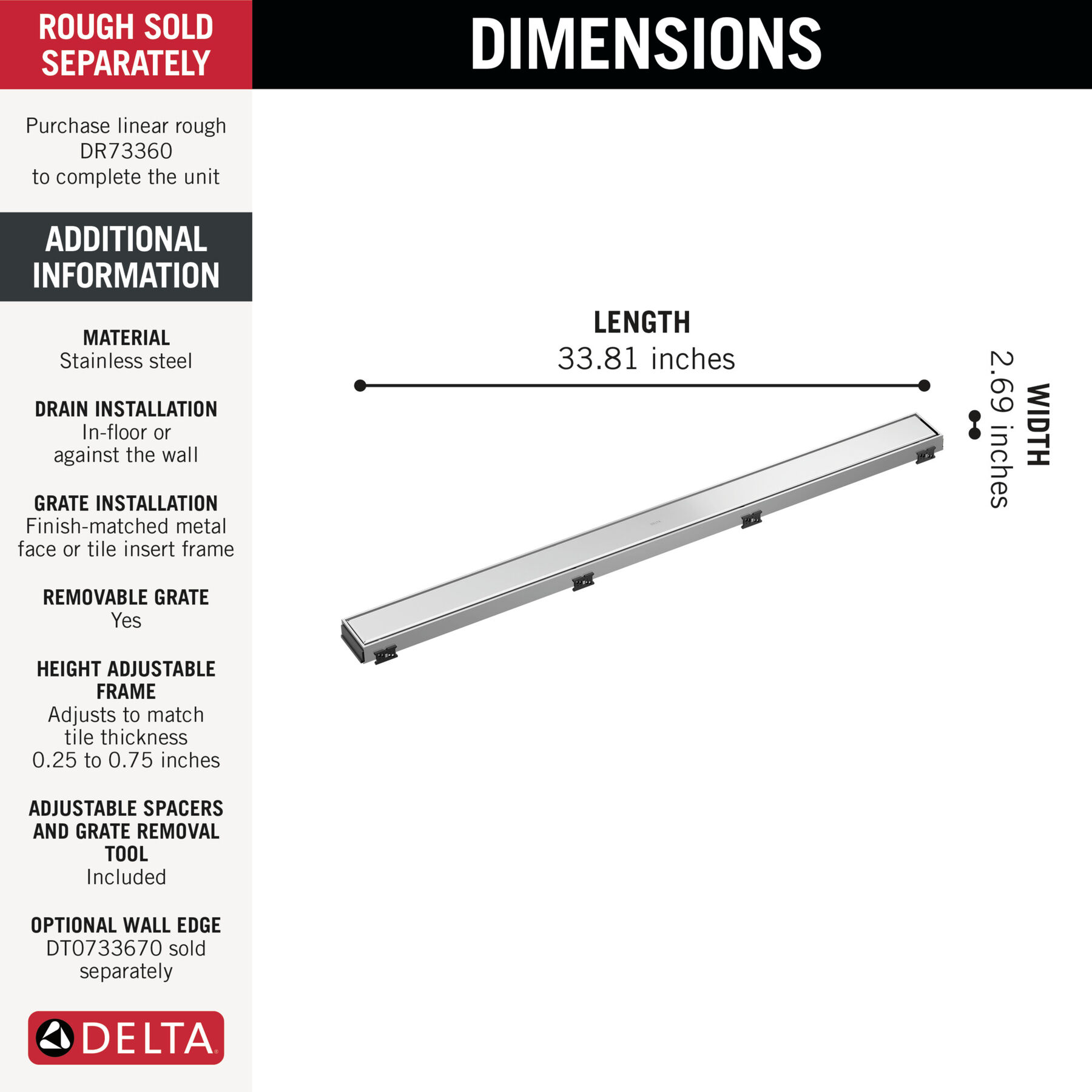

- Includes finished frame, finished grate, height adjustable frame spacers, and linear drain end caps

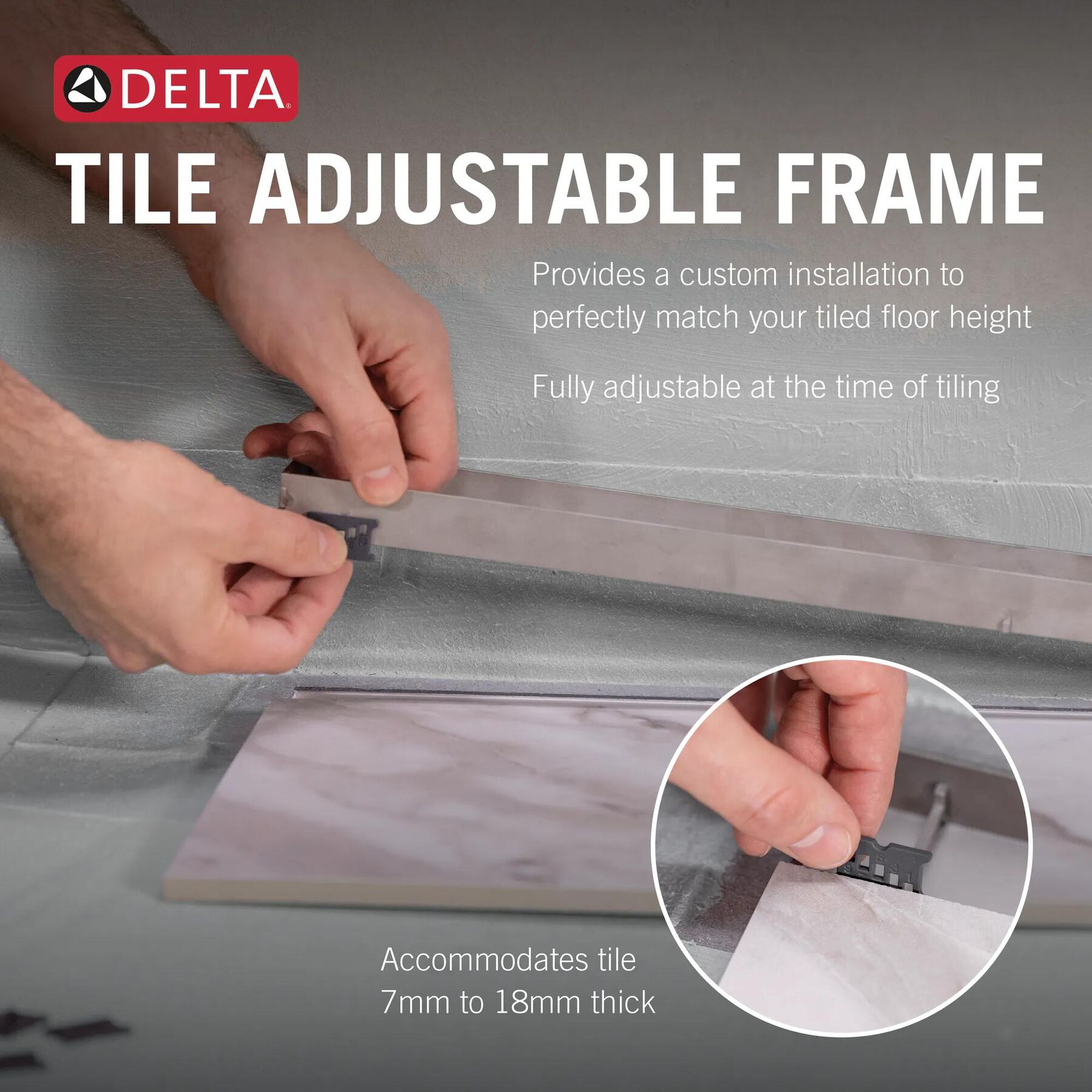

- Tile Adjustable Frame is adjustable to match tile thickness of 7-18mm

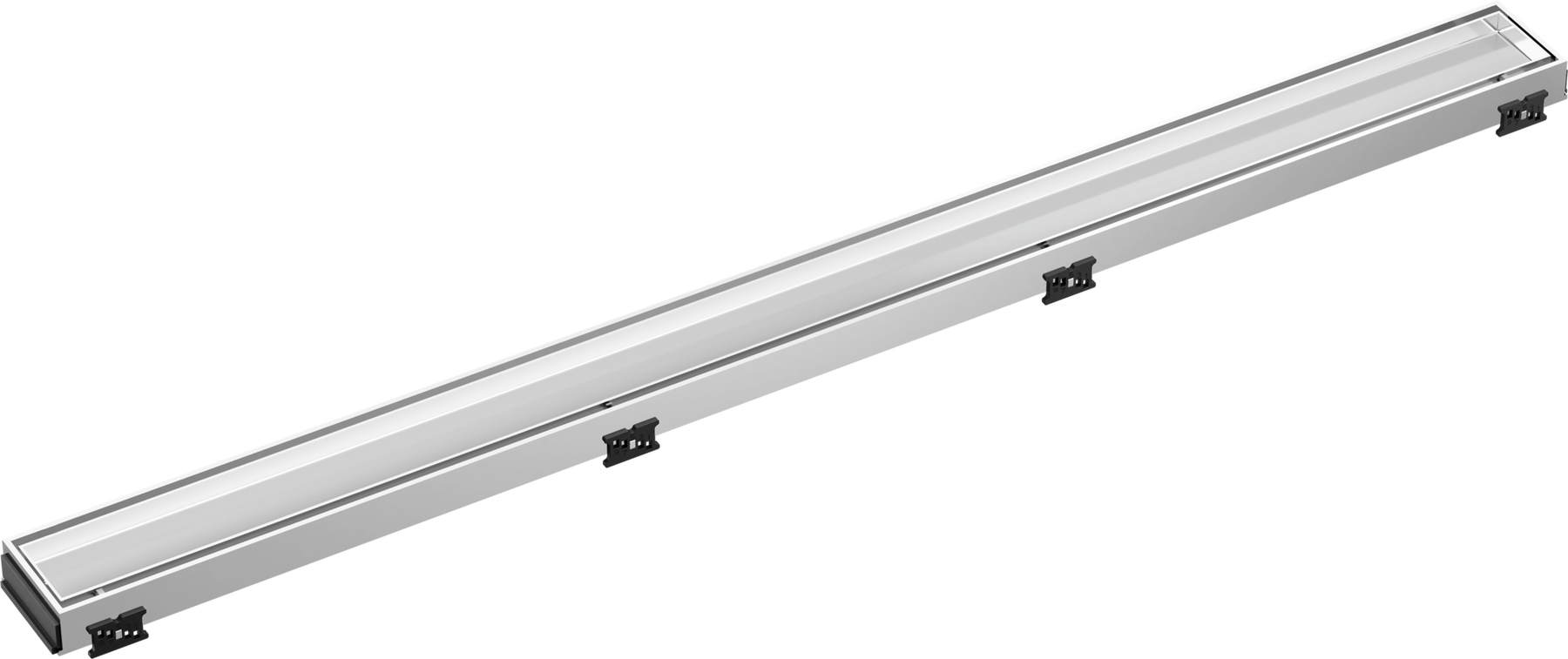

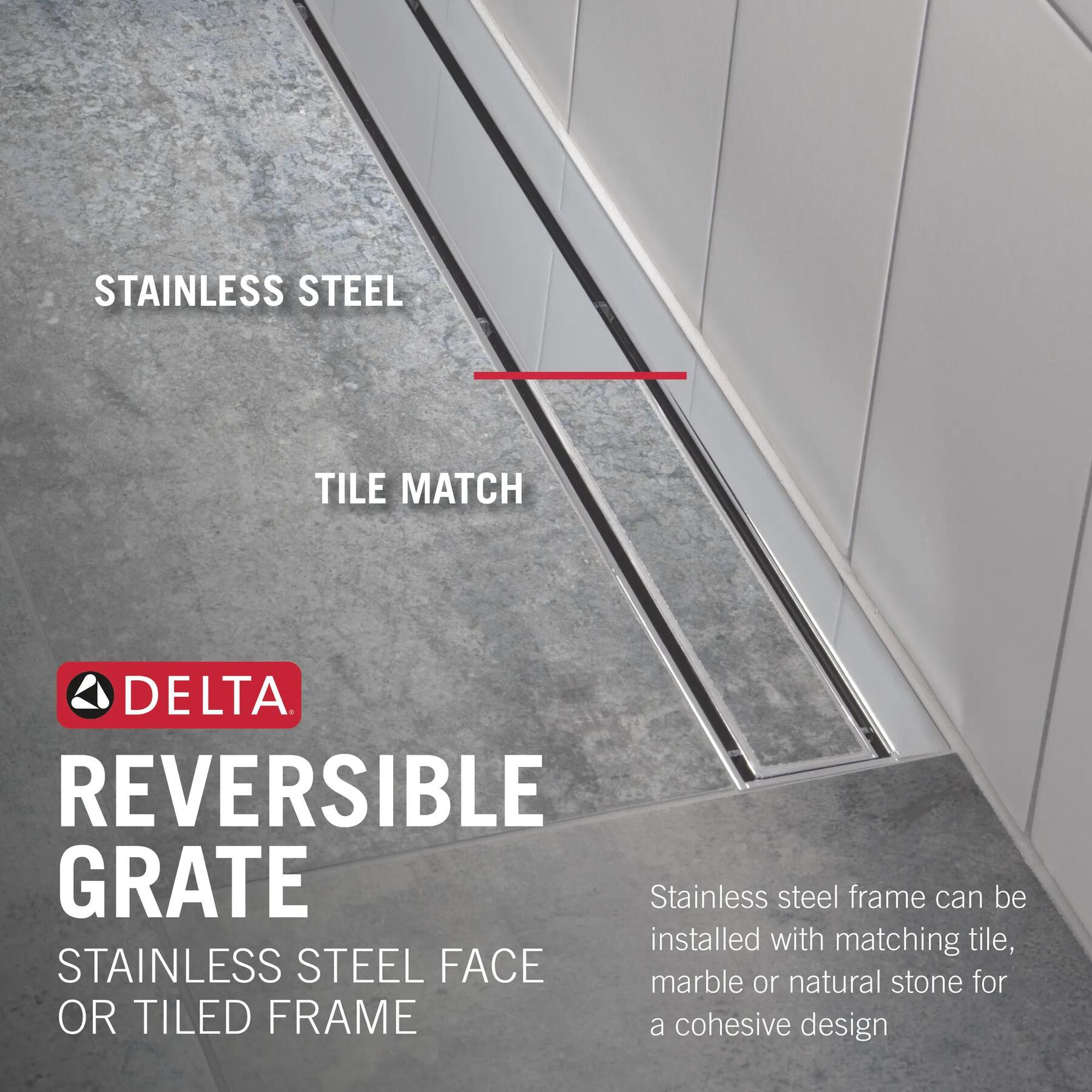

- Dual grate installation: tile insert frame or solid finished-matched grate
- Backed by Delta Faucet's Lifetime Limited Warranty
Special Information
California Prop 65 WARNING
CALIFORNIA PROP 65 WARNING
<b>WARNING: </b>Cancer risk from exposure to Diisononyl Phthalate (DINP). See www.P65Warnings.ca.gov.
For more information go to http://www.P65Warnings.ca.gov
Special Information
California Prop 65 WARNING
CALIFORNIA PROP 65 WARNING
<b>WARNING: </b>Cancer risk from exposure to Diisononyl Phthalate (DINP). See www.P65Warnings.ca.gov.
For more information go to http://www.P65Warnings.ca.gov
Documents & Specs
Product Support, Repair Parts & Technical Specifications
Resources
Installation Information
Overall Height (in.) :
1
Valve Type:
NA
INSTALLATION SUPPORT
Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.
REVIEWS
Rated 5 out of
5
by
Badger from
Beautiful - don't forget the rough in
This is the trim only, so make sure you order the rough in. It's really sleek and modern.
Date published: 2026-03-16
Rated 5 out of
5
by
Polished Nickel drain from
Beautiful polished nickel linear drain
[This review was collected as part of a promotion.] We just remodeled our primary bathroom and we selected all polished nickel fixtures. This linear drain is beautiful inside our curb free shower.
Date published: 2025-12-12
Q&A
What do you recommend for adhering the backerboard/tile to the inaide of the drain? Thinset? Construction adhesive?
Hi Frank tile,
Thank you for your question about the Delta Faucet linear shower drain DT0733613-BL.

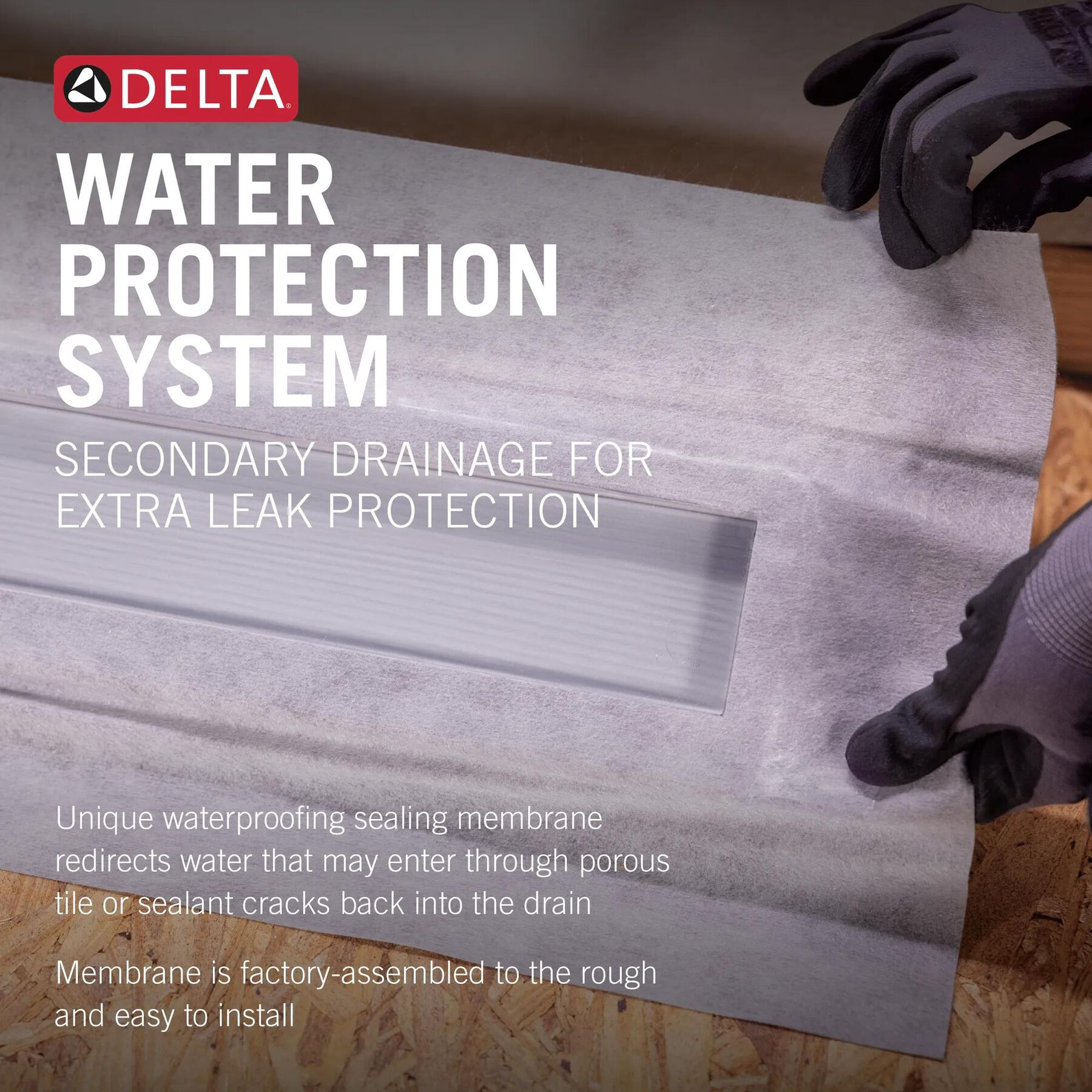

A flexible sealing compound is used under the waterproof membrane, then applied to the whole floor. Next, lay a thin-set sheet membrane on the entire floor.

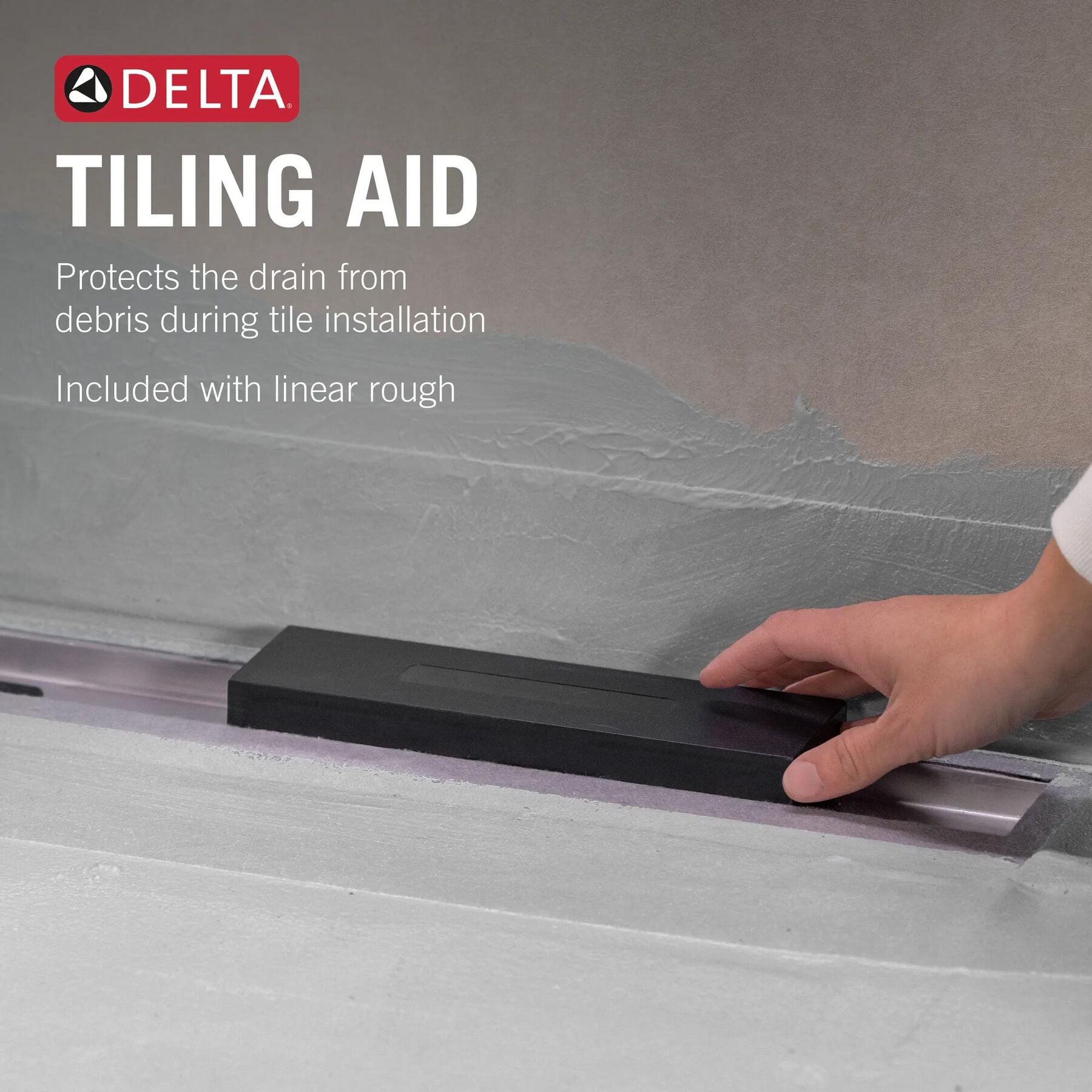

Insert the tiling aid into the rough and move as you apply the thin-set layer. This will help prevent excess mortar from dropping into the rough assembly. Then, trowel a thin set mortar layer on the floor following the manufacturer’s instructions.
See the installation instructions for more information:
https://media.deltafaucet.com/MandI/115158%20Rev%20B.pdf
Please reach out with any additional questions!
Best Regards,
Bryan
Date published: 2026-04-08
Does the center piece come out and is it replaceable with granite.
Hello Valued Customer,
Thank you for contacting Delta Faucet Company!

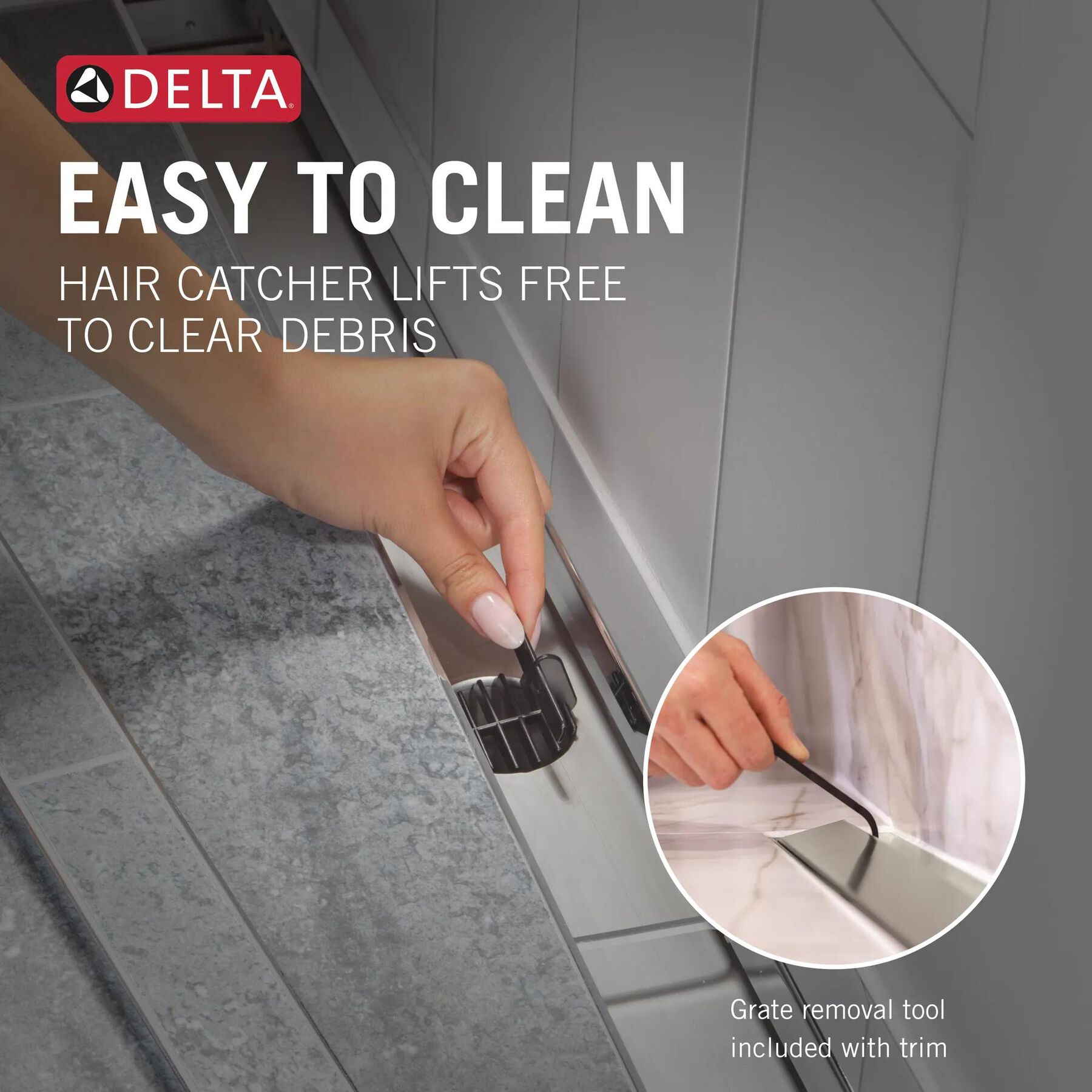

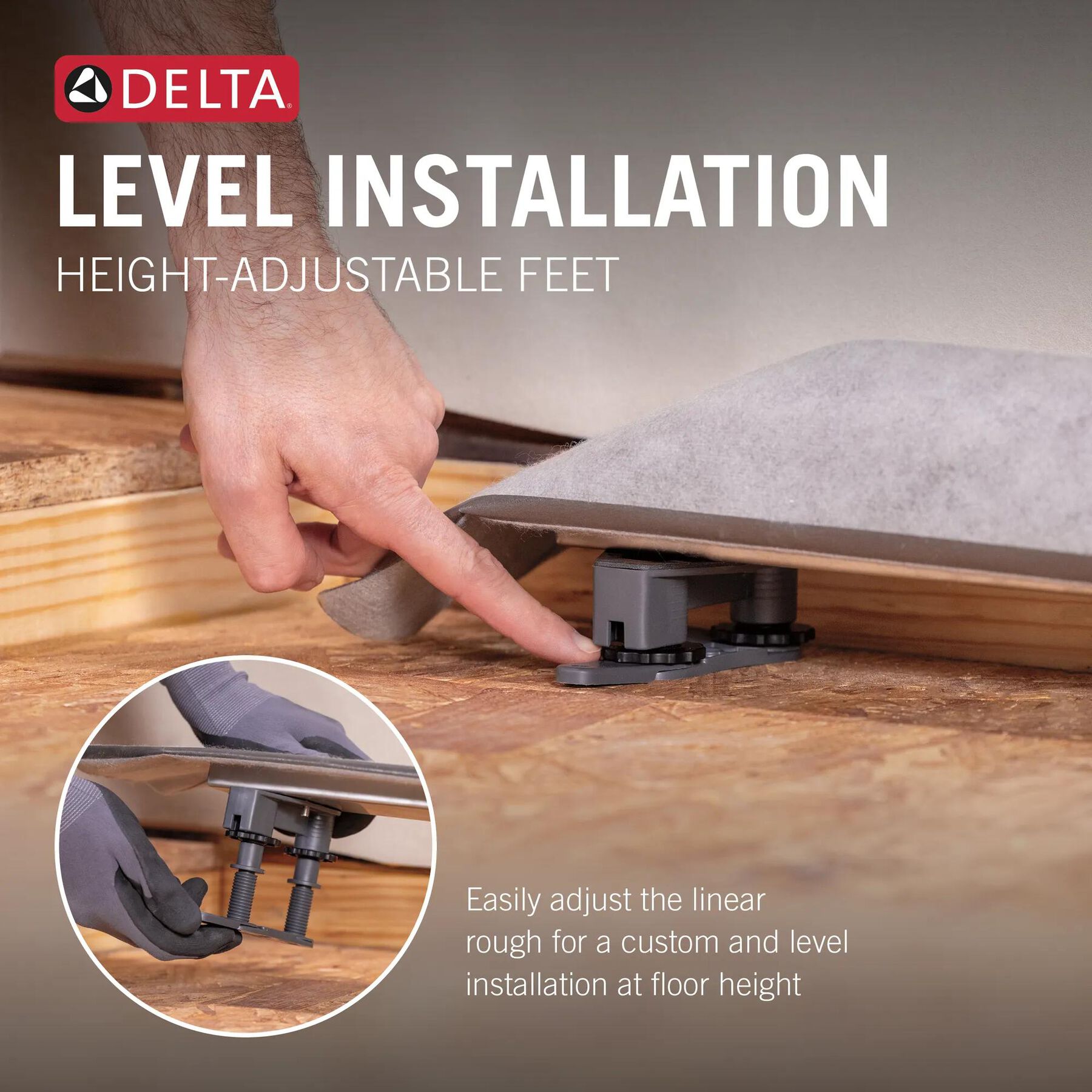

Yes, the cover can be removed for cleaning and it is height-adjustable feet for custom and level rough installation.
We appreciate your inquiry. Please reach out directly if you have further questions!
Best Regards,
Kyra
Digital Communications Specialist
Date published: 2025-02-27
Can it be cut to fit field conditiond - length?
Hi Annie,
Thank you for your question about the Delta Faucet DT0733613-CZ Linear Shower Drain Trim.
The trim is designed to fit the 36" Linear Shower Drain Rough DR73360. We don't recommend cutting the trim.
Please reach out with any additional questions!
Best Regards,
Bryan
Digital Communications Specialist
Date published: 2025-06-03
