Dorval®
View Full Dorval® Bathroom Collection

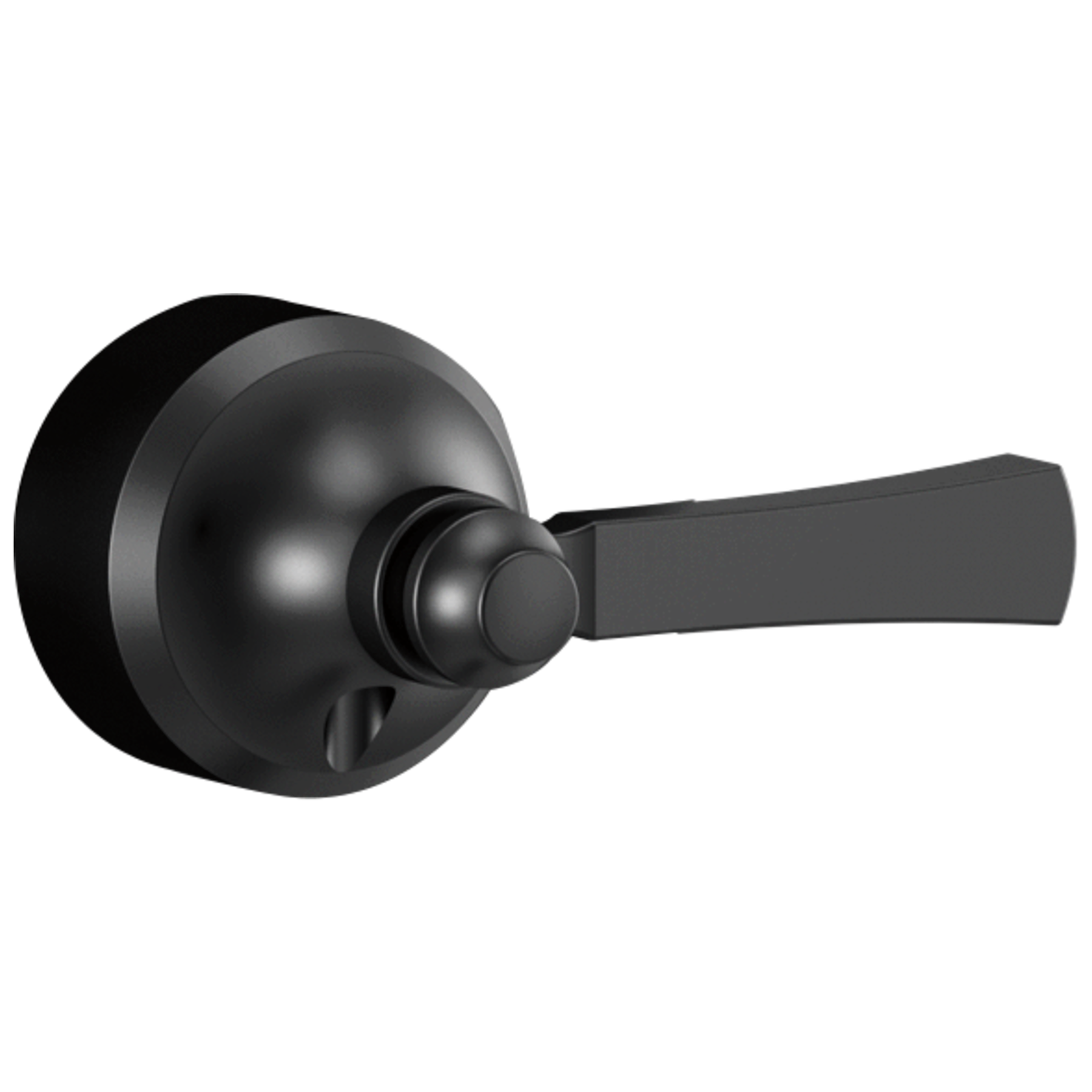

Handle - Volume FM Tub Filler/ 14S in Matte Black

Model#: H566BL
Add to Favorites
Find local Delta® installers.
Dorval®
View Full Dorval® Bathroom Collection
Handle - Volume FM Tub Filler/ 14S in Matte Black
Model#: H566BL
List Price: $9275
Add to Favorites
Find local Delta® installers.
PRODUCT FEATURES
The Dorval® Bathroom Collection diverges from conventional expectations with regal accents and a powerful design that commands your attention. Inspired by the feminine lines of French architecture and the regal stature of German castles, the Dorval Bath Collection balances grace and power in this modern take on new traditional design. This single lever handle kit may be used with Dorval single handle tub/shower faucets. Easy to install, simply fit the handle over the stem unit and secure with the included set screw and allen wrench. You can install with confidence, knowing that Delta backs this handle kit with a lifetime limited warranty.
  • For use with Dorval 14S series faucets
  • May also be used with Dorval floor-mount roman tub filler
  • ADA compliant metal lever handles
  • Red/blue indicators
  • Includes set screw for easy installation
Technology and Special Features
ADA Compliant
Documents & Specs
Product Support, Repair Parts & Technical Specifications
View Maintenance & Installation Sheet
Register Product
Installation Information
Overall Height (in.) :
2-1/4
Valve Type:
NA

INSTALLATION SUPPORT

Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.

GO
Enter Valid Zip.
REVIEWS
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 5ms
  • reviews, product
  • bvseo-msg: Unsuccessful GET. status = 'ERROR', msg = 'Not Found.'; Unsuccessful GET. status = 'ERROR', msg = 'Not Found.';
Q&A

Just installed this item. Lever sits at 6:00, as I lift the lever upward, the water is more forceful & gets hotter (toward 3:00 position) BUT the lever won’t go beyond the 3:00 mark. Not even close to the cold & hot (green & red dots), should the lever?

Asked by: Donna
Hi Donna, Thank you for contacting Delta Faucet Company! Please accept our sincere apology for the inconvenience you are experiencing with your Delta Faucet Dorval™ Handle - 1L Volume FM Tub Filler/ 14S In Champagne Bronze MODEL#: H566CZ. Here is what we can do to resolve your issue for you. If the handle is on a 6 o'clock, and on and hot at 3 o'clock, it means that the rough valve was not installed properly. First thing we would recommend is to check and see if the word "UP" is on the top of the rough valve. There should also be 2 notches where the cartridge fits into the valve, those notches should be at 9 & 3. Thank you for being a loyal Delta Faucet customer. We appreciate your business and look forward to continuing to serve you. Please contact us back with any further questions. Best Regards, Nicole
Answered by: Customer Service
Date published: 2024-03-28

Will this work as handle w t4756-sslhp-fl

Asked by: James
Hi James! Thank you for your question and we are happy to help. The Delta H566 will work with the Delta T4756-SSLHP-FL. With any further questions or concerns, please do not hesitate to reach out to us again. Best Regards, Carrie
Answered by: Customer Service
Date published: 2024-03-28

What size set screw is used on this handle

Asked by: Jr Bell
Hi Jr Bell, Thank you for your question about the Delta Faucet H566. A replacement set screw, button, and wrench is RP101051. https://www.deltafaucet.com/parts/product/RP101051.html Please reach out with any additional questions! Best Regards, Bryan Digital Communications Specialist
Answered by: Delta
Date published: 2025-06-25
