Cassidy™

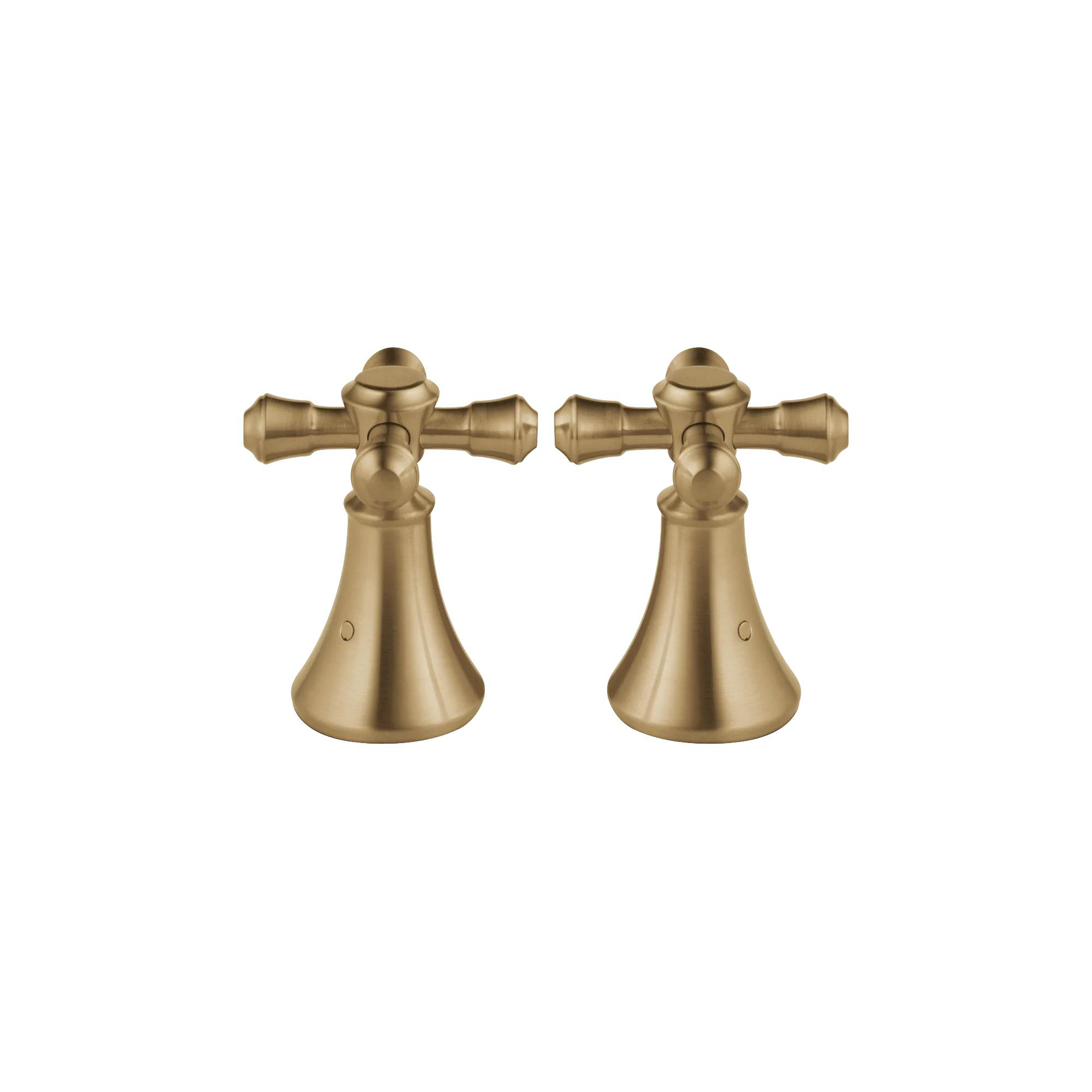

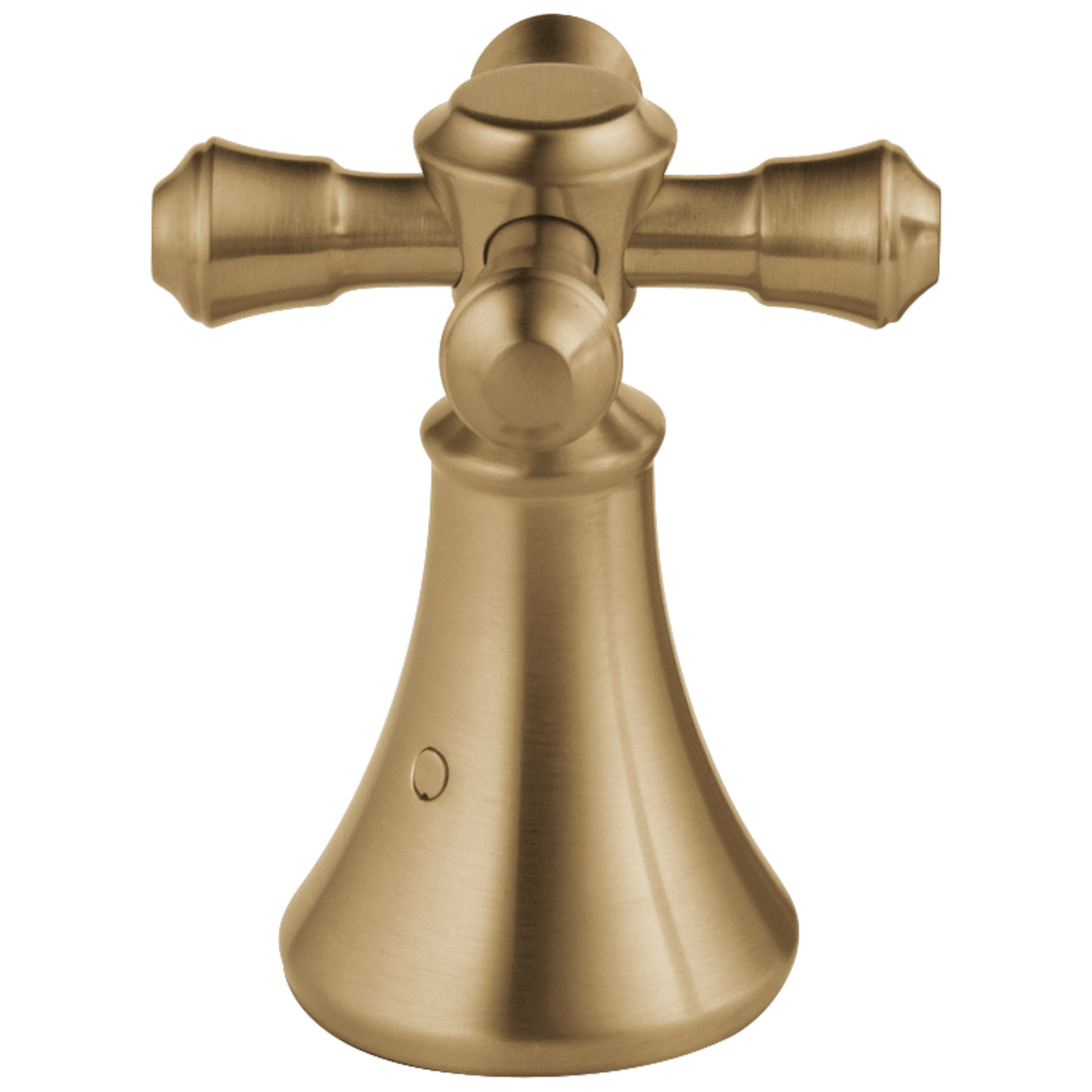

Metal Cross Handle Set - Roman Tub
Model#:
H695CZ
PRODUCT FEATURES
- Brass Construction
- Backed by Delta Faucet’s Lifetime Limited Warranty
Special Features
ADA Compliant
ADA Compliant
Some people, and some local codes, require fixtures that are compliant with the Americans with Disabilities Act. If someone may visit who has special needs, or if you believe future buyers might appreciate this feature, Delta offers a range of compliant fixtures.
Brilliance® Finish
Brilliance® Finish
Many Delta products are made with Brilliance® finishes, which resist abrasions and discolorations better than traditional brass or even chrome.
SUPPORT
Installation Information
Over All Height :
3-31/32
Connection Type :
NA
REVIEWS
Rated 5 out of
5
by
LINDA 101 from
Delta H695 Cassidy Cross handles
Bought these for Roman tub. Love them. Bought the polished brass, love the shiny look. A new look for a vintage design.
Date published: 2018-06-22
Rated 5 out of
5
by
LPD from
Beautiful
Love working with this company.
Date published: 2016-12-05
Rated 5 out of
5
by
drwhite from
Great looks
Looks great on the bath tub. So much better than the crystal handles.
Date published: 2014-09-20
Q&A
Does the h695cz handle kit include the set screw and cover?
Thank you for your question, John! The H695CZ handle will include both the set screw and the button cover in the matching finish.
Best regards, Edward
Date published: 2019-12-13
Are the handles splined
Another way to ask is how do these handles attach to the shower assembly
Hi Gary,
Thank you for your question. Theses handles attached to a D shaped stem by a set screw in the side of the handle.
Best regards,
Jon
Date published: 2016-01-20
I'm replacing the old delta acrylic knobs on our roman tub with the h695 handles. Is there a base plate I need to buy to fit under the handles as there's a 1/2"+ gap between the 695 handles and the chrome base plate that was on the tub with the acrylic?
I bought the RP72722 handle base and it worked like a charm! Only problem was your blurb says, "a handle base & gasket", so I bought 2, but when they arrived and I opened the 1st box and there were 2 bases with gaskets so it really should say "a set of handle bases with gaskets". Will be returning the extra set I ordered. Easy install!
Date published: 2018-05-28
I got the handle set H695 and it's slightly too tall. The outside of the handle hits a shelf above the tub. I assume the lever handle would not have that problem as it would turn towards the tub. What is the height of both handle sets? (h695 and h697)
Hi Bob23,
Thank you for your question. The H695 is 4" tall and the H697 is 3 7/8" tall.
Best regards, Jon
Date published: 2018-05-16
I need to replace the handles on a roman tub faucet. the handles on the new faucet on the cold water side is to long. I like the cross handle h695pn,
the question I have about the cross handle is how far do the handles extent from the center of the handle. it needs to no more than 2 inches. Thanks
Hello Norman,
Thank you for your question. Delta roman tub handle H695PN measures from the center to the outer edge at 1 5/16".
Best Regards,
Courtney
Date published: 2016-11-02
Will DH695 cross handles work on a BT2710-SS?
Thank you for your question, Nino! The H695SS cross handles will work with model BT2710-SS. We would also recommend using the Cassidy handle bases, part number RP72722SS
https://www.deltafaucet.com/parts-product-detail?modelNumber=RP72722SS
Best regards, Edward
Date published: 2018-12-23
I am doing a wall mount. Can I use these on the Cassidy wall mount trim and rough in kit and if not what kit can I use?
Hi, Tiffany!
Thank you for your question. The H695 handles will not fit as the insert inside of the handle fit on different stem cartridges for the Cassidy wall mount faucet. I do apologize for this inconvenience.
Best Regards,
Rosanna
Date published: 2018-08-17
Can I use these handles on the Valdosta 35757LF-SP?
Hi, Bryster55!
Thank you for your question. Unfortunately, the Delta H695SS Handles will not fit the Delta 35757LF-SP Faucet. The handles that will fit this faucet is RP84387SP.
Best Regards,
Rosanna
Date published: 2020-01-23
