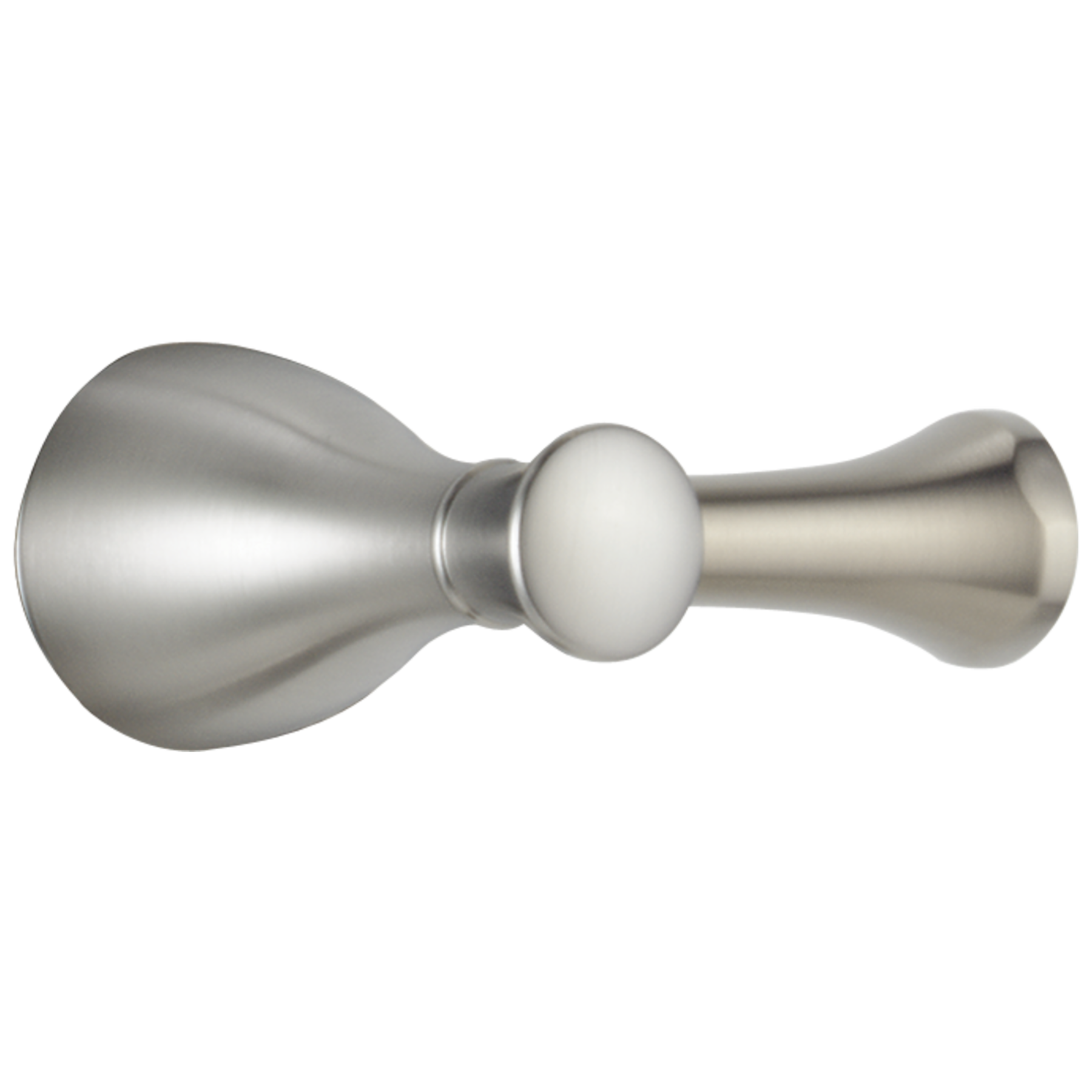

Metal Lever Handle Kit - Tub & Shower in Stainless

Hello Keith, Thank you for your question. The Delta Lockwood H740 is designed for 13/14 Series shower faucets and the H540 is designed for a roman tub transfer valve. These handles are not interchangeable. The stem pattern on the roman tub cartridge that the handle mounts to is not the same pattern used on the tub/shower faucet cartridge. Best regards, Tanya

Hi Matt, To start, you will need to remove the entire handle by unscrewing the accent piece and loosening the set screw. Once the handle has been removed, you will see a small gray disk, remove this cap and set it aside. You will now see a white or gray plastic piece with a triangle shape on it. This piece is called your rotational limit stop and is what will be adjusted. First, ensure that the silver pin running through the brass stem is as far away from the triangle as possible. Lift up on the round piece with the triangle on it and rotate this piece counterclockwise. Each notch you reset it will increase your maximum hot water by three to four degrees. On the outside of the cartridge you will see small notches, these notches indicate how far the cartridge can be adjusted. Once you are finished, place the gray disk back on the stem of the cartridge and reattach your handle. I hope this information is helpful.

Hi, Eoin! Thank you for your question. The white, plastic insert inside of the Delta H740PT handle is not a replaceable part on it's own. If this part is needed, the whole handle will need to be replaced. Best Regards, Rosanna

Hi Bobbie, Thank you for your question about the Delta Faucet H740. H240 is a replacement handle set used by 2540 and 3540 series Lockwood sink faucets. https://www.deltafaucet.com/parts/product/H240.html Please reach out with any additional questions! Best Regards, Bryan Digital Communications Specialist
