Delta®

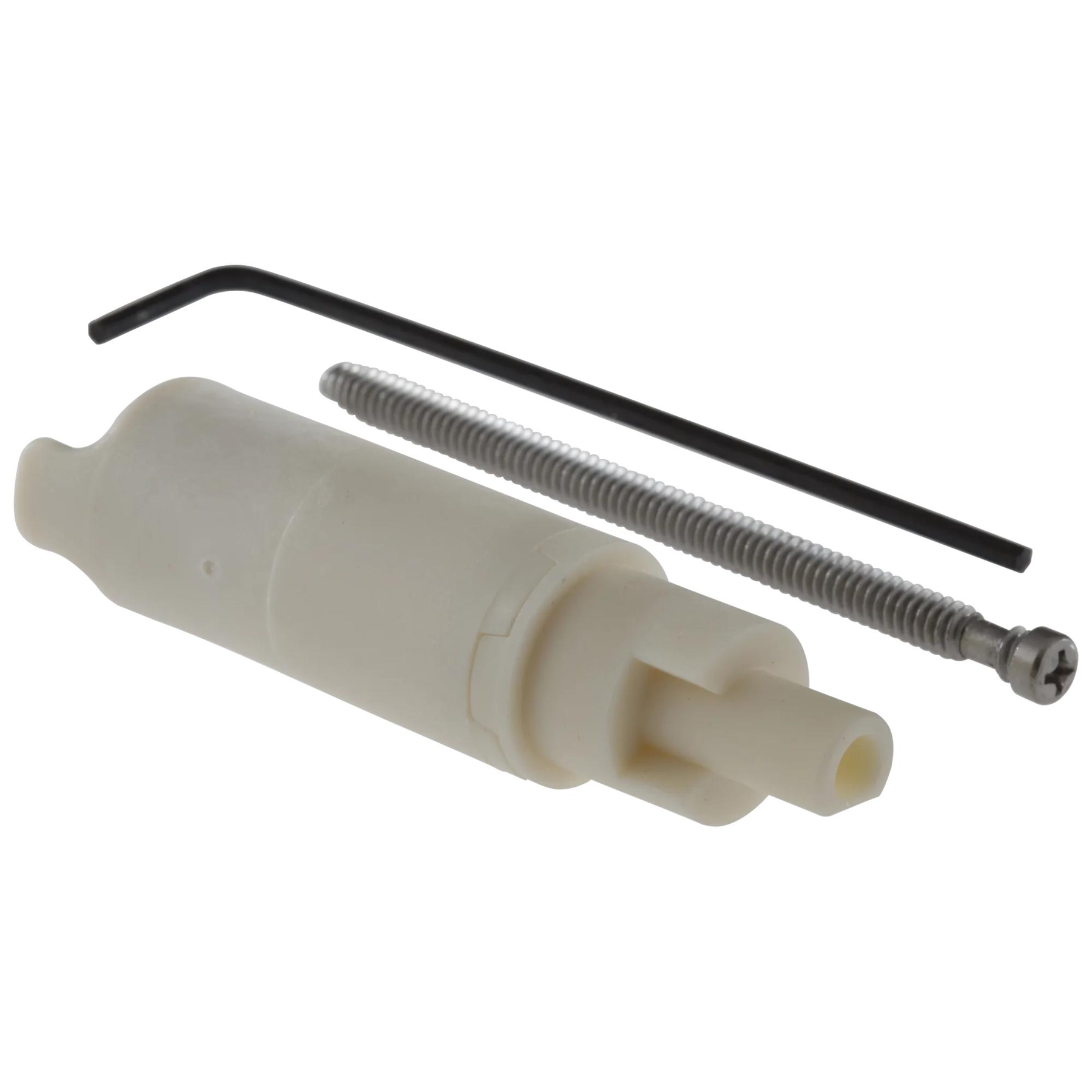

Stem Extender - Roman Tub
Model#:
RP18627
Image Thumbnail, click to view zoomed product image
Documents & Specs
Installation Information
Overall Height (in.) :
13/16
Valve Type:
NA
REVIEWS
Rated 5 out of
5
by
Daniel from
Homeowner
Right piece. Great price.
Date published: 2022-12-15
Rated 5 out of
5
by
JimO from
Exact Part I Needed
I tried to buy this part locally at a plumbing supply but the part was a knock off and the fastening screw had the wrong size head. I had toreplace a leaking cartridge and seat and spring for the first time in a 35-year-old shower faucet. Had a hard time getting off the handle ended up breaking this extension piece.So glad I was able to find the exact replacement available from Delta after all these years.
Date published: 2022-08-30
Rated 5 out of
5
by
Comer Contracting from
Roman tub transfer valve
I have found that this part works for alot of older Delta Roman tub fixtures and very happy with qaulity
Date published: 2020-12-11
Rated 5 out of
5
by
John from
Exactly what I was looking for!
When this piece broke on my current Delta Diverter knob I thought I'd never be able to fix it without total replacement. Called Delta and spoke with a rep for about 15 minutes and she identified the exact part I was looking for. I immediately Googled the part and wound up on faucetdirect and two days later I had the part in hand.
Awesome company, great customer service and prices.
Will be coming back here for any future needs.
Date published: 2017-11-29
Rated 2 out of
5
by
hanson423 from
good service
service was good and shipment was prompt. Shipping and handling charges were more than double the cost of the part (standard shipping)
Date published: 2013-07-24
Rated 4 out of
5
by
scalawagsmith from
great service
everything was as it should have been, almost choked on the shipping thou. also dont know why its listed as chrome none on this piece of "plastic"
would be nice if delta made a better part to begin with then i would not have needed to replace them
in the first place.
Date published: 2009-12-14
Q&A
What handles will fit this extender RP18627?
I live in an old house with old parts and pieces on everything! My bathtub knobs never had screws in them to begin with - just these knobs that tend to fall off every few months. The last fall resulted in a break of a knob. I want to replace the knobs (and preferably with cross handles - set of 3 for hot/cold/tub-shower). I've attached a picture of what sticks out of the wall underneath these knobs. My research shows this to be a Delta RP18627 stem extender. I wanted to know:
a) how do I figure out what faucet handles/knobs will fit on these extenders; and/or
b) if I cannot find or do not like option a, how do I remove these extenders? (I DIY-ignorant in this area, so am hoping for some clear layman's terms with all the details!)
Thank you in advance for any time and help on this issue - I would really really appreciate it!!
Hi Squideast, Thank you for your question. The cross style handles that are available for the 3 handle tub/shower faucet that you have will be the models H46 and H36. The H46 includes the hot and cold handles and the H36 the diverter handle. You will also need RP20184, these are long screws that strengthen the stem extender and give the set screw from the handle a place to attach. These are a metal cross handle in a chrome finish.The porcelain cross handles are no longer available. You cannot change the stem extender, it attaches to the stem that turns the water on and off.
Thanks,
Dave
Date published: 2024-03-28
how long is this screw? How long is the total extension piece? I currently have insalled part RP12631 and then a second plastic extension that fits into piece RP12631. What I need is this second extension (or a longer extension). Will this item , RP18627
Hi, Anne!
Thank you for your question. The screw that comes in the RP18627 stem extender is 3" long. The extender piece is 2.87" long.
Best Regards,
Rosanna
Date published: 2024-03-28
how in install stem extender
Hi Paul, Thank you for your question. The stem extender will fit onto the stem assembly the same way a handle would. Match the D pattern up properly and slide the extension on. The long screw would go on next on a lever handle, handle next then screw on a knob style handle.
Thanks,
Dave
Date published: 2024-03-28
Will it fit
Will this extend the RP1740 or do I need a different extender?
Hi Jay, Thank you for your question. The RP18627 extender will fit on the RP1740 stem assembly. The extenders are normally used on the 2 or 3 handle tub/shower faucets.
Thanks,
Dave
Date published: 2024-03-28
how long is the screw that comes with this extender?
Hi Do it myself, Thank you for your question. The screw that comes in the RP18627 stem extender is 3" long.
Thanks,
Dave
Date published: 2024-03-28
CAN I GET JUST THE SCREWS FROM THIS PRODUCT CODE?
Hi, Travis!
Thank you for your question. The Delta RP12629 Screws are the same screws for the Delta RP18627 Stem Extender.
Best Regards, Rosanna
Date published: 2024-03-28
what type of tool is needed to unscrew RP19654 to replace a broken RP 18627 and can this replacement be done from the top at the tub level?
Hi Joe,
Thank you for your question. The RP19654 sleeve can be removed from above the deck. If it cannot be removed by hand, we recommend to use an adjustable wrench or channel lock pliers, and to use a cloth or rag to protect the sleeve from getting scratched.
Best regards,
Jon
Date published: 2024-03-28
Which plastic handles will fit this Stem Extender?
Hello,
I have an old Peerless Shower/Tub combo, and recently replaced a broken Stem Extender (Peerless part # RP12627) with this Delta Part RP18627 - it was a perfect fit.
Now, I need to replace the Plastic Handle, and cannot find it using the old Peerless Part # RP9410.
Please tell me which Handles will fit Delta Stem RP18627
thanks so much!
Any "D" broach handle will fit. I have some nice porcelain crosses that have a "D" broach adapter.
Moen makes one that fits:
http://www.faucetpartsplus.com/product_p/461820.htm
Delta makes a few that take the "D" broach.
Date published: 2024-03-28
Hi, would anyone know what handles will fit extender RP12631
It will take ANY handle that accepts a "D" broach stem, ie Delta makes an acrylic one.
Date published: 2024-03-28
is see there is a brass replacement for the rp18627 but cant find a number for it
Hi, clinton!
Thank you for your question. Unfortunately, there is not a brass replacement for the RP18627 stem extender.
Best Regards,
Rosanna
Date published: 2024-03-28
Where can I find a video about the Un-install and the install of the RP18627 Tub and Shower Stem Extension? Don't understand why there isn't one right next to the picture, either on this site or on Homedepot.com.
Hi Jeff,
Thank you for your inquiry! Unfortunately, we don't have an installation video available for installing the stem extender RP18627 in the older two and three handle shower faucets. However, If you need help with the installation of this part, please feel free to contact us, as we would be happy to help. You can reach our customer service team at 1-800-345-3358, Monday through Friday from 7 am to 7 pm and Saturday 8 am to 5 pm CST.
Best regards,
Tanya
Date published: 2024-03-28
how do I remove the nut that is holding this stem extender in place
Hi Julie,
Thank you for your question. You can use an adjustable wrench to turn the nut (sleeve) counter-clockwise. You may also unscrew the base ring first to allow more room for the wrench.
Best regards,
Jon
Date published: 2024-03-28
What is the overall length of this extender?
RP18627
3" tip to tip.
Date published: 2024-03-28
Does this replace a sk2898 stem extender
Hello,
Please accept our sincere apology for the inconvenience you are experiencing. We have reached out to you via email to further assist at this time.
Best Regards,
Tim
Digital Communications Specialist
Date published: 2026-04-28
This piece is warranty y need it
Hello Rejean,
Thank you for your question about your Delta Faucet model RP18627. We are happy to assist you!
We have reached out to you directly. We would be more than happy to assist in getting this issue resolved.
We look forward to better serving you in the future.
Best Regards,
Themar
Digital Engagement Specialist
Date published: 2024-03-28
What is the alien wrench used for when the screw itself is Phillips head?
Hi Mort, thank you for your interest in the RP18627!
The Allen wrench would work with lever handles that have a set screw.
Please contact us directly if you have any questions or need additional assistance.
Best Regards,
Themar
Digital Communications Specialist
Date published: 2023-06-12
Hello, I need to replace the valve on both the hot and cold lines of my two handle system, but I only have the model number on the extender (SK-2898) because I wont to remove the valve until I have the replacement. What valves interfaces with SK-2898
Hi JBEE!
Thank you for your question and we are happy to help. Unfortunately, we do not have a SK-2898 model number. Please contact us directly for further assistance.
Best Regards,
Carrie
Date published: 2024-06-10
What shower/tub knob would fit this?
Hi Viewfinder!
Thank you for your question and we are happy to help. Any faucet handle that uses the RP1740 stem assembly will work with the RP18627. With any further questions or concerns, please do not hesitate to reach out to us again.
Best Regards,
Carrie
Date published: 2024-07-09
When replacing RP 19653, Diverter Assembly, should you leave the screw from the extender, RP 18627 in place and pull them out as a unit?
Hi Valued Customer,
Thank you for your question, please accept our sincere apology for the inconvenience you are experiencing. We will be happy to assist you in resolving this issue as quickly as possible.
The screw needs to be removed from the extender.
Please feel free to contact us directly for technical information at 800-345-3358. We are available Monday through Friday from 8 a.m. to 8 p.m. and Saturdays from 9 a.m. to 6 p.m. Eastern Standard Time.
Thank you for being a loyal Delta Faucet customer.
Best Regards,
Themar
Digital Communications Specialist
(800) 345-3358
customerservice@deltafaucet.com
Date published: 2025-02-01
I have the RP18627 stem extender over a RP1740 cartridge. The bathroom is from 1994 and has the brass escutcheons. The levers also attach from the top by removing a cap. I want to confirm that RP18304 kit will work to replace it and what levers work?
Hi Andrew,
Thank you for your question. The RP18304 will work to replace the trim. I have provided a link for handle options below.
https://media.deltafaucet.com/MandI/X00038266_B.pdf
Best Regards, Simone
Date published: 2024-03-28
Is there a left and right I purchased 2 and 1 doesn't fit the Right side of the tub. It is very confusing Anything that you can suggest that would help would be great greatly appreciated
Hello Geno,
Thank you for your question! We will be happy to help you.
The stem extender RP18627 is not specific to a side. Please make sure to line up the D of the stem to the extender. Please look on page 4 of the attached installation instructions for extender placement.
https://media.deltafaucet.com/MandI/33779RevB.pdf
Best Regards,
Renna
Date published: 2024-03-28
Hello, I’m trying to fix some old two handle shower cartridges. The valves are RP1740, but it looks like the extension might be another brand?? What are the dimensions of this extender?
Hi Jon L,
Thanks so much for contacting Delta Faucet Company about the RP18627!
The extender is 2.87" long.
Please contact us directly if you have any questions or need additional assistance.
Best Regards,
Nicole
Digital Communications Specialist
Date published: 2024-03-28
Is 7S-4D the replacement part for RP18627, available at Home Depot?
Good afternoon Home Depot Trainee,
Thank you for contacting Delta Faucet Company regarding our Delta Faucet DELTA® Stem Extender Roman Tub MODEL#: RP18627! I am sorry this information was not readily available, and I am happy to help you!
The 7S-4D replacement part is not a direct replacement part so it may or may not fit. we recommend using the delta brand as it's made specifically for our products. RP18627 part is not available at Home Depot.
Thank you for being a loyal Delta customer. Please contact us back with any further questions.
Best Regards,
Themar
Date published: 2021-05-04
Do I simply pull out the extender to replace or is something holding it in place? I have an older deck mounted shower knob on a whirlpool bath tub and the extender stem broke and I can’t pull it out with pliers. I need clear directions.
Hi Jenn,
Thank you for your question about the Delta Faucet RP18627.
To remove the extender, unscrew the sleeve with the water supply off. Then the extender is pulled out from the diverter or stem. See instructions on page 7 here:
https://media.deltafaucet.com/MandI/109456%20Rev%20C.pdf
Please reach out with any additional questions!
Best Regards,
Bryan
Date published: 2025-12-17
I need this at 2 7/8 overall length like my original that broke, this one I bought from you is 3 1/8 overall length. Can i purchase one that is 1/4 inch shorter
Hello,
Please accept our sincere apology for the inconvenience you are experiencing. Please contact us directly by phone at 1-800-345-3358 or email at customerservice@deltafaucet.com as we would like to resolve this matter for you at this time.
Best Regards,
Tim
Digital Communications Specialist
Date published: 2026-07-16
Can I get the metal sleeve that goes over this part
Hello Jason,
Thank you for your question. We are happy to help! If you are using the extender in the RP18632 transfer valve the sleeve is part number RP19654. Please reach out directly if you have any questions or need additional assistance.
Best regards,
Bryan
Date published: 2024-03-28
Is there a version that is metal at the tip? We use this in our shower with kit RP18304, more specifically in the sleeves, and use H297 levers. They keep breaking over time due to the lever action to turn them.
Hello Andrew,
Thank you for your question. We are happy to help! Unfortunately, we do not make metal stem extenders for our older two and three handle shower units. Please reach out directly if you have any questions or need additional assistance.
Best regards,
Bryan
Date published: 2024-03-28
