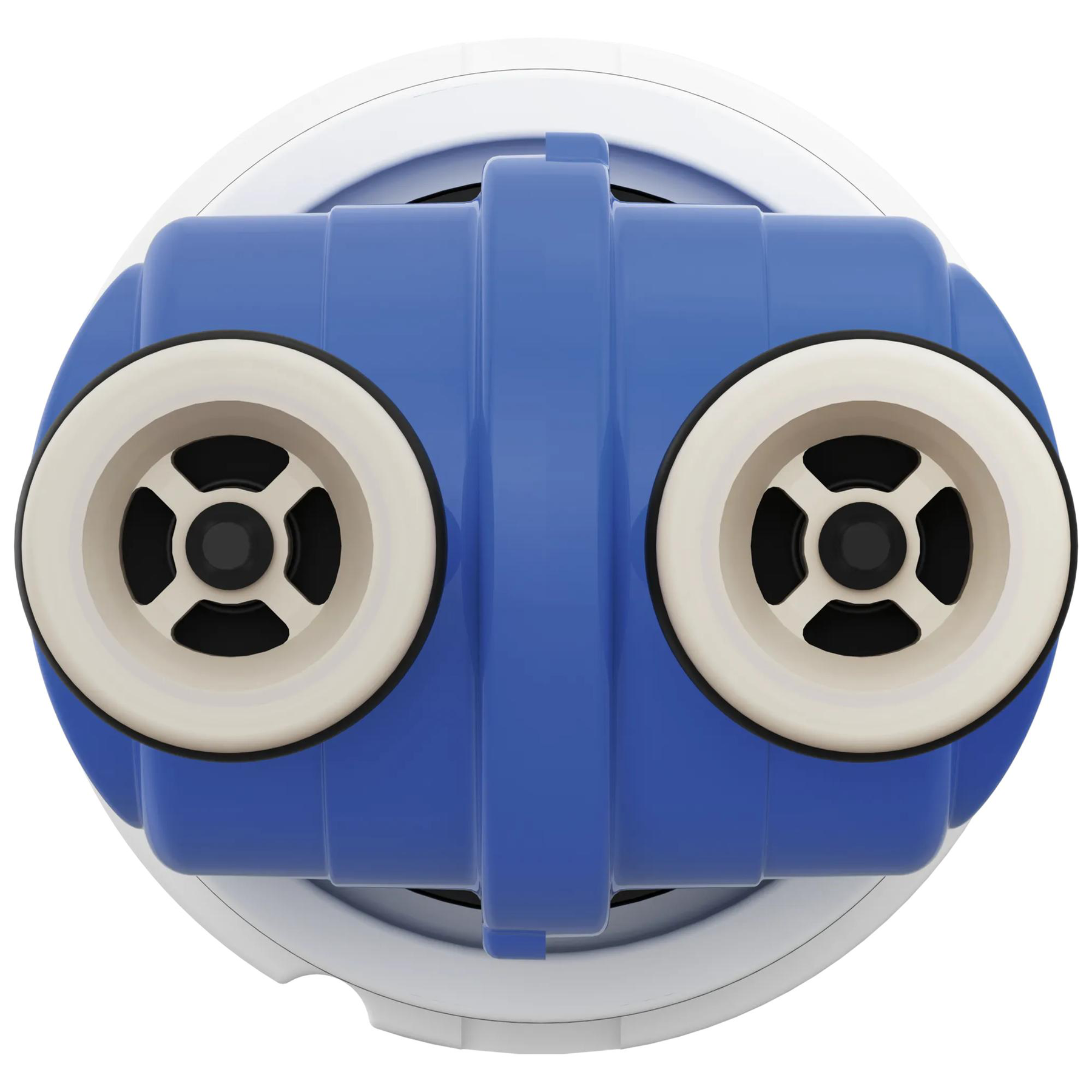

Delta®
Cartridge Assembly - 1300 / 1400 Series (04/2006 and earlier)
Model#:
RP19804
Image Thumbnail, click to view zoomed product image
null
null
null
PRODUCT FEATURES
Single-function valve cartridge controls the temperature at full output flow. Monitors water pressure to balance temperature. All Delta® tub and shower faucets are engineered to keep the water temperature within a safe ±3.6° F (±1.7° C)*. This technology makes sure your family doesn’t experience a sudden and possibly unsafe change in water temperature as a result of running water elsewhere, such as using a dishwasher, flushing a toilet or running a washing machine. The valve cartridge features an adjustable handle limit stop that, when properly set, helps ensure the handle cannot be turned to a position that is too hot for comfort*. The handle limit stop's integrated design allows easy adjustment via pull and turn. Easily replaced seals make maintenance a snap.
Comes with all Delta pressure balance tub and shower faucets.
*Requires inlet water temperature be set correctly. May require seasonal adjustments.
- Monitor® single-function pressure balance cartridge
- Use with Monitor® 1300/1400 Series tub & showers produced before March 2006
- Allows for temperature control
- Integrated rotational limit stop
Special Information
California Prop 65 WARNING
CALIFORNIA PROP 65 WARNING
<b>WARNING: </b>Risk of cancer and reproductive harm from exposure to Lead. See www.P65Warnings.ca.gov.
For more information go to http://www.P65Warnings.ca.gov
Special Information
California Prop 65 WARNING
CALIFORNIA PROP 65 WARNING
<b>WARNING: </b>Risk of cancer and reproductive harm from exposure to Lead. See www.P65Warnings.ca.gov.
For more information go to http://www.P65Warnings.ca.gov
Documents & Specs
Product Support, Repair Parts & Technical Specifications
Installation Information

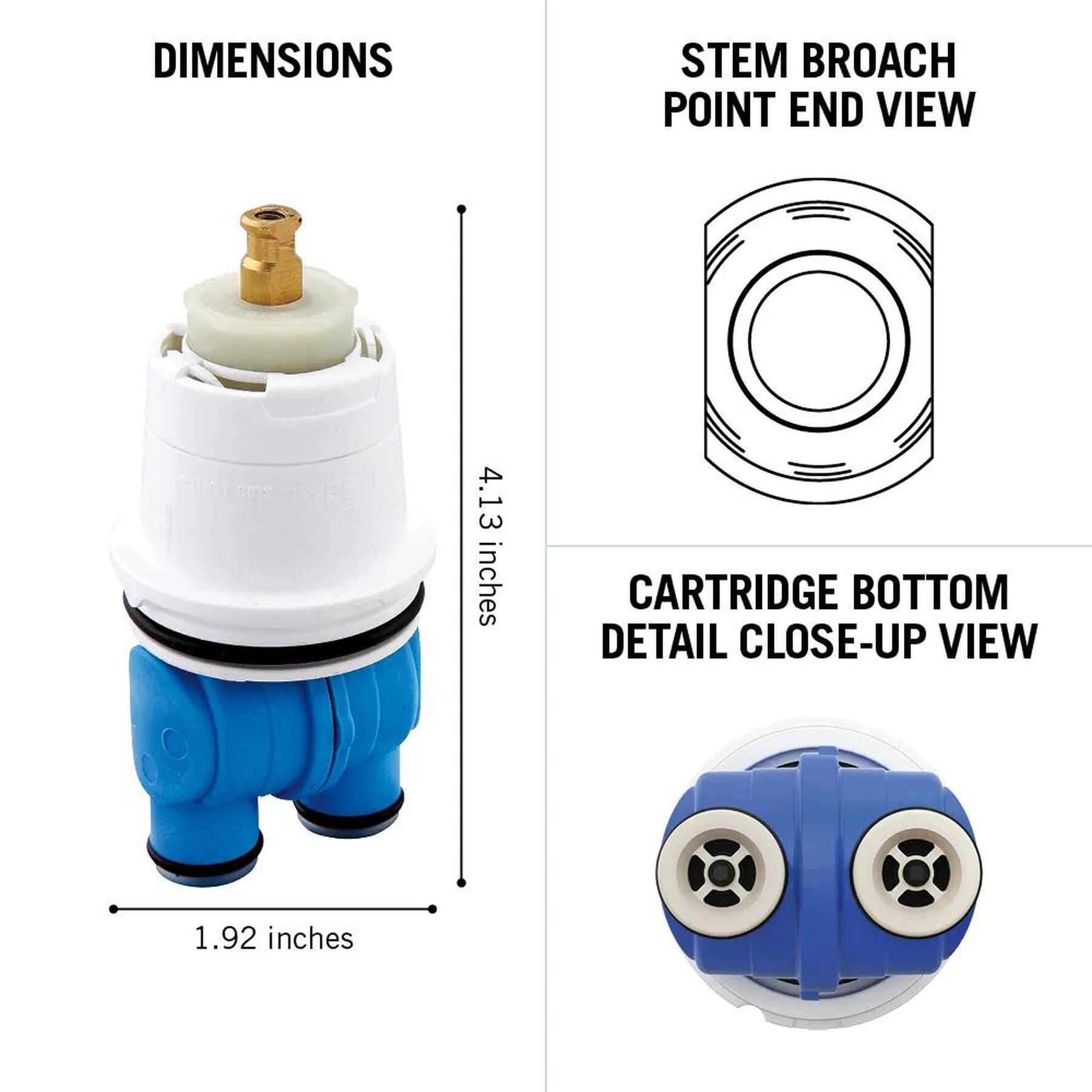

Overall Height (in.) :
4-1/8
Valve Type:
NA
REVIEWS
Rated 5 out of
5
by
Jacob Oldham from
Thank you Blakley
Appreciate the help in find part while I am trying to get a job finished at a customer's home.
Date published: 2025-11-08
Rated 1 out of
5
by
NotHappy from
Miserable quality, expensive paperweight
They don't last. We have two showers on opposite sides of the same wall running the same water. In shower #1, the cartridge is as old as anyone can remember. In shower #2, we replaced the cartridge a year ago. $200 contract labor plus the cost of the cartridge. It lasted 6 months and started its ever-worsening leak when turned to the off position. $200 more plus the cost of another cartridge. The new one just suffered the same failure as the last two, and had to be replaced again. Another $200 labor, another new cartridge cost.
We're down almost $1,000 this year alone on these defective Delta cartridges. I might as well buy the knockoffs that cost a quarter of what these cost if I'm going to have to have them replaced every 6 months.
Date published: 2025-10-15
Rated 1 out of
5
by
Leaky from
Leaked
Leaked causing significant water damage inside of the wall.
Date published: 2024-11-02
Rated 5 out of
5
by
Carl from
Shower cartridge
I bought a shower cartridge on line from “guess who begins with an A”the part was identical but would not fit then I went down the local building supply store bought an delta OEM cartridge went home popped the cartridge in place and boom everything was air golden
Date published: 2024-10-25
Rated 2 out of
5
by
REV RP19804 from
not enough hot water
new RP19804 cartridge installed but water just gets warm not hot enough and was not an issue prior to changing and changed due to minor drip. Other facets in the room are normal temp for hot water. What can be done?
Date published: 2024-10-22
Rated 5 out of
5
by
CCSU1977 from
Nothing Better Than OEM
Buying directly from Delta rubber stamps OEM components that are built to last. I've learned my lesson about the risk of selecting after market items or those that are advertised as compatible with OEM parts. If you're a DIY guy, especially when dealing with plumbing repairs, my advice is to buy OEM and enjoy significant savings on plumbers fees when the job is complete. More often than expected, 50-75% savings on a part can translate into the frustration of having to repeat the repair and do without for a longer duration until the OEM part is delivered. Being greedy has its unfortunate consequences, so trust Delta over third party sources!
Date published: 2024-07-25
Rated 1 out of
5
by
dontbuydelta from
Offer warranty but don't answer the phone
Don't buy. Good luck getting warranty. I called the 1800 number for warranty and the message said 'in a department meeting, goodbye'. then hung up. Wow, an all-day-long department meeting....
Date published: 2024-02-12
Rated 5 out of
5
by
RussellJ from
Loving it….
Added item - required with shower head
Date published: 2023-11-22
Q&A
Should you lube the o-rings on the new cartridge before installing? Also, should you lube the treads for the bonnet nut before installing?
What type of lube is recommended?
Hi Without Shower,
Thank you for your question. The o-rings and seals are pre-lubricated with silicone grease. We do not recommend to apply any extra lubrication.
Best regards,
Jon
Date published: 2024-03-28
Hello. I have an existing 1400 series shower valve. I wanted to update the face plate and handle, got a new Delta Showerhead/Plate and handle. Are the 1400 series and 13/14 multichoice cartridges interchangeable? The new handle won’t fit my old cartridge
Hi, James!
Thank you for your question. If you have an older Delta Monitor 1300/1400 Series Valve, any new trim kit that starts with T13 or T14 will work with the existing valve. The new trim will come with a new valve cartridge assembly. This new cartridge will not work in the existing valve. You will want to keep your same, white cartridge. If you do need to replace the cartridge, you will want to replace with a RP19804 cartridge. Here is a link to the valve trim kits and cartridge on our website:
https://www.deltafaucet.com/bathroom/showering/tub-and-shower-faucets?facetInnovation=FltMonitor&ValveType=Single-function+pressure+balance+cartridge
https://www.deltafaucet.com/parts-product-detail?modelNumber=RP19804
Best Regards, Rosanna
Date published: 2024-04-01
what new or current shower trim kits are compatible with the RP19804 cartridge? Or is there a new cartridge that will fit and replace this one?
looking to modernize my kits with out tearing up my walls and plumbing by having to replace the mixer etc.
Hi Ed,
Thank you for your question! Any of our T13 or T14 series trim kits will work with the existing valve. However, you will need to use the RP19804 cartridge rather than the one that comes with the kit.
http://www.deltafaucet.com/search/results.html?q=T13%20T14&page=1&num=20&collection=DLT_all&tab=DLT_products
Thanks,
Jon
Date published: 2024-03-28
Basic question: how to tell if a product is 1300/1400 series?
Does 1300 series mean T13xxx-xx model numbers. And 1400 series means any model number like 14xxx-xx?
For example, do T14461-SS and T14459-SS both belongs to 1400 series and can work with this RP19804 cartridge?
Hi Ryan, Thank you for your question. The 1300/1400 series faucets were single handle pressure balanced tub/shower faucets sold prior to February 2006. The handle controls temperature only and turns counter-clockwise to turn on and clockwise to turn off. These faucets use our RP19804 cartridges. The model numbers would start with 13 or 14 and would be a complete faucet. The new single handle pressure balanced faucets that use our R10000 multichoice universal rough in produced after February 2006 are our 13/14 series. The trim is sold separately from the rough and models of the trim will start with T13 or T14.
These trims ship with our RP46074 cartridge. The T14461-SS and T14459-SS trims will both work on your older 1300/1400 series rough. However the new cartridge that ships with the trim will not fit your existing rough. You will have to continue to use your existing cartridge or order a new RP19804. One identifying feature between the 2 series is the top of the cartridge. The top of the RP19804 cartridge used in the 1300/1400 series will be white, the top of the RP46074 cartridge used in the 13/14 series will be gray.
Thanks,
Dave
Date published: 2024-03-28
I purchsed a new replacement cartridge for our Delta Monitor 1400 series. My problem is I can't get the old one out. I followed the instruction that came with the new cartridge new. Any help? Bob Fornaciari
Hello Bob,
Thank you for your question. We would recommend first removing the handle. Then. slide off the finished metal sleeve that covers the valve. Next, unscrew the bonnet nut. The bonnet nut is a smooth large brass ring that should unscrew by hand. If it will not unscrew by hand, then I would suggest using a 50/50 or stronger mixture of tap water and white vinegar. Soak a rag in the mixture and wrap the rag around the bonnet ring area. Use tongs if necessary. Leave the rag in place for 15 minutes or so. This should help dissolve the calcium build up, so that the bonnet ring will unscrew for you. Remove the rag and attempt to unscrew the bonnet ring or you can leave it on so that you do not scratch the bonnet ring with your strap wrench or channel locks. Make sure that the entire valve body does not start to rotate as you do this. Repeat if necessary up to 4 times, taking care to protect surfaces that may be damaged by vinegar. The white vinegar can stain porous stones like granite, limestone and marble.
Lastly, Do not pry the cartridge out of the body with a screwdriver. Re-install the handle on brass stem (H) and rotate counterclockwise while lifting the cartridge out of the two notches on the sides of the body.
Best regards,
Tanya
Date published: 2024-03-28
Can this valve use RP46463?
I have a pre-MultiChoice shower valve (installed around 1993). I have been using cartridge RP19804 but would like to use a 17 series trim now, including independent temperature and volume control. Can the old rough be used in any way with RP46463, or do I have to replace the rough with the newer MultiChoice valve in order to fully use the 17 series products?
Hi Rob,
We thank you for your question!
In March of "2006" we manufactured a universal valve body model R10000 that allows any of our current multi choice trims to interchange. If you have the universal valve you will be able to change your 13/1400 series with one control for volume and temperature to our 17 series that has separate volume and temperature control. However, since your unit was installed or manufactured prior to March of "2006" you have an older valve body and will not be able to change your trim to our dual control 17 series trim. You will only be able to use any current T13 or T14 series trim but will not be able to use the new universal valve cartridge that comes with the new trims. If you want to switch to the T17 series you will need to replace the valve body.
Best regards,
Brandis
Date published: 2024-03-28
My house was built in 1999. We are trying to replace out 1400 series with a 1700 series TRIM KIT. The cartridges are different.
The 1700 cartridge is too narrow where the water comes in.
This is a picture of the 1700 cartridge. The holes in the 1400are farther apart. We are trying not to have to replace the plumbing in the wall. Which cartridge will work will my 1400 series without a major plumbing job?
Hi, Db!
Thank you for your question. If you want to replace your 1400 series trim with a new T17 series trim, you will need to replace the whole valve body inside of your wall. If you do not wish do do that, we recommend using T13 or T14 series trim to replace your existing 1400 series trim. You will need to use the same RP19804 cartridge, not the new cartridge that comes with the T13/T14 series units.
Best Regards,
Rosanna
Date published: 2024-03-28
Is my series 1400 tub/shower faucet still under warranty? Faucet is dripping and will not shut off. I am the original owner of the home built in 1995
Replacing p/n RP19804 with new same part no. Upon wiggling out the old part, the lower half, the blue part, separate from the cartridge. It is now difficult to pull out that blue 1/2 part. Question, can I pull with force?
Hi Rich,
Thank you for contacting Delta Faucet Company. Please accept our sincere apology for the inconvenience you are experiencing by removing your cartridge. We are happy to assist.
We recommend putting the top half of the Delta Faucet Cartridge Assembly - 1300 / 1400 Series (04/2006 And Earlier) MODEL#: RP19804 back inside the valve. Twist it to connect it to the bottom half of the cartridge, and pull straight out of the valve. We do not recommend using a lot of force.
Thank you for being a loyal Delta Faucet customer. We look forward to continuing to serve you. Please feel free to contact us back for further assistance.
Best Regards,
Kelley
Date published: 2024-03-28
I have a Delta shower faucet that is leaking. It is a Monitor faucet but I can't find a model number on it. I'm not sure which cartridge I will need to replace the faulty one. My house was built in 2007. Can you help guide me in the correct direction?
Good morning Larry!
Thank you for your question! I do apologize that your shower is leaking and we will be happy to help you.
I have emailed you directly for some further information. Please reply directly to the email for assistance.
Please contact us back for any further questions.
Best Regards,
Frank
Date published: 2024-03-28
How do I tell which is the hot side on my RP19804 Replacement Cartride
Hi Jen10,
Thanks for your question regarding RP19804! The hot side of the cartridge is labeled as the "Hot Side".
Please feel free to contact us with any questions or for further assistance.
Best Regards,
Emma
Digital Communications Specialist
Date published: 2024-03-28
The shower I have showes “ASSE 1016 P Delta” on the brass nut that holds the cartridge in, will this part work to replace the old cartridge?
Hi Jewduhman, thank you for contacting Delta Faucet Company!
The new bonnet nut will fit the older 1400 series valves. To verify the cartridge you need, the RP19804 is pre-06 and is white on the top and blue on the bottom. Please note the cartridge has been updated and may look a little different than the older cartridge. Please reach out to us directly so we can further assist you with this matter.
We appreciate your inquiry. Please reach out directly if you have further questions!
Best Regards,
Kyra
Digital Engagement Specialist
Date published: 2024-03-28
My home was built in 1999, The part for making the water colder was different from what is shown. Will this still work? I could not get the cartridge out, but the plate on the outside said Series 1400 so I am assuming this is the only option?
I have a Delta 1400 series currently. Can I change to a different series and keep the rough valve. Will the new series cartridge fit in the older valve.
Hello PeaceFrog,
Thank you for your question on Delta Faucet RP19804 Cartridge Assembly - 1300 / 1400 Series, I would be more than happy to assist.
The RP19804 is used with our pre-2006 1400 series shower units. You can update to our current shower trims while still using the old cartridge and valve. In order to update, we recommend making sure the screw locations on your existing trim are at the 1 o'clock and 7 o'clock positions. Please note: a new cartridge will be included in the new trim kit but will not fit the old valve. We recommend using the pre-existing cartridge.
Thank you for being a loyal Delta customer. We look forward to better serving you in the future. Please contact us directly with any further questions.
Best Regards,
Kayla
Date published: 2024-03-28
I just replaced the valve in my 1400 series, but now the water will not turn off at all. I have tried everything I can think of to fix this. Any suggestions?
Hi Mike,
Please accept our sincere apology for the inconvenience you are experiencing. We have reached out to you via email to further assist at this time.
Best Regards,
Tim
Digital Communications Specialist
Date published: 2024-01-31
are the internal springs and seals of the 1400 series cartridge same size as 1700 series cartridge? and, are they available locally at say Home Depot?
Hi jeff,
Thank you for contacting Delta Faucet Company! Please accept our sincere apology for the inconvenience you are experiencing. Here is what we can do to resolve your issue for you.
Our Delta Faucet Cartridge Assembly - 1300 / 1400 Series (04/2006 And Earlier) MODEL#: RP19804 includes the RP4993 seats and springs, which can be found online or locally. Please see the link to the Where To Buy Section on our website.
https://www.deltafaucet.com/where-to-buy
Thank you for being a loyal Delta Faucet customer. We appreciate your business and look forward to continuing to serve you. Please contact us back with any further questions.
Best Regards,
Nicole
Digital Communications Specialist
Date published: 2024-03-28
I need to replace the washer in my Delta Monitor 1400 series. What tools are needed to remove the shower body?
Hi Mary,
Please accept our sincere apology for the inconvenience you are experiencing. We have reached out to you via email to further assist at this time.
Best Regards,
Tim
Digital Communications Specialist
Date published: 2024-02-14
Does Cartridge Assembly - 1300 / 1400 Series (04/2006 And Earlier) have a flow restriction in it? My same shower head before replacing cartridge seems seems to have a weaker than before.
Hi Dave,
Thank you for contacting Delta Faucet Company. Please accept our sincere apology for the inconvenience you are experiencing locating this information. We will be happy to assist you.
It is possible that flushing the product could resolve this issue. To do this, turn off the water supplies, remove the cartridge, and turn the supplies back on for one minute.
Please make sure that you are getting good flow through both the hot and cold sides while flushing. You can also shake the cartridge back and forth to make sure the back half of the cartridge rattles. This means that the pressure-balancing spool is moving freely, as it should.
If you would like installation help, you may contact our residential warranty line directly at 800-345-3358 (prompt 2, then 4). We are available Monday through Friday from 8 a.m. to 8 p.m. and Saturdays from 9 a.m. to 6 p.m. Eastern Standard Time. We also have how-to videos on our website and our YouTube channel.
https://www.deltafaucet.com/service-parts/how-to-videos
Thank you for being a loyal Delta Faucet customer. We look forward to continuing to serve you. Please feel free to contact us back for further assistance.
Best Regards,
Kelley
Date published: 2024-03-28
I built my house in 2001 and installed Delta 1400 series bath tub single knob faucet. I can say I did choose the best product of that time from Delta, it lasted for 21 years. Recently it started dripping from the sprout. appreciate help
Hi Katta B,
Thank you for your question about the Delta Faucet RP19804. Please accept our sincere apology for the inconvenience you are experiencing. We are happy to help!
Recommended maintenance would be to replace the RP4993 seats and springs in the legs of the cartridge. The rubber can be damaged or worn over time. See here for more information:
https://support.deltafaucet.com/s/article/My-1300-1400-Series-Monitor-is-leaking-from-the-shower-head-or-spout-What-do-I-need-1628028367129
Please contact us directly for further assistance or if you have any additional questions!
Best Regards,
Bryan
Digital Communications Specialist
Date published: 2024-03-28
Can you adjust these to let more hot water through
Hi Shane,
Thanks so much for contacting Delta Faucet Company!
It sounds as though the rotational limit stop the Cartridge Assembly MODEL#: RP19804 may need adjusted. The rotational limit stop is used to limit the amount of hot water available such that, if set properly, the user will not be scalded if the handle accidentally is rotated all the way to “hot” when a person is showering or filling a tub. The first position allows the LEAST amount of hot water to mix with the cold water in the system. In the first position, the water will be the coldest possible when the handle is turned all the way to hot. As you move the rotational limit stop counterclockwise, you progressively add more and more hot water in the mix. The last position to the left will result in the greatest amount of hot water to the mix, and the greatest risk of scald injury if someone accidentally turns the valve handle all the way to the hot side while showering or filling a tub.
To adjust the temperature of the water coming out of the valve, pull the disc back to a position where it is possible to remove the rotational limit stop and readjust the teeth engagement position to the desired temperature. Clockwise will decrease the outlet temperature, counterclockwise will increase the outlet temperature. Temperature change per tooth (notch) could be 4° - 16°F based on inlet water conditions. Repeat as necessary. Push disc until fully seated.
If you would like installation help, you may contact our residential warranty line directly at 800-345-3358 (prompt 2, then 4). We also have how-to videos on our website and on our YouTube channel.
https://www.deltafaucet.com/service-parts/how-to-videos
Please reach out with further questions!
Best Regards,
Kelley
Digital Communications Specialist
Date published: 2023-02-13
I got the replacement cartridge for my 1400 series faucet and the hot and cold inlets on the valve are shorter than the original and spaced farther apart. This is the newer version. The inlets don't seem to fit into their holes. What should I do?
Hi Rusty,
Thank you for your question, I am pleased to assist. There is a different version of this cartridge, RP46074. This would be used if your valve was installed after 2006. We appreciate your business and look forward to continually serving you.
Best Regards,
Kelley
Date published: 2024-03-28
I need the part number for the locking collar that goes with cartridge RP19804
Thank you for your question, Phil! The part number for the bonnet nut that goes over the RP19804 cartridge is RP22734.
https://www.deltafaucet.com/parts-product-detail?modelNumber=RP22734
Best Regards, Benjamin
Date published: 2024-03-28
from the images on the website the RP19804 looks to be the nearest one to what i have physically, unfortunately the cartridge i have has no part numbers on it and i am going by the style/color alone is there any glaring mistakes in doing that
Hello pfeg!
Thank you for your question and we are happy to help! We recommend figuring out your model number to determine what cartridge you need. We are able to identify model numbers for you and identify what cartridge you need. Please contact us directly with photos of your shower via email or give us a call.
Best Regards,
Carrie
Date published: 2024-03-28
Do you have new shower faucets that use this cartridge/valve? In oil rubbed bronze? I don't want to rip into the wall but want to replace the shower faucet and head so would like a model that uses this cartridge.
Hello Janice!
Thank you for contacting us at Delta Faucet! I will be happy to help! Yes, if your rough-in valve was installed prior to April of 2006 you can install any newer 1400 or 1700 series Delta Faucet tub and shower trim kits without replacing the rough-in valve in the wall. Simply use the older RP19804 or RP32104 cartridge assemblies and not the new one included with the trim kit. Please contact us directly if further assistance is needed at this time.
Best Regards,
Tim
Date published: 2024-03-28
I need to replace the fucet. The model no. is RP19804 and it is prior to 2004. How can I get one ?
Hi sengupta1,
Thank you for your question about the Delta Faucet RP19804.
A current 13 or 14 series trim includes a new, different cartridge, but the trim and handle should also fit this cartridge.
You can purchase Delta Faucet products from many local dealers and websites. I recommend our store locator.
https://www.deltafaucet.com/where-to-buy
Please reach out with any additional questions!
Best Regards,
Bryan
Digital Communications Specialist
Date published: 2026-04-23
Hello-what trim is compatible with this cartridge? Our current shower valve fits this but my trim doesn't.
Hi Glo2,
Thanks so much for contacting Delta Faucet Company!
If the rough-in valve in the wall was installed prior to April of 2006 it will utilize the RP19804 cartridge. If it was installed after this date it will utilize the RP46074 cartridge.
Please reach out with further questions!
Best Regards,
Tim
Digital Communications Specialist
Date published: 2024-03-28
why are hot and cold reversed.
Hello bob g,
Thank you for contacting Delta Faucet Company! I am sorry this information was not readily available for our Delta Faucet Cartridge Assembly - 1300 / 1400 Series (04/2006 And Earlier) MODEL#: RP19804, and I am happy to help you!
If you are receiving the hot and cold water reversed, I would start by making sure the lines were plumbed correctly. The next step would be flipping the cartridge, this could cause the hot and cold to be reversed as well.
Thank you for being a loyal Delta Faucet customer. Please contact us back with any further questions.
Best Regards,
Nicole
Date published: 2024-03-28
I have a Series 1400 shower from1998. I bought the replacement cartridge RP19804 but will not seat fully. White Steams holding o-ring In place for hot and cold water ports are larger on new valve. Old white stem = .646 New stems = .665.
Hi Phil,
Thank you for your question regarding our Delta Faucet RP19804. Please accept our sincere apology for the inconvenience you are experiencing. We will be happy to assist you in resolving this issue as quickly as possible.
Please feel free to contact us directly for technical information at 800-345-3358. We are available Monday through Friday from 8 a.m. to 8 p.m. and Saturdays from 9 a.m. to 6 p.m. Eastern Standard Time.
Thank you for being a loyal Delta Faucet customer.
Best Regards,
Themar
Digital Communications Specialist
(800) 345-3358
customerservice@deltafaucet.com
Date published: 2024-09-04
Can I replace an rp46074 cartridge with a rp19804 cartridge?
Hi Valued Customer,
Thank you for your question regarding our Delta Faucet. Please accept our sincere apology for the inconvenience you are experiencing. We will be happy to assist you in resolving this issue as quickly as possible.
Yes, the cartridges are interchangeable.
Please feel free to contact us directly for technical information at 800-345-3358. We are available Monday through Friday from 8 a.m. to 8 p.m. and Saturdays from 9 a.m. to 6 p.m. Eastern Standard Time.
Thank you for being a loyal Delta Faucet customer.
Best Regards,
Themar
Digital Communications Specialist
(800) 345-3358
customerservice@deltafaucet.com
Date published: 2025-01-23
I have a 1324 shower faucet from 1990 that I need to replace a cartridge on. Is part number RP19804 the correct cartridge?
Hello, Paula!
Thank you for contacting us at Delta Faucet! I apologize for this information not being available to you and I understand how frustrating that can be but I will be happy to help!
Yes, this Delta Faucet RP19804 Cartridge Assembly is the cartridge for your model 1324 from 1990.
Please contact us directly if further assistance is needed at this time.
We appreciate your loyalty to Delta Faucet Company.
Best Regards,
Tim
Date published: 2024-03-28
Delta Online Pricing
This online price is exclusive to DeltaFaucet.com. The list price may be shown on products offered outside of the Outlet section on DeltaFaucet.com. Strikethrough pricing may be used to show discounts.
