Delta®

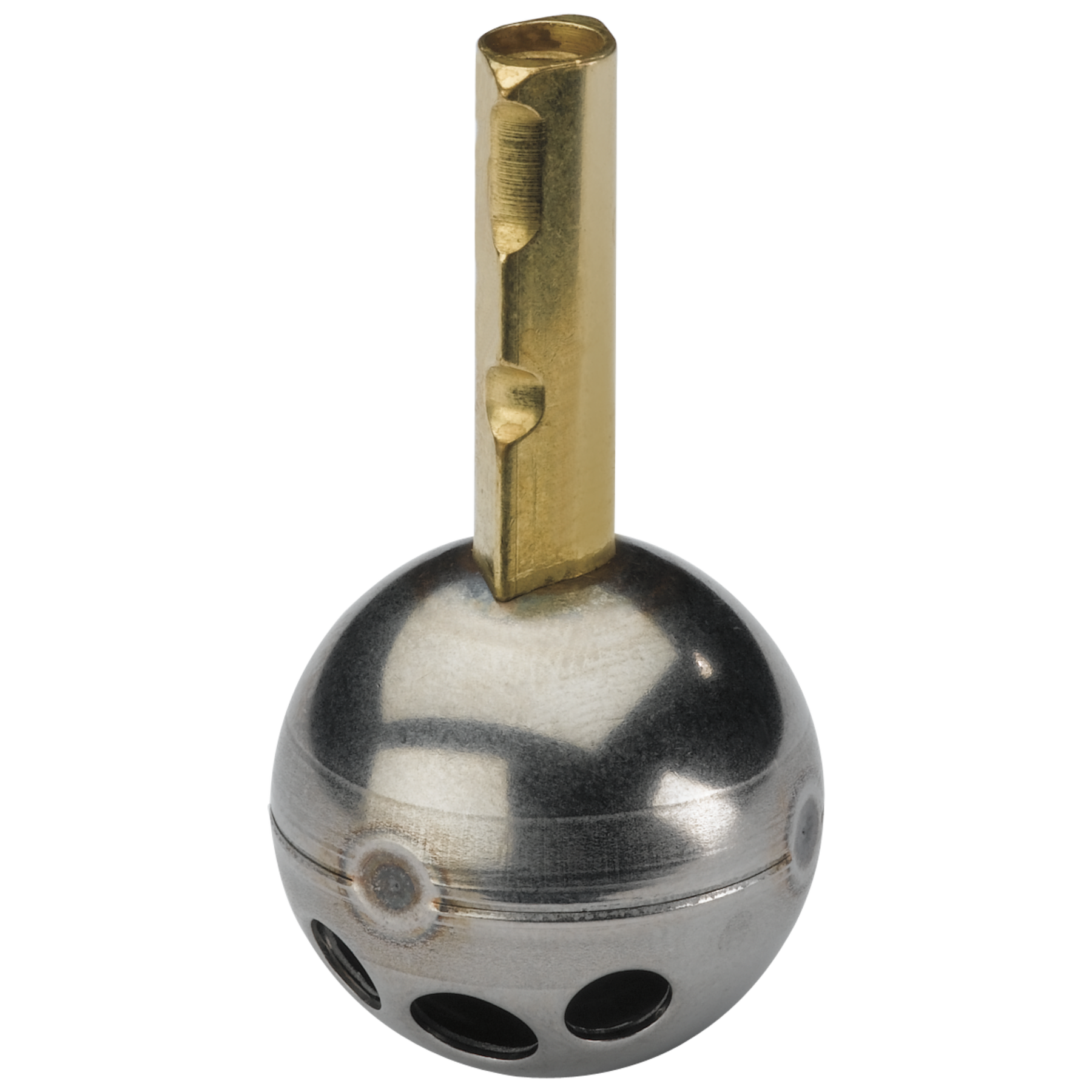

Ball Assembly - Stainless Steel - Knob Handle
Model#:
RP212
Image Thumbnail, click to view zoomed product image
PRODUCT FEATURES
Documents & Specs
Installation Information
Overall Height (in.) :
2
Valve Type:
NA
REVIEWS
Rated 1 out of
5
by
saidor from
thought this was an assembly as stated not just one detail part
Date published: 2010-06-03
Q&A
Would this part be a replacement for a 1960s shower faucet that is leaking? Patent # 3056418.
Hello
Thank you for your question!
Yes, this ball assembly would fit an older 600 series knob style handle. However, the RP3614 repair kit needs to be installed to resolve a leaking issue.
https://www.deltafaucet.com/parts/product/RP3614.html
Please reach out with further questions!
Best Regards,
Tim
Digital Communications Specialist
Date published: 2025-07-07
What is the difference between the part numbers RP212, RP212-3, RP212MB and RP212MBS? Thanks.
Hi, Tommy!
Thank you for your question. All RP212 ball assemblies are the exact same model. The RP212 can be found at any dealer that sell Delta Products. RP212-3 is exclusive to Home Depot. The RP212MBS Is a bulk kit of RP212 ball assemblies that is usually bought by contractors and plumbers to have on their truck.
Best Regards,
Rosanna
Date published: 2024-06-26
how do you remove the Ball Assembly after removing the Stainless Steel - Knob Handle?
Thank you for your question, James! The RP212 ball assembly is held in place with the cap as well as the cam and packing. These can be removed once the water is shut off to the hot and cold water supplies below the counter.
https://media.deltafaucet.com/MandI/26966_v1.pdf
Best regards, Edward
Date published: 2024-06-26
What handle fits this ball assembly?
Hi Trail-running,
Thank you for your question! The RP17451 knob handle will fit on this ball assembly.
http://www.deltafaucet.com/repairparts/details/rp17451.html
Thanks,
Jon
Date published: 2024-03-28
Does this assembly have an extension available?
Hi bp,
Thank you for your question. We do not have an extension piece for the ball assembly.
Best regards,
Jon
Date published: 2024-03-28
Does the ball assembly (RP212) include new seats and springs or must those be ordered separately?
Hi Linda, Thank you for your question. The RP212 is just for the ball assembly. The RP4993 seats and springs need to be ordered separately.
Thanks,
Dave
Date published: 2024-03-28
Does this ball have one hole on the other side?
Hi Tina,
Thank you for your interest in Delta Faucet Company products. The RP212 ball assembly has three holes in it - two inlet holes and one outlet hole.
Date published: 2024-03-28
is there a lever handle to replace ball on rp212?
Hi Al, Thank you for question!
For your lavatory sink faucets, you will first need a RP20111 conversion ball. You can then attach a RP17443 Chrome lever handle to the RP20111 conversion ball.
If the knob handle on your shower faucet lifts up to turn on the water, then you will also need a RP20111 conversion ball and a RP17443 Chrome lever handle. If the knob handle just turns counter-clockwise to turn on the water, then you will only need to order a H79 Chrome lever handle.
Best regards, Brandis
Date published: 2024-03-28
