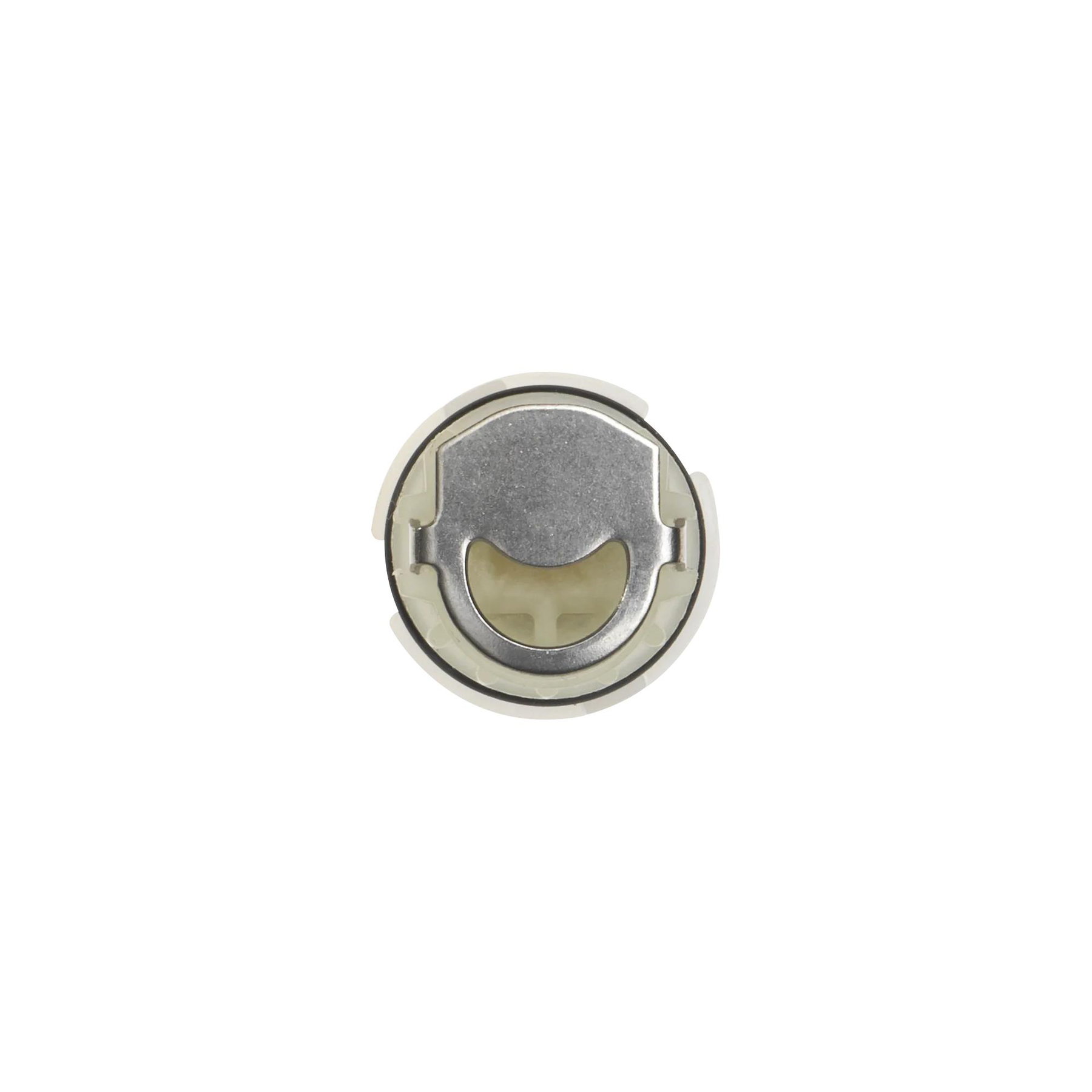

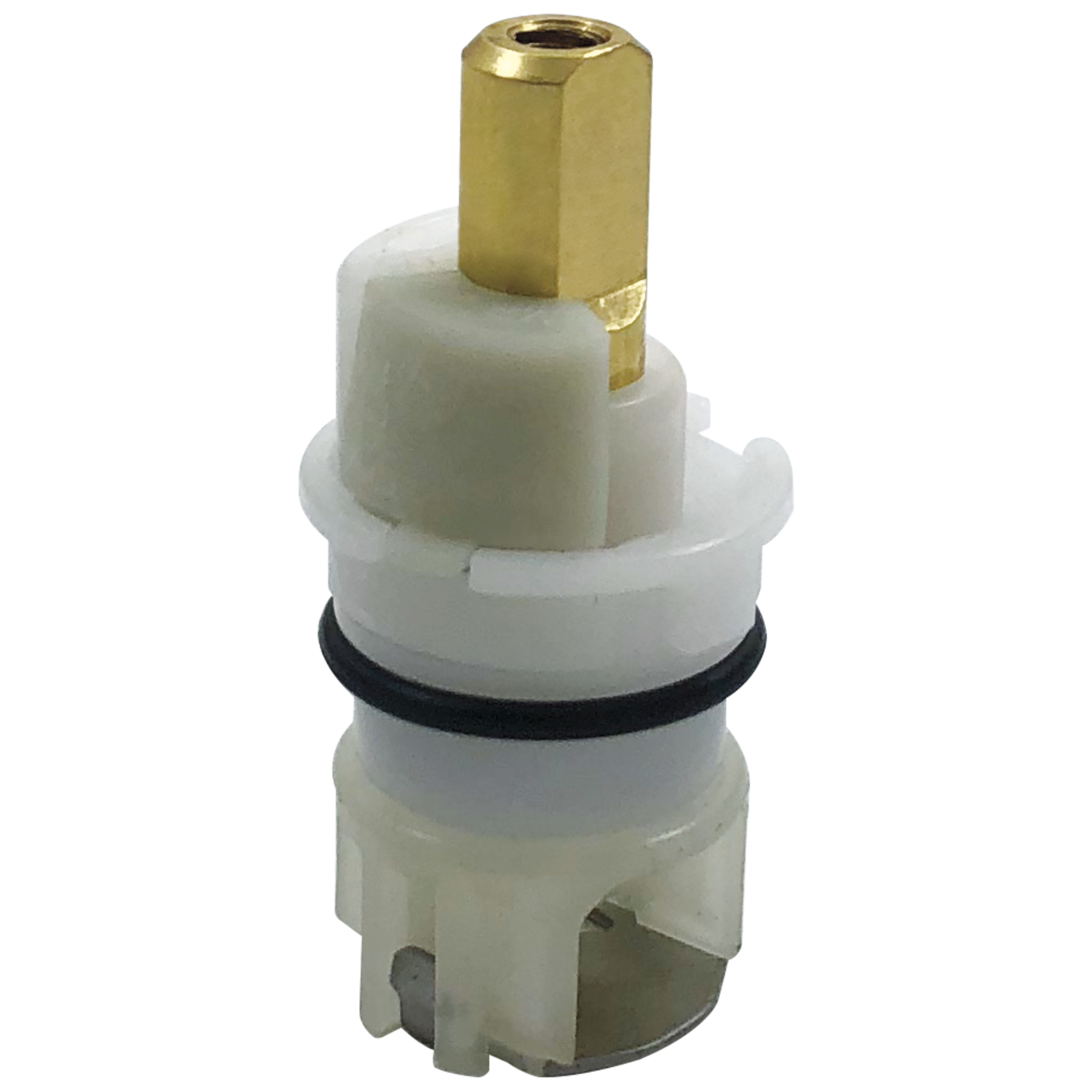

Delta®
Stem Assembly - 2H
Model#:
RP25513
Image Thumbnail, click to view zoomed product image
null
PRODUCT FEATURES
Special Information
California Prop 65 WARNING
CALIFORNIA PROP 65 WARNING
<b>WARNING: </b>Risk of cancer and reproductive harm from exposure to Lead. See www.P65Warnings.ca.gov.
For more information go to http://www.P65Warnings.ca.gov
Special Information
California Prop 65 WARNING
CALIFORNIA PROP 65 WARNING
<b>WARNING: </b>Risk of cancer and reproductive harm from exposure to Lead. See www.P65Warnings.ca.gov.
For more information go to http://www.P65Warnings.ca.gov
Documents & Specs
Installation Information

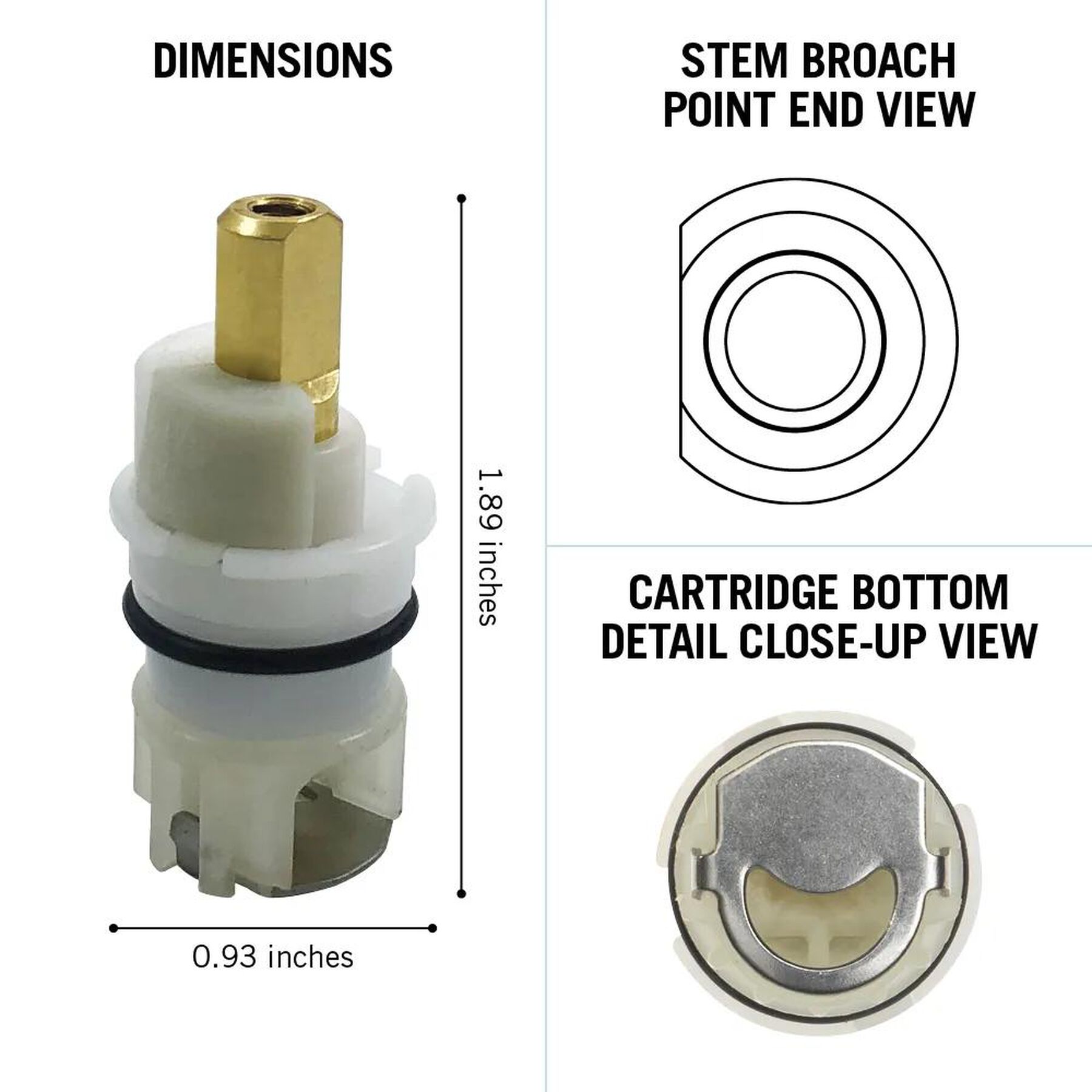

Overall Height (in.) :
1-7/8
Valve Type:
Cartridge
REVIEWS
Rated 2 out of
5
by
P Lawson from
Cartridge Stop Over Travel
The stop did not work well with my fixture. It allowed the handle to over travel beyond the shutoff point letting water drip. I had to replace with the old cartridge and stop.
Date published: 2026-03-05
Rated 5 out of
5
by
Chaz from
Impressive support from Delta
This part (Delta RP25513) fixed my 2 handle Delta faucet problem, where I had leaking coming out from the handle. This is the first time I ever attempted a faucet repair myself and it went without a hitch. A video from the Lowes website was a great help. And I have to say, I used the chat feature from the Delta website and it did a great job pointing me to a PDF on their website that told me the exact part that I needed! Very helpful! Then Delta Customer Support followed up with an email to me to see if I needed any assistance. Impressive support from Delta.
Date published: 2023-04-23
Rated 4 out of
5
by
dcgoz from
Easy to replace, but
I love working with Delta. Their parts are easy to find and work with. That said, these replacement cartridges should really come with the spring and seal also.
Date published: 2022-12-07
Rated 5 out of
5
by
Anonymous from
Parts for faucets
They came quickly, they were the correct part, they have been installed, they are working well.
Good job !!!!!
Date published: 2022-02-14
Rated 5 out of
5
by
Lindamp2 from
Works great
Installed this cartridge in a matter of minutes and it works great! No more leaks!
Date published: 2021-12-22
Rated 5 out of
5
by
bodo from
Did the trick.
fit perfectly, would buy again.
Date published: 2021-11-04
Rated 5 out of
5
by
Tony from
Repair/Replacement
Quick turn around service after order. Parts were correct, and fairly easy to install.
Date published: 2021-09-13
Rated 5 out of
5
by
Happy from
The stem (RP25513) really fixed all our problems!!
We bought this stem (RP25513) in 2014 and it fixed our needs, I guess it pays to investigate the parts, or we would be paying out tons of dollars had we not have done it ourselves.
Date published: 2021-05-10
Q&A
This faucet was purchased in 2013 from Furgerson Enterprises in San Antonio, TX. We are the original owner. Water is leaking from the hot water side. Is this part RP25513-3 covered by warranty?
Hi Steve,
Thank you for contacting Delta Faucet Company!
We will need more information to better assist you. Please watch out for an email from customerservice@deltafaucet.com.
Best Regards,
Nicole
Digital Communications Specialist
Date published: 2024-03-28
Hello, I have model 3594-RBMPU-DST widespread sink faucet.The spec diagram shows P60400 valve assembly, should that be RP60400 which I bought from Amazon. When I went to replace part they didn’t look the same, the part was a RP25513. Does this work.
Does stem assembly part RP25513 fit model 21741LF
Hi Doug,
Thank you for your question about the Delta Faucet RP25513 .
This stem would not fit faucet model 21741LF. This model uses RP78871 or RP101504 depending on the faucet code on the back of the escutcheon plate. See the parts diagram here for more information:
https://media.deltafaucet.com/PartsDiagram/DPD-K-21741LF%20Rev%20F.pdf
Please reach out with any additional questions!
Best Regards,
Bryan
Digital Communications Specialist
Date published: 2024-06-07
For a delta two stem faucet, is the same part number good for both sides?
Hi Edward,
Thanks so much for contacting Delta Faucet Company!
Yes, the RP25513 would work for both hot and cold. However, please be mindful when removing the old stem, to place the new stem in the same orientation for proper handle operation.
Please contact us directly if you have any questions or need additional assistance.
Best Regards,
Nicole
Digital Communications Specialist
Date published: 2024-03-28
Changed cartridges and still have small drip on cold side used delta parte have model 2497lf-ar and used cartridges RP25513-3 any advice.
Hi Valued Customer,
Thank you for contacting Delta Faucet Company!
We apologize for the issues you are experiencing and we are happy to help! Our Cassidy 2497LF models use RP25513, RP24096, and RP4993. The RP4993 seats and springs will sit against the stem units and will seal the water.
We appreciate your inquiry. Please reach out directly if you have further questions!
Best Regards,
Kyra
Digital Engagement Specialist
Date published: 2024-05-28
Have a 2688-THD two handle tub/shower with pull up diverter tub spout. Will this work to repair my leaking shower problem.
Hi Dave,
Thank you for contacting Delta Faucet Company! Please accept our sincere apology for the inconvenience you are experiencing. We will need more information to better assist you. Please send us an email at customerservice@deltafaucet.com.
Best Regards,
Skyler
Date published: 2024-03-28
Is the RP25513 the right cartridge for Delta T2738-RB Lahara deck mounted faucet handles.
Hello Stan!
Thank you for your question and we are happy to help. The correct stem units for the Delta LAHARA® Roman Tub Trim In Venetian Bronze MODEL#: T2738-RB are the RP25513. With any further questions or concerns, please do not hesitate to reach out to us again.
Best Regards,
Carrie
Date published: 2024-03-28
Hello, we have a leaky faucet. 3597LF-RBMPU. It seems to be coming from the left hot water handle. I just want to be sure this is the correct part for that handle. Thanks!
Hi Cheryl,
Thanks so much for contacting Delta Faucet Company!
Yes, the CASSIDY™ Widespread Bathroom Faucet MODEL#: 3597LF-RBMPU can use the Stem Assembly MODEL#: RP25513. We also recommend flushing the system. To flush the system, turn off the water supplies, remove the aerator using supplied wrench and turn faucet handles all the way on. Turn on the hot and cold water supplies and flush the water lines for one minute. This flushes away any debris that could cause damage to the internal parts. Check all connections for leaks. Replace the aerator. Re-tighten if necessary, but do not overtighten.
Please reach out with further questions!
Best Regards,
Kelley
Digital Communications Specialist
Date published: 2023-06-06
Our bathroom faucet is dripping and it looks like Stem Assembly - 2H MODEL#: RP25513 is the part in question but it does not appear to include the washer that sits below the assembly which may be the problem.
Hello Steve,
Thank you for contacting Delta Faucet Company! I am sorry this information was not readily available, and I am happy to help you!
Our Delta Faucet DELTA® Stem Assembly - 2H MODEL#: RP25513 takes the RP4993 seat and spring, The seat and spring will fix the dripping issue you are having. Please see the link below.
https://www.deltafaucet.com/parts/product/RP4993.html
Thank you for being a loyal Delta customer. Please contact us back for any further questions.
Best Regards,
Nicole
Date published: 2024-03-28
What Crystal Knob from Delta fits a RP25513. I cannot find one that has the correct insides to turn the water on and off.
Hi Monica,
Thank you for your question!
The RP23498 handle is compatible with the RP25513 stem unit. Please see the following link for more information.
https://www.deltafaucet.com/parts/product/RP23498.html
Please reach out with further questions!
Best Regards,
Tim
Digital Communications Specialist
Date published: 2023-08-11
Can this be used on either hot or cold?
I’m looking for replacement handles for this valve that are chrome (not acrylic) and are the knob style not the long handle style
Hi Jake,
Thanks so much for contacting Delta Faucet Company about RP25513! I have included a few links below to some of our current handles that would fit this stem, we can not guarantee they would fit the faucet style properly.
https://www.deltafaucet.ca/parts-product-detail?modelNumber=H24
https://www.deltafaucet.com/parts/product/H238.html
https://www.deltafaucet.com/parts/product/H41.html
Please contact us directly if you have any questions or need additional assistance.
Best Regards,
Nicole
Digital Communications Specialist
Date published: 2023-08-11
will this part work for Delta bathroom faucet model # 2538LF-RB?
Hello Scott!
Thank you for your question and we are happy to help. The Delta RP25513 is the correct repair part for the Delta 2538LF-RB. With any further questions or concerns, please do not hesitate to reach out to us again.
Best Regards,
Carrie
Date published: 2025-03-04
What is the stem part # for the Leland split bathroom faucet?
Hi JerryVAS,
Thanks so much for contacting Delta Faucet Company!
The Stem Assembly MODEL#: RP25513 can be used with the LELAND® Centerset Bathroom Faucet MODEL#: 2578LF-278.
Please reach out with further questions!
Best Regards,
Kelley
Digital Communications Specialist
Date published: 2023-03-20
Our 25 yo Select Roman tub filler in pol. brass. I can't see a series number on the faucet but the matching shower trim plate is 1400 series. It has round klnobs w/ screw on the top. What cartridge do I need?
Hi Mark!
Thank you for your question and we are happy to help. To make sure that the Delta RP25513 is the correct part for your faucet, please contact us directly so that we may identify the faucet model for you.
Best Regards,
Carrie
Date published: 2024-02-28
Can a Delta RP25513 valve stem be used in a Dellta Pilar 4380 kitchen faucet?
Hello Donald!
Thank you for your question and we are happy to help! All of our Delta Single Handle Kitchen Faucet With Spray Models 4380-DST use the RP50587 valve assembly. With any further questions or concerns, please do not hesitate to reach out to us directly. Thank you for being a loyal Delta customer.
Best Regards,
Carrie
Date published: 2024-03-28
How do I install cartridge RP25513 for hot water side?
Hi Garuy,
Thanks for your question regarding RP25513! Please see Page 5 of the installation guide below on how to install the stem unit.
https://media.deltafaucet.com/MandI/53924RevD.pdf
Please feel free to contact us with any questions or for further assistance.
Best Regards,
Emma
Digital Communications Specialist
Date published: 2023-04-26
What is the replacement cartridge for Delta windmere widest bathroom faucet
Hi Jibby24!
We are happy to help you. Our widespread Windermere faucet has 2 versions. The way to tell the difference is by identifying a number at the bottom of the spout, on the back of the faucet. If the number is 413763, you will want RP42096 for a repair kit. If the number is 449918, the cartridge will be RP24096.
Best Regards!
Frank
Date published: 2024-03-28
We installed the Delta Dryden Model #3551-SPMPU-DST, despite a little discoloration on the plates of both faucet handles, we love the faucet. But, due to leaking need replacement valve model #. Also, any chance this is covered under warranty?
Hi John,
Thank you for your question regarding our Delta Faucet RP25513.
Please feel free to contact us directly for technical information at 800-345-3358. We are available Monday through Friday from 8 a.m. to 8 p.m. and Saturdays from 9 a.m. to 6 p.m. Eastern Standard Time.
Thank you for being a loyal Delta Faucet customer.
Best Regards,
Themar
Digital Communications Specialist
(800) 345-3358
customerservice@deltafaucet.com
Date published: 2024-01-31
Does this valve work with both hot and cold?
Hi Mike 56,
Thank you for your question!
Yes, this stem unit is for both hot and cold sides.
Please reach out with further questions!
Best Regards,
Tim
Digital Communications Specialist
Date published: 2024-04-16
Does RP25513 replace RP24096?
Hi Doug,
Thank you for your question about the Delta Faucet RP25513.
This is the same stem as RP24096 plus the removable 1/4 turn stop RP24097.
Please reach out with any additional questions!
Best Regards,
Bryan
Digital Communications Specialist
Date published: 2026-05-06
What Delta faucet stem do I use with Delta faucet 3575-RBMPU? Thank you.
Hello Jonathan,
Thank you for your question. We are happy to help!
The Delta Faucet model 3575-RBMPU lavatory faucet replacement stem unit is available as part number RP24096 or RP25513 (with 1/4 turn stop included).
https://media.deltafaucet.com/PartsDiagram/Model_3575_53325RevD.pdf
We appreciate your business and look forward to continuing to serve you!
Best regards,
Bryan
Date published: 2024-03-28
Should I or ahould I not use a waterproof silicone grease on the RP25513 O-Ring and/or RP4993G rubber seal?
Hello Customer!
Thank you for your question and we are happy to help. We do not recommend using grease on the RP25513. With any further questions or concerns, please do not hesitate to reach out to us again.
Best Regards,
Carrie
Date published: 2025-08-14
Is the alignment of the stem and grey movable piece the same for each side or does it vary?
Hello,
Thank you for your question!
The hot side stem unit should have the flat side of the stem unit facing left and the cold side should be facing right. The removeable 1/4 turn stop on the hot side should be in the 6 o'clock position and should be at the 12 o'clock position for the hot side.
Please reach out with further questions!
Best Regards,
Tim
Digital Communications Specialist
Date published: 2024-11-19
Does this include the bonnett nuts?
Hello Patrick,
Thank you for your question. I am happy to assist you.
The bonnet nuts are sold separately, usually being RP6060. The bonnet needed will depend on your model.
Please contact us back via email with any further questions.
Best Regards,
Skyler
Phone: (800) 345-3358 | Email: customerservice@deltafaucet.com
Date published: 2024-03-28
I want to know how to make the Delta Stem RP25513 work on both hot & cold side. It works just fine on hot side but when I put on cold side the handle works backwards. I know something has to be changed to make the cold side work ?
Hi Valued Customer,
Thank you for your question. The Delta RP25513 Stem Unit Assembly works for both hot and cold valve sides. We recommend changing the direction of the stem to change the orientation of the handle.
Please feel free to contact us directly for technical information at 800-345-3358. We are available Monday through Friday from 8 a.m. to 8 p.m. and Saturdays from 9 a.m. to 6 p.m. Eastern Standard Time.
Thank you for being a loyal Delta Faucet customer.
Best Regards,
Themar
Digital Communications Specialist
(800) 345-3358
customerservice@deltafaucet.com
Date published: 2024-10-30
For Delta Faucet Stem Assembly - 2H model#: RP25513 — I have a two (2) handle faucet — do I order one unit as a set of two, or do I order two units?
Hello David,
Thank you for your question! We will be happy to help you today!
The Delta stem unit assembly RP25513 comes as an individual part number. You would need to purchase one for the hot and one for the cold side. If you are changing the stem units for your faucet, you will also need the seats and springs part number RP4993, to seal the valve in the off position.
We recommend flushing the valve to remove any debris. I have included the links below to better assist you.
Seats and springs
https://www.deltafaucet.com/parts-product-detail?modelNumber=RP4993
Stem Unit Assembly
https://www.deltafaucet.com/search-results?title=rp25513
Please contact us back for any further questions.
Best Regards,
Renna
Date published: 2024-03-28
Are parts returnable if they don't work
Hello AR,
Thank you for your question!
Delta Faucet Company offers a 90 day return policy on products purchased on the Delta faucet webstore.
Best Regards, Antoine.
Date published: 2024-03-28
Is the O-ring and spring included?
Hi Jay3,
Thank you for your question about the Delta Faucet RP25513.
The spring and rubber seat are sold separately as RP4993.
https://www.deltafaucet.com/parts/product/RP4993.html
Please reach out with any additional questions!
Best Regards,
Bryan
Digital Communications Specialist
Date published: 2024-11-27
Hi - Does it matter which way you install the rubber RP4993 Seat?
Hi Jimbo,
Thank you for your question regarding our Delta Faucet Delta Stem Assembly - 2H MODEL#: RP25513. Please accept our sincere apology for the inconvenience you are experiencing. We will be happy to assist you in resolving this issue as quickly as possible.
The seat sits onto the smaller end of the spring.
Thank you for being a loyal Delta Faucet customer. Please feel free to call, email, or message us on social if you need anything else.
Best Regards,
Themar
Digital Communications Specialist
Date published: 2024-03-28
Delta Online Pricing
This online price is exclusive to DeltaFaucet.com. The list price may be shown on products offered outside of the Outlet section on DeltaFaucet.com. Strikethrough pricing may be used to show discounts.
