Waterfall®
O-Rings (2)
Model#: RP32520

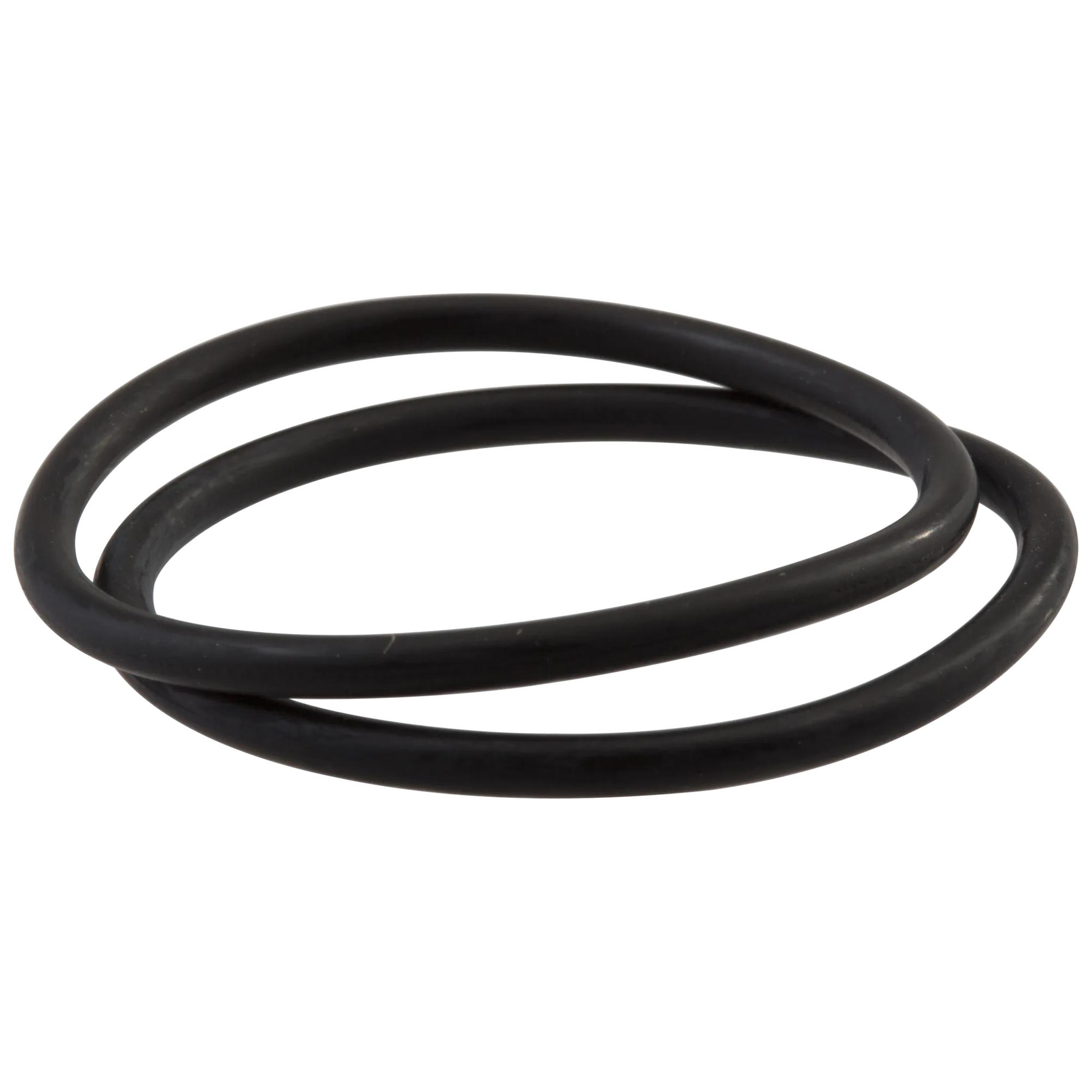

O-Rings (2)
Waterfall®
O-Rings (2)
Model#: RP32520

Finish:Not Applicable

List Price: $8.95
Online Price: $7.16
Free Shipping on All Orders $49+
Availability: In stock
PRODUCT FEATURES
SUPPORT
Installation Information
Connection Type :
NA
REVIEWS
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 8ms
  • reviews, product
  • bvseo-msg: Unsuccessful GET. status = 'ERROR', msg = 'Not Found.'; Unsuccessful GET. status = 'ERROR', msg = 'Not Found.';
Q&A

Faucet 470-WH how to install O Rings

Directions on how to install Part RP32520 O Rings.
Asked by: Joe
Hi Joe, Thank you for your question. Please click the link below to view or download the manual for your faucet for reference: http://www.deltafaucet.com/customersupport/documentation/470.html?document=mi&documentIndex=0#flashWrapper First, please make sure that the supplies are turned off under the sink. Remove the clip from the hose and pull down on the hose to disconnect it from the brass tube. From above the sink, pull the wand assembly and hose all the way out. Next, place a rag over the sink drain so you don't lose any parts. Pop out the red/blue button and loosen the set screw with a 1/8" Allen wrench. Remove the handle, unscrew the cap, and then swivel the hub back and forth as you pull it up to remove it. Replace the o-rings and reinstall the parts in reverse order. Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2016-03-22

What are the dimensions of these O-rings?

What are the dimensions (inner/outer diameter and thickness) of these O-rings?
Asked by: Delta Fan
Thank you for your question. The RP32520 has an ID of 1.42 and an OD of 1.63 USN127. Thanks, Alexis
Answered by: DeltaFaucet3
Date published: 2017-01-14

I have a model 470 Signature chrome kitchen faucet from 2003. Will these O-Rings fix the problem with the faucet not able to swivel from side to side?

Asked by: akchan67
Hi, akchan67! Thank you for your question. We recommend to replace both the RP32520 o-rings including the hub assembly, RP33852 if the faucet is hard to swivel left to right. If the faucet is completely frozen and wonth move at all when you try to swivel it, we recommend to replace the whole faucet. Best Regards, Rosanna
Answered by: DeltaFaucet11
Date published: 2018-04-12

Is "O" ring #RP32520 included in re[pair Kit Rp3614?

Asked by: Wayne
Hi Wayne, Thank you for your question. The RP32520 o-rings are not included in the RP3614 repair kit. The repair kit has the RP25 o-rings. Thanks, Dave
Answered by: DeltaFaucet2
Date published: 2016-03-07

PN RP32520 substitute

I need to purchase the o rings that are in RP32520, but they have been discontinued in my local hardware store. Is there a substitute PN that I can purchase locally?
Asked by: Tom
Hi Tom, Thanks for your question! The RP32520 is the only repair part number that includes these o-rings. The o-rings have an ID of 1.42 and an OD of 1.63 USN127. You can also purchase them through our online store. http://www.deltafaucet.com/repairparts/details/rp32520.html Thanks, Jon
Answered by: DeltaFaucet3
Date published: 2016-03-07

Compatability

Is rp25 the same as rp 32520? Are they interchangeable? can rp25 be used on 470 model faucet?
Asked by: brian
Hi Brian, Thank you for your question. The RP25 o-rings are not the same size o-rings that are found in RP32520. They will not work on the model 470 faucet. Thanks, Dave
Answered by: DeltaFaucet2
Date published: 2016-03-07

I have a 470 kitchen faucet . It is difficult to swivel left to right . I believe the faucet has a life time warranty . Several years ago there was a similar problem and I received the replacements parts at no cost .

Asked by: cabooseguy
Hi Cabooseguy, Thank you for your question. Please watch for an email from me with more information. We'd be happy to help you with this! Best Regards - Beverly
Answered by: Beverly
Date published: 2020-07-21
