Delta®

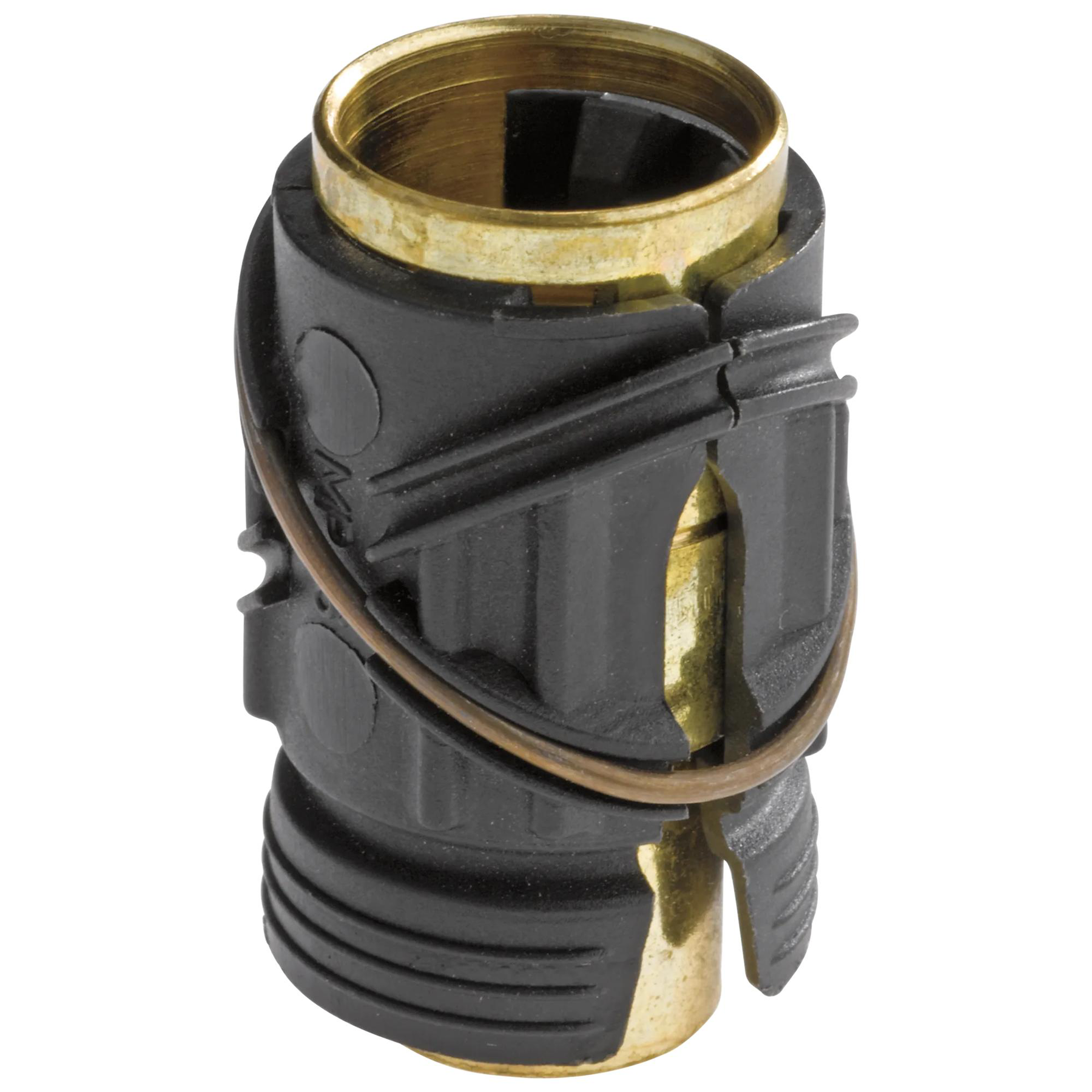

Spray Nipple Cap - Quick-Connect Vegetable
Model#: RP40301
Spray Nipple Cap - Quick-Connect Vegetable
Delta®
Spray Nipple Cap - Quick-Connect Vegetable
Model#: RP40301

Finish:Not Applicable

List Price: $11.50
Availability: In stock
PRODUCT FEATURES
SUPPORT
Installation Information
Over All Height :
1-7/32
Connection Type :
NA
REVIEWS
Rated 5 out of 5 by from Just right The part to my sink got damage during a recent kitchen renovation. Was so grateful to find a replacement at a very low cost and finally have a working sink again.
Date published: 2017-02-06
Rated 5 out of 5 by from Glad to find this Item!! I have a faucet that I paid 250 dollars for and when I moved I took it with me, but when I took it out these clips got lost between the removal and the new installation. I though my faucet was trash! I am so glad to have found these clips so that I could use my faucet again!!
Date published: 2011-04-18
  • y_2021, m_1, d_21, h_17
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.13
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_2
  • loc_en_US, sid_RP40301, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 6ms
  • reviews, product
Q&A

Vegatable spray hose

My wife purchased a replacement vegatable spray hose. The hose (where it connects to the supply line under the sink) has a grey quick-connect. My supply line is a standard threaded nipple. Is there an adaptor that will connect the threaded nipple and receive the Delta quick-connect on the hose side?
Asked by: Mike
Thank you for your question. Based on your description, I believe that you need Delta Faucet model # RP37034GR. This does not include the vegetable spray head. You may want to contact our Home Owner/Warranty line if you also need a spray head.
Answered by: Delta
Date published: 2014-04-27

How does the Quick-Connect disconnect

I'm changing out my sprayer and ended up removing this part. How do I disconnect my hoses from the faucet? Thanks
Asked by: Barry
Hi Barry, Thank you for your question. To remove the quick connect on the spray hose you will want to squeeze the bottom of the black/gray plastic quick connector right above the brass fittting. You should be able to see the top of the connector open up as you squeeze the bottom. Once open slightly push up and then pull down to remove the quick connect. Thanks, Dave
Answered by: DeltaFaucet2
Date published: 2016-06-11

Is a brass plug available to install once nipple removed

Wouldn't removing the sprayer nipple and installing a brass plug be easier? What is the thread size on the sprayer nipple? Thanks, Jim
Asked by: JD
Hin JD, Thank you for your question. The sprayer nipple is machined in during the manufacturing process. We do not recommend removing this piece and replacing it with a plug. Using the RP40301 cap is the recommended course of action if you want to eliminate the vegetable sprayer. Thanks, Dave
Answered by: DeltaFaucet2
Date published: 2014-01-10

How do you remove rp40301 connector from faucet? Does it take a tool?

Asked by: Dedoc
Thank you for your question, Dedoc! The quick-connect fitting can be removed by squeezing the tabs at the bottom and pulling downward. It may help to wiggle the clip as you pull down. Please note that we do not recommend to remove the metal spring or disassemble the clip. Best regards, Jon
Answered by: Delta Faucet
Date published: 2020-11-11

I have a Peerless P299575LF-SS kitchen faucet and do not want to use the vegetable sprayer. Will the Delta RP40301 work to cap the sprayer quick connect. Thanks in advance

Asked by: Frank
Hi, Frank! Thank you for your question. The Peerless P299575LF-SS takes the RP60295 square cap. The RP40301 is a round cap and will not fit the square connection the P299575LF-SS has. Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2018-06-14

Do I take out the diverter when I cap the sprayer, to avoid further problems....if so what do I put in the diverter hole? Anything- nothing ?

Asked by: copswife1103
Hi Copswife, Thank you for your question! You do not have to remove the diverter assembly when using a spray cap. Best regards, Brandis
Answered by: DeltaFaucet7
Date published: 2016-02-23

How do I remove the sprayer and does RP40301 just snap on?

Asked by: Philsnana
Hi Philsnana, Thank you for your question. You can remove the Quick-Connect hose by squeezing the two tabs together like a clothes pin and then pulling it down. The cap will simply click into place when you press it onto the brass nipple. Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2016-08-16

Can I buy just the clips for a RP34352 Quick Connect Hose Assembly?

I am installing a 3555RB-216RB faucet and I took the black clips off of the ends of my Quick Connect Hose Assembly (RP34352), thinking that they were packing material placed there to protect the brass fitting, before I saw the tag instructing me not to remove them. A replacement Quick Connect Hose Assembly costs $35.00. Can I but just the (3) black plastic clips in order to complete my install?
Asked by: Randy
Hi Randy, Thank you for your question. Unfortunately the black clips are not available to order as a separate item, only as part of the hose assembly. The entire RP34352 hose assembly would have to be replaced. Thanks, Dave
Answered by: DeltaFaucet2
Date published: 2015-03-30
