Dryden™

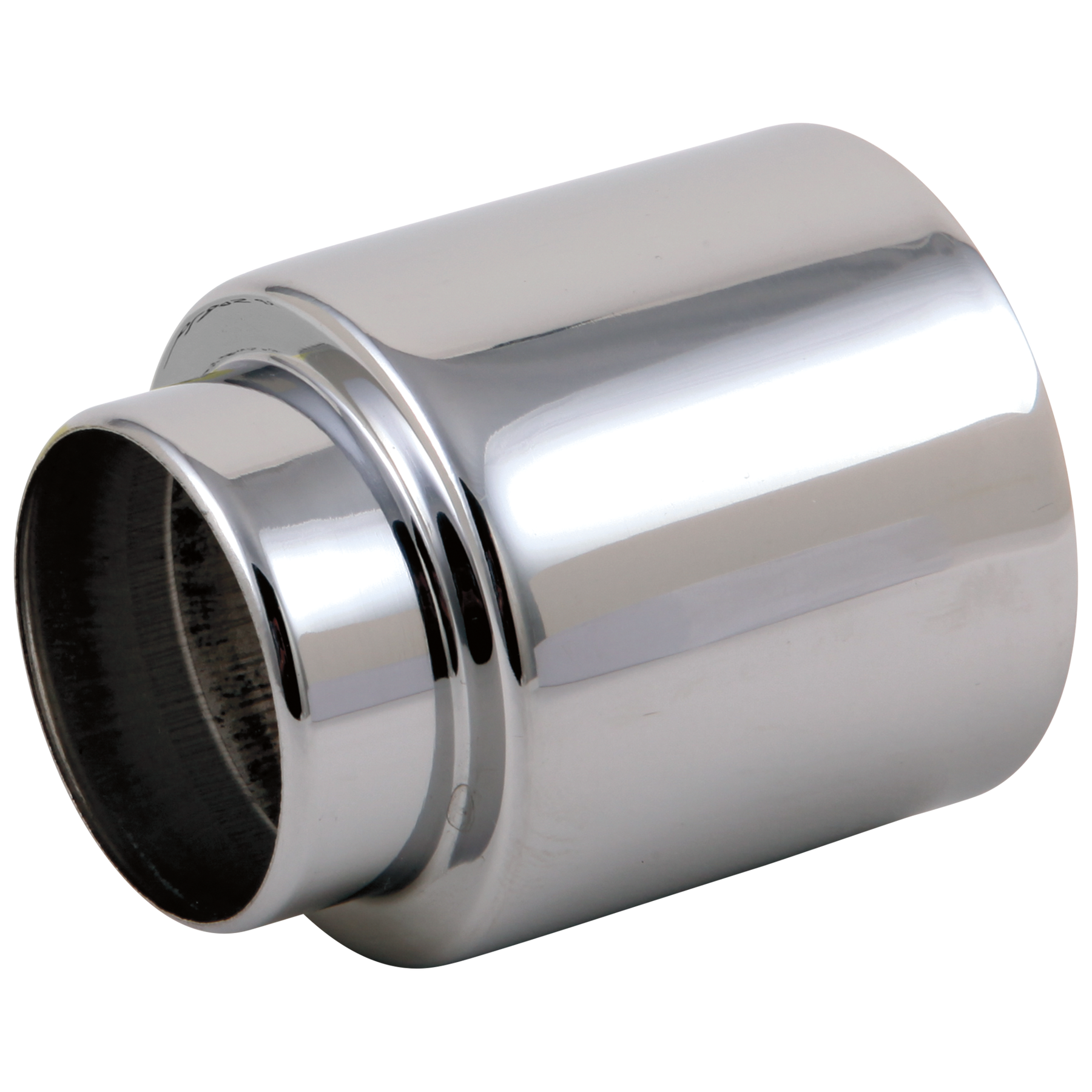

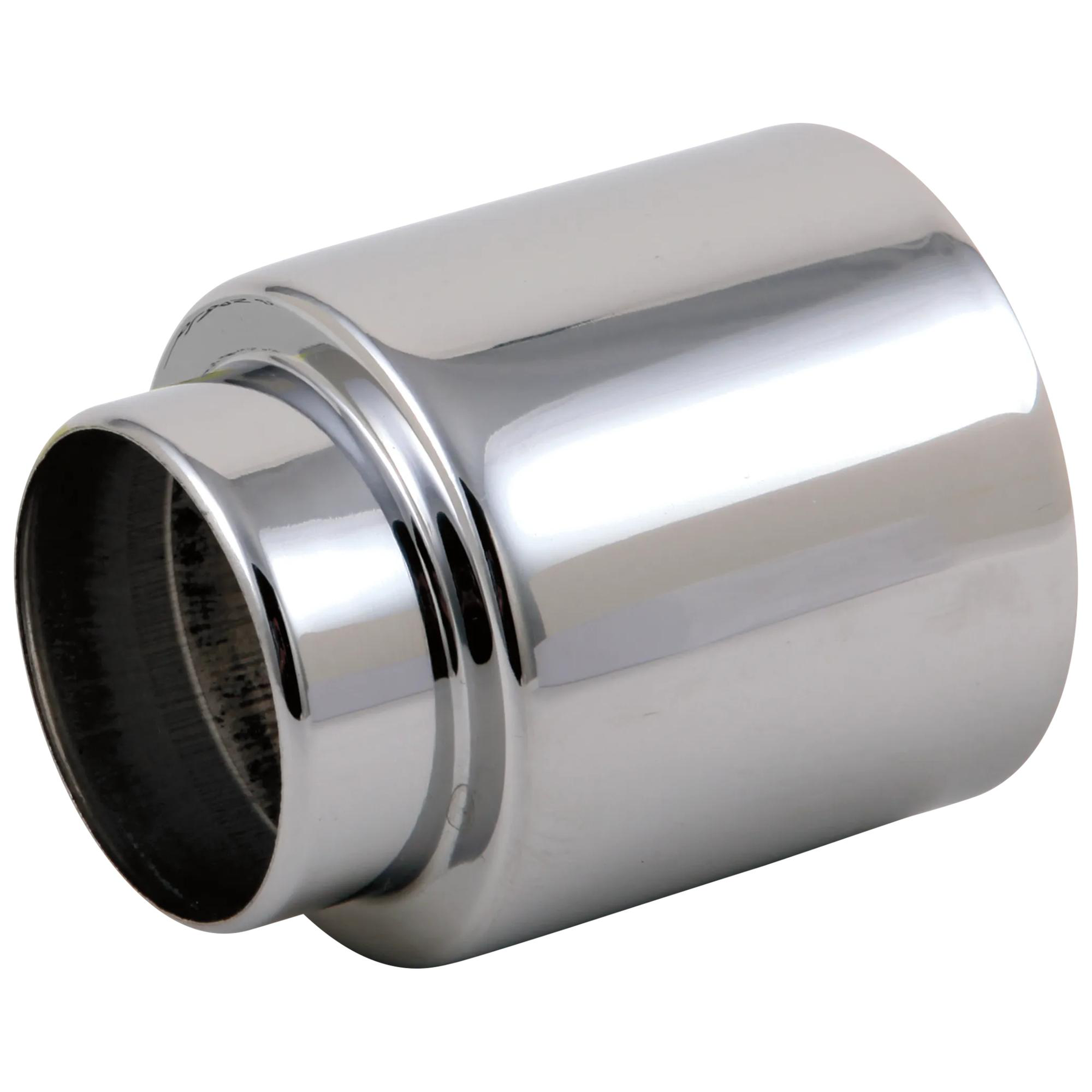

Trim Sleeve - Tub & Shower
Model#: RP50879
Trim Sleeve - Tub & Shower
Dryden™
Trim Sleeve - Tub & Shower
Model#: RP50879
Finish: Chrome
List Price: $27.75
Online Price: $22.68
Free Shipping on All Orders $49+
Availability: In stock
PRODUCT FEATURES
Special Features
SUPPORT
Installation Information
Over All Height :
1
Connection Type :
NA
REVIEWS
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 6ms
  • reviews, product
  • bvseo-msg: Unsuccessful GET. status = 'ERROR', msg = 'Not Found.'; Unsuccessful GET. status = 'ERROR', msg = 'Not Found.';
Q&A

Where can i get a 3.5 inch venetian bronze trim sleeve?

Asked by: tpagolfnut
Hi Tpagolfnut, Thank you for your question. Our 3.5" trim sleeve in Venetian Bronze is RP22735RB. I have included the link to our Webstore where this part can be purchased. http://www.deltafaucet.com/repairparts/details/rp22735rb.html Best Regards, Courtney
Answered by: DeltaFaucet12
Date published: 2016-06-01

I am looking for a trim sleeve 3.5 inches long in brushed nickel to fit over an old valve, which model is available?

Asked by: KB
Hi KB, Thank you for your question. The 3-1/2" long trim sleeve in the brushed nickel finish is RP22735BN. Thanks, Dave
Answered by: DeltaFaucet2
Date published: 2014-05-12

Does this trim sleeve come in longer lengths and the escutcheon screws come in shorter length. We are retrofitting an older home with a Delta shower surround, however the depth of wall creates a 5/8" variance leaving the brass diverter exposed

Asked by: Jack
Hi, Jack. Thank you for your question. We have three sizes for the trim sleeve. The Delta RP50879 trim sleeve is 2-1/16". The RP39407 trim sleeve is 3". The RP22735 trim sleeve is 3-1/2". Here are links to both: https://www.deltafaucet.com/parts-product-detail?modelNumber=RP39407 https://www.deltafaucet.com/parts-product-detail?modelNumber=RP22735 We have two sizes for the escutcheon plate screws. The Delta RP196 is the original screws that come with the trim and they are 2.75" in length. The other option is the Delta RP12630 which is 1" longer. Unfortunately, we do not have a shorter option. Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2020-06-30

I would like to replace my brass sleeve with the crome sleeve. Where do I find replacement o-ring for the sleeve?

Asked by: James
Dear James, Thank you for your question. The Delta RP23336, is the larger o-ring that is normally install on the shower valve body, under the Delta Trim Sleeve RP50879. Best regards, Tanya
Answered by: Tanya
Date published: 2017-02-13

Does this part screw on?

Asked by: jc
Hi JC, Thank you for your question! The RP50879 trim sleeve is not threaded. The sleeve slides over the man control valve. Best regards, Brandis
Answered by: DeltaFaucet7
Date published: 2016-03-23

I have a delta lewiston shower faucet model 174902-ss

is there a longer sleeve for this model, there is a 1/2 inch gap between the escutcheon and current sleeve, not not is there one close to the same Finish that will work? I really do not want to have to call back the tile guy to take off the tile so the plumber can reset the valve body, I do not if the plumber or tile guy screwed up but now its up to me to make my client happy.
Asked by: Charles
Hi Charles, Thank you for your question. Delta Faucet model # RP50879 is a longer sleeve for the 1300/1400 series. We do not offer a longer sleeve for the 174902-SS. The valve will need to be reinstalled. Thanks. Jody
Answered by: Delta1
Date published: 2014-07-17

Does this part screw on, or does it simply slide on? Thanks.

Asked by: videocasey
Thank you for your question. Delta Faucet model # RP50879 should simply slide onto the valve over the cartridge.
Answered by: Delta1
Date published: 2013-10-22

changing from brass to chrome

I have a delta shower that is very similar in appearance to p/n T14255-LHP--H712--R10000-UNBX. However mine is brass and I would like to switch to chrome. I need a p/n for the faceplate, sleeve, and handle kit. I already bought a new delta shower head. My faceplate is 7 inches, and my trim sleeve is 3 1/2 inches.
Asked by: bigben
Hi, bigben. Thank you for your question! The escutcheon plate is part number RP34353, the sleeve is RP50879, the escutcheon screws are RP196, and the handle is H712. https://www.deltafaucet.com/parts-product-detail?modelNumber=RP34353 https://www.deltafaucet.com/parts-product-detail?modelNumber=H712 https://www.deltafaucet.com/parts-product-detail?modelNumber=RP196 Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2017-01-20
