Dryden™

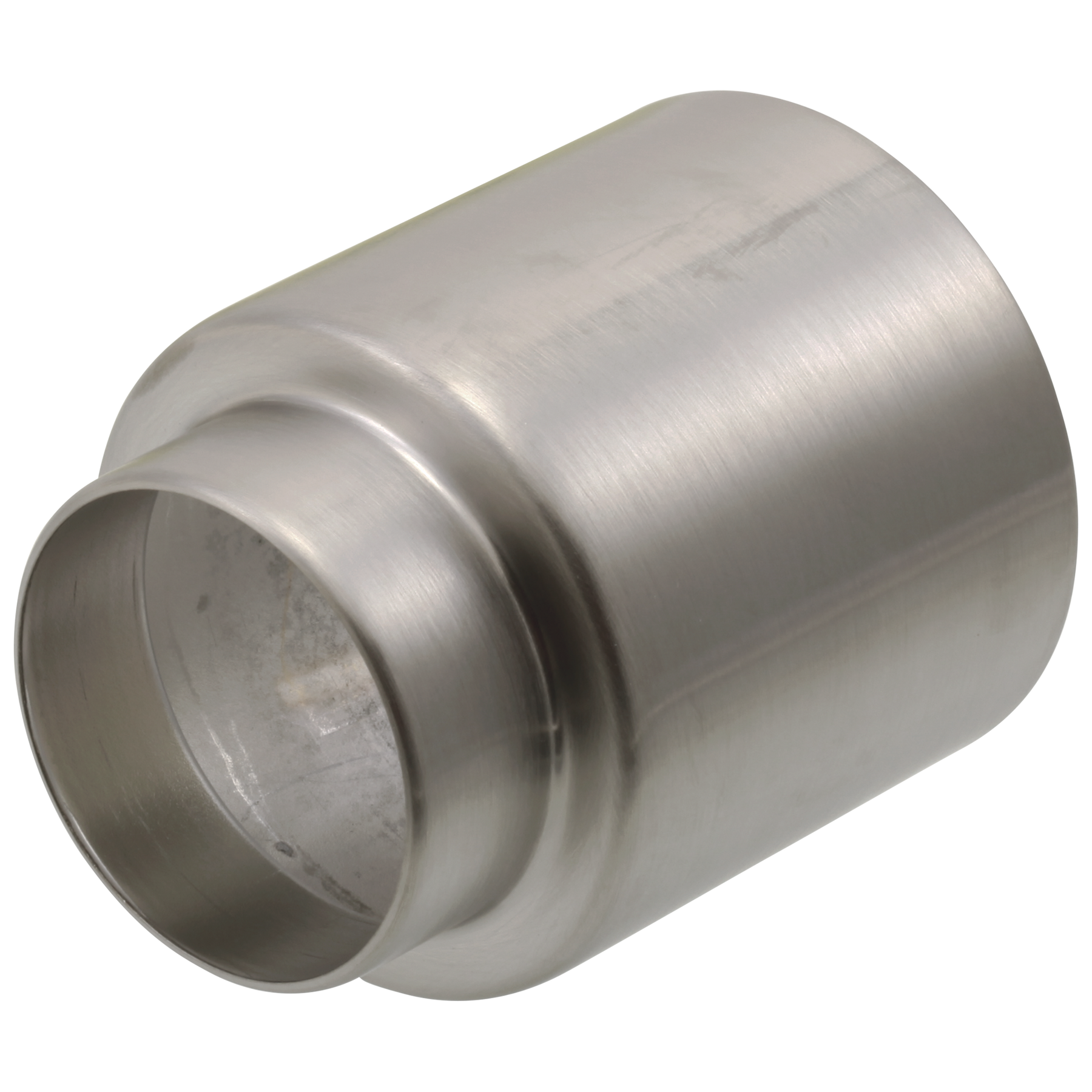

Trim Sleeve - Tub & Shower
Model#:
RP50879SS
PRODUCT FEATURES
Special Features
Brilliance® Finish
Brilliance® Finish
Many Delta products are made with Brilliance® finishes, which resist abrasions and discolorations better than traditional brass or even chrome.
SpotShield®
SpotShield®
SpotShield™ Technology resists water spots, fingerprints and stains and helps reduce stain and odor causing microbial growth on the faucet finish so the faucet stays cleaner longer.
SUPPORT
Installation Information
Over All Height :
1
Connection Type :
NA
REVIEWS
Q&A
I have model # T14496-BN and the trim sleeve is too short, what should I do?
Also the Tub spout diverter will not work on the existing pipe coming from the shower wall, is there an adapter that has a reduced thread size or insert of some sort for the diverter?
any suggestions would be greatly appreciated seeing how I do not wish to tear out the wall and change all the plumbing.
Thanks, Timothy.
Thank you for your question. Delta Faucet model # T14496-BN includes a spacer with the trim sleeve. You might try either taking it out or putting it in to move your trim sleeve up or down. If this does not work, then the valve will need to be moved.
The tub spout needs to have a 1/2 inch pipe coming from the wall.
Date published: 2013-10-22
I have a gap between the estacheon and the sleeve. Model #T13420. Is there a longer sleeve that will work?
Thank you for your question. Delta Faucet model T13420 does have a longer sleeve available with part # RP22735. You also may want to take the spacer out of the sleeve to see if that closes the gap.
Date published: 2014-12-07
Is this piece compatible with T14159-CZ
Hi Arleen,
Thank you for your question. RP50879CZ is the correct sleeve for the T14159-CZ.
Best regards,
Jon
Date published: 2016-05-11
Where can i get a 3.5 inch venetian bronze trim sleeve?
Hi Tpagolfnut,
Thank you for your question. Our 3.5" trim sleeve in Venetian Bronze is RP22735RB. I have included the link to our Webstore where this part can be purchased.
http://www.deltafaucet.com/repairparts/details/rp22735rb.html
Best Regards,
Courtney
Date published: 2016-06-01
I am looking for a trim sleeve 3.5 inches long in brushed nickel to fit over an old valve, which model is available?
Hi KB, Thank you for your question. The 3-1/2" long trim sleeve in the brushed nickel finish is RP22735BN.
Thanks,
Dave
Date published: 2014-05-12
Does this trim sleeve come in longer lengths and the escutcheon screws come in shorter length. We are retrofitting an older home with a Delta shower surround, however the depth of wall creates a 5/8" variance leaving the brass diverter exposed
Hi, Jack.
Thank you for your question. We have three sizes for the trim sleeve. The Delta RP50879 trim sleeve is 2-1/16". The RP39407 trim sleeve is 3". The RP22735 trim sleeve is 3-1/2". Here are links to both:
https://www.deltafaucet.com/parts-product-detail?modelNumber=RP39407
https://www.deltafaucet.com/parts-product-detail?modelNumber=RP22735
We have two sizes for the escutcheon plate screws. The Delta RP196 is the original screws that come with the trim and they are 2.75" in length. The other option is the Delta RP12630 which is 1" longer. Unfortunately, we do not have a shorter option.
Best Regards,
Rosanna
Date published: 2020-06-30
What is the diameter of the Delta trim sleeve
Hi tmthieken,
Thanks for your question. The sleeve is 2 1/4" in diameter.
Best regards,
Jon
Date published: 2016-07-22
I would like to replace my brass sleeve with the crome sleeve. Where do I find replacement o-ring for the sleeve?
Dear James,
Thank you for your question. The Delta RP23336, is the larger o-ring that is normally install on the shower valve body, under the Delta Trim Sleeve RP50879.
Best regards,
Tanya
Date published: 2017-02-13
