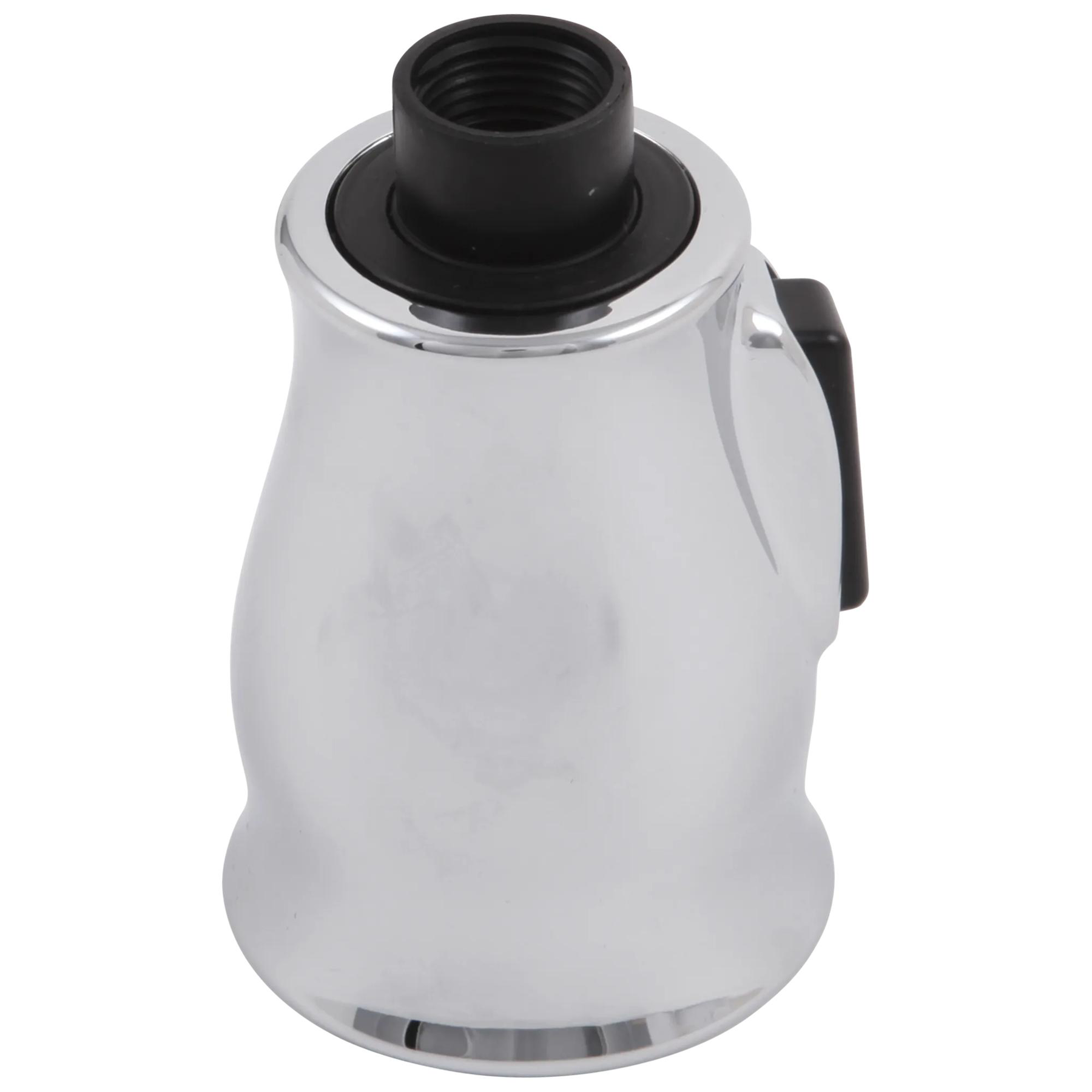

Spray Assembly - Pull-Down Kitchen in Chrome
Model#:
RP51480
Image Thumbnail, click to view zoomed product image
Documents & Specs
Installation Information
Flow Rate :
1.8 gpm @ 60 psi, 6.8 L/min @ 414 kPa
Overall Height (in.) :
1
Valve Type:
NA
REVIEWS
Rated 3 out of
5
by
DanP from
Good sprayer that has developed a leak
Despite being soaked in vinegar periodically, sprayer has developed a leak when in use. In addition to water from the spout it also pours out of the edge. Hopefully we can get a replacement under Delta"s lifetime warranty policy. Beyond this one fail, sprayer has worked great since it was installed when home was purchased in 2009.
Date published: 2026-05-19
Rated 2 out of
5
by
JPbean from
Low flow after two years
Well add me to the low flow problem. It is in my second home which sees littl use and has a water softener and i have cleaned it n more than once and now spending 250.00 plus for a new one. This should have replaceable internal parts if it is only going to last a few years. Very disappointed for the initial price we paid.
Date published: 2026-05-16
Rated 2 out of
5
by
GSJND from
Clogs up
Low water flow. Corrodes with hard water, and flow goes to near zero. I had mine about 5 years, and it sounds like I got lucky that it lasted that long.
Date published: 2026-04-24
Rated 2 out of
5
by
Wade from
Poor quality. It lasted two years and had to be replaced
Date published: 2026-02-28
Rated 2 out of
5
by
RJR1 from
Beautiful Faucet, but Major Decline in Performanc
I purchased this Delta faucet about four years ago and initially loved everything about it—the design, the finish, and especially the multi-spray functionality. Unfortunately, as the faucet has aged, the water flow has noticeably decreased to the point that it’s no longer performing the way it should.
I’ve followed all of the recommended troubleshooting steps, including soaking components in a 50/50 vinegar solution, but the issue persists. After researching, it’s clear that many other customers have experienced similar flow problems with this model, which is disappointing for a brand I’ve trusted and chosen for its reputation for quality.
I expected more long-term reliability from Delta. The faucet looks great, but the performance decline has been frustrating, and I’m hoping Delta will address this known issue so customers can continue to feel confident in their products.
Date published: 2025-11-13
Rated 1 out of
5
by
Brady from
Low Water Pressure
I agree with a majority of the folks who have had continuing issues with low pressure. I have repeatedly followed Delta's recommendations of cleaning out the filter and head with vinegar solution, etc. It does not work. Within days of cleaning pressure is low again. Very frustrating, and no real answer except to get a replacement head. I purchased my faucet about two years ago through Ferguson appliance, which is always helpful, but they have no real answer either. To everyone experiencing this issue -- get a new faucet and do not get another Delta.
Date published: 2025-10-26
Rated 1 out of
5
by
Chelle from
Terrible
Same issues as others have stated! The faucet clogs frequently has to be cleaned with a vinegar solution. Mine also rusted, after which the entire faucet had to be replaced!
Date published: 2024-11-16
Rated 1 out of
5
by
Randy from
This faucet is terrible.
I had this faucet and all of a sudden no water pressure. Have been dealing with this for over a week. I'm soaking it in vinger and water like I seen on here to do. I will be calling in the morning for a replacement if this does not fix it. mine is less than 1 year old. Maybe 6 months.
Date published: 2024-03-02
Q&A
Can the aerator be removed?
Hi, Jackie!
Thank you for your question. The Delta RP51480 sprayer assembly aerator is removeable. To remove the RP50815 aerator, use the aerator wrench, RP52217. Here are links to these parts:
https://www.deltafaucet.com/parts-product-detail?modelNumber=RP50815
https://www.deltafaucet.com/parts-product-detail?modelNumber=RP52217
Best Regards,
Rosanna
Date published: 2024-03-28
I need this part replaced under warranty on my kitchen faucet that I bought 12 years ago. It doesn't allow water to flow.
Hello,
Please accept our sincere apology for the inconvenience you are experiencing. We have reached out to you via email to further assist at this time.
Best Regards,
Tim
Digital Communications Specialist
Date published: 2026-01-05
I bought the "Leland" old model (without MagnaTite and Multi-Flow). This part fits on the old model?
Hi Racpty,
Thank you for your question! The older version of the Leland pull down faucet with the rotating spray mode selector is RP46751.
http://www.deltafaucet.com/repairparts/details/rp46751.html
Thanks,
Jon
Date published: 2024-03-28
How do you disassemble to clean for low flow?
Hi Matt, Thank you for your question. Your faucet would have came with a small blue T-shaped wrench that will allow you to remove the aerator from the RP51480 wand assembly. Check the supply lines under the sink for the wrench as it can clip onto the pex supply lines. If you need the wrench it can be ordered as part of RP50815.
http://www.deltafaucet.com/repairparts/details/rp50815.html
You can soak the wand assembly in a 50/50 solution of vinegar and water to help clean the mineral build up, be sure to rinse when done.
Thanks,
Dave
Thanks,
Dave
Date published: 2024-03-28
How does this come apart for cleaning?
Thank you for your question, Gary6557! A Delta wand is not designed to be taken apart and does not have any repair parts available. It can be removed from the pull down hose to check the debris screen on the back for sediment. Please contact us directly if you have questions or need further assistance with this part.
Best regards, Edward
Date published: 2024-03-28
How do I install the sprayer assembly with hose?
I received a new RP51480SP replacement for a leak that I am having. I turned off the water, took the clip off between the hose assembly and water line, and removed the old one. When I try to put the new one through the faucet surround it gets stuck around the area where the "friction spacer" is. How do I get the new hose to go all the way down?
Dear Zack,
Thank you for your question. To install the hose assembly, you make need to remove the spout arm from your faucet body, then install the hose through the spout and then down the faucet body opening.
https://media.deltafaucet.com/PartsDiagram/DPD-K-9178-DST.pdf
Best regards,
Tanya
Date published: 2024-03-28
What size O-rings inside
After about 1 year of use, I soaked the wand assembly in a vinegar solution to remove buildup, and after that, the spray select mechanism has started to fail. When i press the button to select spray, some water still drips out the aerator. When I press the button for the aerator, some water still drips out the spray ports. I believe replacing the o-rings on the spray select mechanism inside this assembly would help, but i need to know the part number or specs of the o-ring. Thanks.
Hi Sean, Thank you for your question. Unfortunately we do not offer the internal components of the 51480SS wand assembly as separate items. The entire wand will need to be replaced.
Thanks,
Dave
Date published: 2024-05-30
Is there a spray head for a Leland 978-DST rated at 2.2gpm and what is the rp number. Thanks.
Hi, John13!
Thank you for your question. The RP51480RB Sprayer Assembly has a 2.2 gpm flow rate.
Best Regards, Rosanna
Date published: 2024-03-28
