Delta®

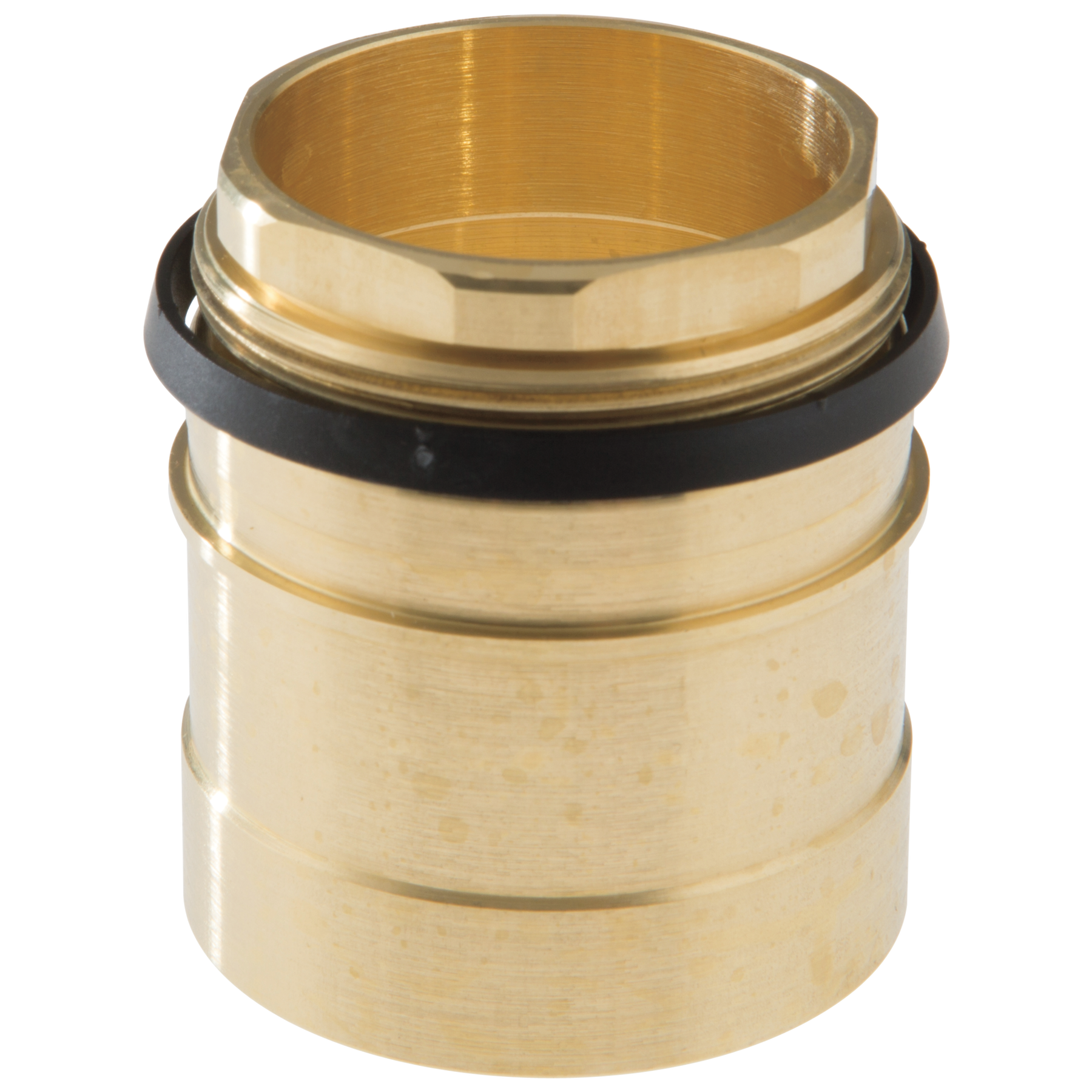

Bonnet Nut w/ Valve Seal
Model#: RP51503
Bonnet Nut w/ Valve Seal
Delta®
Bonnet Nut w/ Valve Seal
Model#: RP51503

Finish:Not Applicable

List Price: $21.30
Online Price: $17.40
Free Shipping on All Orders $49+
Availability: In stock
PRODUCT FEATURES
SUPPORT
Product Support, Repair Parts & Technical Specifications
Installation Information
Over All Height :
1-25/32
Connection Type :
NA
REVIEWS
Rated 5 out of 5 by from Single Handle Faucet Parts All the faucet parts arrived on time with all the several parts in the package. They all worked perfectly and looked great.
Date published: 2012-11-20
  • y_2021, m_2, d_25, h_17
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.14
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_1
  • loc_en_US, sid_RP51503, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 7ms
  • reviews, product
Q&A

Can I purchase a replacement V-Ring (only) for this item? The V-Ring has deteriorated, but the bonnet itself appears to be in good condition.

Asked by: George
Hi George, Thank you for your question. The v-ring is not available as a separate item. The entire RP51503 bonnet nut would have to be ordered. Thanks, Dave
Answered by: DeltaFaucet2
Date published: 2014-12-28

My faucet is getting harder and harder to turn off. I have to keep moving the handle around to finally get it to stop dripping. Is this a problem with the bonnet and v-ring or something else ?

Asked by: Paul III
Hi, Thank you for contacting us. We apologize for any inconvenience with your Delta Faucet Company product. I am also more than happy to have this opportunity to help you. Unfortunately, I would need a little more information in order to further assist you. I would like to confirm a installation date and place of purchase. To place an order for you, we will need to have your full name, physical street address, and telephone number. We use your phone number for tracking information. Please contact us at 1-800-345-3358. We are open Monday through Friday 7:00 AM to 7:00 PM central time, and 8:00 AM to 5:00 PM on Saturday. Thank you for your help with this and I look forward to hearing back from you! Best Regards, Bethany
Answered by: DeltaFaucet7
Date published: 2020-07-02

Is it possible to get just the V-ring?

Asked by: Mike
Hi, Mike! Thank you for your question. The v-ring is not available as a separate item. The entire RP51503 bonnet nut would have to be ordered if the v-ring is needed. Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2019-02-08

How do you remove this part from the faucet?

RP51503
Asked by: eddy
Hi Eddy, Thank you for your question. The RP51503 bonnet just screws in over top of the DST valve assembly. Unscrew the bonnet counterclockwise to remove the part. Thanks, Dave
Answered by: DeltaFaucet2
Date published: 2020-04-04

How do I remove the old one to install the new one. Base is not secured and if I try to unscrew, it is too tight. Concern about the three tubes below could get damage.

Asked by: Patel
Hi, Patel! Thank you for your question. We recommend to soak a towel or washcloth in a solution of 50% white vinegar and 50% water solution. Wrap the soaked towel around the bonnet to loosen any hard water or corrosion that maybe keeping the bonnet tightened. Once loose, use a strap wrench or adjustable wrench to unscrew the bonnet nut counterclockwise to remove. Best Regards, Rosanna
Answered by: DeltaFaucet11
Date published: 2019-09-19

Is bonnet nut included with trim kit

Asked by: Island girl1517
Hi, Thank you for your question. I do apologize for any confusion regarding your Delta product. We are happy to help! The bonnet nut comes with most of our faucets and shower trims. Please contact us at 1-800-345-3358 if you have any further concerns. We are open Monday through Friday 7:00 AM to 7:00 PM central time, and 8:00 AM to 5:00 PM on Saturday. Best Regards, Bethany
Answered by: DeltaFaucet7
Date published: 2020-07-14

For this Bonnet nut, what size of wrench is needed to remove it?

Asked by: garchiba
Hi garchiba, Thank you for your question. The hex portion of the bonnet nut measures 1.313". An adjustable wrench or channel locks that open this wide will remove the bonnet nut. Thanks, Dave
Answered by: DeltaFaucet2
Date published: 2016-02-16

I assme this bonnet unit is all one piece and comes off by using a crescent wrench to remove it to replace the value assembly. Is that correct?

Asked by: Randy
Thank you for your question, Randy! The RP51503 bonnet nut can be tightened or removed with any adjustable wrench, however it should only be hand tightened and then a half to a full turn past to ensure that it can be easily removed for repairs later. Please contact us directly if you have questions or need further assistance. Best regards, Edward
Answered by: Delta Faucet
Date published: 2020-05-02
