DELTA

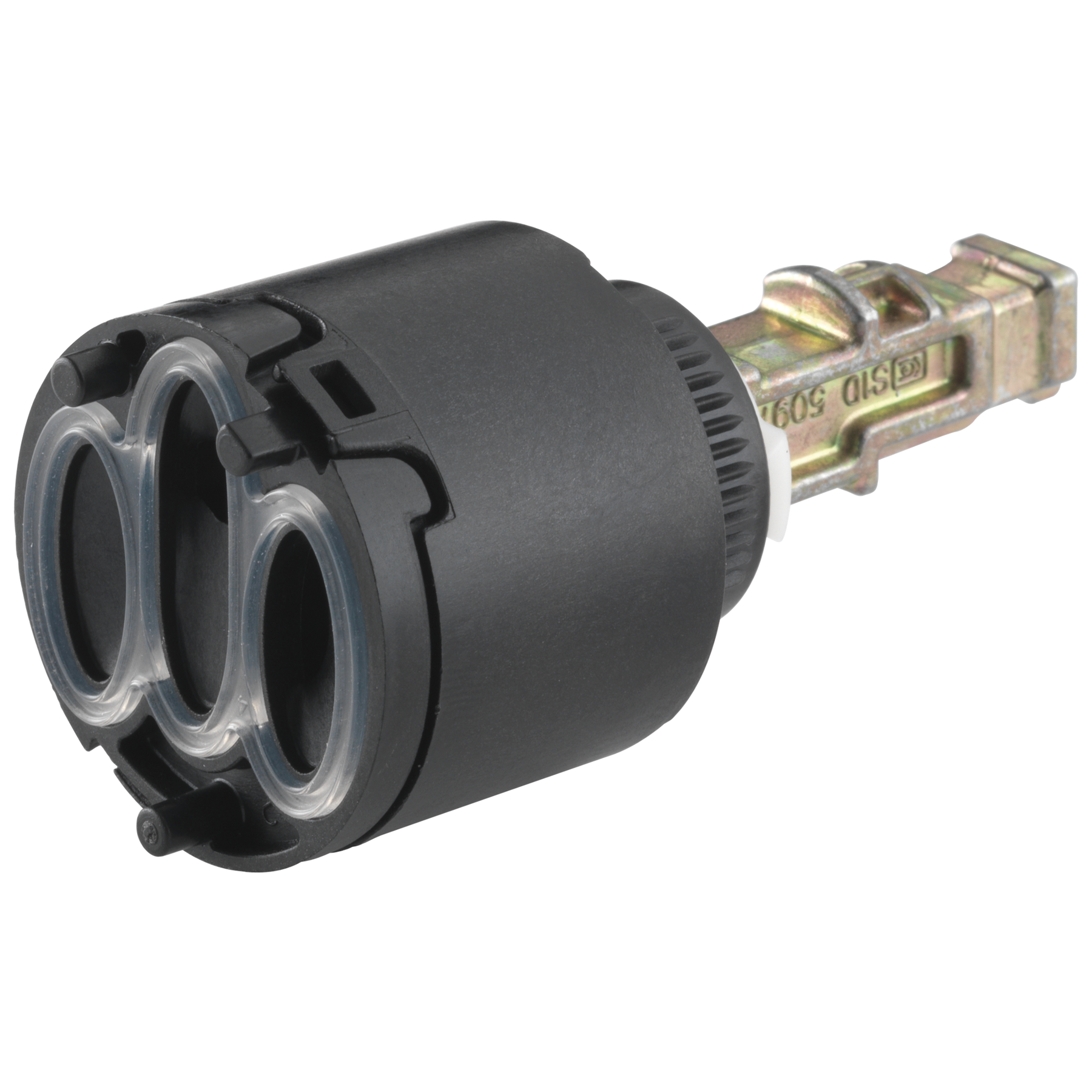

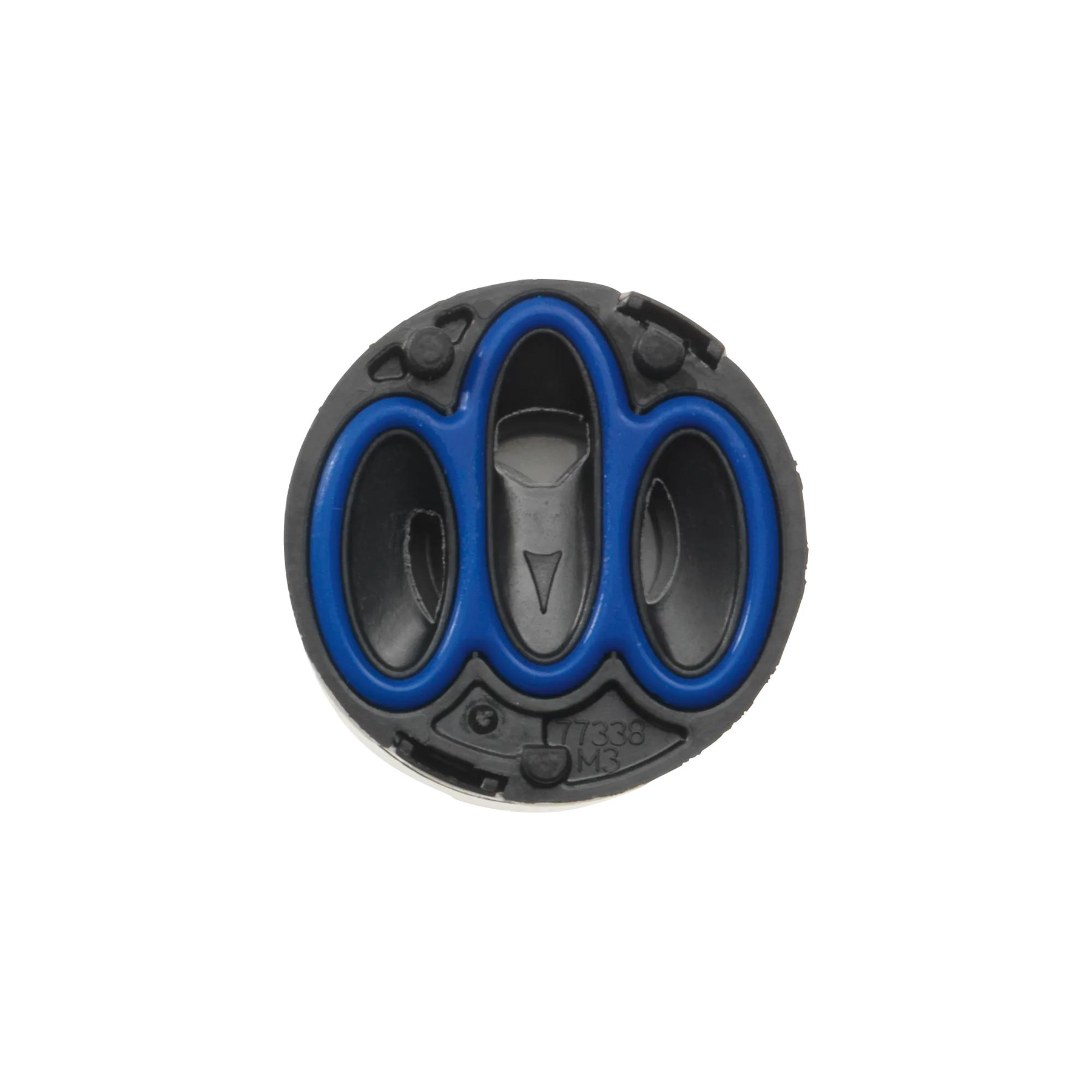

Euro-Motion DIAMOND Valve
Model#:
RP60114
Image Thumbnail, click to view zoomed product image
null
Documents & Specs
Installation Information
Overall Height (in.) :
2-1/2
Valve Type:
NA
REVIEWS
Rated 4 out of
5
by
Steve from
Good product
Product is good but you need to be careful when you install it. I did not know how much torque to put on it and it started leaking - what a mess that was. Anyway I took it out and reinstalled it. Got it right and it is functioning as designed. Hope it stays that way.
Date published: 2026-01-30
Rated 4 out of
5
by
MSgtCarbo from
EasyRepair
This is a good product. We purchased our Trinsic kitchen faucet in 2013 and have only had two problems which I was able to repair - spray hose that would not retract and the cartridge assembly. Delta gave me a new sprayer assembly no charge. Had to pay for the cartridge assembly; free would have been nice. I will keep using this faucet until the next part fails. At that time I will buy a new one. Thank you
Date published: 2026-01-25
Rated 5 out of
5
by
Allan from
Great warranty, parts easy to install.
In 2014 we bought a Delta Trinsic Arctic Stainless Steel 1-Handle Pull-Down Kitchen Faucet, Model # 9159-AR-DST. By 2020 the lever valve was becoming a little stiff and squeaky, so I found Delta's website and called them to order the part. Delta sent a replacement Euro-Motion Diamond Valve RP60114 under warranty. I procrastinated the job, but now by 2022 the old valve was really a pain to operate, so I finally installed the new one. Removed the lever with an allen wrench, and unscrewed the valve's brass collar with a big adjustable wrench. The new valve cartridge fitted right in, and is buttery smooth.
In 2021 the spray head developed a little dribble that did not respond to cleaning.I called Delta to order a new tip, but they sent a new spray assembly RP64069SS under warranty. It, too, was easy to install.
Date published: 2022-07-01
Rated 5 out of
5
by
Al69 from
Right fit
It was the part that I needed
Date published: 2022-06-27
Rated 5 out of
5
by
WillC from
Leak Fixed!
Simple and fast to install; the leak we had stopped immediately. It's been in use about 2 months and we've had no problems so far.
Date published: 2021-04-02
Rated 5 out of
5
by
Vince from
Good replacement.
Worked great. I liked it.
Date published: 2021-01-19
Rated 5 out of
5
by
OhioDS from
Brizo RP60114
I've had it for several months and it works great!
Date published: 2016-03-04
Rated 5 out of
5
by
Jim F from
Brizo - Brizo RP60114 N/A Delta Euro-motion Valve Assembly
Bought for spares on Delta faucet. Spares valuable for maintaining immediate service.
Date published: 2016-01-12
Q&A
I need the hoses that connect to this. Mine have grown mold on the inside. Do you have these separately?
Hello DanS,
Thank you for your question. The Delta Euro-Motion DIAMOND Valve Cartridge RP60114 does not have hoses that connect to it. This part goes in the valve body for some DST kitchen and lavatory faucets. Please feel free to call, email, or message us on social if there is anything else you need.
Best regards,
Tanya
Phone: 1-800-345-3358 | Email: customerservice@deltafaucet.com | Facebook/Twitter: @deltafaucet
Date published: 2024-03-28
Are there any special tools required to replace a RP60114 cartrage? Are there installation instructions available?
Thank you for your question, Pfm3! Replacing the RP60114 cartridge assembly will require a 3/32" allen wrench to remove the handle. You may also need an adjustable wrench. Installation instructions can be found on your Maintenance and Installation manual. Please contact us directly if you have questions or need further assistance.
Best regards, Edward
Date published: 2024-03-28
are there any other parts which should be changed, like washers, when replacing the cartridge
Hello!
If your model uses the RP60114 cartridge it will not utilize any washers.
Please reach out with further questions!
Best Regards,
Tim
Digital Communications Specialist
Date published: 2026-01-28
How to remove the "button" on the handle without scratching it?
On the Addison & Ashton Electronic Faucet, do I need a special tool to remove the "button" in order to get to the valve assembly? I don't want to scratch it by prying it out, but it looks like only something small and sharp will remove it.
Hi Janelle, Thank you for your question. If you are unable to pry off the button using your fingernails you can insert a push pin into the small opening in the top of the button and gently pry it loose. Make sure the end of the pin is under the button where it will not scratch the finished surface.
Thanks,
Dave
Date published: 2024-03-28
What is part # for cartridge on a Cassidy series 9197-dst faucet. My manual is showing Part # RP60114. Is this correct or not?
Hello,
Thank you for your question!
Yes, your model will use the RP60114 cartridge.
Please reach out with further questions!
Best Regards,
Tim
Digital Communications Specialist
Date published: 2025-08-07
I have a 9197-AR-DST kitchen sink faucet, mng date of1-16-2014 installed 4-10-2014, is RP60114 cartridge correct? Few months ago I was sent a different cartridge and would not fit.
Hello,
Please accept our sincere apology for the inconvenience you are experiencing. We have reached out to you via email to further assist at this time.
Best Regards,
Tim
Digital Communications Specialist
Date published: 2025-02-27
Is this the replacement cartridge that is needed for Delta Kitchen Faucet series 9959?
Hi, JoeBogus!
Thank you for your question. If the Delta 9959-DST Faucet was installed before 08/01/2018, the correct valve cartridge assembly is RP60114.
If the Delta 9959-DST Faucet was installed after 08/01/2018, the correct valve cartridge assembly is RP73000.
Best Regards,
Rosanna
Date published: 2024-03-28
Does the RP60114 fit the Ashton Stainless 199922-sssd-dst
Thank you for your question, Greg. The model 19922-SSSD-DST uses the RP50587 cartridge rather than the RP60114.
https://www.deltafaucet.com/parts-product-detail?modelNumber=RP50587
Best regards, Jon
Date published: 2024-03-28
