Delta®

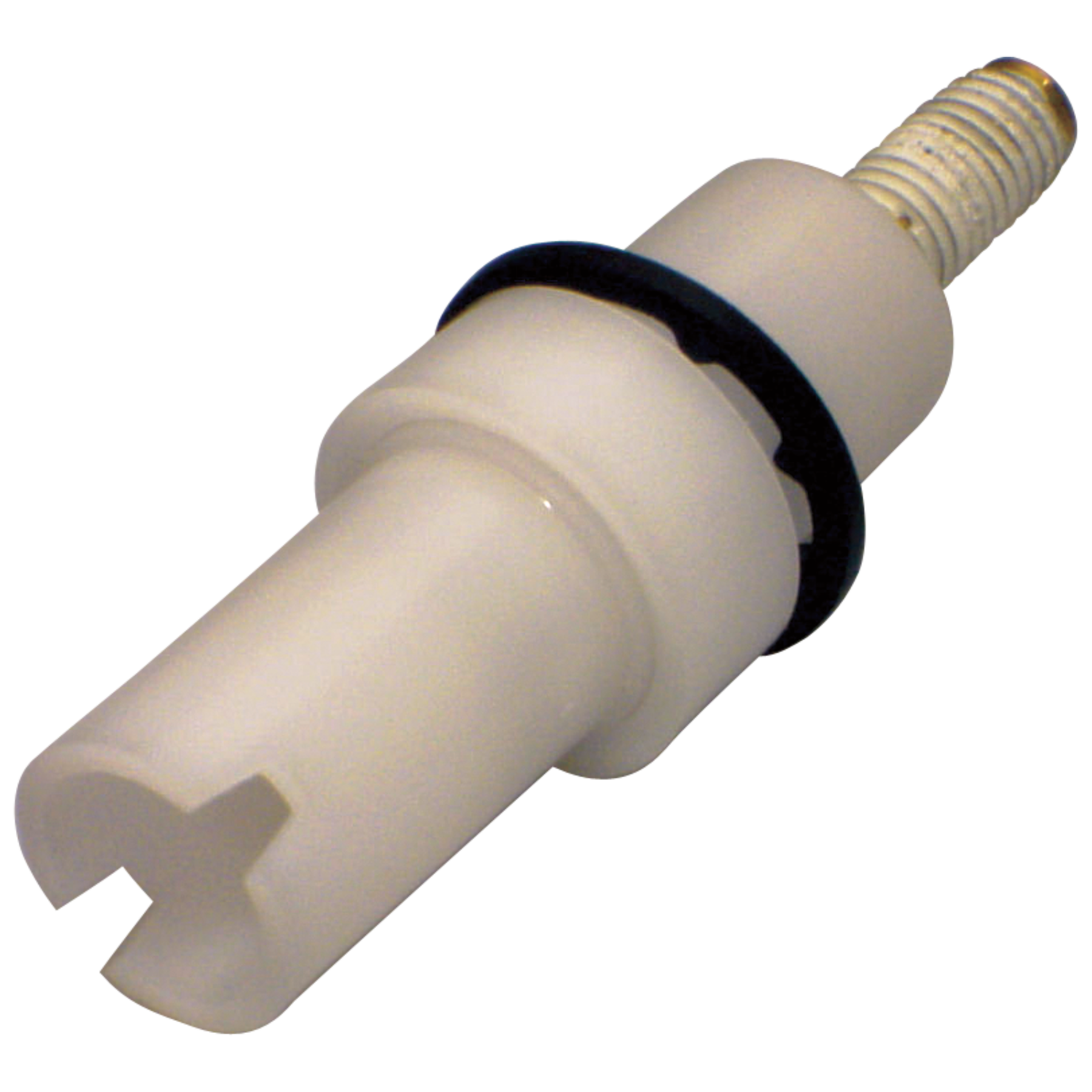

Diverter Assembly - Kitchen
Model#:
RP63135
Image Thumbnail, click to view zoomed product image
PRODUCT FEATURES
Purchase this Kitchen Faucet Diverter Assembly for an easy fix-a-leak DIY project. This is a budget-conscious repair part for repairing a leak without replacing the entire valve. Delta is committed to providing you with the best experience with water.
- For use with Delta kitchen faucets
- Diverts the flow of water from the spout to the side spray
- Sold individually
Documents & Specs
Installation Information
Overall Height (in.) :
2-1/4
Valve Type:
NA
REVIEWS
Q&A
When replacing diverter RP63135 in a series 2100 kitchen faucet, how far in should the diverter be screwed?
Hi, Daniel!
Thank you for your question. The Delta RP63135 diverter can be hand-tightened into the body of the faucet.
Best Regards,
Rosanna
Date published: 2024-03-28
Will this diverter assembly work on Peerless 2 handle faucets with a spray?
This assembly looks exactly like my old diverter assembly that I removed from my Peerless Kitchen faucet set. It is probably about 13 years old.
Hi James,
Thanks for your question! This part should work with your faucet, as it fits most Peerless two-handle kitchen faucets manufactured before 2005.
Best regards,
Jon
Date published: 2024-03-28
Where is the diverter on a Cassidy kitchen faucet 4297-DST? How to remove it?
Hello,
Thank you for your question!
Model 4297-DST does not utilize a diverter. Please see the following parts diagram for your model.
https://media.deltafaucet.com/PartsDiagram/4297-DST__73951_Rev%20D.pdf
Please reach out with further questions!
Best Regards,
Tim
Digital Communications Specialist
Date published: 2025-09-03
Is this diverter assembly the same as the RP6073?
I have a problem with my kitchen faucet/sprayer. I believe the problem is due to a bad diverter assembly. Based on the parts list I found online, I need part RP6073. I stopped at Menards and the person working said he has not seen this part before and said it is probably an older model, which it is, it was installed during our kitchen remodel (approx. 8 years ago). I went back to your site and found that it was discontinued, but there is a replacement part, RP63135. Please confirm whether or not this information is right and if this is the part that will fix a rattling/pulsating noise and feeling in the faucet/sprayer (like a machine gun feeling).
Hi Brad, Thank you for your question. The RP63135 is the replacement for the RP6073 diverter assembly. Replacing the diverter assembly should solve your issue.
Thanks,
Dave
Date published: 2024-03-28
DO YOU HAVE TO TURN OFF THE WATER VALVE TO INSTALL THIS
Hi, Bill!
Thank you for your question. We do recommend to turn the water off at the shut off valve to remove the Delta RP63135 Diverter Assembly.
Best Regards,
Rosanna
Date published: 2024-03-28
kitchen faucet Model 21902. When using the spray, does the RP63135 diverter completely shut off the water from the regular nozzle?
Hello Dale,
Thank you for your inquiry! Yes, the RP63135 diverter assembly is designed to stop the water coming out of the spout and divert it to the vegetable/side sprayer assembly.
Best regards,
Tanya
Date published: 2024-03-28
Where is it located? And how do I replace it?
Thank you for your question, Melanie! The diverter assembly RP63135 can be found underneath the spout assembly. With the water shut off to the unit, you will unscrew the base and lift the spout up to gain access to this part. The diverter assembly will also unscrew. The new diverter can then be hand-tightened into the body of the faucet. Please feel free to contact us directly if you have questions or need further assistance. Below is a link to model that uses this part for reference.
https://media.deltafaucet.com/MandI/84712%20Rev%20B.pdf
Best regards, Edward
Date published: 2024-03-28
I have the Model 21902 faucet. The part number for the diverter assembly in the original data sheet is RP6183. Is RP63135 a compatible replacement?
Hello Bernie,
Thank you for your inquiry! The Delta DIverter assembly RP63135 is the direct replacement part for the older diverter assembly RP6073.
Best regards,
Tanya
Date published: 2024-03-28
