Delta®

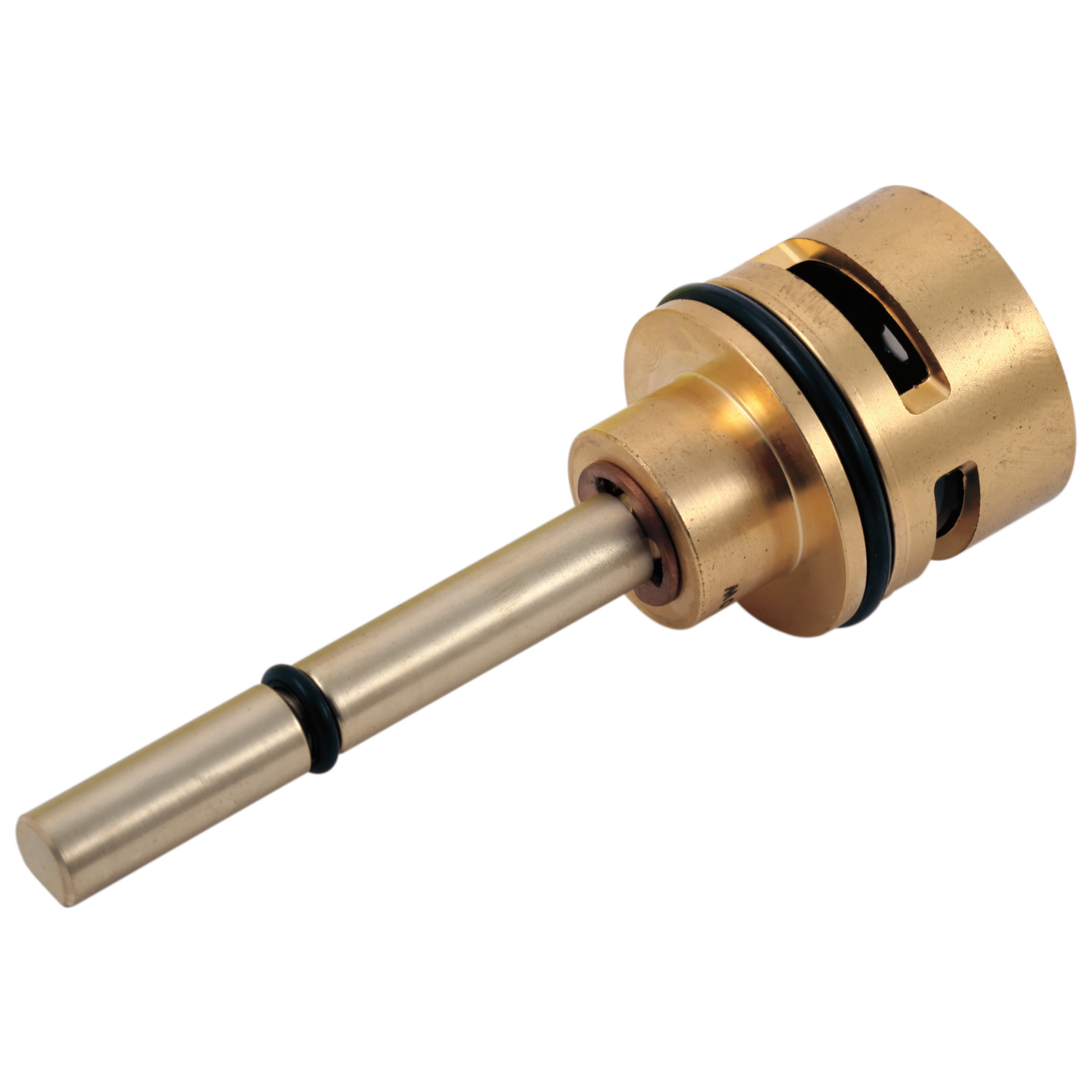

Cartridge Assembly - 3-Setting Diverter - Non-Shared

Model#: RP71718
Add to Favorites
Find local Delta® installers.
Delta®
Cartridge Assembly - 3-Setting Diverter - Non-Shared
Model#: RP71718
List Price: $159.50
Online Price: $127.60
Free Ground Shipping All Orders $49+
Add to Favorites
Find local Delta® installers.
PRODUCT FEATURES
2-Setting Non-Shared Diverter Cartridge allows multiple features to be selected, when used with the Delta® diverter rough plumber for two features. Either of the two features may be turned on individually. For example, select from shower head or hand shower. The non-shared diverter is required in some regions to replace the standard 3-Setting Shared Diverter Cartridge RP51918. Available as an optional part.
  • 2-Setting Non-Shared Diverter Cartridge Assembly
  • Compatible with Delta Faucet diverter valve body R11000 and integrated valve body R22000 or R22000-WS
  • 3 individual positions, no shared positions
  • Works with both integrated and individual diverter trims
  • Sold individually
Special Information
Warning Image
California Prop 65 WARNING
Special Information
Warning Image
California Prop 65 WARNING
Documents & Specs
Product Support, Repair Parts & Technical Specifications
View Maintenance & Installation Sheet
View Parts & Accessories Diagram
Register Product
Installation Information
Overall Height (in.) :
3-31/32
Valve Type:
NA
REVIEWS
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 14ms
  • reviews, product
  • bvseo-msg: Unsuccessful GET. status = 'ERROR', msg = 'Not Found.'; Unsuccessful GET. status = 'ERROR', msg = 'Not Found.';
Q&A

So bought this cartridge from amazon and it came in a delta box but says fluhs 72122 on the part is this right? Also using the r2200 rough in with this part and the Delta T24867 trim. Will i be able to plumb tub spout, hand shower and rain to operate se

Asked by: Jobu
Hello Jobu, Thank you for your question. The Delta Angular Modern 14 Series T24867 Trim kit comes with the 3-Setting Shared Diverter Cartridge assembly RP51918. The RP71718 is a 3-Setting Non-Shared Diverter cartridge assembly, that can be purchased separately, if you are connecting showering items to all three ports of the diverter valve. The MultiChoice Rough-In R22000 valve is not designed to be used with a tub spout. However, you may connect a non-diverter tub spout to one of the diverter ports as a temperature tester. Since the flow rate from the spout would be lower than a standard installation, we do not recommended to use it as a tub filler. Best regards, Tanya
Answered by: Tanya
Date published: 2024-03-28

Hi, Would this 3-way diverter work with T27T867 trim?

Asked by: DTCh
Hello, Thank you for your question! Yes, it will work with that integrated diverter trim kit. Please reach out with further questions! Best Regards, Tim Digital Communications Specialist
Answered by: Timothy
Date published: 2025-01-21

Can a RP71718 diverter cartridge run the shower head and hand held shower head at the same time or a RP51919 diverter cartridge

Asked by: Billy36
Hi, Billy36! Thank you for your question. We recommend to use a Delta 3 Setting Diverter-RP51918. This will give a shared setting for both and two separate settings. The Delta 3 Setting Non-Shared Diverter-RP71718 is used if you have 3 components of water. For example a raincan shower head, hand shower, and regular shower head. You will have a separate setting for each, but no shared setting. The Delta 6 Setting shared Diverter-RP51919 is used with 3 components of water, as well, but you will have three separate settings and three shared settings. Best Regards, Rosanna
Answered by: DeltaFaucet11
Date published: 2024-03-28

So, this unit will ONLY allow 3 SEPARATE functions, ie shower, rain shower, arm shower? Combinations of any 2 are restricted?

Live in California, if I have combination options, then I will have to live with further restrictions on water flow. Only 2gpm are allowed. So if combinations of any 2 are available, then TOTAL of any 2 is still 2gpm. That is the reason I want to ensure that this non-share cartridge only allows 1 function at a time. Otherwise, I will need to use multiple valves.
Asked by: RJs
Hi RJs, Thank you for your question! This cartridge allows flow to only one port at a time. It does not have shared settings. Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2019-06-09

I need the T11859 3-way diverter to send water separately to the tub spout, the shower head, and the handheld – never shared. Which cartridge and setup do I need? Should it be RP71717, RP71718, RP51919 – or can included RP51918 do this? Using R11000.

Asked by: Cmorgan
Hi, Cmorgan! Thank you for your question. The Delta RP71718 3 setting non-shared diverter cartridge is the cartridge we recommend to use for three shower components. Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2024-09-09

what is the difference between the delta RP72124 and RP71718

Asked by: Mick
Hello Mick! Thanks for your question! The RP72124 is a Brizo diverter cartridge for use with Brizo diverter trims. The RP71718 is a Delta diverter cartridge for use with Delta diverter trims. Best Regards, Justin
Answered by: DeltaFaucet4
Date published: 2024-03-28

I have both 3 & 6-setting (RP71718, RP51919) diverter cartridges. I mixed up the 2 parts, don't know which is which. Mfg part # etched on each: "Fluhs 72122 190103" & "Fluhs 60563 181019" Can someone confirm? rather not go thru test & swap guessing game

Asked by: natesc0tt
Thank you for your review, natesc0tt! The numbers on these cartridges can change however a reliable way to tell the difference is the 3-setting cartridge will have a white colored base whereas the 6-setting cartridge will have a gray bottom. Best regards, Edward
Answered by: Delta Faucet
Date published: 2024-03-28

I have the r11000 valve, with shower head above and handheld on the right. i plugged the left port. I have the 3 function 2 port trim kit. What are my options to get the flow to the right? RP71718, RP51919, or is there something else?

Asked by: yesman
Thank you for your question, Yesman! To use a 3 setting trim, the left port would need to be used for your hand shower and the right port must be plugged. You can either replumb this in your wall or a quicker fix would be to purchase the 6 setting cartridge, RP51919. It will give you 3 blank settings but you'll have 3 settings that will work, single setting for hand shower, single setting for shower head and a shared setting for both. Best regards, Tanya
Answered by: Tanya
Date published: 2024-03-28
