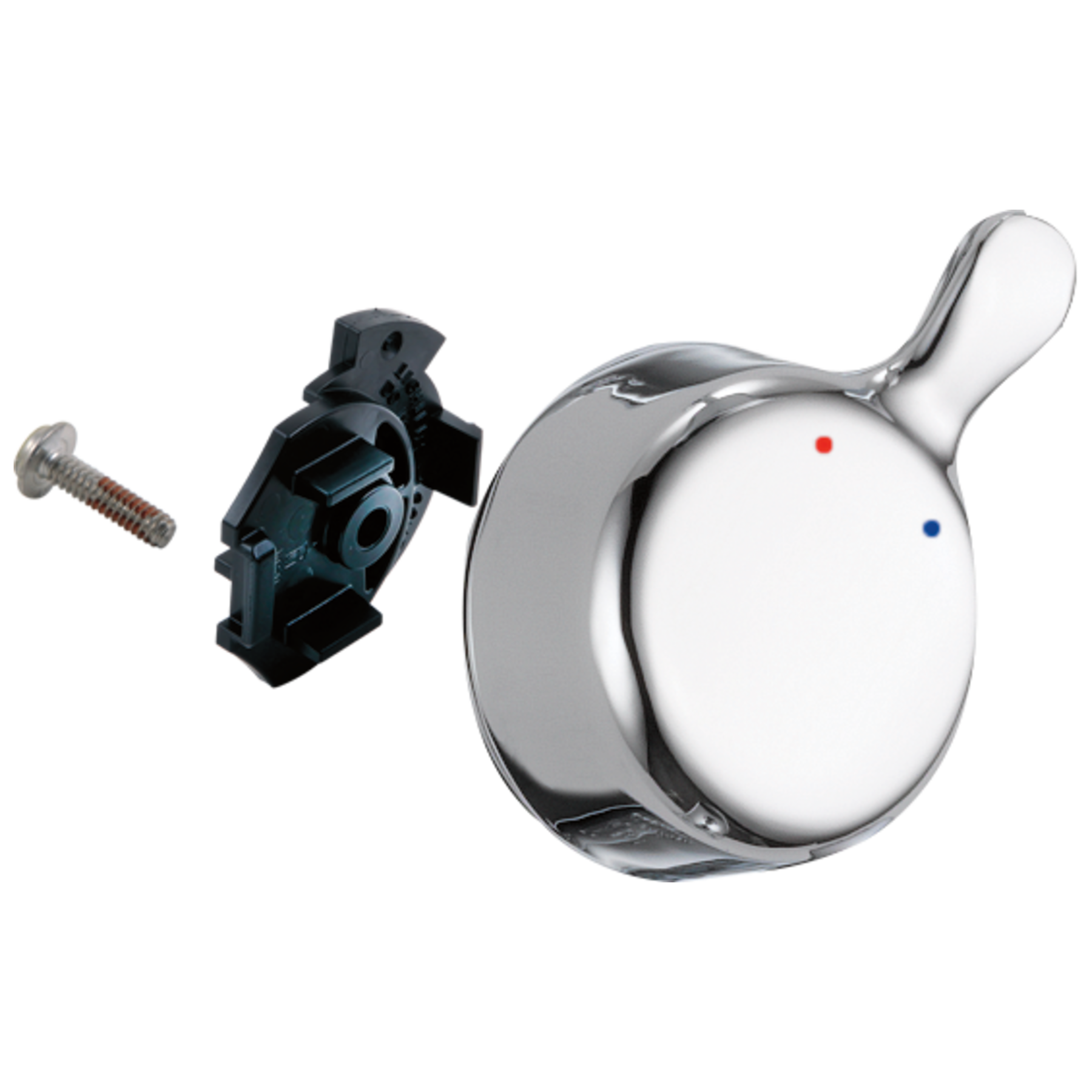

Temperature Knob & Cover - 17 Series in Chrome
Model#:
RP73642
Image Thumbnail, click to view zoomed product image
PRODUCT FEATURES
Technology and Special Features
ADA Compliant
ADA Compliant
Some people, and some local codes, require fixtures that are compliant with the Americans with Disabilities Act. If someone may visit who has special needs, or if you believe future buyers might appreciate this feature, Delta offers a range of compliant fixtures.
Documents & Specs
Installation Information
Overall Height (in.) :
5/8
Valve Type:
NA
REVIEWS
Q&A
Does the temperature dial include the plastic piece that attaches the temp dial to the handle?
Hi Tony, Thank you for your question. The RP73642 includes the temperature knob(plastic piece) and cover (finished piece).
Thanks,
Dave
Date published: 2024-03-28
How do you install the cover on RP73642?
I expected the cover to snap in but it isn't doing it easily and I am afraid to force it since it is plastic. I am sure I have it properly aligned since one side is wider than the other! HELP, what is the trick?
Hi Steve, Thank you for your question. To install the RP73642 temperature knob cover you will want to align the portion of the handle that has the lever into place on the temperature knob and then push down and snap the rounded portion into place.
Thanks,
Dave
Date published: 2024-03-28
How can you remove the temperature control knob. Mine is about 2 years old and the knob is loose, and I want to remove it to see what the problem may be.
Thank you for your question, John! The RP73642 Temperature Knob Cover can be pried off the Temperature Knob by applying light pressure on the back or opposite side of the lever. The Phillips head screw that holds this on to the cartridge stem most likely needs tightened however we do not recommend over-tightening this as it will affect the movement of the Temperature Knob.
Best regards, Edward
Date published: 2024-03-28
When you order Part Number RP73642 does it include the screw and plastic part together with the temperature dial.
Hi James,
Thank you for your question! The RP73642 Temperature Dial will include the temperature knob, temperature knob cover, and screw.
Thanks,
Jon
Date published: 2024-03-28
How the heck do you get this knob off? I need to adjust the temperature and the subcontractor who installed the valve isn't available to ask or correct the problem. I tried pulling it off but I'm afraid if I pull any harder it will break.
Hi, LeeB!
Thank you for your question. The temperature cover pulls straight off. Once the temperature cover is off, you can then unscrew the Phillips screw and remove the temperature knob. You will then be able to get to the rotational limit stop to adjust the temperature. Here is a how-to video for this:
https://www.deltafaucet.com/video-gallery/video-page-1?videoId=n2_uZ7wgV1I
Best Regards,
Rosanna
Date published: 2024-03-28
Hi, I had already watched the video. These parts don't exactly match the ones in the video. I finally got the knob/handle off by prying the slot behind the knob under the place where the handle comes out. There's a catch there.
Hi, LeeB!
I'm sorry to hear that you had a bit of trouble removing the temperature handle.Thank you so much for taking the time to reach out and share how you were able to remove the cover with us. If there is any way we may help further, please don’t hesitate to let us know.
Best Regards,
Rosanna
Date published: 2024-03-28
do you have this part in polished brass
Hi Gary, Thank you for your question!
The RP73642 temperature dial is only available in Chrome and Stainless Steel.
Best regards,
Brandis
Date published: 2024-03-28
I need or replace this piece but it’s oil rubbed bronze. Where can I find the right replacement part?
Hello But1216,
Thank you for your question! We apologize that the information you are searching for was not readily available and I am happy to assist you! We thank you for being a loyal Delta Faucet customer.
The Delta Faucet part RP73642 Temperature Knob & Cover - 17 Series is only available in chrome and Brilliance Stainless Steel.
Please contact us back directly via email with any further questions.
Best Regards,
Skyler
Date published: 2024-03-28
