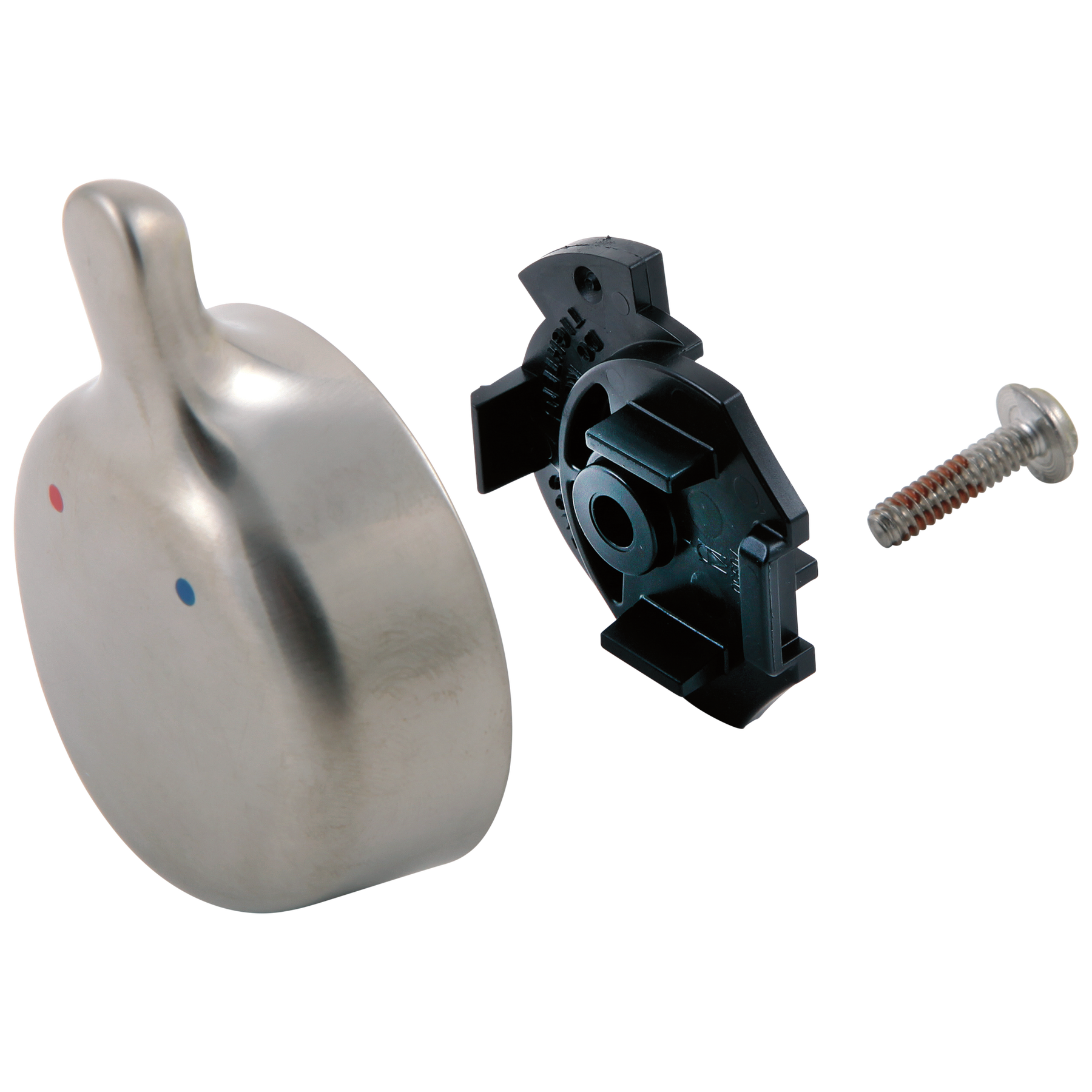

Temperature Knob & Cover - 17 Series in Stainless
Model#:
RP73642SS
Image Thumbnail, click to view zoomed product image
PRODUCT FEATURES
Technology and Special Features
ADA Compliant
ADA Compliant
Some people, and some local codes, require fixtures that are compliant with the Americans with Disabilities Act. If someone may visit who has special needs, or if you believe future buyers might appreciate this feature, Delta offers a range of compliant fixtures.
Brilliance® Finish
Brilliance® Finish
Many Delta products are made with Brilliance® finishes, which resist abrasions and discolorations better than traditional brass or even chrome.
Documents & Specs
Installation Information
Overall Height (in.) :
5/8
Valve Type:
NA
REVIEWS
Q&A
How the heck do you get this knob off? I need to adjust the temperature and the subcontractor who installed the valve isn't available to ask or correct the problem. I tried pulling it off but I'm afraid if I pull any harder it will break.
Hi, LeeB!
Thank you for your question. The temperature cover pulls straight off. Once the temperature cover is off, you can then unscrew the Phillips screw and remove the temperature knob. You will then be able to get to the rotational limit stop to adjust the temperature. Here is a how-to video for this:
https://www.deltafaucet.com/video-gallery/video-page-1?videoId=n2_uZ7wgV1I
Best Regards,
Rosanna
Date published: 2024-03-28
Hi, I had already watched the video. These parts don't exactly match the ones in the video. I finally got the knob/handle off by prying the slot behind the knob under the place where the handle comes out. There's a catch there.
Hi, LeeB!
I'm sorry to hear that you had a bit of trouble removing the temperature handle.Thank you so much for taking the time to reach out and share how you were able to remove the cover with us. If there is any way we may help further, please don’t hesitate to let us know.
Best Regards,
Rosanna
Date published: 2024-03-28
do you have this part in polished brass
Hi Gary, Thank you for your question!
The RP73642 temperature dial is only available in Chrome and Stainless Steel.
Best regards,
Brandis
Date published: 2024-03-28
Does the temperature dial include the plastic piece that attaches the temp dial to the handle?
Hi Tony, Thank you for your question. The RP73642 includes the temperature knob(plastic piece) and cover (finished piece).
Thanks,
Dave
Date published: 2024-03-28
How do you install the cover on RP73642?
I expected the cover to snap in but it isn't doing it easily and I am afraid to force it since it is plastic. I am sure I have it properly aligned since one side is wider than the other! HELP, what is the trick?
Hi Steve, Thank you for your question. To install the RP73642 temperature knob cover you will want to align the portion of the handle that has the lever into place on the temperature knob and then push down and snap the rounded portion into place.
Thanks,
Dave
Date published: 2024-03-28
How can you remove the temperature control knob. Mine is about 2 years old and the knob is loose, and I want to remove it to see what the problem may be.
Thank you for your question, John! The RP73642 Temperature Knob Cover can be pried off the Temperature Knob by applying light pressure on the back or opposite side of the lever. The Phillips head screw that holds this on to the cartridge stem most likely needs tightened however we do not recommend over-tightening this as it will affect the movement of the Temperature Knob.
Best regards, Edward
Date published: 2024-03-28
When you order Part Number RP73642 does it include the screw and plastic part together with the temperature dial.
Hi James,
Thank you for your question! The RP73642 Temperature Dial will include the temperature knob, temperature knob cover, and screw.
Thanks,
Jon
Date published: 2024-03-28
Can you please provide a video link for the removal and installation of part number RP73642SS? Thank you very much!
Hello Sophie,
Thank you for your question! I am happy to help you!
I have included a link below, that shows how to adjust the RLS. This video also shows you how to remove and reinstall the Delta Faucet temperature control knob RP73642SS, Please see the link below and fast forward to you shower unit.
https://www.youtube.com/watch?v=By5b7uazCqM
Thank you for being a loyal Delta customer. Please contact us back for any further questions.
Best Regards,
Nicole
Date published: 2024-03-28
