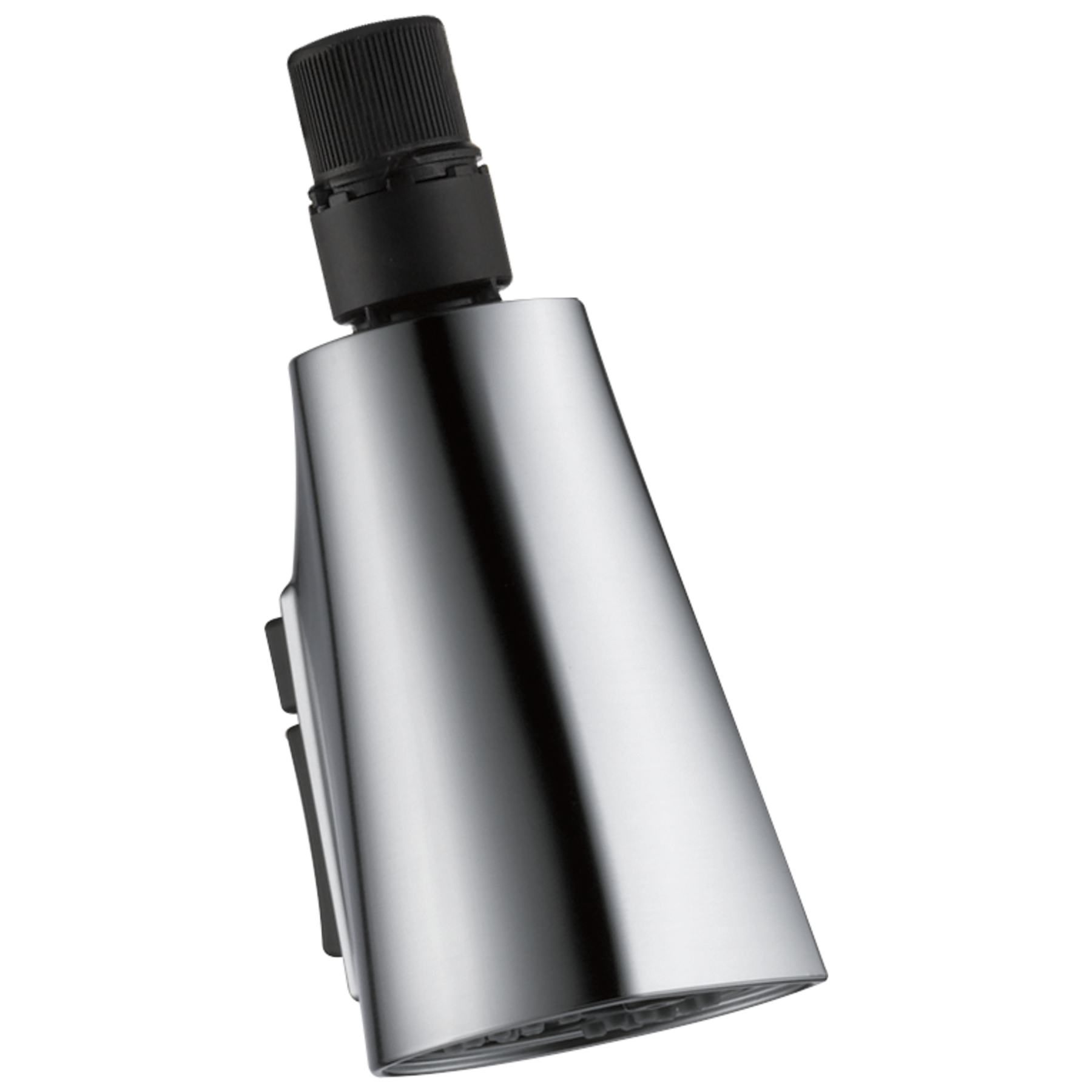

Sprayer Assembly (ShieldSpray) in Arctic Stainless
Model#:
RP90842AR
Image Thumbnail, click to view zoomed product image
PRODUCT FEATURES
Convert your existing Delta® pull-down spray wand to one with Delta's innovative ShieldSpray® Technology. Delta ShieldSpray Technology cleans with laser-like precision while containing mess and splatter. A concentrated jet powers away stubborn messes while an innovative shield of water contains splatter and clears off the mess, so you can spend less time soaking, scrubbing and shirt swapping. Easy to switch out, simply unscrew the existing spray head and replace it with the new one. You can install with confidence, knowing that Delta parts are backed by our Lifetime Limited Warranty.
- For use with Mateo® series pull-down kitchen faucets
- ShieldSpray® Technology powers off the mess without making a mess
- Concentrated stream cuts through messes and innovative water shield reduces splatter
- MagnaTite® Docking uses a powerful integrated magnet to snap your faucet spray wand precisely into place
- MagnaTite® Docking secures the spray wand so it stays docked when not in use and doesn’t droop over time
- Easy to install
- Genuine Delta repair part
Technology and Special Features
ShieldSpray®
ShieldSpray®
ShieldSpray® Technology cleans with laser-like precision while containing mess and splatter. A concentrated jet powers away stubborn remnants of food while an innovative shield of water surrounds the jet and mess to keep the splashing contained, so you can spend less time soaking, scrubbing and shirt swapping.
MagnaTite® Docking
MagnaTite® Docking
The pull-down spray head utilizes a powerful magnet which keeps the wand securely in place when not in use. No more dangling!
Documents & Specs
Resources
Installation Information
Flow Rate :
1.8 gpm @ 60 psi, 6.8 L/min @ 414 kPa
Overall Height (in.) :
4-1/2
Valve Type:
NA
REVIEWS
Rated 3 out of
5
by
dddd from
great customer service from support team
this was a spray head, my water is extremely hard even with a high dollar whole house filtration system i get calcium buildup requiring maintaining the faucets/ outlets etc. this spray head is not serviceable so once it clogs up it is junk, the only positive is the warranty replacement( how many times???) unfortunately it is pretty much impossible to source the correct part on the web site so i went to a live customer service rep - who had many problems finding a spray head that would work though not identical
Date published: 2025-09-23
Q&A
Hi, will this work as a replacement wand for my Delta 9113T-AR-DST
Hi John,
Thank you for your question!
No, model 9113T-AR-DST uses the RP80524AR wand.
https://www.deltafaucet.com/parts/product/RP80524AR.html
Please reach out with further questions!
Best Regards,
Tim
Digital Communications Specialist
Date published: 2023-07-17
have mateo kitchen faucet 9183-DST. how can i clean buildup where water comes out - no removable screen - poor water flow. what cleaning product can be used?
Hi Ronk,
Thank you for your question about the Delta Faucet model 9183-DST.
To help clean buildup, we recommend soaking in 50/50 white vinegar and water. See additional cleaning information here:
https://support.deltafaucet.com/s/article/Cleaning-and-Care
Please reach out with any additional questions!
Best Regards,
Bryan
Digital Communications Specialist
Date published: 2026-05-11
Can this spray head be disassembled to clean the calcification internally? I’ve soaked it in vinegar but flow is only 60% of what it should be. Thank you.
Hi Valued Customer,
Thank you for your question, please accept our sincere apology for the inconvenience you are experiencing. We will be happy to assist you in resolving this issue as quickly as possible.
Yes, the wand threads from the hose.
Please feel free to contact us directly for technical information at 800-345-3358. We are available Monday through Friday from 8 a.m. to 8 p.m. and Saturdays from 9 a.m. to 6 p.m. Eastern Standard Time.
Thank you for being a loyal Delta Faucet customer.
Best Regards,
Themar
Digital Communications Specialist
(800) 345-3358
customerservice@deltafaucet.com
Date published: 2025-03-04
Will this shieldspray replacement spray head work on a Delta Model 9113-AR-DST?
Hi Gary,
Thank you for your question!
No, the RP80524 wand is the only one designed to connect to the faucet.
Please reach out with further questions!
Best Regards,
Tim
Digital Communications Specialist
Date published: 2024-08-30
Will this fit Delta Lenta sink faucet?
What pipe thread size for RP 9094 2 AR nozzle. My current nozzle has a male 3/8" NPT thread. Will this part work? Need Stainless nozzle with 3/8" male thread. Do you have any other suggestions? Want highest water flow possible. Thank you
Hi Ed,
Thank you for your question about the Delta Faucet RP90842AR.
Unfortunately, we don't have the thread size of the spray wand. Many Delta pull-down models use the same hose connection. The wand has female threads for the male-threaded hose. This is a replacement part for faucet models 9183-DST & 9983-DST. It is not available in stainless finish. The maximum flow rate is 1.8 gpm.
The Delta faucet model number may be on a tag on the supply line. I recommend the Parts & Accessories Diagram on the model's product page to identify the replacement spray wand for your faucet model.
Please reach out for further assistance or with any additional questions!
Best Regards,
Bryan
Digital Communications Specialist
Date published: 2025-03-25
My nozzle head will not switch form sprayer to regular spray. A11218M is the part number I am trying to replace.
Hi Gail,
Thank you for your question about the Delta Faucet RP90842.
This is a replacement sprayer for faucet models 9183-DST & 9983-DST. A11218M is an engineering standard and is unfortunately not a part number.
I recommend soaking the sprayer in a 50/50 mix of white vinegar and water. This can help remove mineral deposits that may be causing the issue. If the issue remains, the sprayer may need to be replaced.
Please reach out for further assistance or with any additional questions!
Best Regards,
Bryan
Digital Communications Specialist
Date published: 2024-11-26
Will this Mateo Sprayer Assembly work with a Mateo Model# 9183-AR-DST ? If not, please advise which replacement head do I need. Thank you
Hello Customer!
Thank you for your question and we are happy to help. The Delta RP90842AR will work with the 9183-AR-DST. With any further questions or concerns, please do not hesitate to reach out to us again.
Best Regards,
Carrie
Date published: 2024-05-25
