DELTA

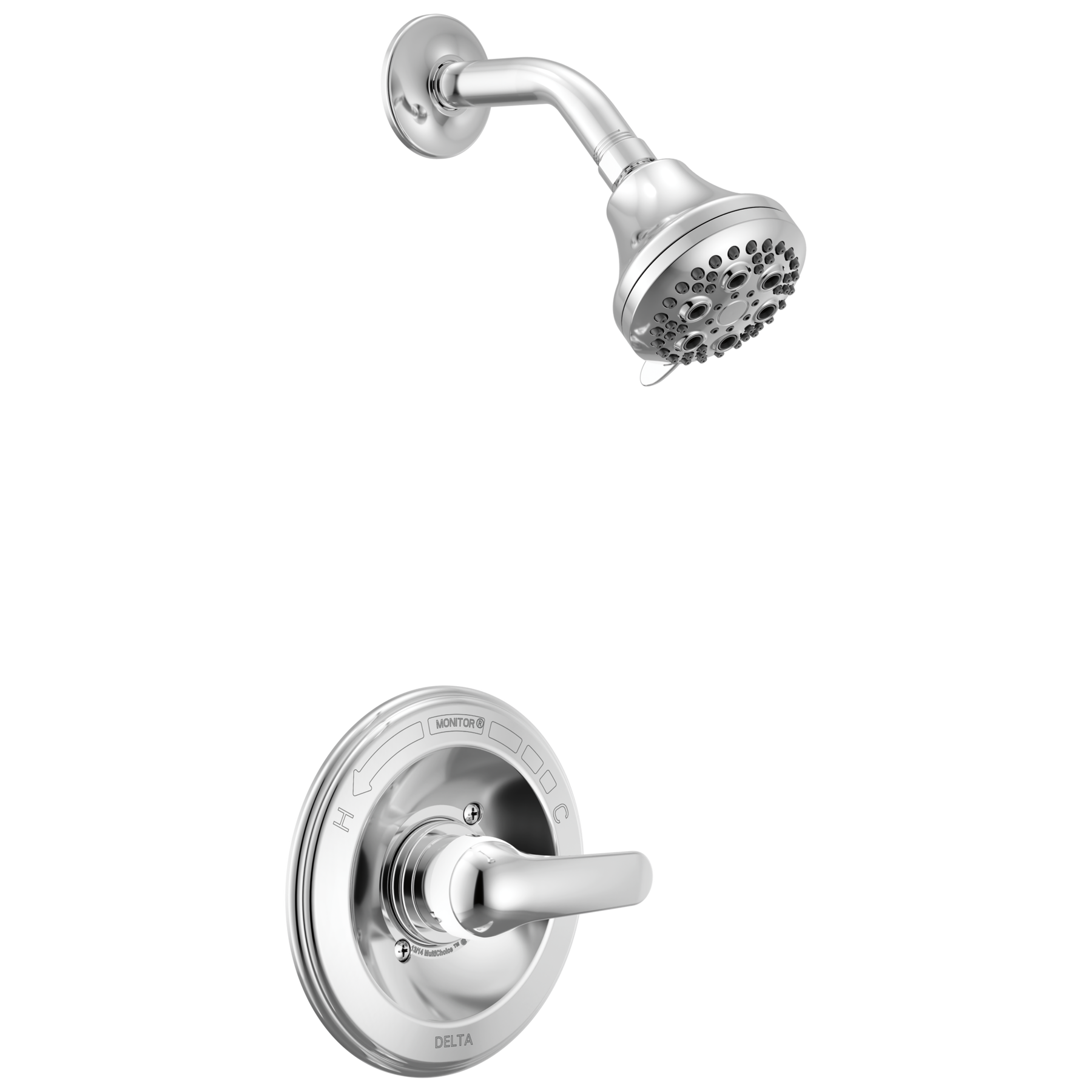

Monitor(R) 13 Series Shower - Complete Rough and Trim in Chrome

Model#: 132900-A-WS
Add to Favorites
Find local Delta® installers.
DELTA
Monitor(R) 13 Series Shower - Complete Rough and Trim in Chrome
Model#: 132900-A-WS
List Price: $22585
Add to Favorites
Find local Delta® installers.
PRODUCT FEATURES
This Classic shower only faucet is as hard working as you are and is built to last. While other products may gather unsightly mineral build-up over time, Delta soft rubber Touch-Clean® spray holes allow any mineral residue to simply be wiped away for an instantly refreshed look – with no need for soaking or the aid of chemical cleaners. The pause setting gives you ample space for shaving, lathering and other shower tasks, then easily restarts the water with the temperature where you left off. This spray setting helps you conserve water, so you can worry less about depleting your supply of hot water - and you help the environment too. Delta® pressure-balance valves use Monitor® Technology to protect you and your family from sudden temperature changes. Delta WaterSense labeled faucets, showers and toilets use at least 20% less water than the industry standard—saving you money without compromising performance. You can install with confidence, knowing that Delta faucets are backed by our Lifetime Limited Warranty.
  • Monitor® pressure balance valve keeps water temperature within a safe ±3° F (±1.6° C), helping to protect you from sudden changes in hot or cold water pressure
  • Spray settings include: Full Body spray, Fast Massage spray, Full Spray with Massage, High Efficiency Spray
  • Pause feature reduces water to a trickle, giving you space for shaving, lathering and other shower tasks while maintaining your temperature settings
  • Soft, rubber Touch-Clean® spray holes allow you to easily wipe away calcium and lime build-up from the spray face of your shower head and hand shower with the touch of a finger
  • Complete unit includes trim and MultiChoice® Universal Valve with rough-in
  • ADA Compliant
  • WaterSense® labeled shower heads use at least 20% less water than the industry standard without compromising performance
  • Back-to-back installation capability
  • Solid brass fabricated body
  • Temperature only controlled with metal lever handle
  • Field adjustable to limit handle rotation into hot water zone
  • 120° maximum handle rotation
Special Information
Warning Image
California Prop 65 WARNING
Eco-Friendly
WaterSense® Labeled
Technology and Special Features
ADA Compliant
Touch-Clean®
MultiChoice® Universal Valve
Monitor®
Special Information
Warning Image
California Prop 65 WARNING
Documents & Specs
Product Support, Repair Parts & Technical Specifications
View Technical Specifications
View Maintenance & Installation Sheet
View Parts & Accessories Diagram
Register Product
Installation Information
Connection Type :
Universal fittings
Flow Rate :
1.75 gpm @ 80 psi, 6.6 L/min @ 552 kPa
Overall Height (in.) :
9-1/2
Valve Type:
Single-function pressure balance cartridge

INSTALLATION SUPPORT

Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.

GO
Enter Valid Zip.
REVIEWS
Rated 5 out of 5 by from Great features Great product and very easy to install and use.
Date published: 2026-02-22
Rated 3 out of 5 by from Water Balance `This may work in the city, but in the country, your water temp changes with the weather. Summer time, you use more cold water, spring time it balances out, winter time you use more hot than cold. With this type of system, we will be changing it all the time. I'm wondering if Delta has a valve body that can be dropped into this one that will give full water pressure?
Date published: 2024-09-18
Rated 3 out of 5 by from Came Without Set Screw What size set screw do I need? My 132900-A came without one for the handle.
Date published: 2024-03-21
Rated 4 out of 5 by from new faucet defect I bought last week a 132900-A faucet and have problem with handle. the screw can go unto the end
Date published: 2023-06-07
Rated 5 out of 5 by from Great Value Like the features for future repairs if needed. Great quality for the price.
Date published: 2023-03-22
Rated 5 out of 5 by from Complete package Total replacement cartridge and shower head
Date published: 2023-01-26
Rated 5 out of 5 by from Easy to install Purchased the single handle shower kit because my wife is unable to turn faucet knobs. The install was easy enough. I’ve got one very happy wife now.
Date published: 2023-01-13
Rated 5 out of 5 by from Simple and functional Easy to install. Gets what you need for a simple shower set up.
Date published: 2022-12-19
  • y_2026, m_6, d_12, h_16
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.46
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_31
  • loc_en_US, sid_132900-A-WS, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 7ms
  • reviews, product
Q&A

What size hole should I drill in my Delta Classic 400 shower for the Delta 132900-A water valve?

Asked by: ChrissyD
Thank you for your question, ChrissyD! We did not make a 400 series shower but you are most likely referring to the 1400 series which will not require any extra steps. If this is an older 1400 series shower valve, please use the original cartridge that you have installed as the new 13/14 multichoice series cartridge will not fit the older valve body. If you do not have a 1300/1400 series shower, then the information needed to install this model can be found on the maintenance and installation manual for the rough in valve R10000-UNBX. https://www.deltafaucet.com/bathroom/product/R10000-UNBX Best regards, Edward
Answered by: Delta Faucet
Date published: 2024-03-28

Getting ready to install this model(132900-A) in a guest house with a Deltafiberglass 36"x48" shower, where is the instructions for thin wall mounting your manual refers to on Page 3, I don't see any on the bag yall refer to,

Asked by: Touchdown
Hi, Terry! Thank you for your question. The instructions for thin wall mounting for the Delta Monitor 132900-A shower unit refers to the Delta RP47202 thin wall mounting kit which is sold separately. Here is a link to this kit: https://www.deltafaucet.com/parts-product-detail?modelNumber=RP47202 Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2024-03-28

I purchased a 132900A shower valve.  How do I adjust the water temperature to get more hot water

Asked by: Rick
Thank you for your question, Rick! The maximum temperature can be increased by adjusting the Rotational Limit Stop. Please refer to page 9 of the Installation Instructions for help. https://media.deltafaucet.com/MandI/72264%20Rev%20G.pdf Best regards, Jon
Answered by: Delta Faucet
Date published: 2024-03-28

Just had this shower head installed when remodeling bathroom. It seemed fine first day but now it constantly drips. Could I get some pointers for trying to get the dripping to stop. Even drips when shower head is off

Asked by: Rockies4sure
Hi, Rockies4sure! Thank you for your question, and I am sorry to hear that you are experiencing a leak from your Delta faucet. If the faucet leaks, we do recommend to flush the valve to make sure no debris is caught inside that maybe causing the issue. To flush: first tun the water off at your water supply. Remove the handle, remove the sleeve assembly, unscrew the bonnet nut. Pull the cartridge assembly straight out. The cartridge can be cleaned by rinsing this out thoroughly in another sink. Once everything is removed, turn the water supply back on. This will flush the water straight through the open valve body. Keep this on for a good 30-45 seconds. Turn the water off and reinstall parts. If this does not solve the issue, the seal kit, RP4993, may need to be replaced within the valve cartridge assembly. If you should need further assistance, please contact us back. Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2024-03-28

I purchased the 132900A shower valve from my local Home Depot about a month ago, new the bathroom, new shower. The water flow is terrible, only one light level flow. Hot/cold level is fine. How can the water prrasure be adjusted?

Asked by: Alhambraman
Thank you for your question, Alhambraman! I'm sorry to hear you are not getting a full flow rate and we would be happy to help further. Please know this is a WaterSense labeled model designed to produce 1.75 gpm @ 80 psi. If you are not getting this flow rate, we would suggest checking the valve body for screwdriver stops on either side. If your valve does include these stops, please make sure they are in the full "open" position. We would also recommend flushing the valve body of any debris may help remove any potential blockages. Please feel free to contact us directly if you have any questions on this type of flush or if you need assistance. https://media.deltafaucet.com/MandI/72264%20Rev%20G.pdf Best regards, Edward
Answered by: Delta Faucet
Date published: 2024-03-28

DOES THIS INCLUDE THE SHOWER-HEAD AND TRIM KIT ONLY, NO VALVE?

Asked by: PORKCHOP
Hi, Porkchop! Thank you for your question. The Delta Monitor 132900-A Shower Unit does include the MultiChoice Universal R10000-UNBX Rough In Valve Body. Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2024-03-28

Do you make this in a brush nickel ?

Asked by: TRrrr
Hi, TRrrr! Thank you for your question. Unfortunately, the Delta Monitor 132900-A Shower Faucet is not available in the Brushed Nickel or Stainless Steel finish. Here is a link to our available shower faucets in the Stainless Steel finish: https://www.deltafaucet.com/bathroom/showering/tub-and-shower-faucets?facetFinish=stainless&facetInnovation=FltMonitor&ValveType=Single-function+pressure+balance+cartridge&categories=Delta_Bathroom_Showering_Tub and Shower Faucets_Shower Head with Valve Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2024-03-28

I need 2 cartages for my Delta Monitor shower Model # 132900

Asked by: Atul
  • y_2026, m_6, d_12, h_16CST
  • bvseo_bulk, prod_bvqa, vn_bulk_3.0.46
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_61
  • loc_en_US, sid_132900-A-WS, prod, sort_[SortEntry(order=HAS_STAFF_ANSWERS, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getContent, 63ms
  • questions, product
PART LIST

PART LIST

Image-RP4993

Delta®

Delta® Seats & Springs (2 ea)

List Price: $10.10
Online Price: $8.08
Free Ground Shipping All Orders $49+

RP4993

4.70 100
Image-Master-RP19809

Delta®

Delta® Escutcheon - 13 / 14 Series

List Price: $77.95 - $235.50
Free Ground Shipping All Orders $49+

RP19809

Image-Master-RP196

Delta®

Delta® Screws (2) - Escutcheon Trim

List Price: $10.10 - $19.80
Free Ground Shipping All Orders $49+

RP196

Image-Master-RP5834

Delta®

Delta® Tub Spout - Pull-Up Diverter

List Price: $42.95 - $62.30
Free Ground Shipping All Orders $49+

RP5834

Image-RP46074 Secondary Image-RP46074

Delta®

Delta® Cartridge Assembly - MultiChoice® Universal - 13 / 14 Series

List Price: $118.35
Online Price: $94.68
Free Ground Shipping All Orders $49+

RP46074

2.27 102
Image-RP12630

Delta®

Delta® Screws (2) - Extra Long - Escutcheon Trim

List Price: $18.45
Online Price: $14.76
Free Ground Shipping All Orders $49+

RP12630

4.09 11
Image-RP14414

Delta®

Delta® O-Rings (2) - 13 / 14 Series

List Price: $4.60
Online Price: $3.68
Free Ground Shipping All Orders $49+

RP14414

5.00 2
Image-RP39407

Delta®

Delta® Trim Sleeve & Spacer

List Price: $45.90
Online Price: $36.72
Free Ground Shipping All Orders $49+

RP39407

5.00 2
Image-RP23336

Delta®

Delta® O-Ring - Large - All Monitor® Series

List Price: $7.70
Online Price: $6.16
Free Ground Shipping All Orders $49+

RP23336

5.00 5
Image-Master-RP6023

Delta®

Delta® Shower Arm

List Price: $43.65 - $109.60
Free Ground Shipping All Orders $49+

RP6023

Image-Master-RP6025

Delta®

Delta® Flange - Shower

List Price: $23.10 - $36.90
Free Ground Shipping All Orders $49+

RP6025

Image-RP29569

Delta®

Delta® Spacer

List Price: $4.90
Online Price: $3.92
Free Ground Shipping All Orders $49+

RP29569

5.00 1
* Actual pricing may vary and is determined by the selling retailer/wholesaler/dealer.
