DELTA

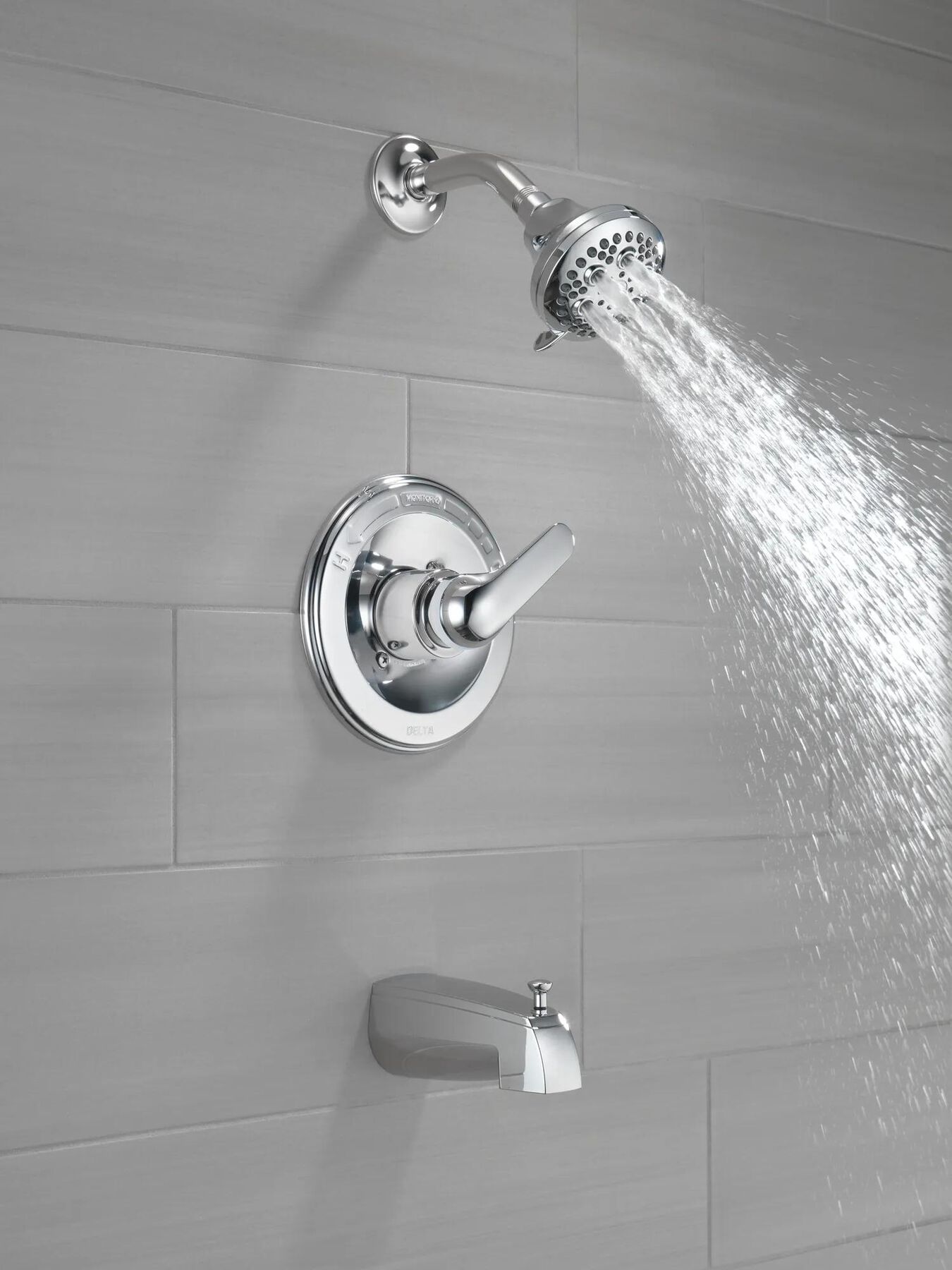

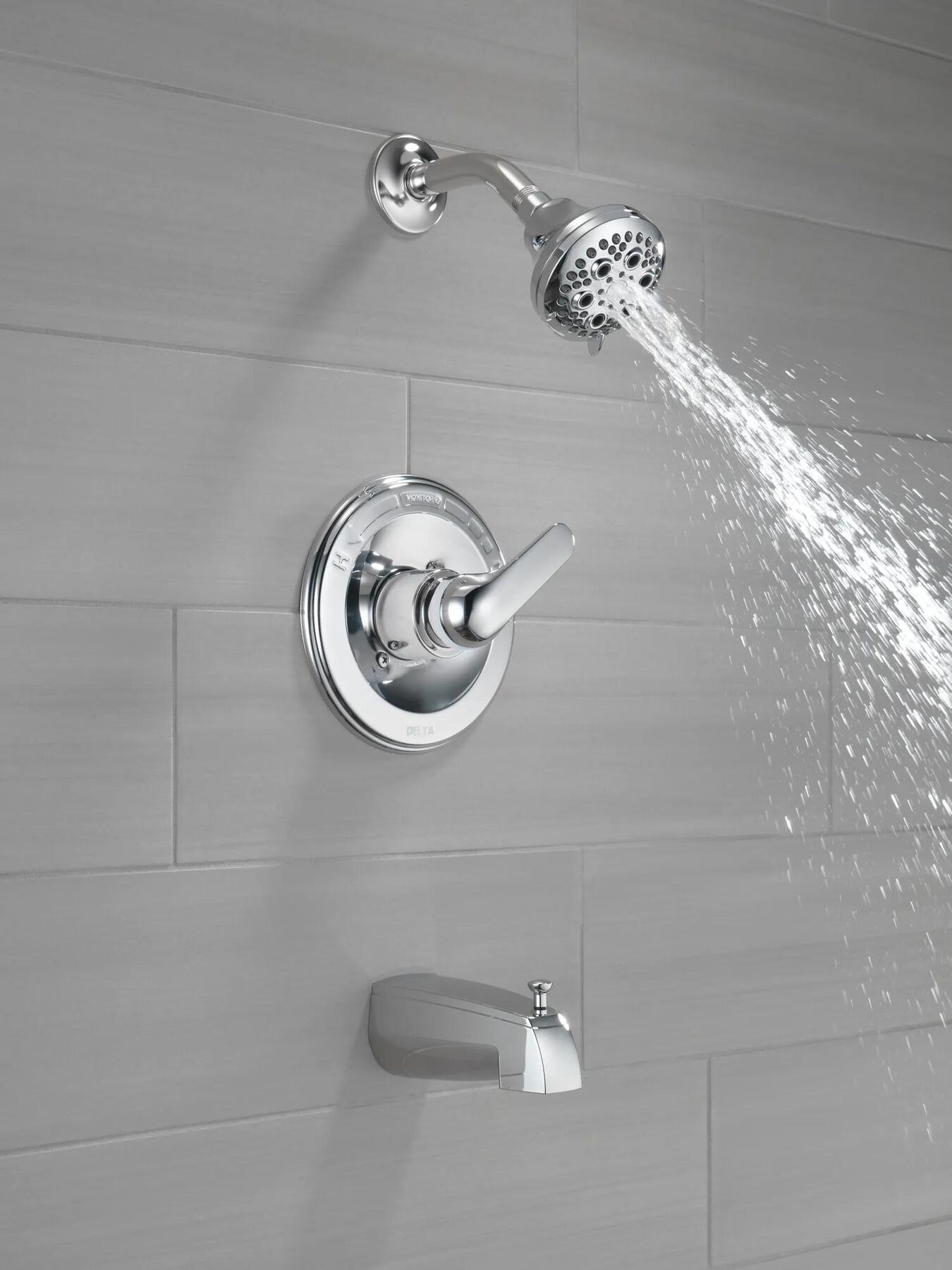

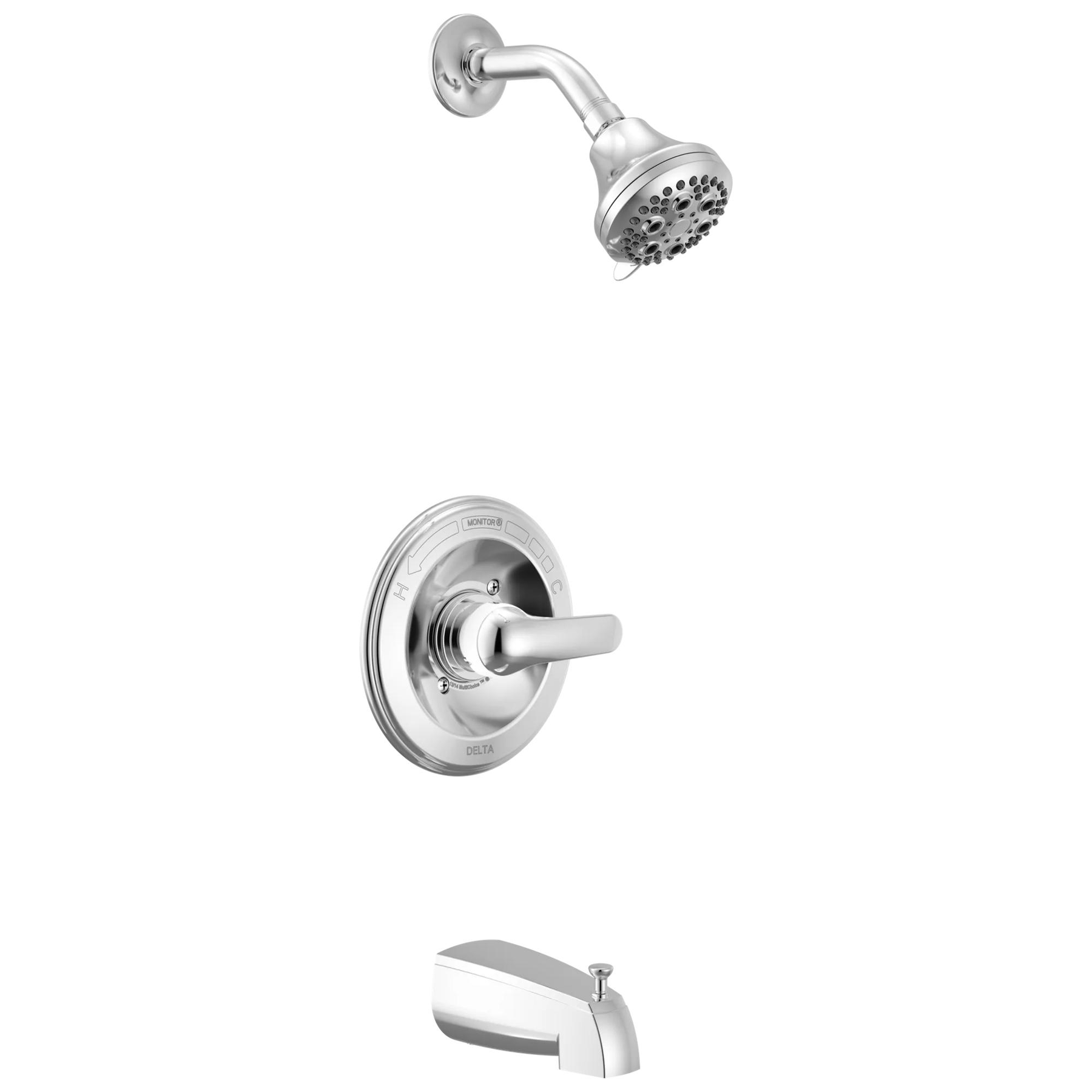

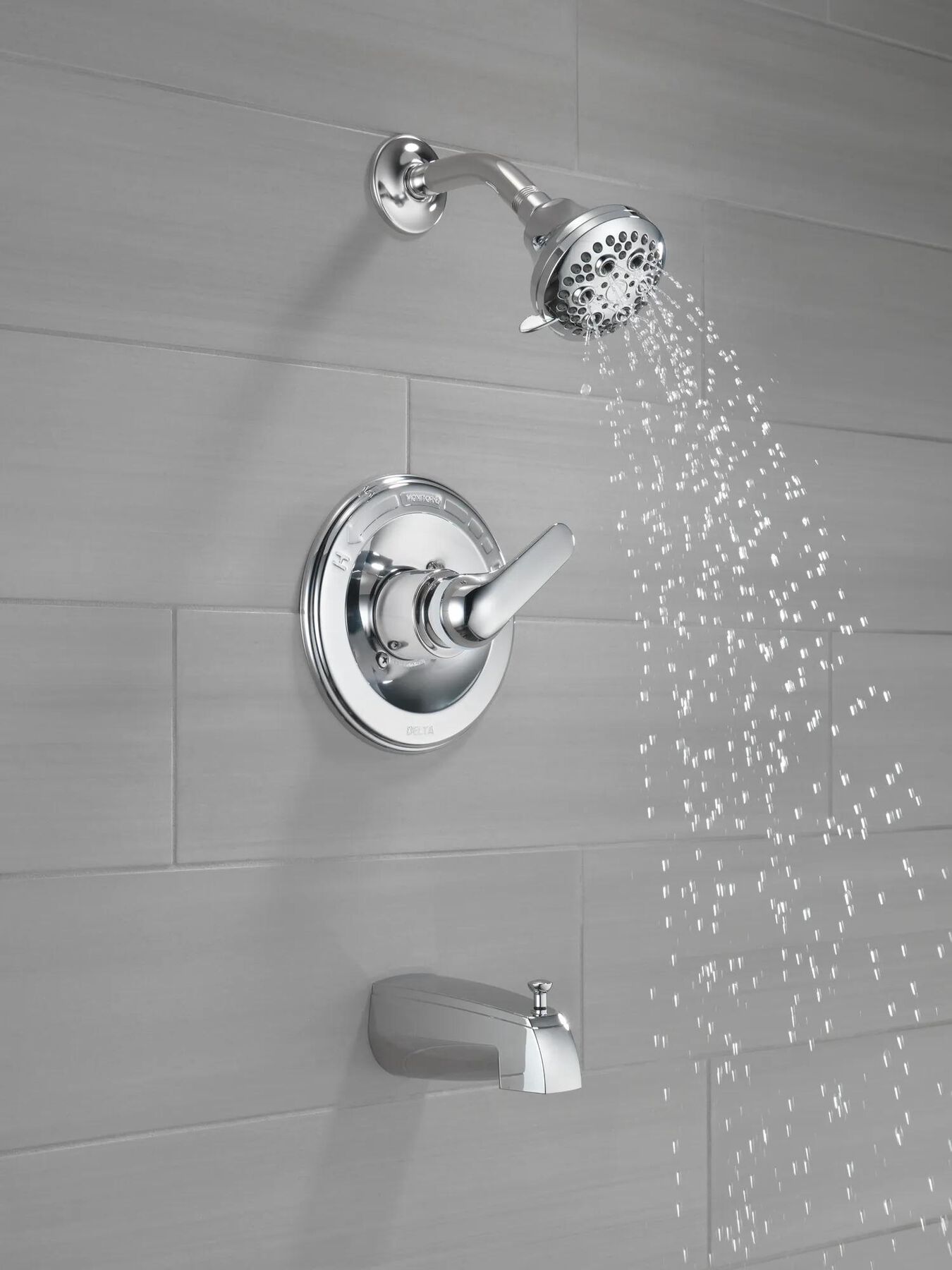

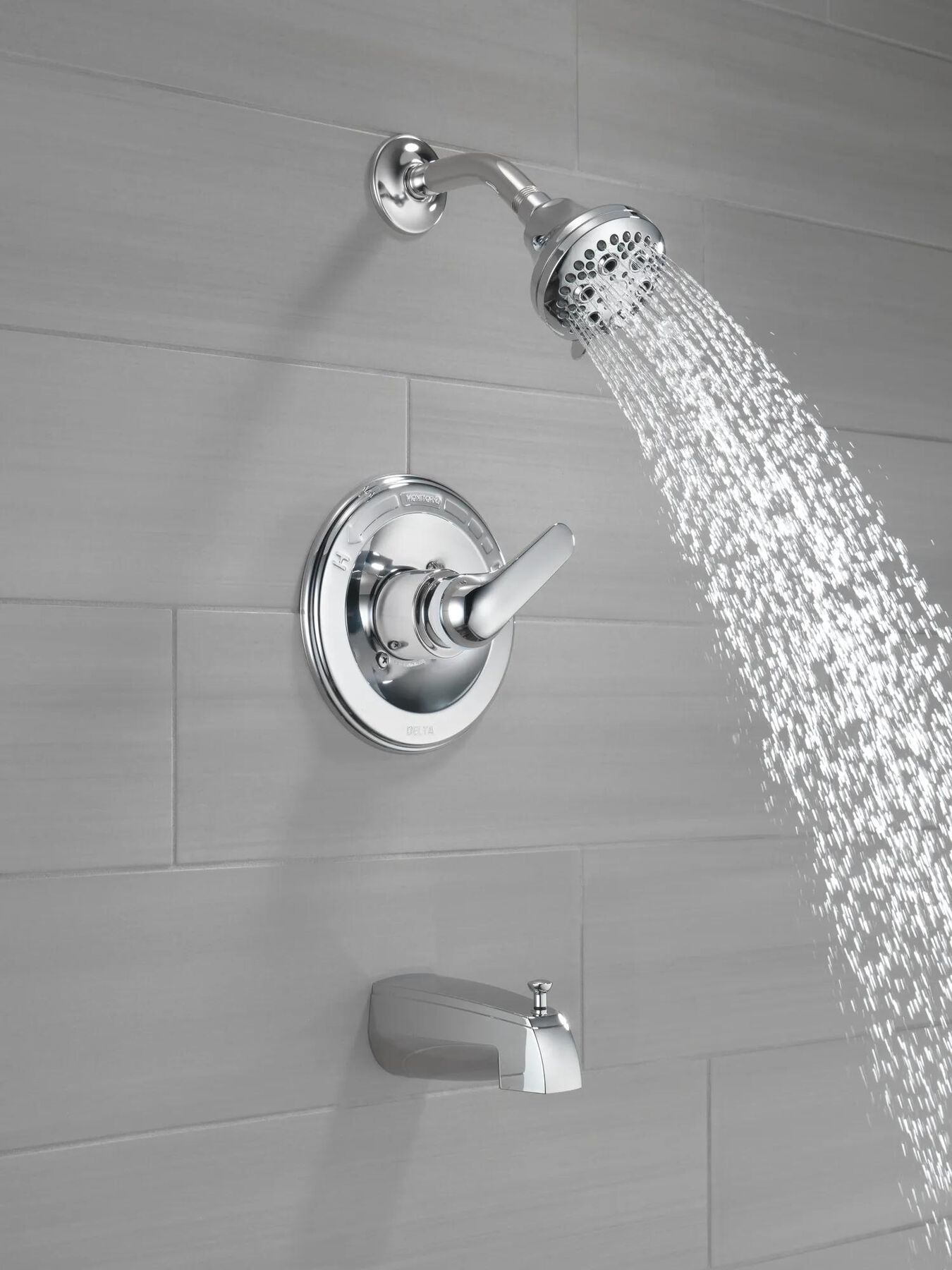

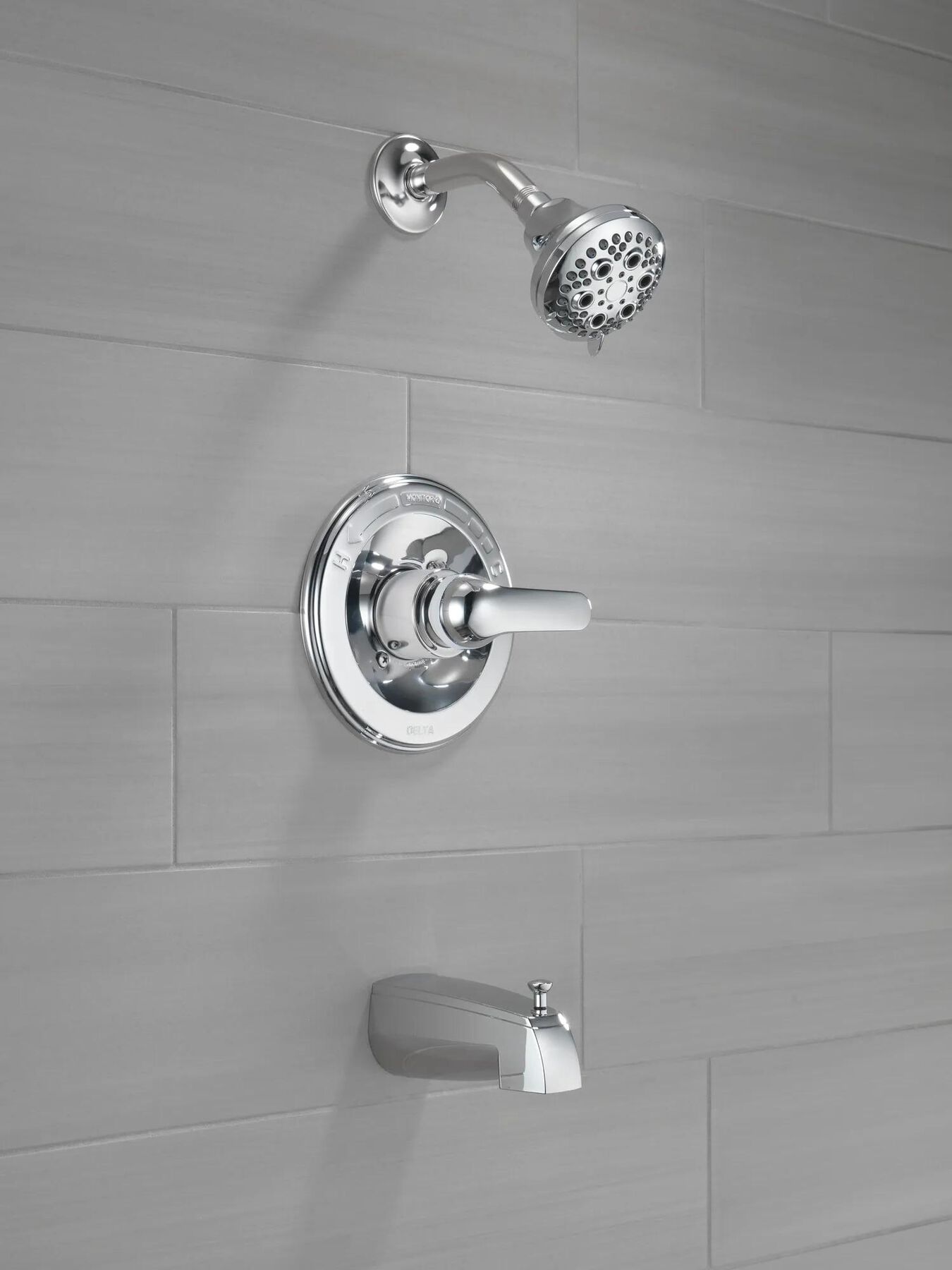

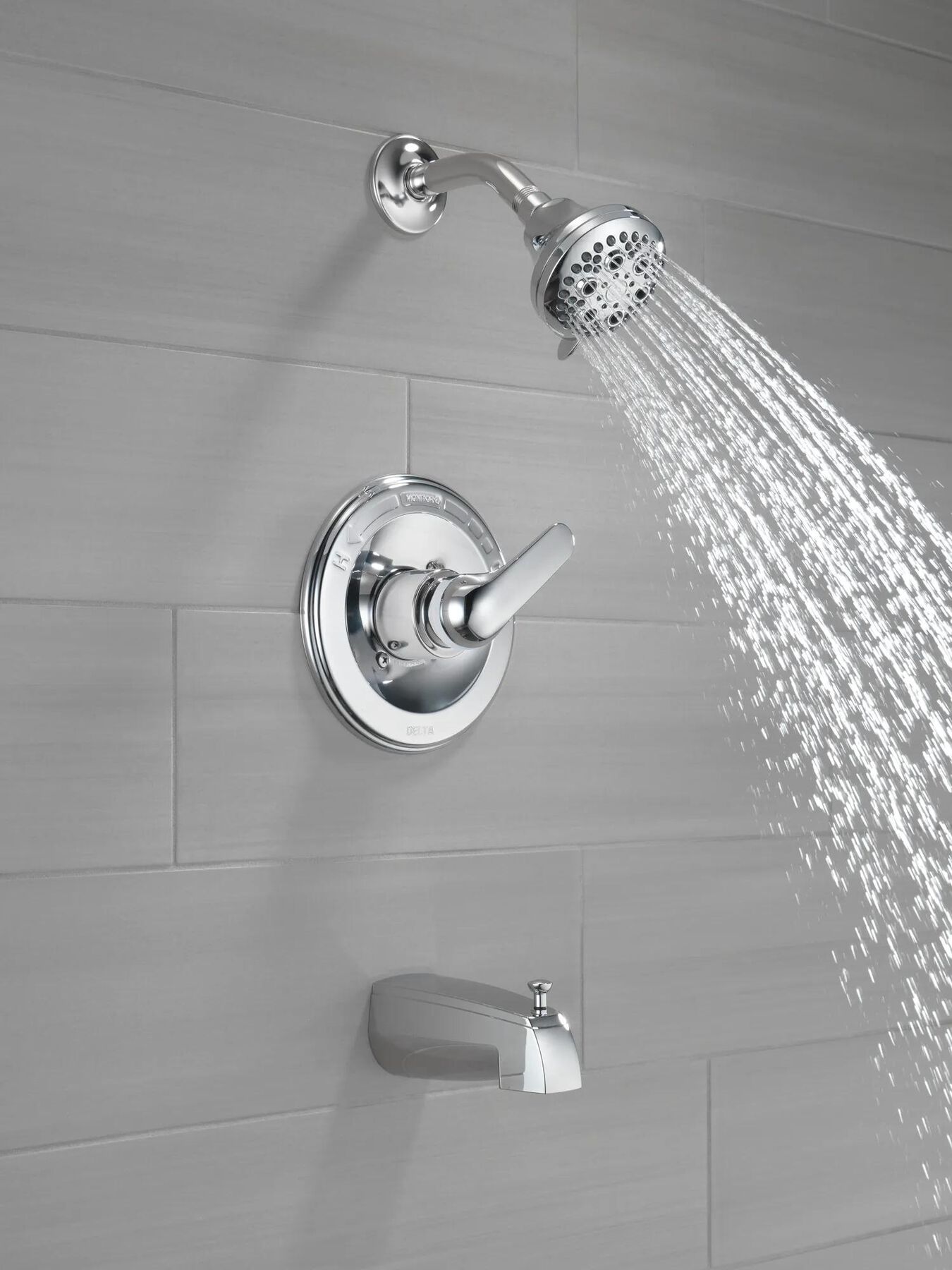

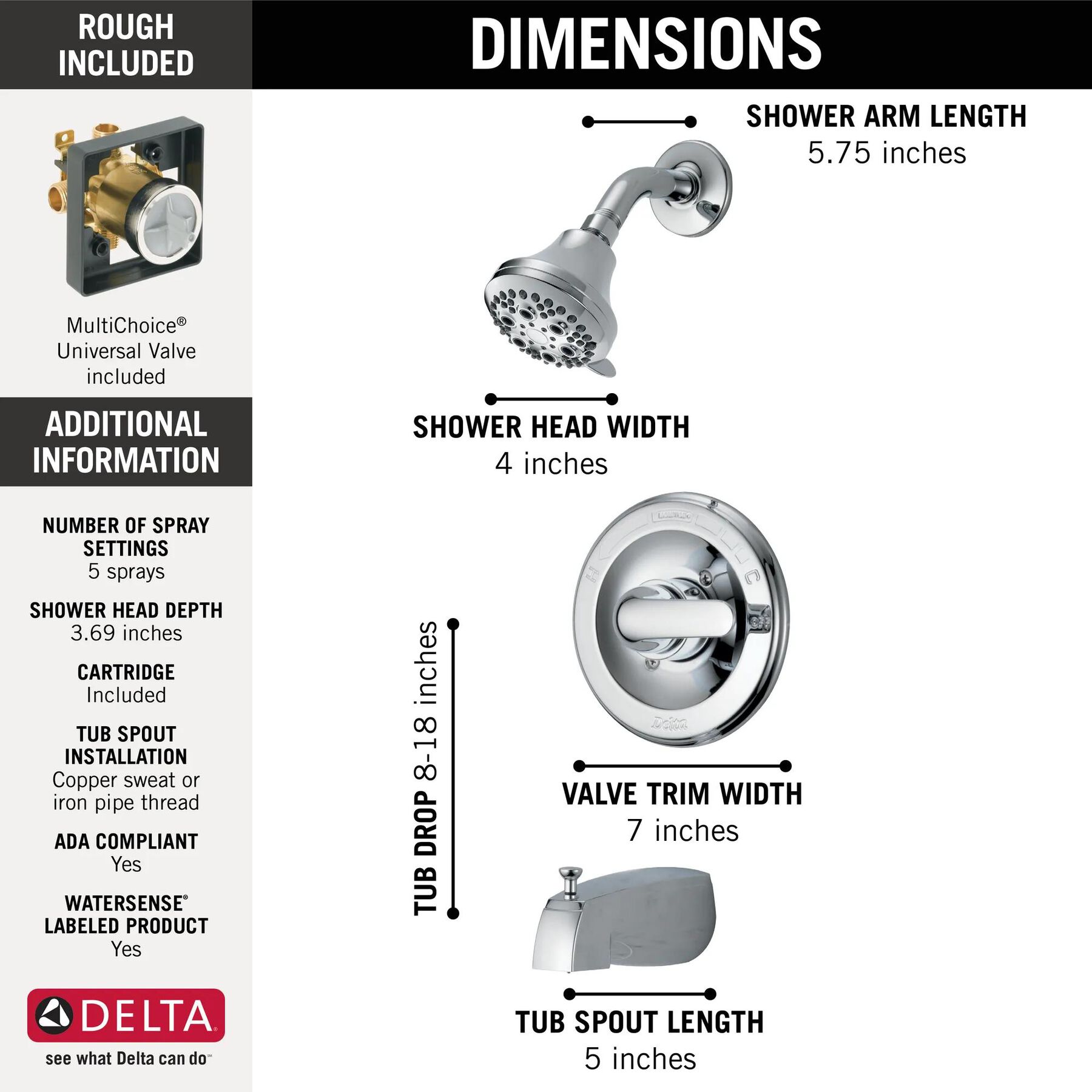

Monitor(R) 13 Series Tub and Shower Complete Rough and Trim in Chrome

Model#: 134900-A
Add to Favorites
Find local Delta® installers.
DELTA
Monitor(R) 13 Series Tub and Shower Complete Rough and Trim in Chrome
Model#: 134900-A
List Price: $20440
Add to Favorites
Find local Delta® installers.
PRODUCT FEATURES
While other products may gather unsightly mineral build-up over time, Delta soft rubber Touch-Clean® spray holes allow any mineral residue to simply be wiped away for an instantly refreshed look – with no need for soaking or the aid of chemical cleaners. The pause setting gives you ample space for shaving, lathering and other shower tasks, then easily restarts the water with the temperature where you left off. This spray setting helps you conserve water, so you can worry less about depleting your supply of hot water - and you help the environment too. Delta WaterSense labeled faucets, showers and toilets use at least 20% less water than the industry standard—saving you money without compromising performance. *Coverage measured in accordance with EPA WaterSense® Specification for shower heads, March 4, 2010.

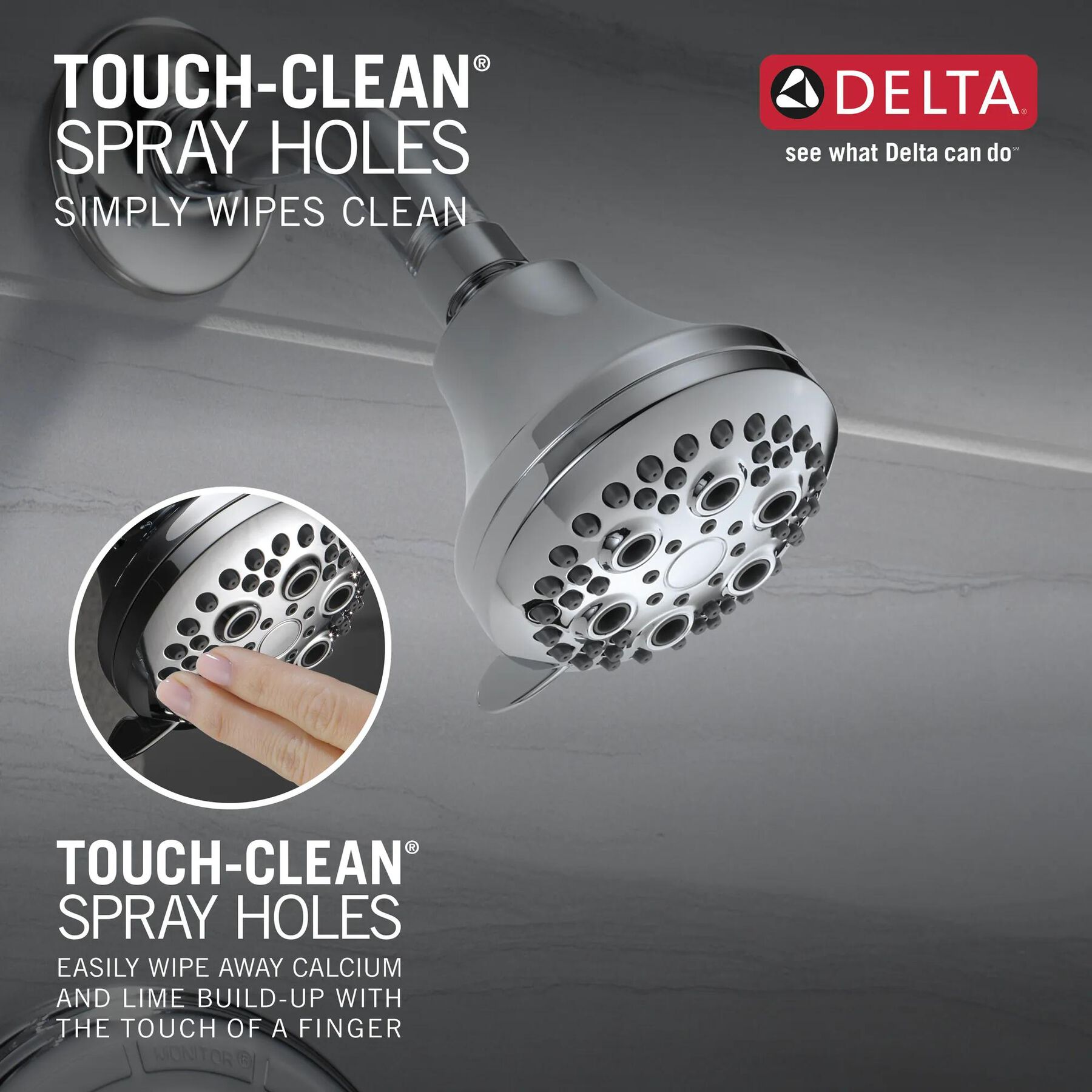

  • Soft, rubber Touch-Clean® spray holes allow you to easily wipe away calcium and lime build-up from the spray face of your shower head and hand shower with the touch of a finger
  • Spray settings include: Full Body spray, Fast Massage spray, Full Spray with Massage, High Efficiency Spray, and Pause
  • Pause feature reduces water to a trickle, giving you space for shaving, lathering and other shower tasks while maintaining your temperature settings
  • Includes coordinating pull-up tub spout
  • ADA compliant
  • WaterSense® labeled showers use at least 20% less water than the industry standard—saving you money without compromising performance
Special Information
Warning Image
California Prop 65 WARNING
Eco-Friendly
WaterSense® Labeled
Technology and Special Features
ADA Compliant
Touch-Clean®
MultiChoice® Universal Valve
Monitor®
Special Information
Warning Image
California Prop 65 WARNING
Documents & Specs
Product Support, Repair Parts & Technical Specifications
View Technical Specifications
View Maintenance & Installation Sheet
View Parts & Accessories Diagram
Register Product
Installation Information
Connection Type :
Universal fittings
Flow Rate :
1.75 gpm @ 80 psi, 6.6 L/min @ 552 kPa
Overall Height (in.) :
12-9/32
Valve Type:
Single-function pressure balance cartridge

INSTALLATION SUPPORT

Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.

GO
Enter Valid Zip.
REVIEWS
Rated 1 out of 5 by from Terrible installation instructions We purchased this tub/shower set for a complete renovation. Home Depot said this was the set to use. Instructions do NOT cover enough steps to complete an installation. No mention of dimensions for holes for the control unit, tub spout, or shower spout. I was told at Home Depot I would not need a wall on the drain end of tub, everything kng would line up fine. Not so! I was told there was an installation video at "deltafaucet.com/video." Not so! I was told the instructions are in layman's terms. Not so! If I ever get this installed I sincerely hope it works better than I am now expecting!
Date published: 2023-03-26
Rated 4 out of 5 by from Nice Look I had it installed a month ago. It looks and works well.
Date published: 2022-11-13
Rated 5 out of 5 by from good product Workg great. Instructions were a bit vague in some areas but all worked out.
Date published: 2022-10-11
Rated 5 out of 5 by from Great Faucet. No problem with instilation. I think the instructions was more for a professional than a home owner and had to read several times to understand. I was a builder for 30 years and that helped. We got through it and all is fine.
Date published: 2022-09-27
Rated 5 out of 5 by from Great uses! I am very happy with the design and functions of my Delta shower faucet.
Date published: 2022-09-14
Rated 4 out of 5 by from Nice faucet Easy installation good fit
Date published: 2022-04-15
Rated 4 out of 5 by from Easy install This is for a new construction and the install I sf very simple.
Date published: 2022-04-05
Rated 4 out of 5 by from Great product I love the way this product looks in my renovated bathroom.
Date published: 2022-04-03
  • y_2026, m_6, d_15, h_12
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.46
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_31
  • loc_en_US, sid_134900-A, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 11ms
  • reviews, product
Q&A

Does the Delta Chrome Model #134900-A either come with or is compatible with the 1700 series cartridge?

Asked by: Steve
Hi, Steve! Thank you for your question. The Delta Monitor 134900-A Tub and Shower Faucet is not compatible with the RP32104 Valve Cartridge Assembly from the Delta 1700 Series. The cartridge assembly for the unit is RP46074. Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2024-09-01

What is the flow rate of the tub faucet?

Asked by: Austin
Thank you for your question, Austin! The tub spout port for a Delta Universal MultiChoice valve will depend on the PSI to the home as well as the type of water heater being used. Best regards, Edward
Answered by: Delta Faucet
Date published: 2024-03-28

We installed the 134900-A and we are ha omg trouble with the water getting hot in that shower. The handle only turns 45 degrees but looks like it should go further.

Asked by: Bribri
Hi, Thank you for contacting us. We apologize for any inconvenience with your Delta Faucet Company product. I am also more than happy to have this opportunity to help you. Unfortunately, I would need a little more information in order to further assist you. I would like to confirm a installation date and place of purchase. To place an order for you, we will need to have your full name, physical street address, and telephone number. We use your phone number for tracking information. Please contact us at 1-800-345-3358. We are open Monday through Friday 7:00 AM to 7:00 PM central time, and 8:00 AM to 5:00 PM on Saturday. Thank you for your help with this and I look forward to hearing back from you! Best Regards, Bethany
Answered by: DeltaFaucet7
Date published: 2024-04-01

Is this exact style available in Brushed Nickel?

Asked by: Cindy
Hi, Cindy! Thank you for your question. At this time, the Delta Monitor 134900-A Tub and Shower Trim Kit is only available in the Chrome Finish. Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2024-03-28

i have a 134900-a shower mixer.when i turn on the faucit all the way on hot it is mixing cold water in. Is there an adjustment?

Asked by: Dawn
Thank you for your question, Dawn! This model has a rotational limit stop that adjusts to allow hotter or colder water into the mixing valve. Information on setting this cartridge can be found on page 9, step B of the maintenance and installation manual below. Please contact us if you have questions or need any further assistance. https://media.deltafaucet.com/MandI/72264%20Rev%20G.pdf Best regards, Edward
Answered by: Delta Faucet
Date published: 2024-03-28

Is a chrome sleeve available (RP39407) that would be 3/4" to 1" longer? The plumber was mistakenly told that 1/2" drywall would be behind the surround. Sleeve doesn't fit into the escutcheon plate with spacer. Without spacer, plastic by handle shows.

Asked by: Jim44
Thank you for your question, Jim44! The RP39407 sleeve used on this model is 3" long. The RP22735 trim sleeve is 3 1/2" long and will work in place of the included trim sleeve. The only other option would be to include a 14 series extension kit, part number RP77991. https://www.deltafaucet.com/parts-product-detail?modelNumber=RP22735 https://www.deltafaucet.com/parts-product-detail?modelNumber=RP77991 Best regards, Edward
Answered by: Delta Faucet
Date published: 2024-03-28

How do you remover the bonnet (page 4)

Asked by: Robert
Hi, Robert! Thank you for your question. To remove the bonnet assembly fro the Delta Monitor 134900-A Tub and Shower Faucet, first turn the water off at the shut off valve. Remove the set screw with a 1/8" Allen wrench to remove the handle assembly. Remove the sleeve assembly and unscrew the bonnet nut counterclockwise from the valve body. Please feel free to call, email, or message us on social if you should need further assistance. Best regards, Rosanna Phone: 1-800-345-3358 | Email: customerservice@deltafaucet.com | Facebook/Twitter: @deltafaucet
Answered by: Delta Faucet
Date published: 2024-03-28

Should I caulk around tub spout and escutcheon of control handle? Anywhere else?

Asked by: Joseph
Thank you for your question, Joseph! It is not required in most installations. However, you may use a thin bead of silicone around the back of the tub spout or the escutcheon plate to help ensure a water-tight seal. Please be sure to leave a weep hole at the bottom when where silicone is used. Best regards, Jon
Answered by: Delta Faucet
Date published: 2024-03-28
  • y_2026, m_6, d_15, h_12CST
  • bvseo_bulk, prod_bvqa, vn_bulk_3.0.46
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_46
  • loc_en_US, sid_134900-A, prod, sort_[SortEntry(order=HAS_STAFF_ANSWERS, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getContent, 6ms
  • questions, product
PART LIST

PART LIST

Image-RP4993

Delta®

Delta® Seats & Springs (2 ea)

List Price: $10.10
Online Price: $8.08
Free Ground Shipping All Orders $49+

RP4993

4.70 100
Image-Master-RP19809

Delta®

Delta® Escutcheon - 13 / 14 Series

List Price: $77.95 - $235.50
Free Ground Shipping All Orders $49+

RP19809

Image-Master-RP196

Delta®

Delta® Screws (2) - Escutcheon Trim

List Price: $10.10 - $19.80
Free Ground Shipping All Orders $49+

RP196

Image-Master-RP5834

Delta®

Delta® Tub Spout - Pull-Up Diverter

List Price: $42.95 - $62.30
Free Ground Shipping All Orders $49+

RP5834

Image-RP46074 Secondary Image-RP46074

Delta®

Delta® Cartridge Assembly - MultiChoice® Universal - 13 / 14 Series

List Price: $118.35
Online Price: $94.68
Free Ground Shipping All Orders $49+

RP46074

2.27 102
Image-RP12630

Delta®

Delta® Screws (2) - Extra Long - Escutcheon Trim

List Price: $18.45
Online Price: $14.76
Free Ground Shipping All Orders $49+

RP12630

4.17 12
Image-RP14414

Delta®

Delta® O-Rings (2) - 13 / 14 Series

List Price: $4.60
Online Price: $3.68
Free Ground Shipping All Orders $49+

RP14414

5.00 2
Image-RP39407

Delta®

Delta® Trim Sleeve & Spacer

List Price: $45.90
Online Price: $36.72
Free Ground Shipping All Orders $49+

RP39407

5.00 2
Image-RP23336

Delta®

Delta® O-Ring - Large - All Monitor® Series

List Price: $7.70
Online Price: $6.16
Free Ground Shipping All Orders $49+

RP23336

5.00 5
Image-Master-RP6023

Delta®

Delta® Shower Arm

List Price: $43.65 - $109.60
Free Ground Shipping All Orders $49+

RP6023

Image-RP29569

Delta®

Delta® Spacer

List Price: $4.90
Online Price: $3.92
Free Ground Shipping All Orders $49+

RP29569

5.00 1
Image-Master-RP6025

Delta®

Delta® Flange - Shower

List Price: $23.10 - $36.90
Free Ground Shipping All Orders $49+

RP6025

* Actual pricing may vary and is determined by the selling retailer/wholesaler/dealer.
