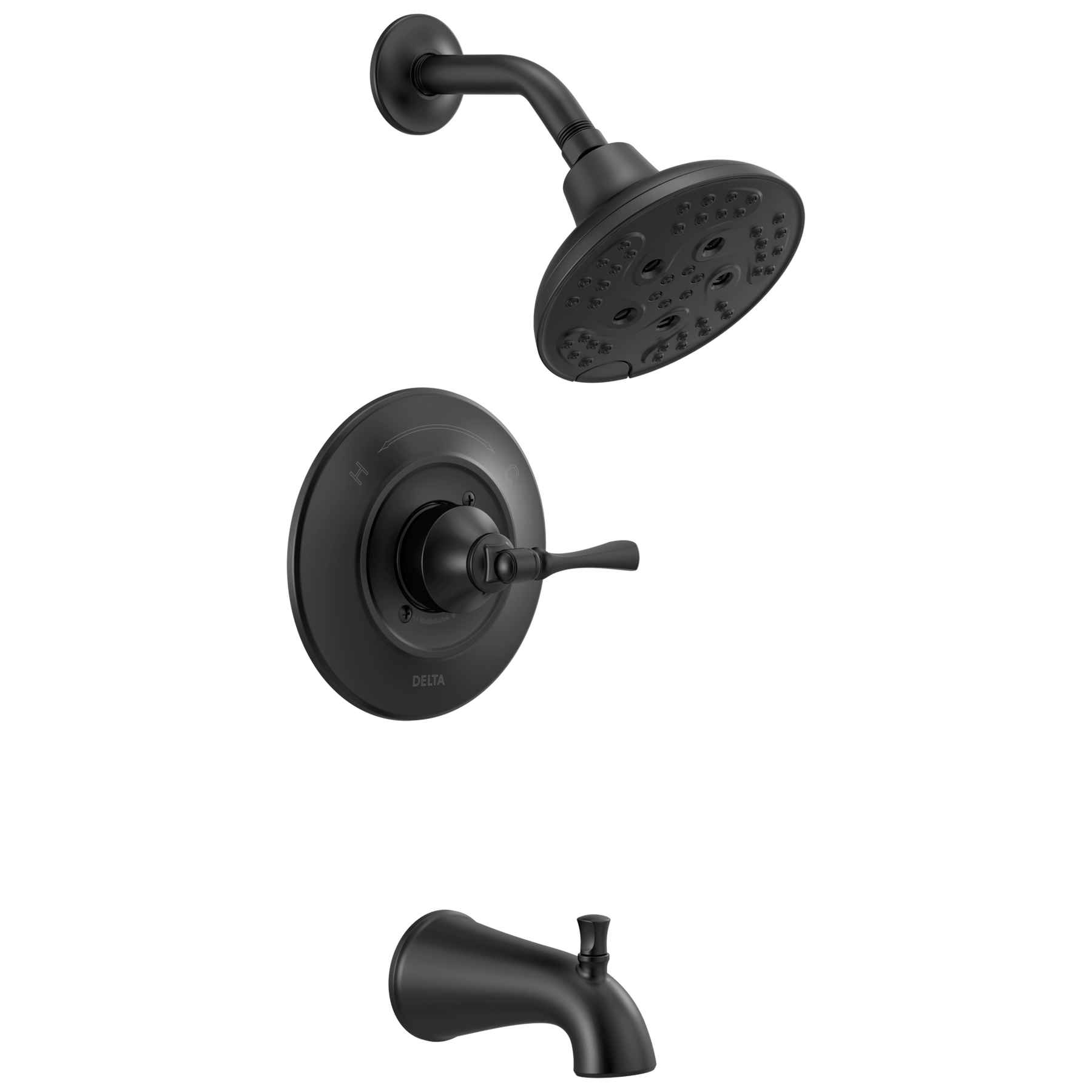

Monitor® 14 Series Tub and Shower in Matte Black

Model#: 144798-BL
Add to Favorites
Find local Delta® installers.
Archdale™
View Full Archdale™ Bathroom Collection
Monitor® 14 Series Tub and Shower in Matte Black
Model#: 144798-BL
List Price: $35625
Add to Favorites
Find local Delta® installers.
PRODUCT FEATURES
H2Okinetic® Technology showers feel like more water and more pressure, with more coverage
  • H2Okinetic® PowerDrench® Spray creates powerful water patterns, for an energizing experience
  • Soft, rubber Touch-Clean® spray holes allow you to easily wipe away calcium and lime build-up from the spray face of your shower head and hand shower with the touch of a finger
  • Spray settings include: H2Okinetic® spray, Fast Massage spray, Massaging spray, Shampoo Rinsing spray, and Pause
  • Pause feature reduces water to a trickle, giving you space for shaving, lathering and other shower tasks while maintaining your temperature settings
  • Complete unit includes trim and MultiChoice® Universal Valve with rough-in
  • Back-to-back installation capability
  • ADA Compliant
  • WaterSense® labeled showers use at least 20% less water than the industry standard—saving you money without compromising performance
  • Backed by Delta Faucet's Lifetime Limited Warranty
Special Information
Warning Image
California Prop 65 WARNING
Eco-Friendly
WaterSense® Labeled
Technology and Special Features
ADA Compliant
H2Okinetic® Technology
Special Information
Warning Image
California Prop 65 WARNING
Documents & Specs
Product Support, Repair Parts & Technical Specifications
View Technical Specifications
View Maintenance & Installation Sheet
View Parts & Accessories Diagram
Register Product

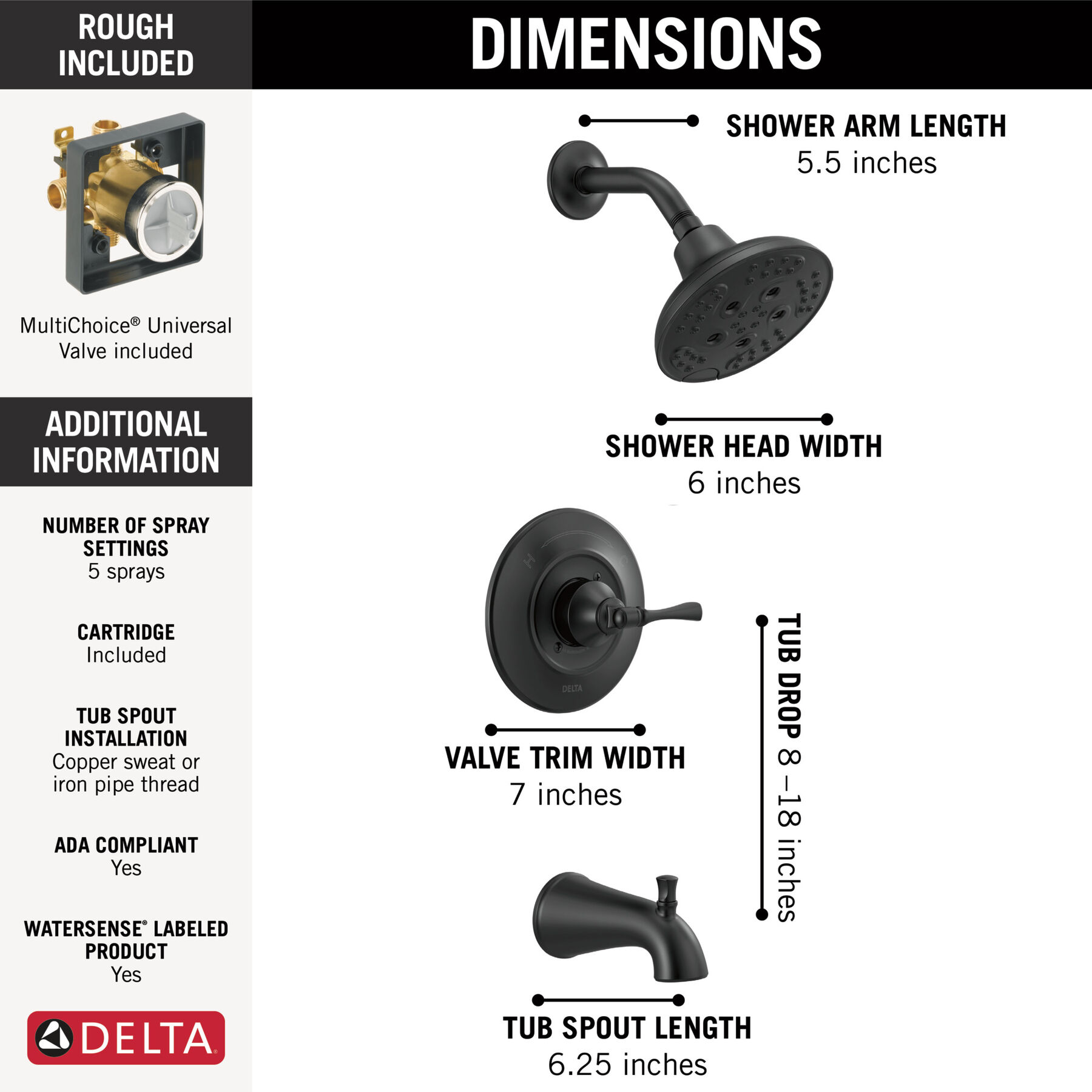

Installation Information
Flow Rate :
1.75 gpm @ 80 psi, 6.6 L/min @ 552 kPa
Overall Height (in.) :
17-3/4
Valve Type:
NA

INSTALLATION SUPPORT

Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.

GO
Enter Valid Zip.
REVIEWS
Rated 1 out of 5 by from Plastic- very disappointed I bought this unit because I have the sink faucet and it has held up well over the past year. Since the Archdale sink faucet is solid metal and the specifications sheet indicated these pieces were metal, I expected the matching tub/shower unit to be similarly built. Unfortunately, the shower head and tub faucet are plastic. Very cheap feeling and not worth the price. Time to return and start over.
Date published: 2024-02-09
Rated 3 out of 5 by from Feels flimsy but looks good The delta tub and shower set installed very easily. Although I ordered black finish, I thought it would be the rubbed bronze but that was not the case. It is a matte black. I can’t complain as it works well with the other black touches in the bathroom. I was surprised by how light weight the pieces were. - felt like it was plastic. All said and done, works well and looks good
Date published: 2022-10-26
Rated 5 out of 5 by from Great upgrade to our shower Our shower fixtures were the old gold color common when our home was built. I wanted to change the color so was excited to see this set. The water power that increased with this change in fixtures. They are heavy metal and color coating was applied cleanly. My whole family wants to use our shower now.
Date published: 2022-09-25
Rated 5 out of 5 by from Absolutely Beautiful Set We opted for the Venetian Bronze finish and it looks amazing and very classy. I have never had any problems with Delta in the past and this set lives up to Delta standards and customer expectations. The set is heavy and appears to be a high quality product. The shower head is large enough for good coverage. Options provided are very useful like the shampoo spray which my wife loves due to her long thick hair. Over all the set lives and exceeds expectations. Highly recommended.
Date published: 2022-09-14
Rated 5 out of 5 by from Amazing quality This Archdale tub and shower set is absolutely beautiful, the matte black looks amazing and modern in my bathroom. Delta always has super high quality products that I can depend on and is definitely a go to brand for me. I would definitely recommend having this installed by a professional if you do not have any diy or plumbing experience for the best results. Overall I would highly recommend this set, and will definitely be buying a matching set for my second bathroom.
Date published: 2022-08-31
Rated 5 out of 5 by from Work good I got the Delta shower head and faucet set to replace my old shower set. Was easy to install. It looks great and a great shower head. Love the color. Would definitely recommend for your shower in your home.
Date published: 2022-08-31
Rated 1 out of 5 by from Never order from Delta Ever, period Never order from Delta Ever, period. They have terrible customer service reps that will straight up lie to your face without remorse. About 2 hours after my wife placed the order for this faucet, I realized that she ordered the wrong part per the valve that is already installed and piped into our wall. I then called Delta customer service about 3 hours after she placed the order to see if we can cancel. I was then lied to by the customer service rep, Daishana and she told me that we cannot cancel the order because the item has already shipped and the only thing we can do now is just return it once it is received. Weird because I found out about a week later after not receiving the package that it took an additional 4 days for the package to ship. Now all of a sudden, I have to pay an additional $40 in shipping fees in order to return the product.
Date published: 2022-08-29
Rated 5 out of 5 by from Beautiful This is so beautiful. It wasn't hard to install. And made my bathroom look so much better. I love the color of it. It's simply beautiful. If you want to make your bathroom look nice and updated I suggest this.
Date published: 2022-08-27
  • y_2026, m_8, d_9, h_10
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.48
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_22
  • loc_en_US, sid_144798-BL, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 335ms
  • reviews, product
Q&A

Looking to replace my Delta 1400 series, which requires cartridge RP19804. It appears all 14T series handle sets use a RP46074 cartridge where the valve inserts are closer together. Will this set work with the RP19804 cartridge in place of the RP46074?

Asked by: msl7900
Hi msl7900, Thank you for your question about the Delta Faucet model 144798-BL. This model includes a MultiChoice R10000 valve rough-in as well as a 14 series trim kit. Yes, the legs on the RP19804 cartridge are different than the RP46074. Yes, this trim can use an RP19804 cartridge and the older valve. A new 14 series trim will fit an RP19804 cartridge and the older valve. But the new RP46074 cartridge will not fit the older valve. Please contact us directly if you have any additional questions! Best Regards, Bryan Digital Communications Specialist
Answered by: Customer Service
Date published: 2024-03-28

Can you install this without the tub faucet? I have a walk in shower so I would not need the tub faucet.

Asked by: Aly22
Hello Valued Customer, Thank you so much for contacting Delta Faucet Company! This can be installed without the tub spout with the bottom port on the rough body being capped. Please reach out directly with further questions. Best Regards, Kayla
Answered by: Customer Service
Date published: 2023-08-16

How do I adjust the water stream from the shower head?

Asked by: Rachel
Hi Rachel, thank you for your interest in the 144798-CZ! The front of the showerhead has a button on the face that controls the different settings. Please contact us directly if you have any questions or need additional assistance. Best Regards, Digital Communications Specialist
Answered by: Customer Service
Date published: 2024-03-28

The Archadale shower collection does not specify that it is no lead compliant.  Does it contain lead?

Asked by: MissyH
Hi Valued Customer, Thank you for your question about the Delta Faucet! This item has a prop 65 label. The label indicates that components inside the product contain brass and brass will have a small amount of lead that an installer may come in contact with. Please reach out with any additional questions! Best Regards, Themar Digital Communications Specialist
Answered by: Themar
Date published: 2025-05-28

Where can I get the Longer escutcheon screws part# 12630 for my new Bath/Shower Faucet?

Asked by: RoyBoy
Hi RoyBoy, Thanks so much for contacting Delta Faucet Company! The Screws Extra Long MODEL#: RP12630 can be purchased online or locally. Please see our Where to Buy page for help finding dealers in your area or online. https://www.deltafaucet.com/where-to-buy Please reach out with further questions! Best Regards, Kelley Digital Communications Specialist
Answered by: Customer Service
Date published: 2023-02-28

Can you get this shower combination without the tub faucet?

Asked by: katstew12345
Hi katstew12345, thank you for your interest in the 144798! The ARCHDALE is not available without the tub spout. Please contact us directly if you have any questions or need additional assistance. Best Regards, Themar Digital Communications Specialist
Answered by: Customer Service
Date published: 2023-03-20

Does this come with the overflow cover that is below the spout?

Asked by: Breed2025
Hi Breed2025, Thank you for your question about the Delta Faucet model 144798-SP. This does not include the overflow cover or drain assembly. We carry the overflow cover RP7424SS and the drain assembly RP693SS. Please reach out with any additional questions! Best Regards, Bryan Digital Communications Specialist
Answered by: Delta
Date published: 2025-01-28

Is the T144798 discontinued. Can’t find in chrome anywhere online.

Asked by: Derf
Hi Derf, Thanks so much for contacting Delta Faucet Company! This model is still available and is a Lowe's exclusive product. Please see the following link for more purchasing information: https://www.deltafaucet.com/where-to-buy?pid=144798 Please reach out with further questions! Best Regards, Tim Digital Communications Specialist
Answered by: Customer Service
Date published: 2023-03-02
  • y_2026, m_8, d_8, h_9CST
  • bvseo_bulk, prod_bvqa, vn_bulk_3.0.48
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_16
  • loc_en_US, sid_144798-BL, prod, sort_[SortEntry(order=HAS_STAFF_ANSWERS, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getContent, 442ms
  • questions, product
PART LIST

PART LIST

Image-RP22734

Delta®

Delta® Bonnet

List Price: $17.70
Online Price: $14.16
Free Ground Shipping All Orders $49+

RP22734

4.45 11
Image-RP4993

Delta®

Delta® Seats & Springs (2 ea)

List Price: $10.10
Online Price: $8.08
Free Ground Shipping All Orders $49+

RP4993

4.70 100
Image-Master-RP196

Delta®

Delta® Screws (2) - Escutcheon Trim

List Price: $10.10 - $19.80
Free Ground Shipping All Orders $49+

RP196

Only at Lowe's
Image-Master-RP101533PC
Only at Lowe's

Archdale™

Archdale™ Escutcheon - 14 Series Tub & Shower

List Price: $67.05 - $100.60

RP101533PC

Only at Lowe's
Image-Master-RP101532PC
Only at Lowe's

Archdale™

Archdale™ Metal Lever Handle Kit - 14 Series

List Price: $67.05 - $100.60

RP101532PC

Image-RP46074 Secondary Image-RP46074

Delta®

Delta® Cartridge Assembly - MultiChoice® Universal - 13 / 14 Series

List Price: $118.35
Online Price: $94.68
Free Ground Shipping All Orders $49+

RP46074

2.20 108
Image-Master-RP6025PR

Delta®

Delta® Flange - Shower

List Price: $23.10 - $36.90
Free Ground Shipping All Orders $49+

RP6025PR

Only at Lowe's
Image-Master-RP101612PC
Only at Lowe's

Archdale™

Archdale™ Diverter Tub Spout

List Price: $89.40 - $134.10

RP101612PC

Image-RP14414

Delta®

Delta® O-Rings (2) - 13 / 14 Series

List Price: $4.60
Online Price: $3.68
Free Ground Shipping All Orders $49+

RP14414

5.00 2
Image-Master-RP6023

Delta®

Delta® Shower Arm

List Price: $43.65 - $109.60
Free Ground Shipping All Orders $49+

RP6023

Image-RP23336

Delta®

Delta® O-Ring - Large - All Monitor® Series

List Price: $7.70
Online Price: $6.16
Free Ground Shipping All Orders $49+

RP23336

5.00 5
Image-RP29569

Delta®

Delta® Spacer

List Price: $4.90
Online Price: $3.92
Free Ground Shipping All Orders $49+

RP29569

5.00 1
