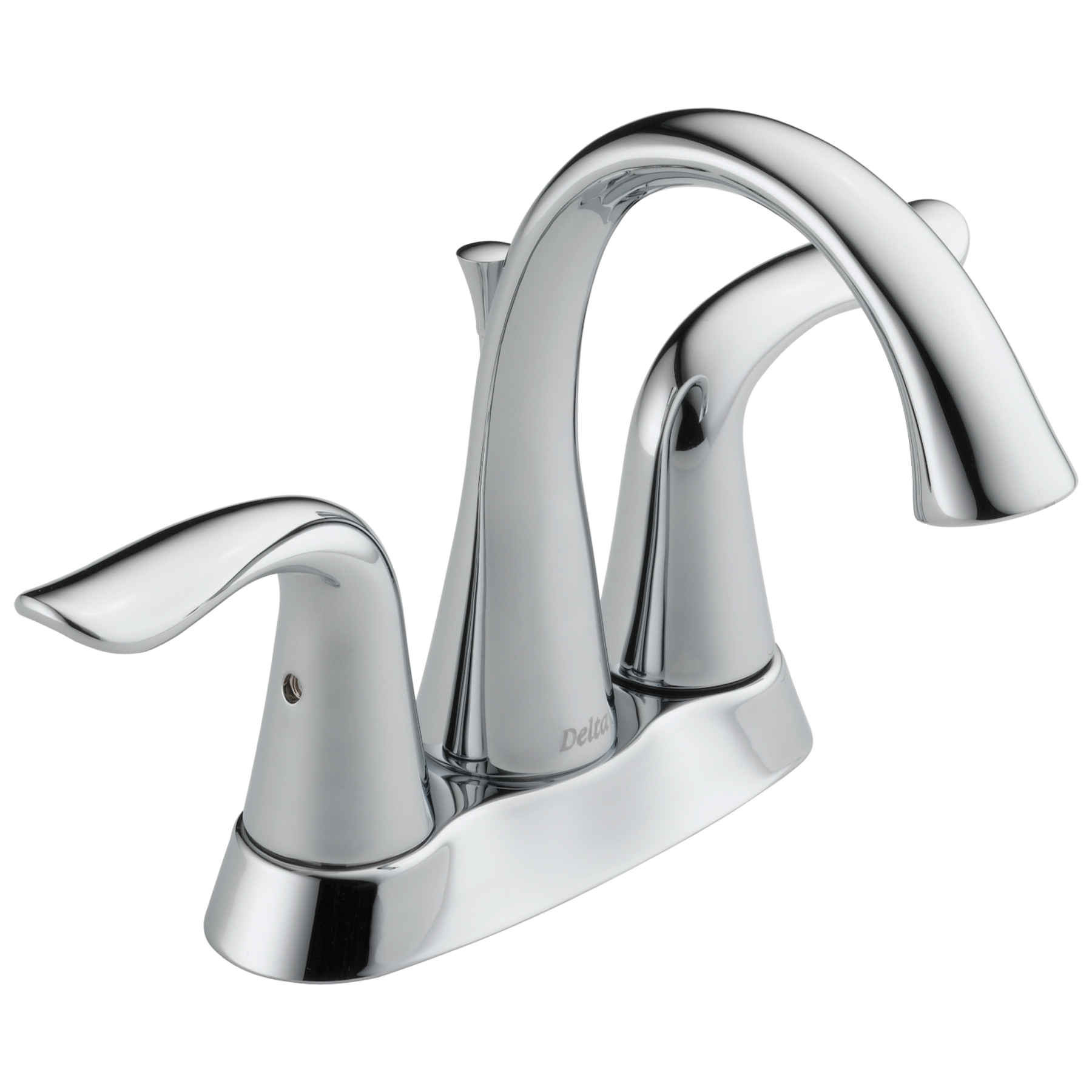

Two Handle Tract-Pack Centerset Bathroom Faucet in Chrome

Model#: 2538-TP-DST
Two Handle Tract-Pack Centerset Bathroom Faucet in Chrome
Model#: 2538-TP-DST
List Price: $24275
PRODUCT FEATURES
Delta's exclusive DIAMOND Seal® Technology uses a valve with a tough diamond coating. InnoFlex® PEX waterways keep water inside the faucet out of contact with potential metal contaminants. This powerful combination brings you a faucet built to last up to five million uses. Delta is committed to supporting water conservation around the globe and has been recognized as WaterSense® Manufacturer Partner of the Year in 2011, 2013, and 2014.
  • LEAD-FREE COMPLIANT: Not all faucets are certified to necessary safety standards. Delta goes above and beyond with product testing and quality to ensure each faucet meets plumbing safety standards, including NSF/ANSI 61 and 372.
  • WaterSense certification promotes water conservation
  • DIAMOND Seal Technology features a valve embedded with diamonds to ensure like-new operation for the life of the faucet
  • Includes matching finish drain assembly
  • Meets standards set by Americans with Disabilities Act (ADA)
  • 3-hole 4 in. installation
  • Rigid spout
  • Assembled dimensions: 6-3/8 in. H x 7-1/32 in. D x 10-1/2 in. W
  • Tract-Pack model must be ordered in full case quantity of 3
Special Information
Warning Image
California Prop 65 WARNING
Eco-Friendly
WaterSense® Labeled
Technology and Special Features
ADA Compliant
No-Lead Compliant
Water-Efficient
Diamond Seal® Technology
Special Information
Warning Image
California Prop 65 WARNING
Documents & Specs
Installation Information
3-hole 4" installation
3-hole 4" installation
Connection Type :
3/8" compression fittings
Flow Rate :
1.20 gpm @ 60 psi, 4.5 L/min @ 414 kPa
Overall Height (in.) :
6-3/8
Valve Type:
Ceramic Disc

INSTALLATION SUPPORT

Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.

GO
Enter Valid Zip.
REVIEWS
Rated 3 out of 5 by from Could be better I have 3 of these, installed when house was built new in 2020. So far 2 have leaked, although replacing the valve assemblies (as supplied by Delta) has solved the problem both times. Regardless, I really don't like the way these units are engineered. If a cartridge fails, the faucet will drip water below your sink. And when it comes time to flush the lines, the faucet will dump a whole lot of water under your sink. I think this is all moot now. I believe these units are considered obsolete.
Date published: 2026-06-11
Rated 5 out of 5 by from Zdelta bathroom faucets salesman very helpful determining which product we needed. Product installed and working well.
Date published: 2025-09-29
Rated 5 out of 5 by from Easy My order came quickly and the facets were easy to install. I like how they look, too.
Date published: 2025-08-26
Rated 4 out of 5 by from Beautiful faucet I like the look of this faucet but I wish the handles were not concave on the underside of the handle. It would be a better feel if the handles were more rounded underneath.
Date published: 2025-04-04
Rated 5 out of 5 by from New look The slight contemporary look is an update to my 16 year old bathroom. Simple and works well for for me.
Date published: 2024-06-29
Rated 4 out of 5 by from Slightly more noise than expected when on low flow volume Great customer service. The gentleman guided me to the finish I was looking for. The descriptions were a bit misleading which is why I called for clarification. Arrived the day after I ordered! Nice look, smooth operation of handles. The only minor objection is it appears to have more noise than other faucets. It does diminish if you have it open fully but it appears to me to be a bit "hissy" when on a low flow speed. I bought 4 and have only installed one so far. Maybe this won't be the issue with the other faucets but I like it.
Date published: 2023-10-11
Rated 5 out of 5 by from Happy with purchase Nice looking faucet, easy to install
Date published: 2023-09-27
Rated 5 out of 5 by from lovely faucet, stylish, modern. Just received this faucet and it looks great and works.
Date published: 2023-08-07
  • y_2026, m_8, d_8, h_9
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.48
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_35
  • loc_en_US, sid_2538-TP-DST, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 10ms
  • reviews, product
Q&A

I developed a very slow leak around the threads where the locknuts tighten. Would this be a cartridge failure or a gasket failure?

Asked by: Inamo
Hello, Please accept our sincere apology for the inconvenience you are experiencing. We have reached out to you via email to further assist at this time. Best Regards, Tim Digital Communications Specialist
Answered by: Timothy
Date published: 2025-04-28

can you tell me what the TP stands for and what the difference is between this faucet and the 2538-mpu-dst?

I could't find the initials TP on the model number chart.
Asked by: Kelli
where did you see TP? Some places like to make up their own numbers for faucets so that other companies, contractors can not go and compare prices.
Answered by: KDUB87
Date published: 2026-05-15

Is the Lahara Bathroom Faucet made of metal or plastic?

Asked by: JM S
Hi, JM S! Thank you for your question. Our faucets are made of several materials, Unfortunately, I am unable to provide a specific breakdown for your faucet as that information is considered proprietary. But in general, our faucets may contain: Bronze Brass (36000, 260) (hub, handle, body, tube, fittings) Zinc (escutcheon, hub, handle) Stainless Steel (undercover plate, seat liner, set screw) Copper (tubing) PEX-C (puck and tubing) Silicone (gaskets) Synthetic rubber - EDPM, Santoprene (hoses) Vinyl (hoses) Nylon Plastics I am sorry the information you were looking for was not readily available for you. Please know that all of our products undergo rigorous tests to ensure long-lasting use and are made with high-grade materials. Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2024-03-28

Accessories for what I believe is the Lahara model

I bought a model home that had Delta faucet installed. It looks exactly like the Lahara model, but when I bought the aerator/wrench and valve assembly, it didn't fit. I believe the aerator I need is the 1.2, vs the 1.5 that it states on the specs. As for the valve, it didn't have the black casing around the bottom and the metal stick in the middle seems to be longer than the one I RP60400. Is there a different or older model of the Lahara that uses smaller aerator and valve? If so, what kind of valve would I need?
Asked by: Kikster
Hi Kikster, Thank you for your question. You have a pre-DST version of the faucet. Below is a link to the parts diagram for this model. https://media.deltafaucet.com/PartsDiagram/Model_2538_51330RevD.pdf Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2017-03-06

I also developed a very slow leak around the threads where the locknuts tighten. Would this be a cartridge failure or a gasket failure?

Asked by: Samuel
Hi Valued Customer, Thank you for your question, please accept our sincere apology for the inconvenience you are experiencing. We will be happy to assist you in resolving this issue as quickly as possible. Thanks for reaching out directly. Please feel free to contact us directly for technical information at 800-345-3358. We are available Monday through Friday from 8 a.m. to 8 p.m. and Saturdays from 9 a.m. to 6 p.m. Eastern Standard Time. Thank you for being a loyal Delta Faucet customer. Best Regards, Themar Digital Communications Specialist
Answered by: Themar
Date published: 2025-10-03

How far out does the spout water stream extend from the base of the faucet. For example, my current Moen faucet extends 4.5 inches from the base providing ample hand room.

Asked by: Mamadebbs
Hi Mamadebbs, Thank you for contacting us at Delta Faucet! Please accept our sincere apology for the inconvenience you are experiencing. Here is what we can do to resolve your issue for you. The spout for this Delta Faucet model 2538-MPU-DST extends 5" from the center of the faucet to the end of the spout. Please see the following link for more information. https://media.deltafaucet.com/SpecSheet/DSP-L-2538-MPU-DST%20Rev%20E.pdf Please contact us directly by phone at 1-800-345-3358 or email at customerservice@deltafaucet.com if further assistance is needed at this time.   We appreciate your loyalty to Delta Faucet Company. Best Regards, Tim Digital Communications Specialist (800) 345-3358 customerservice@deltafaucet.com
Answered by: Customer Service
Date published: 2024-03-28

what are the differences between the Model #2538-MPU-DST and the Model #2538-TP-DST?

Asked by: Burt
Hello Burt, Thank you for contacting Delta Faucet Company! I am sorry this information was not readily available, and I am happy to help you! Our Delta Faucet Lahara® Two Handle Tract-Pack Centerset Bathroom Faucet In Chrome MODEL#: 2538-TP-DST contains a "TP" suffix which means it has a polypropylene pop-up type drain fitting with plated metal flange and stopper cap and the "MPU" stands for the Metal pop-up. Please see the technical specification sheet below. https://media.deltafaucet.com/SpecSheet/DSP-L-2538-MPU-DST%20Rev%20E.pdf Thank you for being a loyal Delta Faucet customer. Please contact us back with any further questions. Best Regards, Nicole
Answered by: Delta7
Date published: 2024-03-28

Our faucets are leaking st the base of each handle, what part(s) do we need to fix this?  Please advise - thank you!

Asked by: HK Berg
Hi HK Berg, Please accept our apology for the inconvenience you are experiencing with leaks under the handles. We are happy to help! If tightening the bonnet nut does not fix the leak, the RP60400 cartridge may need to be replaced. This cartridge is used by both hot and cold handles. They are shipped in the hot orientation. For cold operation, lift the stop, rotate it 90 degrees, and push it back down into position. Install the cartridge with the arrow toward the spout. Please reach out for further assistance or with any additional questions! Best Regards, Bryan
Answered by: Delta
Date published: 2026-03-27
  • y_2026, m_8, d_9, h_10CST
  • bvseo_bulk, prod_bvqa, vn_bulk_3.0.48
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_15
  • loc_en_US, sid_2538-TP-DST, prod, sort_[SortEntry(order=HAS_STAFF_ANSWERS, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getContent, 100ms
  • questions, product
PART LIST

PART LIST

Image-RP73814

Delta®

Delta® Gasket - 2H Bar / Prep

List Price: $26.55
Online Price: $21.24
Free Ground Shipping All Orders $49+

RP73814

1.00 3
Image-Master-RP41588

Delta®

Delta® Lift Rod - Bathroom

List Price: $20.00 - $28.80
Free Ground Shipping All Orders $49+

RP41588

Image-RP101424

DELTA

DELTA Bonnet Net

List Price: $16.00
Online Price: $12.80
Free Ground Shipping All Orders $49+

RP101424

Image-RP5648

Delta®

Delta® Drain Stopper - Bathroom

List Price: $22.50
Online Price: $18.00
Free Ground Shipping All Orders $49+

RP5648

4.25 8
Image-RP60400 Secondary Image-RP60400

DELTA

DELTA DIAMOND™ Valve - 2H

List Price: $46.65
Online Price: $37.32
Free Ground Shipping All Orders $49+

RP60400

3.68 22
Image-RP12517

Delta®

Delta® Horizontal Rod

List Price: $22.50
Online Price: $18.00
Free Ground Shipping All Orders $49+

RP12517

2.86 7
Image-RP54977-1.2

Delta®

Delta® Aerator - Water-Efficient w/ Wrench - 1.2 GPM

List Price: $22.35
Online Price: $17.88
Free Ground Shipping All Orders $49+

RP54977-1.2

5.00 1
Image-RP53531

Delta®

Delta® Mounting Nuts - 15 / 16 Series

List Price: $27.15
Online Price: $21.72
Free Ground Shipping All Orders $49+

RP53531

Image-RP38958

Delta®

Delta® Drain Assembly - 50 / 50 Bathroom

List Price: $74.70
Online Price: $59.76
Free Ground Shipping All Orders $49+

RP38958

5.00 1
Image-RP12516

Delta®

Delta® Strap w/ Screw

List Price: $18.45
Online Price: $14.76
Free Ground Shipping All Orders $49+

RP12516

Image-RP71111

Delta®

Delta® Aerator - Water-Efficient & Wrench - 0.5 GPM

List Price: $53.60
Online Price: $42.88
Free Ground Shipping All Orders $49+

RP71111

Image-RP6142

Delta®

Delta® Gasket

List Price: $12.35
Online Price: $9.88
Free Ground Shipping All Orders $49+

RP6142

2.00 1
Image-RP72730

Classic

Classic Aerator - Water-Efficient - 1.0 GPM

List Price: $27.80
Online Price: $22.24
Free Ground Shipping All Orders $49+

RP72730

1.00 2
Image-RP6140

Delta®

Delta® Nut & Washer - Drain Assembly

List Price: $25.00
Online Price: $20.00
Free Ground Shipping All Orders $49+

RP6140

Image-Master-RP54971

Lahara®

Lahara® Lift Rod & Finial - Bathroom

List Price: $31.45 - $47.00
Free Ground Shipping All Orders $49+

RP54971
