Kayra®
View Full Kayra® Bathroom Collection

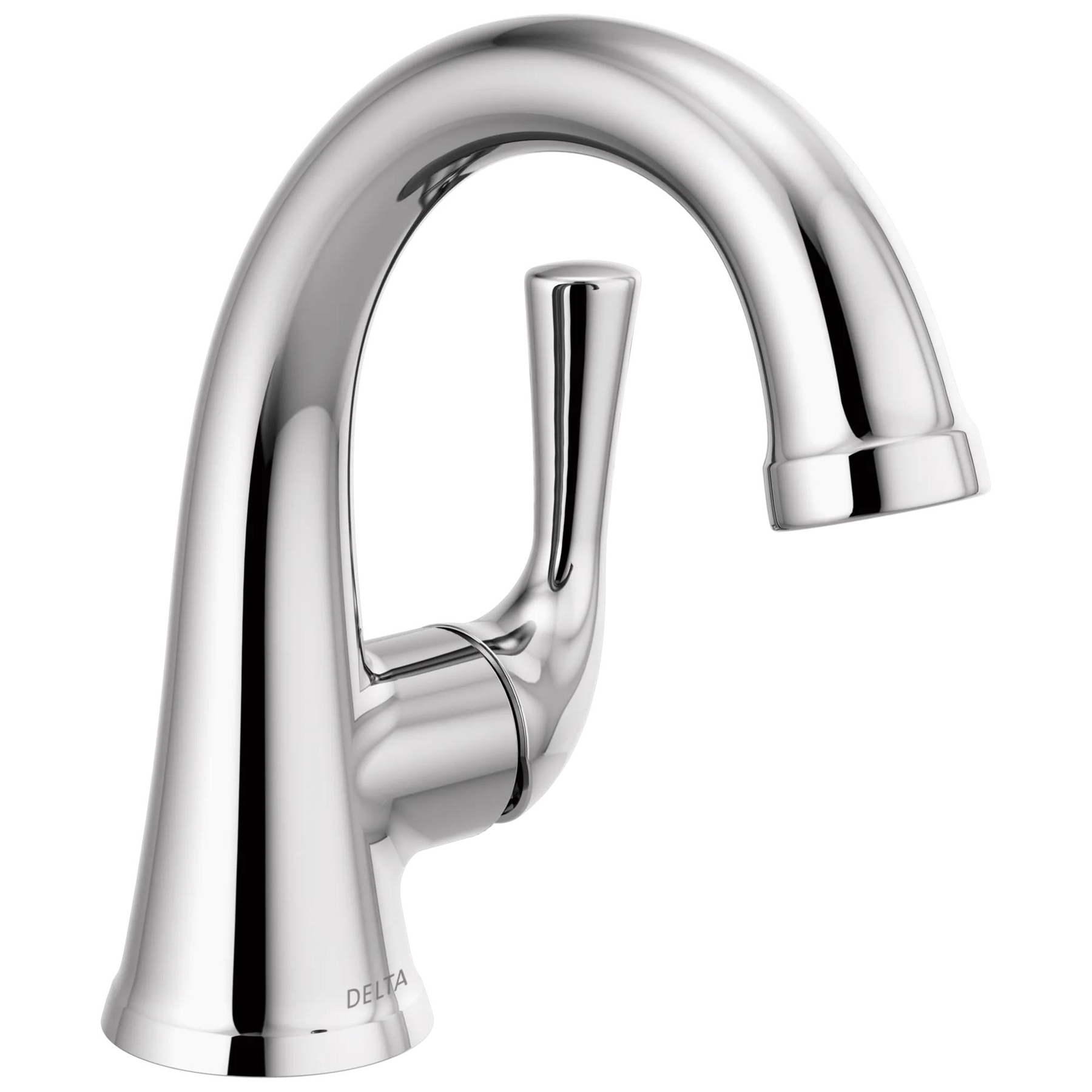

Single Handle Bathroom Faucet in Chrome

Model#: 533LF-MPU
Add to Favorites
Find local Delta® installers.
Kayra®
View Full Kayra® Bathroom Collection
Single Handle Bathroom Faucet in Chrome
Model#: 533LF-MPU
List Price: $25700
Add to Favorites
Find local Delta® installers.
PRODUCT FEATURES
The stretched feminine form and unbroken lines of the Kayra® Bath Collection create a clean, flowing design. Delta® faucets with Diamond Seal® Technology perform like new for life with a patented design that reduces leak points, is less hassle to install and lasts twice as long as the industry standard. WaterSense® labeled faucets use at least 20% less water than the industry standard — helping you save water without compromising performance. You can install with confidence, knowing that Delta® faucets are backed by our Lifetime Limited Warranty.
  • Diamond Seal® Technology is less hassle to install and helps your faucet perform like new for life, reducing leak points and lasting twice as long as the industry standard
  • Everything you need is together in one convenient box, including integrated InnoFlex® PEX supply lines
  • Fits 1 or 3-hole 4 in. installations with optional deck plate (included)

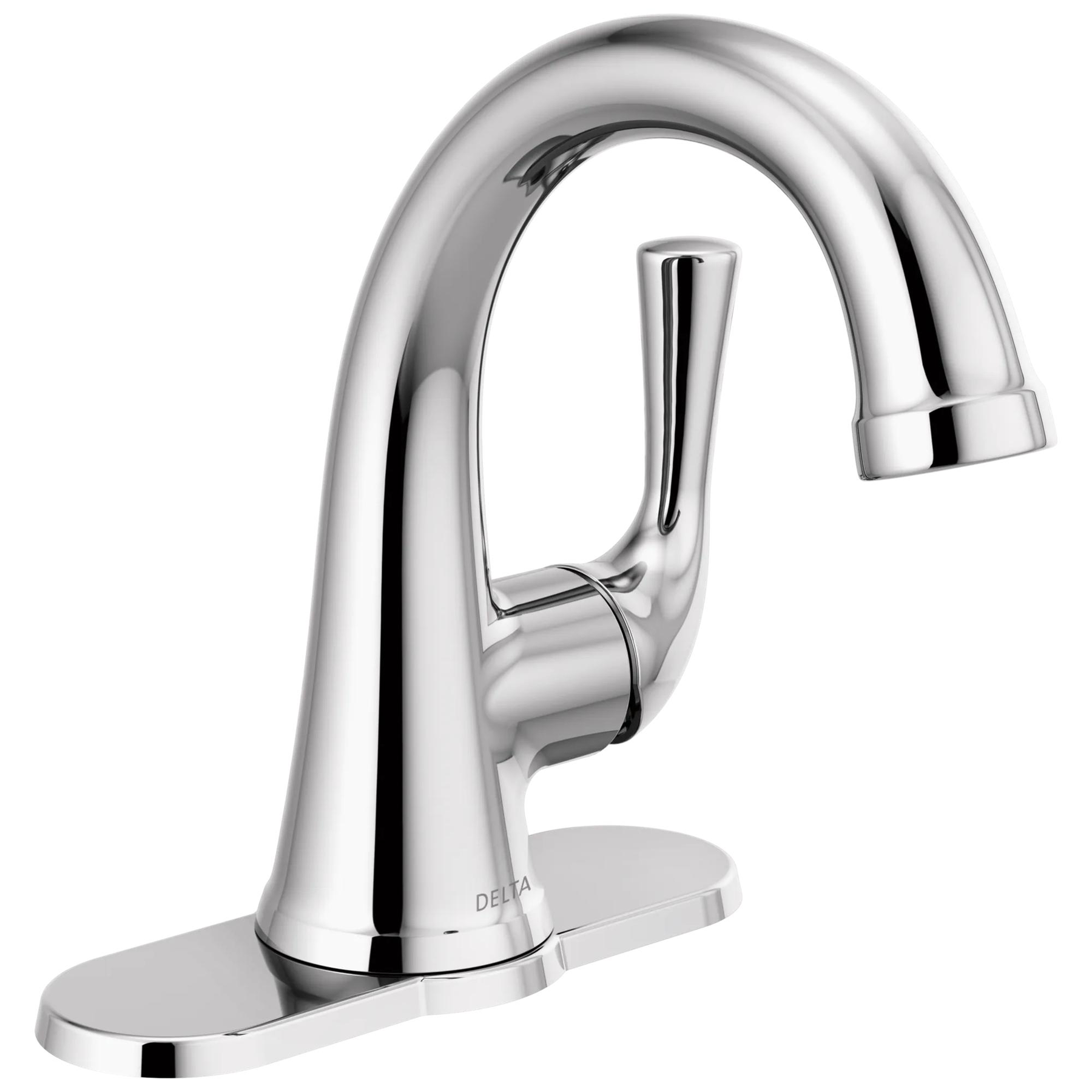

  • Includes optional 5-15/16 in. deck plate
  • Metal push pop-up drain assembly in matching finish (included) is ADA compliant and simple to install, operate and clean
  • Optional red/blue temperature indicator ring included
  • ADA compliant
  • WaterSense® labeled faucet uses at least 20% less water than the industry standard without compromising performance
  • Rigid spout does not swivel
  • Mounting depth accommodates 1-5/8 inch (41 mm) surfaces
  • 3/8-inch compression fittings
  • Backed by Delta Faucet's Lifetime Limited Warranty
Special Information
Warning Image
California Prop 65 WARNING
Eco-Friendly
WaterSense® Labeled
Technology and Special Features
ADA Compliant
No-Lead Compliant
Diamond Seal® Technology
Special Information
Warning Image
California Prop 65 WARNING
Documents & Specs
Product Support, Repair Parts & Technical Specifications
View Technical Specifications
View Maintenance & Installation Sheet
View Parts & Accessories Diagram
Register Product
Resources
Design Files

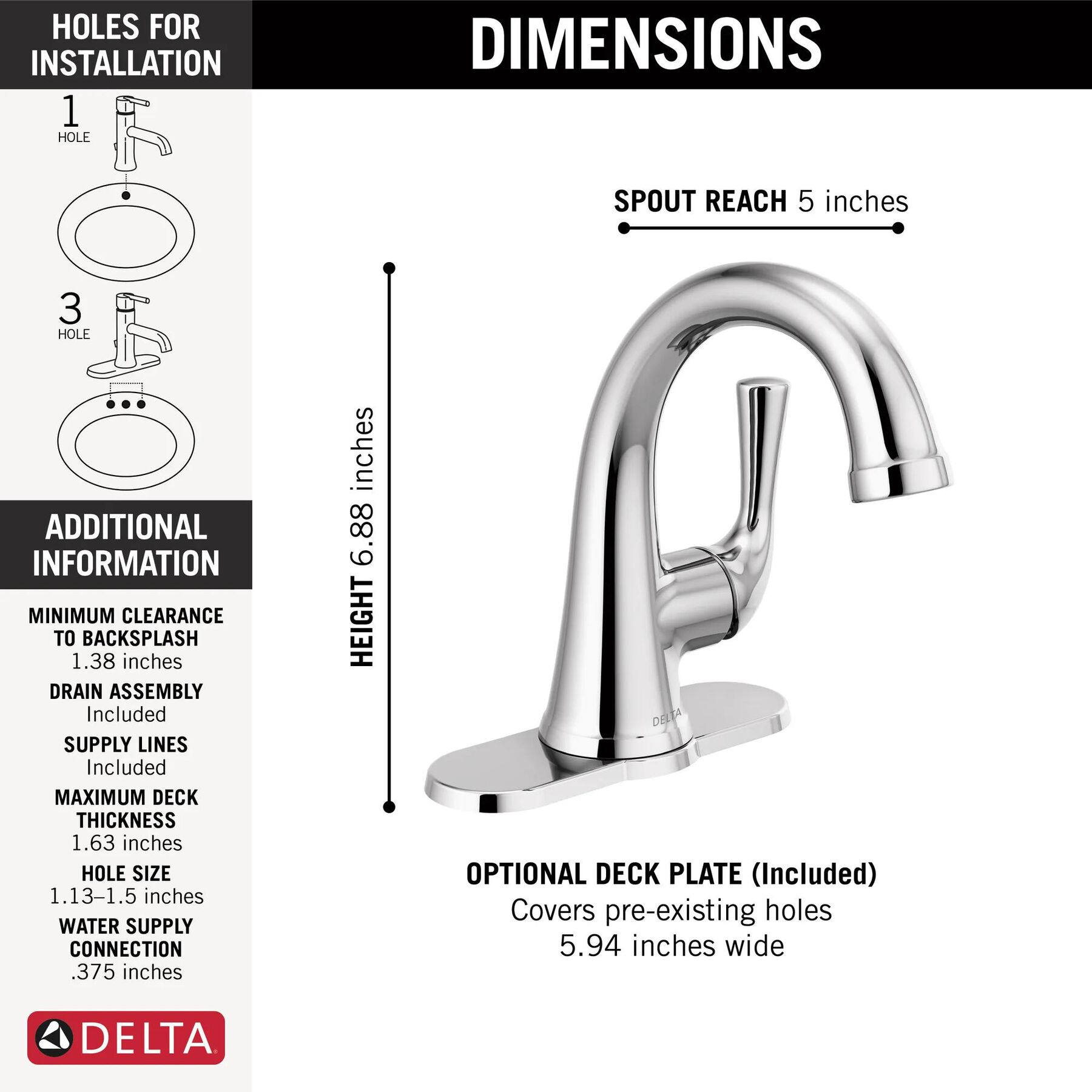

Installation Information
1 or 3-hole 4" installation
1 or 3-hole 4" installation
Connection Type :
3/8" compression fittings
Flow Rate :
1.2 gpm @ 60 psi, 4.5 L/min @ 414 kPa
Overall Height (in.) :
6-7/8
Valve Type:
Ceramic Disc

INSTALLATION SUPPORT

Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.

GO
Enter Valid Zip.
REVIEWS
Rated 5 out of 5 by from Would order again I like this faucet. Simple design but not boring
Date published: 2026-01-15
Rated 5 out of 5 by from Hit and cold Great, wish it had hot cold markings, for guest baths.
Date published: 2025-10-25
Rated 5 out of 5 by from Great bathroom faucet Very happy with this faucet and love the drain function
Date published: 2025-10-10
Rated 5 out of 5 by from Lovely faucet, very happy with it Beautiful design, smooth operation.
Date published: 2025-03-22
Rated 5 out of 5 by from Faucet Easy to install built to last
Date published: 2023-12-25
Rated 2 out of 5 by from delta bathroom faucet finish was not what I viewed in showroom. upon conversation with Delta rep, was told that due to material used, variations are expected. Also, after item istalled, realized that drain was not a totally pop up drain as the sales rep and I expected. apparently, Delta's verbal description for a pop up drain is a "push" pop up drain. Now I'm out the cost of the faucet and installation cost for a faucet that I will have to replace.
Date published: 2023-11-02
Rated 5 out of 5 by from Brass won Look forward to years of enjoying this faucet
Date published: 2023-07-22
Rated 5 out of 5 by from Faucet Very satisfied with product
Date published: 2023-07-10
  • y_2026, m_6, d_13, h_13
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.46
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_29
  • loc_en_US, sid_533LF-MPU, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 14ms
  • reviews, product
Q&A

Is there a deck plate can be used with this faucet & will cover a 10 “  plus area ?

Asked by: Marcia69
Hello Marcia69, Thank you for question! We are pleased to assist! The Delta KAYRA Single Handle Bathroom Faucet includes an optional deck plate. Below are the links to the tech specs and parts diagram for more information. https://media.deltafaucet.com/SpecSheet/DSP-L-533LF-MPU%20Rev%20B.pdf https://media.deltafaucet.com/PartsDiagram/DPD-L-533LF-MPU%20Rev%20A.pdf Please feel free to contact back us for further assistance. Best Regards, Kelley
Answered by: Kelley
Date published: 2024-03-28

need to relace the handle on a 533LF can u tell me the handle part number?

Asked by: toms
Hello Toms, Thank you for your question about the Delta Faucet model 533LF-MPU Kayra™ Single Handle Bathroom Faucet In Chrome. I apologize for any difficulty finding this information. I know that can be frustrating. We are happy to help! A replacement handle is available as part number RP101380. See the part diagram for more information: https://media.deltafaucet.com/PartsDiagram/DPD-L-533LF-MPU%20Rev%20A.pdf Please reach out at customerservice@deltafaucet.com or 1-800-345-DELTA if you have any questions or need additional assistance. Thank you for being a loyal Delta Faucet customer. Best regards, Bryan
Answered by: Delta Faucet
Date published: 2024-03-28

I have 2 new 533 LF-MPU single handle bathroom faucets but need one of them to have water control handle on the left rather than the right. Is that available?

Asked by: Debbie
Hi Debbie, Thanks for your question regarding 533LF-MPU! No, we do not have this model with the handle on the left. Please feel free to contact us with any questions or for further assistance. Best Regards, Emma Digital Communications Specialist
Answered by: Customer Service
Date published: 2023-05-25

How do you clean the screen

Asked by: Warren
Hello Warren, Thank you for contacting Delta Faucet Company! I am sorry this information was not readily available, and I am happy to help you! Our Delta Faucet KAYRA™ Single Handle Bathroom Faucet MODEL#: 533LF-MPU aerator can be removed with the supplied wrench, the aerator unthreads and can be soaked in 50/50 white vinegar and water. Thank you for being a loyal Delta customer. Please contact us back for any further questions. Best Regards, Nicole
Answered by: Delta7
Date published: 2024-03-28

Does Kayra 533LF-MPU have the metal push pop-up or is it the pop-up with lift rod?  The description says push pop up, but the part/diagram specification sheet shows a lift rod.  Thank you.

Asked by: DMFH
Hi DMFH, Thanks so much for contacting Delta Faucet Company about, 533LF-MPU! The faucet includes a pop-up assembly with a lift rod, I have forwarded the incorrect information to the appropriate department. Please contact us directly if you have any questions or need additional assistance. Best Regards, Nicole Digital Communications Specialist
Answered by: Customer Service
Date published: 2023-08-18

on this delta 533lf-ssmpu product, the parts list doesn't show the aerator or the size of it's threading. The tech spec sheet shows only external measurements on the above sink portion. What are the specs of the aerator that comes with sink?

Asked by: Je42
Hello Customer! Thank you for your question and we are happy to help. The Delta 533LF-MPU comes with the RP101643 and can be purchased directly from our website. With any further questions or concerns, please do not hesitate to reach out to us again. Best Regards, Carrie
Answered by: Carrie
Date published: 2025-07-17

We replaced 2 faucets with Delta Kayra MODEL#: 533LF-SSMPU. One of the faucets immediately had bad taste and smell from water. Now after a year we still have problem for first few seconds after turning it on. How can we fix issue?

Asked by: MKW1
Hi MKW1, Thank you for your question about the Delta Faucet model 533LF-SSMPU. Please accept our sincere apology for the inconvenience you are experiencing. We are happy to help! Possible causes could be an issue with the water or foreign matter caught in the aerator or faucet. Remove the aerator and clean by soaking in a 50/50 mixture of white vinegar and water. Run the water for a few minutes with the aerator removed to flush the faucet. If the issue remains, further flush the faucet by turning off the water supply, removing the handle and cartridge, and placing a bucket over the faucet to redirect water. Turning on the water will shoot water out of the side of the faucet and flush out any trapped debris or material. Please contact us directly if you have any additional questions! Best Regards, Bryan Digital Communications Specialist
Answered by: Customer Service
Date published: 2024-03-28

How long is the spout? My recent faucet was installed too far back and the spout doesn't reach to the drain. If it doesn't reach far enough, could you recommend a longer spout faucet. Thank you.

Asked by: Torferd
Hello Torferd, Thank you for your question! I am happy to help you! Our Delta Faucet 533LF-MPU has a spout reach of 5" from the back to where the water comes out and all of our single hole, single handle lavatory faucets have approx. 5"-5 1/2" spout reach. Please contact us back for any further questions. Best Regards, Nicole
Answered by: Delta7
Date published: 2024-03-28
  • y_2026, m_6, d_13, h_13CST
  • bvseo_bulk, prod_bvqa, vn_bulk_3.0.46
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_22
  • loc_en_US, sid_533LF-MPU, prod, sort_[SortEntry(order=HAS_STAFF_ANSWERS, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getContent, 13ms
  • questions, product
PART LIST

PART LIST

Image-RP84381

Valdosta®

Valdosta® Bonnet Nut

List Price: $13.20
Online Price: $10.56
Free Ground Shipping All Orders $49+

RP84381

Image-RP63265

Delta®

Delta® Adapter - Slip Joint

List Price: $58.55
Online Price: $46.84
Free Ground Shipping All Orders $49+

RP63265

Image-Master-RP26533

Delta®

Delta® Metal Drain Assembly - Less Lift Rod - Bathroom

List Price: $96.10 - $201.80
Free Ground Shipping All Orders $49+

RP26533

Image-RP63264

Delta®

Delta® Adapter Kit - PEX Compression (10)

List Price: $92.90
Online Price: $74.32
Free Ground Shipping All Orders $49+

RP63264

Image-RP63263

Delta®

Delta® Adapter Kit - PEX Compression (4)

List Price: $45.35
Online Price: $36.28
Free Ground Shipping All Orders $49+

RP63263

3.67 3
Image-Master-RP101379

DELTA

DELTA Escutcheon and Base

List Price: $22.45 - $32.35
Free Ground Shipping All Orders $49+

RP101379

Image-Master-RP84378

DELTA

DELTA Cap

List Price: $11.55 - $18.75
Free Ground Shipping All Orders $49+

RP84378

Image-RP5648

Delta®

Delta® Drain Stopper - Bathroom

List Price: $22.50
Online Price: $18.00
Free Ground Shipping All Orders $49+

RP5648

4.25 8
Image-RP47029

Leland®

Leland® Mounting Bracket - 1H Bathroom

List Price: $18.05
Online Price: $14.44
Free Ground Shipping All Orders $49+

RP47029

5.00 2
Image-RP84376-1.2

Everly®

Everly® Aerator - Water-Efficient - 1.2 GPM

List Price: $18.60
Online Price: $14.88
Free Ground Shipping All Orders $49+

RP84376-1.2

1.00 2
Image-RP12517

Delta®

Delta® Horizontal Rod

List Price: $22.50
Online Price: $18.00
Free Ground Shipping All Orders $49+

RP12517

2.50 6
Image-RP101382

DELTA

DELTA Gasket

List Price: $5.85
Online Price: $4.68
Free Ground Shipping All Orders $49+

RP101382

Image-RP47030

Leland®

Leland® Bathroom Wrench

List Price: $10.00
Online Price: $8.00
Free Ground Shipping All Orders $49+

RP47030

1.00 2
Image-RP12516

Delta®

Delta® Strap w/ Screw

List Price: $18.45
Online Price: $14.76
Free Ground Shipping All Orders $49+

RP12516

Image-RP6142

Delta®

Delta® Gasket

List Price: $12.35
Online Price: $9.88
Free Ground Shipping All Orders $49+

RP6142

2.00 1
Image-RP6140

Delta®

Delta® Nut & Washer - Drain Assembly

List Price: $25.00
Online Price: $20.00
Free Ground Shipping All Orders $49+

RP6140

* Actual pricing may vary and is determined by the selling retailer/wholesaler/dealer.
