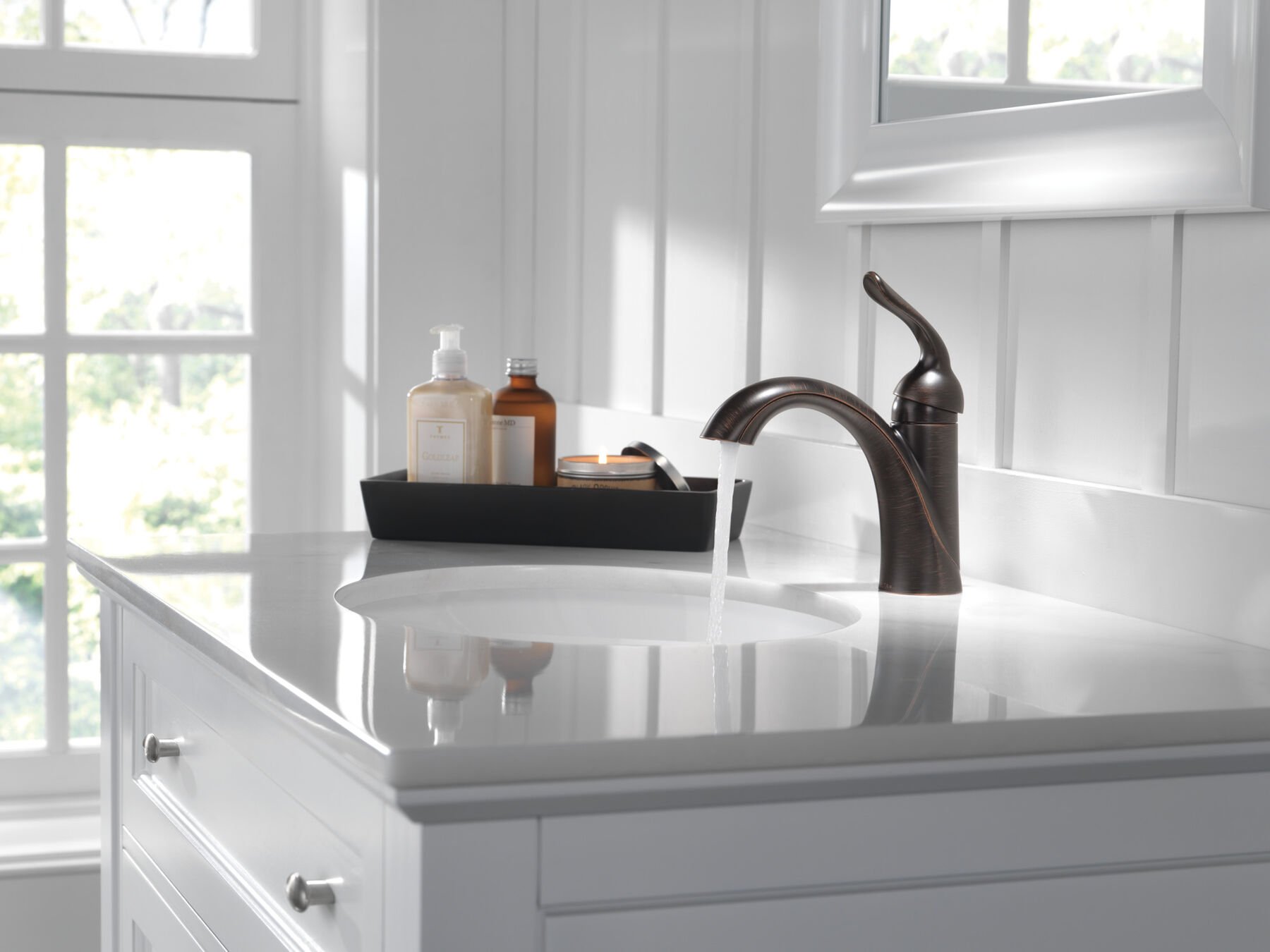

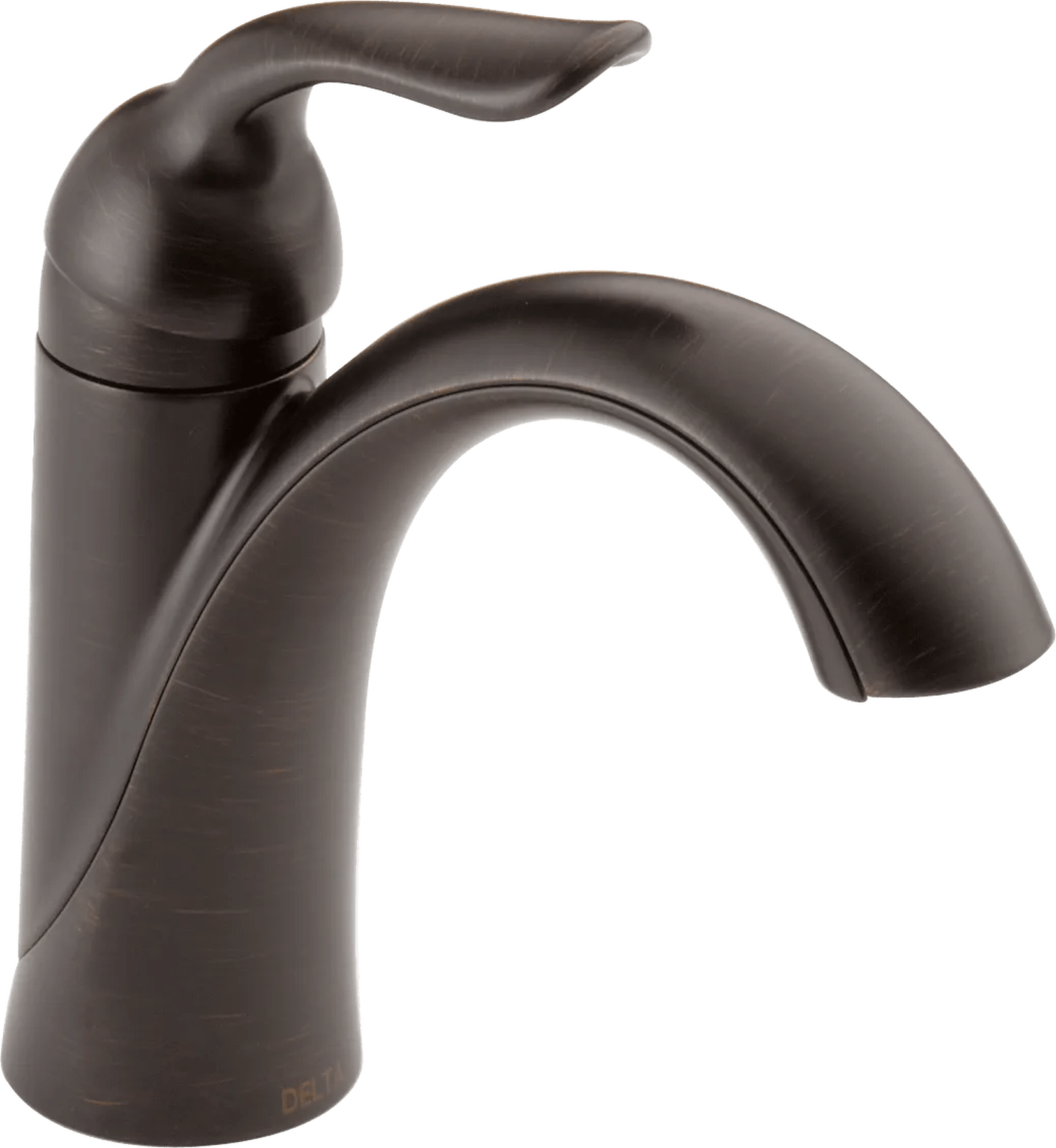

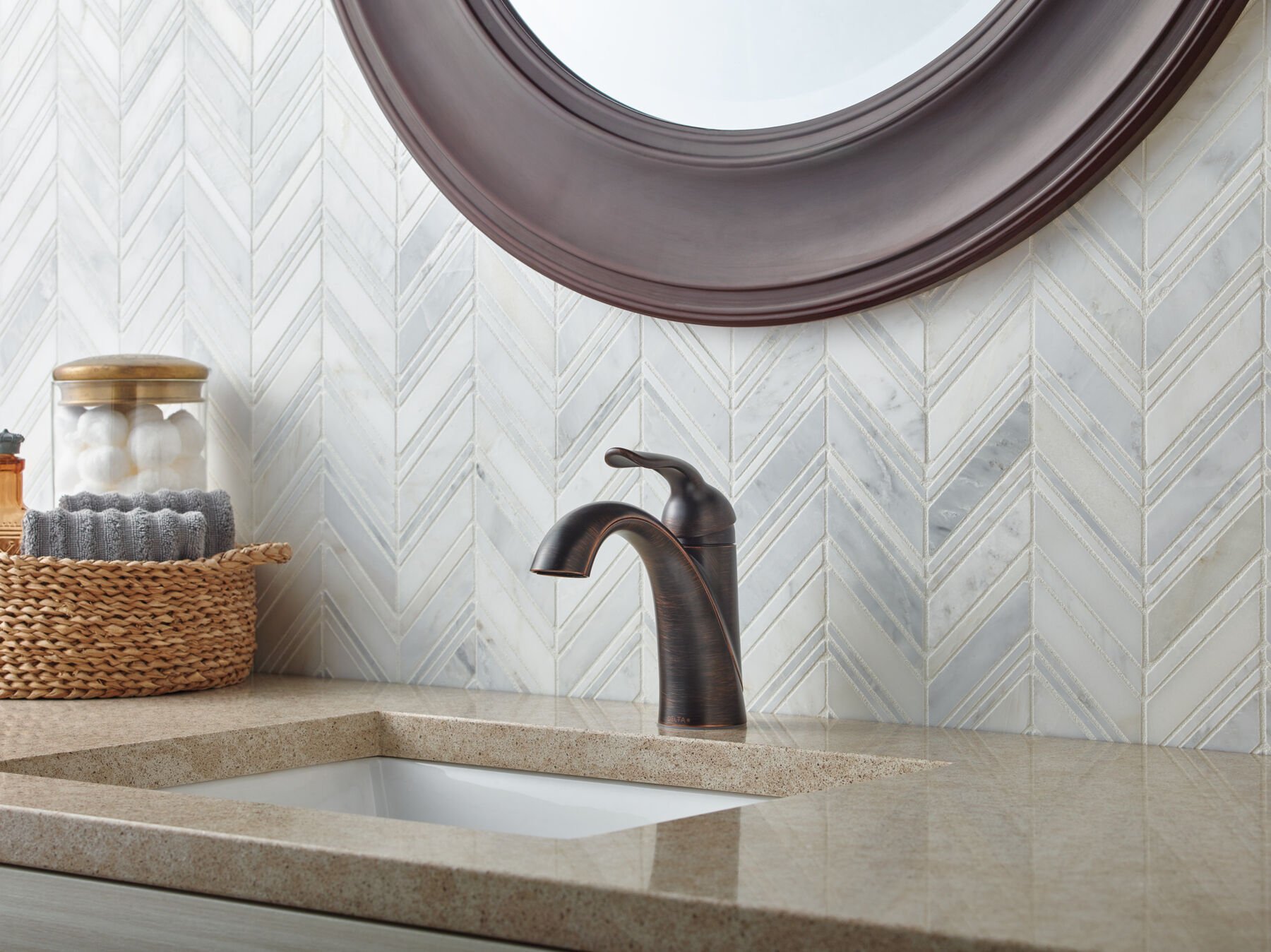

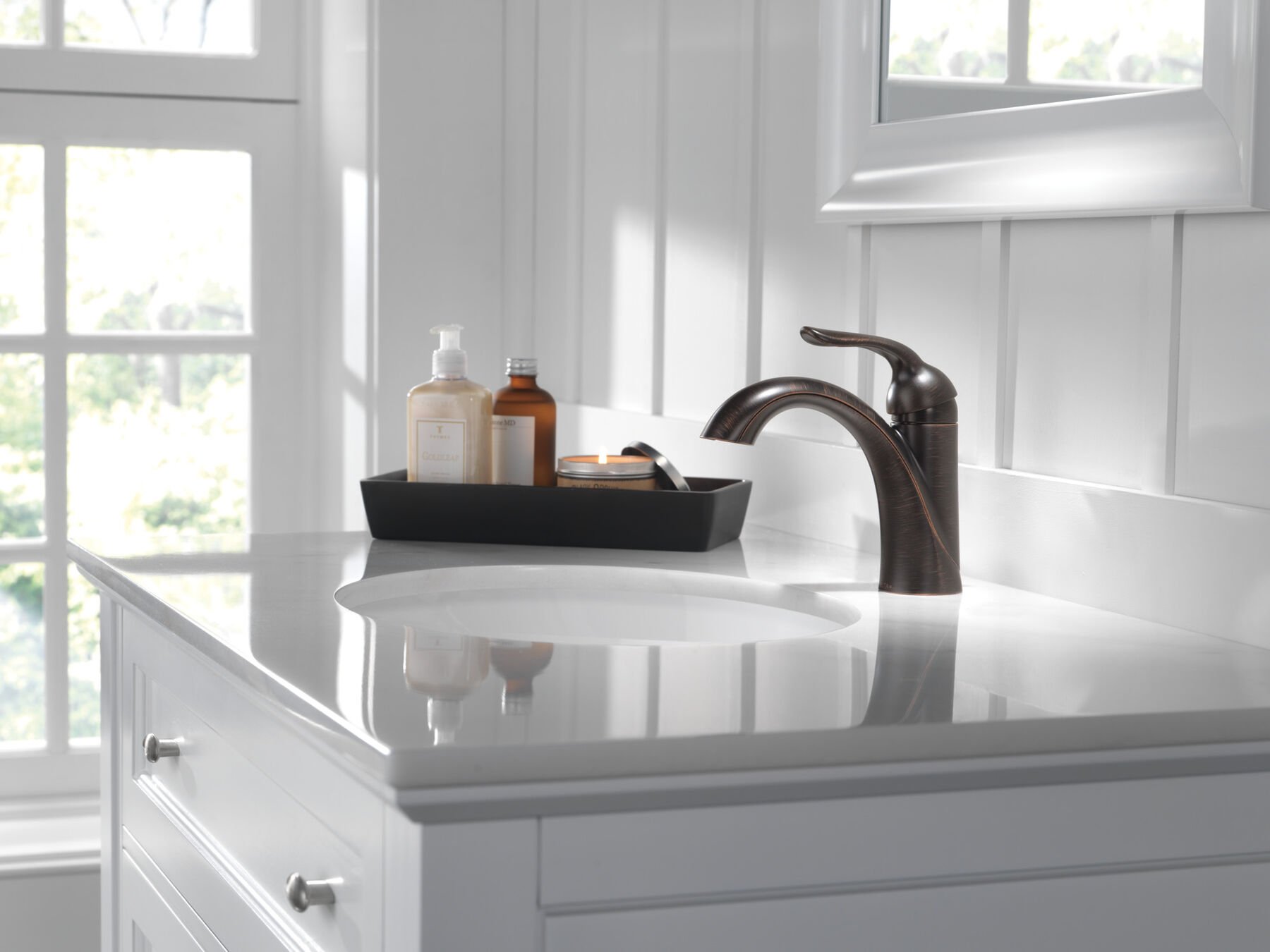

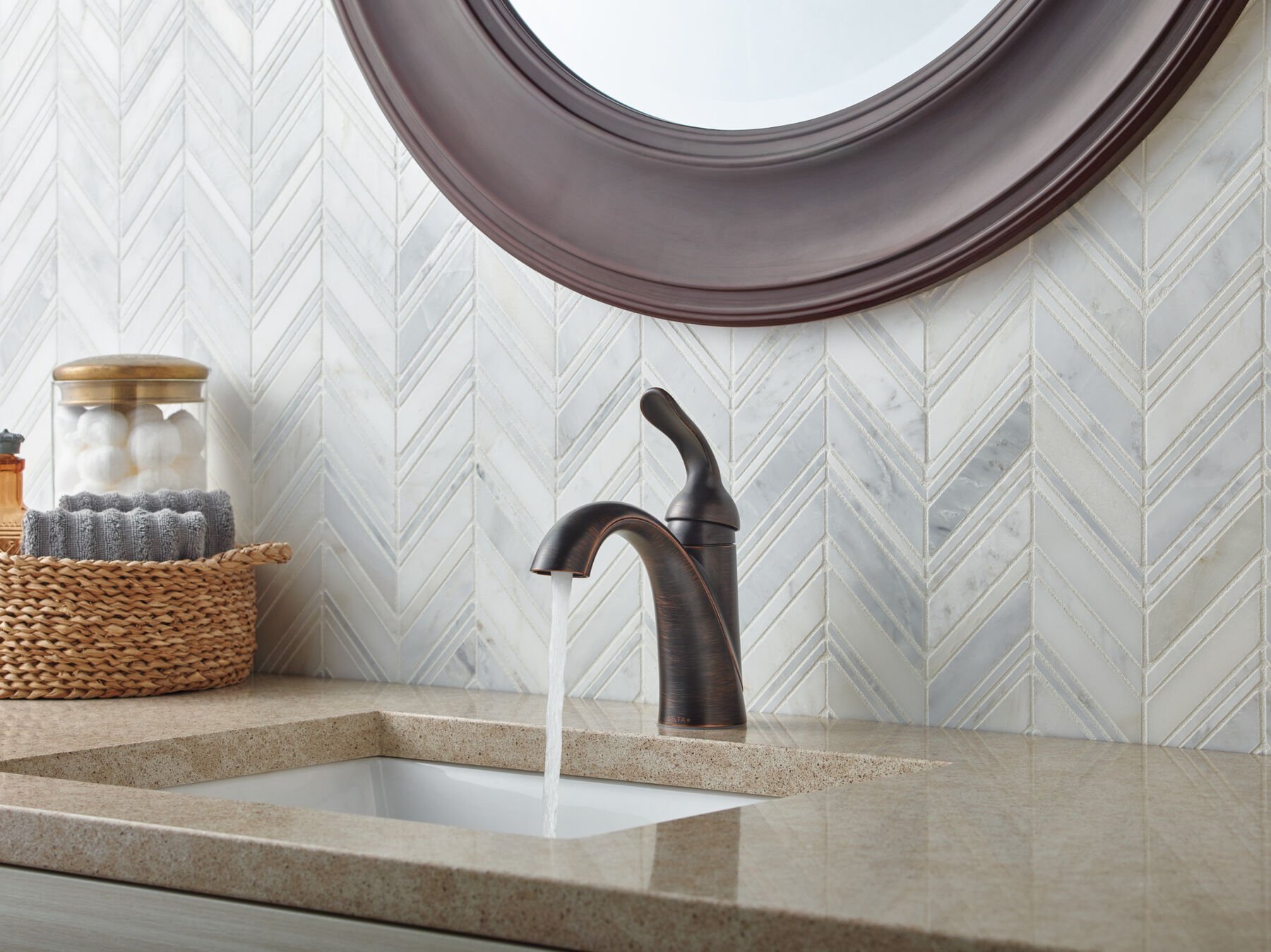

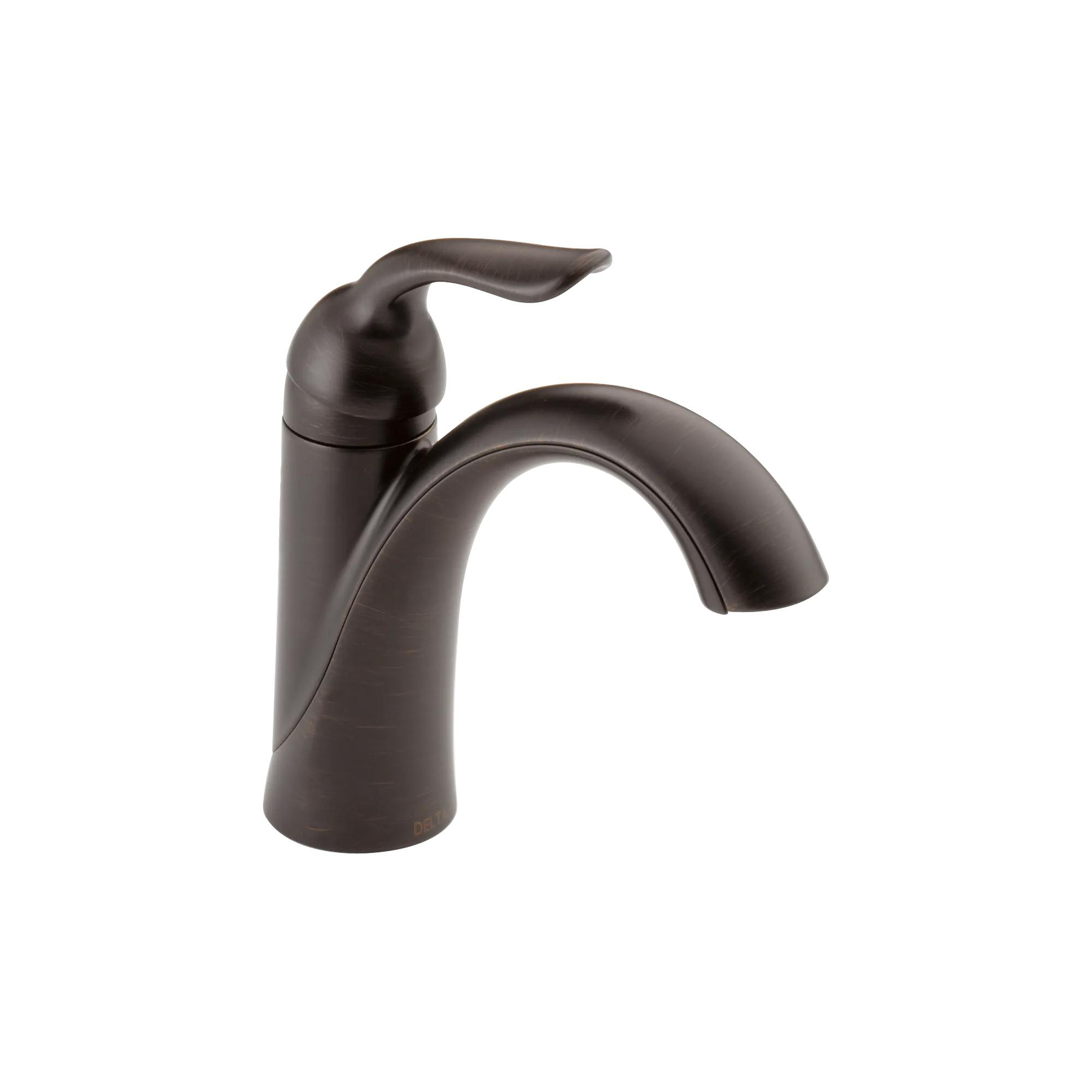

Single Handle Bathroom Faucet in Venetian Bronze
Model#:
538-RBMPU-DST
Image Thumbnail, click to view zoomed product image
null
null
null
null
null
null
null
null
PRODUCT FEATURES
The curved handle and sleek spout of the Lahara® Bath Collection make a lasting impression. Delta® faucets with DIAMOND Seal® Technology perform like new for life with a patented design that reduces leak points, is less hassle to install and lasts twice as long as the industry standard. Delta WaterSense® labeled faucets use at least 20% less water than the industry standard — helping you save water without compromising performance. You can install with confidence, knowing that Delta faucets are backed by our Lifetime Limited Warranty.
- DIAMOND Seal® Technology is less hassle to install and helps your faucet perform like new for life, reducing leak points and lasting twice as long as the industry standard
- Everything you need is together in one convenient box, including integrated InnoFlex® PEX supply lines

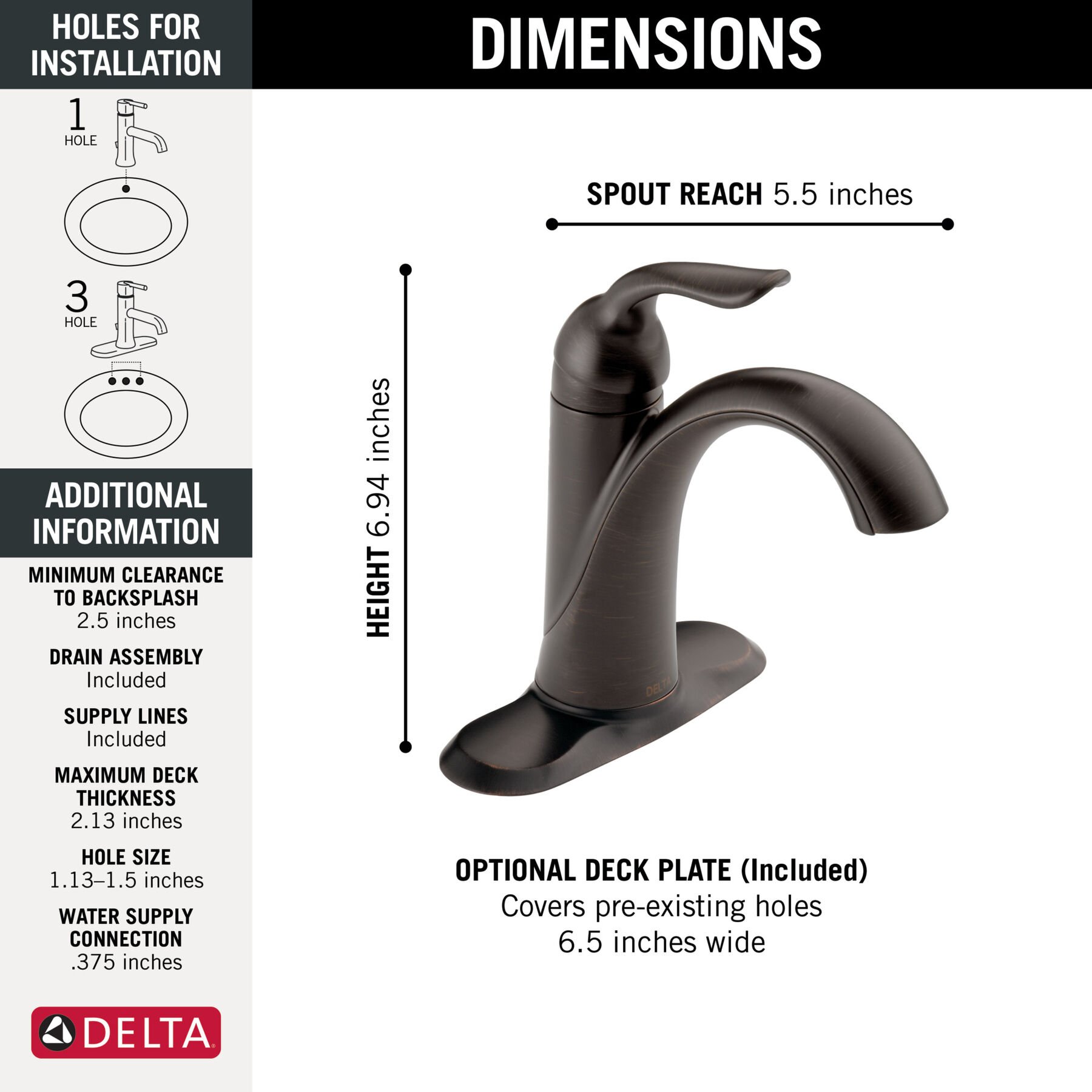

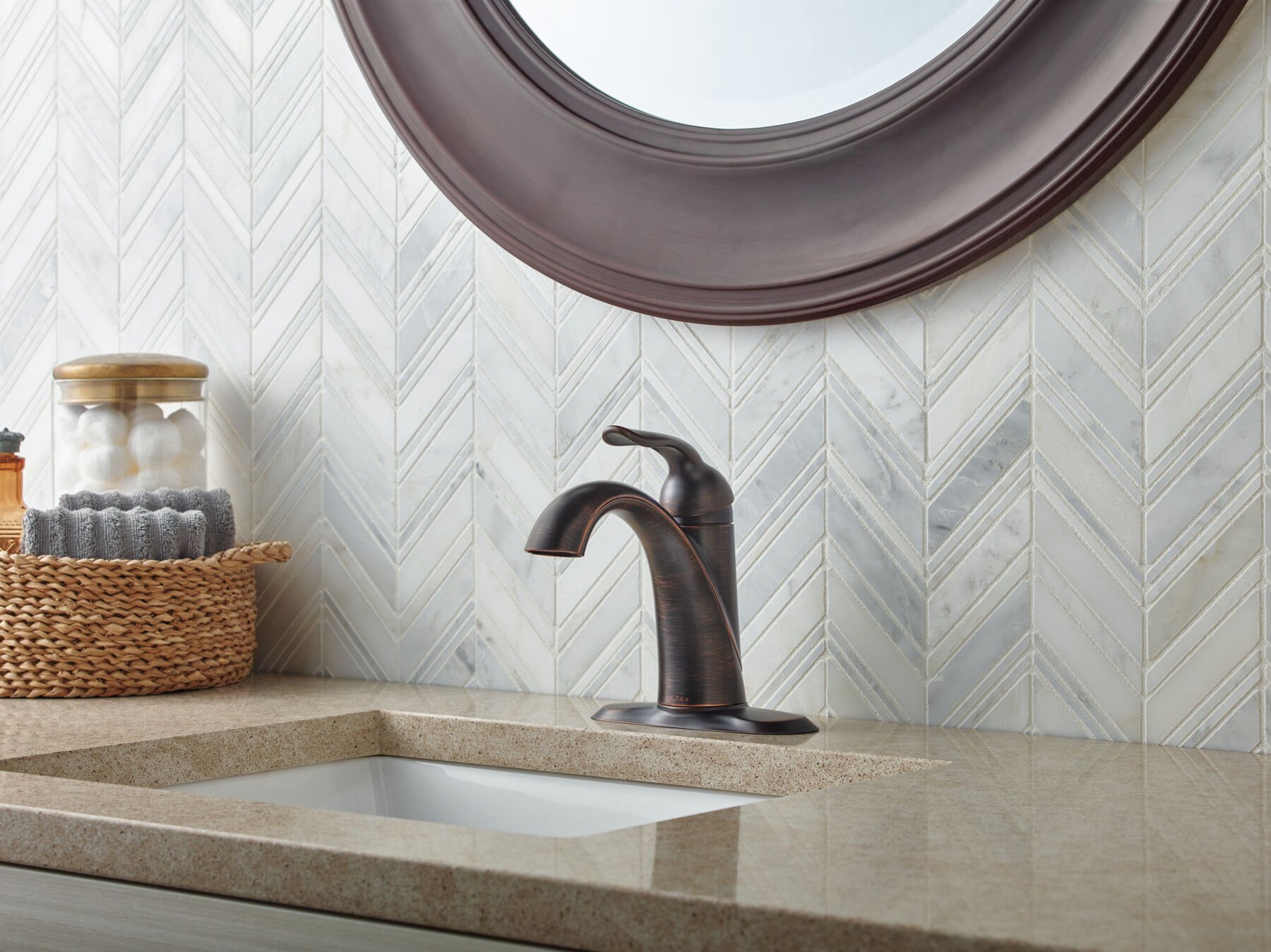

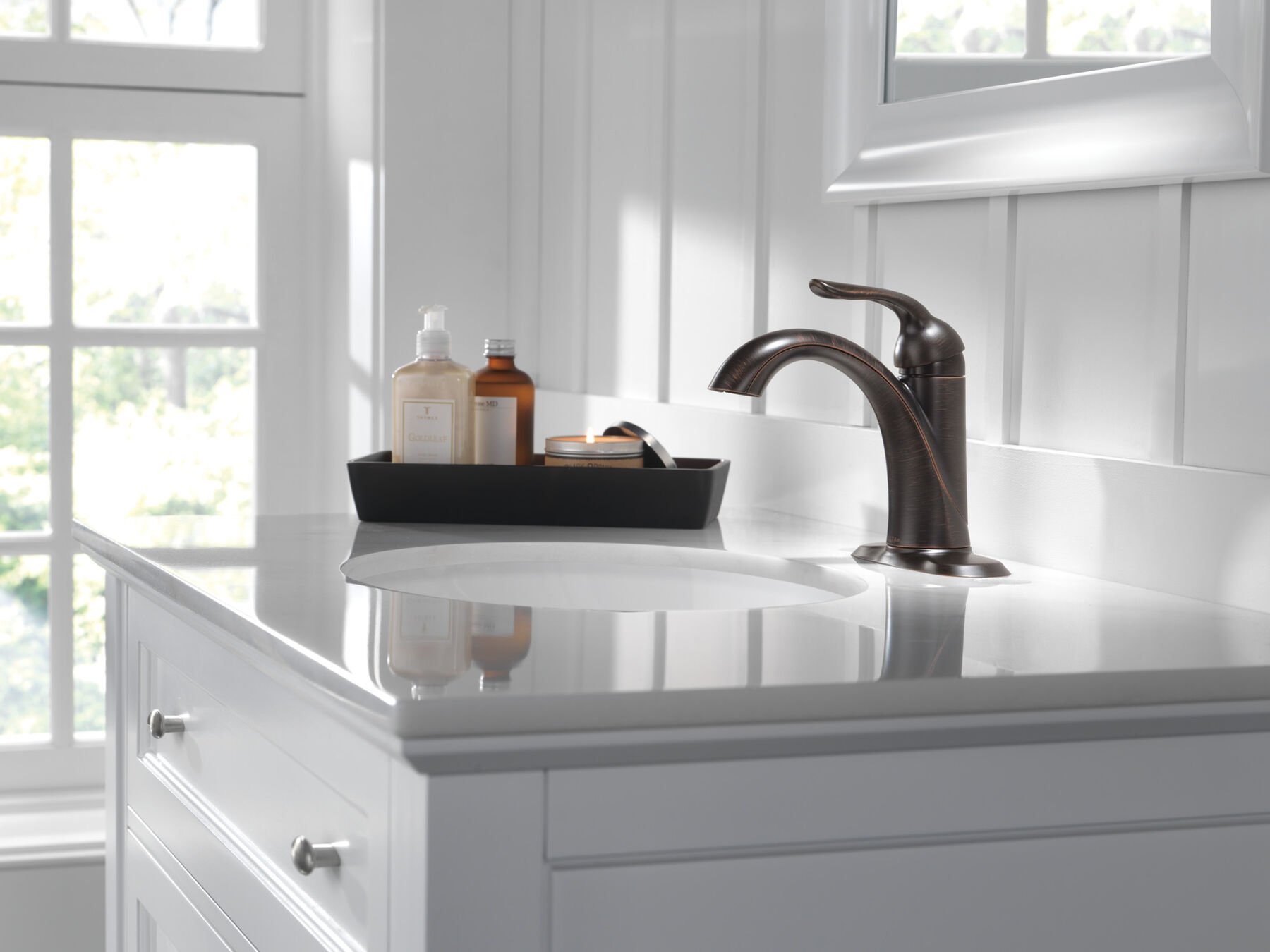

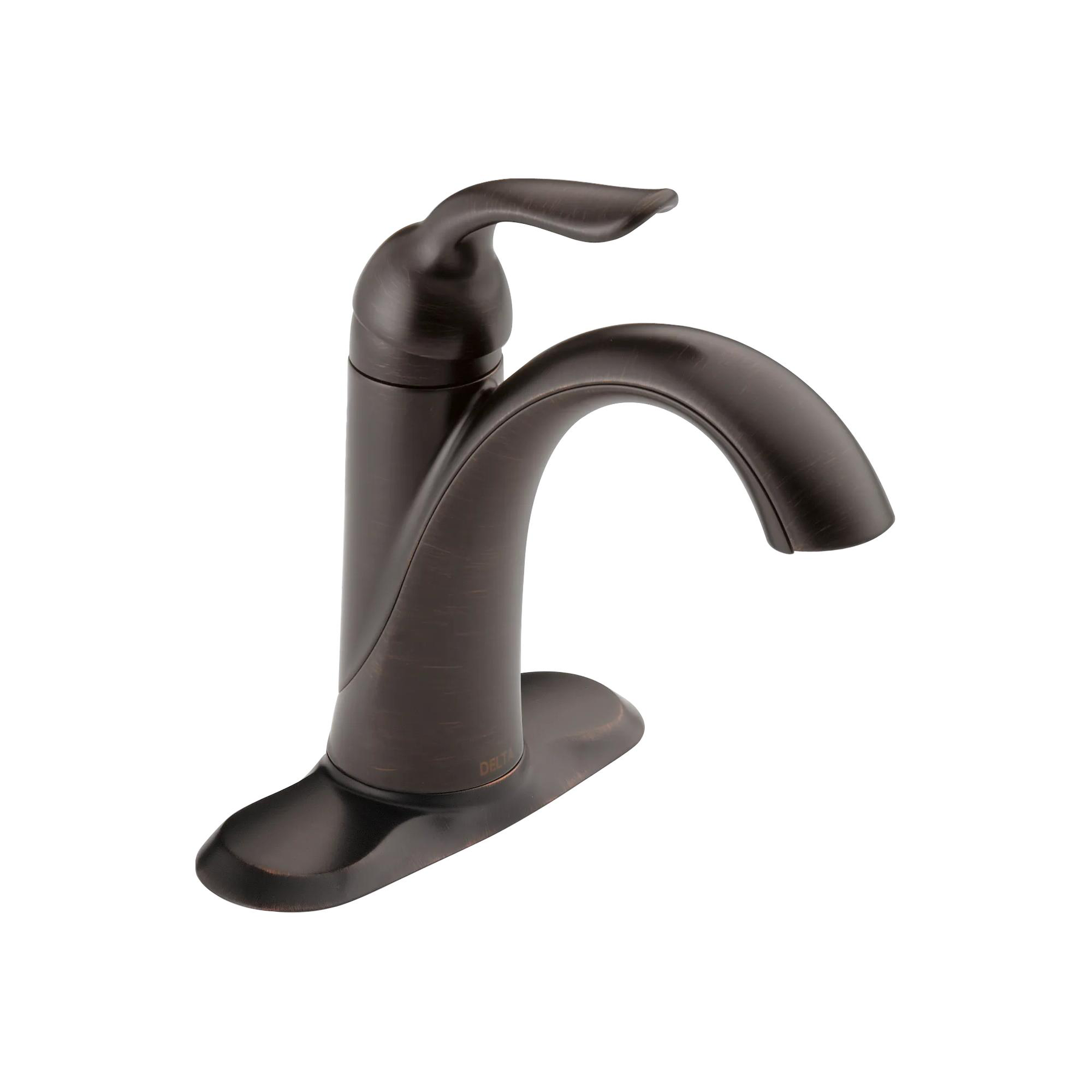

- Fits 1- or 3-hole 4-inch installations (with included optional deck plate)
- Optional red/blue temperature indicator ring included
- Metal push pop-up drain assembly in matching finish (included) is ADA compliant and simple to install, operate and clean
- ADA Compliant
- WaterSense® labeled faucet uses at least 20% less water than the industry standard without compromising performance
- Standard spout
- Backed by Delta Faucet's Lifetime Limited Warranty
Eco-Friendly
WaterSense® Labeled
Technology and Special Features
ADA Compliant
ADA Compliant
Some people, and some local codes, require fixtures that are compliant with the Americans with Disabilities Act. If someone may visit who has special needs, or if you believe future buyers might appreciate this feature, Delta offers a range of compliant fixtures.
No-Lead Compliant
No-Lead Compliant
Tested and certified to NSF/ANSI Standard 61, which sets the criteria for product safety. The lined waterways in Delta® faucets help prevent leaching of metals.
Water-Efficient
Water-Efficient
CalgreenCert Tooltip information here...
Diamond Seal® Technology
Diamond Seal® Technology
DIAMOND™ Seal Technology is Delta’s revolutionary new water delivery system. An internal contact surface made up of tiny diamonds makes the valve leak-free and extraordinarily durable. It also keeps water free of contact with potential metal contaminants.
Documents & Specs
Product Support, Repair Parts & Technical Specifications

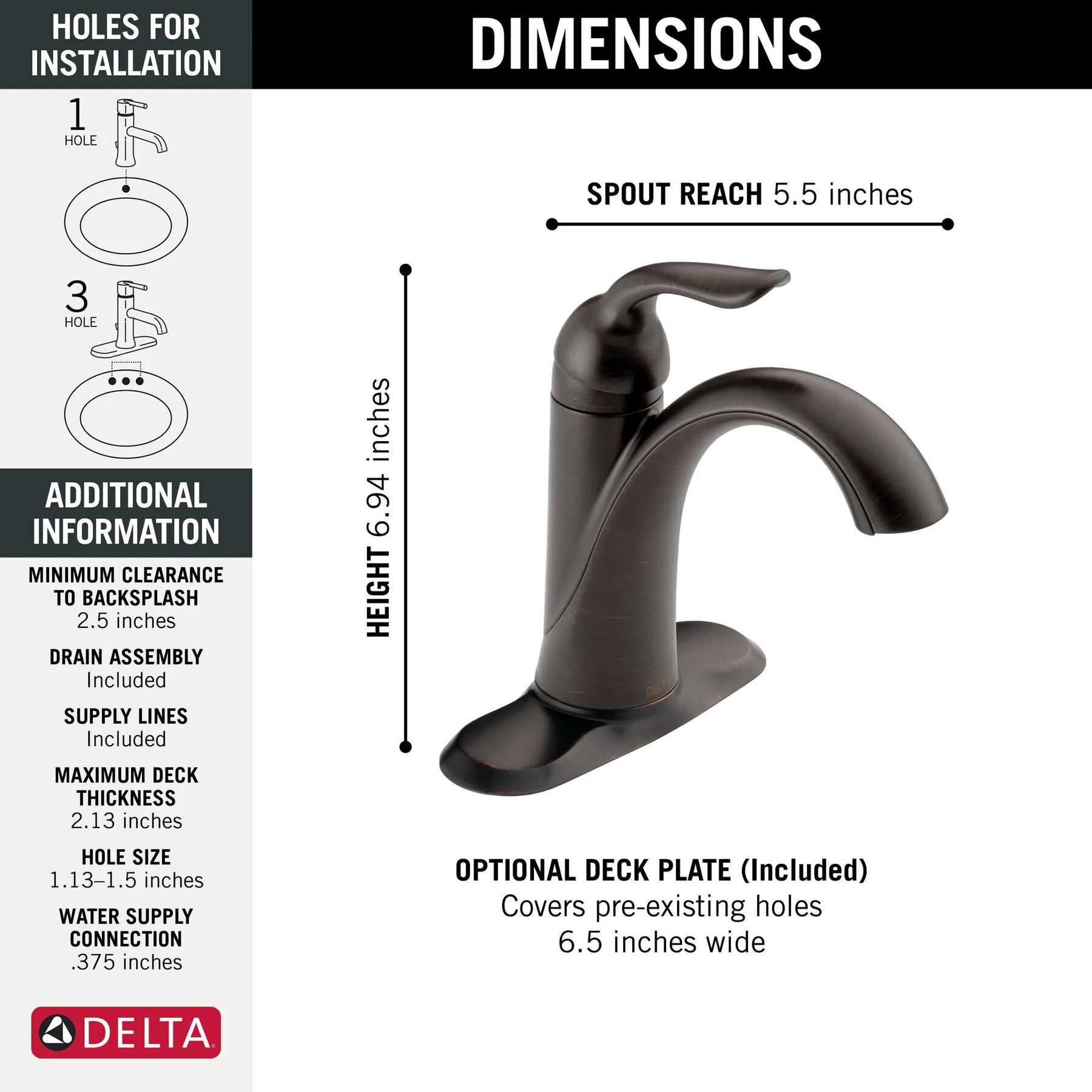

Installation Information
Connection Type :
3/8" compression fittings
Flow Rate :
1.2 gpm @ 60 psi, 4.5 L/min @ 414 kPa
Overall Height (in.) :
7-15/32
Valve Type:
Ceramic Disc
INSTALLATION SUPPORT
Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.
Need help with installation? Mike & Hannah are here to help! Get advice from the pros on everything from installation to product care.
REVIEWS
Rated 1 out of
5
by
Mb from
Not as shown
Not as shown red and blue we’re important
Date published: 2026-03-28
Rated 5 out of
5
by
CR from
Quality product
Quality product color matching description
Date published: 2026-03-19
Rated 5 out of
5
by
Chewys Place from
Great Product
Quality products with a lifetime warranty. Whats not to like.
Date published: 2026-03-17
Rated 5 out of
5
by
Mother85 from
I love this faucet
This faucet is beautiful. It is so easy to use which is perfect for someone older. The pop drain gives a good seal for the basin but allows swift drainage of the basin when open. I’m very pleased with this faucet.
Date published: 2025-11-01
Rated 3 out of
5
by
saranyc626 from
Looks good, but leaking
I really like the look of these faucets. We are living in a newly built house, moved in 10/2024. One of these faucets has already developed a leak from the handle. The leak developed overnight, seeped down the installation hole in the counter top and flooded the bottom of the vanity cabinet, also spilling onto the floor. We currently have the water shut off in that bathroom.
Date published: 2025-09-12
Rated 4 out of
5
by
4375 from
Well Designed, but Stainless Finish shows Water Spots
We remodeled two bathrooms and installed Lahara faucets in both of them. In one bathroom, we installed the Champagne Bronze finish, which is lovely. In the other bathroom, we installed the Stainless finish. I really love the function/feel of this faucet in every other way, but was surprised that the Stainless finish shows water spots. It's not a big deal to me. It's our kids bath, and functionality/durability is more important to me in that room than a spotless appearance (it will NEVER be spotless anyway :p). All of the plumbing fixtures in that bathroom are Delta stainless finishes and they ALL show water spots badly.
Date published: 2025-04-20
Rated 5 out of
5
by
4375 from
Smart Design
We had the Delta Lahara single hole faucet in Champagne Bronze installed in a powder room renovation. It is a beautiful faucet with very smoothly functioning features. Maybe it sounds weird, but the handle feels really nice in my hand...smooth to the touch, well designed, smooth action. We also installed the same faucet in stainless, in another bathroom. But the stainless finish tends to show water spots.
Date published: 2025-04-20
Rated 1 out of
5
by
Sahara10 from
There are better options
If you have children, I wouldn't suggest this. This faucet has the most sensitive shut off lever and is always dripping. You'll spend 5 minutes just trying to figure out the correct position for the lever so it stops dripping. Not worth it.
Date published: 2025-02-10
Q&A
Aeriator Part Number
I need the part number for a replacement aeriator for the 538-RBMPU-DST faucet. Can I order that part from you, or can you recommend a vendor?
Hi tomlokey,
Thank you for your question! The aerator for this model is the RP52216. Spare parts can be purchased through our online store, or you can click the Where to Buy tab at the top for more options.
http://www.deltafaucet.com/repairparts/details/rp52216.html
Thanks,
Jon
Date published: 2024-03-28
I need a wrench aerator for this model for removing the screen in the part that water comes out of
Thank you for your question, Janie! The part number of the aerator removal wrench on model 538-RBMPU-DST is RP52217. I have included a link to the wrench's web page, for you to refer to.
https://www.deltafaucet.com/parts-product-detail?modelNumber=RP52217
Best Regards, Benjamin
Date published: 2024-03-28
I have these faucets in all my bathrooms. One faucet has always been loss since install and the plumber said the set rod is stripped and that I need to order a new faucet. Would Delta warranty this faucet? I could send it back to Delta if that would help.
Hello,
Please accept our sincere apology for the inconvenience you are experiencing. We have reached out to you via email to further assist at this time.
Best Regards,
Tim
Digital Communications Specialist
Date published: 2024-12-06
I have the 358-mpu-dst with the original rp52216 aerator which I believe a 1.2 gal. Is there a replacement that would give me at least 2+ gal? The 1.2 just is not strong enough for what I need it for. Otherwise we like the 3 faucets we had installed. Tks
Hi, Evstar!
Thank you for your question. The Delta RP46827 Aerator is 2.2 gpm and will fit the Delta 538-RBMPU-DST Faucet.
Best Regards, Rosanna
Date published: 2024-03-28
What are these made out of? Plated pot metal? Stainless? Brass? Thank you
Hello,
Thank you for your question!
Our faucets are made of several materials and differs on the model. They can contain bronze, brass, zinc, stainless steel, copper and plastics.
This model may contain, bronze, brass (36000, 260) (hub, handle, body, tube, fittings, zinc (escutcheon, hub, handle), stainless Steel (undercover plate, seat liner, set screw), copper (tubing), aluminum, PEX-C (puck and tubing), silicone (gaskets), synthetic rubber - EDPM, santoprene (hoses), vinyl (hoses), nylon, plastics, and ceramics.
Please reach out with further questions!
Best Regards,
Tim
Digital Communications Specialist
Date published: 2025-08-06
What is model # for the 6 1/2" add on?
A previous user asked if this was one piece or two and Delta answered saying one piece but that there was an additional 6 1/2" piece that could be attached to it. Is this to make the faucet a high riser for use with a vessel sink? If so, I am interested in this piece but could not find it anywhere. Can you please advise?
Hi Sstchur, Thank you for your question. The 6-1/2" add on is part of the faucet body and not available as a separate piece. The Lahara series does not offer a vessel bowl version of the model 538-SSMPU-DST.
Thanks,
Dave
Date published: 2024-03-28
Plug for Pop up Lift Rod hole?
Is there a plug available for the pop up lift rod hole in the back of the faucet?
HI Chris C, Thank you for your question!
You can try the RP72289 lift rod plug. Please be aware this item does not fit all of our faucets.
Best regards,
Brandis
Date published: 2024-03-28
How do I remove the water restrictor on this faucet?
Hi Jimbo, Thank you for your question!
The aerator on the model 538-SSMPU-DST needs to be removed with the RP52217 aerator wrench.
Best regards,
Brandis
Date published: 2024-03-28
PART LIST
PART LIST
View Product
![Image-RP40650]()
Michael Graves™
Michael Graves™ Set Screw
List Price:
$7.15
Online Price:
$5.72
Free Ground Shipping All Orders $49+
RP40650
5.00
3
View Product
![Image-Master-RP101074]()
DELTA
DELTA Escutcheon with Gasket
List Price:
$40.50
-
$60.65
Free Ground Shipping All Orders $49+
RP101074
View Product
![Image-Master-RP26533]()
Delta®
Delta® Metal Drain Assembly - Less Lift Rod - Bathroom
List Price:
$96.10
-
$201.80
Free Ground Shipping All Orders $49+
RP26533
View Product
![Image-RP63265]()
Delta®
Delta® Adapter - Slip Joint
List Price:
$58.55
Online Price:
$46.84
Free Ground Shipping All Orders $49+
RP63265
View Product
![Image-RP63264]()
Delta®
Delta® Adapter Kit - PEX Compression (10)
List Price:
$92.90
Online Price:
$74.32
Free Ground Shipping All Orders $49+
RP63264
View Product
![Image-RP5648RB]()
Delta®
Delta® Drain Stopper - Bathroom
List Price:
$48.25
Online Price:
$38.60
Free Ground Shipping All Orders $49+
RP5648RB
4.25
8
View Product
![Image-Master-RP51502]()
Delta®
Delta® Bonnet Cap
List Price:
$18.05
-
$49.70
Free Ground Shipping All Orders $49+
RP51502
View Product
![Image-RP63263]()
Delta®
Delta® Adapter Kit - PEX Compression (4)
List Price:
$45.35
Online Price:
$36.28
Free Ground Shipping All Orders $49+
RP63263
3.67
3
View Product
![Image-RP62156]()
Lahara®
Lahara® Gasket
List Price:
$15.70
Online Price:
$12.56
Free Ground Shipping All Orders $49+
RP62156
View Product
![Image-RP5648]()
Delta®
Delta® Drain Stopper - Bathroom
List Price:
$22.50
Online Price:
$18.00
Free Ground Shipping All Orders $49+
RP5648
4.25
8
View Product
![Image-RP47029]()
Leland®
Leland® Mounting Bracket - 1H Bathroom
List Price:
$18.05
Online Price:
$14.44
Free Ground Shipping All Orders $49+
RP47029
5.00
2
View Product
![Image-RP12517]()
Delta®
Delta® Horizontal Rod
List Price:
$22.50
Online Price:
$18.00
Free Ground Shipping All Orders $49+
RP12517
2.80
5
View Product
![Image-RP47030]()
Leland®
Leland® Bathroom Wrench
List Price:
$10.00
Online Price:
$8.00
Free Ground Shipping All Orders $49+
RP47030
1.00
2
View Product
![Image-RP12516]()
Delta®
Delta® Strap w/ Screw
List Price:
$18.45
Online Price:
$14.76
Free Ground Shipping All Orders $49+
RP12516
View Product
![Image-Master-RP51343]()
Lahara®
Lahara® Button - Hot / Cold Indicator - Blue
List Price:
$10.65
Online Price:
$8.52
Free Ground Shipping All Orders $49+
RP51343
View Product
![Image-RP52217]()
Delta®
Delta® Aerator Removal Wrench
List Price:
$25.50
Online Price:
$20.40
Free Ground Shipping All Orders $49+
RP52217
3.73
11
