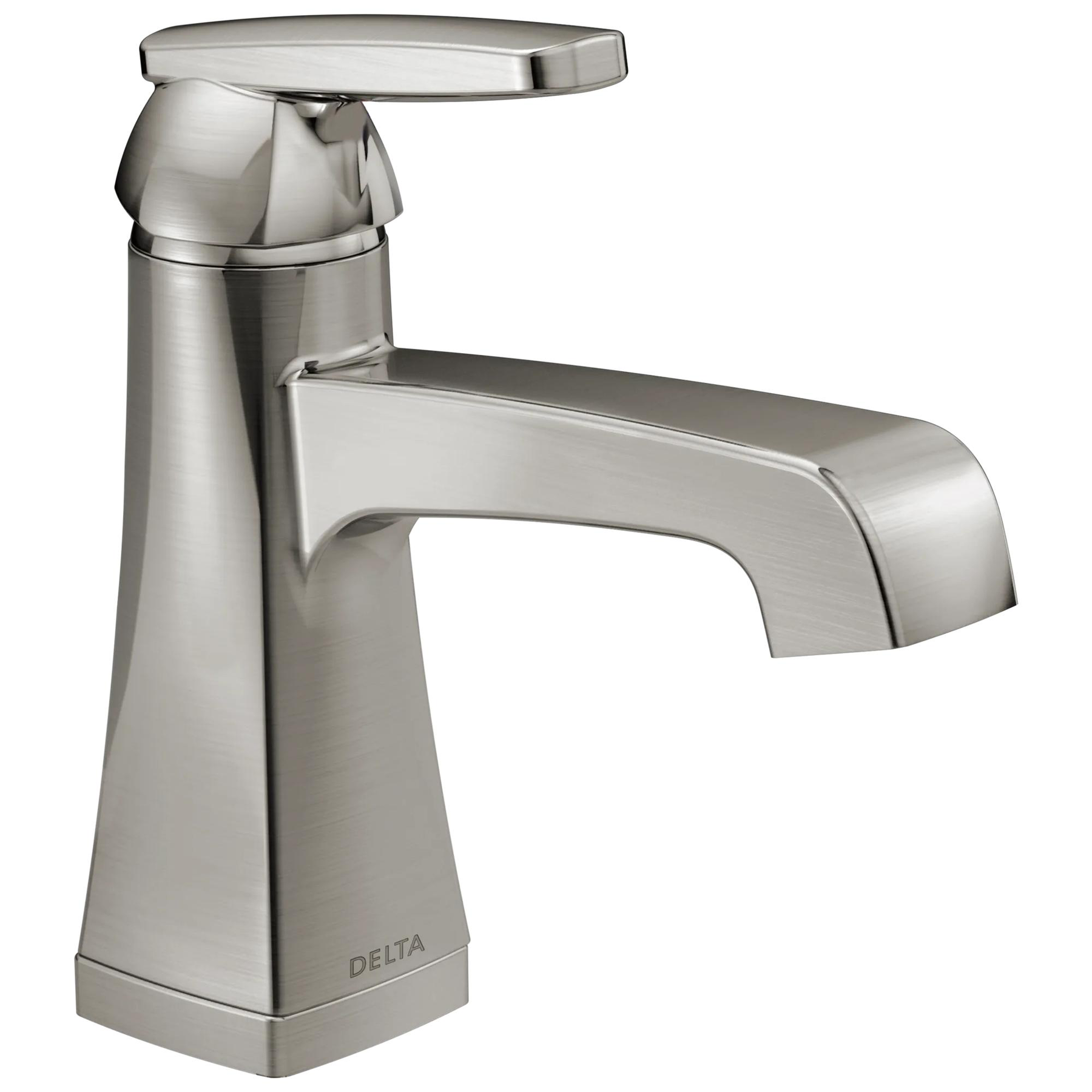

Single Handle Bathroom Faucet in Stainless

Model#: 564-SSMPU-DST
Single Handle Bathroom Faucet in Stainless
Model#: 564-SSMPU-DST
List Price: $41300
PRODUCT FEATURES
With sleek, angular lines and soft edges, the Ashlyn® Bath Collection creates a modern appeal at an attractive price. Delta® faucets with DIAMOND Seal® Technology perform like new for life with a patented design that reduces leak points, is less hassle to install and lasts twice as long as the industry standard. Delta WaterSense® labeled faucets use at least 20% less water than the industry standard — helping you save water without compromising performance. You can install with confidence, knowing that Delta faucets are backed by our Lifetime Limited Warranty.
  • DIAMOND Seal® Technology is less hassle to install and helps your faucet perform like new for life, reducing leak points and lasting twice as long as the industry standard
  • Everything you need is together in one convenient box, including integrated InnoFlex® PEX supply lines

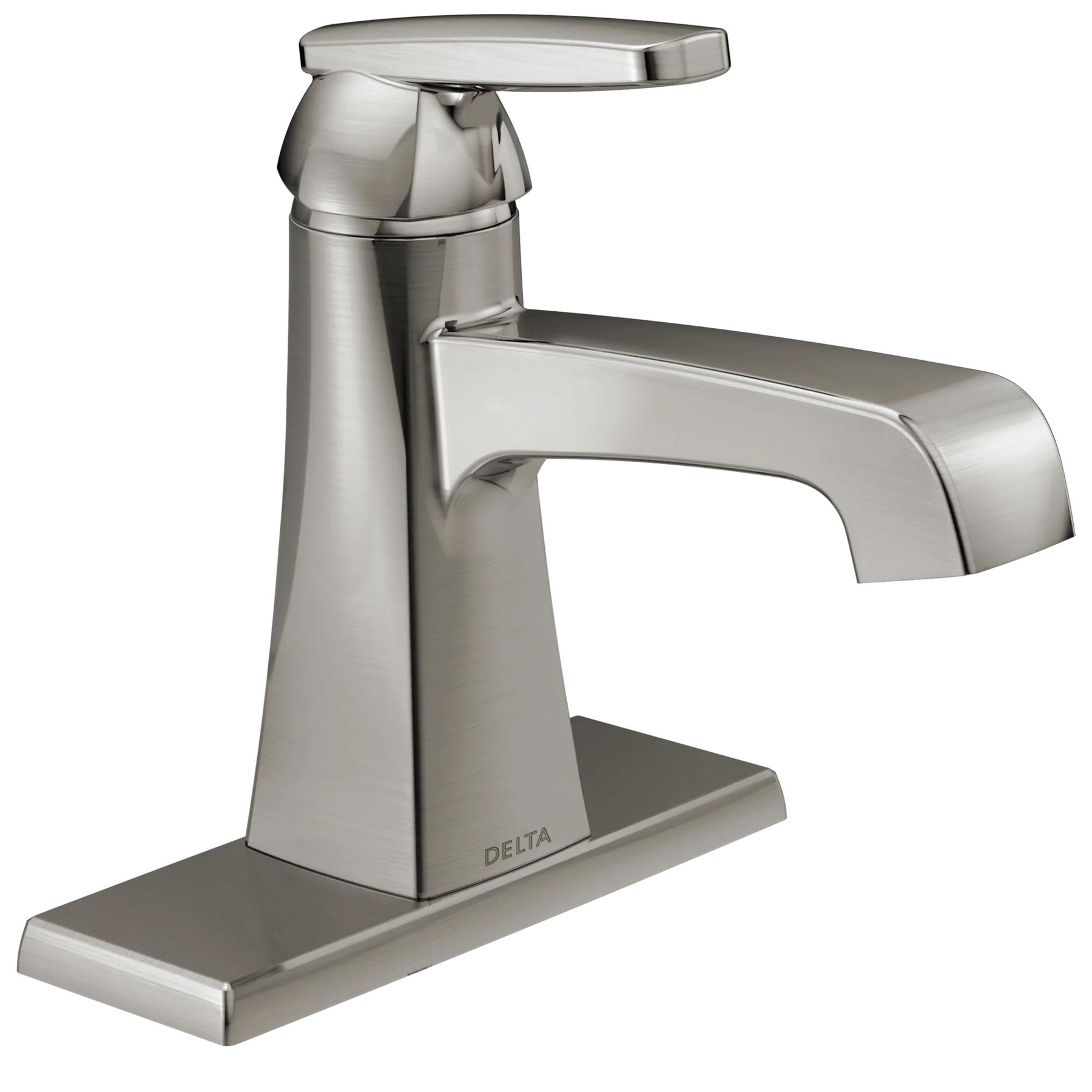

  • Fits 1 or 3-hole 4-inch installations (with included 6-inch deck plate)
  • Optional red/blue temperature indicator ring included
  • Metal push pop-up drain assembly in matching finish (included) is ADA compliant and simple to install, operate and clean
  • ADA Compliant
  • WaterSense® labeled faucet uses at least 20% less water than the industry standard without compromising performance
  • Rigid spout does not swivel
  • Backed by Delta Faucet's Lifetime Limited Warranty
Eco-Friendly
WaterSense® Labeled
Technology and Special Features
ADA Compliant
No-Lead Compliant
Brilliance® Finish
Water-Efficient
Diamond Seal® Technology
Documents & Specs
Installation Information

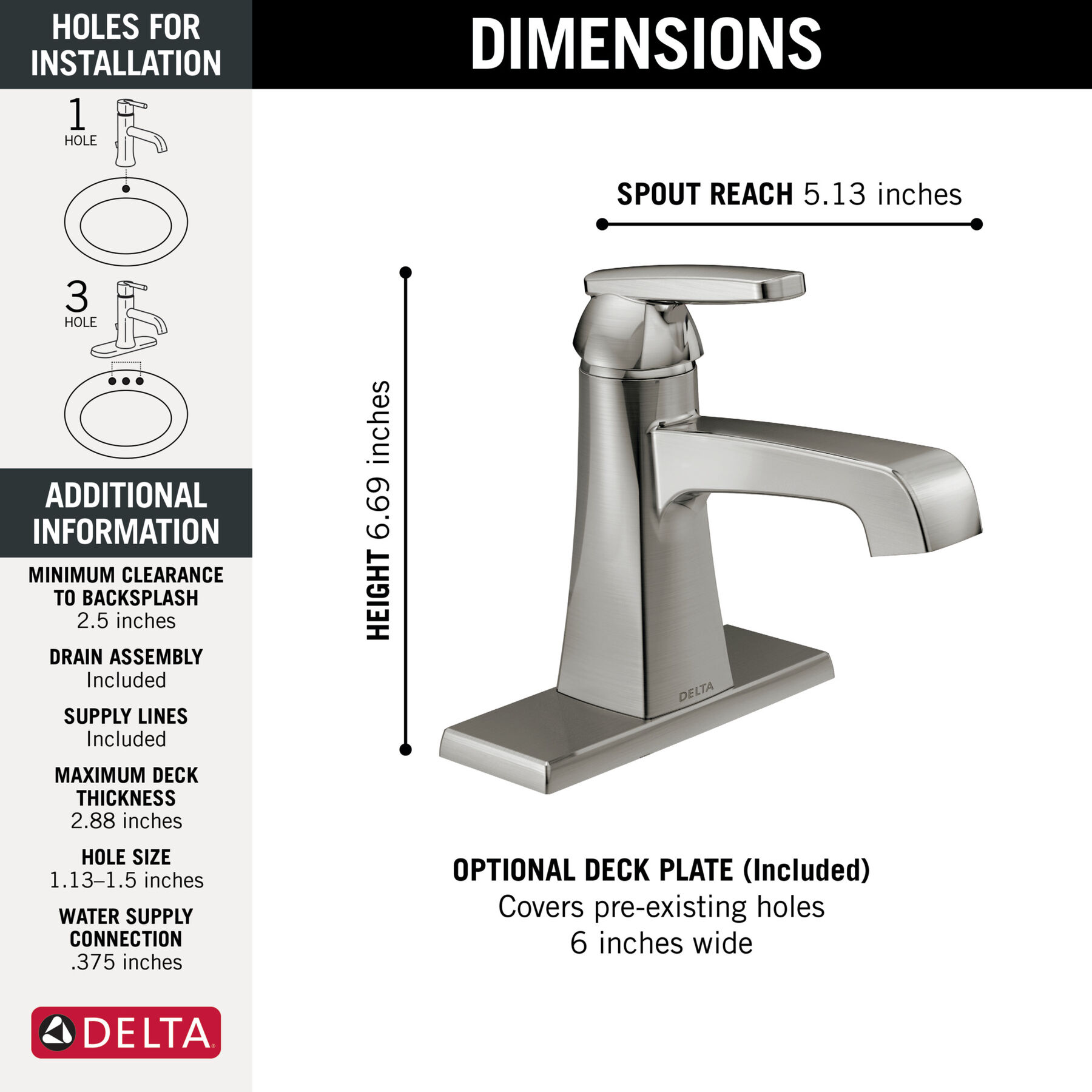

1 or 3-hole 4" installation
1 or 3-hole 4" installation
Connection Type :
3/8" compression fittings
Flow Rate :
1.2 gpm @ 60 psi, 4.5 L/min @ 414 kPa
Overall Height (in.) :
6-11/16
Valve Type:
Ceramic Disc

INSTALLATION SUPPORT

Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.

GO
Enter Valid Zip.
REVIEWS
Rated 5 out of 5 by from Delta bronze faucets Worth every penny. These are built to last and and are beautifully designed
Date published: 2026-05-02
Rated 5 out of 5 by from Beautiful Faucet I bought a new faucet with great trepidation. Most things are pretty junky these days, but I knew as soon as it arrived I had chosen well. It's heavy, sturdy, and feels like a quality piece of equipment. The finish was beautiful. Even the packing material was sturdy. It was just installed today so I haven't had a chance to use it. I hope it will perform as well as it looks.
Date published: 2026-03-16
Rated 5 out of 5 by from Quality Fixtures All of the products I purchased were Delta so I know they will look good and last a long time.
Date published: 2025-12-09
Rated 5 out of 5 by from Worry it Nice product, looks great
Date published: 2025-12-06
Rated 5 out of 5 by from Very Happy ! Quality fixture ; excellent components , design , finish , and easy to install. Pricey but you get what you pay for !
Date published: 2025-08-30
Rated 5 out of 5 by from Delta quality! Very nice fixture. High quality
Date published: 2025-06-25
Rated 5 out of 5 by from Expensive but worth it! Straightforward installation Looks beautiful
Date published: 2024-10-22
Rated 5 out of 5 by from Nice finish It’s really nice, just what I was looking for! Takes up less space than my previous faucet!
Date published: 2024-09-05
  • y_2026, m_7, d_24, h_8
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.48
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_76
  • loc_en_US, sid_564-SSMPU-DST, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 176ms
  • reviews, product
Q&A

What is the finish on the 564SSMPUDST? Is it "brushed" or "brilliant"

Can't tell from the brochure if this faucet has a "brushed" or "brilliant" stainless steel finish. Please advise.
Asked by: ROBERT
Hello Robert, Thank you for your question. The 564-SSMPU-DST single handle lavatory faucet is in the Brilliance Stainless Steel finish. Best regards, Brandis
Answered by: DeltaFaucet7
Date published: 2016-09-06

Have already Ashlyn taps for the sinks and was going to use same for the Roman filler - reno has gone a different direction and I would like to use a freestanding tub filler...is there an Ashlyn version or what is the closest handle and spout to match?

Asked by: canadian_remoob
Thank you for your question, canadian_remoob! The Delta Ashlyn collection does not have a standing tub filler option currently and we apologize for any inconvenience this may cause. The Delta Stryke free standing Floor Mount Tub Filler, model T47766-SSFL would be the closest stylistically. https://www.deltafaucet.com/bathroom/product/T47766-SSFL Best regards, Edward
Answered by: Delta Faucet
Date published: 2024-03-28

How long is the spout from the faucet to the edge?

I need to know how long the spout is so I can determine how far the spout sits over the sink.
Asked by: ChrisfromLI
Hi Chris, Thank you for your question. The spout on the model 564-SSMPU-DST measures 5-1/8" from the faucet center to the middle of the water stream. Here is a link to the spec sheet. http://www.deltafaucet.com/customersupport/documentation/564-ssmpu-dst.html?document=ts&fromDetailArea=bath&documentIndex=0#flashWrapper Thanks, Dave
Answered by: DeltaFaucet2
Date published: 2024-03-28

I have seen 2 different spec sheets for this faucet. Each has a different measurement for the distance needed from the back of the faucet to the backsplash. Can you please clarify?

Asked by: susierj
Hi, Susie! Thank you for your question. The clearance to back splash for the Delta 564-SSMPU-DST Faucet should measure at a minimum of 2 1/2" (64 mm). Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2024-03-28

Any difference in quality/construction based on the retailer?

Hi, is there any difference in this faucet purchased from a big box store like Lowe's as compared to a plumbing supply store like Ferguson? My plumber told me that the ones at Lowe's use cheaper materials, and the much lower price at Lowe's than even the cheapest online plumbing supply store supports this, but they appear to have the exact same model number and specs. Also, does it carry the same warranty from Delta regardless of where it was purchased?
Asked by: Kren
Hi, Kren! Thank you for your question. The 564-SSMPU-DST will be the same exact make and quality where ever you choose to purchase the faucet at. The Lifetime Limited Warranty is the same regardless of where you choose to buy the faucet. Best Regards, Rosanna
Answered by: DeltaFaucet11
Date published: 2024-03-28

The Hit water flow is weak and not very hot . Could you tell me if there is an adjustment I do not see?

Asked by: PJW5
Hi, PJW5! Thank you for your question, and I am sorry to hear that you are experiencing some issues with your Delta faucet. There is an adjustment to be able to make your faucet give hotter water. To do this, remove your handle and you will find the stem of the cartridge assembly. There is a switch on the cartridge located above the stem. Switch this to the left side. This will allow the hottest water. This will not adjust the flow for your hot water, however. For low flow at your hot side, we recommend to flush the supply lines for the flow issue. Over time, common water debris will settle in the house supply lines. Anytime the water is shut off to a portion of the home, this debris can become dislodged and will move through the pipes to be caught by a faucet. Local construction or the changing of the seasons can also cause this. Flushing the supply lines through the unit should remedy this situation. To flush the unit, we recommend the following: Start with the easy stuff: Remove your aerator, wand or hose to check the flow through the unit without that part installed. If the flow is good, the piece you’ve removed is where the issue is. Soaking the part in a 50/50 mixture of white vinegar and water could help remove any particles or debris blocking the flow. If the water does not have a good flow, the problem could be in the faucet. Next, check the supply lines for debris: Turn the supply off to both the hot and cold-water lines. Once off, turn the handle on the faucet to the on position and leave it there to bleed the lines of any excess water. Next, disconnect the hot water supply line and place it inside of a bucket. Once the line is securely positioned into the bucket, turn on the cold-water supply. Since the handle was left in the on position, the water will flow up the cold supply line, through the faucet cartridge and back down the hot water line into the bucket. Leave this flowing for at least 30 seconds. After flushing, reconnect the hot water line and repeat this process with the cold-water line to ensure all particles have been removed from both supplies. If you still have issues, please contact our Delta Customer Service line at (800)345-3358. We are available Monday-Friday, 7am-7pm, CST and Saturday, 8am-5pm, CST. You may also email at customerservice@deltafaucet.com. Best Regards, Rosanna
Answered by: DeltaFaucet11
Date published: 2024-03-28

What is the height of the faucet if it is in the on/up position? I have a medicine cabinet door above and don't want them to hit if the door is opened when faucet is on. Thanks

Asked by: EML1
Hello, EML1! Thank you for your question. The tip of the handle is 8 1/8" above the deck surface in the on position. Please refer to the Technical Specifications for more information: https://media.deltafaucet.com/SpecSheet/dsp-l-564-mpu-dst_D.pdf Best regards, Jon
Answered by: Delta Faucet
Date published: 2024-03-28

It there an option to get rid of the red/blue temperature dot?

Wondering if that can pop out and have something else in that spot or if it leaves an exposed screw? I think the colored dot makes it look a bit cheap, and most people know how to find hot and cold. Thanks.
Asked by: RINDY
Hi RINDY, Thank you for your question. Unfortunately, we do not make another button for the handle. You can remove the button, however, we recommend to keep it in place as it will prevent buildup from forming around the set screw. Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2024-03-28
  • y_2026, m_7, d_24, h_8CST
  • bvseo_bulk, prod_bvqa, vn_bulk_3.0.48
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_57
  • loc_en_US, sid_564-SSMPU-DST, prod, sort_[SortEntry(order=HAS_STAFF_ANSWERS, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getContent, 115ms
  • questions, product
PART LIST

PART LIST

Image-RP40650

Michael Graves™

Michael Graves™ Set Screw

List Price: $7.15
Online Price: $5.72
Free Ground Shipping All Orders $49+

RP40650

5.00 3
Image-RP63265

Delta®

Delta® Adapter - Slip Joint

List Price: $58.55
Online Price: $46.84
Free Ground Shipping All Orders $49+

RP63265

Image-Master-RP26533

Delta®

Delta® Metal Drain Assembly - Less Lift Rod - Bathroom

List Price: $96.10 - $201.80
Free Ground Shipping All Orders $49+

RP26533

Image-RP63264

Delta®

Delta® Adapter Kit - PEX Compression (10)

List Price: $92.90
Online Price: $74.32
Free Ground Shipping All Orders $49+

RP63264

Image-RP63263

Delta®

Delta® Adapter Kit - PEX Compression (4)

List Price: $45.35
Online Price: $36.28
Free Ground Shipping All Orders $49+

RP63263

3.67 3
Image-RP47029

Leland®

Leland® Mounting Bracket - 1H Bathroom

List Price: $18.05
Online Price: $14.44
Free Ground Shipping All Orders $49+

RP47029

5.00 2
Image-RP12517

Delta®

Delta® Horizontal Rod

List Price: $22.50
Online Price: $18.00
Free Ground Shipping All Orders $49+

RP12517

2.86 7
Image-RP60911

Odin®

Odin® Clip

List Price: $18.95
Online Price: $13.96
Free Ground Shipping All Orders $49+

RP60911

2.44 16
Image-RP47030

Leland®

Leland® Bathroom Wrench

List Price: $10.00
Online Price: $8.00
Free Ground Shipping All Orders $49+

RP47030

1.00 2
Image-RP12516

Delta®

Delta® Strap w/ Screw

List Price: $18.45
Online Price: $14.76
Free Ground Shipping All Orders $49+

RP12516

Image-RP52217

Delta®

Delta® Aerator Removal Wrench

List Price: $25.50
Online Price: $20.40
Free Ground Shipping All Orders $49+

RP52217

3.73 11
Image-RP71111

Delta®

Delta® Aerator - Water-Efficient & Wrench - 0.5 GPM

List Price: $53.60
Online Price: $42.88
Free Ground Shipping All Orders $49+

RP71111

Image-RP6142

Delta®

Delta® Gasket

List Price: $12.35
Online Price: $9.88
Free Ground Shipping All Orders $49+

RP6142

2.00 1
Image-RP54977

Lahara®

Lahara® Aerator - Water-Efficient w/ Wrench - 1.5 GPM

List Price: $21.25
Online Price: $17.00
Free Ground Shipping All Orders $49+

RP54977

3.67 9
Image-RP72730

Classic

Classic Aerator - Water-Efficient - 1.0 GPM

List Price: $27.80
Online Price: $22.24
Free Ground Shipping All Orders $49+

RP72730

1.00 2
Image-Master-RP54972

Delta®

Delta® Bonnet Cap - 1H Bathroom

List Price: $12.75 - $34.70
Free Ground Shipping All Orders $49+

RP54972
