Ara®

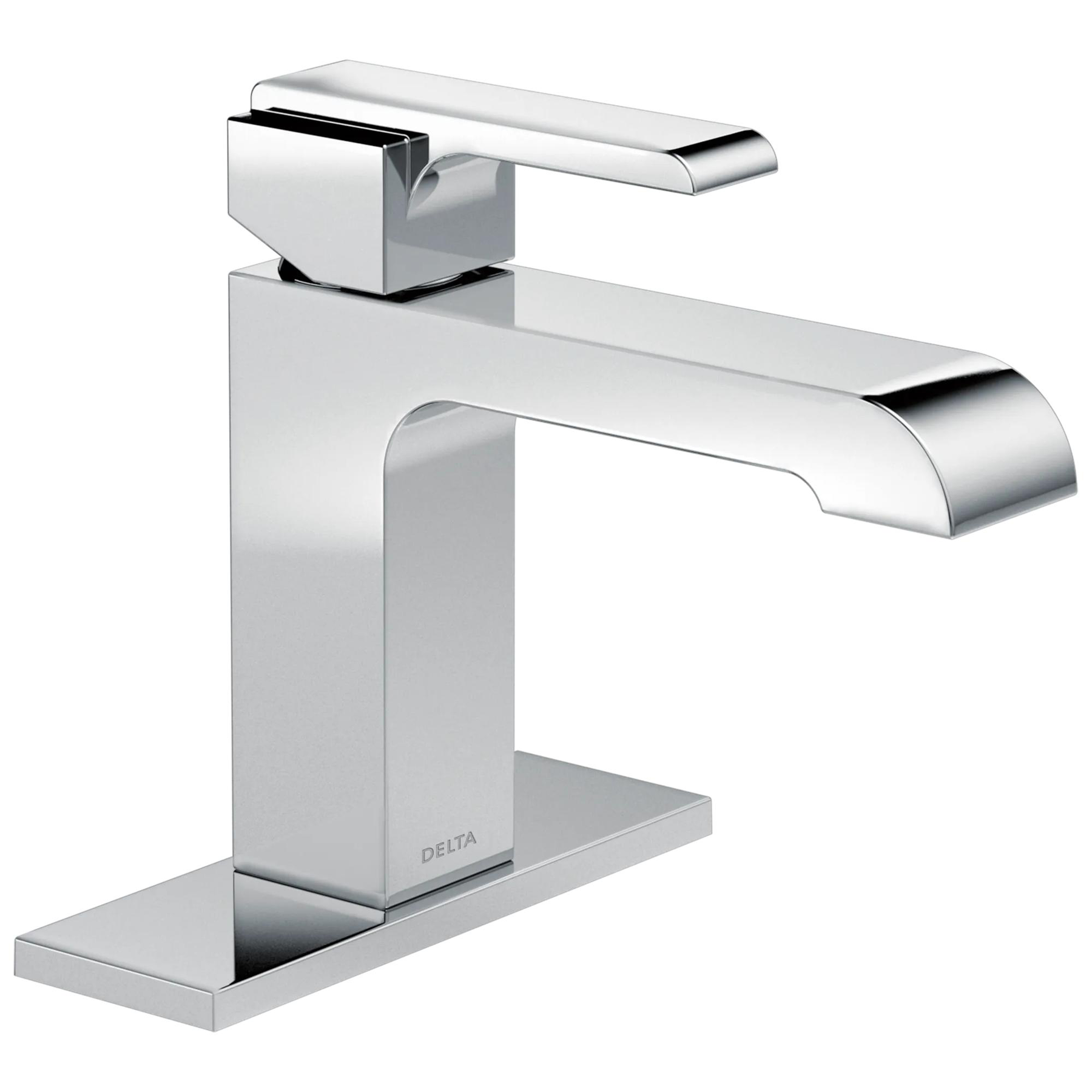

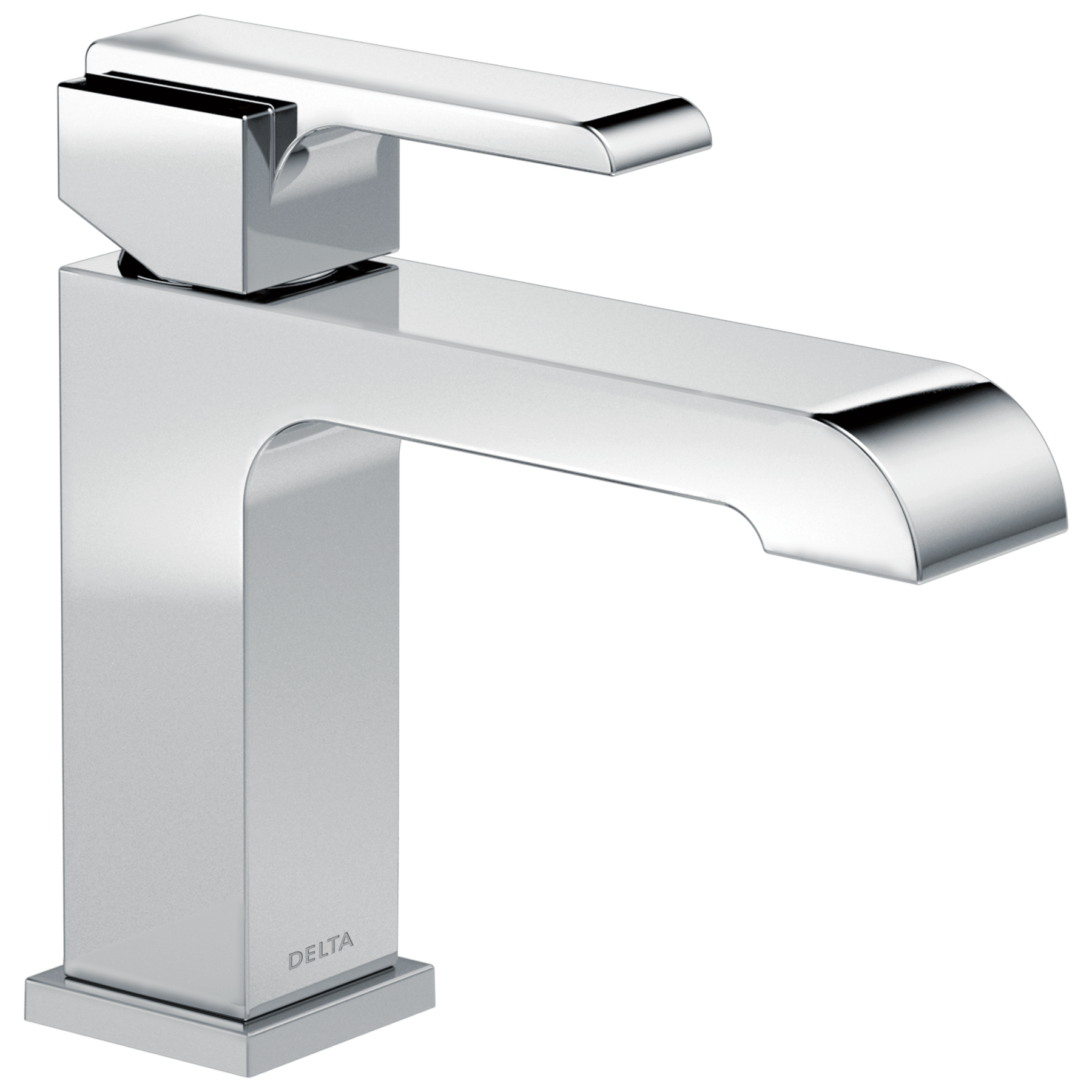

Single Handle Bathroom Faucet
Model#: 567LF-GPM-MPU
Single Handle Bathroom Faucet
Ara®
Single Handle Bathroom Faucet
Model#: 567LF-GPM-MPU
Finish: Chrome
List Price*: $284.20
PRODUCT FEATURES
You can install with confidence, knowing that Delta faucets are backed by our Lifetime Limited Warranty. Delta WaterSense labeled faucets, showers and toilets use at least 20% less water than the industry standard—saving you money without compromising performance.
  • 1 or 3-hole 4" installation
  • Metal pop-up
  • WaterSense labeled faucet uses at least 20% less water than the industry standard without compromising performance
  • Rigid spout
  • Backed by Delta Faucet’s Lifetime Limited Warranty
Eco-Friendly
WaterSense® Labeled
Special Features
SUPPORT

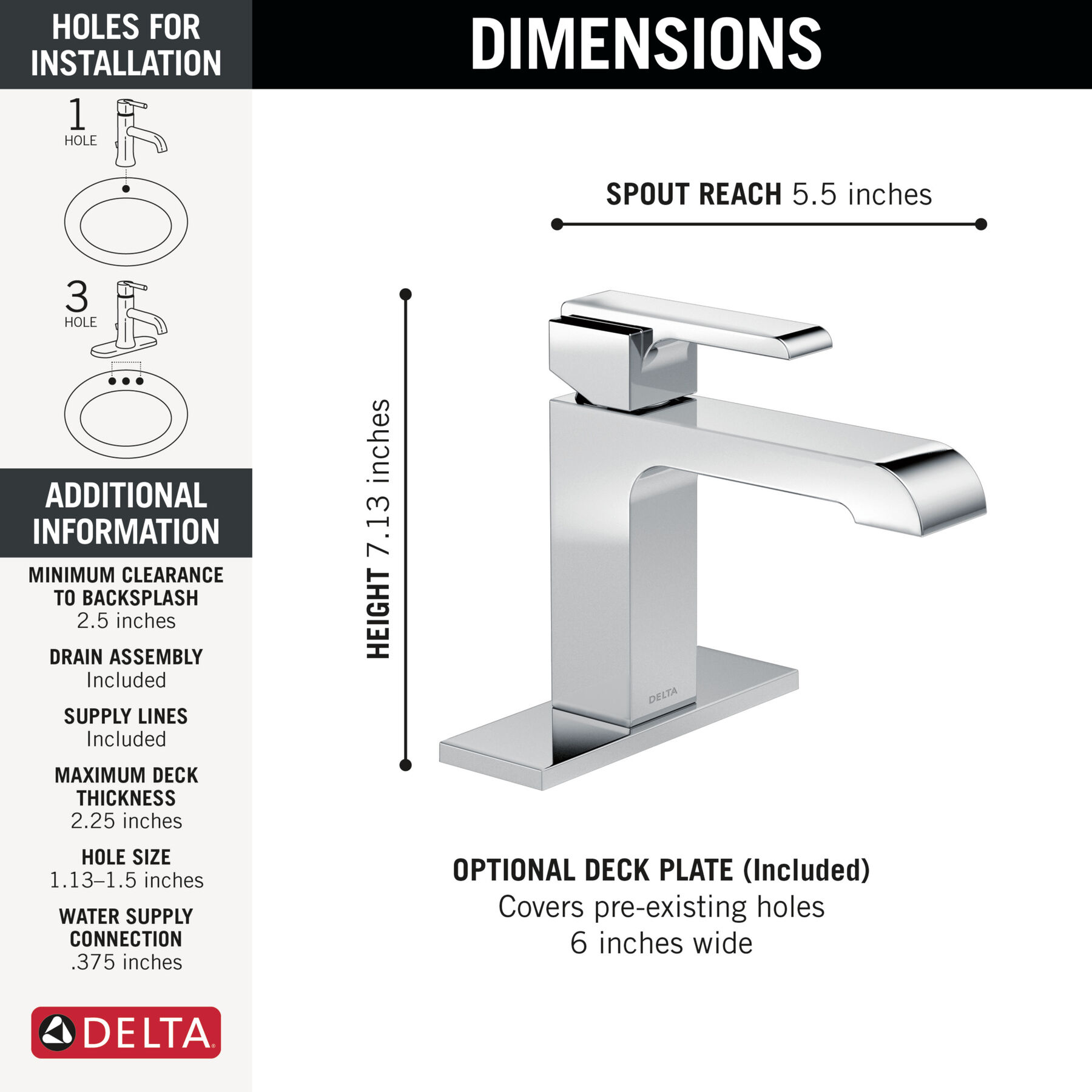

Installation Information
1 or 3-hole 4" installation
1 or 3-hole 4" installation
Spout Height :
5-5/8
Over All Height :
7-5/8
Spout Height Deck :
4-1/8
Connection Type :
3/8" compression fittings
Supply Lines :
Included InnoFlex® Pex-C Supply Lines
Spout Length :
5-3/8
Max Deck Thickness :
2.25
PART LIST

PART LIST

REVIEWS
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 6ms
  • reviews, product
  • bvseo-msg: Unsuccessful GET. status = 'ERROR', msg = 'Not Found.'; Unsuccessful GET. status = 'ERROR', msg = 'Not Found.';
Q&A

Is the 567LF-GPM-MPU faucet available in a more satin or brushed finish or only chrome?

Asked by: Rachad
Hi, Rachad! Thank you for your question. The Delta 567LF-GPM-MPU faucet is only available in Chrome. We do have our 567LF-SSMPU in a Brilliance Stainless Steel finish. Here is a link to this: https://www.deltafaucet.com/bathroom/product/567LF-SSMPU Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2019-07-29

How to remove the aerator.

How do you remove the aerator on: Ara Single Handle Lavatory 1.0 GPM. and the TESLA®Single Handle Lavatory Faucet - Metal
Asked by: PC
Hi PC, Thank you for your question! To remove the aerator on ARA 567LF you will have to first loosen the set screw an allen wrench. Once the set screw is removed your remove the aerator with the supplied tool. To remove the aerator on the Tesla 552LF you will need to use the aerator wrench to pull it out. Best regards, Brandis
Answered by: DeltaFaucet7
Date published: 2016-03-31

Single Handle Bathroom Faucet Model # 567LF-GPM-MPU does the pop up knob slide straight up/down or does it angle towards the back splash?  Can this model install on Swan Vanity top with only 2 inches clearance between center of hole and backsplash?  HELP!

Asked by: Jane
Hi, Jane! Thank you for your question. The Delta 567LF-GPM-MPU faucet lift rod does angle out a bit when lifted out from the back of the faucet. The faucet requires a minimum 2 1/2" (64 mm) clearance to back splash. Best Regards, Rosanna
Answered by: DeltaFaucet11
Date published: 2018-09-24

ARA® Single Handle Bathroom Faucet - I need to remove or clean the aerator. Provide more instractions or an image of where the set screw is that needs to be loosened in order to release the aerator

Asked by: tspasov
Hello tspasov, Thank you for your question. Unfortunately, we do not manufacture a key/tool for removing the aerator of the Delta Ara Lavatory 567LF-GPM-MPU faucet. The aerator is not designed to be removed from the spout as any debris large enough to get caught will be trapped by the flow restrictor first. The flow restrictor is inside the valve below the cartridge and can be removed with a pair of needle nose pliers. Please see page 12 of the Maintenance/Installation linked below will show you how to remove the cartridge. https://media.deltafaucet.com/MandI/106357%20Rev%20B.pdf The bottom of the aerator can be cleaned by soaking it using a cloth saturated with a 50/50 white vinegar and water solution. Best regards, Tanya
Answered by: Delta Faucet
Date published: 2020-01-20

We would like to install this with a pop up drain which means we would not need the lift rod. Is there an accessory piece we can purchase to close off the back of the faucet so we do not have to install the rod for a cleaner look?

Asked by: NickiLA
Hello NickiLA, Thank you for contacting us, I would be happy to help you. Unfortunately there is no lift rod cover available, however you can leave the lift rod in place and it will just be non functional. Please contact us back if you have any questions or need further assistance.  Best Regards,  Nicole
Answered by: Delta7
Date published: 2020-10-14

How do we access the filter on the 567lf-MPU?   New home with all Delta, so this one has something blocking part of the water flow.  Thanks.

Asked by: Victor
Hello Victor, Thank you for your question. We are happy to help! If the 567LF-GPM-MPU faucet has a low flow, shut off water supplies. Remove handle and pull off trim cap. Remove bonnet nut. Remove the valve cartridge. Remove adapter using long nose pliers. Remove flow regulator using an o-ring pick or similar tool. Clean any debris from inside surfaces of the flow regulator. When reinstalling parts, make sure the bonnet nut is tightened securely with a wrench. For more information, the faucet manual can be found here https://media.deltafaucet.com/MandI/106357%20Rev%20C.pdf Please reach out directly if you have any questions or need additional assistance. Best regards, Bryan
Answered by: Delta Faucet
Date published: 2020-10-21
