Ara®
View Full Ara® Bathroom Collection

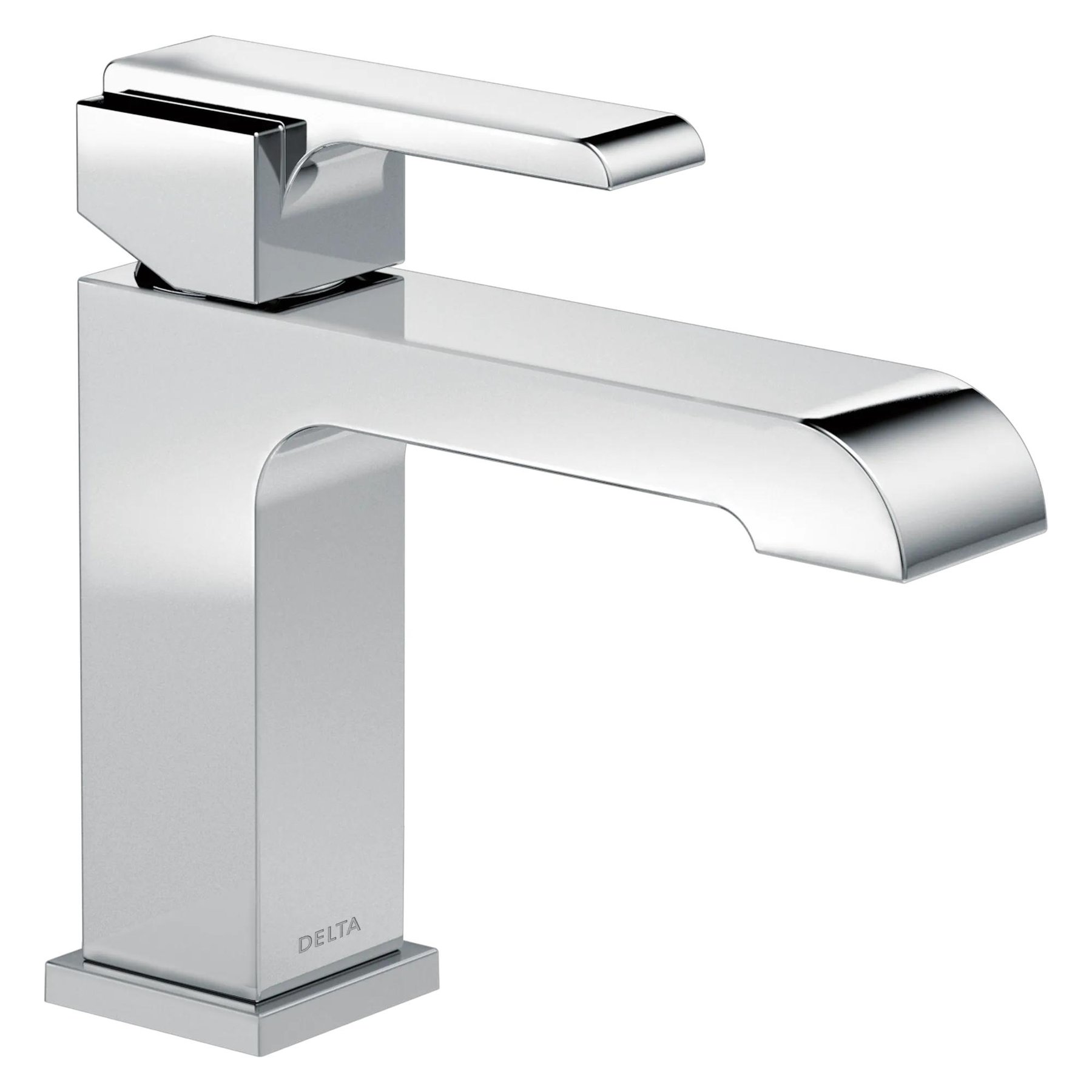

Single Handle Bathroom Faucet in Chrome

Model#: 567LF-HGM-MPU
Add to Favorites
Find local Delta® installers.
Ara®
View Full Ara® Bathroom Collection
Single Handle Bathroom Faucet in Chrome
Model#: 567LF-HGM-MPU
List Price: $45600
Add to Favorites
Find local Delta® installers.
PRODUCT FEATURES
With defined geometric angles and edges, the Ara® Bath Collection creates a streamlined look of contemporary elegance. Delta® faucets with DIAMOND Seal® Technology perform like new for life with a patented design that reduces leak points, is less hassle to install and lasts twice as long as the industry standard. You can install with confidence, knowing that Delta faucets are backed by our Lifetime Limited Warranty.
  • DIAMOND Seal® Technology is less hassle to install and helps your faucet perform like new for life, reducing leak points and lasting twice as long as the industry standard
  • Everything you need is together in one convenient box, including integrated InnoFlex® PEX supply lines
  • Fits 1 or 3-hole 4-inch installations

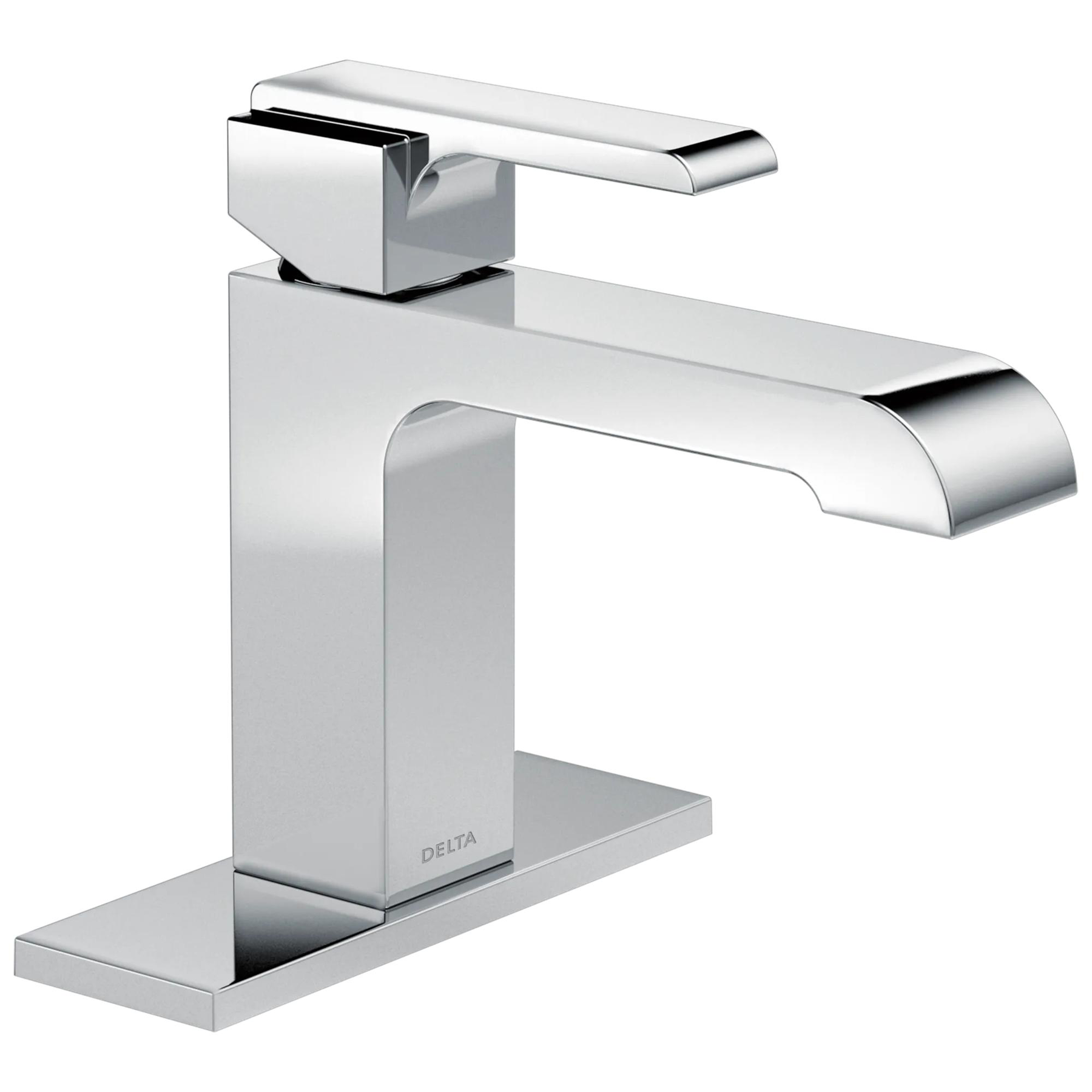

  • Optional 6-inch deck plate included for 3-hole installations
  • Laminar flow lends a beautiful, refined look that complements the design of the faucet
  • Optional red/blue temperature indicator ring included
  • Metal push pop-up drain assembly in matching finish (included) is ADA compliant and simple to install, operate and clean
  • ADA Compliant
  • Rigid spout does not swivel
  • 3/8-inch compression fittings
  • Backed by Delta Faucet's Lifetime Limited Warranty
Technology and Special Features
ADA Compliant
No-Lead Compliant
Diamond Seal® Technology
Documents & Specs
Product Support, Repair Parts & Technical Specifications
View Technical Specifications
View Maintenance & Installation Sheet
View Parts & Accessories Diagram
Register Product

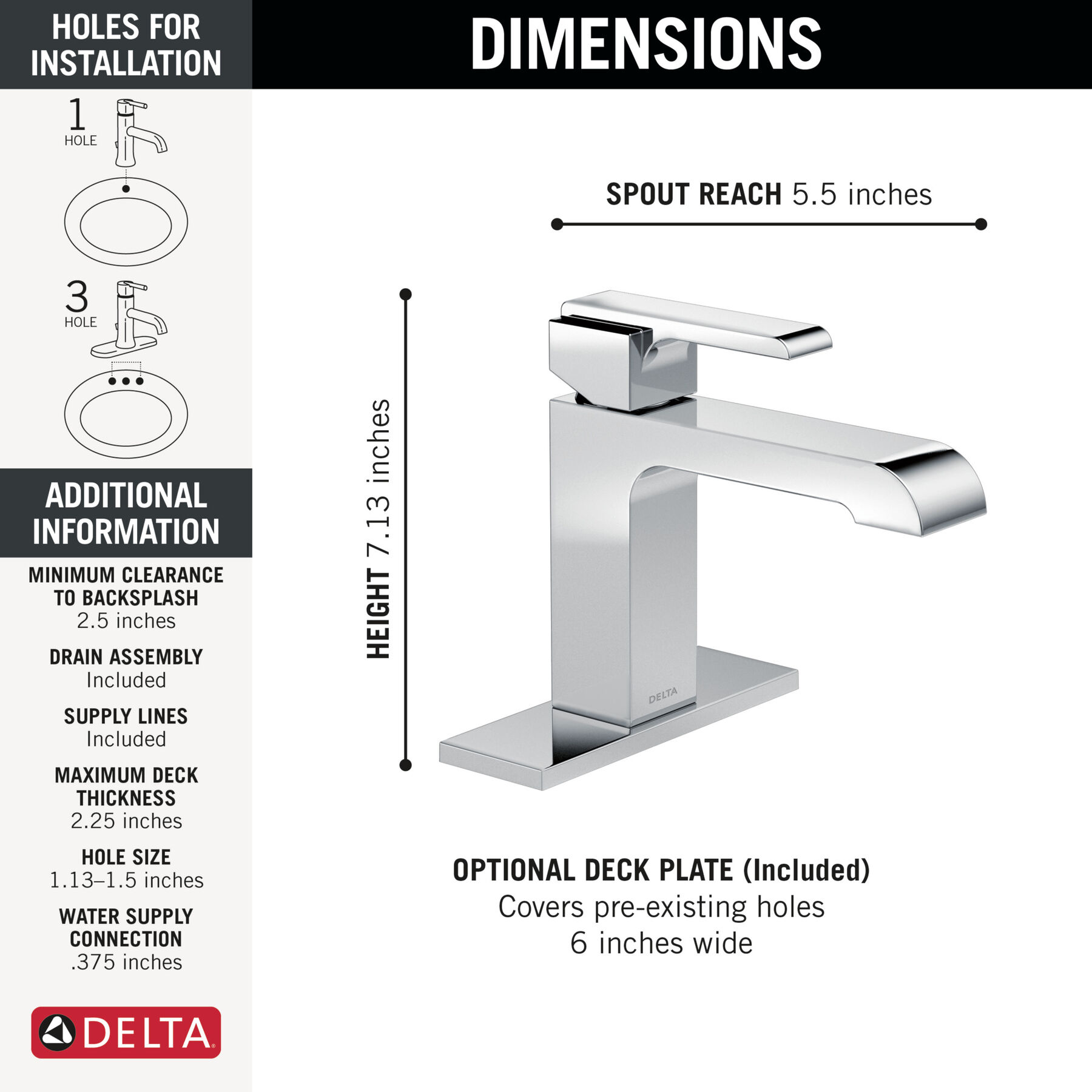

Installation Information
1 or 3-hole 4" installation
1 or 3-hole 4" installation
Connection Type :
3/8" compression fittings
Flow Rate :
0.5 gpm @ 60 psi, 1.9 L/min @ 414 kPa
Overall Height (in.) :
7-5/8
Valve Type:
Ceramic Disc

INSTALLATION SUPPORT

Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.

GO
Enter Valid Zip.
REVIEWS
Rated 2 out of 5 by from Flow Issues The design is fantastic no complaints there, we do have two concerns and I am hoping Delta can assist. (1) The water flow is an issue, barely enough flow or pressure to wash a tooth brush or razor. How can this be corrected ? (2) Once it get wet it leaves water marks that are almost impossible to remove is there a solution for this ? Thank you for your prompt look into this Regards Tom
Date published: 2018-12-24
Rated 3 out of 5 by from Does not have aerator Be advised this faucet does come with a conventional aerator, which would normally incorporate tiny "effervescent" bubbles into the flow stream to help dampen the water's impact as it hits the sink bottom. Rather, this faucet is designed w/ a flow that comes out as two intertwined ribbons of water. Pretty to look at I suppose, if that's important to you. But be aware that the undampened flow will cause droplets of water to bounce up off the bowl and onto your walls, vanity top, adjacent surfaces such as glass shower enclosure, etc ... anything w/in 18-24". Really a pain to have to wipe off all these surfaces everytime you go to wash your hands or brush your teeth, etc. So much so that I've come to the poit of avaiding the use of this faucet in lieu of and adjacent kitchen faucet for those tasks mentioned above .. quite an inconvenience, and disapointment.
Date published: 2018-06-07
Rated 5 out of 5 by from Nice design, very good functionality and quality I am very satisfied with the choice as design, functionality and quality
Date published: 2017-07-17
Rated 3 out of 5 by from Beautiful faucet I purchased this faucet to replace a price pfister trough style that we had only 4 years. This faucet speaks in style and decoration. Installation was simple. My only complaint and hence the 3 star rating is that the water flow is pathetic. It is barley strong enough to wash toothpaste down the drain. The supply hoses are small. We are unsure what to do to improve this problem. If you need to conserve water this is the faucet for you
Date published: 2017-06-04
  • y_2026, m_6, d_20, h_13
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.46
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_4
  • loc_en_US, sid_567LF-HGM-MPU, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 6ms
  • reviews, product
Q&A

I purchased 6 of these all have low pressure but one is really bad is there a way to clean out the water aerator

Asked by: Plu1973
Hi, Plu1973! Thank you for your question. The Delta 567LF-HGM-MPU faucet aerator can be removed to clean. Simply pull the aerator straight out of the spout of the faucet by hand. Here is a link to the parts diagram to show the part for the faucet: https://media.deltafaucet.com/PartsDiagram/DPD-L-567LF.pdf Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2024-03-28

What is the difference between a 567LF -XXX and 567LF-PP?

Asked by: Tim W
Hi, Tim W. Thank you for your question. The Delta 567LF-HGM-MPU and 567LF-PP Faucets are both different styles. The 567LF-PP has a flow rate of 1.20 gpm @ 60 psi, while the 567LF-HGM-MPU faucet has a flow rate of 0.50 gpm @ 60 psi. Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2024-03-28

how is the water flow?

is there any type of screen / water aeration in the spout of the faucet to reduce splash and help smooth water flow?
Asked by: KayBee
Thank you for your question, KayBee! Yes, the Delta Ara Lavatory 567LF-HGM-MPU faucet comes with an aerator assembly in the end of the spout. This faucet has a maximum flow rate of 0.50 GPM at 60 PSI. https://media.deltafaucet.com/PartsDiagram/DPD-L-567LF.pdf Best regards, Tanya
Answered by: Tanya
Date published: 2024-03-28

DOES THE POP UP SLIDE STRAIGHT UP OR PULL OUT AT AN ANGLE ?

Asked by: TRUDY
Hi, Trudy! Thank you for your question. The lift rod for the Delta 567LF-HGM-MPU does come straight out as long as the lift rod is installed into the faucet before the installing the faucet to the counter to be completely straight and not be at an angle. Best Regards, Rosanna
Answered by: DeltaFaucet11
Date published: 2024-03-28

Can I get this in champagne bronze finish?

Asked by: Maia
Hi Maia, Thank you for your question! Unfortunately, this model is not available in Champagne Bronze. Please click the link below to browse our Champagne Bronze single handle lavatory faucets. http://www.deltafaucet.com/bath/lavatory/filter-results.html?finish=cz&sort=pricelowhigh&handle=type-lav-singlehandle&function=bath-lavatory Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2024-03-28

How do I remove the aerator to clean it?  Our water is coming out cloudy and we think it’s from recent construction and that the plumber didn’t let the water run long enough before installing the aerator.

Asked by: Jami
Thank you for your question, Jami! The aerator for this faucet, can be removed for cleaning. Simply pull the aerator straight out of the spout of the faucet by hand. Below, I have included a link to the parts diagram, for you to refer to. If you need further assistance, feel free to contact us directly. https://media.deltafaucet.com/PartsDiagram/DPD-L-567LF.pdf Best Regards, Benjamin
Answered by: Delta Faucet
Date published: 2024-03-28

What is the total height (from top of handle to being seated on the counter)?

Asked by: Sheila
Hi, Sheila! Thank you for your question. The height of the Delta 567LF-HGM-MPU faucet is 7 1/8". Here is a link to the technical specifications sheet for more measurements for this faucet: https://media.deltafaucet.com/SpecSheet/DSP-L-567LF-MPU%20Rev%20F.pdf Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2024-03-28

I recently bought and installed the Ara® Single Handle Bathroom Faucet, model 567LF-HGM-MPU. Two issues: 1) The water flow is weak. Any solution? 2) There is no apparent way to remove the aerator for cleaning . Please explain how to do that.

Asked by: Roni
Hi Roni, Thank you for your question about the Delta Faucet model 567LF-HGM-MPU Ara® Single Handle Bathroom Faucet In Chrome. We will be happy to assist you as quickly as possible. HGM indicates the faucet's maximum flow rate would be 0.5 GPM. To troubleshoot a low flow issue, we recommend turning off the water supplies and cleaning the flow restrictor located under the faucet's handle cartridge. Debris would likely be caught by the flow restrictor before making it to the spout aerator. See the faucet's part diagram for the flow restrictor location and for flow restrictor part numbers with different flow rates. https://media.deltafaucet.com/PartsDiagram/DPD-L-567LF%20Rev%20C.pdf Please contact us directly if you have any questions or need additional assistance. Thank you for being a loyal Delta Faucet customer. We appreciate your business and look forward to continuing to serve you! Best Regards, Bryan Digital Communications Specialist
Answered by: Customer Service
Date published: 2024-03-28
  • y_2026, m_6, d_20, h_13CST
  • bvseo_bulk, prod_bvqa, vn_bulk_3.0.46
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_9
  • loc_en_US, sid_567LF-HGM-MPU, prod, sort_[SortEntry(order=HAS_STAFF_ANSWERS, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getContent, 7ms
  • questions, product
PART LIST

PART LIST

Image-RP90056 Secondary Image-RP90056

Ara®

Ara® Stem & Valve

List Price: $123.20
Online Price: $98.56
Free Ground Shipping All Orders $49+

RP90056

Image-Master-RP75404

Ara®

Ara® Cap & O-Ring - 1H Bathroom

List Price: $21.40 - $23.00
Free Ground Shipping All Orders $49+

RP75404

Image-RP75408

Ara®

Ara® Aerator & Set Screw - Rectangular

List Price: $64.00
Online Price: $51.20
Free Ground Shipping All Orders $49+

RP75408

Image-RP73837

Compel®

Compel® Aerator - Water-Efficient - 0.5 GPM

List Price: $29.10
Online Price: $23.28
Free Ground Shipping All Orders $49+

RP73837

Image-Master-RP90060

Ara®

Ara® Handle Base, Spout & Gasket - 1H

List Price: $62.35 - $82.30
Free Ground Shipping All Orders $49+

RP90060

Image-Master-RP75407

Ara®

Ara® Lift Rod & Slider - 1H Bathroom

List Price: $34.40 - $46.55
Free Ground Shipping All Orders $49+

RP75407

Image-RP47029

Leland®

Leland® Mounting Bracket - 1H Bathroom

List Price: $18.05
Online Price: $14.44
Free Ground Shipping All Orders $49+

RP47029

5.00 2
Image-RP47030

Leland®

Leland® Bathroom Wrench

List Price: $10.00
Online Price: $8.00
Free Ground Shipping All Orders $49+

RP47030

1.00 2
Image-RP75432-1.2

Ara®

Ara® Flow Restrictor - Water-Efficient - 1.2 GPM

List Price: $25.25
Online Price: $20.20
Free Ground Shipping All Orders $49+

RP75432-1.2

5.00 1
Image-Master-RP90059

Ara®

Ara® Aerator

List Price: $59.55
Online Price: $47.64
Free Ground Shipping All Orders $49+

RP90059

Image-RP72564

Cassidy®

Cassidy® Set Screw & Button

List Price: $21.30
Online Price: $17.04
Free Ground Shipping All Orders $49+

RP72564

Image-Master-RP90058

Ara®

Ara® Lift Rod & Slider - 1H Bathroom

List Price: $45.80 - $60.55
Free Ground Shipping All Orders $49+

RP90058

Image-RP75405

Ara®

Ara® Bonnet Nut

List Price: $30.90
Online Price: $24.72
Free Ground Shipping All Orders $49+

RP75405

Image-Master-RP90057

Ara®

Ara® Escutcheon & Gasket - 3 Hole - 1H

List Price: $80.15 - $89.35
Free Ground Shipping All Orders $49+

RP90057

Image-Master-RP75410

Ara®

Ara® Spout Base & Gasket - Single Hole Bathroom

List Price: $36.90 - $39.65
Free Ground Shipping All Orders $49+

RP75410

* Actual pricing may vary and is determined by the selling retailer/wholesaler/dealer.
