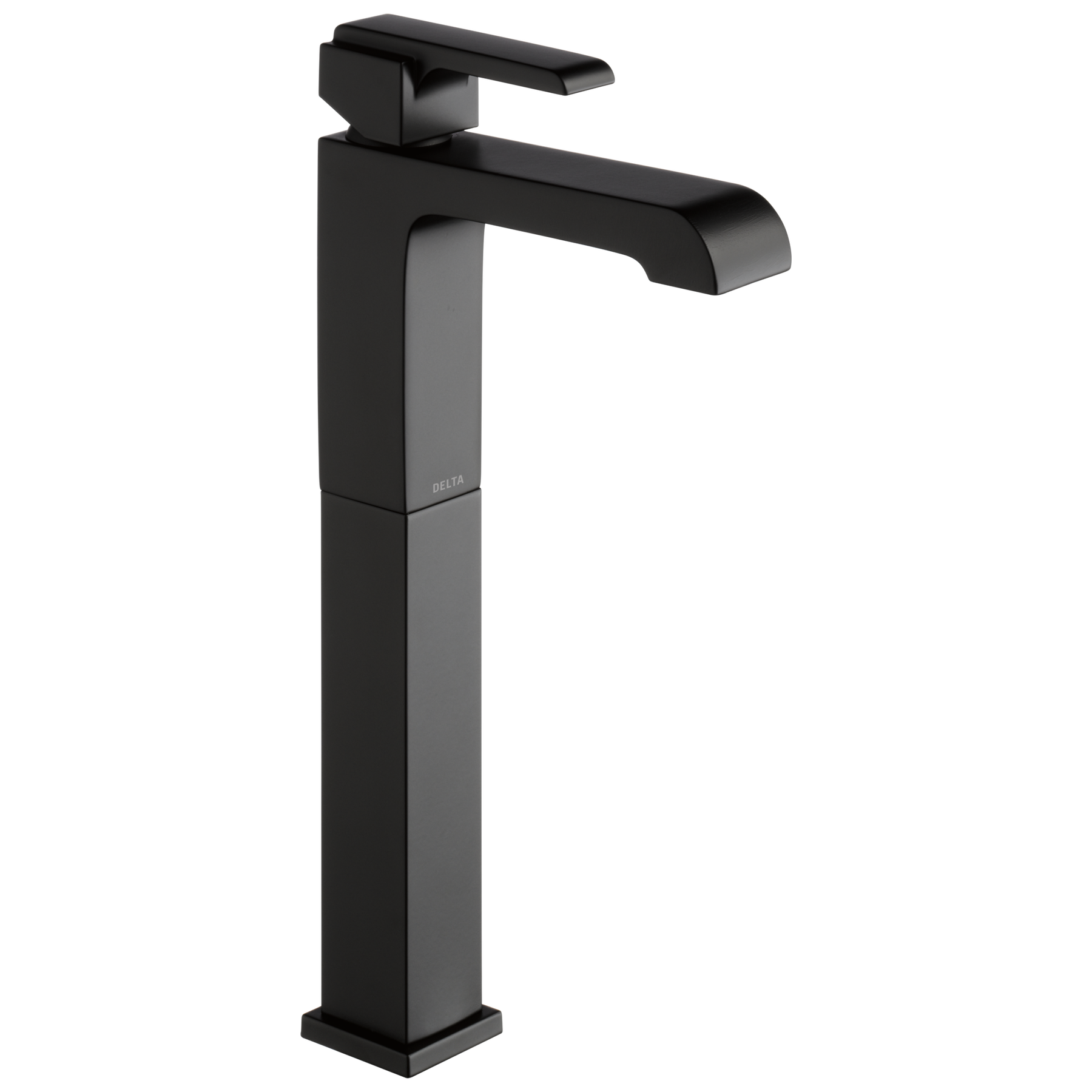

Single Handle Vessel Bathroom Faucet in Matte Black
Model#:
767LF-BL
Image Thumbnail, click to view zoomed product image
null
null
null
PRODUCT FEATURES
With defined geometric angles and edges, the Ara® Bath Collection creates a streamlined look of contemporary elegance. Delta® faucets with DIAMOND Seal® Technology perform like new for life with a patented design that reduces leak points, is less hassle to install and lasts twice as long as the industry standard. Delta WaterSense® labeled faucets use at least 20% less water than the industry standard — helping you save water without compromising performance. You can install with confidence, knowing that Delta faucets are backed by our Lifetime Limited Warranty.
- DIAMOND Seal® Technology is less hassle to install and helps your faucet perform like new for life, reducing leak points and lasting twice as long as the industry standard
- Everything you need is together in one convenient box, including integrated InnoFlex® PEX supply lines
- Fits single hole installations

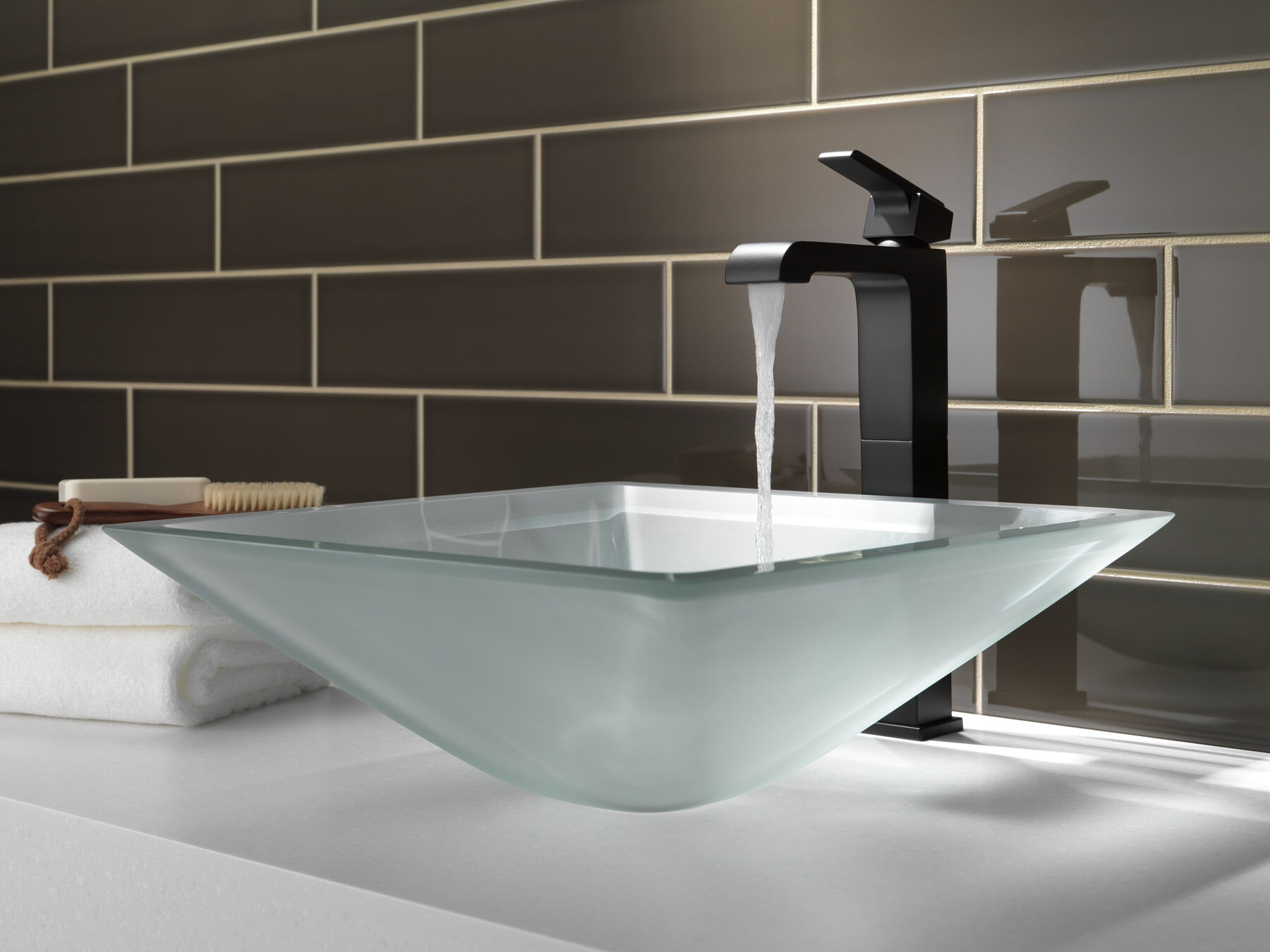

- Laminar flow lends a beautiful, refined look that complements the design of the faucet
- Optional red/blue temperature indicator ring included
- Drain assembly sold separately
- Metal push pop-up drain (RP101632BL) or push pop-up drain with overflow holes (RP101630BL) may be purchased separately
- ADA Compliant
- WaterSense® labeled faucet uses at least 20% less water than the industry standard without compromising performance
- Rigid spout does not swivel
- 3/8-inch compression fittings
- Backed by Delta Faucet's Lifetime Limited Warranty
Eco-Friendly
WaterSense® Labeled
Technology and Special Features
ADA Compliant
ADA Compliant
Some people, and some local codes, require fixtures that are compliant with the Americans with Disabilities Act. If someone may visit who has special needs, or if you believe future buyers might appreciate this feature, Delta offers a range of compliant fixtures.
No-Lead Compliant
No-Lead Compliant
Tested and certified to NSF/ANSI Standard 61, which sets the criteria for product safety. The lined waterways in Delta® faucets help prevent leaching of metals.
Diamond Seal® Technology
Diamond Seal® Technology
DIAMOND™ Seal Technology is Delta’s revolutionary new water delivery system. An internal contact surface made up of tiny diamonds makes the valve leak-free and extraordinarily durable. It also keeps water free of contact with potential metal contaminants.
Documents & Specs
Product Support, Repair Parts & Technical Specifications
Resources

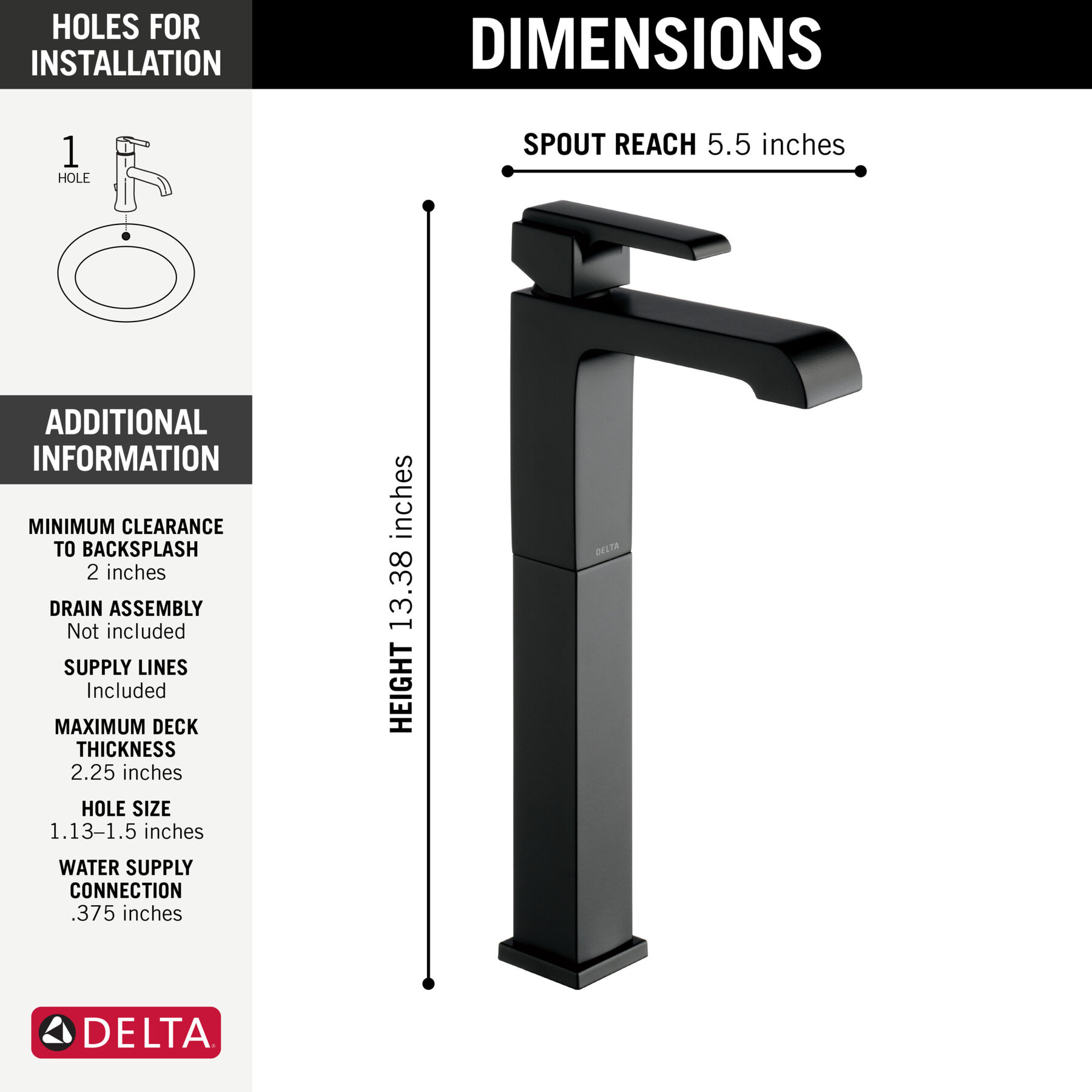

Installation Information
Single hole installation
Connection Type :
3/8" compression fittings
Flow Rate :
1.2 gpm @ 60 psi, 4.5 L/min @ 414 kPa
Overall Height (in.) :
13-3/8
Valve Type:
Ceramic Disc
INSTALLATION SUPPORT
Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.
REVIEWS
Rated 3 out of
5
by
Dawn from
Caution with curved bottom vessel sinks
Easy to install, beautiful and looked great!! The problem was with how the water splashed to the wall from the way the water stream hit the bottom of the vessel sink. l also had issues with how the water splashed off my hands outside of the sink. The spout needs to go out farther to reach the middle of the sink to avoid constant clean up.
Date published: 2021-12-11
Rated 3 out of
5
by
Debi from
Not completely satisfied.
Build.com isn't at fault with the product. I take issue with the product itself. The brushed nickel looks old and dirty. There isn't much of a water flow either. I would not buy this item again.
Date published: 2021-04-27
Rated 5 out of
5
by
JB2017 from
Replacement
I bought these faucets to replace a different brand I had installed just over 2 years ago.
These Delta faucets are great, a lot quieter than the previous brand and look really good.
What is also great about Delta is the lifetime warranty and ability to replace parts, which the previous brand did not have. Great product
Date published: 2018-01-13
Q&A
If it doesn't come with a pop up drain, does it come with any drain at all? If not, what is the part number for the drain that matches?
Thank you for your question, Matt73! The Delta Ara Vessel Lavatory 767LF-BL faucet does not come with a Pop-Up/Drain assembly. However, any of the Push Pop-Up assemblies can be installed, such as 72174-BL, 72175-BL, 72172-BL or 72173-BL.
https://www.deltafaucet.com/parts-product-detail?modelNumber=72174-BL
https://www.deltafaucet.com/parts-product-detail?modelNumber=72175-BL
Best regards,
Tanya
Date published: 2024-03-28
Faucet was installed and working fine 7 months ago. Recently flow has been very slow. How can the filter or aerator be cleaned?
Hi, Vanita!
Thank you for your question. For low flow at the Delta 767LF-SS Faucet, we do recommend to clean the flow regulator. To get to the flow restrictor, first turn the faucet off from your shut off valve. Remove the handle and pull off trim cap. Unscrew the bonnet nut. Remove valve cartridge. Remove the adapter using long nose pliers. Remove flow regulator using an o-ring pick or similar tool. Clean any debris from inside surfaces of the flow regulator. Clean and reinstall the flow restricter When reinstalling parts, make sure bonnet nut is tightened securely with a wrench.
Best Regards, Rosanna
Date published: 2024-03-28
What exact size hole is required in countertop??
What is the hole size so I can tell my countertop contractor??Delta Faucet Ara™ 1.5 gpm Single Lever Handle 1-Hole Lavatory Faucet with Riser in Stainless Steel
D767LFSS
Hi Sevan,
Thank you for your question. All measurements are available for model 767LF in the technical specifications under product support.
Best Regards,
Courtney
Date published: 2024-03-28
The technical drawing shows a pop up drain but the description says "less pop up". Does this or does this not have an included pop up drain?
Hi TalkingFingers,
Thank you for your question. The Delta Ara Vessel Lavatory 767LF faucet does not come with a Pop-Up/Drain assembly.
Best regards,
Tanya
Date published: 2024-03-28
Supply lines
The spec shows staggered pex supply lines for this faucet. That is much more than needed for my application. Are the integrated supply lines designed to be able to trim them to the necessary length?
Hi Jake,
Thank you for your question. We recommend looping the PEX supply lines. However, you may cut the supplies shorter by following the directions on page 8 under Custom Fit Connections. Delta is not responsible for tubing that is cut too short or cut in a way that will not allow for a leak-free joint.
https://media.deltafaucet.com/MandI/83894%20Rev%20B.pdf
Regards,
Jon
Date published: 2024-03-28
What is laminar flow? What is the "riser"?
Thank you for your question, Dale! The tall bottom part of the faucet body of the Delta Ara Vessel Lavatory 767LF faucet is considered the riser. It makes the faucet taller than normal lavatory faucets. This faucet has a "Laminar flow" in which the water travels smoothly or in regular paths, in contrast to turbulent flow, in which the water undergoes irregular fluctuations and mixing. This flow lends a beautiful, refined look that complements the design of the faucet.
Best regards,
Tanya
Date published: 2024-03-28
Our customer has low water flow on their #767LF-BL faucet. They possibly misplaced the wrench (or part) to remove the aerator. (Perhaps the faucet did not come with the wrench). What part number is the wrench so we can get one ordered. Thanks!
Hello Sherilyn!
Thank you for your question and we are happy to help! The Delta Single Handle Vessel Bathroom Faucet MODEL#: 767LF-BL does not have an aerator key. We recommend using a pair of needlenose pliers to remove the aerator. With any further questions or concerns, please do not hesitate to reach out to us directly. Thank you for being a loyal Delta customer.
Best Regards,
Carrie
Date published: 2024-03-28
Hello. Does this model have an aerator? Thanks.
Hello Chuck,
Thank you for your question! We apologize for the inconveniences you are experiencing and will be happy to help you.
The Delta Ara Single Handle Vessel Bathroom Faucet MODEL# 767LF-BL does have an aerator. The part number is RP75408.
Thank you for being a loyal Delta customer. We look forward to continuing to serve you. Please feel free to contact us back for further assistance.
Best Regards,
Kelley
Date published: 2024-03-28
PART LIST
PART LIST
View Product
![Image-RP90056]()
![Secondary Image-RP90056]()
Ara®
Ara® Stem & Valve
List Price:
$123.20
Online Price:
$98.56
Free Ground Shipping All Orders $49+
RP90056
View Product
![Image-RP75408]()
Ara®
Ara® Aerator & Set Screw - Rectangular
List Price:
$64.00
Online Price:
$51.20
Free Ground Shipping All Orders $49+
RP75408
5.00
1
View Product
![Image-RP73838]()
Compel®
Compel® Aerator - Water-Efficient - 1.0 GPM
List Price:
$29.10
Online Price:
$23.28
Free Ground Shipping All Orders $49+
RP73838
View Product
![Image-RP73837]()
Compel®
Compel® Aerator - Water-Efficient - 0.5 GPM
List Price:
$29.10
Online Price:
$23.28
Free Ground Shipping All Orders $49+
RP73837
View Product
![Image-RP47030]()
Leland®
Leland® Bathroom Wrench
List Price:
$10.00
Online Price:
$8.00
Free Ground Shipping All Orders $49+
RP47030
1.00
2
View Product
![Image-Master-RP90060]()
Ara®
Ara® Handle Base, Spout & Gasket - 1H
List Price:
$62.35
-
$82.30
Free Ground Shipping All Orders $49+
RP90060
View Product
![Image-RP75432-1.2]()
Ara®
Ara® Flow Restrictor - Water-Efficient - 1.2 GPM
List Price:
$25.25
Online Price:
$20.20
Free Ground Shipping All Orders $49+
RP75432-1.2
5.00
1
View Product
![Image-Master-RP90059]()
Ara®
Ara® Aerator
List Price:
$59.55
Online Price:
$47.64
Free Ground Shipping All Orders $49+
RP90059
View Product
![Image-RP47029]()
Leland®
Leland® Mounting Bracket - 1H Bathroom
List Price:
$18.05
Online Price:
$14.44
Free Ground Shipping All Orders $49+
RP47029
5.00
2
View Product
![Image-RP75405]()
Ara®
Ara® Bonnet Nut
List Price:
$30.90
Online Price:
$24.72
Free Ground Shipping All Orders $49+
RP75405
