Delta®

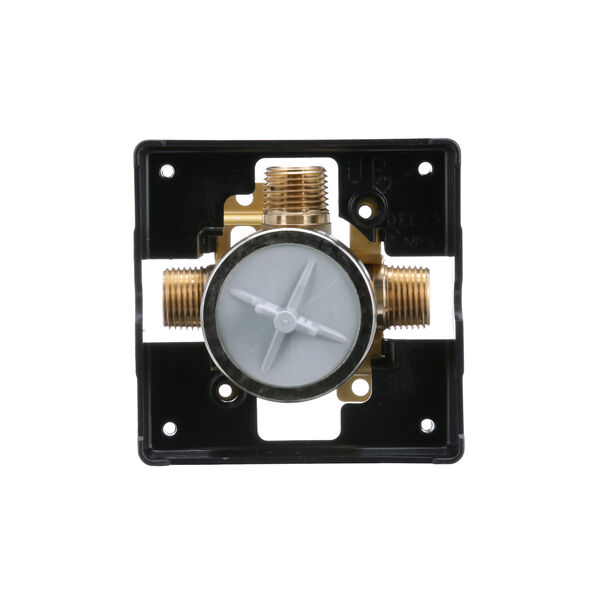

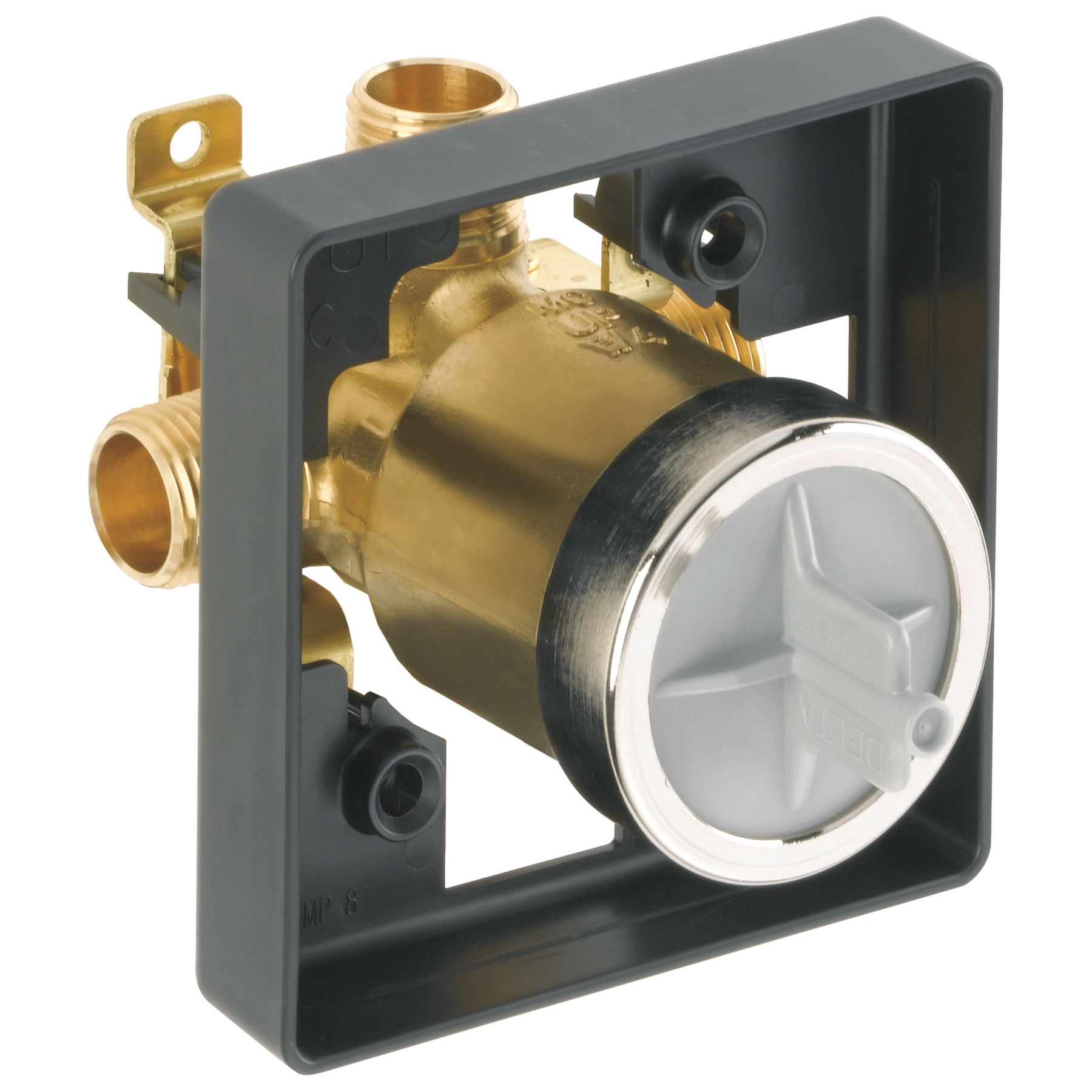

MultiChoice® Universal High-Flow Shower Rough - Universal Inlets / Outlets
Model#: R10000-UNBXHF
MultiChoice® Universal High-Flow Shower Rough - Universal Inlets / Outlets
MultiChoice® Universal High-Flow Shower Rough - Universal Inlets / Outlets
Delta®
MultiChoice® Universal High-Flow Shower Rough - Universal Inlets / Outlets
Model#: R10000-UNBXHF

Finish:Not Applicable

List Price*: $62.40
PRODUCT FEATURES
  • MultiChoice® Universal valve body only - Accepts single, dual, or dual thermostatic cartridge
  • High flow for use with shower only models
  • HF rough valves feature blocked tub port - no additional plug needed when used in shower only application
  • Back-to-back capability
  • Included mounting bracket helps prevent rocking
  • Includes a heat resistant pressure test cap
  • Easily snaps into place
California Prop 65 WARNING
SUPPORT
Installation Information

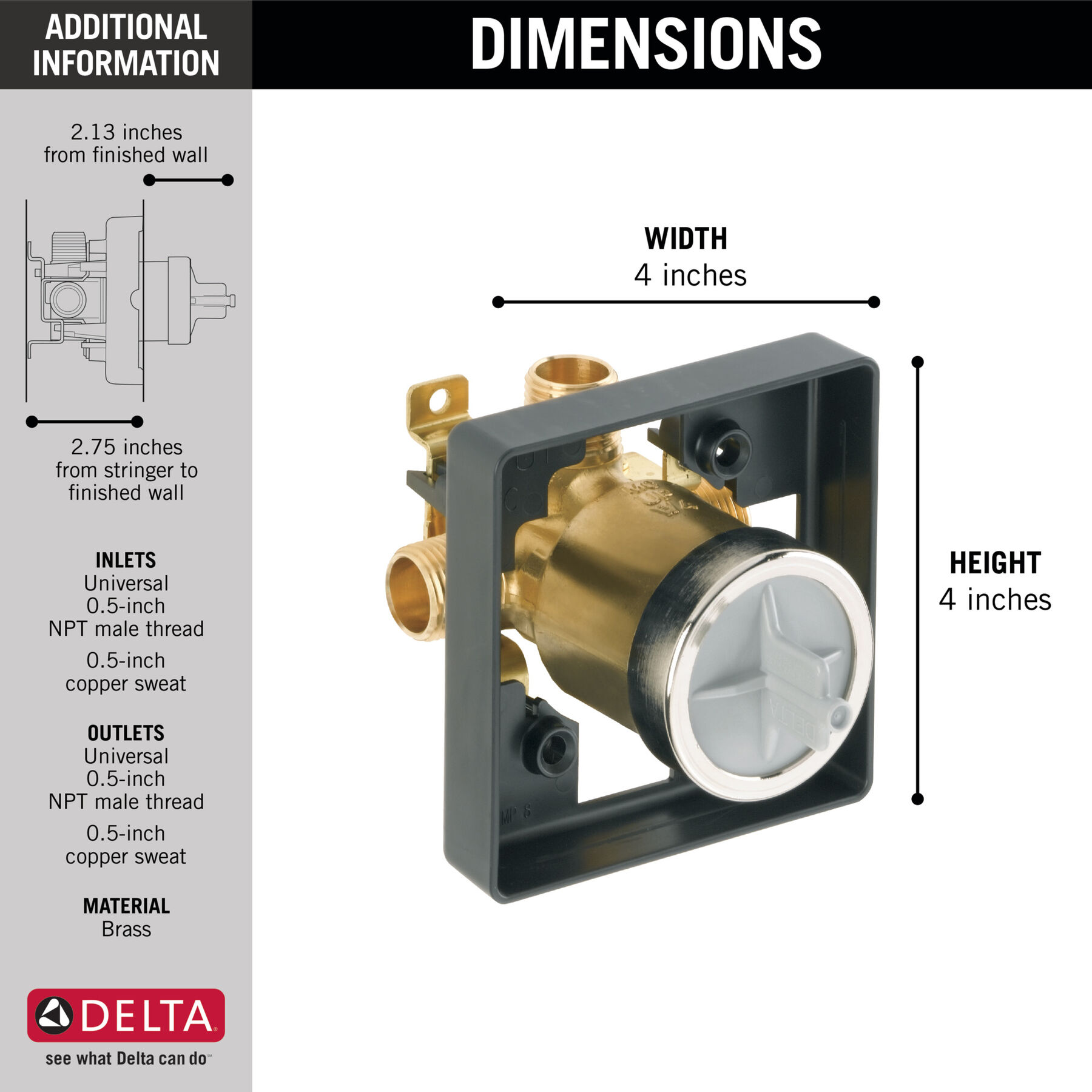

Over All Height :
4
Connection Type :
Universal fittings
PART LIST
REVIEWS
Rated 5 out of 5 by from Solid construction and fit as needed perfectly Perfect for our setup and as described
Date published: 2021-01-23
Rated 5 out of 5 by from Needed for shower system to operate properly Necessary Part for shower system
Date published: 2021-01-08
Rated 5 out of 5 by from Second Shower System for us This is one of the components that makes up a complete shower system. This is the second system we have purchased for a new bathroom remodel in a different home. We, as well as our plumber are pleased to know all components come when ordering the shower system.
Date published: 2020-12-24
Rated 5 out of 5 by from Nice Beautiful and fully functional. Great flow and the bronze is incredible
Date published: 2020-11-24
Rated 5 out of 5 by from Mixing value Works great. Very happy.
Date published: 2020-11-17
Rated 5 out of 5 by from Nice Valve Nice valve and appears to put out more water flow as advertised
Date published: 2020-09-21
Rated 1 out of 5 by from Faulty RP50366 Stop Valve does not work. How do I replace with one that works ASAP?
Date published: 2020-03-27
Rated 1 out of 5 by from Disapointed I purchases the Delta Mixing valve and is has not shut off well. It started to drip shortly after install. On the bright side Delta's customer service rep that I talked to was very pleasant and is sending out a new cartridge to replace the defective one.
Date published: 2020-03-16
  • y_2021, m_3, d_4, h_17
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.14
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_65
  • loc_en_US, sid_R10000-UNBXHF, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 6ms
  • reviews, product
Q&A

What is the difference between R10000-UNWS and R10000-UNBX valves?

Asked by: Spider
Thank you for your question. Delta Faucet model # R10000-UNWS includes screwdriver stops on the valve to allow the user to turn the water off at the valve for servicing. If the model has an HF in it, then it means High Flow and can only be used on a shower only application.
Answered by: Delta1
Date published: 2015-06-27

can you list the trims available with this rough valve.

Asked by: David
Dear David, Thank you for your inquiry! Any shower-only trim kit that we currently make will work with the Delta MultiChoice Universal High-Flow Rough-In Valve R10000-UNBXHF. https://www.deltafaucet.com/bathroom/showering Best regards, Tanya
Answered by: Tanya
Date published: 2017-07-11

No hot water

I have the Delta R10000-UNBXHF Multichoice Universal Shower Only Valve installed along with the shower Delta Faucet T14286-SHQ Arzo. Everything works fine except the hot water is not hot enough even when the handle is fully turned into the hot area as indicated by the dots. What in the Multichoice Universal Shower Only Valve needs to be adjusted to have more hot water?
Asked by: Chandra
Hi Chandra, Thank you for your question. Your T14286-SHQ faucet has a cartridge that is equipped with a rotational limit stop. The rotational limit stop allows you to set the max hot water temperature on your faucet. Here is a link to a how to adjust the rotational limit stop video. http://www.deltafaucet.com/shopping-tools/research/video-gallery/video.html?v=n2_uZ7wgV1I&cat= Thanks, Dave
Answered by: DeltaFaucet2
Date published: 2015-06-22

Can the supply line for the shower be offset v/s going straight up? I have a R1000-UNBXHF controll

Asked by: Tom51
Hi, Tom Fogarty! Thank you for your question. When installing the Delta R1000-UNBXHF valve the supply lines does not have to be installed going straight up. It is your preference on how the supply lines are installed for the shower. Best regards, Themar
Answered by: DeltaFaucet7
Date published: 2020-06-09

Does the MultiChoice R10000-UNWS work with the Delta Faucet Trinsic 14 Series Single-Function Shower Trim Kit with Single-Spray H2Okinetic Shower Head, Matte Black T14259-BL (Valve Not Included)

Asked by: Jackie
Hi Jacke, Thank you for your inquiry! Yes, the Delta MultiChoice Universal Rough-In R10000-UNWS valve can be used with the Delta Trinsic Shower T14259-BL model. Best regards, Tanya
Answered by: Delta Faucet
Date published: 2020-01-08

R10000-UNBXHF Back to Back install

When the product mentions back to back capable does that mean two valves for two separate shower heads? Does the provided install instructions provide information on this type of set up. We want two separate shower heads one for her, one for me. :) Will I be needing two separate valves? Thank you
Asked by: Daveriverrat
Hi Daveriverrat, Thank you for your question. The back-to-back instructions are for installations in which the hot and cold supplies are on the opposite side. To run two shower heads, you can use an R11000 rough-in valve and a corresponding 3-Setting Diverter Trim Kit. This will allow you to divert water to either shower head or both. https://www.deltafaucet.com/bathroom/product/R11000 The volume and temperature will be controlled by the R10000-UNBXHF valve. Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2017-06-05

I fixed a shower using an R1000-UNBX. It worked great but I had no way to find out what trim packages would work with it. I am now remodeling my tub/shower. Can I use a R1000-UNBX for the tub / shower or do I need a universal rough with a diverter?

Asked by: Dann
Thank you for your question, Dann! The R10000-UNBXHF can be used with any of our MultiChoice Universal trims, however the "HF" stands for High Flow meaning there is not a tub port in order to allow increased flow to the shower head. In order to use a tub spout, you will need a MultiChoice Universal valve like the R10000-UNBX along with a diverting tub spout. https://www.deltafaucet.com/bathroom/product/R10000-UNBX Best regards, Edward
Answered by: Delta Faucet
Date published: 2019-01-19

Which cartridge fits the r10000-unbxhf universal roughing ?

Asked by: Rjw398
Thank you for your question, Rjw398! The trim kit will include the needed cartridge. Each series takes a different cartridge. 14 Series - RP46074 17 Series - RP46463 17T Series - RP47201 Best regards, Tanya
Answered by: Delta Faucet
Date published: 2019-03-21
