Delta®

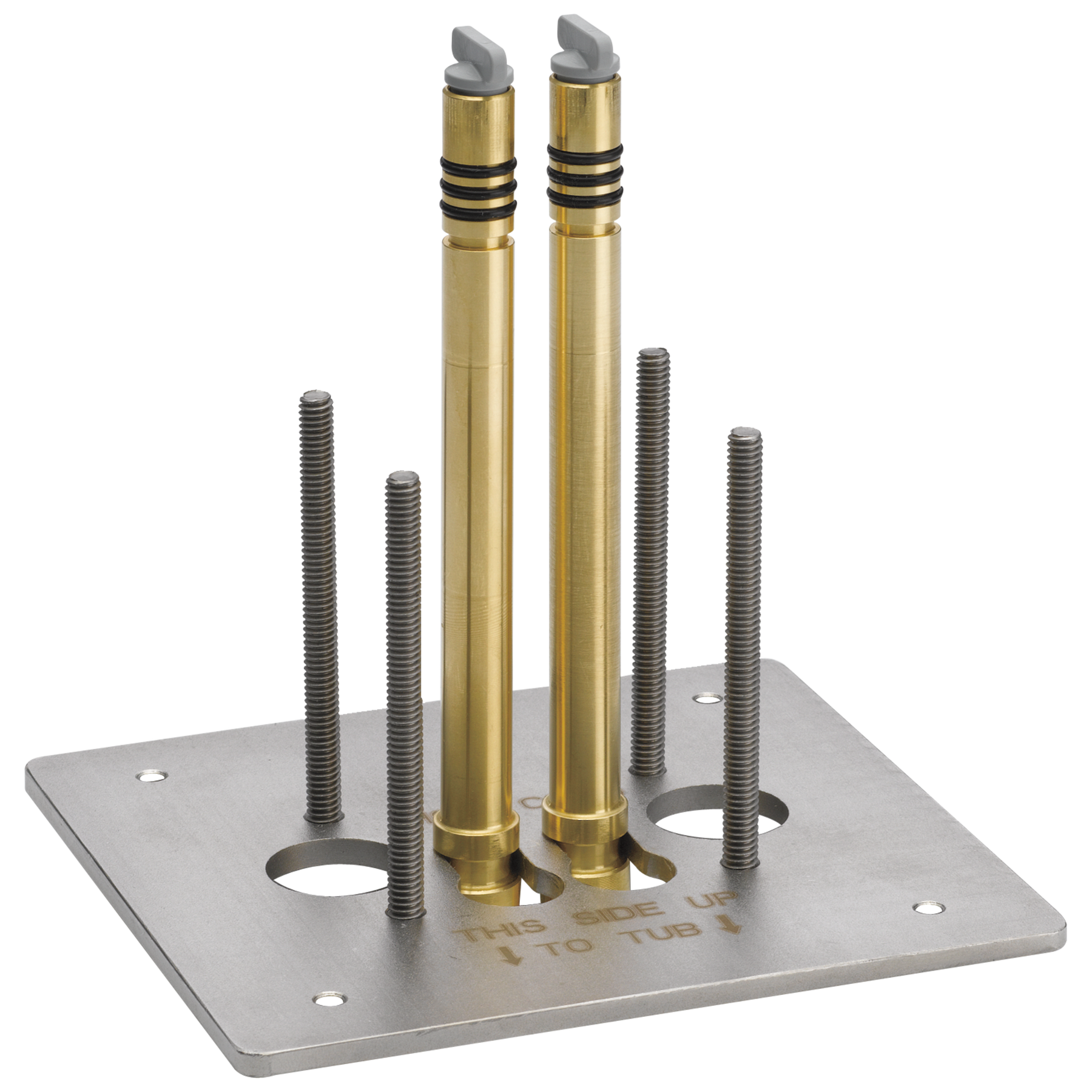

Floor Mount Tub Filler - Rough
Model#:
R4700-FL

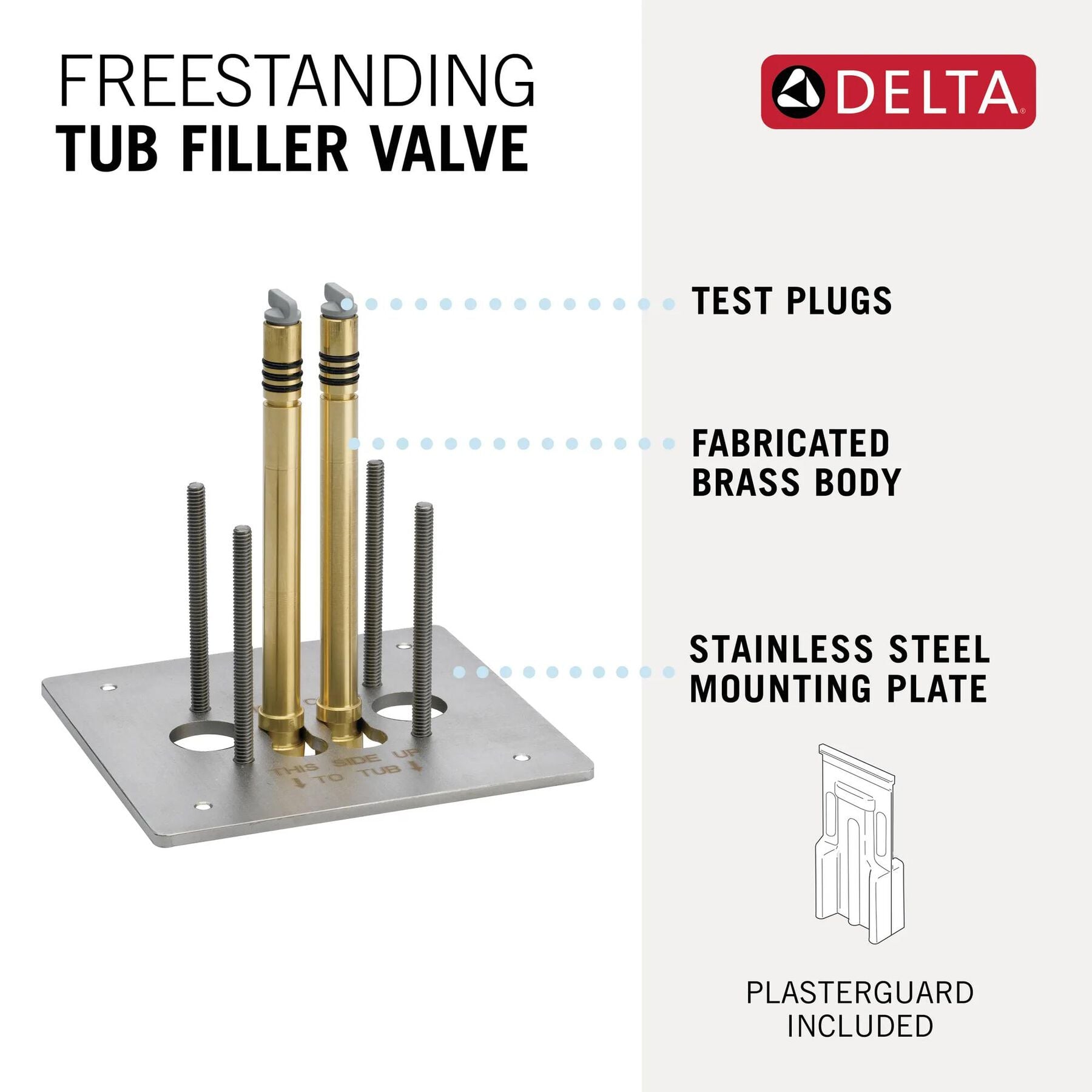

PRODUCT FEATURES
This rough-in kit may be installed prior to choosing the specific trim and finish. Allows for construction or a renovation project to proceed without delays when narrowing down a design style. Trim kit is sold separately and is required to complete the unit. Save time, effort, and money on future renovation updates because there’s no need to alter plumbing in the floor.
- Rough-in kit only
- Must purchase trim kit to complete the unit
- Machined brass body with stainless steel mounting plate
- Cartridge ships with trim
- 1/2 in. sweat rough-in
- Product ships with test plugs and plasterguard
Special Information
California Prop 65 WARNING
CALIFORNIA PROP 65 WARNING
<b>WARNING: </b>Risk of cancer and reproductive harm from exposure to Lead. See www.P65Warnings.ca.gov.
For more information go to http://www.P65Warnings.ca.gov
Special Information
California Prop 65 WARNING
CALIFORNIA PROP 65 WARNING
<b>WARNING: </b>Risk of cancer and reproductive harm from exposure to Lead. See www.P65Warnings.ca.gov.
For more information go to http://www.P65Warnings.ca.gov
Documents & Specs
Product Support, Repair Parts & Technical Specifications
Installation Information
Single hole installation

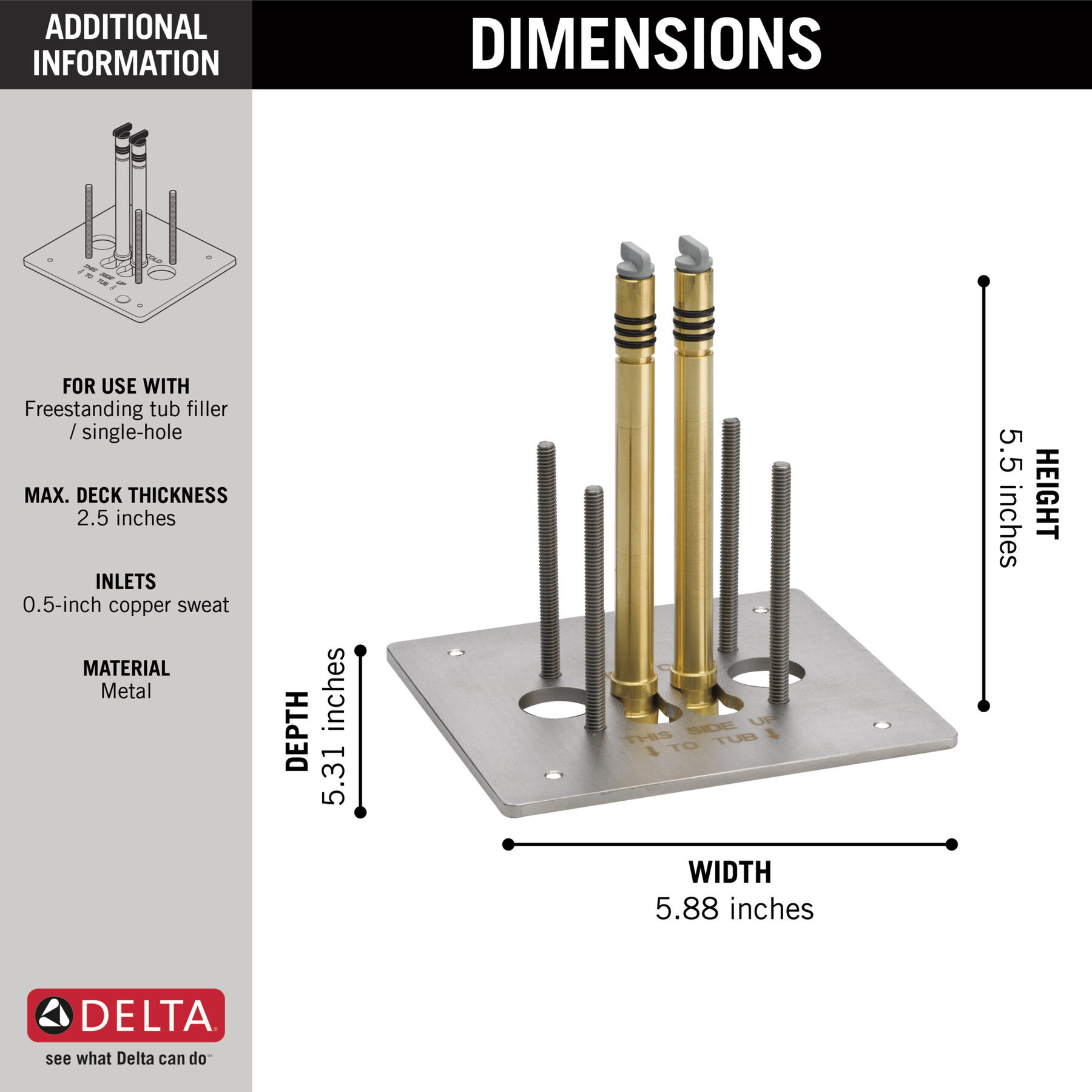

Overall Height (in.) :
5-1/2
Valve Type:
Single-function pressure balance cartridge
INSTALLATION SUPPORT
Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.
REVIEWS
Rated 5 out of
5
by
Carol from MontgomeryTX from
Floor mount bracket
Must have to prevent rocking.
Date published: 2026-01-15
Rated 1 out of
5
by
Builder from
Beware of little plastic stops.
The plastic temporary stops break and will not hold pressure. Caused a flood in clients home.
Date published: 2025-04-24
Rated 5 out of
5
by
Jf91560 from
It was an Awesome rough in very easy and clean
Easy to install minimal tools needed
Date published: 2024-10-21
Rated 5 out of
5
by
Stewart from
Perfect above floor fit
Perfect for our needs. We could not do a sub floor plate install so this was perfect and the fit was exact.
Date published: 2023-11-28
Rated 5 out of
5
by
Slsw from
Authentic Product
Work exactly as expected!!
Date published: 2023-08-23
Rated 5 out of
5
by
jim from
Gorgeous
Beautiful and elegant. The sitting position is a bit different than a standard tub, but works well.
Date published: 2023-08-13
Rated 5 out of
5
by
Mike from
Works well
Rough in works well. I use it on every job.
Date published: 2023-06-02
Rated 5 out of
5
by
Rich from
My Review
The product I need and quick shipping
Date published: 2023-01-28
Q&A
Can I use the T70130-RB tub filler trim if I have this in my concrete slab?
Hi, Matthew A!
Thank you for your question. The R4700-FL works with any of our Free Standing Tub Filler faucets. Here is a link to the units:
https://www.deltafaucet.com/bathroom/bathing/tub-fillers
You will want to filter 'Free Standing Tub Fillers' under the 'Type' tab.
Best Regards,
Rosanna
Date published: 2024-03-28
i am looking at the tesla T4752FL floor mount tub filler and see there are two valve options, the R4700 FL and the R4700 FLWS. Not sure what the difference is. Can you please advise?
Hi, Johnl!
Thank you for your question. Both of the Delta rough valve bodies R4700-FL and R4700-FLWS will work with the T4752-FL. The difference between the two rough valves is that the R4700-FLWS includes 'stops' that allow the user to turn the water off at the rough instead of having to turn the water off at the whole home. The R4700-FL does not include these stops.
Best Regards,
Rosanna
Date published: 2024-03-28
Is this asse 1070 compliant?
Hi, Brandon!
Thank you for your question. The R4700-WL rough valve does not control the flow of the unit. The trim that gets installed will regulate the flow. The trim for the R4700-WL meets all plumbing regulations, including ASSE 1070.
Best Regards,
Rosanna
Date published: 2024-03-28
How high do the water tube risers need to be above the floor to connect to the trim kit? I plan on placing this kit in a large shower pan (wet room) and want to ensure I have enough clearance after penetrating the sub floor, shower pan, mortar and tile.
Hi, Thank you for your question. I do apologize for any confusion regarding your Delta product. We are happy to help! Feel free to contact us directly, so we can further assist you with this matter. I have included our contact information below.
Please contact us at 1-800-345-3358 if you have any further concerns. We are open Monday through Friday 7:00 AM to 7:00 PM central time, and 8:00 AM to 5:00 PM on Saturday.
Best Regards,
Bethany
Date published: 2024-03-28
I would like to test the R4700-FL and tub filler, and then remove it before I seal everything down and install the tile floor. Can I do this, or is it a one time installation?
Thank you for question, Alice! You may test the R4700-FL before you install the tub filler trim however this installation requires soldering and any damage that occurs from un-installing the rough will not be covered under the warranty. Please refer to the maintenance and installation manual below.
https://media.deltafaucet.com/MandI/74821%20Rev%20E.pdf
Best regards, Edward
Date published: 2024-03-28
How far away does the mount have to be from the Tub?
Thank you for your question, Jonathan! The distance from the tub to the R4700-FL rough-in and tub filler would be a preference of the owner or installer as we do not have a set recommendation. We would advise reviewing the technical specifications sheet for the faucet you intend to purchase to ensure the spout reach will be close enough to fill the tub.
Best regards, Edward
Date published: 2024-03-28
What is the maximum height can the risers be above the finish floor elevation?
Hi, DGrube!
Thank you for your question. Here is a link to the Technical Specifications Sheet and Maintenance and Instruction Guide for measurement help for your installation:
https://media.deltafaucet.com/SpecSheet/dsp-b-r4700-fl_D.pdf
https://media.deltafaucet.com/MandI/74821%20Rev%20E.pdf
Please feel free to call, email, or message us on social.
Best regards, Rosanna
Phone: 1-800-345-3358 | Email: customerservice@deltafaucet.com | Facebook/Twitter: @deltafaucet
Date published: 2024-03-28
What is the size of the threaded studs?
No washers or nuts were included with the product. What is the nut size needed?
Hi, Richard!
Thank you for your question. The mounting nuts and washers come with the tub filler trim kit. The nut and washer from RP74819 are made to mount onto the RP74814 threaded stud that measures 1/4-20 x 3.45".
Best Regards,
Rosanna
Date published: 2024-03-28
PART LIST
PART LIST
View Product
![Image-RP74816]()
Trinsic®
Trinsic® Test Plug - Floor Mount Tub Filler
List Price:
$17.95
Online Price:
$14.36
Free Ground Shipping All Orders $49+
RP74816
View Product
![Image-RP74817]()
Trinsic®
Trinsic® Plasterguard - Floor Mount Tub Filler
List Price:
$20.80
Online Price:
$16.64
Free Ground Shipping All Orders $49+
RP74817
View Product
![Image-RP74814]()
Trinsic®
Trinsic® Threaded Studs - Floor Mount Tub Filler
List Price:
$40.95
Online Price:
$32.76
Free Ground Shipping All Orders $49+
RP74814
View Product
![Image-RP74815]()
Trinsic®
Trinsic® Supply Tubes Rough w/ O-Rings - Floor Mount Tub Filler
List Price:
$91.45
Online Price:
$73.16
Free Ground Shipping All Orders $49+
RP74815
View Product
![Image-RP74812]()
Trinsic®
Trinsic® O-Rings - Rough Tubes
List Price:
$11.40
Online Price:
$9.12
Free Ground Shipping All Orders $49+
RP74812
5.00
2
View Product
![Image-RP74813]()
Trinsic®
Trinsic® Mounting Plate - Floor Mount Tub Filler
List Price:
$152.10
Online Price:
$121.68
Free Ground Shipping All Orders $49+
RP74813
