Classic
View Full Classic Bathroom Collection

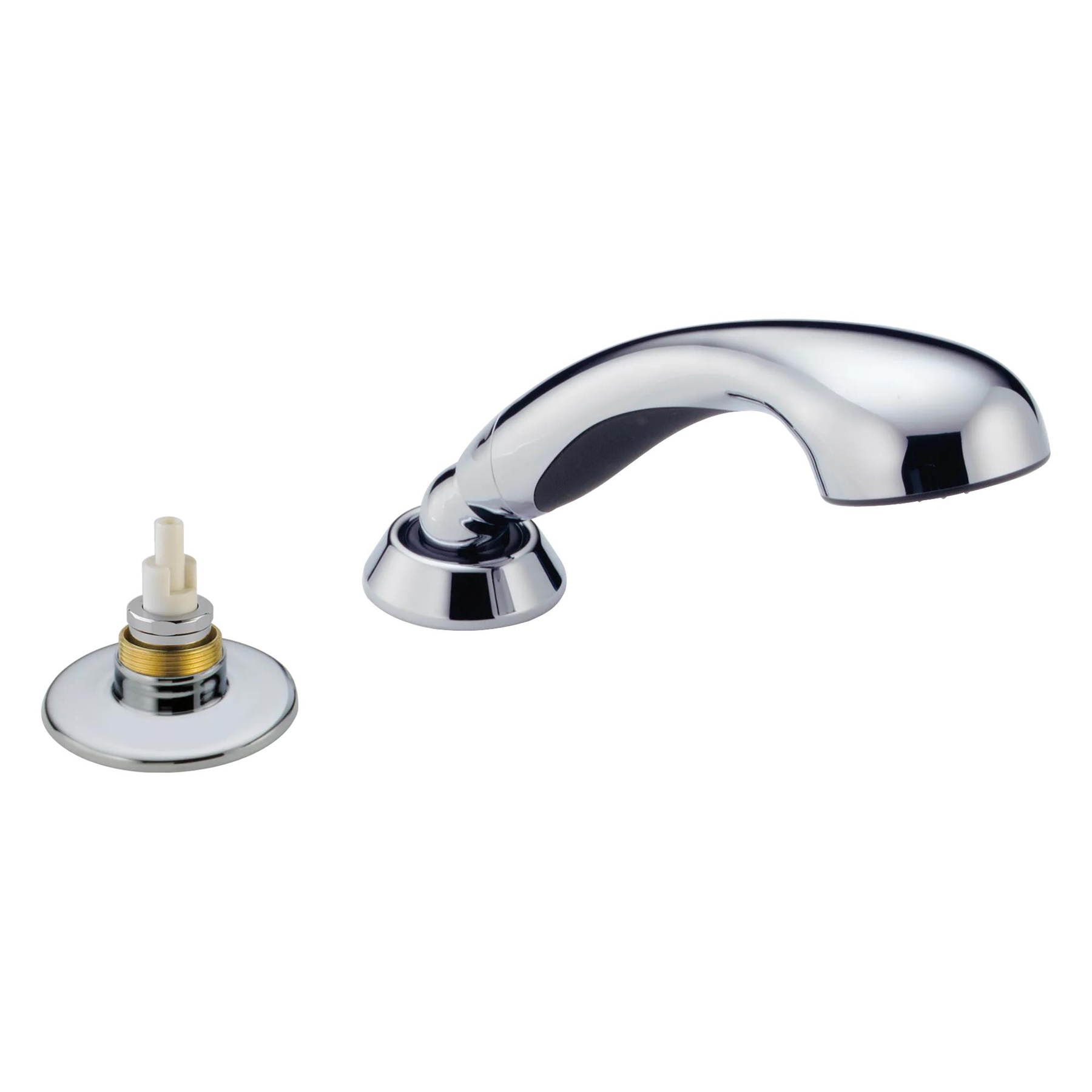

Hand Shower w/ Transfer Valve - Roman Tub in Chrome

Model#: RP14979
Add to Favorites
Find local Delta® installers.
Classic
View Full Classic Bathroom Collection
Hand Shower w/ Transfer Valve - Roman Tub in Chrome
Model#: RP14979
List Price: $79900
Add to Favorites
Find local Delta® installers.
PRODUCT FEATURES
  • Hand shower must mount on deck; Handle can mount on deck or wall
  • 69" long hose provides extended reach
  • Flexible mounting arrangement allows design flexibility
Special Information
Warning Image
California Prop 65 WARNING
Eco-Friendly
WaterSense® Labeled
Technology and Special Features
Water-Efficient
Special Information
Warning Image
California Prop 65 WARNING
Documents & Specs
Product Support, Repair Parts & Technical Specifications
View Technical Specifications
View Maintenance & Installation Sheet
View Parts & Accessories Diagram
Register Product
Installation Information
Flow Rate :
1.75 gpm @ 80 psi, 6.6 L/min @ 552 kPa
Overall Height (in.) :
9
Valve Type:
Washerless stem cartridge
REVIEWS
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 6ms
  • reviews, product
  • bvseo-msg: Unsuccessful GET. status = 'ERROR', msg = 'Not Found.'; Unsuccessful GET. status = 'ERROR', msg = 'Not Found.';
Q&A

What valve would be needed for this and a tub filler?

I'd like to have a Roman tub filler with a handshower where the handshower is installed near the middle to the head end of the tub, 3 - 5 feet from the main filler and valve. I've seen pictures so I know its possible in some way. Would this Roman Tub Handshower with Transfer Valve be able to be installed 3 - 5 feet from the main valve and filler? Would a special valve be needed or would the standard R4707 Flexible Roman Tub with Hand shower Rough work? Thanks!
Asked by: momelisse
Thank you for your question. It is possible to install Delta Faucet model # RP14979 farther away than normal from your main valve and spout. You will need to install extra piping to reach the transfer valve that is not supplied by us. You will not need an special valve as the transfer valve will pull the water to the handheld shower.
Answered by: Delta1
Date published: 2024-03-28

Is this compatible with any Delta faucet?

I already use a Delta 3-hole widespread tub faucet (filler with knobs). Can I add this onto my existing faucet set-up or must I buy a whole new faucet-with-hand-shower combo? I saw your diagram but don't understand as diverter and hand shower appear to be installed on a lower elevation from the tub filler and knobs, which does not make any sense. What line should the transfer valve line run to/from; can you please explain?
Asked by: Jen
Thank you for your question. Delta Faucet model # RP14979 is used when you are adding a handshower to an existing roman tub faucet. You will need two holes for the installation and they can be installed along the same lines as the faucet.
Answered by: Delta
Date published: 2024-03-28

I have a Roman Tub faucet and spout. Three holes for hot/cold/spout. Can this handshower be used?

If necessary I would purchase a whole new unit
Asked by: Baila
You would need an additional two holes for this, and access to the valves underneath.
Answered by: JessiL
Date published: 2024-03-28

Re: The above hand shower

What's the size hole required for the threaded pipe (which houses the diverter assembly) which protrudes through the tub rim?
Asked by: Chuck
Thank you for your question. Delta Faucet model # RP14979 needs a hole size of 1-1/2 inches for the diverter assembly. Included here are the specs for the product just in case you needed any other measurements. http://www.deltafaucet.com/customersupport/documentation/rp14979.html?document=ts&documentIndex=0#flashWrapper
Answered by: Delta1
Date published: 2024-03-28

In followup, will using a single line feed have any effect on flow rate and can the valve shut off the tub and sprayer at the same time?

Asked by: Bath_Man
Hi Bath_Man, Thank you for your follow up question. Going through the transfer valve will slighty lower the water flow. The valve will only divert the water from the tub and sprayer. It will not stop the water flow. Thanks, Dave
Answered by: DeltaFaucet2
Date published: 2024-03-28

How does this connect to the existing rough in valve?

I have a roman tub faucet with two handles. I also have space to cut the two new holes for the hand shower and transfer handle. My question: How does this unit connect to the existing valve? Or do I need to buy a new valve to connect everything?
Asked by: Deb
Hi, Deb! Thank you for your question. The RP14979 will have a tee that will be able to be soldered onto the existing valve supplies. We recommend to call a plumbing representative to help you further with this. Best Regards, Rosanna
Answered by: Rosanna
Date published: 2016-11-04

Can i use RP14979 with a single supply line that provides the hot & cold water?

Asked by: Bath_Man
Hi Bath_Man, Thank you for your question. As long as you cap/plug the hot or cold supply port on the valve that is not being used the RP14979 should work with a single mixed line. Thanks, Dave
Answered by: DeltaFaucet2
Date published: 2024-03-28

Will the transfer valve act as a "mixing valve", if I hook it directly to the hot and cold sources?

IN other words, I don't want to be able to use the hand shower ONLY when the main tub filler is on. I want to be able to fill the tub, with a Trinsic wall mount, and be able to use the hand shower, and control it from inside the tub. OR, would I need to get a 2nd R3510-WL valve and hook it to the hand shower?
Asked by: Q-Built
Hi Q-Built, Thank you for your question. The Delta Transfer valve RP14979SS is designed as deck mounted on/off function for a Roman/Whirlpool/Garden Tub faucets. The Delta R3510-WL rough-in valve is intended for use with a wall mount lavatory sink only as it has a flow rate of 1.2 gallons per minute. We do not manufacture any wall mounted Roman/Whirlpool/Garden Tub faucets or spouts. Best regards, Tanya
Answered by: Tanya
Date published: 2024-03-28
  • y_2026, m_6, d_9, h_12CST
  • bvseo_bulk, prod_bvqa, vn_bulk_3.0.46
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_16
  • loc_en_US, sid_RP14979, prod, sort_[SortEntry(order=HAS_STAFF_ANSWERS, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getContent, 22ms
  • questions, product
PART LIST

PART LIST

Image-RP19653

Delta®

Delta® Diverter Assembly - Transfer Valve - Roman Tub

List Price: $15.70
Online Price: $12.56
Free Ground Shipping All Orders $49+

RP19653

Image-RP19652

Delta®

Delta® Nuts (2) & Washer (1) - Hand Shower - Roman Tub

List Price: $14.50
Online Price: $11.60
Free Ground Shipping All Orders $49+

RP19652

Image-Master-RP18632

Delta®

Delta® Transfer Valve

List Price: $309.65
Online Price: $247.72
Free Ground Shipping All Orders $49+

RP18632

Image-Master-RP19654

Delta®

Delta® Sleeve - Transfer Valve - Roman Tub

List Price: $20.60
Online Price: $16.48
Free Ground Shipping All Orders $49+

RP19654

Image-RP18627

Delta®

Delta® Stem Extender - Roman Tub

List Price: $10.45
Online Price: $8.36
Free Ground Shipping All Orders $49+

RP18627

4.33 6
Image-Master-RP40662

Delta®

Delta® Escutcheon - Wand

List Price: $43.30
Online Price: $34.64
Free Ground Shipping All Orders $49+

RP40662

Image-RP40666

Delta®

Delta® Hand Shower Shank Assembly - R4700 - Roman Tub

List Price: $33.65
Online Price: $26.92
Free Ground Shipping All Orders $49+

RP40666

Image-RP40667

Delta®

Delta® Leader Hose - Roman Tub - R4700

List Price: $33.65
Online Price: $26.92
Free Ground Shipping All Orders $49+

RP40667

1.00 2
Image-RP40664

Delta®

Delta® Hose & Gaskets - Roman Tub - R4700

List Price: $97.65
Online Price: $78.12
Free Ground Shipping All Orders $49+

RP40664

1.80 5
Image-Master-RP62097

Classic

Classic Metal Blade Handle Kit - Transfer Valve

List Price: $75.15 - $104.90
Free Ground Shipping All Orders $49+

RP62097

Image-RP40663

Delta®

Delta® Conical Hand Shower Nut - Roman Tub - R4700

List Price: $20.50
Online Price: $16.40
Free Ground Shipping All Orders $49+

RP40663

* Actual pricing may vary and is determined by the selling retailer/wholesaler/dealer.
