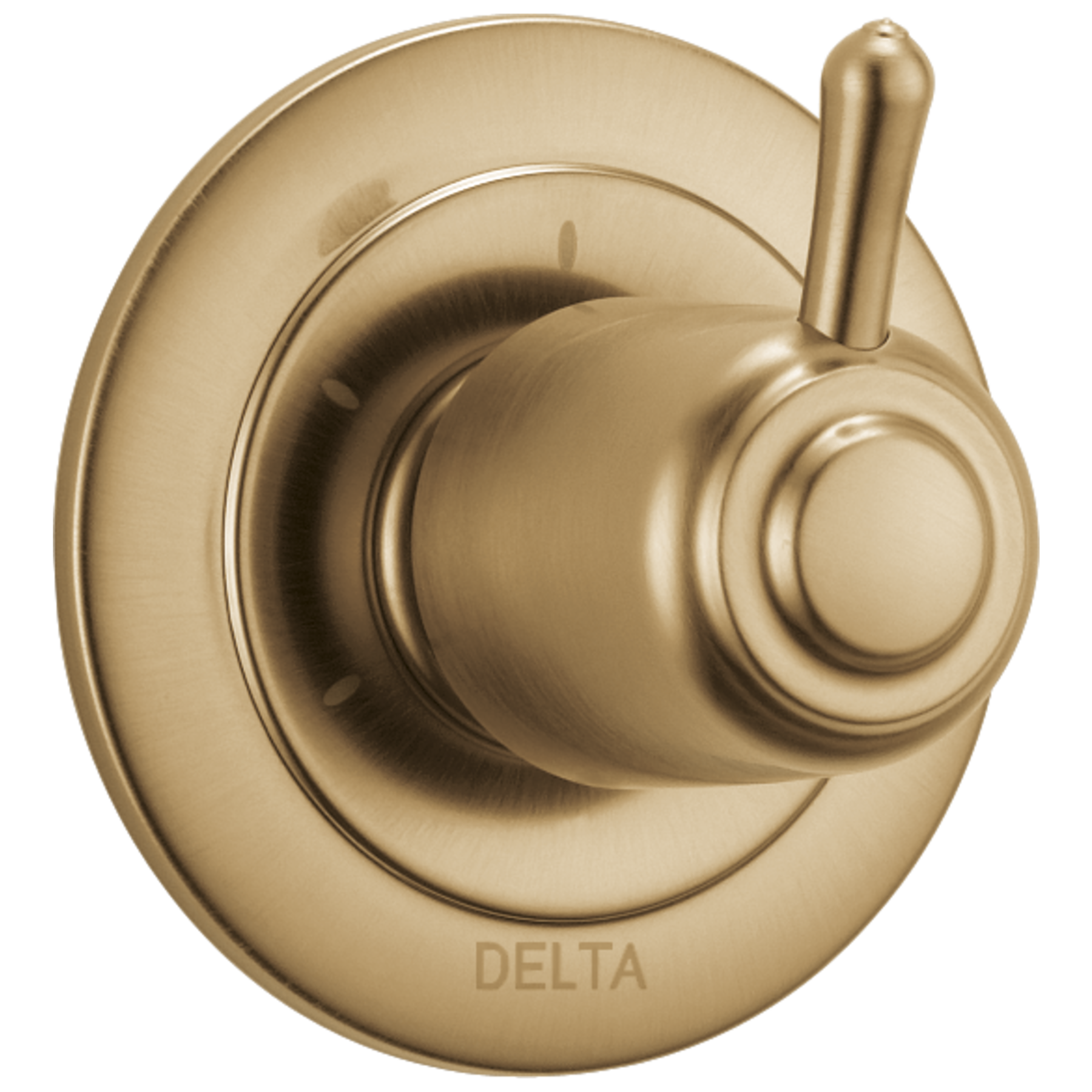

Delta®
3-Setting 2-Port Diverter Trim
Model#: T11800-CZ
3-Setting 2-Port Diverter Trim
3-Setting 2-Port Diverter Trim
Delta®
3-Setting 2-Port Diverter Trim
Model#: T11800-CZ
Finish: Champagne Bronze
List Price*: $234.00
PRODUCT FEATURES
A gentle curve and slight flare characterize the clean, modern design of this Single-Handle 3-Setting Diverter Trim. Getting ready in the morning is far from routine when you are surrounded by a bath that reflects your personal style. The shower becomes your private sanctuary where body sprays and showerheads work in perfect harmony.
  • For use with R11000 diverter rough-in
  • Includes valve cartridge
  • Available in five finishes
  • Tesla Collection: Progressive. Organic. Evolved.
  • Valve is not included, must purchase separately
  • Backed by Delta Faucet’s Lifetime Limited Warranty
Special Features
ADA Compliant
ADA Compliant
California Prop 65 WARNING
SUPPORT
Installation Information
Over All Height :
4-1/2
Connection Type :
NA
PART LIST

PART LIST

REVIEWS
Rated 5 out of 5 by from Second Shower System for us This is one of the components that makes up a complete shower system. This is the second system we have purchased for a new bathroom remodel in a different home. We, as well as our plumber are pleased to know all components come when ordering the shower system.
Date published: 2020-12-24
Rated 5 out of 5 by from Shower Diverter Works as it should. Nice low profile.
Date published: 2020-09-14
Rated 5 out of 5 by from Great shower control. This is a great addition to our shower.
Date published: 2020-08-13
Rated 5 out of 5 by from Great Diverter I love the way this fixture turned out. I'm a DIY'er and have never attempted such a large project. I was able to install all the plumbing and fixtures myself. The instructions were clear enough for me to get it right the first time around. The only thing I'd do differently is I would leave a larger whole for the openings. There is no real direction for this and I ended up struggling to get everything hooked up with an opening that was just big enough for the plumbing to poke through. Tried adding a photo and it wouldn't upload.
Date published: 2020-03-18
Rated 5 out of 5 by from Love it Set it and forget it. No more adjusting temperature when you turn shower on. Unless of course more than two ppl dont like same temperature...very sleek looking
Date published: 2019-06-01
Rated 5 out of 5 by from Beautiful Easy to follow directions. Easy installation. Built to last, great finish. Smooth to use handle. Another great Delta product.
Date published: 2019-02-02
Rated 5 out of 5 by from Great product. The valve works great!!
Date published: 2018-08-26
Rated 4 out of 5 by from great look and features Brought It when remodeled Master bath works great
Date published: 2018-05-21
  • y_2021, m_3, d_1, h_17
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.14
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_27
  • loc_en_US, sid_T11800-CZ, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 7ms
  • reviews, product
Q&A

Is this for shower/tub combo or can it be used for shower head and hand held shower and no tub?

Asked by: Gigi
Thank you for your question, Gigi! This Diverter Trim will cover the R11000 Diverter Rough which connects to the top port of a mixing valve rough such as the R10000-UNBX. Because of this, it is not recommended to divert back down to the tub spout. You can; however, still diverter water from the R10000 using a diverting tub spout or simply cap this port if not needed. The right port of the R11000 would then be capped leaving the left and top ports for a shower head and another feature such as a hand shower or body jet. https://www.deltafaucet.com/bathroom/product/R11000 Best regards, Edward
Answered by: Delta Faucet
Date published: 2019-08-07

Is there trim that can be used when the hole for the diverter is larger than the trim?

I have the t11800 and I made the hole the same size as the valves. the depth is about on the money slight in too far so the plate can push out the diverter trim too much. Thanks, Steve
Asked by: Steve
Thank you for your question, Steve. The RP42414 will fit behind the plate, and may help cover the hole. https://www.deltafaucet.com/parts-product-detail?modelNumber=RP42414 Technical Specifications: https://media.deltafaucet.com/SpecSheet/DSP-B-T11855%20Rev%20D.pdf Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2016-12-22

At 60PSI, what is the flow rate (in GPM) from each port when not in the shared position? and from each port when in the shared position?

Asked by: Steve
Hello Steve, Thank you for your question. The GPM ( gallons per minute) of the positions for the T11800/R11000 diverter valve depends on the components being used and the trim/cartridge of the control valve. Below is a general chart: Approximate Outlet Flow Rate (gpm) Pressure (psi) 13 Series 17 Series 17T Series 30 3.7 3.5 4.0 40 4.3 4.1 4.6 50 4.8 4.6 5.1 60 5.3 5.0 5.6 70 5.7 5.4 6.1 80 6.1 5.8 6.5 Best regards, Brandis
Answered by: DeltaFaucet7
Date published: 2016-09-19

Can this faucet be configured to have an off position?

I would like to be able to have overhead shower or a wand or the off position not both in one position.
Asked by: Dan
Hi Dan, Thank you for your question. This diverter will allow you to run two components, together or individually. The diverter cannot be configured to turn the water off to both units. You must have a separate valve to control the flow and temperature of the water, such as a 14, 17, or 17T series unit. To narrow narrow down your selection, please click the link below. http://www.deltafaucet.com/bath/tubshower/filter.html Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2016-05-05

I'm assuming that I can fill the bathtub and run the shower or a hand-held at the same time. Am I correct? Thanks for your assistance. Multitask

Asked by: Multitask
Hello Multitask, Thank you for your question. This diverter will allow you to run two components, together or individually. The diverter valve is not designed to have a tub spout connected to it You would connect the diverter tub spout to the bottom port of the valve. Best regards, Tanya
Answered by: Delta Faucet
Date published: 2018-08-12

We have purchased the Windemere Monitor 14 Series Valve Trim along with the MultiChoice Rough-In. We are wanting a diverter that does two shower heads, plus a both option. This valve recommended isn’t making sense to us. Help?

Asked by: lexipinney
Rosanna, The I spoke with a Delta representative on the phone yesterday. They said this diverter trim required the R11000 rough-in. This particular rough-in comes with 4 outlets. In which, how do you plumb it accordingly to do the detachable on one, rain head on the other and then both? Does the cartridge that comes with this trim allow for that?
Answered by: lexipinney
Date published: 2019-01-22

Rosanna, I spoke with a Delta representative on the phone yesterday. They said this diverter trim requires the R11000 rough-in. This particular rough-in comes with 4 outlets. In which, how do you plumb it accordingly for 2 heads or both?

Asked by: lexipinney
Hi, Alexis! Thank you for your question. The Delta R11000 has four ports. The bottom port is to be plumbed to a MultiChoice R10000 valve body. The right port is to be plugged, while the two shower components are to be plumbed to the top and left ports. Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2019-04-21

I would like to use this diverter trim kit and ask if the handle shown in the picture is included in the kit? If not, would you provide me with the ordering information for the handles in the photo, please? Thanks

Asked by: cajun18
Thank you for your question, cajun18! The handle assembly is included with this trim kit. Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2018-05-29
