Delta®

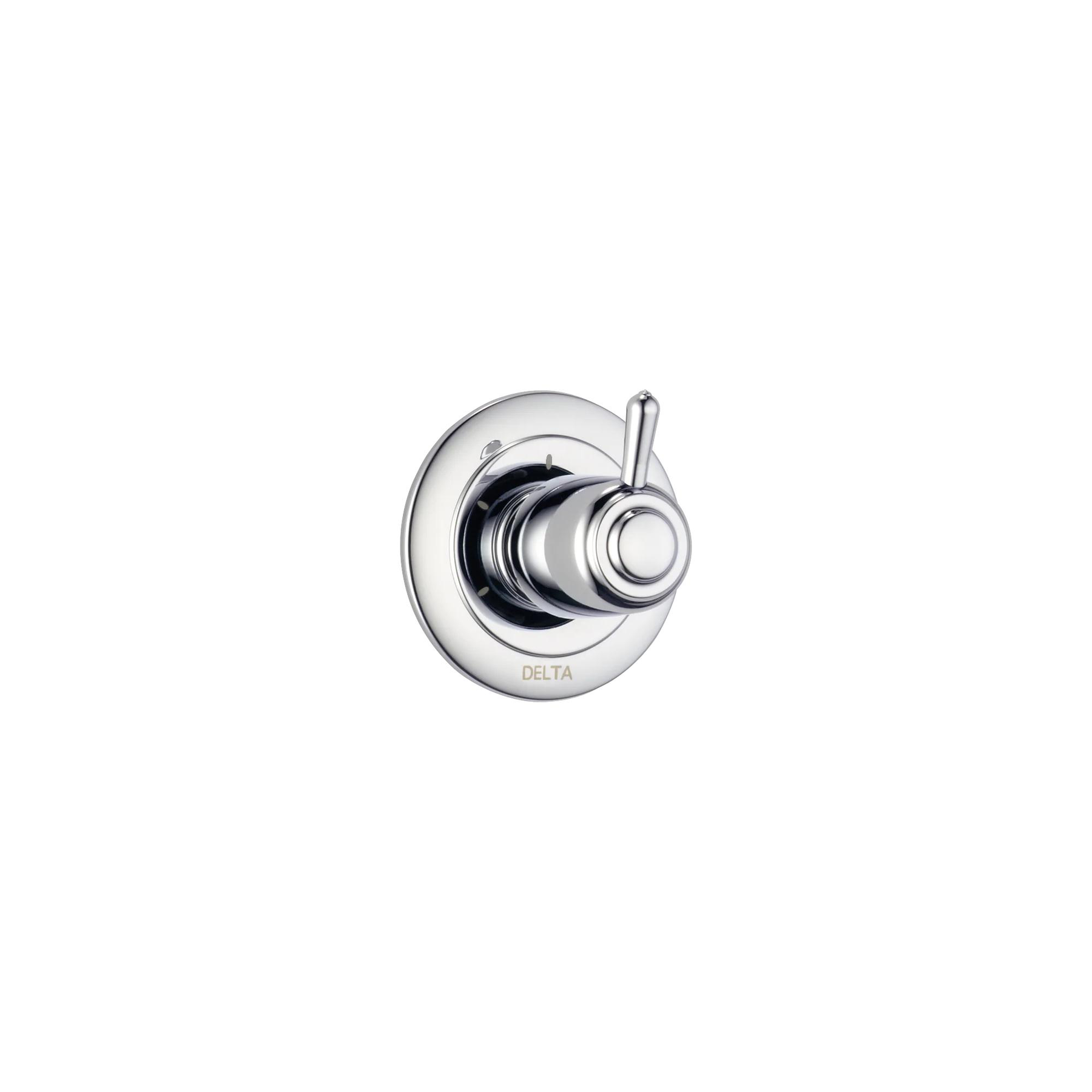

3-Setting 2-Port Diverter Trim in Chrome

Model#: T11800
Add to Favorites
Find local Delta® installers.
Delta®
3-Setting 2-Port Diverter Trim in Chrome
Model#: T11800
List Price: $23560
Add to Favorites
Find local Delta® installers.
PRODUCT FEATURES
A gentle curve and slight flare characterize the clean, modern design of this Single-Handle 3-Setting Diverter Trim. Getting ready in the morning is far from routine when you are surrounded by a bath that reflects your personal style. The shower becomes your private sanctuary where body sprays and showerheads work in perfect harmony.

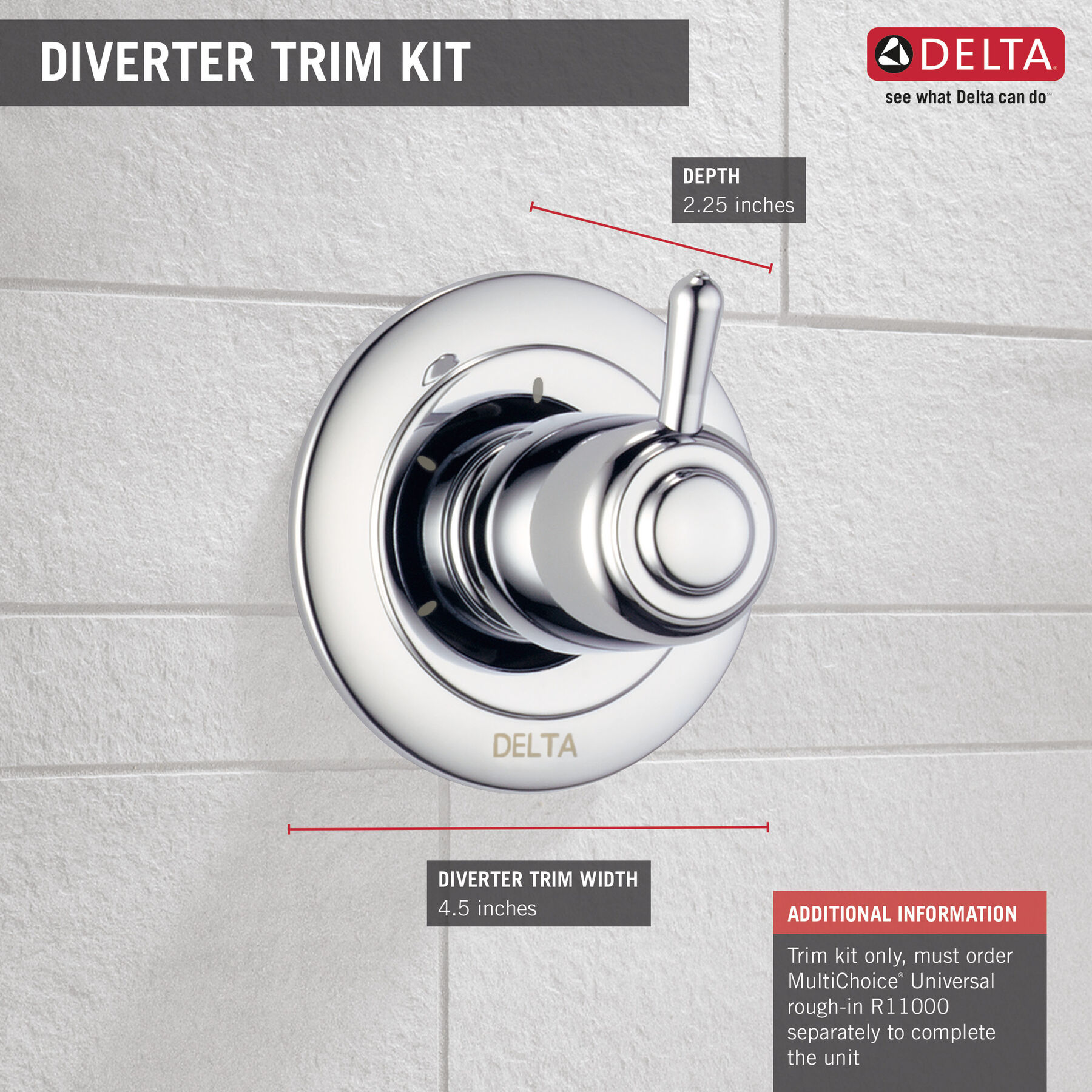

  • Trim kit only, must purchase rough-in kit separately
  • Must purchase rough-in kit R11000 sold separately
  • 2 individual positions, 1 shared position
  • Single lever handle for ease of operation
  • 1/2 in. rough-in
  • Includes valve cartridge
Special Information
Warning Image
California Prop 65 WARNING
Technology and Special Features
ADA Compliant
Special Information
Warning Image
California Prop 65 WARNING
Documents & Specs
Product Support, Repair Parts & Technical Specifications
View Technical Specifications
View Maintenance & Installation Sheet
View Parts & Accessories Diagram
Register Product
Installation Information
Overall Height (in.) :
4-1/2
Valve Type:
NA

INSTALLATION SUPPORT

Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.

GO
Enter Valid Zip.
REVIEWS
Rated 5 out of 5 by from Perfect match Matches other fixtures in brushed stainless.
Date published: 2025-05-20
Rated 5 out of 5 by from Works great Seems to work great. The water on off valve had a limiter on it I had to have a plumber remove
Date published: 2024-12-23
Rated 3 out of 5 by from T11800 Appearance great but facia would not day to my old R1100 diverted valve
Date published: 2023-12-09
Rated 5 out of 5 by from homeowner This is worth it, was needed with the diverter that was installed, easy to use.
Date published: 2023-11-13
Rated 5 out of 5 by from Delta T11800 Expensive but well built and works very smoothly
Date published: 2023-07-04
Rated 5 out of 5 by from Control valve This product worked well, and it fit our existing.
Date published: 2022-12-27
Rated 5 out of 5 by from It works well and looks good. smooth design and works well
Date published: 2022-12-01
Rated 5 out of 5 by from Not big box Delta Heavy components provide a solid feel. There’s a light detent when divided flow is selected.
Date published: 2022-10-08
  • y_2026, m_7, d_2, h_11
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.46
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_39
  • loc_en_US, sid_T11800, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 38ms
  • reviews, product
Q&A

Is there trim that can be used when the hole for the diverter is larger than the trim?

I have the t11800 and I made the hole the same size as the valves. the depth is about on the money slight in too far so the plate can push out the diverter trim too much. Thanks, Steve
Asked by: Steve
Thank you for your question, Steve. The RP42414 will fit behind the plate, and may help cover the hole. https://www.deltafaucet.com/parts-product-detail?modelNumber=RP42414 Technical Specifications: https://media.deltafaucet.com/SpecSheet/DSP-B-T11855%20Rev%20D.pdf Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2016-12-22

At 60PSI, what is the flow rate (in GPM) from each port when not in the shared position? and from each port when in the shared position?

Asked by: Steve
Hello Steve, Thank you for your question. The GPM ( gallons per minute) of the positions for the T11800/R11000 diverter valve depends on the components being used and the trim/cartridge of the control valve. Below is a general chart: Approximate Outlet Flow Rate (gpm) Pressure (psi) 13 Series 17 Series 17T Series 30 3.7 3.5 4.0 40 4.3 4.1 4.6 50 4.8 4.6 5.1 60 5.3 5.0 5.6 70 5.7 5.4 6.1 80 6.1 5.8 6.5 Best regards, Brandis
Answered by: DeltaFaucet7
Date published: 2016-09-19

I'm assuming that I can fill the bathtub and run the shower or a hand-held at the same time. Am I correct? Thanks for your assistance. Multitask

Asked by: Multitask
Hello Multitask, Thank you for your question. This diverter will allow you to run two components, together or individually. The diverter valve is not designed to have a tub spout connected to it You would connect the diverter tub spout to the bottom port of the valve. Best regards, Tanya
Answered by: Delta Faucet
Date published: 2024-03-28

We have purchased the Windemere Monitor 14 Series Valve Trim along with the MultiChoice Rough-In. We are wanting a diverter that does two shower heads, plus a both option. This valve recommended isn’t making sense to us. Help?

Asked by: lexipinney
Rosanna, The I spoke with a Delta representative on the phone yesterday. They said this diverter trim required the R11000 rough-in. This particular rough-in comes with 4 outlets. In which, how do you plumb it accordingly to do the detachable on one, rain head on the other and then both? Does the cartridge that comes with this trim allow for that?
Answered by: lexipinney
Date published: 2024-03-28

Rosanna, I spoke with a Delta representative on the phone yesterday. They said this diverter trim requires the R11000 rough-in. This particular rough-in comes with 4 outlets. In which, how do you plumb it accordingly for 2 heads or both?

Asked by: lexipinney
Hi, Alexis! Thank you for your question. The Delta R11000 has four ports. The bottom port is to be plumbed to a MultiChoice R10000 valve body. The right port is to be plugged, while the two shower components are to be plumbed to the top and left ports. Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2024-03-28

Depth of installation problem

I have this R11000 diverter with the T11800 trim kit. I had a plumber do all the rough-in, but now that the tile is up and I'm installing the trim, I've found that the plumber put the valve at the wrong depth. While the shower valve trim (a Symmons) itself was fine, the diverter backplate is actually sitting 3/8" from the wall. Is there an alternate trim or a extension plate available that resolve this? Untiling the wall is not an acceptable solution! Thank you, Larry B
Asked by: LarryB
Hi Larry, We are sorry that you are experiencing a problem with your installation. Unfortunately if the valve is plumbed out too far we do not offer any alternative trim rings or extensions to fix the issue. The valve will have to be replumbed. Step 1 of the attached installation manual shows the dimension at which the diverter rough should be installed. http://www.deltafaucet.com/customersupport/documentation/r11000.html?document=mi&fromDetailArea=bath&documentIndex=0#flashWrapper Thanks, Dave
Answered by: DeltaFaucet2
Date published: 2024-03-28

What crartrage do I need to use the right port and to instead of the left and top? Thanks

Asked by: ChrisN
Hello! Thank you for your question. We recommend using a 6 setting diverter cartridge if you are using the right port. The part number for this is RP51919. Please note, there will be blank settings if you are not using all three ports. Best Regards, Rosanna
Answered by: DeltaFaucet11
Date published: 2024-03-28

Which valve is this"

I have a 3 position diverter that came in a 3/6 box (T11800 versis T11900). The replacement sent is says this on the stem "Fluhs 60567 and 161117". I can't compare with the temp. installed 3, but it looks the same. Delta pic on site for 6 shows (all I can see) https://www.deltafaucet.com/parts-product-detail?modelNumber=RP51919 "uhs __563 and __1109" which leads me to believe it is again the 3/6. Maybe in the future Delta could show all numbers on parts instead of just partial!!!!
Asked by: Ron
Dear Ron, Thank you for your question. The Delta 3-Setting Diverter Trim T11800 comes with the 3-Setting Diverter Cartridge Assembly RP51918. The Delta 6-Setting Diverter Trim T11900 comes with the 6-Setting Diverter Cartridge Assembly RP51919. https://media.deltafaucet.com/PartsDiagram/DPD-B-T11800.pdf Best regards, Tanya
Answered by: Tanya
Date published: 2017-05-30
  • y_2026, m_7, d_3, h_10CST
  • bvseo_bulk, prod_bvqa, vn_bulk_3.0.46
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_35
  • loc_en_US, sid_T11800, prod, sort_[SortEntry(order=HAS_STAFF_ANSWERS, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getContent, 46ms
  • questions, product
PART LIST

PART LIST

Image-Master-RP51924

Delta®

Delta® Escutcheon - 3-Setting Diverter

List Price: $50.85 - $89.40
Free Ground Shipping All Orders $49+

RP51924

Image-RP51917

Delta®

Delta® Trim Sleeve - Diverter

List Price: $36.80
Online Price: $29.44
Free Ground Shipping All Orders $49+

RP51917

Image-RP51918

Delta®

Delta® Cartridge - 3-Setting Diverter

List Price: $238.80
Online Price: $191.04
Free Ground Shipping All Orders $49+

RP51918

2.33 6
Image-RP51919

Delta®

Delta® Cartridge - 6-Setting Diverter

List Price: $238.80
Online Price: $191.04
Free Ground Shipping All Orders $49+

RP51919

3.89 9
Image-RP71717

Delta®

Delta® Cartridge Assembly - 2-Setting Diverter - Non-Shared

List Price: $159.50
Online Price: $127.60
Free Ground Shipping All Orders $49+

RP71717

Image-RP71718

Delta®

Delta® Cartridge Assembly - 3-Setting Diverter - Non-Shared

List Price: $159.50
Online Price: $127.60
Free Ground Shipping All Orders $49+

RP71718

2.20 5
Image-RP46078

Delta®

Delta® Pressure Test Cap

List Price: $12.35
Online Price: $9.88
Free Ground Shipping All Orders $49+

RP46078

Image-RP20032

Delta®

Delta® Copper Plug - Shower Only

List Price: $11.70
Online Price: $9.36
Free Ground Shipping All Orders $49+

RP20032

Image-RP64851

Delta®

Delta® Bonnet Nut - 3 & 6-Setting Diverter

List Price: $37.05
Online Price: $29.64
Free Ground Shipping All Orders $49+

RP64851

Image-Master-RP51916

Delta®

Delta® Trim Sleeve - Diverter

List Price: $19.60
Online Price: $15.68
Free Ground Shipping All Orders $49+

RP51916

Image-Master-RP52590

Dryden®

Dryden® Metal Lever Handle Kit - Diverter

List Price: $56.00 - $85.50
Free Ground Shipping All Orders $49+

RP52590

Image-Master-RP62962

Vero®

Vero® Metal Lever Handle Kit- 3 & 6-Setting Diverter

List Price: $79.55 - $113.25
Free Ground Shipping All Orders $49+

RP62962

Image-RP72561

Cassidy®

Cassidy® Set Screw & Button - Diverter

List Price: $10.25
Online Price: $8.20
Free Ground Shipping All Orders $49+

RP72561

1.00 1
Image-Master-RP42414

Victorian®

Victorian® Backplate

List Price: $51.25 - $81.15
Free Ground Shipping All Orders $49+

RP42414

Image-RP73365

Trinsic®

Trinsic® Metal Lever Handle Kit - Diverter

List Price: $75.45
Online Price: $60.36
Free Ground Shipping All Orders $49+

RP73365

Image-RP75137

Delta®

Delta® Extension Kit - 3 & 6-Setting Diverter

List Price: $70.95
Online Price: $56.76
Free Ground Shipping All Orders $49+

RP75137

5.00 1
