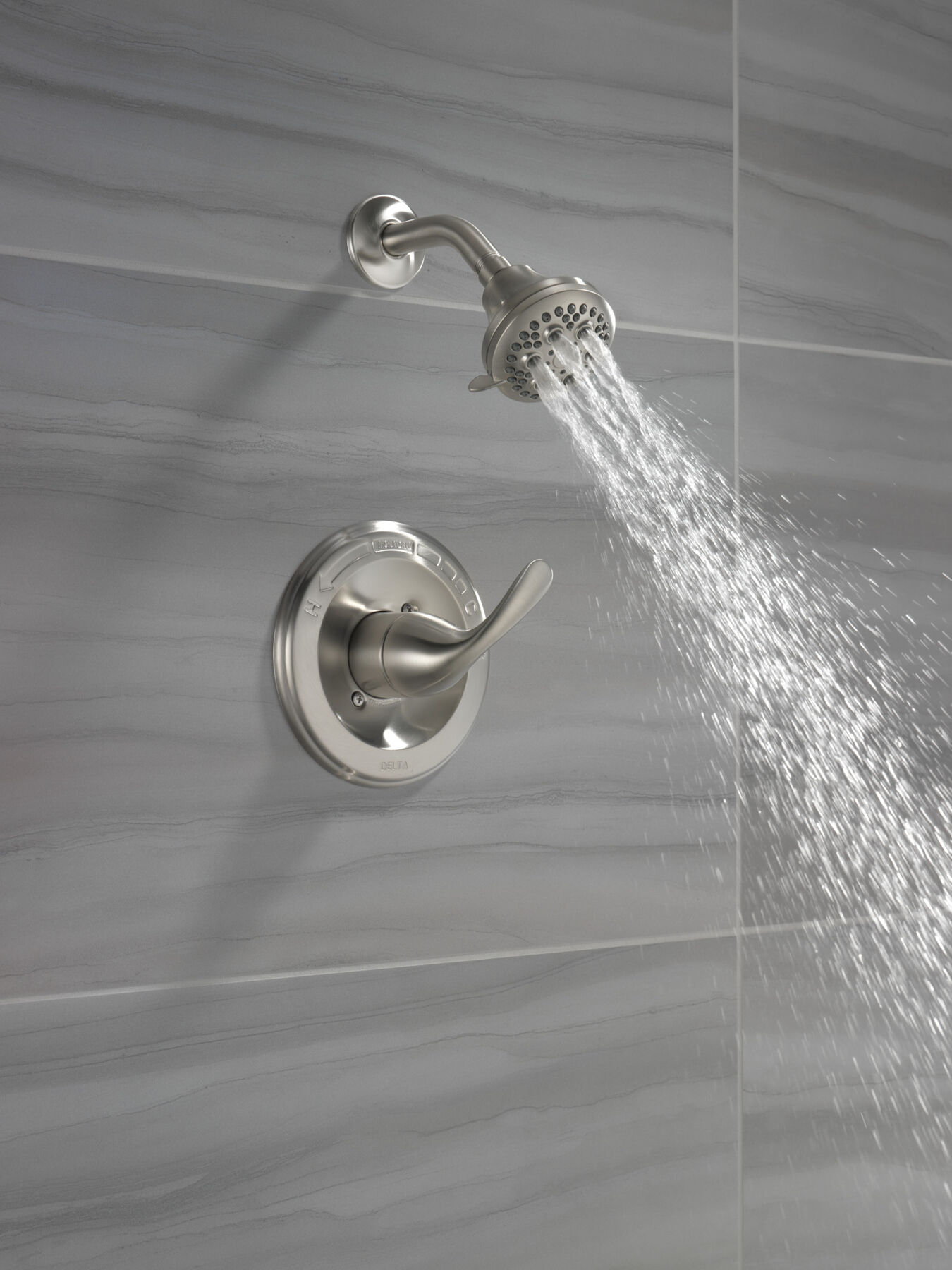

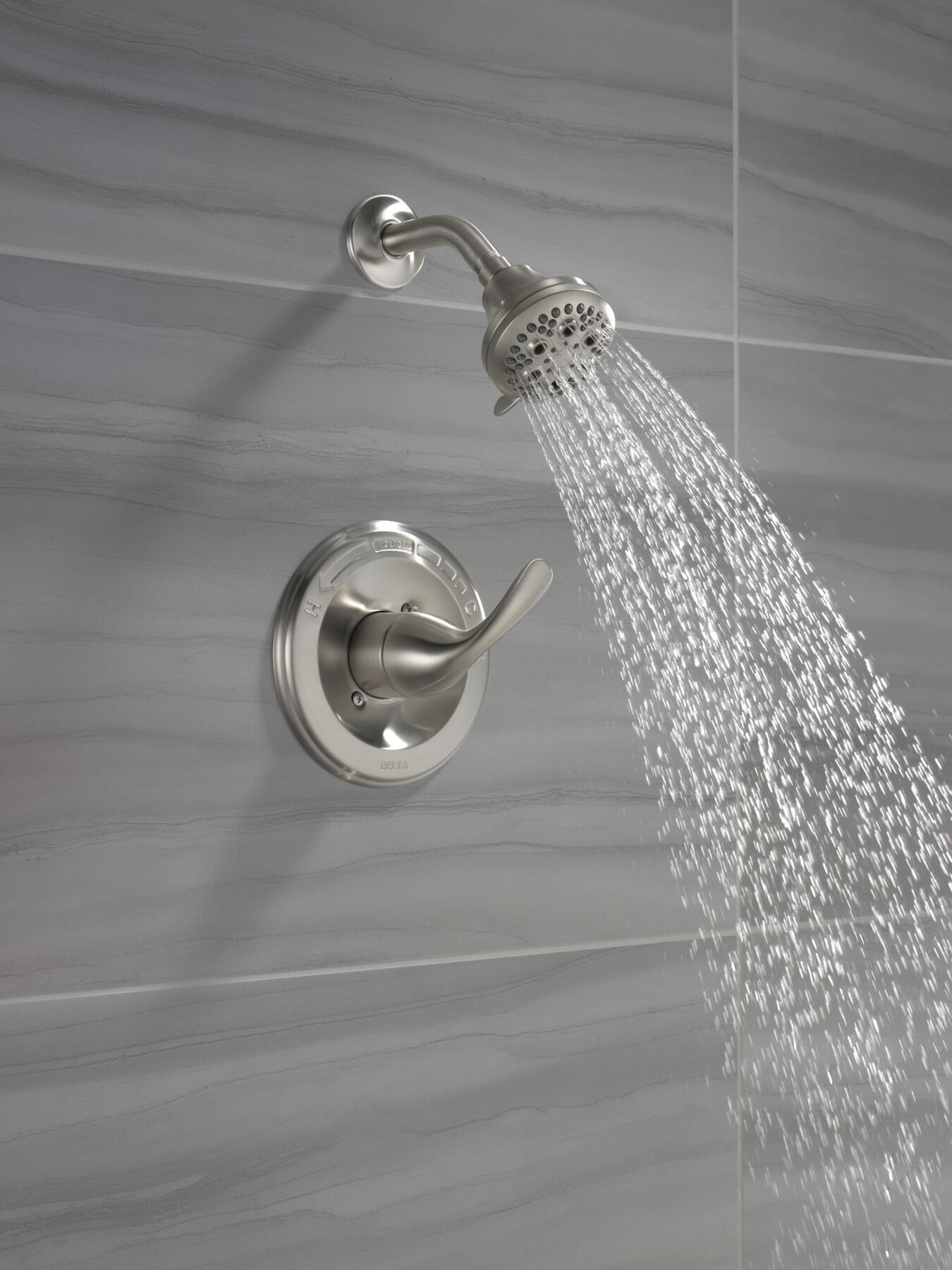

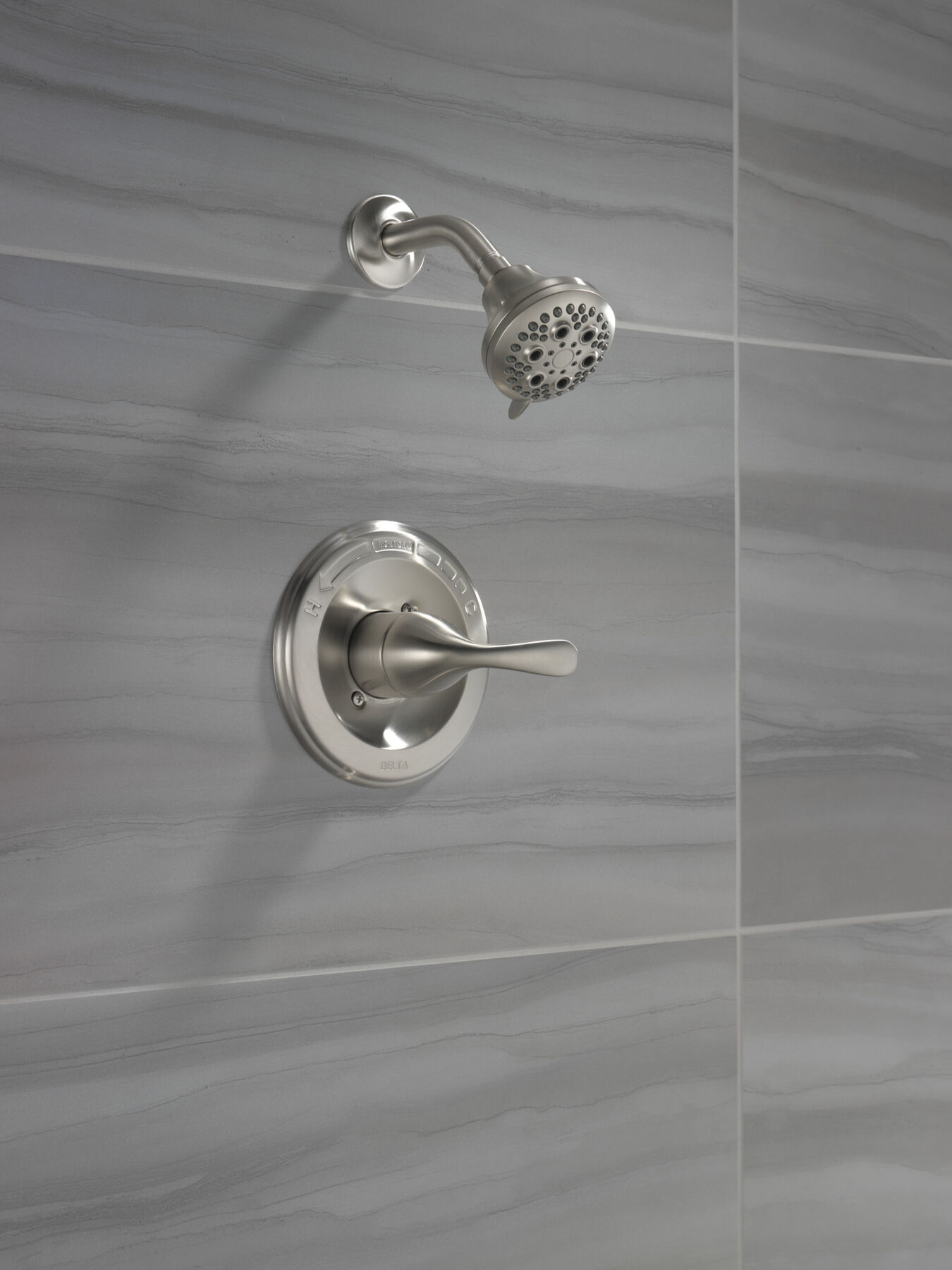

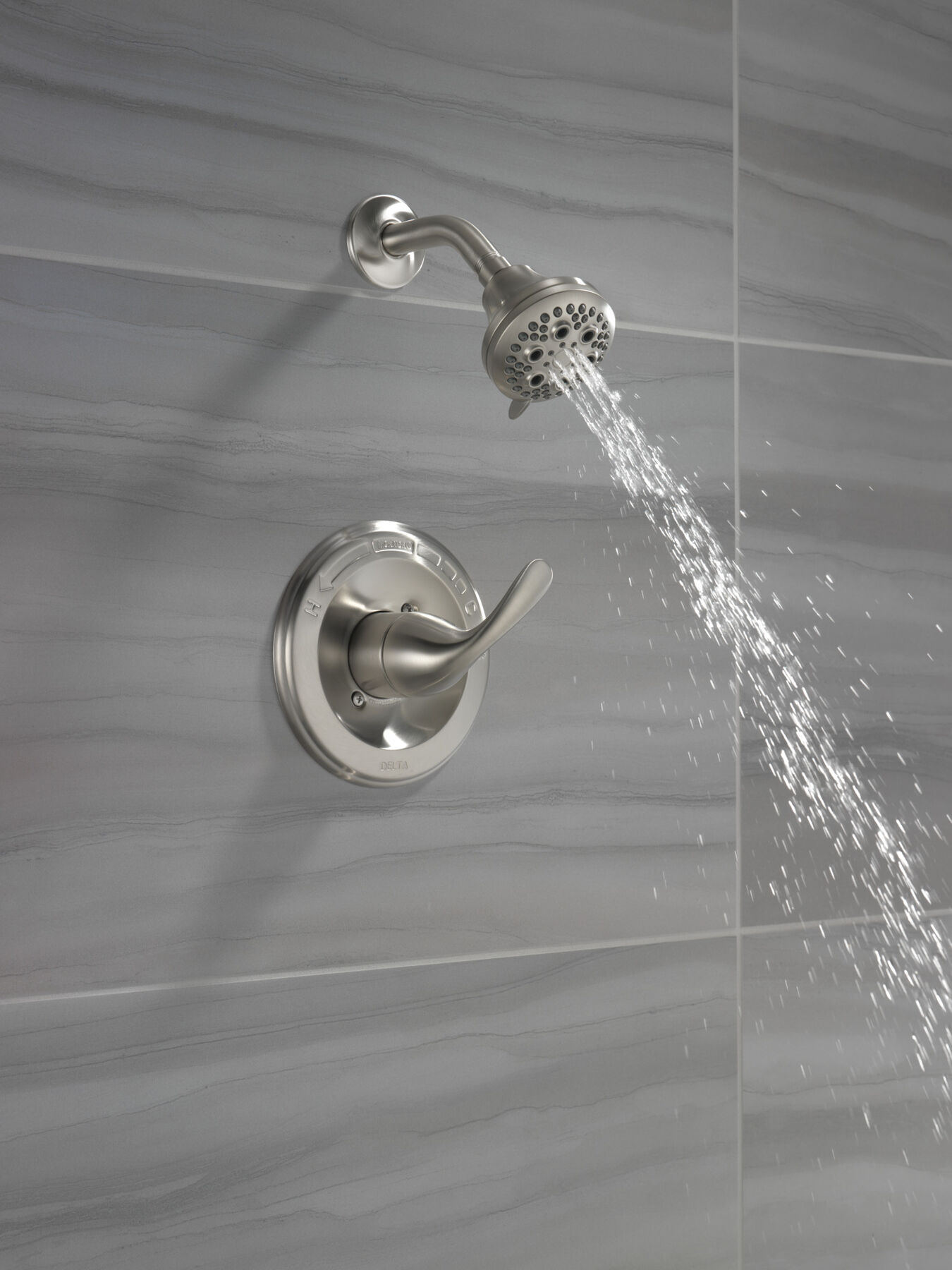

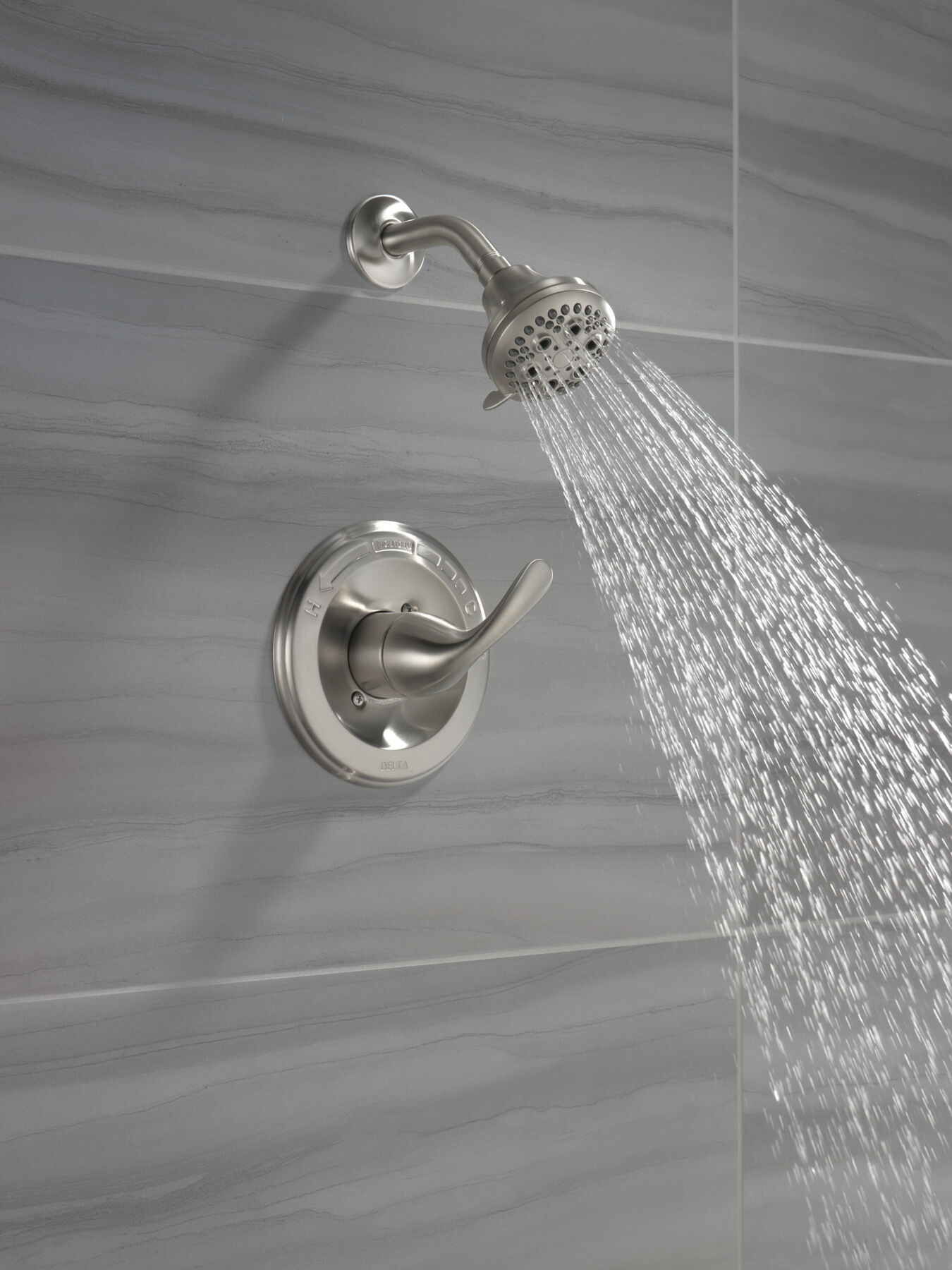

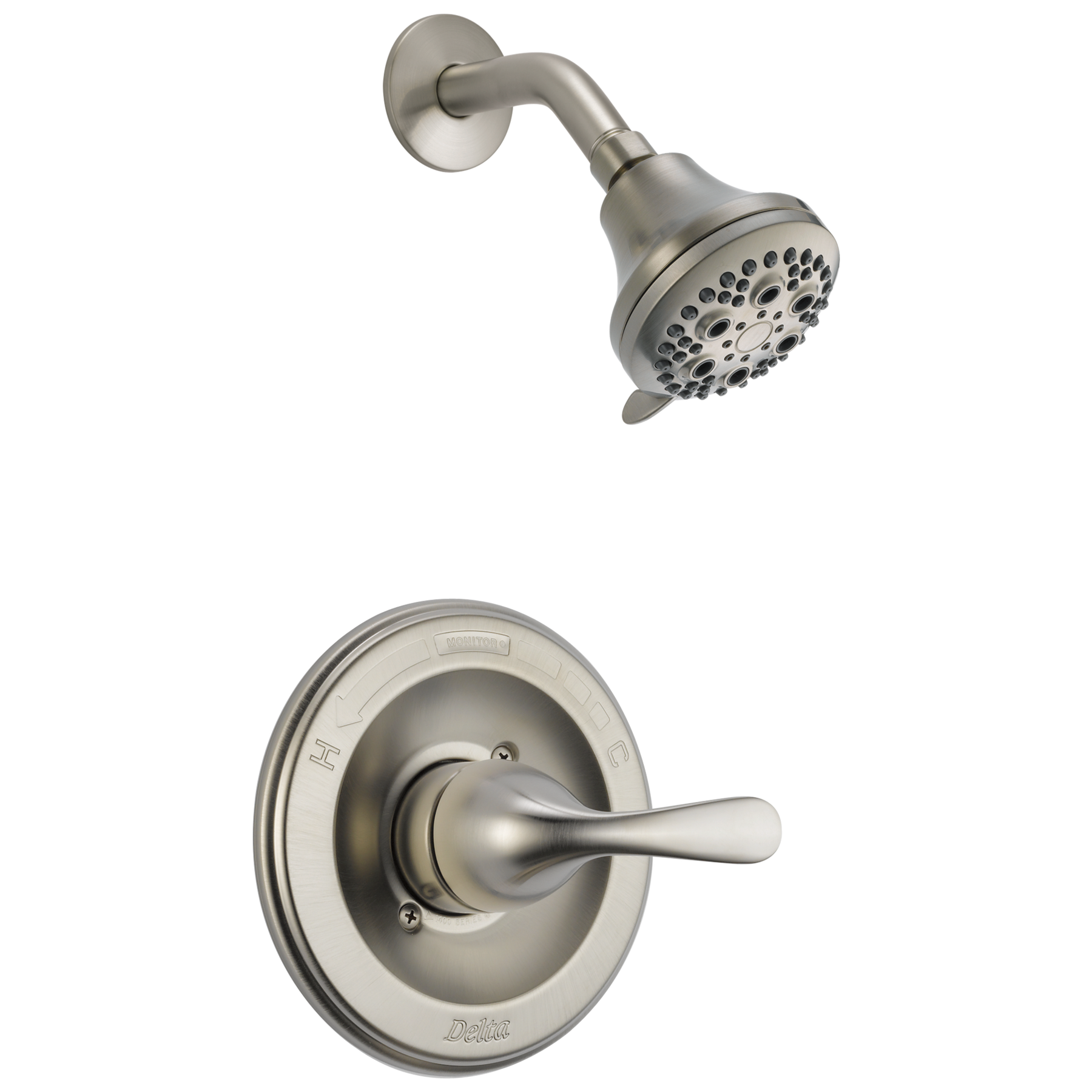

Monitor® 13 Series Shower Trim in Stainless

Model#: T13220-SS
Add to Favorites
Find local Delta® installers.
Classic
View Full Classic Bathroom Collection

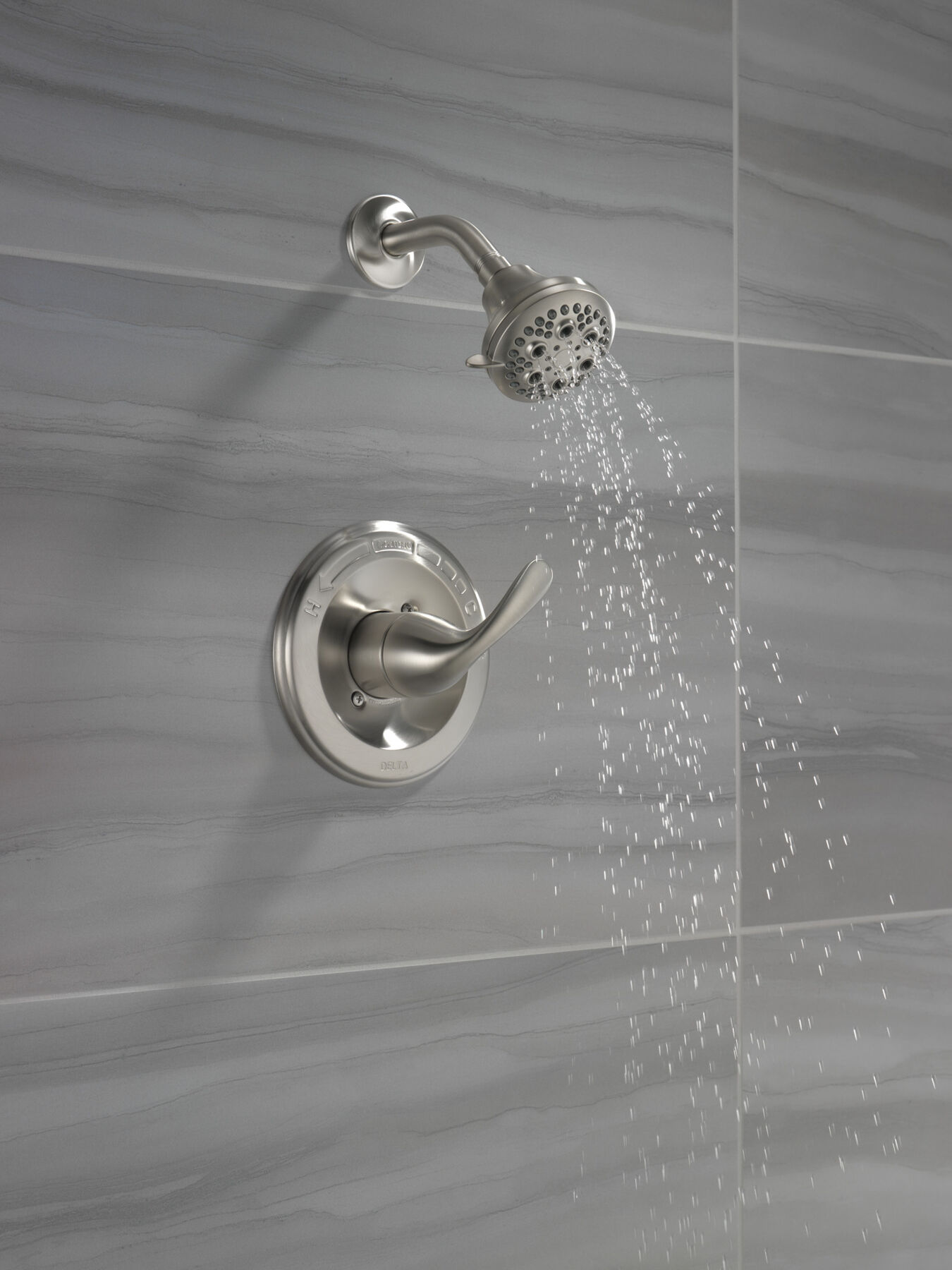

Monitor® 13 Series Shower Trim in Stainless
Model#: T13220-SS
List Price: $19275
Add to Favorites
Find local Delta® installers.
PRODUCT FEATURES
Complete the look in your bathroom with a shower from the Classic Bath Collection. Delta® showers with Monitor® pressure-balance valves are engineered to make sure you don’t experience a sudden and possibly unsafe change in water temperature as a result of running water elsewhere, such as using a dishwasher, flushing a toilet or running a washing machine. While other products may gather unsightly mineral buildup over time, Delta soft rubber Touch-Clean® spray holes allow any mineral residue to simply be wiped away for an instantly refreshed look — with no need for soaking or the aid of chemical cleaners. You can install with confidence, knowing that Delta showers are backed by our Lifetime Limited Warranty.
  • Spray settings include: Full Body spray, Fast Massage spray, Full Spray with Massage, High-Efficiency spray, and Pause
  • Pause feature reduces water to a trickle, giving you space for shaving, lathering and other shower tasks while maintaining your temperature settings

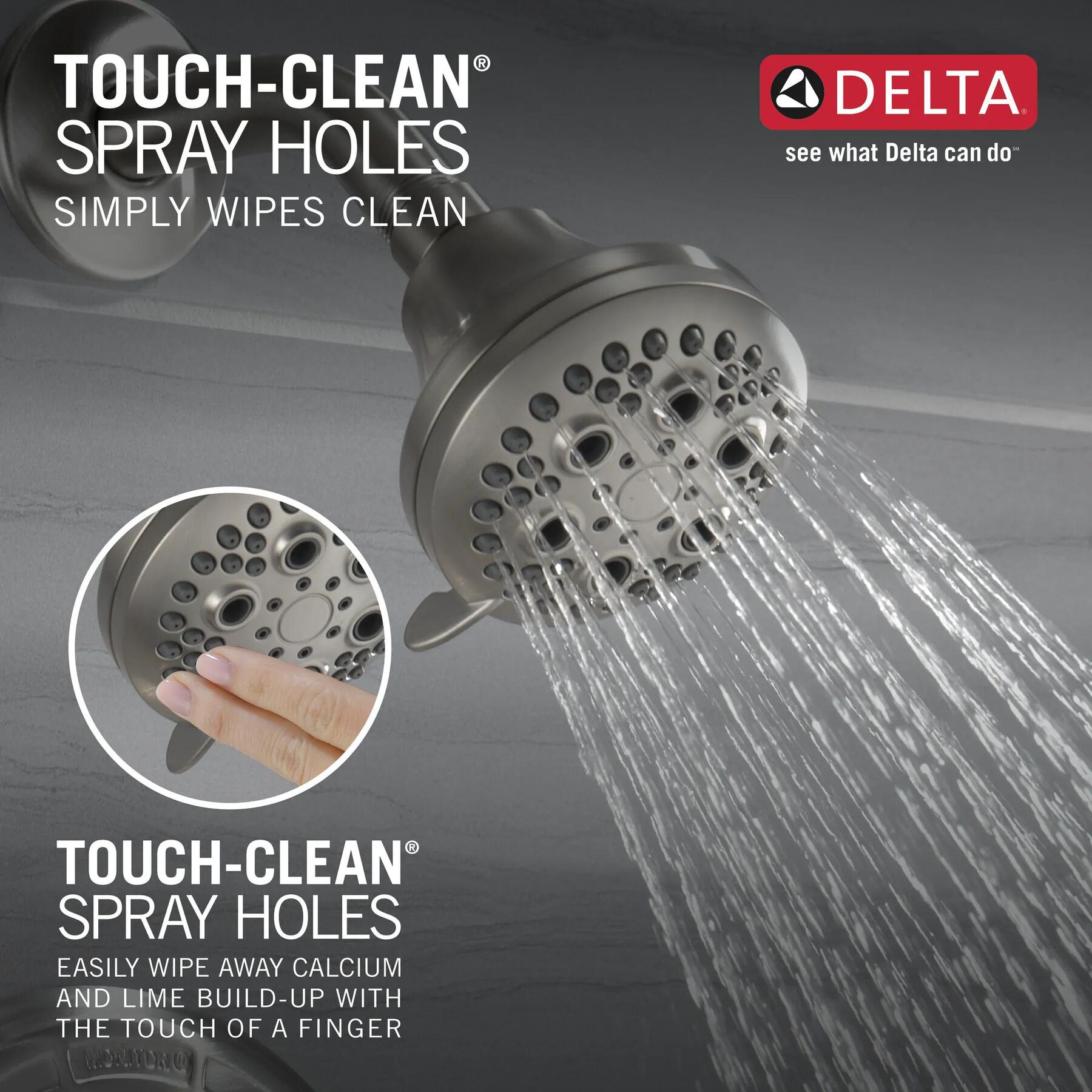

  • Soft, rubber Touch-Clean® spray holes allow you to easily wipe away calcium and lime buildup from the spray face of your shower head with the touch of a finger
  • Monitor® pressure balance valve keeps water temperature within a safe ±3.6° F (±1.7° C), helping to protect you from sudden changes in hot or cold water pressure
  • Temperature only controlled with metal lever handle

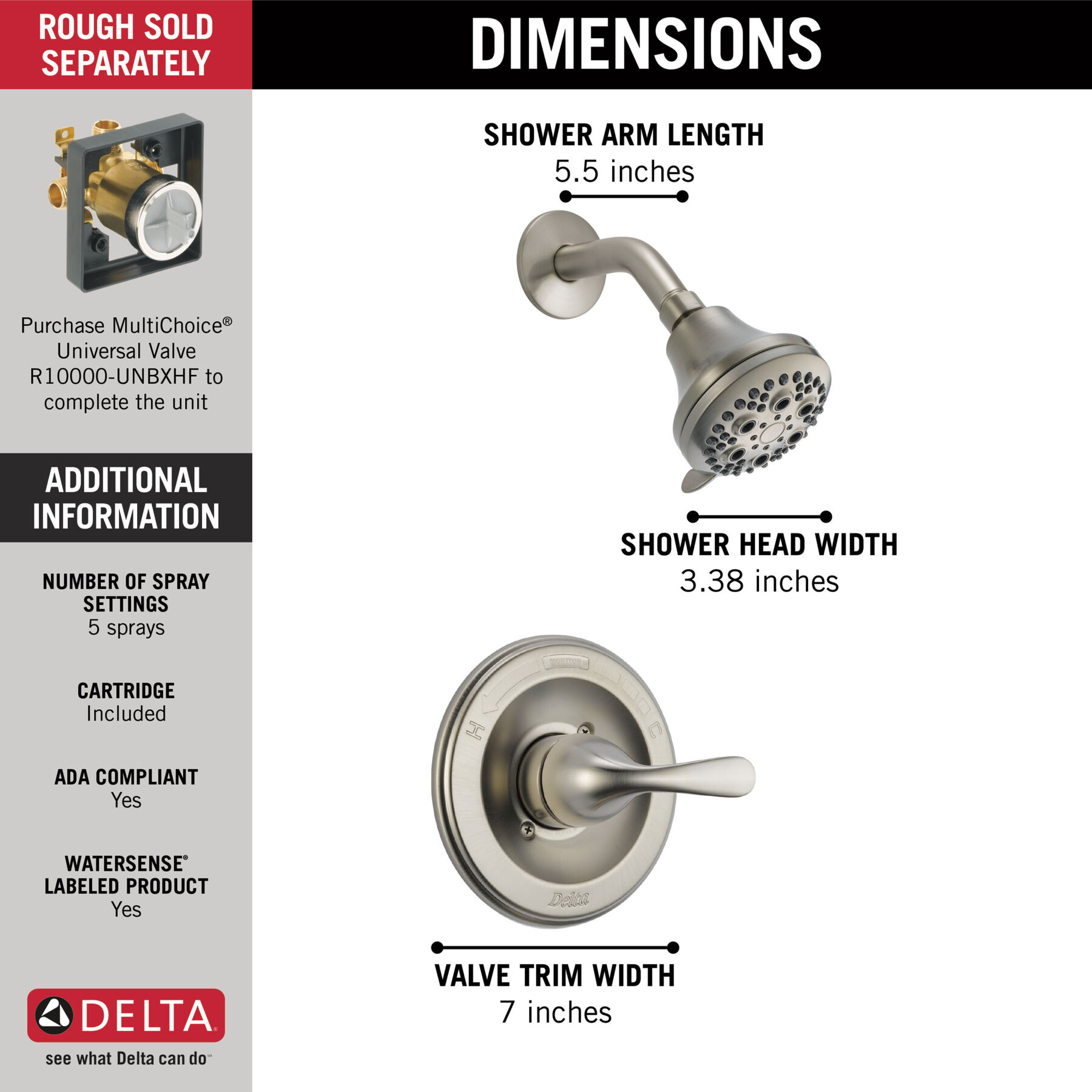

  • Trim kit only, must order MultiChoice® Universal valve rough (R10000 series) separately to complete the unit
  • Solid brass forged body
  • Back-to-back installation capability
  • Stem extension kit RP77991 can be ordered separately to allow for an additional 1-3/4 inch wall thickness
  • ADA compliant metal lever handle
  • WaterSense® labeled shower heads use at least 20% less water than the industry standard without compromising performance
  • Backed by Delta Faucet's Lifetime Limited Warranty
Special Information
Warning Image
California Prop 65 WARNING
Eco-Friendly
WaterSense® Labeled
Technology and Special Features
ADA Compliant
Touch-Clean®
MultiChoice® Universal Valve
Brilliance® Finish
Water-Efficient
Monitor®
Special Information
Warning Image
California Prop 65 WARNING
Documents & Specs
Product Support, Repair Parts & Technical Specifications
View Technical Specifications
View Maintenance & Installation Sheet
View Parts & Accessories Diagram
Register Product
Installation Information
Flow Rate :
1.75 gpm @ 80 psi, 6.6 L/min @ 552 kPa
Overall Height (in.) :
9-1/2
Valve Type:
Single-function pressure balance cartridge

INSTALLATION SUPPORT

Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.

GO
Enter Valid Zip.
REVIEWS
Rated 5 out of 5 by from Great customer service Great product Great price
Date published: 2025-12-29
Rated 5 out of 5 by from Shower fixtures It was just what I wanted and the price I wanted to pay.
Date published: 2025-09-12
Rated 5 out of 5 by from I recommend! [This review was collected as part of a promotion.] Great quality product for good price
Date published: 2025-07-22
Rated 5 out of 5 by from The best I love these trims, I am the office assistant of a plumbing company in the U.S. virgin islands and these are one of our biggest sellers.The pricing is great !
Date published: 2025-02-18
Rated 5 out of 5 by from Very good Works as good as expected
Date published: 2022-08-24
Rated 1 out of 5 by from WATER TOO HOT We had this installed professionally while getting our bathroom remodeled. The water has been too hot! We have tried many ways to fix it but none have been successful.
Date published: 2022-07-27
Rated 5 out of 5 by from Delta with shut off valves built in I like the Square rough in plastic for tile cut in and the Shut offs on each side for Maintenance of cartridge.
Date published: 2021-02-21
Rated 1 out of 5 by from Very disappointed with head and flow. I am not used to such a low flow when taking a shower. I was praying that I could find and remove a water flow restricter but I could not find it. This is in my master bathroom but now I am literally taking showers in another bathroom. The shower head is also terrible. It has very limited movement, it is very small and not made for a shower in a nice home. Calling it eco friendly should have given my plumber a hint. I was not looking for a cheap, low flow fixture without the ability to adjust the flow rate at all.
Date published: 2020-09-07
  • y_2026, m_8, d_8, h_9
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.48
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_12
  • loc_en_US, sid_T13220-SS, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 221ms
  • reviews, product
Q&A

What size allen wrench works with this faucet?

Need to adjust water mixer but cant find an allen wrench that seems to work.
Asked by: sgb
Hi sgb, Thank you for your question. The handle set screw will take a 1/8" Allen wrench. Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2024-03-28

Update possible?

I have an older Delta shower control. It is a single crystal knob with up/down - on/off and left and right action for hot and cold. Will your Faucet model # T13220-SS in stainless work as an update WITHOUT removing the current shower valve? I'd like to update the look of the shower with a handle and in brushed stainless. Thank you in advance for your assistance. - Larry
Asked by: Larry
Hi Larry, Thank you for your question! I have determined you have our 600 series tub/shower. It is a discontinued unit and none of the current trims we offer will fit onto the existing valve body. However, we do manufacture a renovation kit part number RP54870. The kit comes with the escutcheon(face plate), screws, sleeve, dome shaped cap assembly, lever handle and internal parts. You will have to order your choice of showerhead, shower arm, shower flange and tub spout separate. The kit is available in Chrome, Venetian bronze and Stainless Steel finish. Best regards, Brandis
Answered by: DeltaFaucet7
Date published: 2024-03-28

The T13220 trim does not cover existing opening in shower wall. Is there a larger diameter trim piece?

Asked by: Fred
Thank you for your question, Fred! The RP34359 Trim Ring can be installed behind the escutcheon and will increase the diameter to 7-3/4" x 8". https://www.deltafaucet.com/parts-product-detail?modelNumber=RP34359 The RP29827 Renovation Cover Plate can also be installed behind the escutcheon and is 8-1/8" x 13". https://www.deltafaucet.com/parts-product-detail?modelNumber=RP29827 Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2024-03-28

The trim sleeve is too short. What do I do?

If I put the spacer in place, the sleeve does not go through the escutcheon. So no seal. If I don't use the spacer, the sleeve goes through the escutcheon for a seal. But there is now a a big space between the handle and the sleeve. Any thoughts? BTW..... I do have the right cartridge.
Asked by: jnag698
Thank you for your question. We do manufacture a longer trim sleeve that should take of the spacing issues. The model number is Delta Faucet model # RP22735. This can be ordered at your local retailer or wholesaler.
Answered by: Delta1
Date published: 2024-03-28

Shower trim Delta 13220 in polished nickel looking for..Please advise

Asked by: anthony
Hi, Anthony! Thank you for your question. At this time, we do not manufacture the Delta T13220 shower trim kit in our Polished Nickel finish. Here is a link to our shower units available in Polished Nickel finish: https://www.deltafaucet.com/bathroom/bathing/tub--shower-faucets?facetFinish=polishednickel Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2024-03-28

Can the R10000-UNBXHF be used with model T13220 shower trim?

Asked by: Lisa
Dear Lisa, Thank you for your question. The R10000-UNBXHF is a high flow shower only valve assembly. Yes, the T13220 Shower Trim can be used with this valve. Best regards, Tanya
Answered by: Tanya
Date published: 2016-09-03

Water does not get as hot at shower as compared to the rest of the house.

This is a single lever, shower only control. Pretty sure it is model T132220 or something very similar. Was installed less than two years ago as part of a home renovation. It would be categorized as a new installation. Buyer states she has used the shower very little (lives alone and usually uses the other bathroom). This problem seems to have happened over time. This fixture is closest to the hot water heater compared to other locations (that get hotter).
Asked by: Wanda
Hi Wanda, Thank you for your question! It sounds like the Rotational Limit Stop will need to be adjusted. Please click the link below to view our How-To Video for help with that. http://www.deltafaucet.com/tools-resources/research/video-gallery/video.html?v=n2_uZ7wgV1I&cat= Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2024-03-28

A plumber walked off with the screw that holds the handle tight of the Delta T132220. Can you please let me know the dimensions of a replacement screw ?  10/32 x 1/4 or x 1/2 are not tightening. Thanks very much.

Asked by: Richard
Hi Richard, Thank you for your question. The RP26865 set screw in the handle of the Delta Classic Shower Trim T13220 model requires a 3/32" Allen wrench to tighten or remove it. However, the accurate thread size is 10-32 x.25 cup point. Please feel free to call, email, or message us on social if there is anything else you need. Best regards, Tanya Phone: 1-800-345-3358 | Email: customerservice@deltafaucet.com | Facebook/Twitter: @deltafaucet
Answered by: Delta Faucet
Date published: 2024-03-28
  • y_2026, m_8, d_8, h_9CST
  • bvseo_bulk, prod_bvqa, vn_bulk_3.0.48
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_37
  • loc_en_US, sid_T13220-SS, prod, sort_[SortEntry(order=HAS_STAFF_ANSWERS, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getContent, 123ms
  • questions, product
PART LIST

PART LIST

1 2 >
Image-Master-RP41591

Delta®

Delta® Tub Spout - Pull-Up Diverter

List Price: $89.90 - $139.95
Free Ground Shipping All Orders $49+

RP41591

Image-Master-RP196

Delta®

Delta® Screws (2) - Escutcheon Trim

List Price: $10.10 - $19.80
Free Ground Shipping All Orders $49+

RP196

Image-Master-RP17453

Delta®

Delta® Tub Spout - Pull-Down Diverter

List Price: $45.50 - $157.00
Free Ground Shipping All Orders $49+

RP17453

Image-Master-RP50879

Dryden®

Dryden® Trim Sleeve - Tub & Shower

List Price: $33.80 - $76.80
Free Ground Shipping All Orders $49+

RP50879

Image-Master-RP5834

Delta®

Delta® Tub Spout - Pull-Up Diverter

List Price: $42.95 - $62.30
Free Ground Shipping All Orders $49+

RP5834

Image-Master-RP20542

Delta®

Delta® Button - Arrow - RP17154 Knob Handle

List Price: $15.80 - $16.60
Free Ground Shipping All Orders $49+

RP20542

Image-RP26865

Delta®

Delta® Set Screw

List Price: $12.40
Online Price: $9.92
Free Ground Shipping All Orders $49+

RP26865

4.67 3
Image-RP23336

Delta®

Delta® O-Ring - Large - All Monitor® Series

List Price: $7.70
Online Price: $6.16
Free Ground Shipping All Orders $49+

RP23336

5.00 5
Image-Master-RP6023

Delta®

Delta® Shower Arm

List Price: $43.65 - $109.60
Free Ground Shipping All Orders $49+

RP6023

Image-RP29569

Delta®

Delta® Spacer

List Price: $4.90
Online Price: $3.92
Free Ground Shipping All Orders $49+

RP29569

5.00 1
Image-RP6369

Delta®

Delta® Handle Screw (Pre 3/1999)

List Price: $11.55
Online Price: $9.24
Free Ground Shipping All Orders $49+

RP6369

Image-Master-RP19809

Delta®

Delta® Escutcheon - 13 / 14 Series

List Price: $77.95 - $235.50
Free Ground Shipping All Orders $49+

RP19809

Image-RP46074 Secondary Image-RP46074

Delta®

Delta® Cartridge Assembly - MultiChoice® Universal - 13 / 14 Series

List Price: $118.35
Online Price: $94.68
Free Ground Shipping All Orders $49+

RP46074

2.20 108
Image-RP74236 Secondary Image-RP74236

Delta®

Delta® Cartridge - Ceramic - 13/14 Series Shower

List Price: $156.35
Online Price: $125.08
Free Ground Shipping All Orders $49+

RP74236

3.67 3
Image-RP152

Delta®

Delta® Set Screw

List Price: $10.45
Online Price: $8.36
Free Ground Shipping All Orders $49+

RP152

4.20 5
Image-RP14414

Delta®

Delta® O-Rings (2) - 13 / 14 Series

List Price: $4.60
Online Price: $3.68
Free Ground Shipping All Orders $49+

RP14414

5.00 2
