Modern

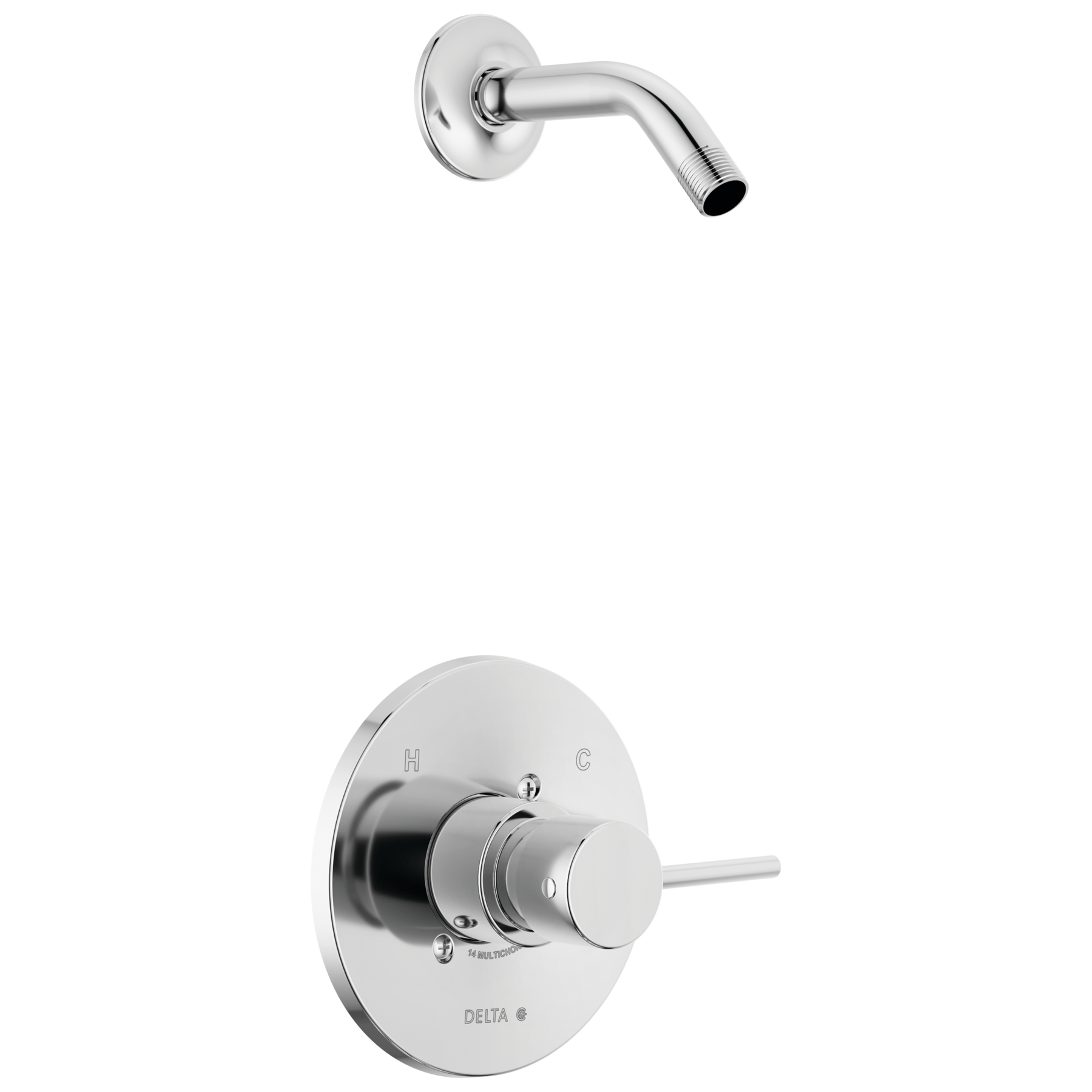

Monitor 14 Series Shower Trim - Less Head in Chrome

Model#: T14259-LHD-PP
Add to Favorites
Find local Delta® installers
Modern
Monitor 14 Series Shower Trim - Less Head in Chrome
Model#: T14259-LHD-PP
List Price: $14275
Add to Favorites
Find local Delta® installers
PRODUCT FEATURES
The Modern Bath Collection features European-inspired, streamlined looks to match the popular aesthetic in urban markets. Delta® showers with Monitor® pressure-balance valves are engineered to make sure you don’t experience a sudden and possibly unsafe change in water temperature as a result of running water elsewhere, such as using a dishwasher, flushing a toilet or running a washing machine. Pair with a Delta shower head to customize your shower. Our shower heads feature a wide range of styles and innovations, and can be installed without special tools. All you need is standard plumber’s tape. You can install with confidence, knowing that Delta showers are backed by our Lifetime Limited Warranty.
  • Monitor® pressure balance valve keeps water temperature within a safe ±3.6° F (±1.7° C), helping to protect you from sudden changes in hot or cold water pressure
  • Monitor® 14 Series single-function pressure balance cartridge
  • Trim kit only, must order MultiChoice® Universal valve rough (R10000 series) separately to complete the unit
  • Back-to-back installation capability
  • Temperature only controlled with handle
  • Compatible with Delta® MultiChoice® Universal Valve (R10000-UNWS)
  • ADA Compliant
  • Backed by Delta Faucet's Lifetime Limited Warranty
Special Information
Warning Image
California Prop 65 WARNING
Technology and Special Features
ADA Compliant
Monitor®
Special Information
Warning Image
California Prop 65 WARNING
Documents & Specs
Product Support, Repair Parts & Technical Specifications
View Technical Specifications
View Maintenance & Installation Sheet
View Parts & Accessories Diagram
Register Product
Resources
Design Files
Installation Information
Overall Height (in.) :
9
Valve Type:
NA

INSTALLATION SUPPORT

Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.

GO
Enter Valid Zip.
REVIEWS
Rated 5 out of 5 by from Owner All good . Excellent value
Date published: 2026-09-12
Rated 5 out of 5 by from Great [This review was collected as part of a promotion.] Great product. Would buy again to put in my house.
Date published: 2026-06-07
Rated 4 out of 5 by from Need to buy a valve The design and quality of this Delta shower trim kit are excellent. The matte black finish looks sleek and modern, and the shower head delivers good water pressure with an easy-to-clean design. Installation of the trim itself was straightforward, and the materials feel durable and well-made.
Date published: 2026-04-13
Rated 5 out of 5 by from Beautiful Very sleek and beautiful! The hardest part was dismantling my current set up. Installing the new finishes was easy. The water pressure it great. Its definitely something that will last a long time.
Date published: 2026-04-07
Rated 5 out of 5 by from Nice shower upgrade I recently installed the Delta 342701-BL Monitor 14-Series raincan shower system in my bathroom, and I’m thrilled with the results. The matte black finish gives the space a sleek, modern update and makes the bathroom feel high end without looking over the top. One of my favorite features is having two different shower options. The raincan shower head offers a soothing, spa like experience that’s perfect for relaxing, while the second shower head delivers a strong, direct spray for when I need more power. Switching between the two is effortless, and both function perfectly. The water pressure is steady and satisfying, and the entire system feels sturdy and well built. Installation was also pretty straightforward if you’re comfortable with basic DIY tasks. Overall, this was an excellent upgrade for my bathroom. It not only enhanced the look of the space but also made daily showers so much more enjoyable. I’m extremely happy with this purchase and would definitely recommend it.
Date published: 2026-03-22
Rated 5 out of 5 by from Need more less shower head options like this [This review was collected as part of a promotion.] I'm so happy with the style and versatility of the less shower head trim package. So many customers are using specialty shower heads and don't like to be wasteful in throwing way a brand new, unused head.
Date published: 2026-03-17
Rated 5 out of 5 by from Great quality! I love Delta products. I used to work for a big corporation supplying products to builders and Delta was one of my top brands to offer. This set is beautiful! The matte finish looks modern. The product feel heavy and good quality. Very excited to have this in out of our small bathrooms.
Date published: 2026-03-13
Rated 4 out of 5 by from Sleek The Delta tub and show trim is sleek looking. It is not too heavy and feels very sturdy to withstand showers and baths. I like that it doesn't show scratches or water marks easily. I
Date published: 2026-03-12
  • y_2026, m_11, d_6, h_6
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.50
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_77
  • loc_en_US, sid_T14259-LHD-PP, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 363ms
  • reviews, product
Q&A

I have a customer that bought this trim kit and the little set screw plug on the outer handle has been lost. Do you have a part number for this so I can reorder? I am a Delta Dealer, Smith Supply here in Texas.

Asked by: Anonymous
Hello! Unfortunately we do not offer this separate from the RP101843 handle/set screw and cover button. https://www.deltafaucet.com/parts/product/RP101843.html Please reach out with further questions! Best Regards, Tim Digital Communications Specialist
Answered by: Digital Specialist
Date published: 2026-10-28

what does -PP means? does it mean project pack?

Asked by: Bobwalt
Hi Bobwalt, Thank you for your question regarding our Delta Faucet T14467-LHD-PP. Yes, PP indicates Project Pack. Thank you for being a loyal Delta Faucet customer. Best Regards, Themar Digital Communications Specialist (800) 345-3358 customerservice@deltafaucet.com
Answered by: Customer Service
Date published: 2024-06-11

Do you have a document that proves this is Water Sense certified? It says it on this web page but no where on the box. I bought it because it said it was Water Sense. My condo installs Water Sense products for free and I need to show them proof.

Asked by: Lynnerich
Hello, Thank you for your question! Yes, this is WaterSense certified as it provides a flow rate of at least 1.75gpm or lower. Please reach out with further questions! Best Regards, Themar Digital Communications Specialist
Answered by: Themar
Date published: 2026-01-26

Is this handle supposed to turn more than 90 degrees (1/4 revolution)? Even when turned all the way counter clockwise (which is a vertical handle position.) The water never gets as hot as from our other fixtures.

Asked by: CJ Tzioumis
Hi CJ, It sounds as though the rotational limit stop may not have been adjusted. The rotational limit stop is used to limit the amount of hot water available such that, if set properly, the user will not be scalded if the handle accidentally is rotated all the way to “hot” when a person is showering or filling a tub. The first position allows the LEAST amount of hot water to mix with the cold water in the system. In the first position, the water will be the coldest possible when the handle is turned all the way to hot. As you move the rotational limit stop counterclockwise, you progressively add more and more hot water in the mix. The last position to the left will result in the greatest amount of hot water to the mix, and the greatest risk of scald injury if someone accidentally turns the valve handle all the way to the hot side while showering or filling a tub. To adjust the temperature of the water coming out of the valve, pull the disc back to a position where it is possible to remove the rotational limit stop and readjust the teeth engagement position to the desired temperature. Clockwise will decrease the outlet temperature, counterclockwise will increase the outlet temperature. Temperature change per tooth (notch) could be 4° - 16°F based on inlet water conditions. Repeat as necessary. Push disc until fully seated. If you would like installation help, you may contact our residential warranty line directly at 800-345-3358 (prompt 2, then 4). We also have how-to videos on our website and on our YouTube channel. https://www.deltafaucet.com/service-parts/how-to-videos Sincerely, Themar Digital Communications Specialist
Answered by: Digital Specialist
Date published: 2026-11-04

What is the size of trim plate? We're looking for a 4-1/2" trim plate for a Delta rough in valve R10000 series. Thank you!

Asked by: Bathroom
Hello Customer! Thank you for your question and we are happy to help. The trim plate is 6 1/2" (165mm) width and 7 7/8" (200mm) height. With any further questions or concerns, please do not hesitate to reach out to us again. Best Regards, Carrie
Answered by: Customer Service
Date published: 2024-07-29

Is it possible to add a handheld shower to this configuration?

Asked by: Clare
Hi Clare, thank you for contacting Delta Faucet Company! Yes, you can add a hand shower to the T14467-BL-PP if you prefer. There are a couple of ways you can do this and it depends on what you are wanting to do. One way is using the shower arm diverter. You will only need the shower arm diverter, hand shower with hose, and possibly a mount that is connected to your shower wall. Please refer to the examples below. Shower arm diverter - https://www.deltafaucet.com/bathroom/product/U4929-BL-PK.html Handshower Mount - https://www.deltafaucet.com/parts/product/U4010-BL-PK.html Another way is installing a diverter valve and a diverter trim. This option requires to be installed behind the wall. Please refer to the examples below. Diverter valve - https://www.deltafaucet.com/parts/product/R11000.html Diverter trim - ** This is a 3-setting 2-port ** https://www.deltafaucet.com/search-results?q=T118*BL*&prefn1=finish&prefv1=Matte_Black&prefn2=recertified&prefv2=false Diverter trim - ** This is a 6-setting 3-port ** https://www.deltafaucet.com/search-results?q=T119*BL*&prefn1=finish&prefv1=Matte_Black&prefn2=recertified&prefv2=false We appreciate your feedback. Please reach out directly with further questions! Best Regards, Kyra Digital Communications Specialist
Answered by: Customer Service
Date published: 2024-03-28

Does this come with the shower arm and flange as pictured?

Asked by: MSB NH
Hi MSB NH, Thanks so much for contacting Delta Faucet Company about, T14259-BLLHD-PP! Yes, the trim kit will include everything needed for installation besides the shower head and universal rough valve. Please contact us directly if you have any questions or need additional assistance. Best Regards, Nicole Digital Communications Specialist
Answered by: Customer Service
Date published: 2023-03-21

Is any of this metal? If so, which parts?

Asked by: jackie
Hi jackie, Thank you for contacting us at Delta Faucet! The only metal components on this Delta Faucet model T14467-BL-PP are the handle and tub spout. Please contact us directly if further assistance is needed at this time.   Best Regards, Tim Digital Communications Specialist
Answered by: Customer Service
Date published: 2024-03-28
  • y_2026, m_11, d_6, h_6CST
  • bvseo_bulk, prod_bvqa, vn_bulk_3.0.50
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_40
  • loc_en_US, sid_T14259-LHD-PP, prod, sort_[SortEntry(order=HAS_STAFF_ANSWERS, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getContent, 110ms
  • questions, product
PART LIST

PART LIST

Image-Master-RP196

Delta®

Delta® Screws (2) - Escutcheon Trim

List Price: $10.10 - $19.80
Free Ground Shipping All Orders $49+

RP196

Image-Master-RP6025PR

Delta®

Delta® Flange - Shower

List Price: $23.10 - $36.90
Free Ground Shipping All Orders $49+

RP6025PR

Image-Master-RP101844

Modern

Modern Escutcheon

List Price: $69.75 - $88.80

RP101844

Image-Master-RP101843

Modern

Modern Handle Kit

List Price: $37.05 - $53.20

RP101843

Image-Master-RP6023

Delta®

Delta® Shower Arm

List Price: $43.65 - $109.60
Free Ground Shipping All Orders $49+

RP6023

Image-RP23336

Delta®

Delta® O-Ring - Large - All Monitor® Series

List Price: $7.70
Online Price: $6.16
Free Ground Shipping All Orders $49+

RP23336

5.00 5
Image-RP29569

Delta®

Delta® Spacer

List Price: $4.90
Online Price: $3.92
Free Ground Shipping All Orders $49+

RP29569

5.00 1
Image-RP4993

Delta®

Delta® Seats & Springs (2 ea)

List Price: $10.10
Online Price: $8.08
Free Ground Shipping All Orders $49+

RP4993

4.70 100
Image-RP46074 Secondary Image-RP46074

Delta®

Delta® Cartridge Assembly - MultiChoice® Universal - 13 / 14 Series

List Price: $118.35
Online Price: $94.68
Free Ground Shipping All Orders $49+

RP46074

2.18 111
Image-RP100154

DELTA

DELTA Tub Spout Adapter - Tri Universal

List Price: $35.80
Online Price: $28.64
Free Ground Shipping All Orders $49+

RP100154

1.60 5
Image-RP12630

Delta®

Delta® Screws (2) - Extra Long - Escutcheon Trim

List Price: $18.45
Online Price: $14.76
Free Ground Shipping All Orders $49+

RP12630

4.17 12
Image-RP39407

Delta®

Delta® Trim Sleeve & Spacer

List Price: $45.90
Online Price: $36.72
Free Ground Shipping All Orders $49+

RP39407

5.00 2
Image-RP14414

Delta®

Delta® O-Rings (2) - 13 / 14 Series

List Price: $4.60
Online Price: $3.68
Free Ground Shipping All Orders $49+

RP14414

5.00 2
