Lahara®

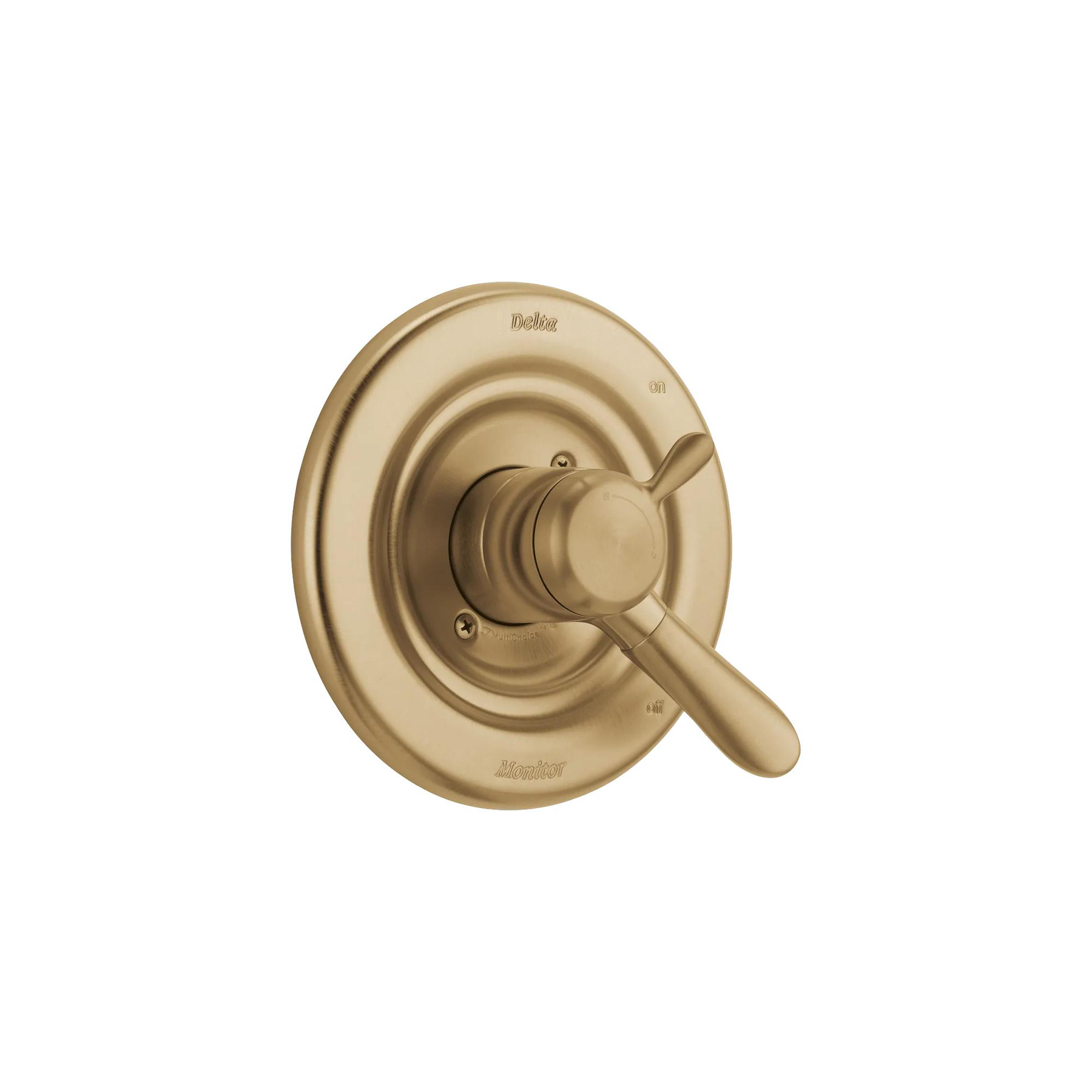

Monitor® 17 Series Valve Only Trim
Model#: T17038-CZ
Monitor® 17 Series Valve Only Trim
Monitor® 17 Series Valve Only Trim
Monitor® 17 Series Valve Only Trim
Monitor® 17 Series Valve Only Trim
Lahara®
Monitor® 17 Series Valve Only Trim
Model#: T17038-CZ
Finish: Champagne Bronze
List Price*: $254.70
PRODUCT FEATURES
  • Features a complete suite of coordinating products: Accessories, Faucets, and showers
  • Available in four finishes: chrome, Brilliance Stainless, Venetian Bronze, and Aged Pewter which extend the look throughout the bath.
  • Dual function pressure balance cartridge
  • Order MultiChoice(R) rough separately
  • Valve is not included, must purchase separately
  • Monitor Valve protects from rapid changes in hot or cold water
  • Backed by Delta Faucet’s Lifetime Limited Warranty
Technology
Special Features
SUPPORT
Product Support, Repair Parts & Technical Specifications
Installation Information
Over All Height :
7-1/2
Connection Type :
NA
PART LIST
REVIEWS
Rated 4 out of 5 by from Installation instructions Very good quality product. Wall installation instructions explaining how far out to extend it could be written to include different scenarios like installing with tile etc.
Date published: 2020-11-29
Rated 5 out of 5 by from Buy this one! The tradesman was quite pleased to see this was my shower valve choice, as was the over-seeing contractor. So I figured it was a good choice. I thoroughly researched the options and selected this one because I wanted something simple, with a good handle, a powerful valve, from a good company. Delta is wonderful! Very happy with my choice. It does not match the other hardware, but is nice and simple in design so that it complements pretty much anything.
Date published: 2020-11-15
Rated 5 out of 5 by from Beautiful addition to our bathtub! This is a beautiful addition to our bathtub. The design and color helped bring a more modern look to our bath. Installation was easy and straight forward and it works wonderfully. Simply turn the handle left or right to change temperature and it turns with ease. I would definitely recommend this to anyone hoping to update the look of their bath. A quick and easy remodel!
Date published: 2020-02-21
Rated 5 out of 5 by from very pretty beautiful in my bathroom, much better than the one i replaced. works smoothly and so far there are no leaks or drips and the seal is perfect. this is one of those things that really change the look of the room as well as save you money if you are replacing a defective unit.
Date published: 2020-02-15
Rated 5 out of 5 by from Beautiful! At first, I thought this was going to be really difficult to install, but it really wasn't. It was really very easy, and I don't have much experience with DIY plumbing. When it was all installed, it was a beautiful addition to my bathroom! It works smoothly, has no leaks or drips, and is aesthetically very pleasing.
Date published: 2020-02-14
Rated 4 out of 5 by from Good product. I installed this shower handle in my spare bathroom so it doesn’t get used very often. When it has been used it works just as well as I thought it would. The installation was fairly simple and the design is visually appealing. Overall a good product.
Date published: 2020-02-12
Rated 5 out of 5 by from Sleek look Had a little trouble installing this, but after getting it fitted and reassembled it works great! I like the finish of the handle, and it has a smooth operation. Made my shower look brand new! Definitely worth it.
Date published: 2020-02-10
Rated 5 out of 5 by from Shower Handle This was not a DIY job for me, once a Plummer put the trim and handle on, I love it, the design added a chic look to my bathroom shower, and it works perfectly, the handle is easy to turn. Handle is study!
Date published: 2020-02-09
  • y_2021, m_1, d_21, h_17
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.13
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_38
  • loc_en_US, sid_T17038-CZ, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 6ms
  • reviews, product
Q&A

When I order T17038, what parts are included? The parts list I pulled up related to this # showed accessories as well as faucet parts and I couldn't distinguish. Thanks.

Asked by: Jim70
Hello Jim70, Thank you for your question. The Delta Lahara T17038 is a dual control Valve only trim kit. This kit included the escutcheon plate, screws, trim sleeve, cartridge assembly and volume and temperature handles. Best regards, Tanya
Answered by: Delta Faucet
Date published: 2018-06-12

What accessories go with this?

I am planning a tub to shower conversion and do not plan on having the tub spout at all. I have # 57014 showerhead and sliding bar, # 50560 elbow, and understand I need # R1000-UNBX valve. If I get T17038, is that everything I need for a new shower only setup? Thanks!
Asked by: mary
Thank you for your question. If you are using Delta Faucet model # 57014 as your main showerhead, then you have all the components you will need for a complete shower only set-up.
Answered by: Delta1
Date published: 2013-10-22

what is the differences between 17t series and 17 series?

does either cartridge need to be maintained?
Asked by: bj
Hi bj, Thank you for your question! Both series operate the same and do not require regular maintenance. The Monitor 17 series is pressure balanced. The TempAssure 17T series is thermostatic, which provides a more precise temperature control. The 17T series will also provide more flow from the valve if you are building a customer shower with multiple components. Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2017-01-26

What is the diameter of this trim?

Asked by: sharon
Hi, Sharon! Thank you for your question. The Delta Monitor T17038 Valve Trim escutcheon plate measures 7 1/2" (191 mm) in diameter. Here is a link to the technical specifications sheet for further measurements for the trim kit: https://media.deltafaucet.com/SpecSheet/DSP-B-T17038%20Rev%20G.pdf Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2020-04-08

How do I get the water hotter

Asked by: Dave39
Hi, Dave39! Thank you for your question. There is a rotational limit stop (RLS) at the temperature control to adjust the hot water limit. To adjust the RLS, first remove the temperature cover and take a phillips head screw driver and turn the set screw counter clockwise to remove. Remove the gray knob. Behind the knob, you should see a black disk. Take the disk and take it out and place the disk to the hotter side. The hot side should be up against the iron piece that is sticking down on the volume handle. Once adjusted, reinstall all handle parts. Best Regards, Rosanna
Answered by: DeltaFaucet11
Date published: 2019-01-04

Do I need to caulk around the edges of the trim against the tile?

Asked by: Derek
Hi, Derek! Thank you for your question. We do recommend to use a bit of silicon sealant to seal the trim of the Delta T17038 unit against the tile. Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2019-03-15

Why is the oring packaged in the same plastic bag with the bolts/hardware? I hope my trim does not leak once I install it because of a damaged oring.

Asked by: paprikaspiroska
Hi paprikaspiroska, Thank you for your question. The o-ring in the photo goes under the trim sleeve that covers up the valve body and helps hold the trim sleeve in place. The o-ring is not used to seal water from leaking. Thanks, Dave
Answered by: DeltaFaucet2
Date published: 2014-12-18

How is the temperature knob removed? I can only find installation instructions, not removal. It's very lightweight plastic, and I don't want to snap anything by removing it incorrectly. I'd like to adjust the temperature. Thank you.

Asked by: KimM
Hello KimM, Thank you for your question. The front temperature dial of the Delta Lahara Valve Trim T17038-SS model can be removed by grasping the peice on either side of the part and squeezing together gently. Then grasp the small handle and pull the cover off. You can also use a flathead screwdriver to pry it off. Best regards, Tanya
Answered by: Delta Faucet
Date published: 2019-10-22
