Trinsic®

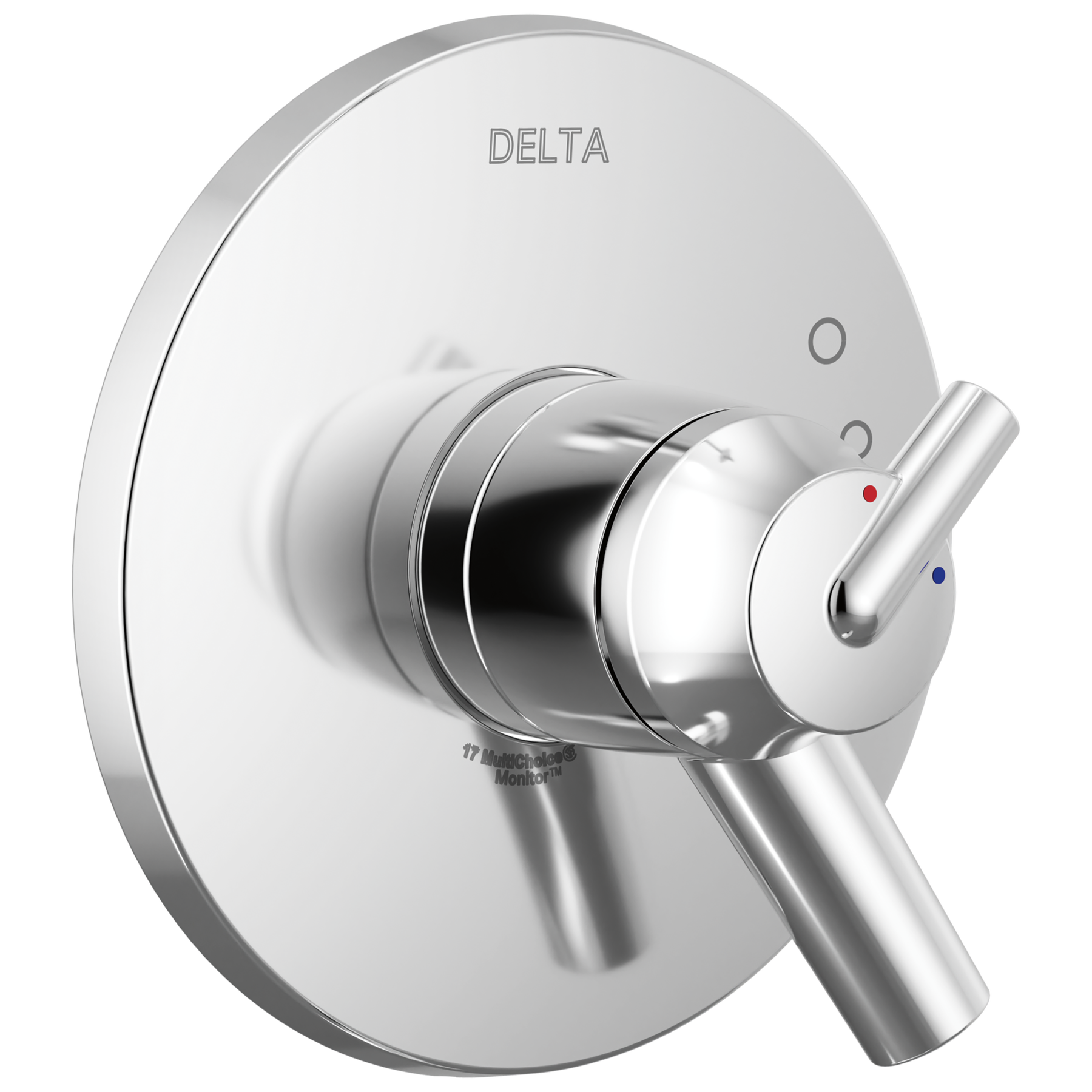

Monitor® 17 Series Valve Only Trim
Model#:
T17059
PRODUCT FEATURES
- Dual-function pressure balance cartridge
- Dial adjusts temperature - Handle adjusts volume
- Order MultiChoice Universal rough separately
- Valve is not included, must purchase separately
- Monitor Valve protects from rapid changes in hot or cold water
- Backed by Delta Faucet’s Lifetime Limited Warranty
Technology
Monitor®
Monitor®
Delta Monitor® faucets feature pressure balance valves, which protect against sudden temperature or pressure changes to keep the water in the shower within a safe ±3.6° F.
Special Features
ADA Compliant
ADA Compliant
Some people, and some local codes, require fixtures that are compliant with the Americans with Disabilities Act. If someone may visit who has special needs, or if you believe future buyers might appreciate this feature, Delta offers a range of compliant fixtures.
Volume Control
Volume Control
This option provides a single control that operates both the temperature and volume together.
MultiChoice® Universal Valve
MultiChoice® Universal Valve
The MultiChoice® Universal Valve allows you install one rough in the wall and then choose from three different shower functions as well as various styles.
SUPPORT
Product Support, Repair Parts & Technical Specifications
Installation Information
Over All Height :
6-1/2
Connection Type :
Universal fittings
PART LIST
PART LIST
REVIEWS
Rated 5 out of
5
by
Dan N from
Delta does it
High quality, nice finish, perfect water temperature control
Date published: 2021-01-30
Rated 5 out of
5
by
Bob from
Delta connects
Nice addition to new shower, read instructions, I connected with pex flex water piping , don’t make hole to big , because cover plate only 6 in
Date published: 2020-12-11
Rated 4 out of
5
by
Austin from
Mechanically Good. Cosmetically Ok.
[This review was collected as part of a promotion.] This is a great functioning valve and is easy to install however the finish is easily scratched revealing a different color underneath the black top coat. I would still recommend this product, but suggest a different color.
Date published: 2019-07-22
Rated 5 out of
5
by
Graham from
Good value, works well
This item looks nice, installed easily and functions as per its decription. Ours is only two months old so I cannot comment on reliability yet.
Date published: 2019-02-09
Rated 5 out of
5
by
Mary from
Nice quality
This is a nice solid trim package. The volume control is a nice feature. So far working well.
Date published: 2018-12-21
Rated 5 out of
5
by
Dkboiler from
Great product
Very good looking, works as described. Clean look my clients were looking for!
Date published: 2018-11-06
Rated 5 out of
5
by
Tenish88 from
Sturdy
Handle feels sturdy and sleek.
Date published: 2018-08-26
Rated 4 out of
5
by
SBeck27 from
Very Easy to Use
My contractor said it was very easy to install and my two boys find it very easy to use. Just turn it on and it is set to the temperature from the previous shower. So far, the temperature has been accurate. I also purchased two sink faucets in the stainless and I do find that they look very spotty from the water. Will need wipe them down often to keep them looking good.
Date published: 2018-08-04
Q&A
Does the Trinsic Monitor® 17 Series Valve Only Trim have a ceramic or plastic cartridge? John L. Greenbelt, MD
Hi, solarjack!
Thank you for your question. The valve cartridge assembly that this comes with is plastic.
Best Regards,
Rosanna
Date published: 2017-10-16
If I pair a Trinsic Monitor Series 17 trim/cartridge kit with a R10000-PXWS rough valve body and a 2.5 gpm shower head, will the Delta valve restrict flow-rate to the shower head to 1.75 gpm or will I be able to get 2.5 gpm?
Hello Tovodeverett,
Thank you for your question. The Delta Multichoice Universal Rough-In R10000-PXWS valve will not restrict the flow rate of a 2.5 GPM shower head.
Best regards,
Tanya
Date published: 2019-10-01
Rain shower head with trim?
I want to use a rain shower head (delta RP50841) overhead and control the pressure and temperature using this Trinsic 17 Series MC Valve Trim. Will this work? Do I need any other parts to do this?
Hi Lise,
You can use the raincan showerhead part number RP50841 with the trim T17059. The only thing extra that you will need is a shower arm such as RP46870 and a showerarm flange such as RP46872.
Date published: 2013-10-22
I plan to buy the Trinsic 17 Series MC Valve Trim. I need to know exactly the "rough" valve for it and for the Trinsic 3-function diverter valve.
I'm having a hard time finding online both the Trinsic 17 Valve Trim and the Trinsic 3-function diverter trim and figuring out which "rough" valves match these trims. Also, the style of the 3-function diverter isn't an exact match to that of the 17. Any reason for that? I can send photos if requested.
Thank you for your question. We recommend using Delta Faucet model R10000-UNBX with your T17059. For your diverter rough-in valve, we recommend the R11000. If you are adding one feature to your shower, we suggest the T11859 diverter trim. If you are adding 2 features to your shower, we suggest the T11959 diverter trim. Both of these models are in the Trinsic series.
Date published: 2013-10-22
What is the preferred valve to use with a T17059 trinsic valve trim. It will be for shower only, no tub, and we will be using the Emerge 26” shower column. We are wanting to replace our old valve . Thanks!
Thank you for your question, Carole! Model T17059 is intended to be used with any of the Universal MultiChoice valves, however, for a shower-only installation we would recommend the R10000-UNBXHF (High Flow) which will come pre-fabricated with a capped tub spout for the highest possible GPM.
https://www.deltafaucet.com/bathroom/product/R10000-UNBXHF
Best regards, Edward
Date published: 2019-06-12
I’m installing a single shower head setup. Want matching look of other bathroom that has a T27T959 valve. Will be using an R10000-UNBXHF valve. Want max flow and pressure - do I go with T17059 or T17T059? What’s the difference between the two?
Hello Mtka Mike,
There is in fact a big difference between the two. The T17059 is a regular monitor 1700 series. The T17T059 is from the same Trinsic collection but with a thermostatic cartridge.
TempAssure Thermostatic valves monitor the temperature of the water and adjust the mix automatically to maintain precise temperature control and to keep the water temperature in your shower within a safe ±3° F (±1.6° C). This provides a more consistent temperature than pressure balanced valves can supply. TempAssure valves also feature an adjustable high-temperature limit stop that when properly set helps ensure the handle cannot be turned to a position that is too hot for comfort. And because TempAssure measures the temperature of water, the handle limit stop will not need to be adjusted for seasonal ground water temperature changes. This information can but found under the smart solutions tab. Once your there you can click on Tempassure tab.
Below is a link to this same information. https://www.deltafaucet.com/design-innovation/innovations/shower/tempassure-valve--monitor-valve
Best regards,
Tanya
Date published: 2018-03-08
I don't want to replace my older 1700 series rough in, will this work using the RP32104 cartridge?
I don't want to have to pay a plumber to come out and swap rough ins. I do need to replace the cartridge and believe that the RP32104 is correct as it has the square key instead of the triangle the new ones have. Will this valve work with that cartridge?
Hi Ryanoutloud, Thank you for your question. If your 1700 series faucet is older than February 2006 and the top of the cartridge is white then the RP32104 is the correct replacement cartridge. If newer than February 2006 and the cartridge has a gray top then RP46463 would be the correct part.
Thanks,
Dave
Date published: 2014-06-12
I don't see a Trinsic 17T option for a TempAssure cartridge? Does Trinsic trim support that option?
Searching on TempAssure shower valve products, I only find Vero, Ara, and Arzo with contemporary styling. Could I replace the 17 pressure balanced cartridge with the 17T TempAssure in the Trinsic or Compel trims?
Hi Mike,
Thank you for your question. You are correct, there is not a Trinsic 17T option available. Unfortunately, you cannot just put the cartridge for the 17T on a 1700 series and use the same handle. It will not fit.
Thanks.
Jody
Date published: 2014-12-29
