Ara®
Monitor® 17 Series Valve Only Trim
Model#: T17067-SS
Monitor® 17 Series Valve Only Trim
Monitor® 17 Series Valve Only Trim
Monitor® 17 Series Valve Only Trim
Monitor® 17 Series Valve Only Trim
Monitor® 17 Series Valve Only Trim
Monitor® 17 Series Valve Only Trim
Monitor® 17 Series Valve Only Trim
Monitor® 17 Series Valve Only Trim
Monitor® 17 Series Valve Only Trim
Monitor® 17 Series Valve Only Trim
Monitor® 17 Series Valve Only Trim
Monitor® 17 Series Valve Only Trim
Monitor® 17 Series Valve Only Trim
Monitor® 17 Series Valve Only Trim
Monitor® 17 Series Valve Only Trim
Monitor® 17 Series Valve Only Trim
Ara®

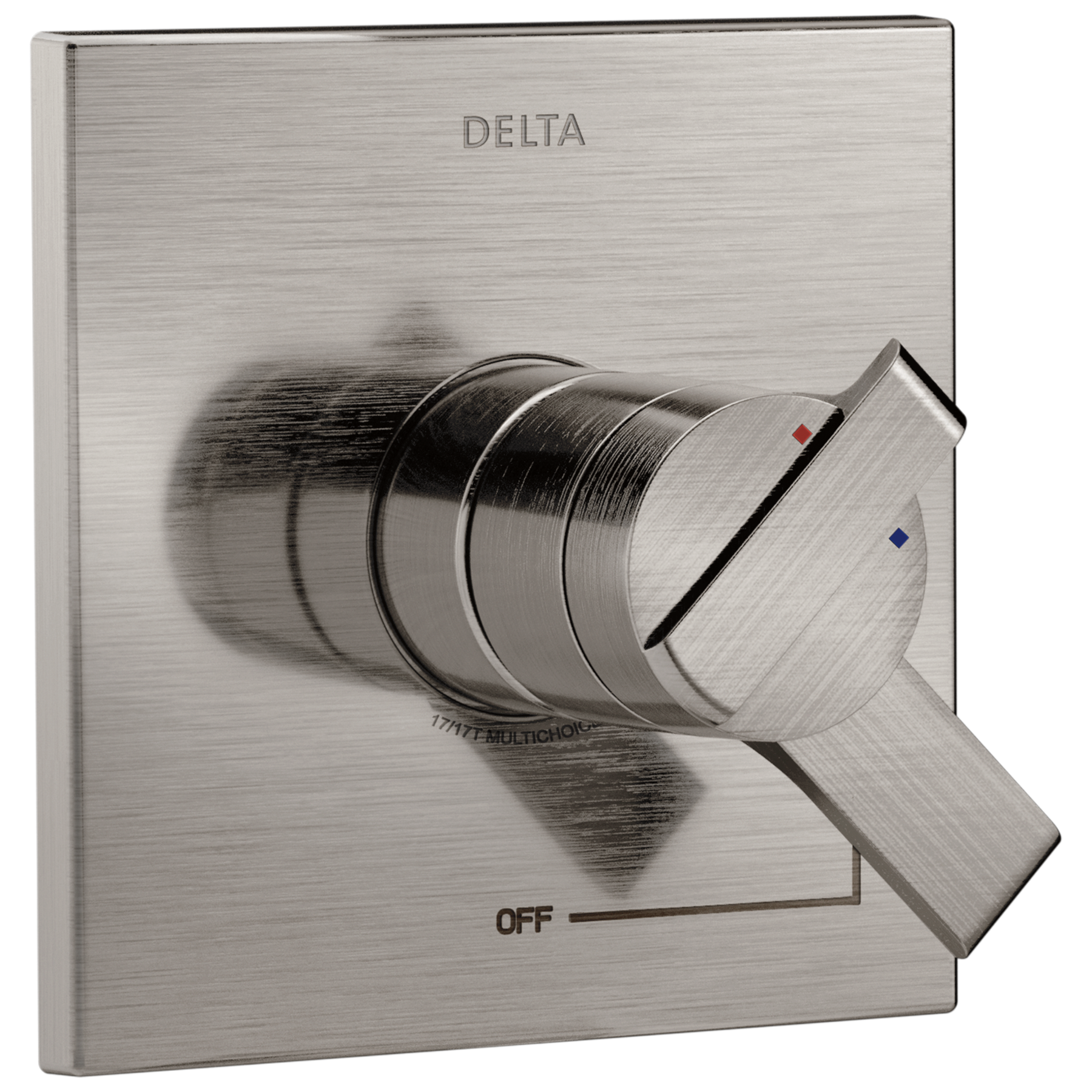

Monitor® 17 Series Valve Only Trim
Model#: T17067-SS
Finish: Stainless
List Price*: $272.95
PRODUCT FEATURES
  • Valve is not included, must purchase separately
  • Set ideal temperature and adjust volume separately
  • Backed by Delta Faucet’s Lifetime Limited Warranty
Technology
Special Features
SUPPORT
Installation Information
Over All Height :
6-1/2
Connection Type :
Universal fittings
PART LIST

PART LIST

REVIEWS
Rated 3 out of 5 by from The Temp control keeps breakin It is great valve, great design and very stylish, but the temp control keeps breaking.
Date published: 2020-02-25
Rated 1 out of 5 by from Poorly made I purchased this item for my bathroom remodel. I needed it to be matte black and this looked promising. However just after a few months the temperature handle became loose and it just continually turns. I’m wondering if I need a replacement handle or and entirely new one.
Date published: 2019-10-22
Rated 2 out of 5 by from Bad design? I'm not sure why Delta would manufacture a facet that has the words "on" and "off" on it but the facet handle doesn't line up with them. When the unit is in the "off" position it is midway between off and on? I have two delta facets in my shower and the one unit is "off" when the handle is pointed stright down. The other is not??? that just looks odd? I contacted Delta and they confirmed this is the way the units function? If you look at the photo above the handle is "off". It doesn't go further to the left to be pointed straight down? Does that make sense?
Date published: 2019-04-23
Rated 5 out of 5 by from Valve trim Product as described. Arrived in a timely fashion. Haven’t used it yet as our rough in valves just went in, but it feels and looks of good quality. Also, Leah, the build.com rep who helped me is amazing!
Date published: 2019-02-08
Rated 2 out of 5 by from Look nice, but watch out for the dripping! We remodeled two bathrooms in 2015, both using Ara shower or shower/bath parts. They seemed affordable and looked nice. One temperature control cover (a cheap plastic) was broken immediately and Delta sent a replacement quickly. The other is managing to hang on but is very loose and will need replacing soon. Worst of all is that both drip consistently and have from very early on. We can stop this on one by carefully turning the on/off lever to a particular place between on and off. The other one just drips and we can't stop it. It's frustrating. At least with our Delta kitchen faucet the cartridge seems to work for 3 years before it needs replacing. These barely made it a few months before they were dripping. The Delta stuff looks nice and feels okay, cheap plastic covers, Delta?) but we have not been happy at all with the performance or durability of the valve cartridges.
Date published: 2018-07-08
Rated 5 out of 5 by from Value for your money Product arrived fast and was double boxed. Installation was not easy but I managed to get it done eventually. The chrome finish does leave water spots so you may want to wipe it down after your shower. The handle is chrome plated plastic but the rest are metal. I did shop quite a bit for a shower valve with both temperature and volume control, and with a modern contemporary look. This one has both while being affordable.
Date published: 2018-06-01
Rated 1 out of 5 by from Beautiful ---but arrived broken! The temperature control knob (plastic) has two small notchs that snap into the main valve. This knob or handle controls the temp of the shower water. One of the two notches was broken off. So far I have been unable to find anyone in Oklahoma City that stocks parts for this Delta shower valve.
Date published: 2015-09-20
  • y_2021, m_2, d_22, h_17
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.14
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_7
  • loc_en_US, sid_T17067-SS, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 7ms
  • reviews, product
Q&A

How do you set up the temperature adjustment?

Asked by: Scott
Hello Scott, Thanks for your question! Here is a How to Video on adjusting the Rotational Limit Stop on your Delta shower unit: http://www.deltafaucet.com/shopping-tools/research/video-gallery/video.html?v=n2_uZ7wgV1I&cat= I hope this helps!
Answered by: DeltaFaucet9
Date published: 2016-03-14

Is Ara shower trim made of metal or plastic?

What valves do I need if I also want handshower on bar? Is a separate diverter trim required or are there other options for having a fixed shower head and a separate hand shower?
Asked by: daria
Hi Daria, Thank you for your question. The trim parts are metal, except for the temperature knob. To use a fixed shower head and a hand shower, you will also need a 3-setting diverter. You can use a wall-mount or a shower arm diverter. Wall-mount diverters require the R11000 rough-in and a T11 trim kit, such as the T11867-SS. http://www.deltafaucet.com/bath/details/r11000.html http://www.deltafaucet.com/bath/details/t11867-ss.html For a shower arm diverter, if you will be using a slide bar mount for the hand shower, you can use U4923-SS-PK or U4929-SS-PK http://www.deltafaucet.com/search/results.html?q=U4923-SS-PK%2C+U4929-SS-PK&num=20 Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2016-04-12

Is there a need to silicone around the outside of the trim or is the built in foam gasket enough to protect from water?

Asked by: adeptds
Thank you for your question, adeptds! The foam gasket on the back of the escutcheon is sufficient for installation however silicone sealant can be used as well if needed. Best regards, Edward
Answered by: DeltaFaucet234
Date published: 2019-05-28

Does this include the cartridge?

Asked by: JB15
Hi, JB15! Thank you for your question. The Delta Monitor T17067 valve trim kit does include the RP46463 valve cartridge assembly. Best Regards, Rosanna
Answered by: DeltaFaucet11
Date published: 2019-01-07

Can the T17067 Faucet be used with the R1000-UNBXHF?

Asked by: Eric
Thank you for your question, Eric. This trim can be used with any R10000 Rough-In Vavle such as the R10000-UNBXHF. Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2017-11-09

How to i remove the handle from the hot/cold valve trim T17067 to adjust temperature?? Thanks

Asked by: Lec98
Hi, Lec98! Thank you for your question. The Delta Monitor T17067 Valve Trim Kit temperature knob cover can be removed by pulling the cover straight off by hand. The knob can then be removed with a Philip's screw driver. Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2019-11-11

The handle does not point down when off?

I have 2 Ara fixtures - the other one points straight down when off, but this one is at more like 5 o'clock. Why? Is this correct and if so, is it adjustable to match the other one?
Asked by: JC
Dear JC, Thank you for your inquiry! The handle of the Delta Ara 17 Series Valve Trim T17067-BL is designed for the handle to be at the 5 o'clock position, to match up with the "OFF" label on the plate. There is only one hole that the handle assembly comes out of, so it will not interfere with any other items with the handle out to the side. Best regards, Tanya
Answered by: Tanya
Date published: 2017-10-01

About diverter valve

Hi, I am installing the shower head , 3 body sprays and hand shower. I would like to use one position for hand shower separately and 1 position for shower head separately and then 1 position for Showerhead and body spray together. Along wit this trim I have also bought the Delta R11000 3/6 Setting Diverter Rough ,Delta Faucet R10000-UNBX MultiChoice Universal Tub and Shower Valve Body and Vero 1-Handle 3-Setting Diverter Valve Trim Kit in Chrome . Is this OK to provide the setup of my choice or do I need something else
Asked by: Grover
Hi, Grover! Thank you for your question. Everything is correct but the 3 setting Diverter Valve Trim should be a 6 setting unit instead of 3 settings to handle all three shower components you want to install. The 6-Setting Diverter Valve Trim Kit in Chrome is T11967. Here is a link to the kit: https://www.deltafaucet.com/bathroom/product/T11967 Best Regards, Rosanna
Answered by: Rosanna
Date published: 2017-02-09
