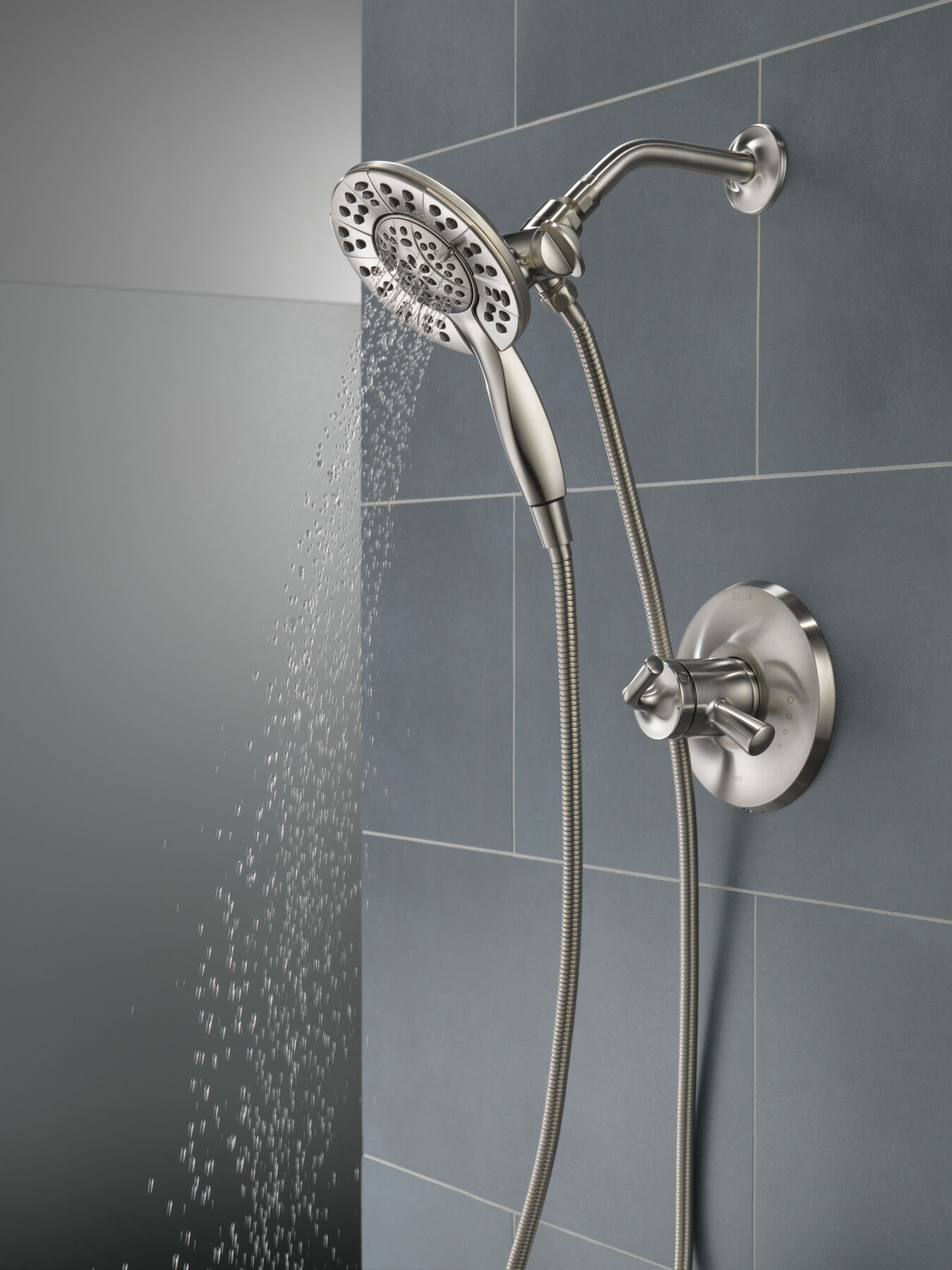

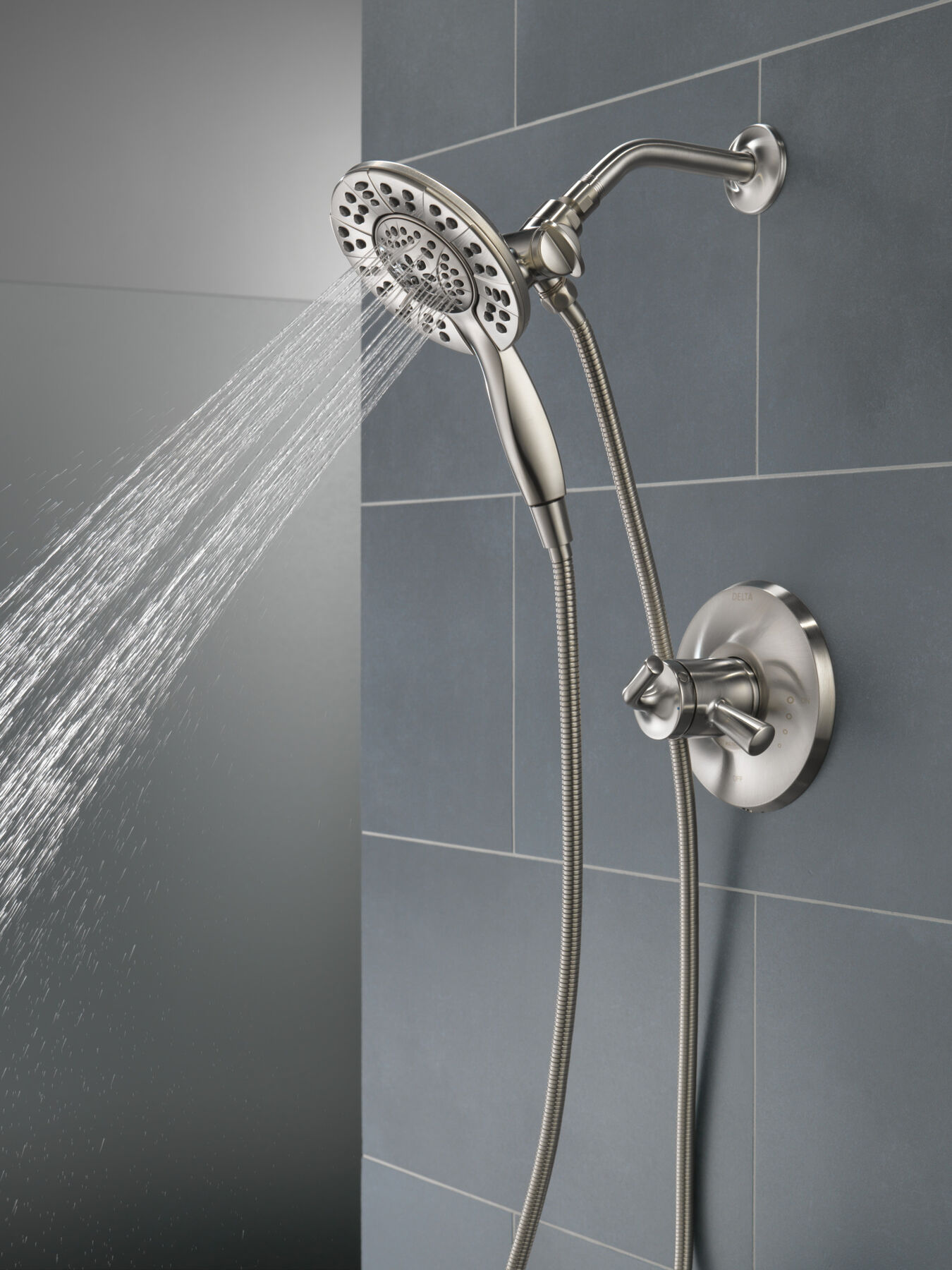

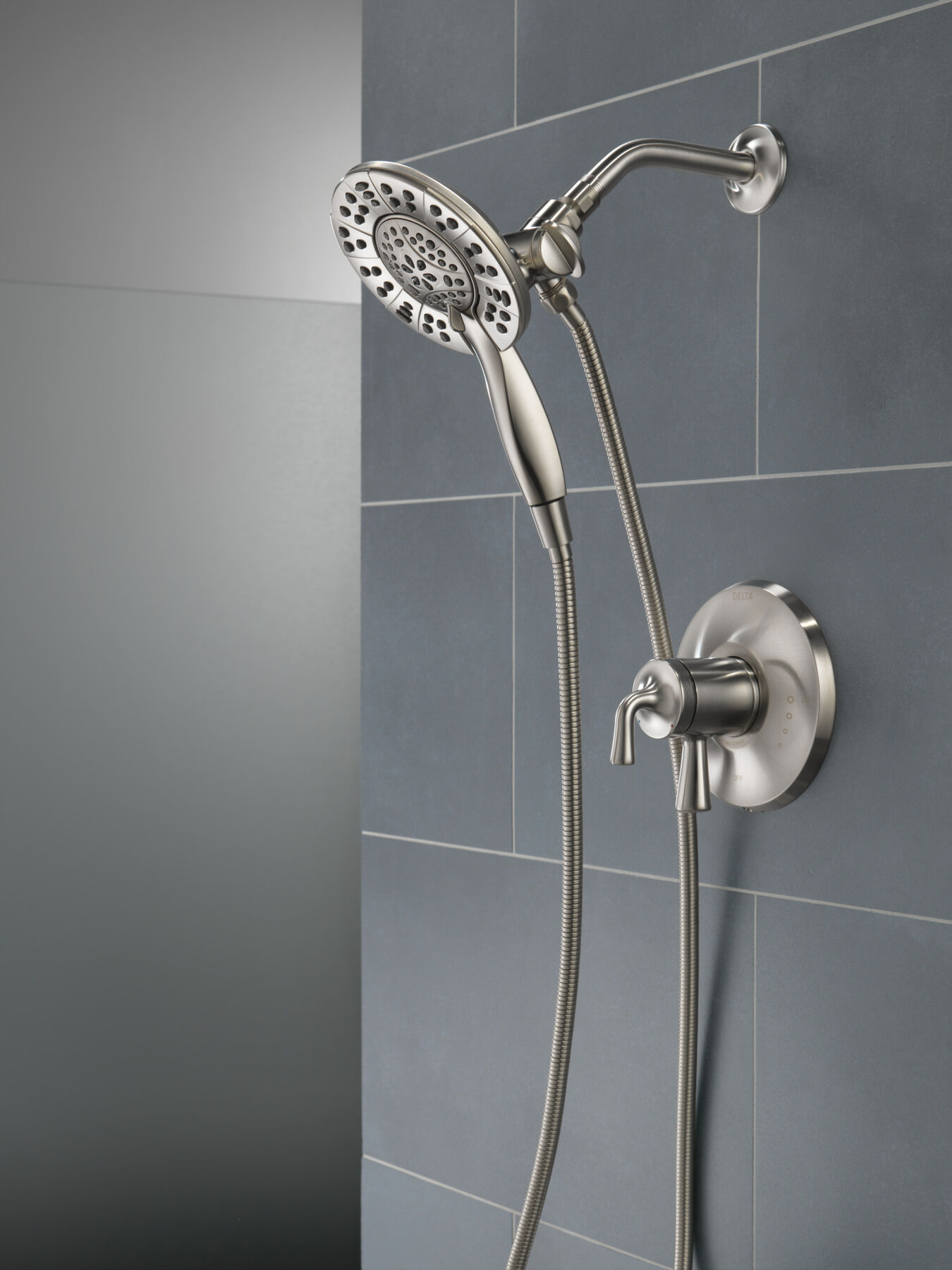

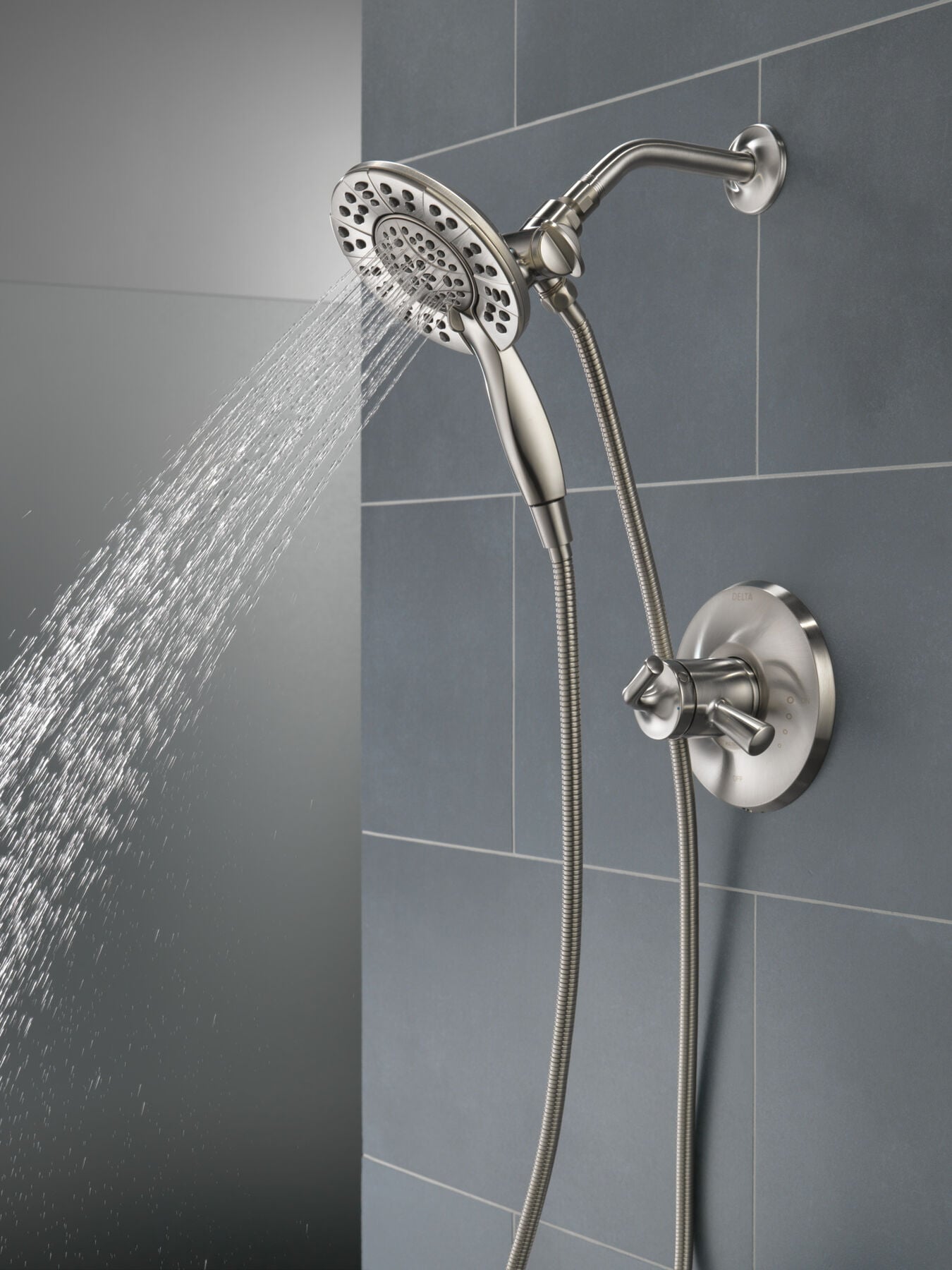

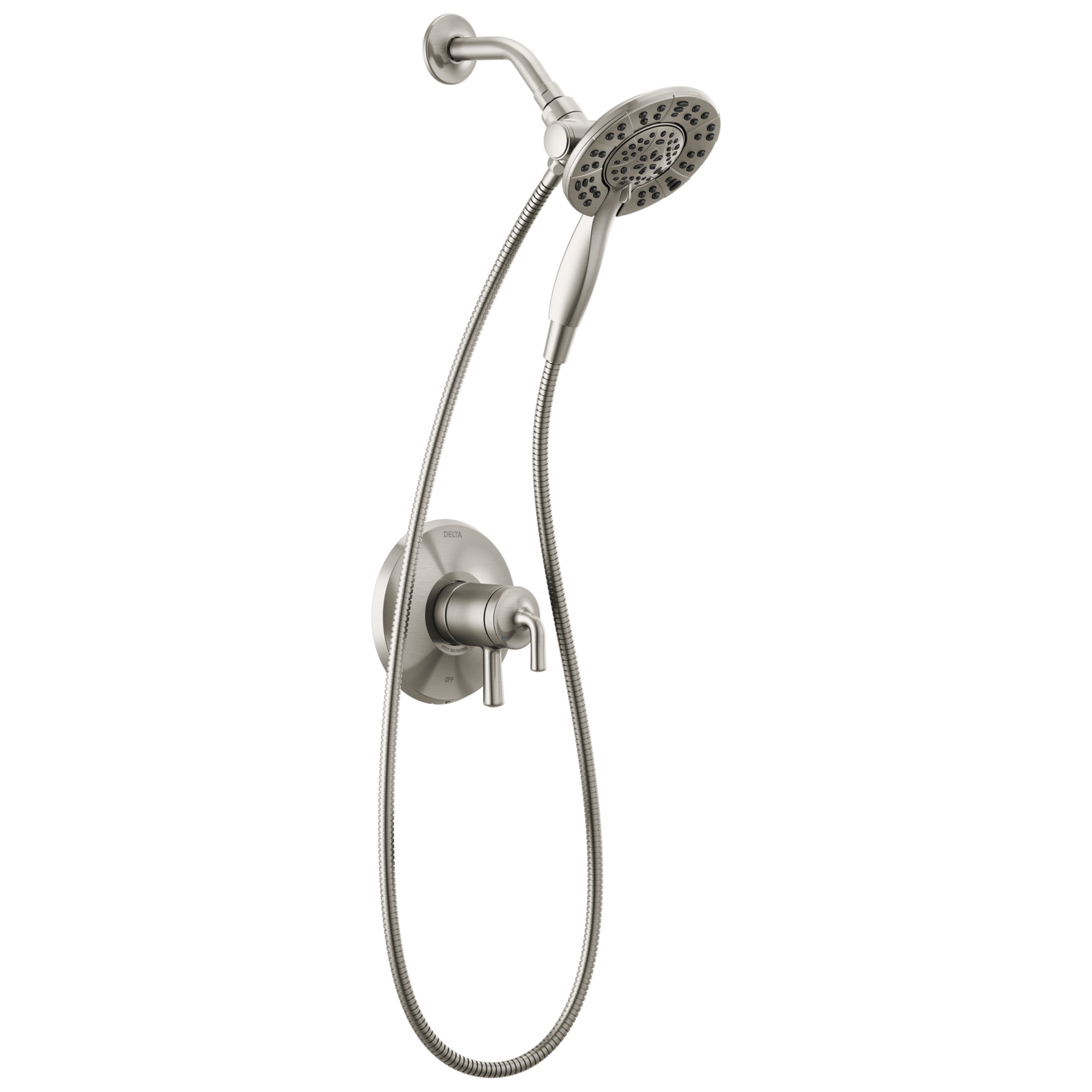

Monitor 17 Series Shower Trim in Stainless

Model#: T17233-SS-I
Monitor 17 Series Shower Trim in Stainless
Model#: T17233-SS-I
List Price: $45600
PRODUCT FEATURES

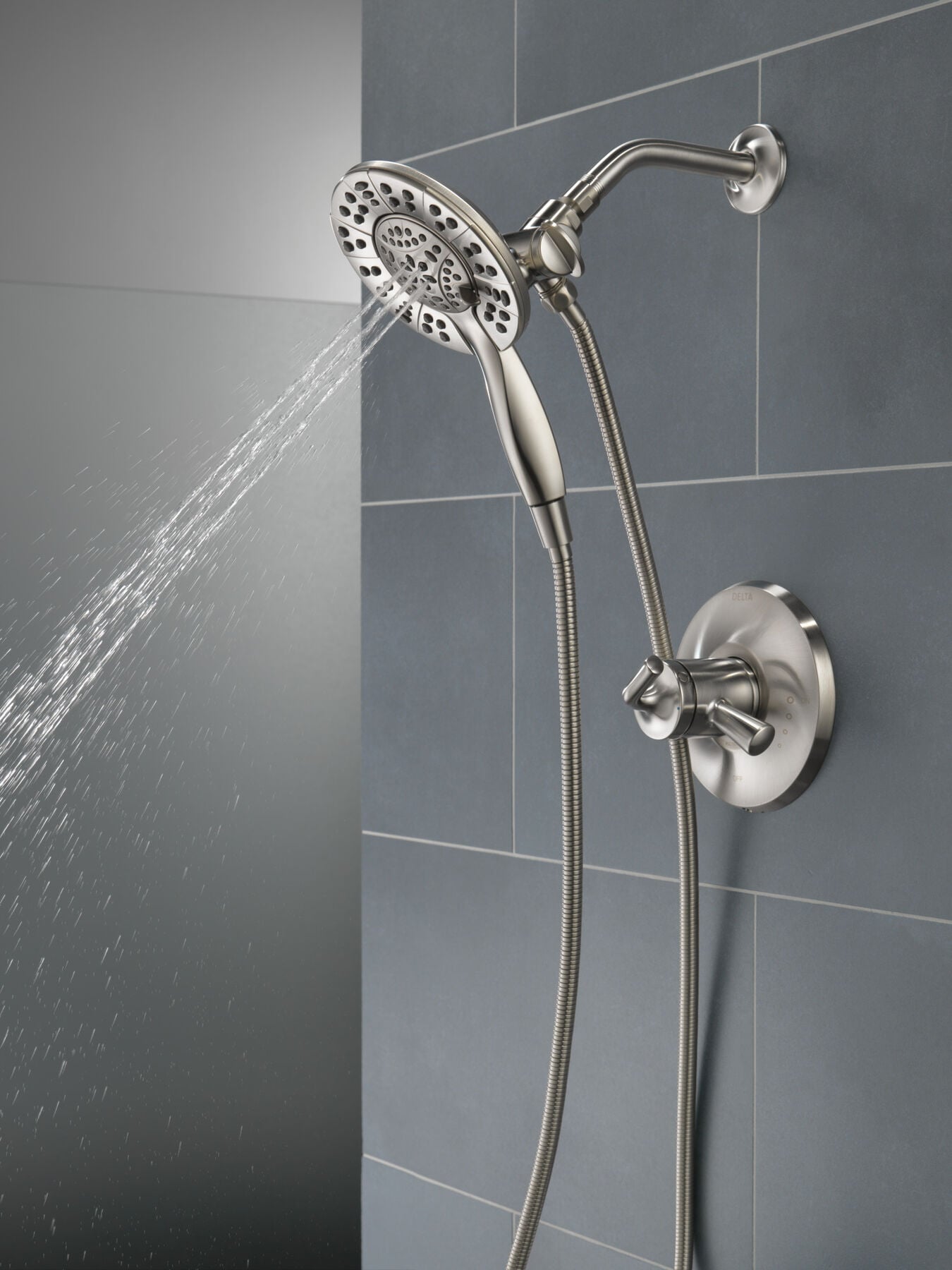

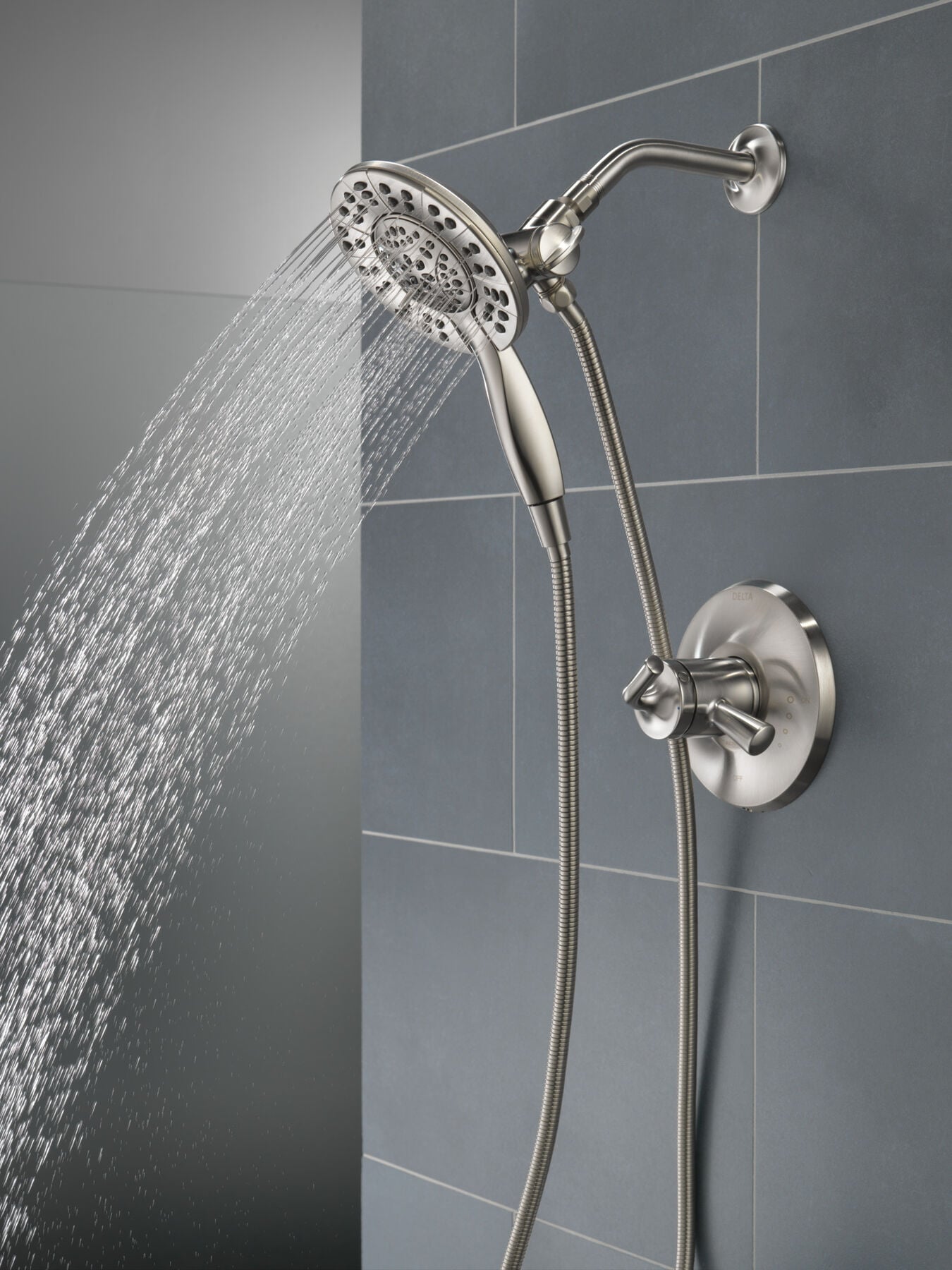

The stretched feminine form and unbroken lines of the Kayra™ Bath Collection create a clean, flowing design. The Delta® In2ition® Two-in-One Shower features a detachable hand shower which can be used separately from or simultaneously with the shower head. This integrated dual-functionality provides maximum flexibility without sacrificing warmth, as you can choose to have water streaming from the shower head only, the hand shower only, or both the shower head and hand shower at once. The pause setting gives you ample space for shaving, lathering, and other shower tasks, then easily restarts the water with the temperature where you left off. This spray setting helps you conserve water, so you can worry less about depleting your supply of hot water - and you help the environment too. Delta WaterSense labeled faucets use at least 20% less water than the industry standard—saving you money without compromising performance. You can install with confidence, knowing that Delta faucets are backed by our Lifetime Limited Warranty.

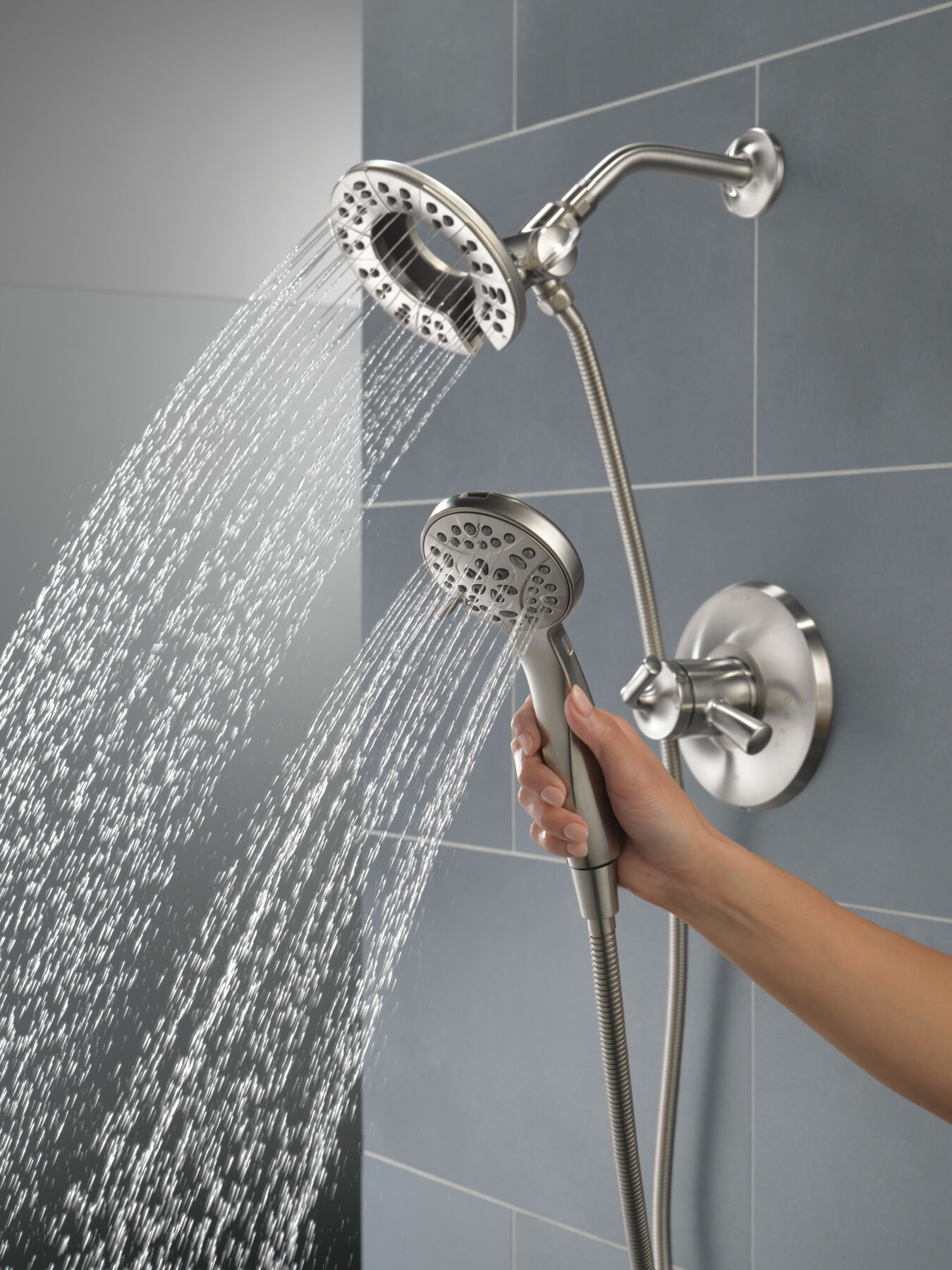

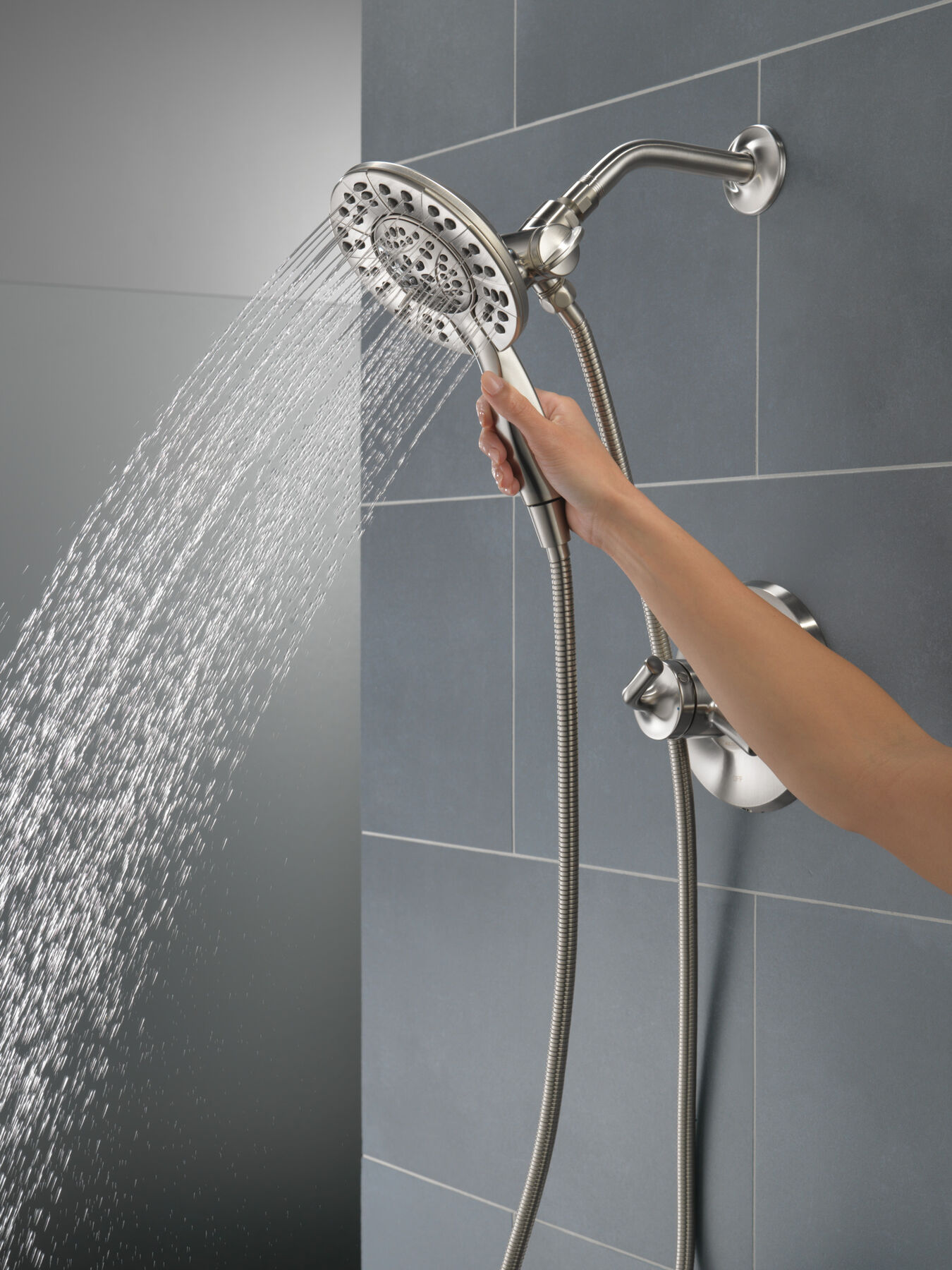

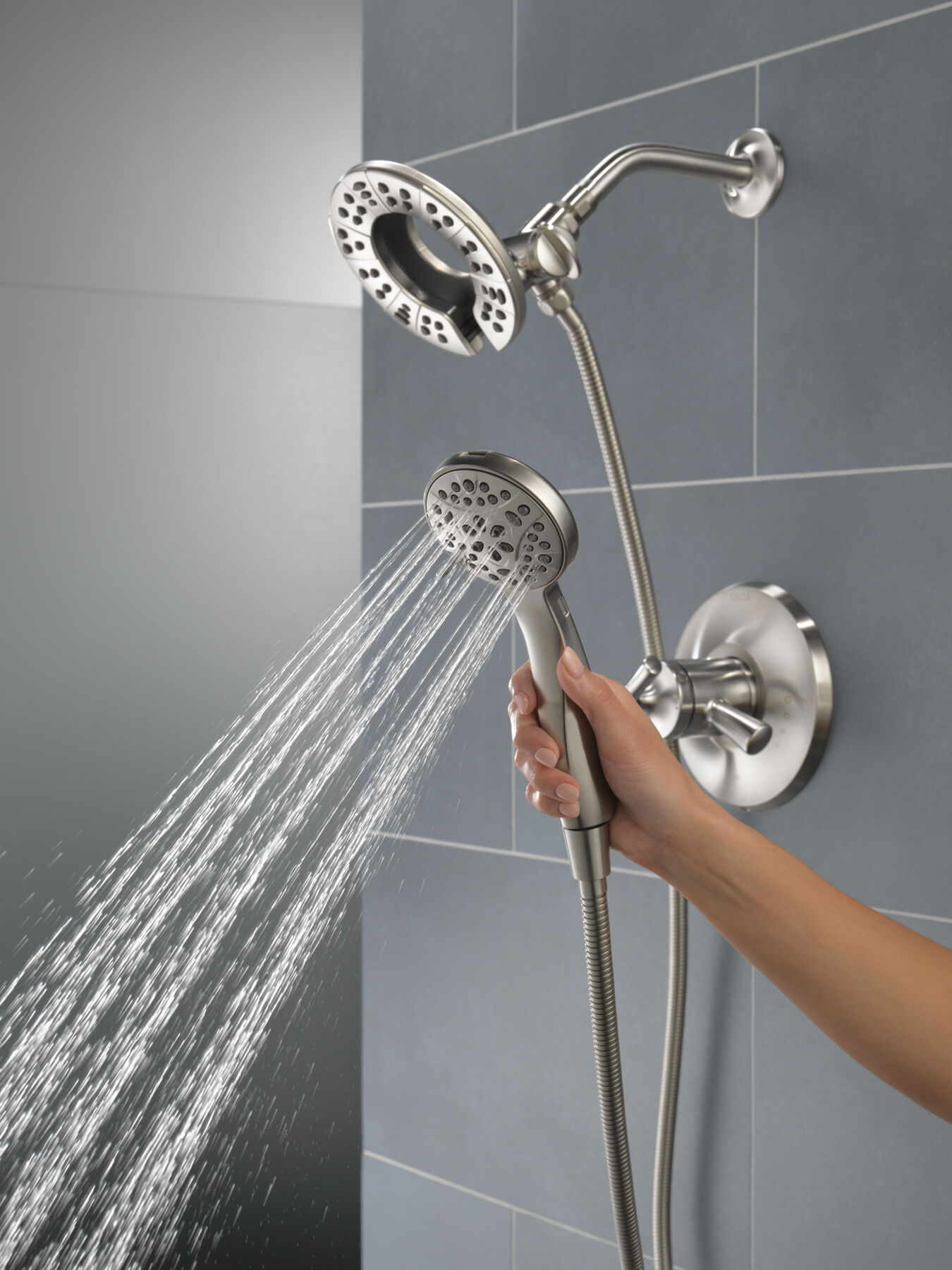

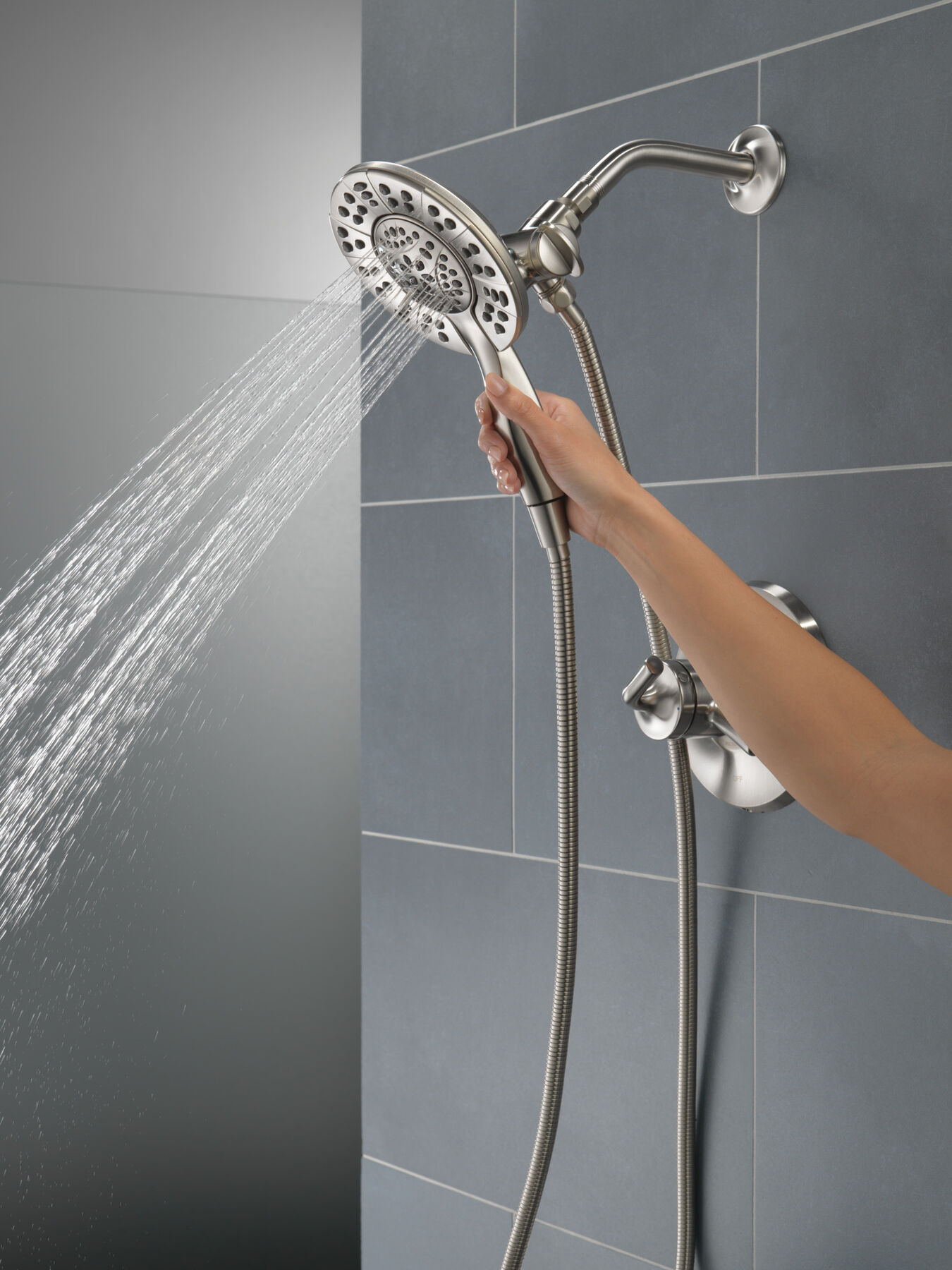

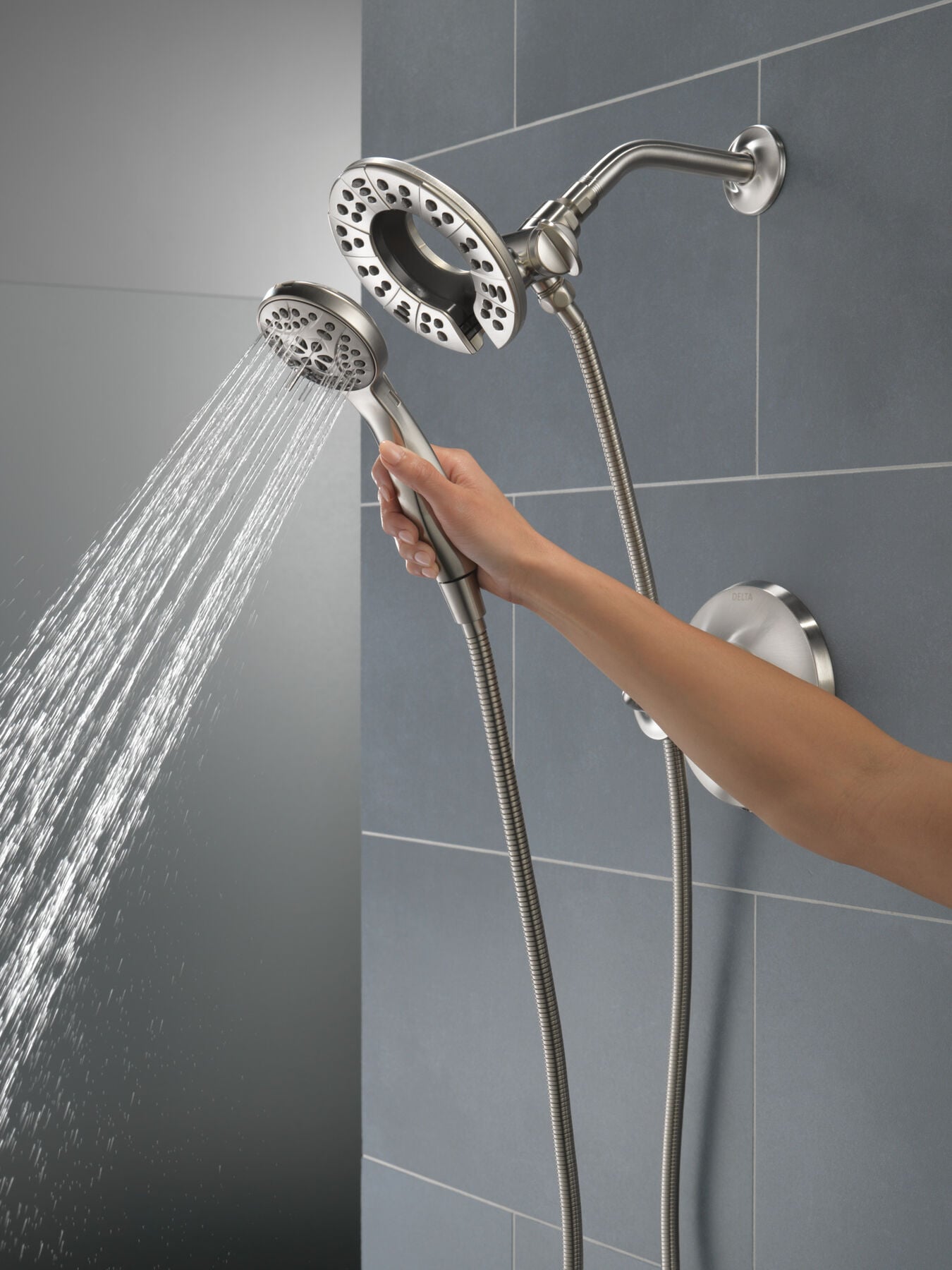

  • The In2ition® Two-in-One Shower gets water where you need it most using the integrated shower head and hand shower separately or together
  • Trim kit only, must order MultiChoice® Universal Valve separately to complete the unit
  • Recommended rough-in kit R10000 series
  • Perfect for bathing loved ones and pets as well as keeping the inside of your shower and tub clean
  • Spray settings include: Full Body spray, Massage spray, Full spray with Massage, and Pause
  • Pause feature reduces water to a trickle, giving you space for shaving, lathering and other shower tasks while maintaining your temperature settings
  • ADA compliant metal lever handle
  • Lever adjusts volume
  • Dial adjusts temperature
  • WaterSense® labeled shower heads use at least 20% less water than the industry standard without compromising performance
  • Back-to-back installation capability
  • Includes coordinating pull-up diverter tub spout
  • Red/Blue indicator markings
  • Cartridge included
  • Shower only
  • All parts replaceable from the front of the valve
  • Solid brass forged body
Eco-Friendly
WaterSense® Labeled
Technology and Special Features
In2ition®
ADA Compliant
Touch-Clean®
Brilliance® Finish
H2Okinetic® Technology
Monitor®
Documents & Specs
Installation Information

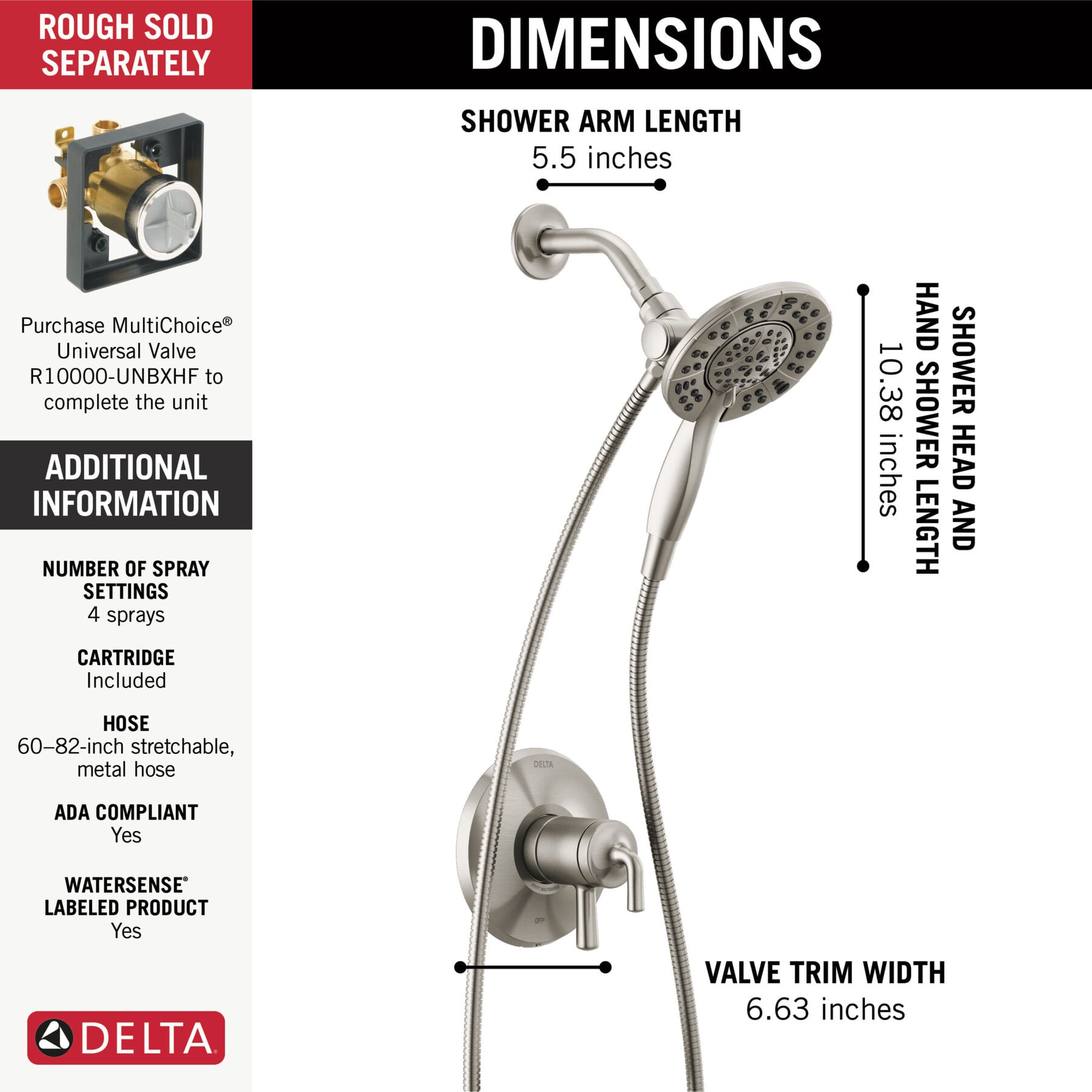

Flow Rate :
1.75 gpm @ 80 psi, 6.6 L/min @ 552 kPa
Overall Height (in.) :
6-5/8
Valve Type:
Dual-function pressure balance cartridge

INSTALLATION SUPPORT

Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.

GO
Enter Valid Zip.
REVIEWS
Rated 1 out of 5 by from Shower head leaking and handle is chipped I was very disappointed after the installation. The shower head rubber nipple leaks in the off position. And the handle has a chip. I would not recommend.
Date published: 2026-02-23
Rated 1 out of 5 by from Low water pressure on hot. Loose handles. I had the Kayra series 1705 shower head, valve, handles, etc installed in a remodel. The water pressure is low when full hot is turned on. Temperature regulator dial was turned all the way to maximum hot. Installer told us that was normal because it's limiting the cold water supply and turned the temp 'dial' down, from full hot. Still have a problem with low pressure. Also, water was dripping out when valve was in off position. Installer played around with the cartridge and it stopped. Also, the handles become loose and has had to be retightened twice. I would expect better quality from Delta products and would NOT recommend this piece of crap to anyone.
Date published: 2024-02-10
Rated 1 out of 5 by from Temperature adjustment Nice trim, however the instruction do not explain h E to adjust temperature. Upon completion temp is no higher than 90 deg.
Date published: 2024-01-30
Rated 5 out of 5 by from Shower Head Thiis shower head contained all the features I wanted in a shower head; its operation is smooth and allows me to fine tune the water spray pattern and intensity.
Date published: 2023-12-03
Rated 4 out of 5 by from . I really like the showerhead and the removable nozzle. We are struggling with low pressure issues, but I think if we can address that it would be amazing. I would recommend it.
Date published: 2023-07-20
Rated 5 out of 5 by from Happy Great selection, great fast service and very nice shower head.
Date published: 2022-12-05
Rated 1 out of 5 by from No cartridge Have to order a different one. No cartridge inside.
Date published: 2022-11-15
Rated 2 out of 5 by from Delta T17233-I Kayra Monitor 17 Series Dual Function Not impressed with the product. The handle to turn on/off is too small and it is difficult to regulate the water temperature. It is poorly designed.
Date published: 2022-09-30
  • y_2026, m_6, d_16, h_13
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.46
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_28
  • loc_en_US, sid_T17233-SS-I, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 9ms
  • reviews, product
Q&A

Does the In2ition version of Kayra model # T17233-SS-I include H2Okinetic Techology?

Asked by: Woodstock
Hello, Thank you for your question! Yes, that model features the H2Okinetic® Technology. Please reach out with further questions! Best Regards, Tim Digital Communications Specialist
Answered by: Timothy
Date published: 2025-06-03

How do I turn the lever that makes the water come out

Asked by: Roro
Hello Valued Customer, Thank you for contacting Peerless Faucet Company! Our T17233-SS-I has a volume handle and a temperature handle. To turn the water on, rotate the larger handle counterclockwise. The smaller handle will adjust temperature. We appreciate your inquiry. Please reach out directly if you have further questions! Best Regards, Kyra Digital Communications Specialist
Answered by: Delta
Date published: 2025-01-08

We just had a new shower installed with the 17233 shower fixture. The water pressure exiting the shower head is VERY low. House pressure is 55 PSI. Have tried to adjust shower head controls, is there a pressure reducing orifice that can be remived ?

Asked by: Dave J K
Hi Dave J K, Thanks so much for contacting Delta Faucet Company! The KAYRA™ Monitor 17 Series Shower Trim MODEL#: T17233-SS-I has a maximum flow rate of 1.75 GPM @ 80 psi. Please refer to the technical specifications sheet for more details, I have attached the link below. https://media.deltafaucet.com/SpecSheet/DSP-B-T17033%20Rev%20B.pdf Please reach out with further questions! Best Regards, Kelley Digital Communications Specialist
Answered by: Customer Service
Date published: 2023-07-15

My Delta Kayra Monitor 17 series dual function pressure balanced shower valve ,T17233, now has loose handles. I tightened the set screw on the temp handle, but the whole dual handle unit is still loose.

Asked by: HFK8
Hello Valued Customer, Thank you for contacting Delta Faucet Company! We apologize for the issues you are experiencing and we are happy to help! We have reached out to you directly to further assist you with this matter. We appreciate your inquiry. Please reach out directly if you have further questions! Best Regards, Kyra Digital Communications Specialist
Answered by: Delta
Date published: 2025-04-11

Does the DT17233SSI Kayra Single handle shower faucet include the hose? If so, what is the length and construction material? Is the shower arm with flange included? Thank you

Asked by: Candy
Hi Adidas! Thank you for your question! I will be happy to help. This model includes everything shown in the photo. So the hose, shower arm and flange are all included. The hose is a 60-82 inch stretchable metal hose. Best Regards, Tim
Answered by: Delta
Date published: 2024-03-28

My 1 year old Delta Kayra Monitor 17 series dual function pressure balanced shower valve ,T17233, has become loose and wiggles. What is the best way to tighten it back to normal. Thanks for your help.

Asked by: Burt
Hi Burt, Please accept our sincere apology for the inconvenience you are experiencing. We are happy to help! The handle set screw under the cover button is tightened with a 3/32" Allen wrench. The escutcheon plate can be tightened with the set screw on the bottom. See the parts diagram for more information: https://media.deltafaucet.com/PartsDiagram/DPD-B-T17033%20Rev%20B.pdf Please reach out for further assistance or with any additional questions! Best Regards, Bryan Digital Communications Specialist
Answered by: Customer Service
Date published: 2024-01-31

How do I tighten both the temperature knob (RP101544) and handle assembly (RP101543)? Both have become loose and wobbly after a year and a half of use.

Asked by: Paul
Hello, Please accept our sincere apology for the inconvenience you are experiencing. We have reached out to you via email to further assist at this time. Best Regards, Tim Digital Communications Specialist
Answered by: Digital Specialist
Date published: 2026-04-20

My handles are loose on my Kayla Monitor 17 series dual function. I tried set screw also but nothing. Please help! Thx

Asked by: Joe Myers
Hello Valued Customer, Thank you for contacting Delta Faucet Company! We apologize for the issues you are experiencing and we are happy to help! We have reached out to you directly to further assist you with this matter. We appreciate your inquiry. Please reach out directly if you have further questions! Best Regards, Kyra Digital Communications Specialist
Answered by: Delta
Date published: 2025-04-24
  • y_2026, m_6, d_15, h_12CST
  • bvseo_bulk, prod_bvqa, vn_bulk_3.0.46
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_27
  • loc_en_US, sid_T17233-SS-I, prod, sort_[SortEntry(order=HAS_STAFF_ANSWERS, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getContent, 25ms
  • questions, product
PART LIST

PART LIST

Image-Master-RP51303

Lahara®

Lahara® Tub Spout - Pull-Up Diverter

List Price: $99.70 - $164.80
Free Ground Shipping All Orders $49+

RP51303

Image-RP100939

DELTA

DELTA TEMPERATURE KNOB AND SCREW

List Price: $71.70
Online Price: $57.36
Free Ground Shipping All Orders $49+

RP100939

Image-RP46463 Secondary Image-RP46463

Delta®

Delta® Cartridge Assembly - MultiChoice® Universal - 17 Series

List Price: $154.00
Online Price: $123.20
Free Ground Shipping All Orders $49+

RP46463

3.46 46
Image-Master-RP101544

DELTA

DELTA Temperature Handle, Set Screw and Button

List Price: $51.70 - $91.05
Free Ground Shipping All Orders $49+

RP101544

Image-RP23336

Delta®

Delta® O-Ring - Large - All Monitor® Series

List Price: $7.70
Online Price: $6.16
Free Ground Shipping All Orders $49+

RP23336

5.00 5
Image-Master-RP40593

Delta®

Delta® Shower Arm

List Price: $43.05 - $102.10
Free Ground Shipping All Orders $49+

RP40593

Image-Master-RP6025

Delta®

Delta® Flange - Shower

List Price: $23.10 - $36.90
Free Ground Shipping All Orders $49+

RP6025

Image-Master-RP101543

DELTA

DELTA Volume Control Handle

List Price: $41.50 - $91.05
Free Ground Shipping All Orders $49+

RP101543

Image-RP25620

Delta®

Delta® Set Screw

List Price: $6.45
Online Price: $5.16
Free Ground Shipping All Orders $49+

RP25620

4.21 14
Image-Master-RP100937

DELTA

DELTA 17/17T ESCUTCHEON W/ GASKET

List Price: $131.40 - $233.05
Free Ground Shipping All Orders $49+

RP100937

Image-RP46073

Delta®

Delta® Cartridge Adapter - MultiChoice® 17 Series

List Price: $24.90
Online Price: $19.92
Free Ground Shipping All Orders $49+

RP46073

3.89 9
Image-RP100154

DELTA

DELTA Tub Spout Adapter - Tri Universal

List Price: $35.80
Online Price: $28.64
Free Ground Shipping All Orders $49+

RP100154

1.60 5
Image-RP32102

Delta®

Delta® Rotational Limit Stop - 17 Series

List Price: $7.70
Online Price: $6.16
Free Ground Shipping All Orders $49+

RP32102

3.00 3
