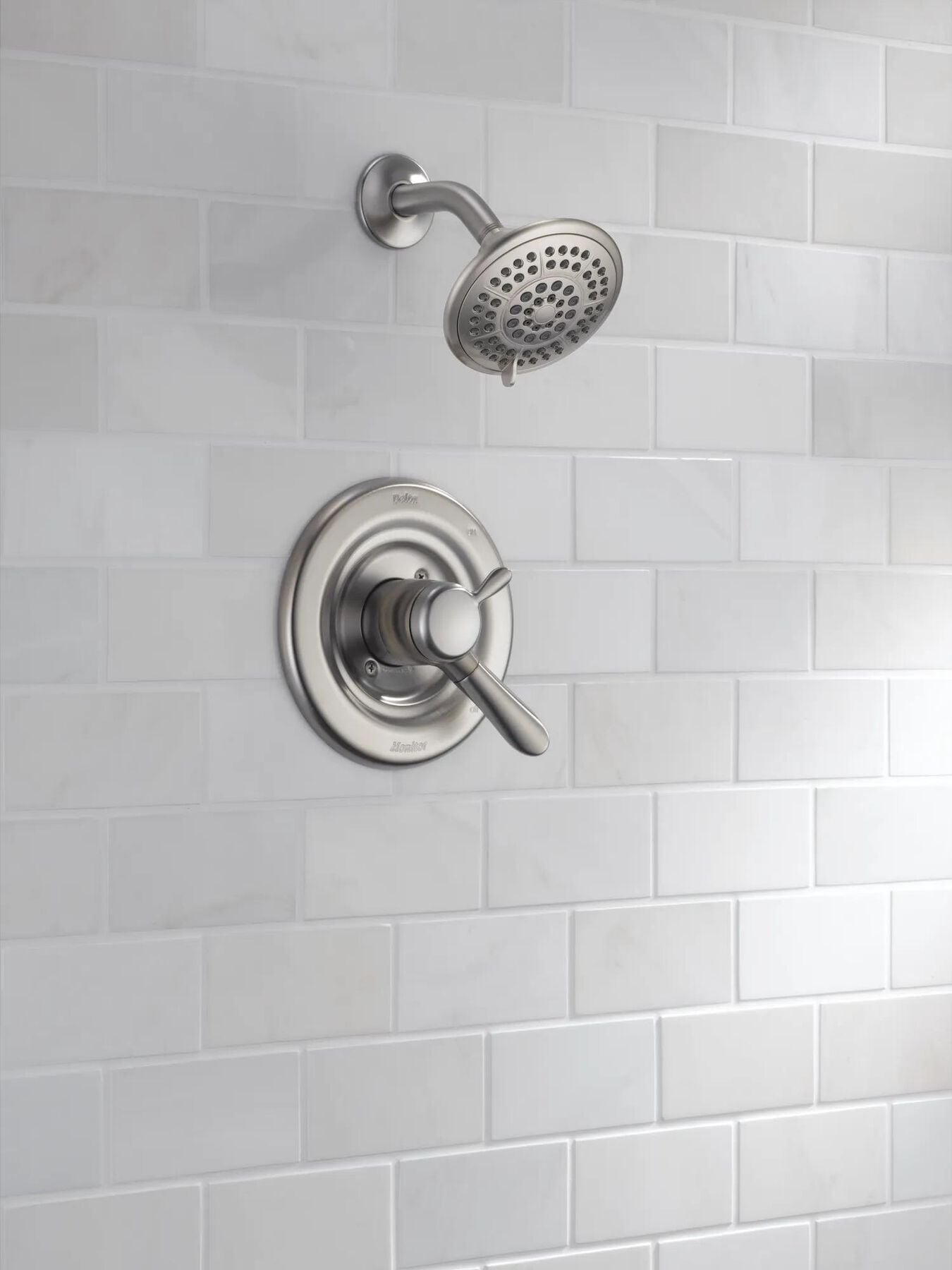

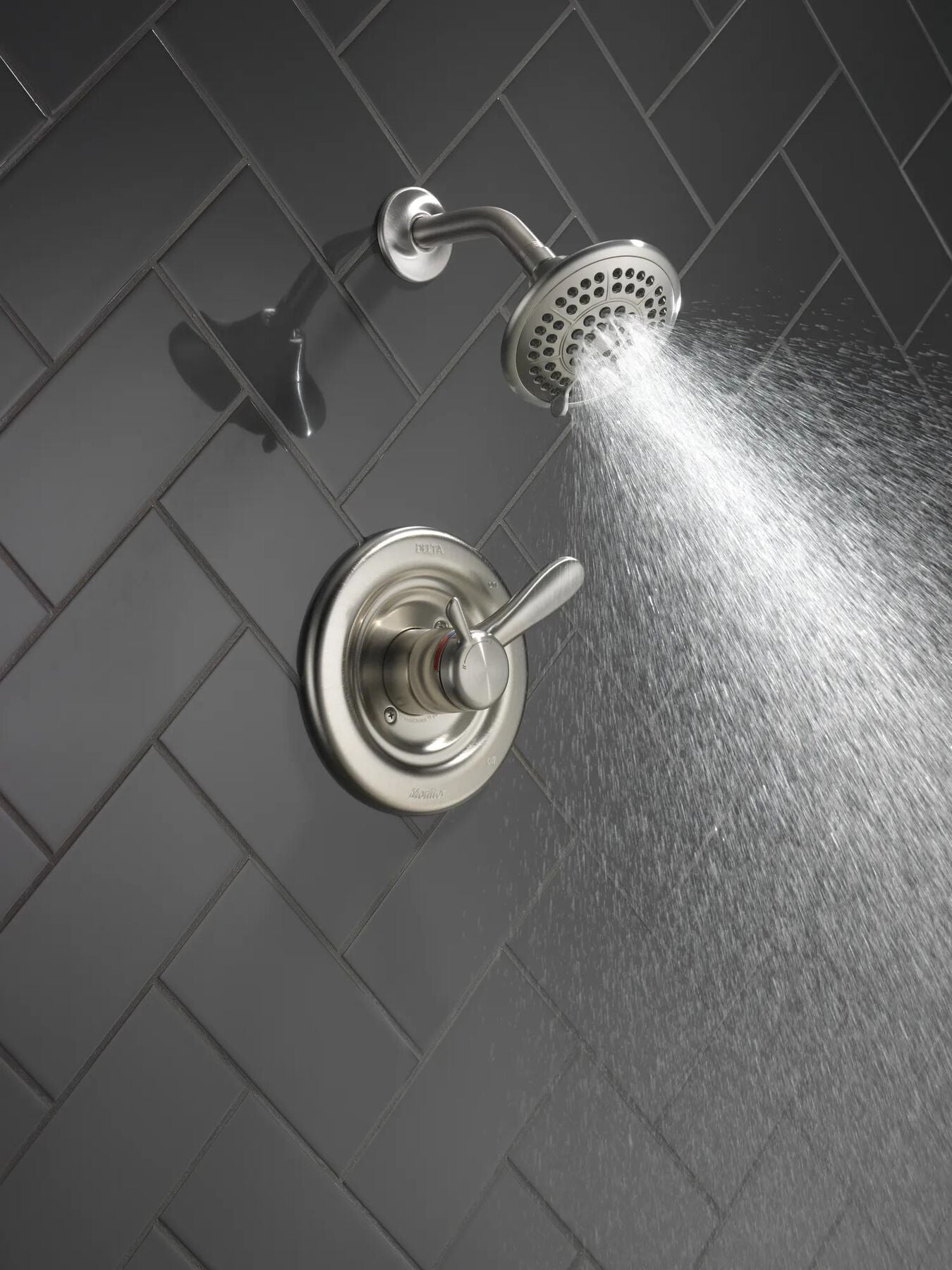

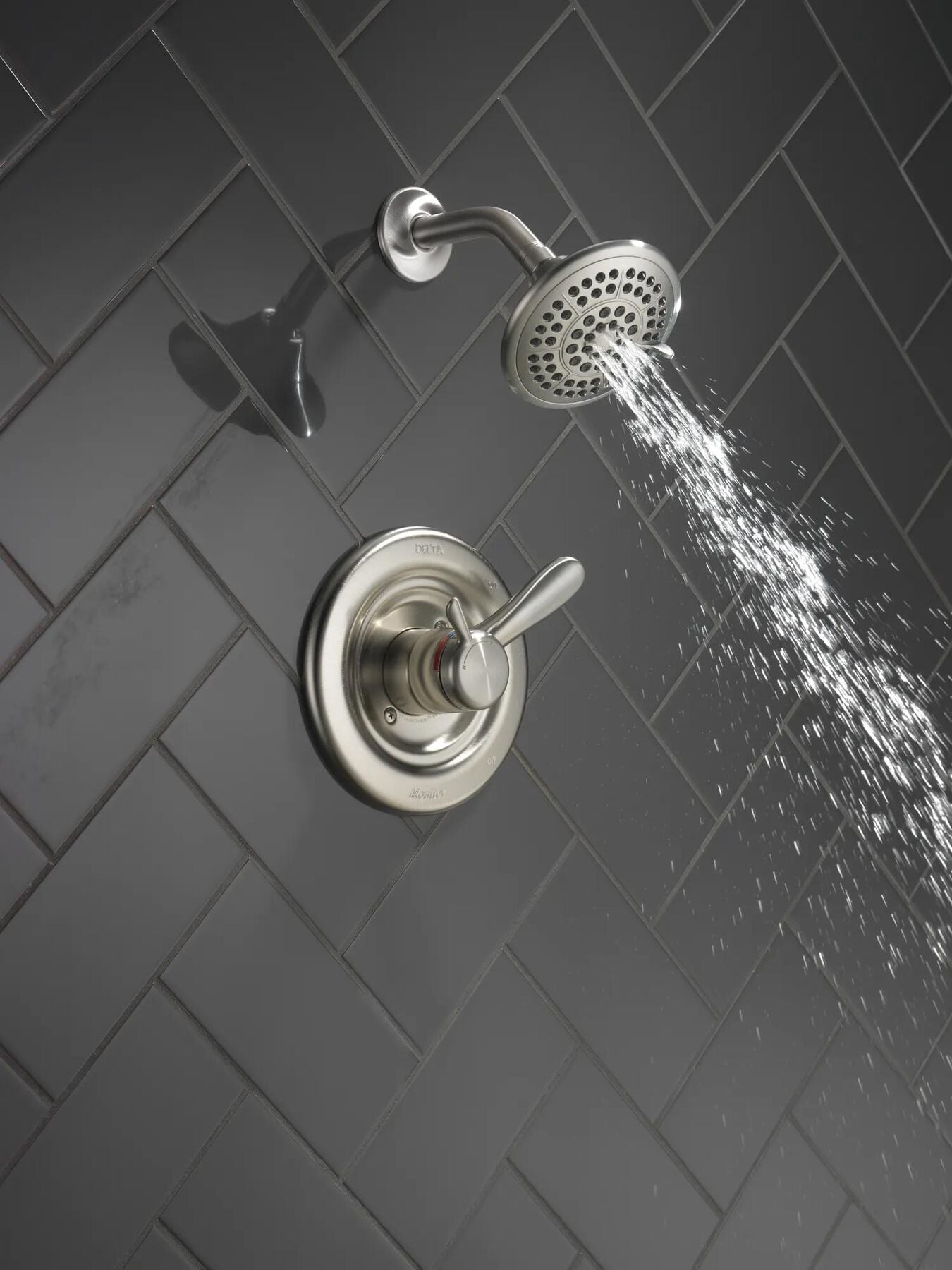

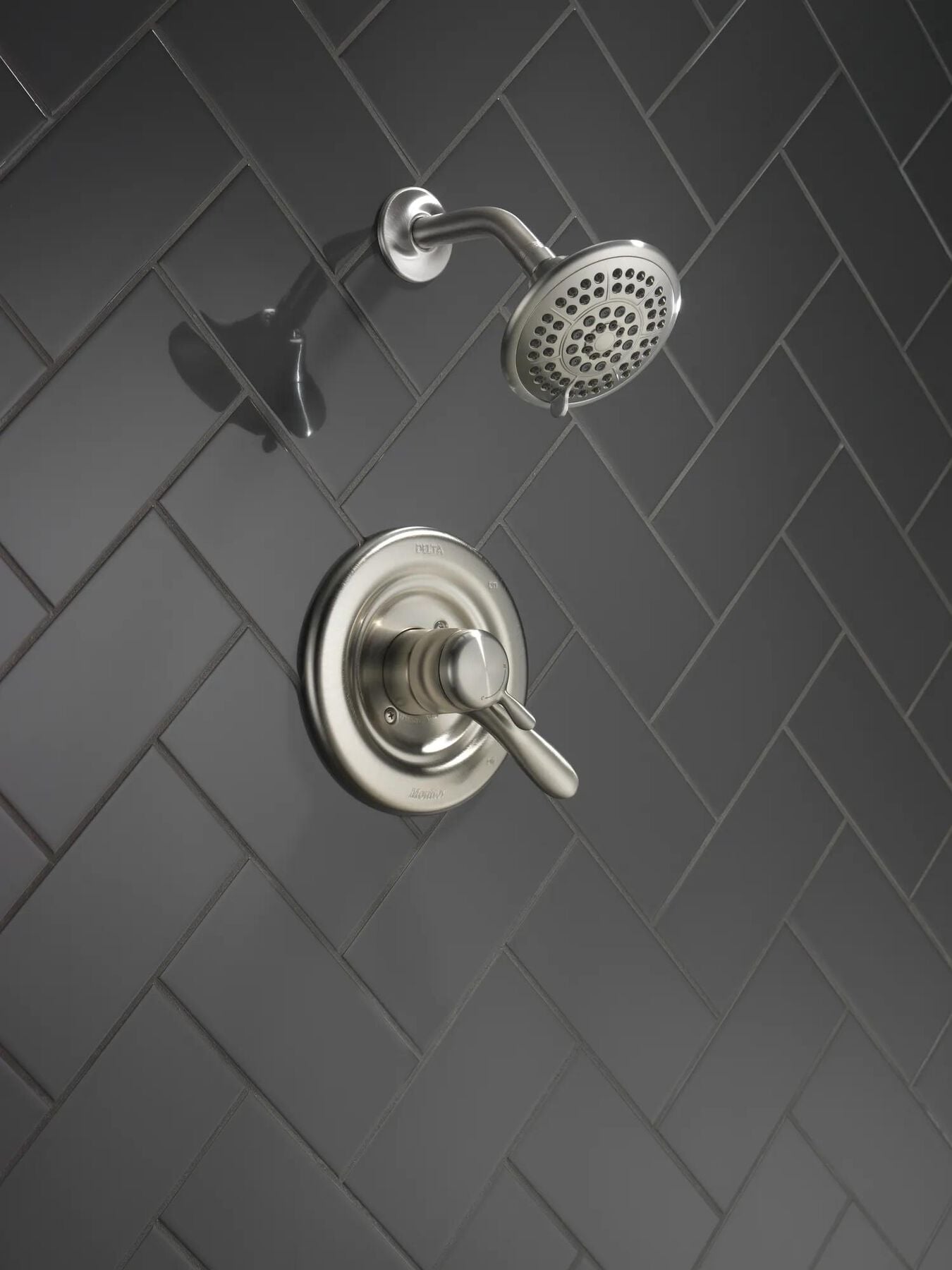

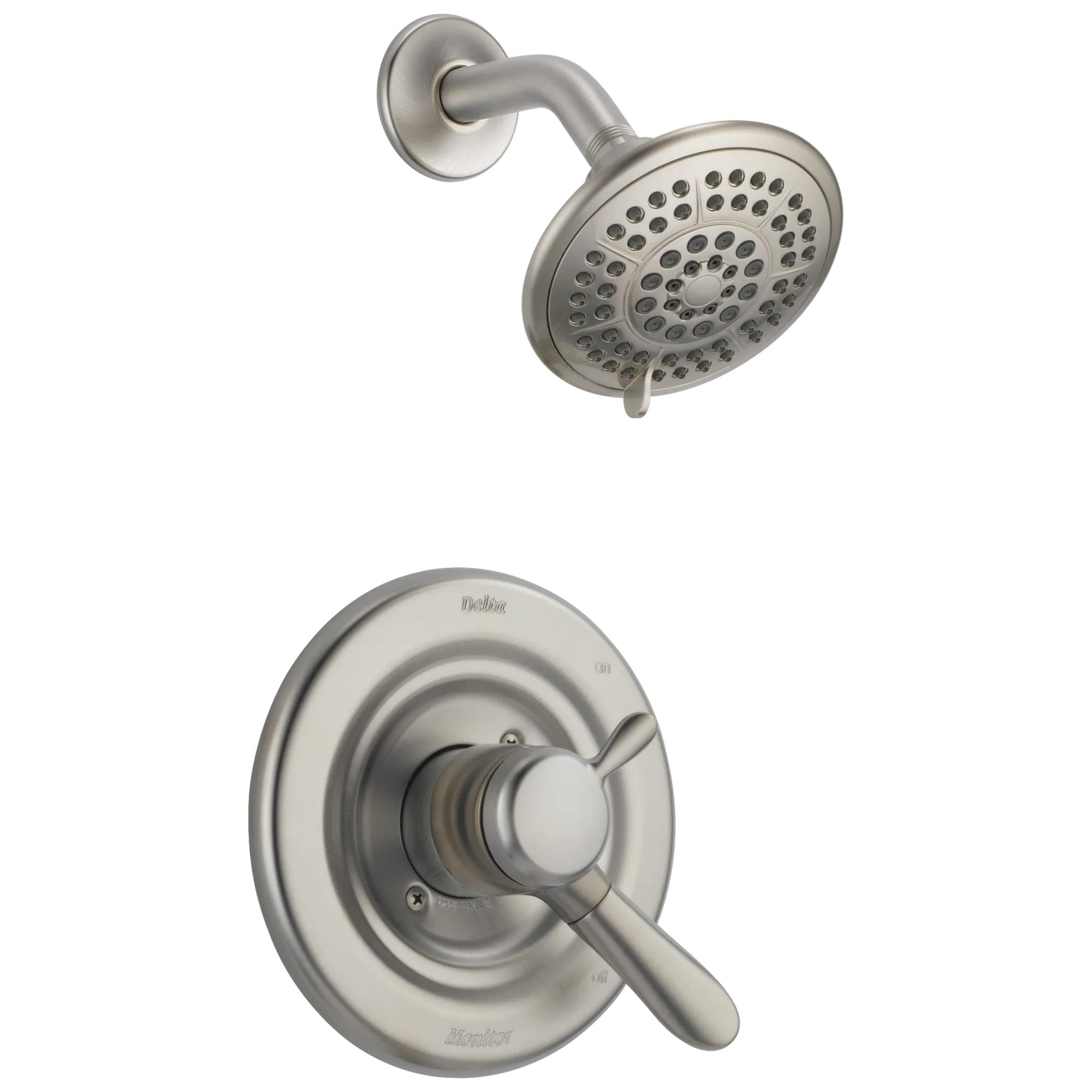

Monitor® 17 Series Shower Trim in Stainless

Model#: T17238-SS
Add to Favorites
Find local Delta® installers.
Lahara®
View Full Lahara® Bathroom Collection
Monitor® 17 Series Shower Trim in Stainless
Model#: T17238-SS
List Price: $44200
Add to Favorites
Find local Delta® installers.
PRODUCT FEATURES
With separate handles for volume and temperature control, this Delta tub/shower provides a more refined showering experience. Simply set the water at your preferred temperature and turn the shower on or off with the volume control handle - without interrupting your set temperature. While other products may gather unsightly mineral build-up over time, Delta soft rubber Touch-Clean® spray holes allow any mineral residue to simply be wiped away for an instantly refreshed look – with no need for soaking or the aid of chemical cleaners. Delta® pressure-balance valves use Monitor® Technology to protect you and your family from sudden temperature changes. This Brilliance Stainless finish has subtle, warm undertones which make it an excellent match with nickel or stainless steel and is extremely versatile, complementing nearly any look, be it traditional, transitional or contemporary.
  • Control volume and water temperature independently with two separate handles for more refined control of your shower experience
  • Monitor pressure balance valve keeps water temperature within a safe +/-3degrees F (+/-1.6degrees C), helping to protect you from sudden changes in hot or cold water pressure

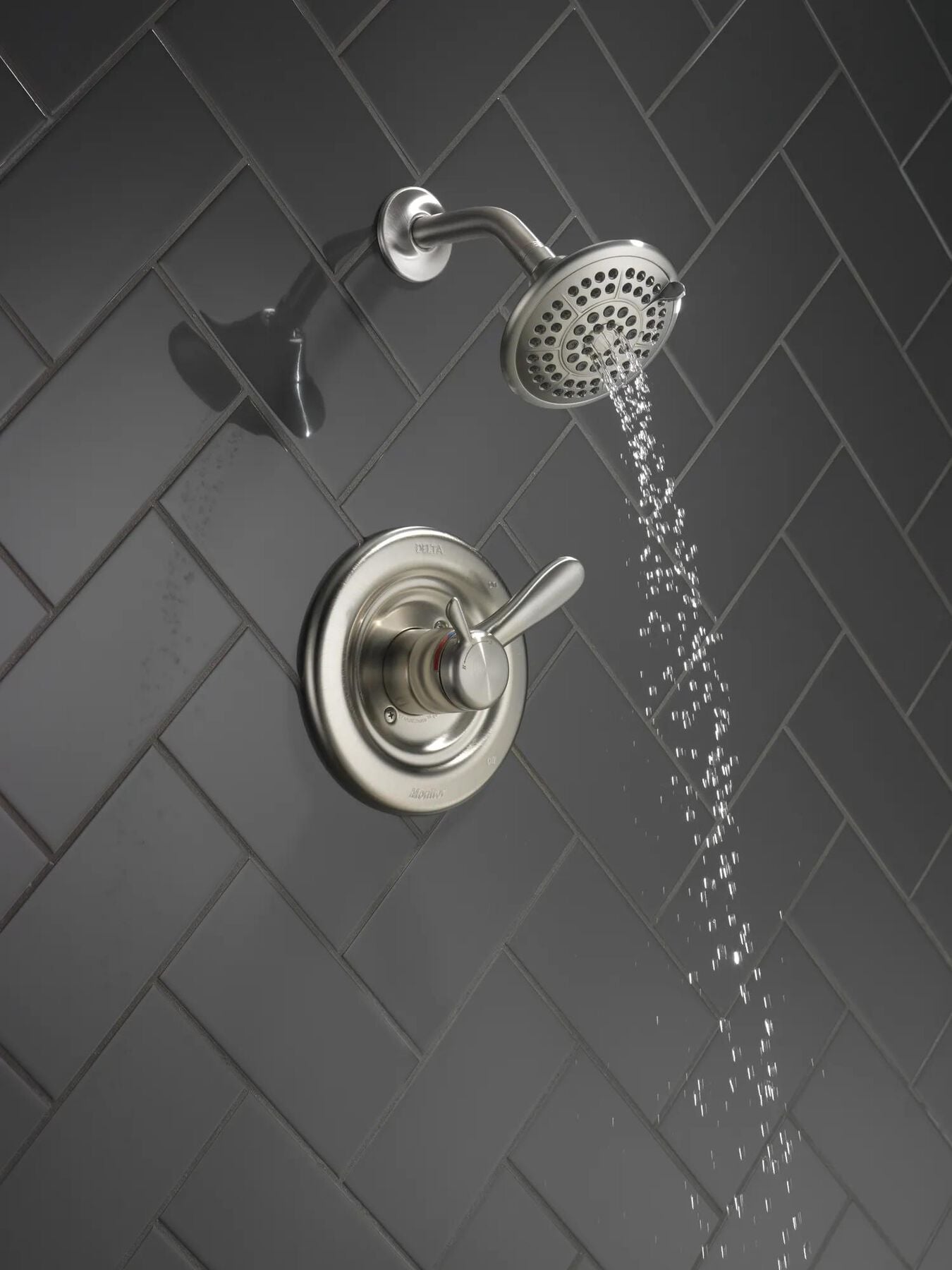

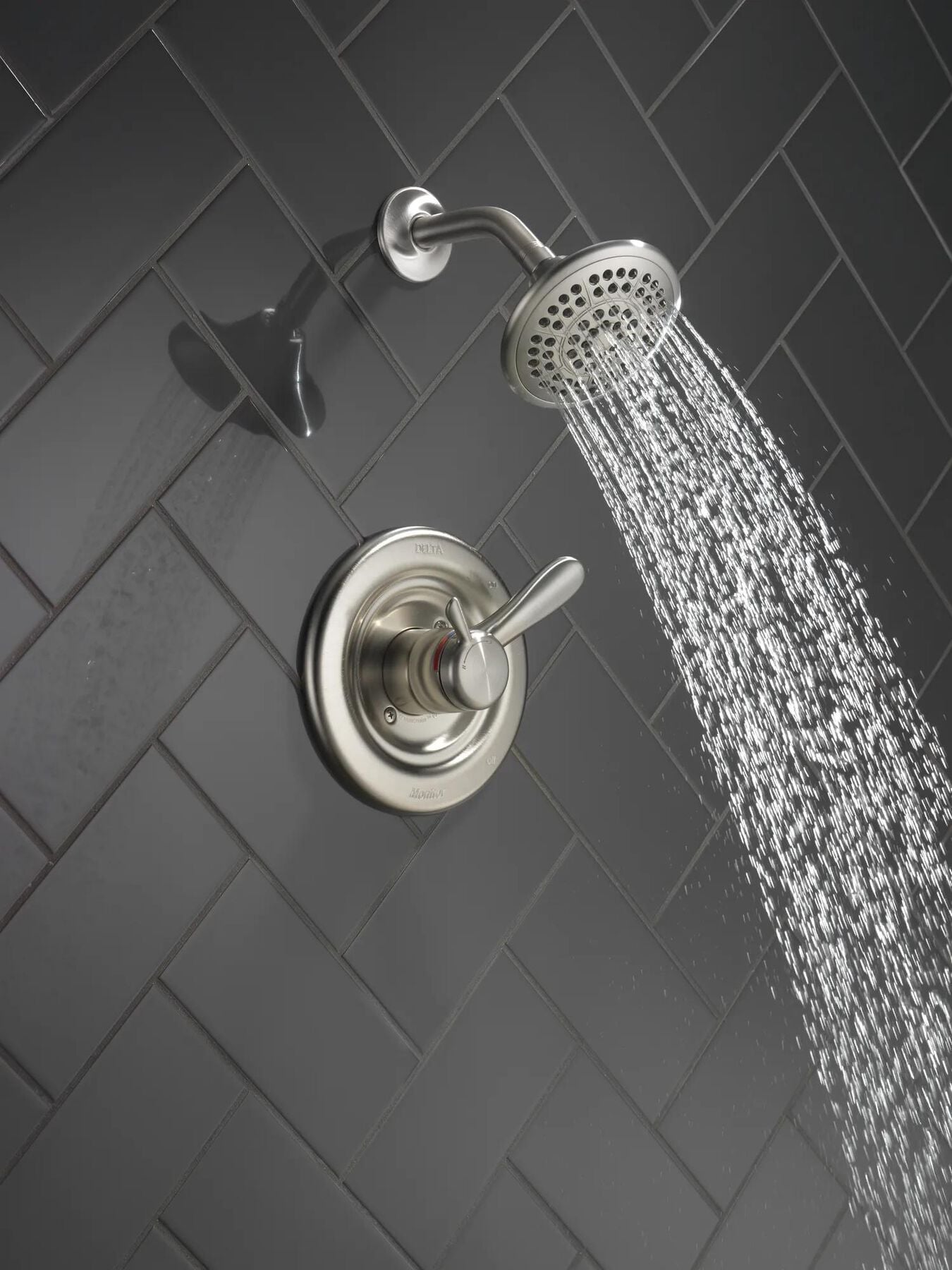

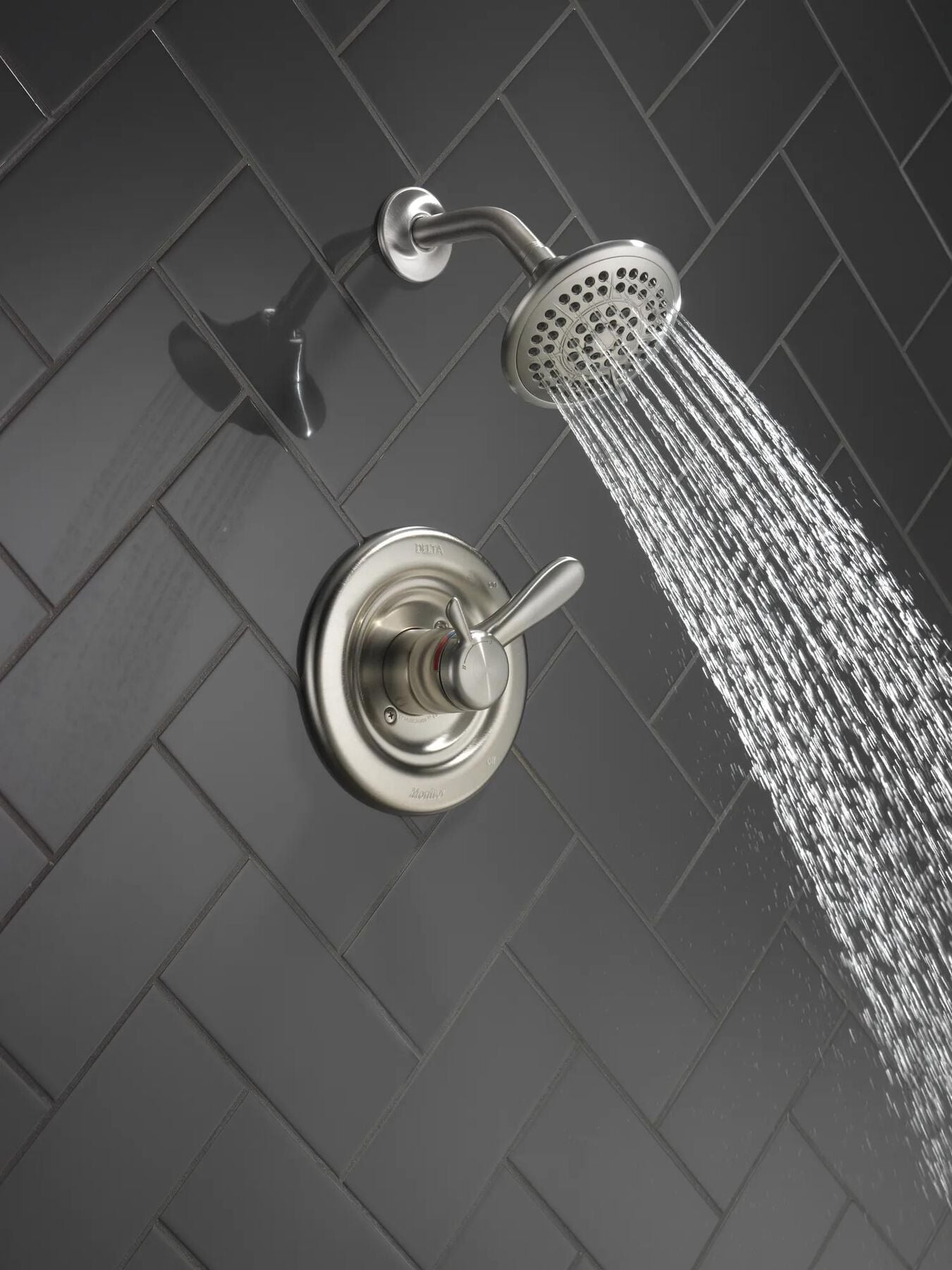

  • Spray settings: Pause, Full Body Spray, Full Spray w/Massage, Fast Massage, Soft Drench Spray
  • Trim kit only, must order MultiChoice Universal rough-in separately to complete the unit

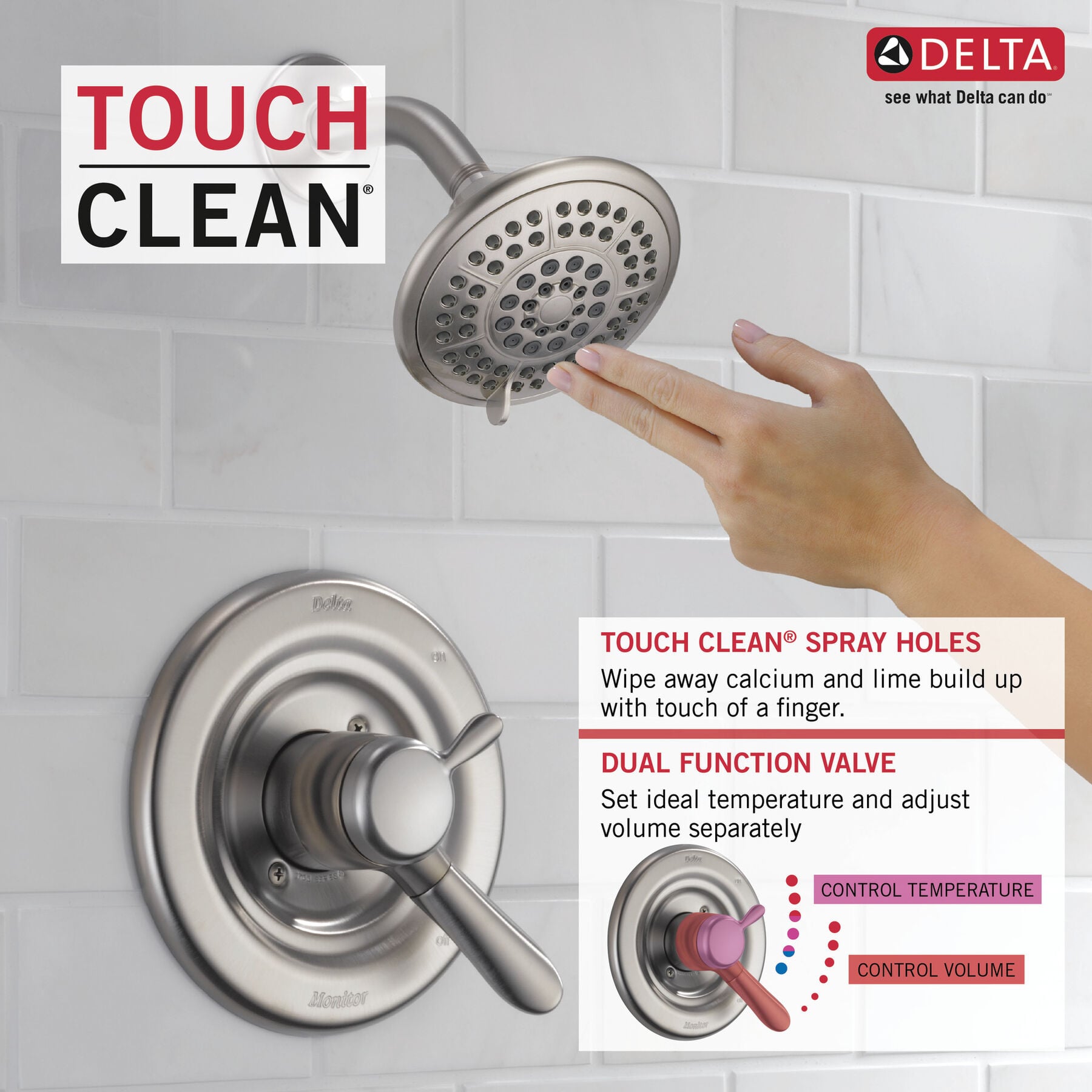

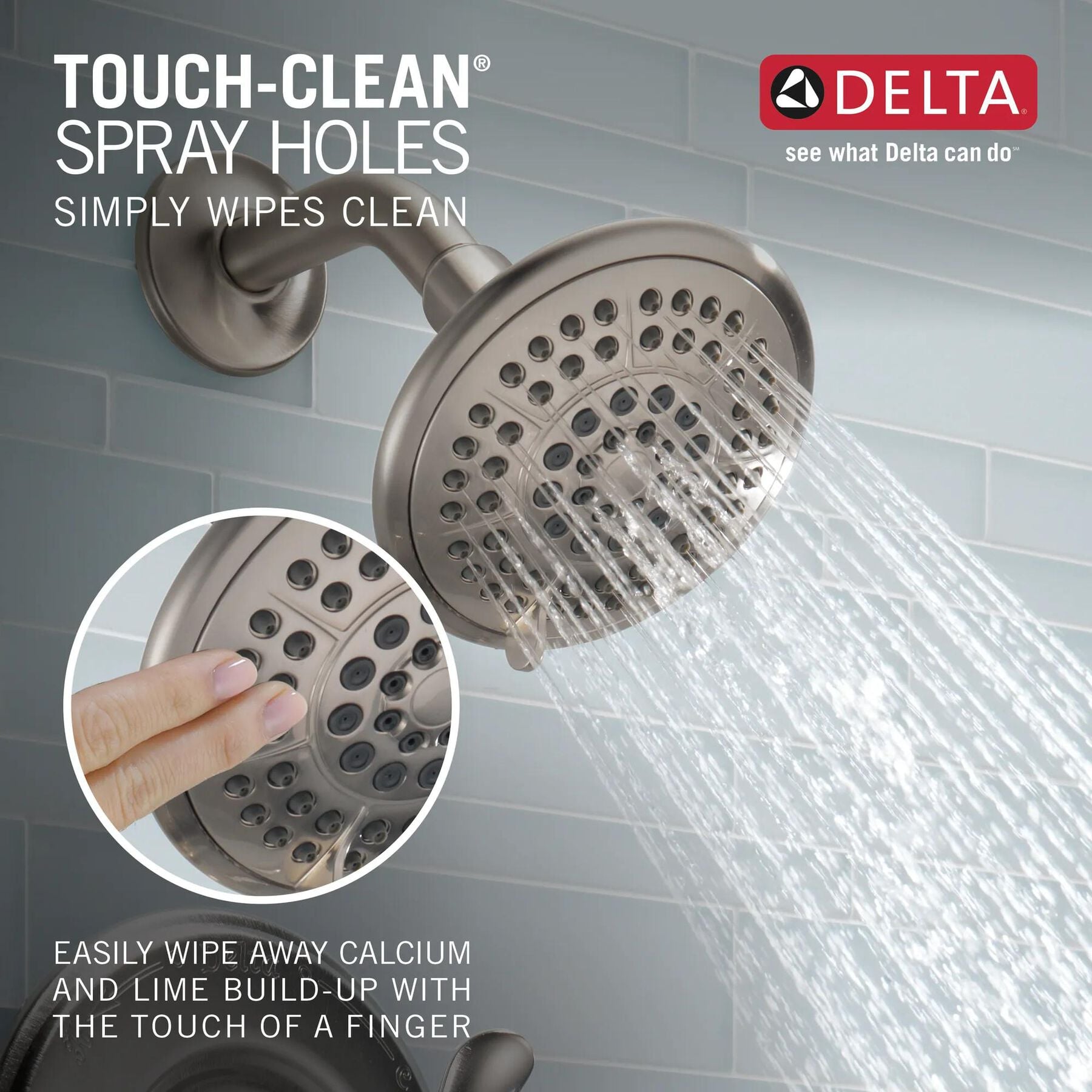

  • Soft, rubber Touch-Clean spray holes allow you to easily wipe away calcium and lime build-up from the spray face of your shower head and hand shower with the touch of a finger
  • Single lever handle for ease of control
  • Meets standards set by Americans with Disabilities Act (ADA)
  • WaterSense labeled shower heads use at least 20% less water than the industry standard without compromising performance
Eco-Friendly
WaterSense® Labeled
Technology and Special Features
ADA Compliant
Volume Control
Touch-Clean®
MultiChoice® Universal Valve
Brilliance® Finish
Monitor®
Documents & Specs
Product Support, Repair Parts & Technical Specifications
View Technical Specifications
View Maintenance & Installation Sheet
View Parts & Accessories Diagram
Register Product

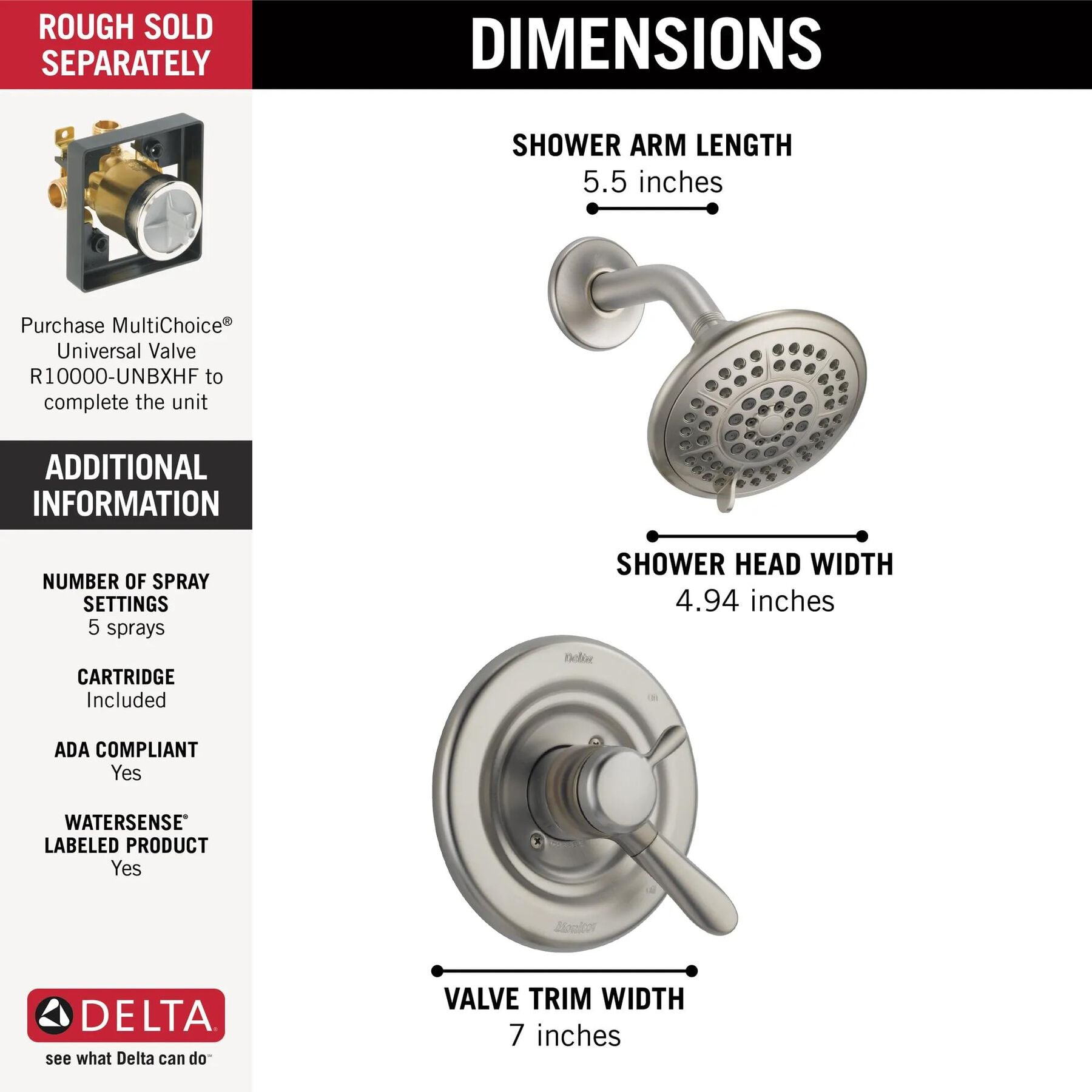

Installation Information
Flow Rate :
1.75 gpm @ 80 psi, 6.6 L/min @ 552 kPa
Overall Height (in.) :
10-3/32
Valve Type:
Dual-function pressure balance cartridge

INSTALLATION SUPPORT

Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.

GO
Enter Valid Zip.
REVIEWS
Rated 5 out of 5 by from Outstanding product Shower handle unit works great! However was not sure why water valve was not included in purchase
Date published: 2026-04-16
Rated 5 out of 5 by from Delta temperature handle I love Deltas faucet with the temperature handle! I can not find it on any other manufacturer! You turn the water all the way on and the temperature will be where you last left it! No more gauging how hot/cold the water is, it’s where you last left it! Best invention ever! Thank you Delta
Date published: 2026-03-01
Rated 3 out of 5 by from Shower control The shut off is nice, exactly what we wanted, the shower head is a disappointment, feels like your standing in the rain, going to have to change it
Date published: 2026-02-02
Rated 5 out of 5 by from Love it. Love the brushed stainless finish.
Date published: 2025-05-20
Rated 5 out of 5 by from Delta trim kit, easy install Fit like a glove. Fast ship
Date published: 2025-02-09
Rated 5 out of 5 by from Satisfied customer High quality, love separate temp and pressure control
Date published: 2024-10-19
Rated 5 out of 5 by from Delta shower valve Very good quality, easy installation, Great look. I like that you can adjust the water, flow and water temperature independently.
Date published: 2024-09-21
Rated 5 out of 5 by from Shower head for secondary/guest shower Great shower head and handle. The head is rather standard and nothing unique but does provide good coverage and water flow is adjustable. Great for 2ndary/guest shower. The handle is really nice due to a separate control for temperature. Set the temp, then use main handle to turn on and off. Good bang-for-the-buck. I used the bronze color and is very nice. Confirm that your current shower valve is compatible, other wise, you have to change out the rough-in value, which may be difficult to access; not recommended for the novice.
Date published: 2024-07-05
  • y_2026, m_6, d_9, h_12
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.46
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_98
  • loc_en_US, sid_T17238-SS, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 7ms
  • reviews, product
Q&A

\what components are required to have volume and temperature control?

Hi there, We're building a new house and have only a shower in our main bathroom. It's the volume control that is really important to us so we want to make sure we spec all the correct components. Something tells me we need more than just T17238 and R10000UNWS. Please confirm.
Asked by: rockhopper
Hi Rockhopper, Thank you for your question. The T17 series does offer temperature and volume control in a single handle shower faucet. The T17238 trim with the R10000-UNWS rough in will give you a complete shower faucet. No other components are required. Thanks, Dave
Answered by: DeltaFaucet2
Date published: 2024-03-28

the water is not getting hot enough in the shower. Lav is fine for sink

wi R10000 delta multichoice
Asked by: evie
Hi Evie, Thank you for your question. The model T17238-SS is equipped with a rotational limit stop that allows you to set the max hot water temperature for the faucet. Step 4 on page 7 of the attached manual will show your how to adjust the RLS and increase the water temperature. http://www.deltafaucet.com/customersupport/documentation/t17238-ss.html?document=mi&fromDetailArea=bath&documentIndex=0#flashWrapper Here is a link to our How to adjust the rotational limit stop on your Delta faucet video. http://www.deltafaucet.com/shopping-tools/research/video-gallery/video.html?v=n2_uZ7wgV1I&cat= Thanks, Dave
Answered by: DeltaFaucet2
Date published: 2024-03-28

I accidentally purchased this shower set and actually need the tub/shower kit. Is there a way to purchase the faucet that matches this set so I can use it with the pieces I have (shower head and handle)?

Asked by: Lisa
Thank you for your question, Lisa! The RP51303 Tub Spout can be purchased separately and is the same tub spout included with the Tub and Shower Trim Kit model number T17438. It is available in multiple finishes. https://www.deltafaucet.com/parts-product-detail?modelNumber=RP51303 Best regards, Jon
Answered by: Delta Faucet
Date published: 2024-03-28

CAN YOU INCREASE VOLUME OF WATER

Asked by: TITO
TITO, Thank you for your question. The shower head included with this trim is designed with a maximum flow rate of 1.75 gallons per minute at 60 PSI. We do have other models available with a higher flow rate. Here is a link to browse our current selection fo shower heads. You can choose an option under the Max Flow Rate tab to narrow down your search. https://www.deltafaucet.com/bathroom/showering/showerheads--handshowers Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2024-03-28

Is this trim plastic or metal?

I am looking for an all metal trim, and I can't find any information for what the material of the trim is.
Asked by: Alyeskane
Hi Alyeskane, Thank you for your question. The model T17268-SS trim has all metal components except for the showerhead. Thanks, Dave
Answered by: DeltaFaucet2
Date published: 2024-03-28

looking for replacement # of cartridge for lahara T17238 ss stand alone shower to fit into thermostatic mixing valve #R10000-UNBXHF

Asked by: jack
Hi, Thank you for contacting us. The Delta T17238 shower trim uses the RP46463 17 series cartridge which is included with the trim. The cartridge will fit the Delta R10000-UNBXHF rough in valve. Best regards, Brandis
Answered by: DeltaFaucet7
Date published: 2024-03-28

what valve do I buy for Lahara T17238- cz shower head

Asked by: hootie
Thank you for your question. Delta Faucet model # T17238-CZ is recommended to use the R10000-UNBX valve to complete the faucet.
Answered by: Delta1
Date published: 2024-03-28

what rough in kit is used for the monitor 17 series for shower only?

Asked by: Bill
Hello Bill, Thank you for your question. The Delta Lahara Shower T17238-SS model work with any of our MultiChoice Universal rough-in valves such as R10000-UNBX, depending on your installation needs and how you intend to connect the valve. If you're unsure, we recommend speaking with a professional about your specific requirements. Best regards, Tanya
Answered by: Delta Faucet
Date published: 2024-04-01
  • y_2026, m_6, d_9, h_12CST
  • bvseo_bulk, prod_bvqa, vn_bulk_3.0.46
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_75
  • loc_en_US, sid_T17238-SS, prod, sort_[SortEntry(order=HAS_STAFF_ANSWERS, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getContent, 10ms
  • questions, product
PART LIST

PART LIST

Image-Master-RP51307

Lahara®

Lahara® Temperature Knob & Cover - 17 Series

List Price: $31.35 - $47.00
Free Ground Shipping All Orders $49+

RP51307

Image-Master-RP51306

Lahara®

Lahara® Metal Lever Handle Kit - 17 Series

List Price: $83.10 - $124.25
Free Ground Shipping All Orders $49+

RP51306

Image-Master-RP196

Delta®

Delta® Screws (2) - Escutcheon Trim

List Price: $10.10 - $19.80
Free Ground Shipping All Orders $49+

RP196

Image-Master-RP51303

Lahara®

Lahara® Tub Spout - Pull-Up Diverter

List Price: $99.70 - $164.80
Free Ground Shipping All Orders $49+

RP51303

Image-RP46463 Secondary Image-RP46463

Delta®

Delta® Cartridge Assembly - MultiChoice® Universal - 17 Series

List Price: $154.00
Online Price: $123.20
Free Ground Shipping All Orders $49+

RP46463

3.46 46
Image-Master-RP28795

Delta®

Delta® Escutcheon - Monitor® 17 Series

List Price: $72.65 - $220.25
Free Ground Shipping All Orders $49+

RP28795

Image-Master-RP6023

Delta®

Delta® Shower Arm

List Price: $43.65 - $109.60
Free Ground Shipping All Orders $49+

RP6023

Image-RP23336

Delta®

Delta® O-Ring - Large - All Monitor® Series

List Price: $7.70
Online Price: $6.16
Free Ground Shipping All Orders $49+

RP23336

5.00 5
Image-Master-RP6025

Delta®

Delta® Flange - Shower

List Price: $23.10 - $36.90
Free Ground Shipping All Orders $49+

RP6025

Image-RP32105

Delta®

Delta® Screw - Handle - Monitor® 17 Series

List Price: $11.55
Online Price: $9.24
Free Ground Shipping All Orders $49+

RP32105

1.00 1
Image-RP12630

Delta®

Delta® Screws (2) - Extra Long - Escutcheon Trim

List Price: $18.45
Online Price: $14.76
Free Ground Shipping All Orders $49+

RP12630

4.09 11
Image-Master-RP50880

Delta®

Delta® Trim Sleeve - 17 Series

List Price: $25.10 - $52.80
Free Ground Shipping All Orders $49+

RP50880

Image-RP51503

Delta®

Delta® Bonnet Nut w/ Valve Seal

List Price: $35.10
Online Price: $28.08
Free Ground Shipping All Orders $49+

RP51503

5.00 3
Image-RP32102

Delta®

Delta® Rotational Limit Stop - 17 Series

List Price: $7.70
Online Price: $6.16
Free Ground Shipping All Orders $49+

RP32102

3.00 3
