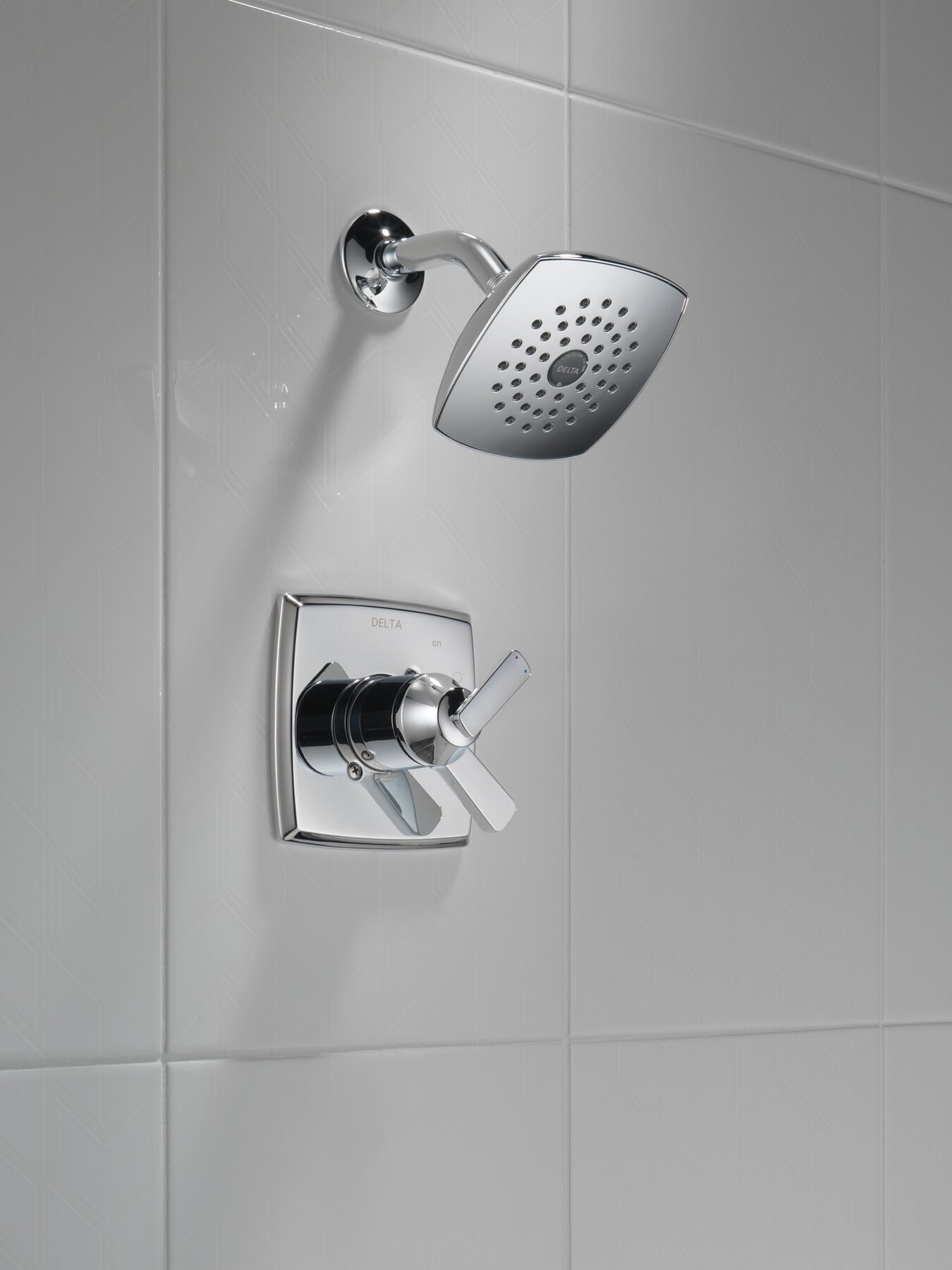

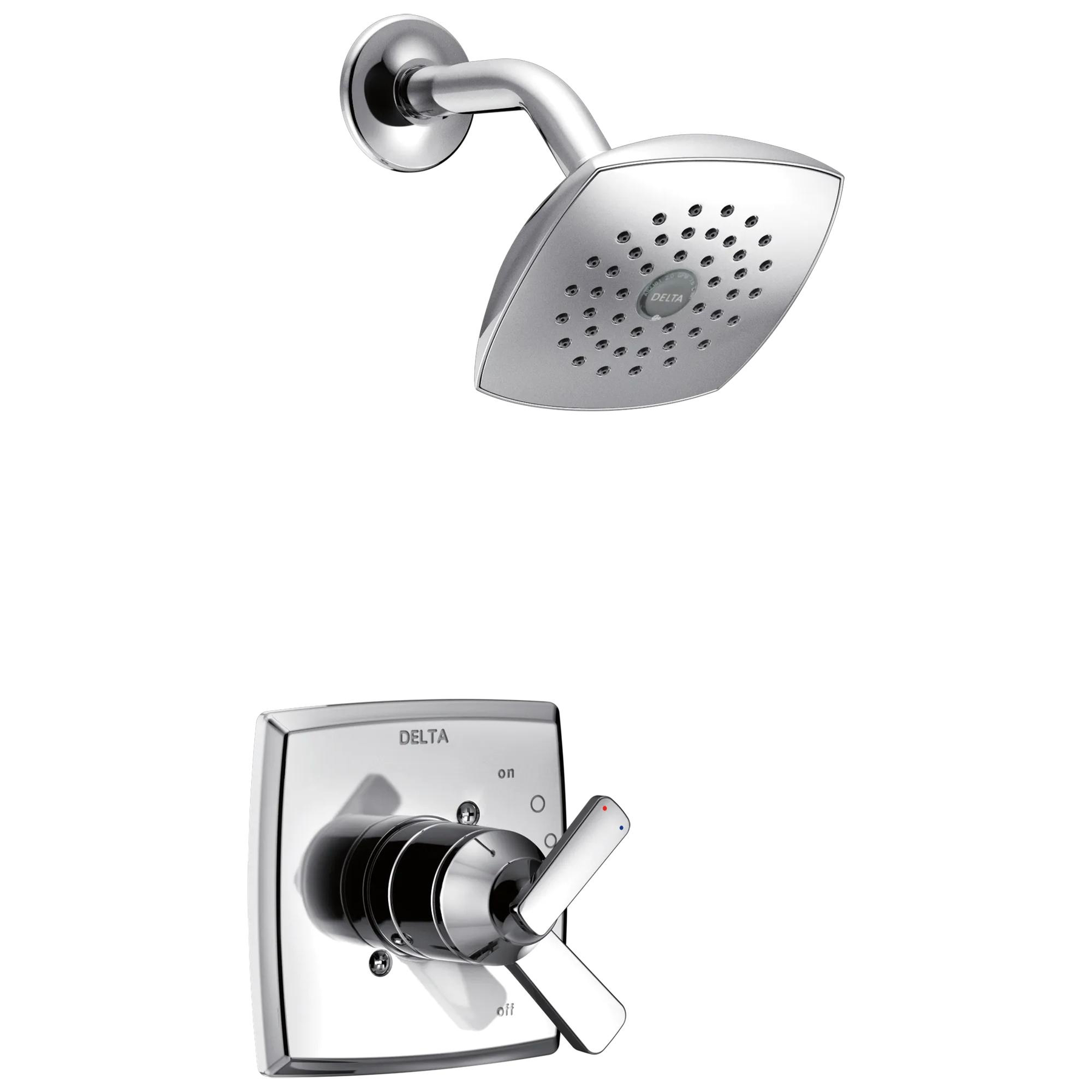

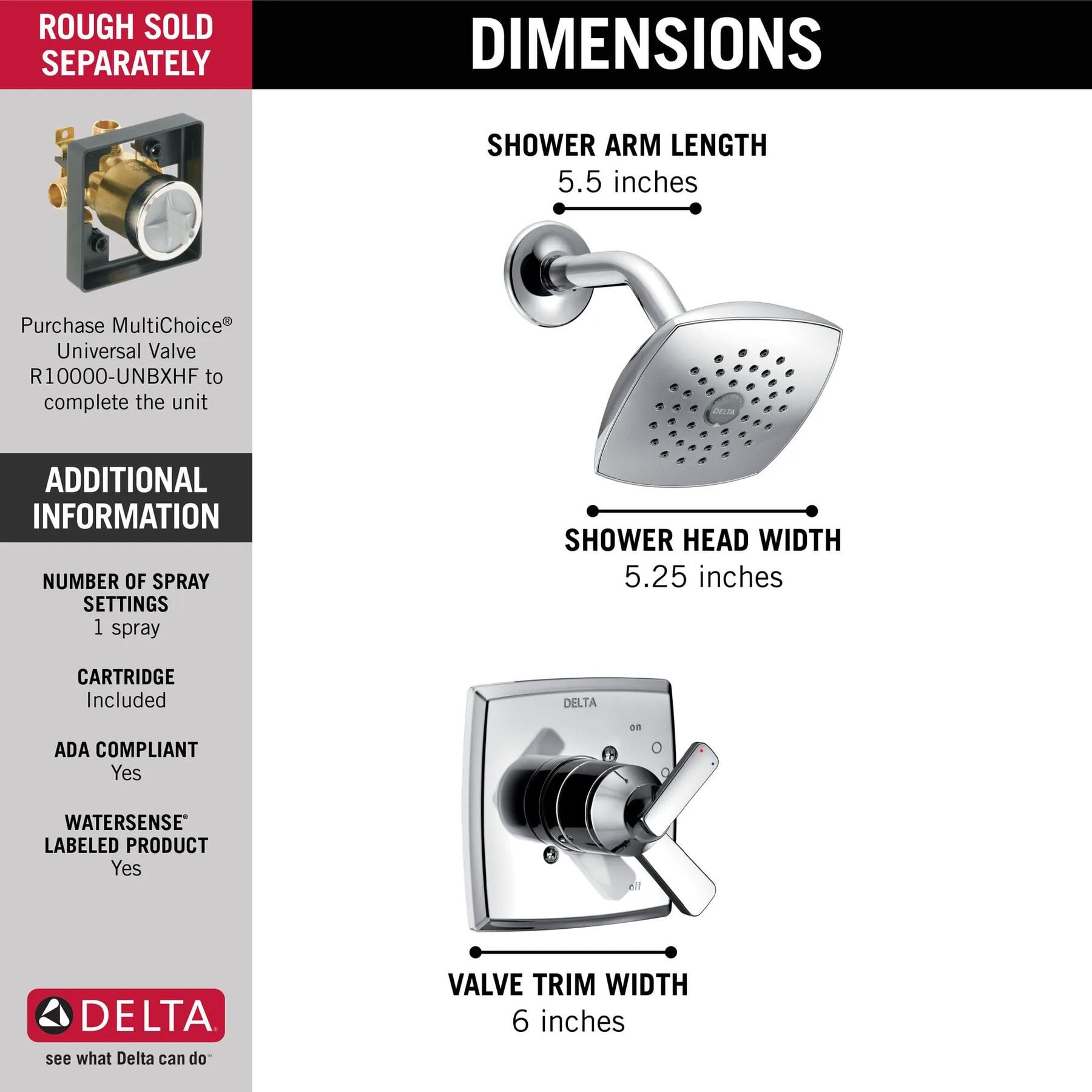

Monitor® 17 Series Shower Trim in Chrome

Model#: T17264
Monitor® 17 Series Shower Trim in Chrome
Model#: T17264
List Price: $24275
PRODUCT FEATURES
With separate handles for volume and temperature control, this Delta tub/shower provides a more refined showering experience. Simply set the water at your preferred temperature and turn the shower on or off with the volume control handle - without interrupting your set temperature. While other products may gather unsightly mineral build-up over time, Delta soft rubber Touch-Clean® spray holes allow any mineral residue to simply be wiped away for an instantly refreshed look – with no need for soaking or the aid of chemical cleaners. Delta® pressure-balance valves use Monitor® Technology to protect you and your family from sudden temperature changes. Chrome has rapidly become one of the most popular finishes across décor styles in the bath thanks to its stunning gloss and innate versatility. Paired with crisp lines and bright whites, it creates a bold, modern contrast, but it works equally well with vintage styles and traditional spaces to convey a hint of nostalgia. Delta WaterSense labeled faucets, showers and toilets use at least 20% less water than the industry standard—saving you money without compromising performance.
  • Control volume and water temperature independently with two separate handles for more refined control of your shower experience
  • Monitor pressure balance valve keeps water temperature within a safe +/-3degrees F (+/-1.6degrees C), helping to protect you from sudden changes in hot or cold water pressure
  • Spray settings include: Full Body spray

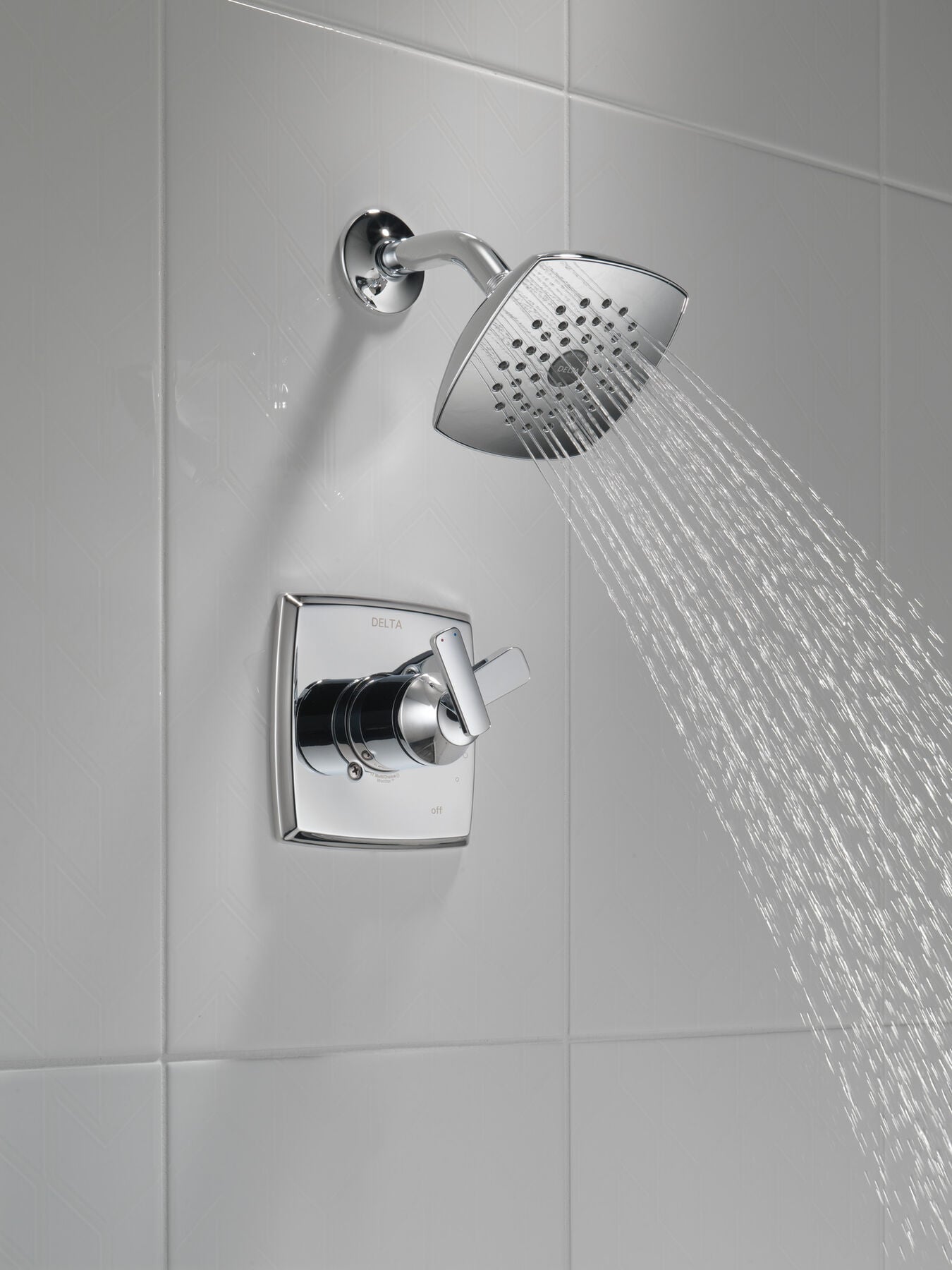

  • Full body spray provides a steady, full-coverage spray perfect for every shower need, from rinsing shampoo from hair to relaxing tired muscles

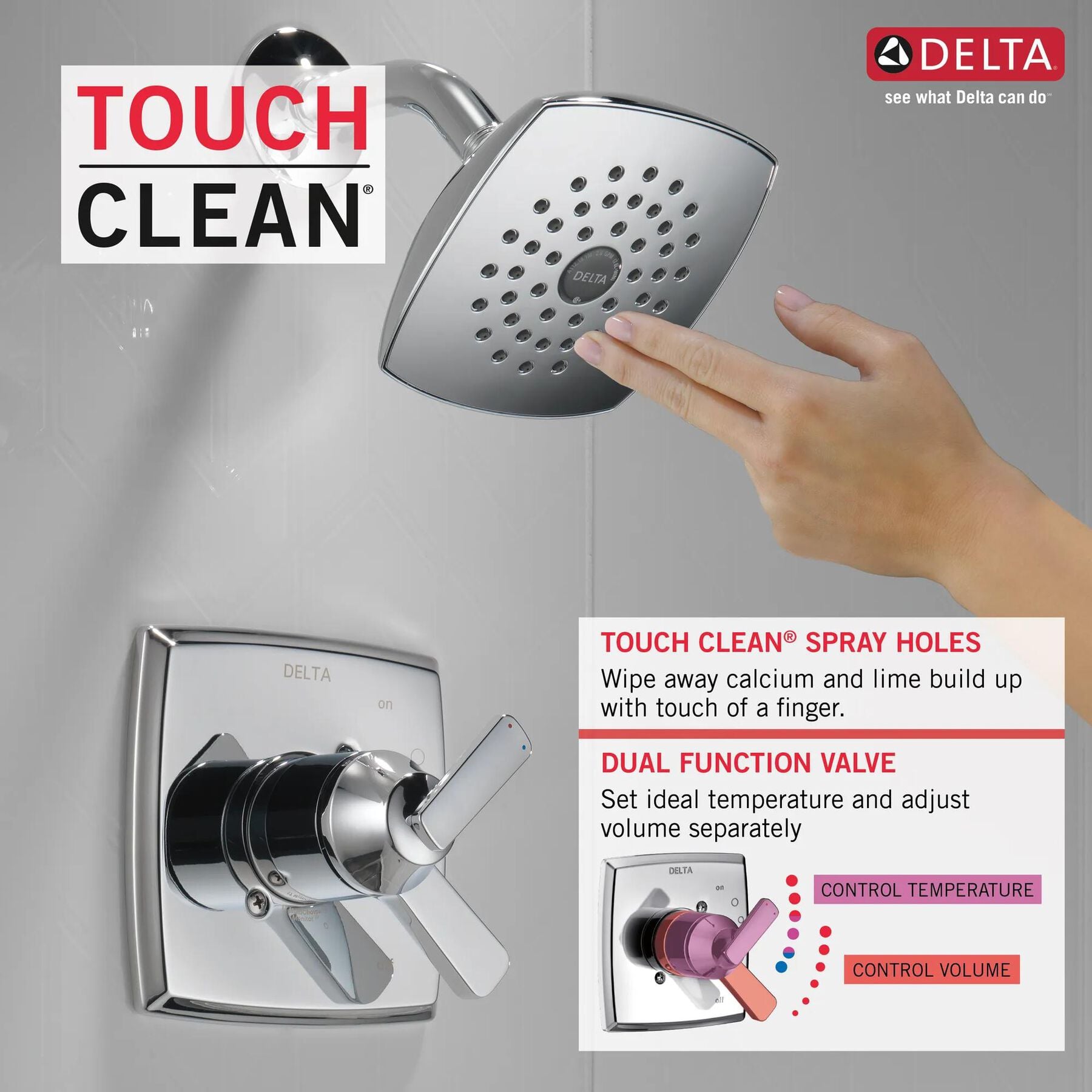

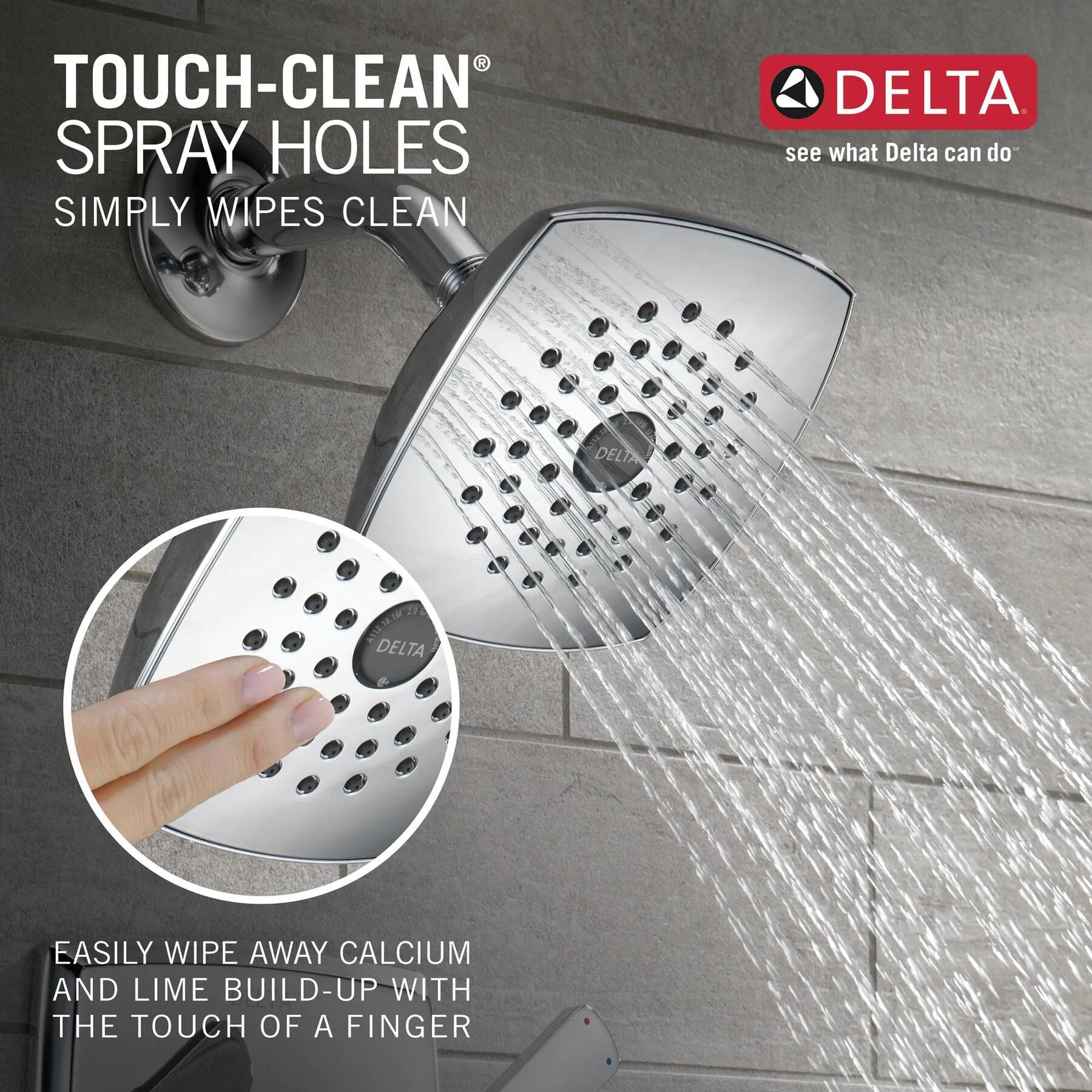

  • Soft, rubber Touch-Clean® spray holes allow you to easily wipe away calcium and lime build-up from the spray face of your shower head and hand shower with the touch of a finger

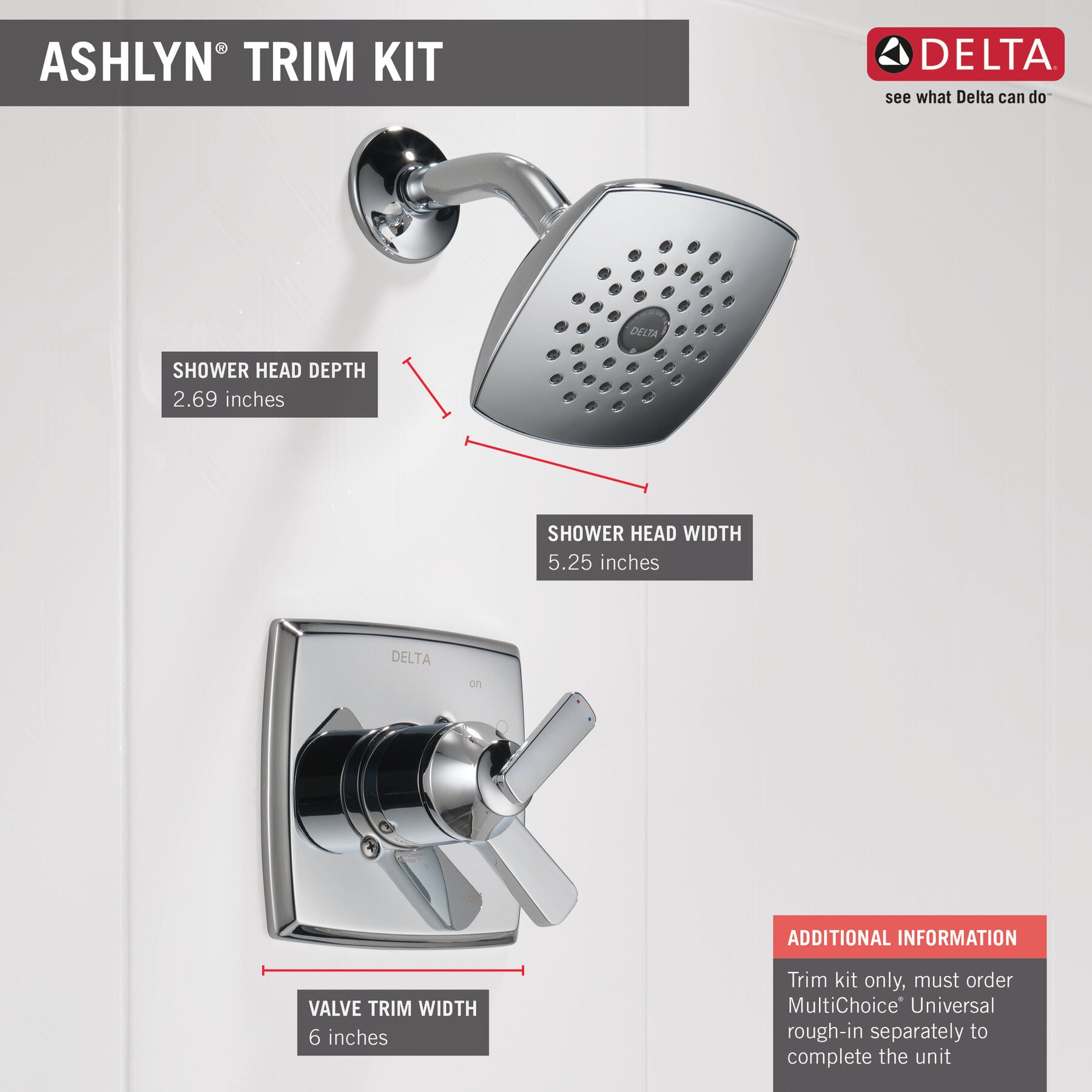

  • Trim kit only, must order MultiChoice Universal Valve separately to complete the unit
  • ADA Compliant
  • WaterSense labeled shower heads use at least 20% less water than the industry standard without compromising performance
Eco-Friendly
WaterSense® Labeled
Technology and Special Features
ADA Compliant
Touch-Clean®
MultiChoice® Universal Valve
Water-Efficient
Monitor®
Documents & Specs
Installation Information
Flow Rate :
1.75 gpm @ 80 psi, 6.6 L/min @ 552 kPa
Overall Height (in.) :
12
Valve Type:
Dual-function pressure balance cartridge

INSTALLATION SUPPORT

Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.

GO
Enter Valid Zip.
REVIEWS
Rated 5 out of 5 by from Delta Shower head Great shower head and controls with a good spray.
Date published: 2026-03-14
Rated 2 out of 5 by from Not worth the price. This product is not worth the steep price. The whole thing is made of what feels like cheap plastic. It's probably some form of polycarbonate but it doesn't say that anywhere on the product page and for the price it's something I would have liked to have known before purchasing. It all feels and sounds very cheap. The two handles do not move independently. Anytime you move the pressure handle it brings the temperature handle with it and if you don't have it fully open that you can't reach the full range of temperatures. The two handles also sit too far apart from each other and the pressure handle is wobbly. Again for the price this shower trim is NOT worth it. Don't buy.
Date published: 2025-09-04
Rated 5 out of 5 by from Delta shower fixtures Quality products, competitive prices
Date published: 2025-02-10
Rated 5 out of 5 by from Delta makes great products Shower head works perfectly
Date published: 2025-02-06
Rated 5 out of 5 by from Water Control The shower head & water flow controls looked great & work great. The installation instructions were easy to follow
Date published: 2024-03-20
Rated 3 out of 5 by from too much plastic works fine but there is are more plastic parts than I was expecting
Date published: 2024-02-28
Rated 1 out of 5 by from Wobbly Temperature Control Knob We have had this unit installed for approximately 10 months. The temperature control knob is extremely wobbly and feels cheap. For as expensive at this shower system costs, the fit and finish of this does not hold up. Tried to contact Delta for warranty support but had a hard time getting through as there were 23 other people on hold. Left a message for call back. Will update review as more info becomes available. Tried to upload YouTube video.
Date published: 2024-02-10
Rated 5 out of 5 by from Attractive and great quality Beautiful shower trim and great quality. The dual function handle is a must!
Date published: 2024-01-04
  • y_2026, m_6, d_9, h_12
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.46
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_53
  • loc_en_US, sid_T17264, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 10ms
  • reviews, product
Q&A

How can I avoid choosing a collection with plastic trim?

For a full master bath remodel, I am considering these collections in stainless finish: Ashlyn, Dryden, Lahara, Vero. I could mix collections but I want to avoid plastic/non-metal trims. I see from some questions that Ashlyn shower trims are plastic, but Delta specs don't give that detail on any of the above. I need 2 sink faucets, Roman tub faucet with HS, thermostatic shower & diverter trims, fixed shower head and handshower on bar. Can you tell me which collections of above listed do not have plastic trims?
Asked by: Dee
Hi Dee, Thank you for your question! None of our tub/shower trims are all metal. Our trims are composed of a mixture of metal and non metallic parts. Best regards, Brandis
Answered by: DeltaFaucet7
Date published: 2024-03-28

I purchased the R10000-UNWSHF - will it work with this shower head and valve trim kit?

Asked by: Tracie
Hi, Tracie! Thank you for your question. The Delta Monitor T17264 shower trim kit does work with the Delta MultiChoice Universal R10000-UNWSHF rough valve body. Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2024-03-28

arm/elbow and trim piece

Can you please help me find the matching arm/elbow and round trim piece as shown in the picture? Thank you!
Asked by: optout2015
Hi optout2015, Thank you for your question! The shower arm and flange for this model are part number RP6023SS and RP6025SS. http://www.deltafaucet.com/repairparts/details/rp6023.html?repairPartWizard=true http://www.deltafaucet.com/repairparts/details/rp6025.html?repairPartWizard=true Thanks, Jon
Answered by: DeltaFaucet3
Date published: 2024-03-28

removable heads

For shower heads like this, do you make attachable shower heads?
Asked by: Trista
Hi Trista, Thank you for your question. You can add a removable hand shower by first installing a diverter mount such as the U4920-RB-PK. http://www.deltafaucet.com/bath/details/u4920-rb-pk.html Thanks, Jon
Answered by: DeltaFaucet3
Date published: 2024-03-28

Can this faucet be used in California?

I tried purchasing this shower faucet trim from Home Depot. They do not ship this item to California. It is against California regulations. Do you know why that is? thank you.
Asked by: Nadia
Dear Nadia, Thank you for your question. Yes, the Ashlyn 17 Series Shower Trim T17264-SS can be shipped to the state of California. Delta shower heads and hand showers that meet WaterSense requirements use between 20 and 40% less water than the industry standard (1.5 or 2.0 gpm versus the standard of 2.5 gpm), while our lavatory faucets that meet WaterSense requirements use 32% less (1.5 gpm versus the standard of 2.2gpm) without compromising performance. All perform as well or better than their less efficient counterparts. https://www.deltafaucet.com/for-professionals/product-resources/california-product-information https://www.deltafaucet.com/company/delta-water-saving-solutions-1/watersense Best regards, Tanya
Answered by: Tanya
Date published: 2017-06-26

How do I adjust the hot water setting? Will not move all the way to the left for additional hot water.

Asked by: Kentucky01
Thank you for your question, parnettuk! Information on setting the rotational limit stop can be found in the maintenance and installation manual in Step 4, page 7. If you need assistance making this adjustment, please feel free to contact us back, as we would be happy to help. You can reach our customer service team at 1-800-345-3358, Monday through Friday from 7 am to 7 pm and Saturday 8 am to 5 pm CST or by emailing customerservice@deltafaucet.com. https://media.deltafaucet.com/MandI/X00076652_G.pdf Best regards, Edward
Answered by: Delta Faucet
Date published: 2024-03-28

Will the shower arm RP46870BL work with these flanges and head?

Asked by: Yena
Hello Yena, Thank you for contacting Delta Faucet Company! I am sorry this information was not readily available, and I am happy to help you! Our Delta Faucet DELTA® 16" Shower Arm MODEL#: RP46870BL is a universal shower arm, which will attach to our flanges and shower heads. Thank you for being a loyal Delta customer. Please contact us back for any further questions. Best Regards, Nicole
Answered by: Delta7
Date published: 2024-03-28

I have the Victorian monitor 17 from years ago (valve with white top). will this fit on the that set up?

Asked by: chad
Hello, Thank you for your question! Yes, this will install onto your existing valve. Please reach out with further questions! Best Regards, Tim Digital Communications Specialist
Answered by: Customer Service
Date published: 2024-10-16
  • y_2026, m_6, d_9, h_12CST
  • bvseo_bulk, prod_bvqa, vn_bulk_3.0.46
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_27
  • loc_en_US, sid_T17264, prod, sort_[SortEntry(order=HAS_STAFF_ANSWERS, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getContent, 27ms
  • questions, product
PART LIST

PART LIST

Image-Master-RP196

Delta®

Delta® Screws (2) - Escutcheon Trim

List Price: $10.10 - $19.80
Free Ground Shipping All Orders $49+

RP196

Image-RP46463 Secondary Image-RP46463

Delta®

Delta® Cartridge Assembly - MultiChoice® Universal - 17 Series

List Price: $154.00
Online Price: $123.20
Free Ground Shipping All Orders $49+

RP46463

3.46 46
Image-RP23336

Delta®

Delta® O-Ring - Large - All Monitor® Series

List Price: $7.70
Online Price: $6.16
Free Ground Shipping All Orders $49+

RP23336

5.00 5
Image-Master-RP6023

Delta®

Delta® Shower Arm

List Price: $43.65 - $109.60
Free Ground Shipping All Orders $49+

RP6023

Image-Master-RP6025

Delta®

Delta® Flange - Shower

List Price: $23.10 - $36.90
Free Ground Shipping All Orders $49+

RP6025

Image-Master-RP77162

Ashlyn®

Ashlyn® Escutcheon - 17 Series

List Price: $87.85 - $129.15
Free Ground Shipping All Orders $49+

RP77162

Image-Master-RP77163

Ashlyn®

Ashlyn® Metal Lever Handle Set - Bathroom

List Price: $84.40 - $126.45
Free Ground Shipping All Orders $49+

RP77163

Image-RP32105

Delta®

Delta® Screw - Handle - Monitor® 17 Series

List Price: $11.55
Online Price: $9.24
Free Ground Shipping All Orders $49+

RP32105

1.00 1
Image-Master-RP77164

Ashlyn®

Ashlyn® Temperature Knob & Cover - 17 Series

List Price: $36.65 - $54.75
Free Ground Shipping All Orders $49+

RP77164

Image-RP46073

Delta®

Delta® Cartridge Adapter - MultiChoice® 17 Series

List Price: $24.90
Online Price: $19.92
Free Ground Shipping All Orders $49+

RP46073

3.89 9
Image-Master-RP77092

Ashlyn®

Ashlyn® Tub Spout - Non-Diverter

List Price: $139.90 - $204.15
Free Ground Shipping All Orders $49+

RP77092

Image-RP12630

Delta®

Delta® Screws (2) - Extra Long - Escutcheon Trim

List Price: $18.45
Online Price: $14.76
Free Ground Shipping All Orders $49+

RP12630

4.09 11
Image-Master-RP50880

Delta®

Delta® Trim Sleeve - 17 Series

List Price: $25.10 - $52.80
Free Ground Shipping All Orders $49+

RP50880

Image-RP32102

Delta®

Delta® Rotational Limit Stop - 17 Series

List Price: $7.70
Online Price: $6.16
Free Ground Shipping All Orders $49+

RP32102

3.00 3
* Actual pricing may vary and is determined by the selling retailer/wholesaler/dealer.
